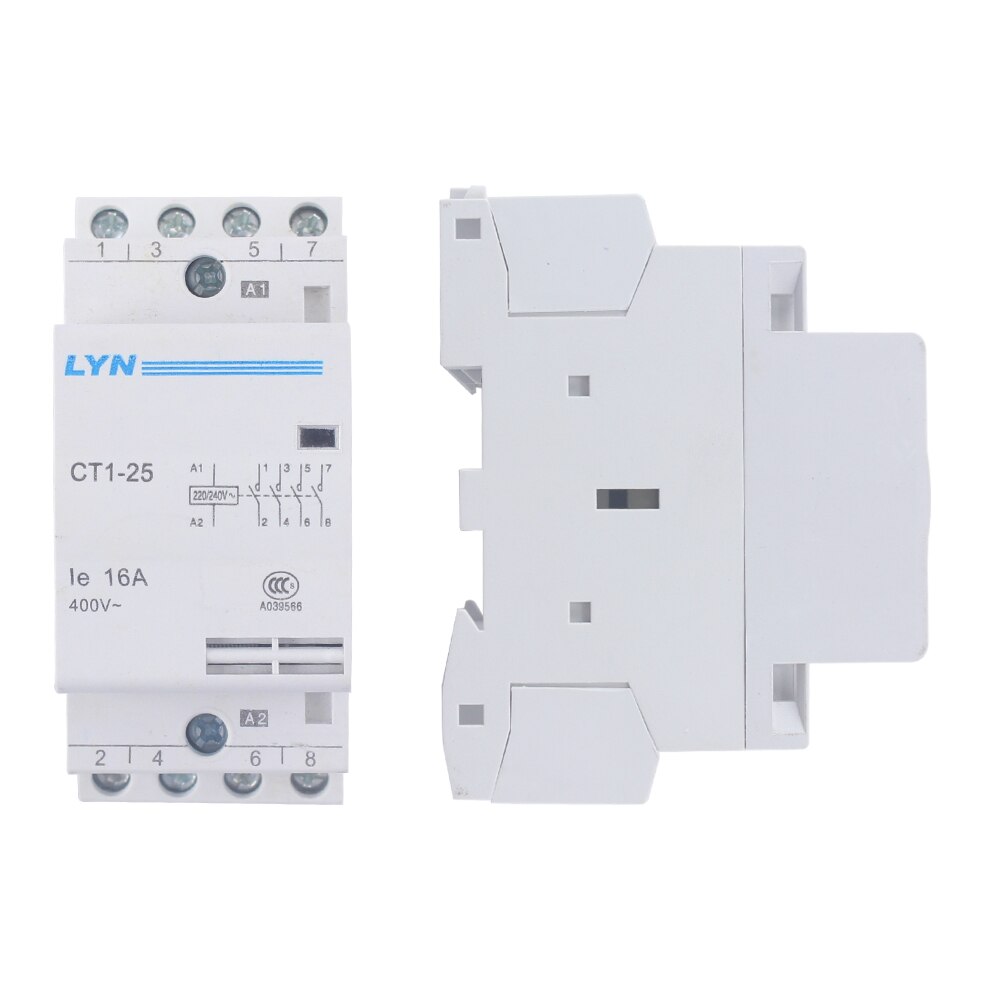

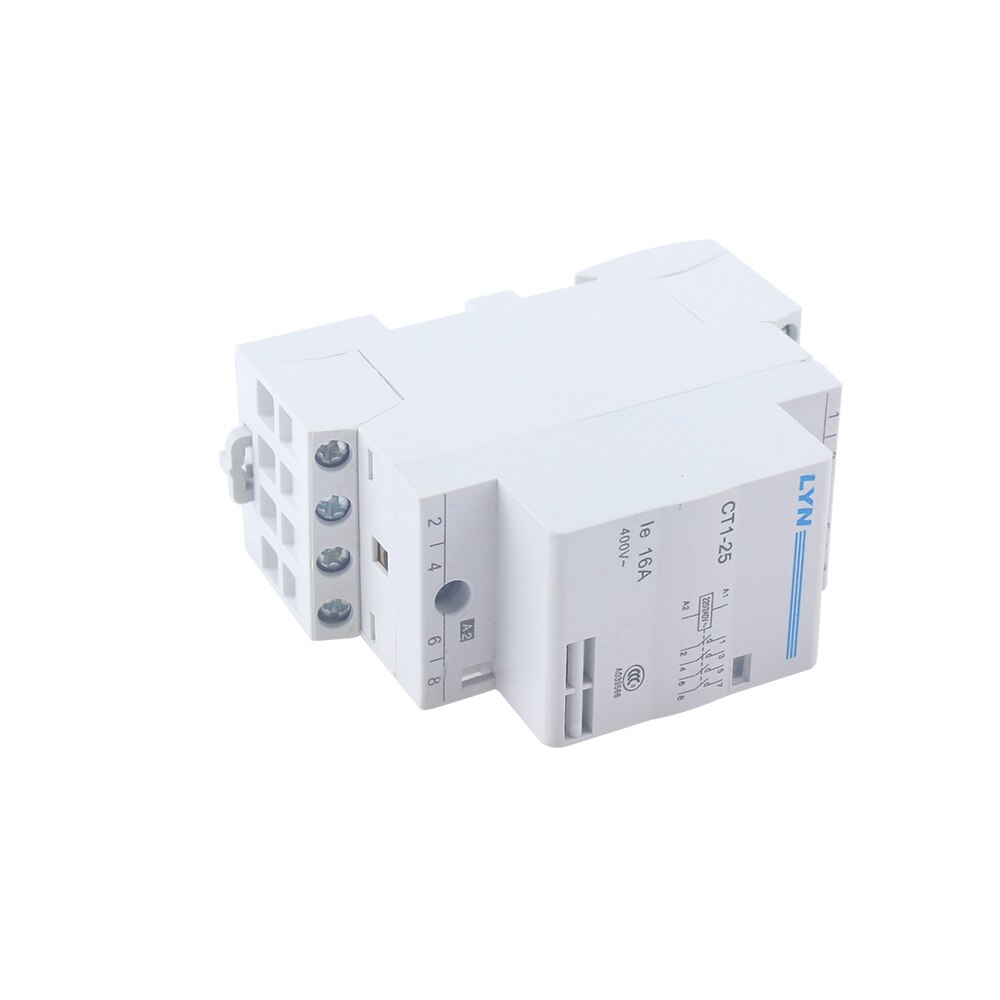

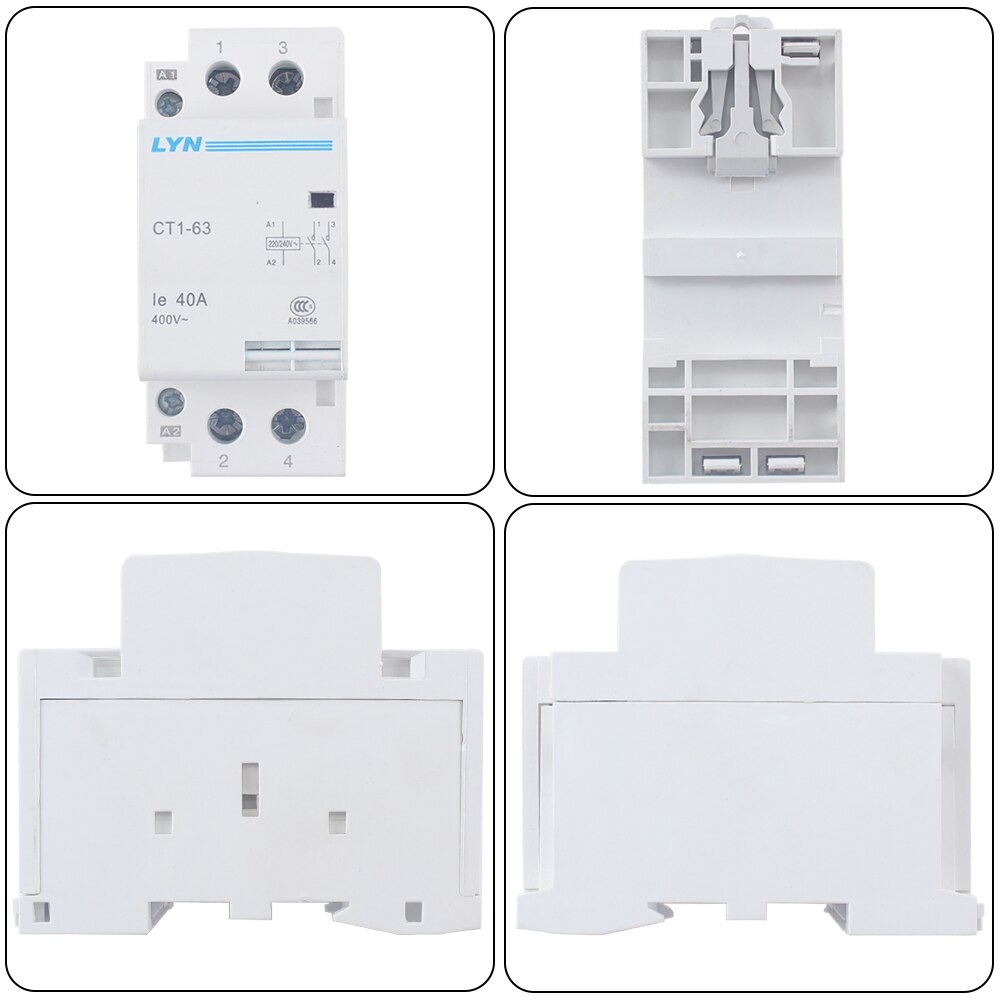

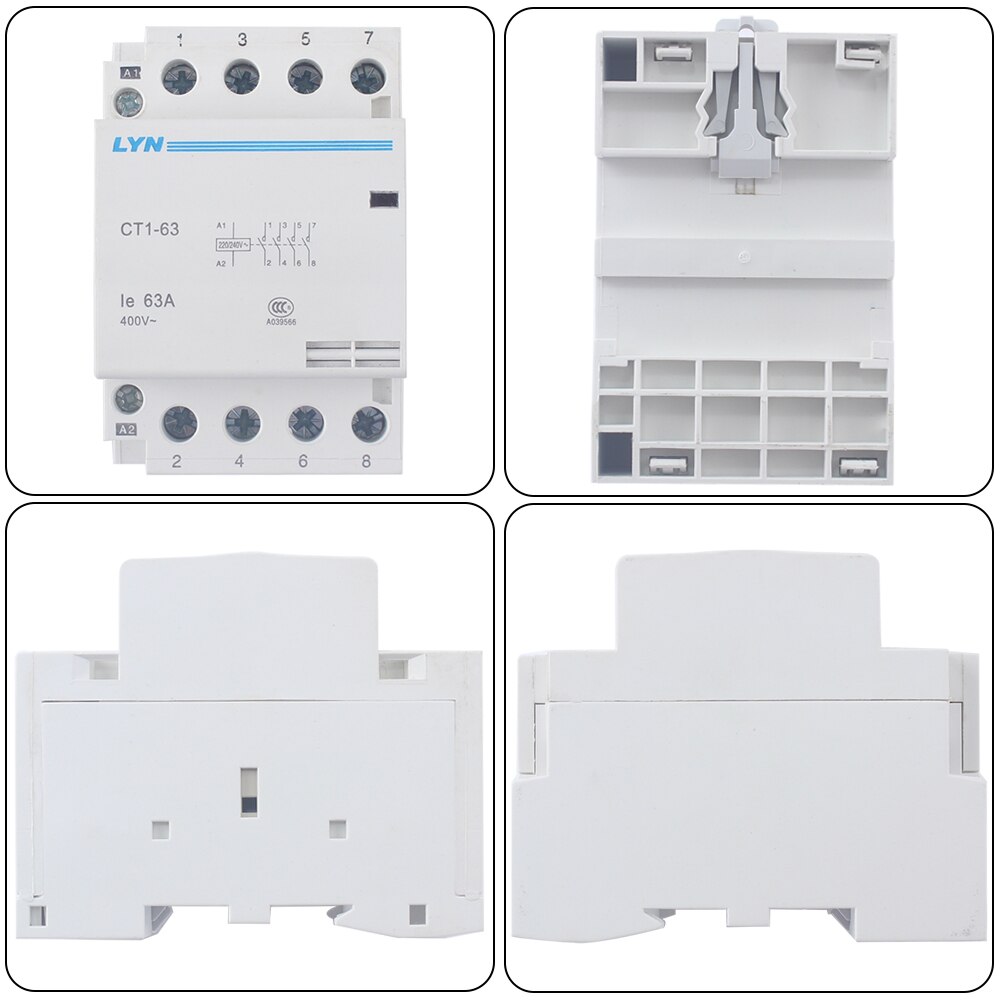

auxiliar de partida KOHTAKTOP CT1-25 16A 25A 20A 2P 2NO 4P 4NO CT1-63 32A 40A 63A 230v 50or60HZ Din rail Household AC Contactor
SALE
ID: 27690

auxiliar de partida KOHTAKTOP CT1-25 16A 25A 20A 2P 2NO 4P 4NO CT1-63 32A 40A 63A 230v 50or60HZ Din rail Household AC Contactor

0.0 (1 votes) | 2 orders
Price: US $1399.00 - 1850.44 / piece
Discount Price:
US $ 1119.64 - 1480.56 / piece
-20%
Quantity

Buy Now
Add to Cart
The breadth of the CT1 contactor range satisfies most application cases.
CT1 contactors can be combined with auxiliary control, protection and indication functions
Specifications:
1.poles:1,2,3,4
2.Electric ratings Current: up to 20A, 25A, 32A, 40A, 63A,
                                 Voltage: 220V, AC50/60Hz;
                                 Utilization category: AC-1, AC-7a, AC-7b;
                                 Standard: IEC / EN 61095
3.be used to remotely make and break the line
4.Standard control voltage (Ue):20-230V/50/60Hz
5.Pole number: 2, 4(either as main or auxiliary contacts)
6.Mechanical endurance: 10 million cycles
7.Electrical endurance: 1 million cycles
8.Ambient temperature: -25~+55 degree Celsius
9.Connection capacity: tunnel terminal for cables up to 25 square millimeters
10. Features
   a.Compact design and modularization design;
   b.  Insulation material with excellent performances has been adopted to enhance the operation security to a great extent;

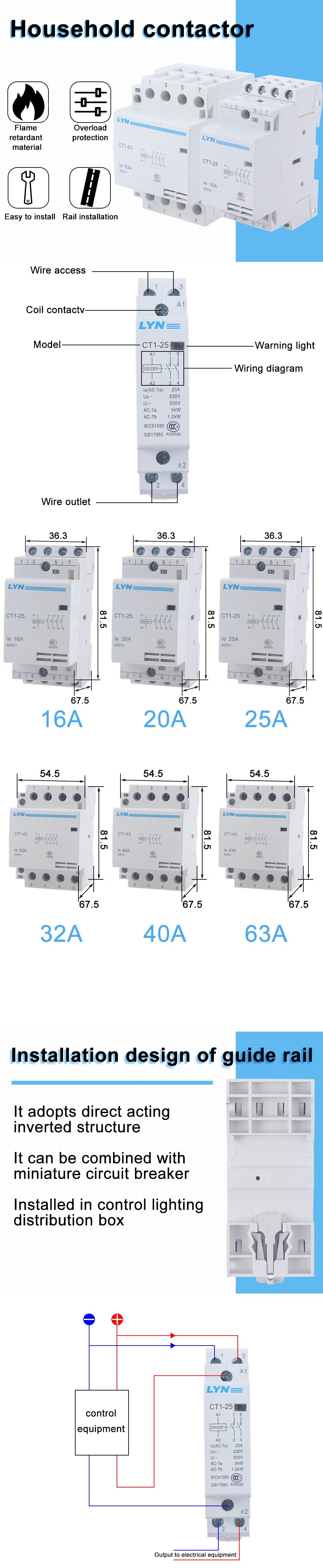

   c.  Elegant appearance. A mounting instruction diagram is appended for convenient operation;
   d.  No noise during operation."

Type

Contactor

RatingA

16

20

25

32

40

63

100

Auxiliaries

Yes

BACTs indication auxiliary

Yes

BACTc control auxiliaryBy yellow clips

Yes



Type

Rating(ln)

AC-7a

Rating(ln)

AC-7b

Control voltage

(VAC)(50Hz)

Contact

Width in 9 mm modules

1P



16A

6A

24

110

130

1NO

1NC

2

20A

7A

25A

9A

2P



16A

6A

24

110

130

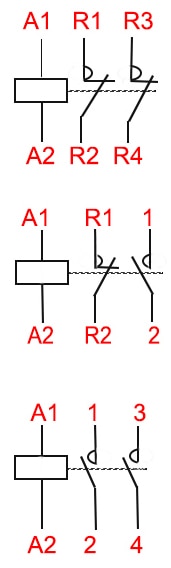

2NO 1NO+1NC 2NC

2

20A

7A

25A

9A

32A

12A

24

110

130

2NO 1NO+1NC 2NC

4

40A

18A

63A

25A

100A

-


2NO

6

3P



16A

6A

24

110

130

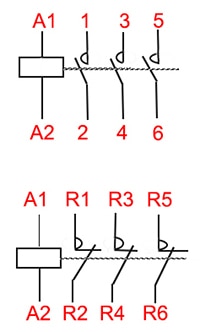

3NO

3NC

4

20A

7A

25A

9A

32A

12A

24

110

130

3NO

3NC

6

40A

18A

63A

25A

4P



16A

6A

24

110

130

4NO

4NC 2NO+2NC 3NO+1NC

4

20A

7A

25A

9A

32A

12A

24

110

130

4NO

4NC 2NO+2NC 3NO+1NC

6

40A

18A

63A

25A

100A

-

24

110

130

4NO

12

Type

Rating

Circuit

Lenght tripping

Tightening torque

Copper cables

Rigid

Flexible or ferrul

PZ1:4 mm

16-100A

Control

9mm

0.8N.m

1.5to2.5mm2; 2x1.5mm2

1.5to2.5mm2; 2x2.5mm2

16 and 25A

Power

1.5to6mm2

1 to4mm2

PZ2:6 mm

40A-63A

14mm

3.5N.m

6to25 mm2

6 to 16 mm2

100A

6to35mm2

6 to 35mm2

PZ1:4mm

-

-

9mm

0.8N.m

1.5to2.5mm2; 2x1.5mm2

1.5to2.5mm2; 2x2.5mm2

Technical data








Power circuit








1P2P Voltage rating(Ue) 3P4P

250V AC

400VAC

Frequency

50Hz/60Hz

Endurance(O-C)








Electrical

100,000 cycles

Maximum number of switching operation a day

100

Additional characteristics








Insulation vwltage(Ui)

500 VAC

Pollution degree

2

Rated impulse withstand voltage(Uimp)

2.5kV(4 kV for 12/24/48VAC)

Device only Degree of protection(IEC 60529) Device in modular enclosure

IP20

IP40

Operating temperature

-5° to +6°

Storage temperature

-40° to +70°

Tropicalization(IEC 60068-1)

Treatment 2(relative humidity 95% at 55°)

ELSV compliance(Extra Low Safety Voltage)for 12/24/48vac versions

The product control conforms to the SELV(safety extra low voltage)requirements

Tips:ln the case of contactor mounting in a enclosure for which the interior temperature is in range detween 50°and 60°,it is necessary to use a spacer, between each contactor.




  • is_customized: Yes
  • Model Number: CT1-25 CT1-63 2P 4P
  • Main Circuit Rating Voltage: Other
  • Phase: 1
  • Number of Pole: 2
  • Electricity Type: AC

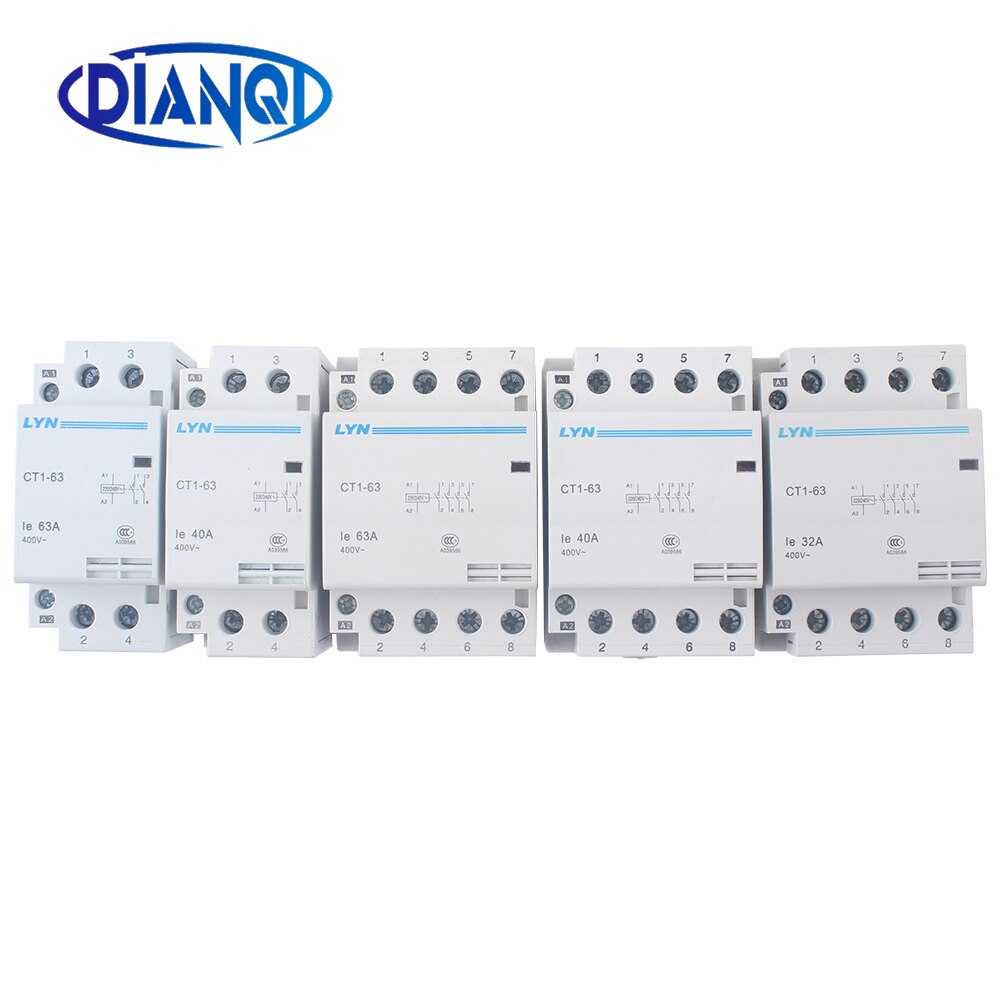

  • Brand Name: DIANQI
  • Origin: Mainland China
