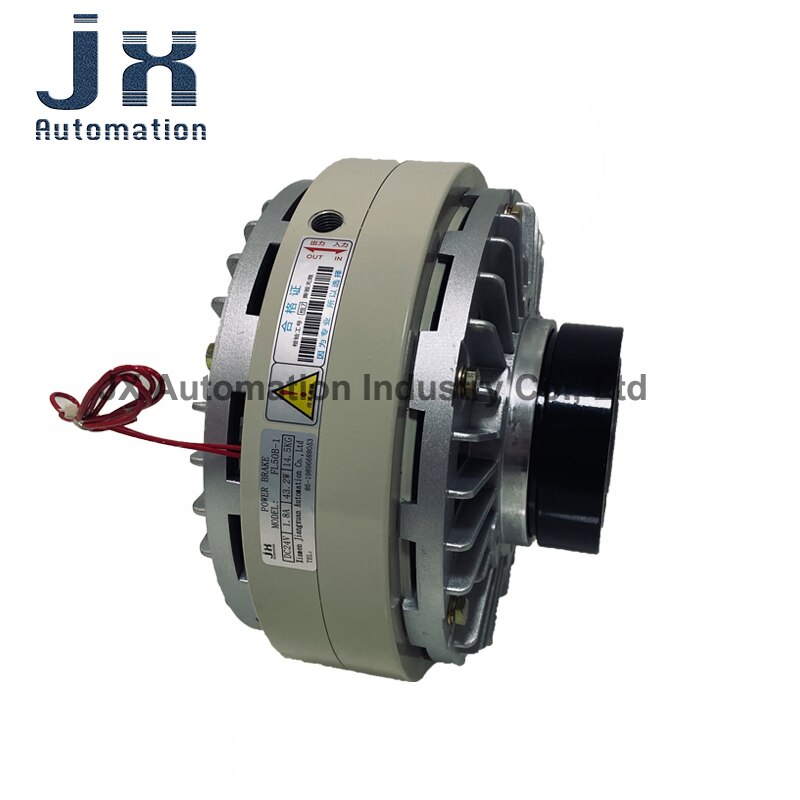

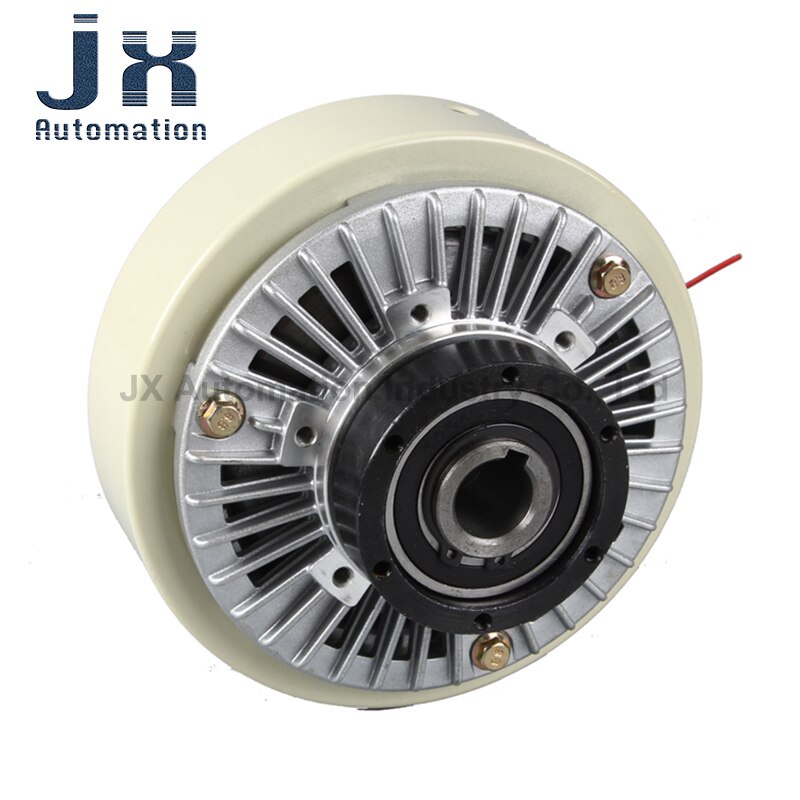

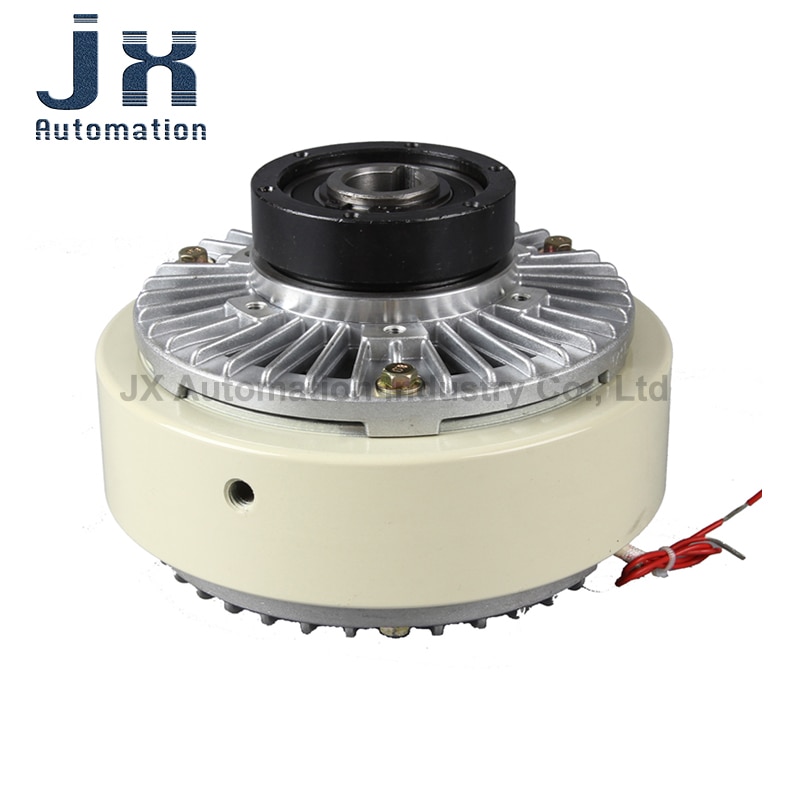

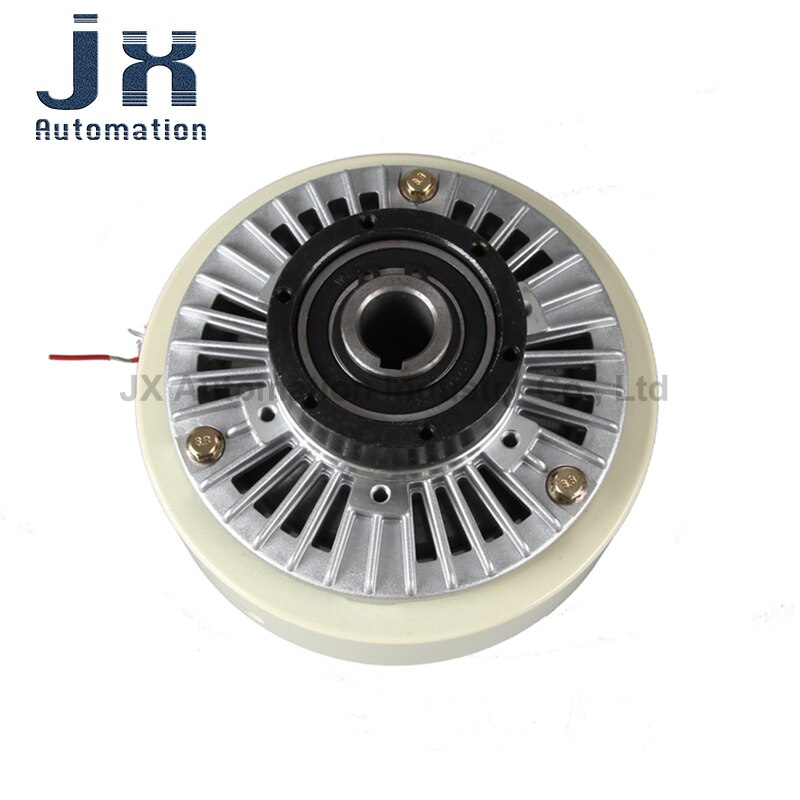

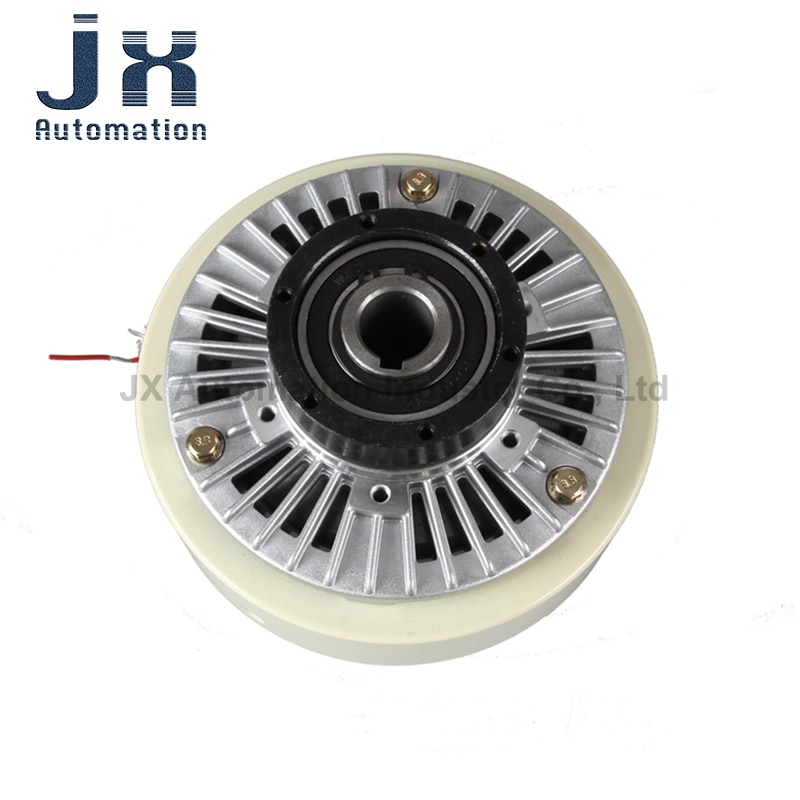

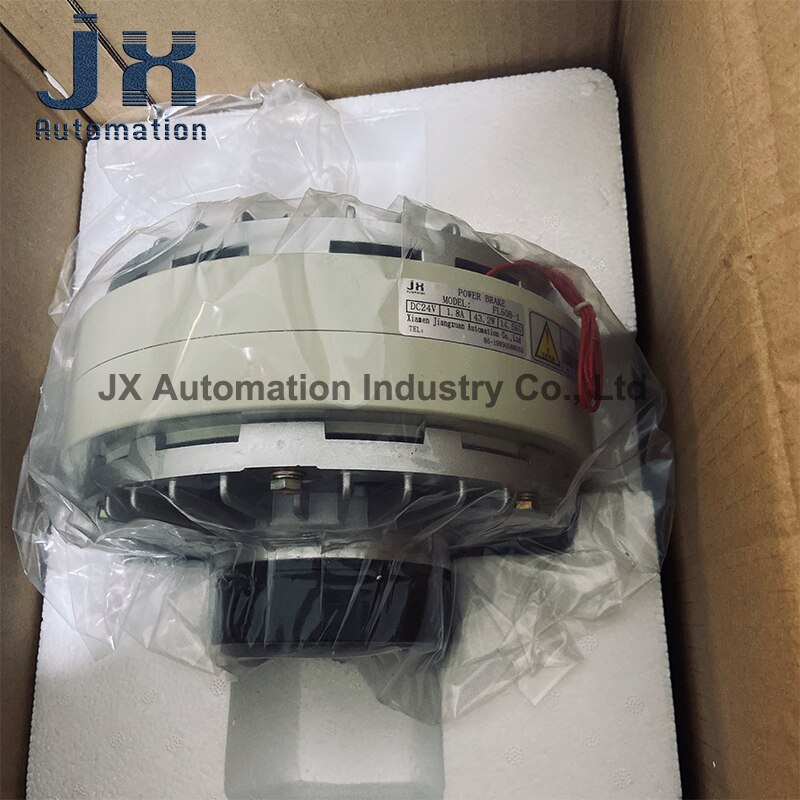

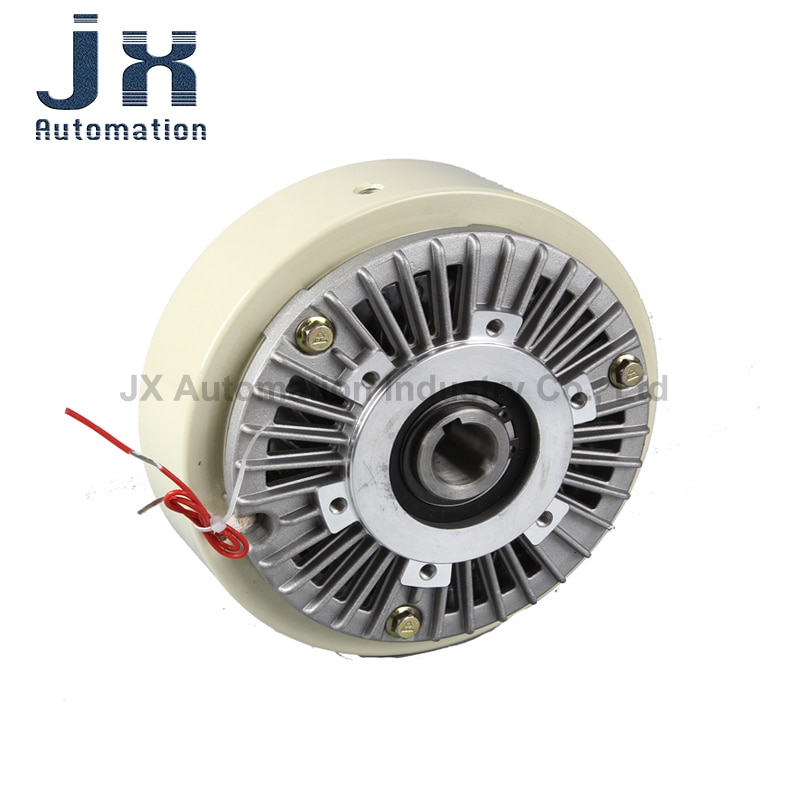

Automatic Control Element 50N.M /5KG Hollow Shaft Magnetic Powder Clutch FL50B-1 for Cutting Machine
5.0 (1 votes) | 4 orders
Price:
US $975.34
/ piece
Discount Price:
US $
927.34
/ piece
-5%
- Rated Torque
The magnetic powder clutch is a combination of a transmission unit (input shaft) and a driven unit (output shaft). The space between the two sets of units is filled with granular magnetic powder (with a space of about 40 microns). When the magnetic coil is not conductive, the torque will not be transmitted from the drive shaft to the driven shaft, but if the coil is electromagnetically energized, the magnetic powder will be attracted by the magnetic force to produce hardening phenomenon, and the torque will be transmitted between successive sliding .
Features:
(1) High-precision torque control The torque control range is very wide, and the control precision is high, the transmission torque and the exciting current are in the correct ratio, and high-precision control can be realized.
(2) Excellent durability and long life. The use of alloy magnetic powder with heat resistance, wear resistance, oxidation resistance and corrosion resistance has a long life.
(3) Stable constant torque characteristics The magnetic powder has good magnetic characteristics, and the binding force between the particles is stable, and the sliding torque is very stable, regardless of the relative number of revolutions, and can maintain a constant torque for a long time.
(4) Continuous sliding operation uses a cooling structure with excellent heat dissipation effect and uniform thermal deformation, coupled with the high heat resistance of the magnetic powder, allowing large connection and braking power and sliding power, and smooth sliding operation without causing vibration.
(5) The connection is smooth, the impact is very small when there is no impact, and it can start and stop smoothly without impact. Moreover, the resistance torque is extremely small and will not cause useless heat generation.
(6) Suitable for high-frequency operation with quick response and special heat dissipation structure, suitable for high-frequency operation.
(7) Lightweight, maintenance-free, long-life, compact and lightweight, use high-temperature resistant coils and special grease bearings, and special wear-resistant treatments are applied to the armature that is prone to wear to extend the service life.
Usage: 1. Buffer start and stop: use the smooth and constant torque characteristics of the connection to buffer the effect, that is, stable acceleration and peak torque without impact. 2. For continuous sliding and tension control 3. For torque limiter 4. For high-speed response 5. For power absorption 6. For positioning stop 7. For simulated load
Scope of application: Printing machinery, paper machinery, bag-making machinery, paper-making machinery, wire and cable machinery, winding machinery, wire machinery, packing and bagging machinery, textile machinery, weaving machinery, woodworking machinery, testing equipment, simulated load use, various Precision tension control of machinery, general industrial equipment, and other general industrial machinery.
- Voltage: 24V
- Material: Aluminium-copper Alloy
- Model Number: FL50B-1
- Certification: CE
- Origin: Mainland China
- Type: Hollow Shaft Magnetic Powder Clutch
