Universal Automatic Sliding Door Controller, Auto Door Controller, Sliding Door Controller,
355.36 $
ID: 64911
Quantity

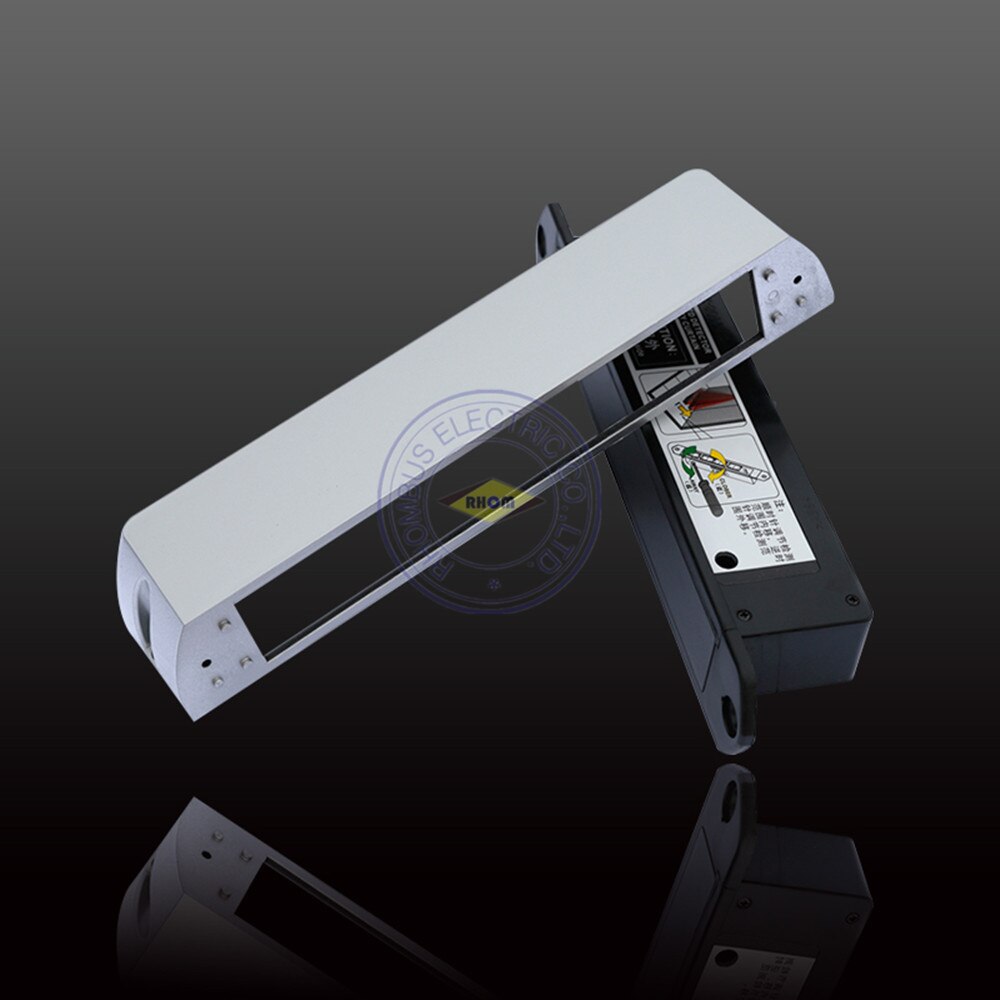

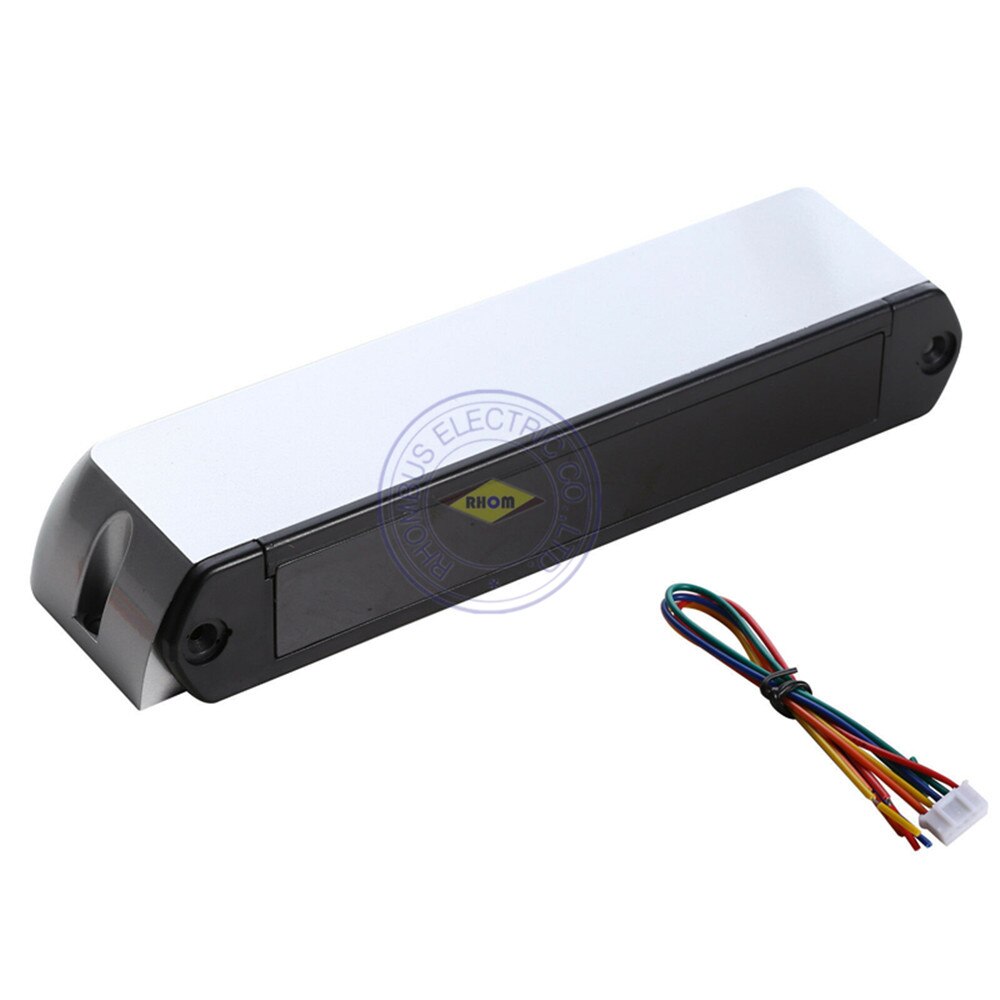

Anti-pinch Infrared presence curtain sensor for Automatic sliding door
0.0 ( votes)
Price:
US $
150.92
/ piece
- Ships From
Product application
The presence curtain sensor is specially used for area presence detection of auto sliding doors and can detect any human body or object in the sliding motion area, to avoid getting clamped.
General characteristics
- It has the mutual sensing resistance function with adjacent sensors even it is installed next to the equipment, misoperation will not generate.
- It adopts the background self-learning function, boot auto learning background state, intelligent automatic adapt to various scenarios. It can realize automatic and real-time precision compensation for backing background working time and can carry out self-correction for various external factors change self-correction, so that the sensor can work in a reliable way for a long term.
- The presence curtain sensor is suitable for the presence detection of auto sliding doors or other occasions, and can accurately detect the presence of any human body and the object in the sliding door motion area, to avoid getting clamped, and it also can provide the human body presence signal to other devices.

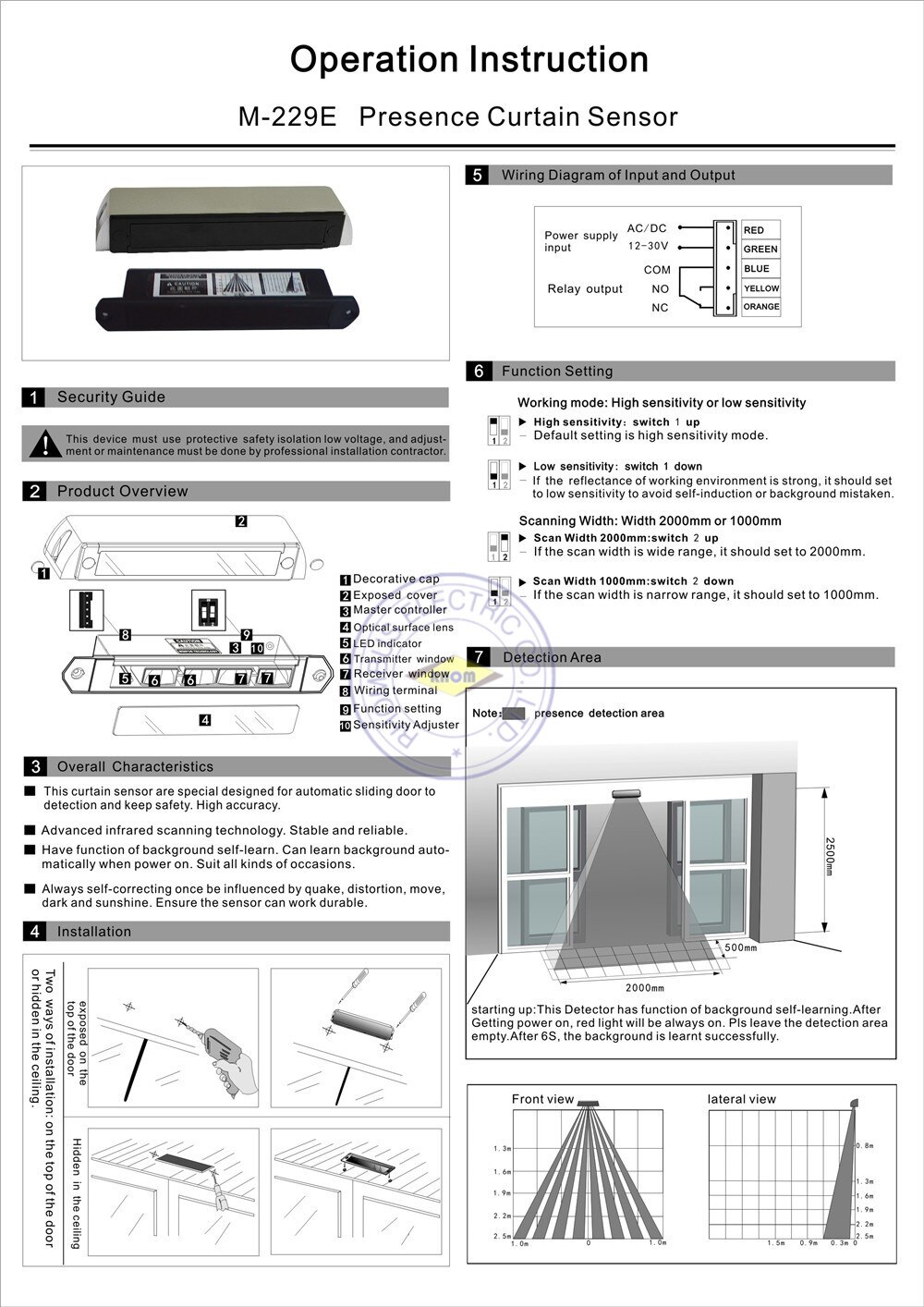

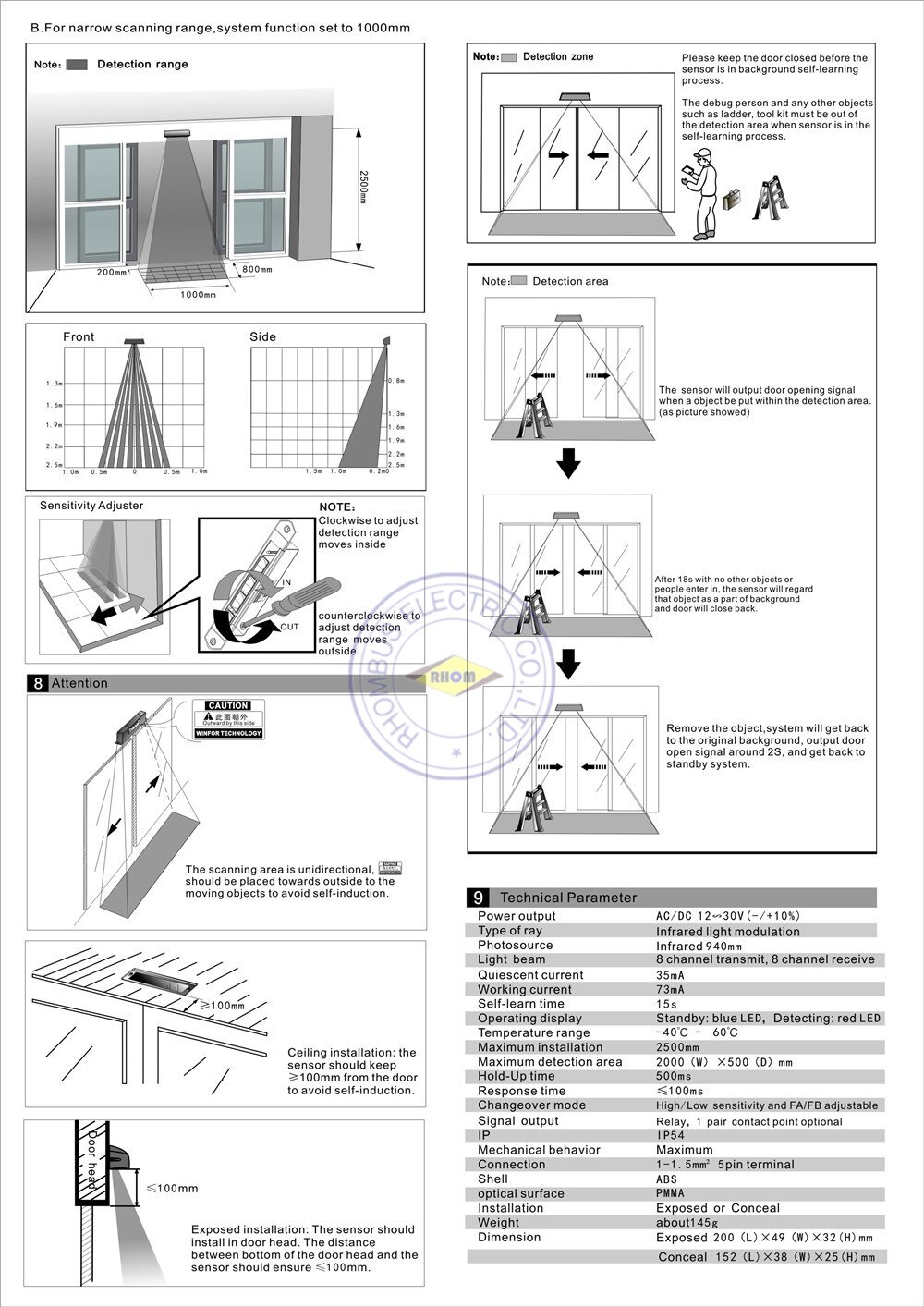

Technical parameters
- Voltage：AC/DC 12-30V
- Type of ray: Infrared light modulation
- Photosource: Infrared 940mm
- Light beam: 8 channel transmit, 8 channel receive
- Quiescent current:35mA
- Working current: 73mA
- Self-learn time: 15s
- Operation display: Standby--blue , checking--red
- Maximum mounting height: 2500mm
- Detection area: 2000（Wide）*500（Depth）mm
- Hold-up time:500ms
- Response time: <=100ms
- Changeover mode: High/Low sensitivity and FA/FB adjustable
- Waterproof grade: IP54
- Connection:1-1.5mm2 5pin terminal
- Shell:ABS
- Optical surface:PMMA
- Installation: Exposed or Conceal
- Weight: approx. 145g
- Size of frame：200（L）*49（W）*32（H）mm
- Hidden hole size：152（L）*38（W）*25（H）mm
Package Included:
- 1 x Presence Curtain Detect Sensor
- Model Number: M-219E
- Voltage: AC/DC 12-30V
- Type of ray: Infrared light modulation
- Photosource: Infrared 940mm
- Light beam: 8 channel transmit, 8 channel receive
- Operation display: Standby--blue , checking--red
- Maximum mounting heigh: 2500mm
- Detection area: 2000(Wide)*500(Depth)mm
