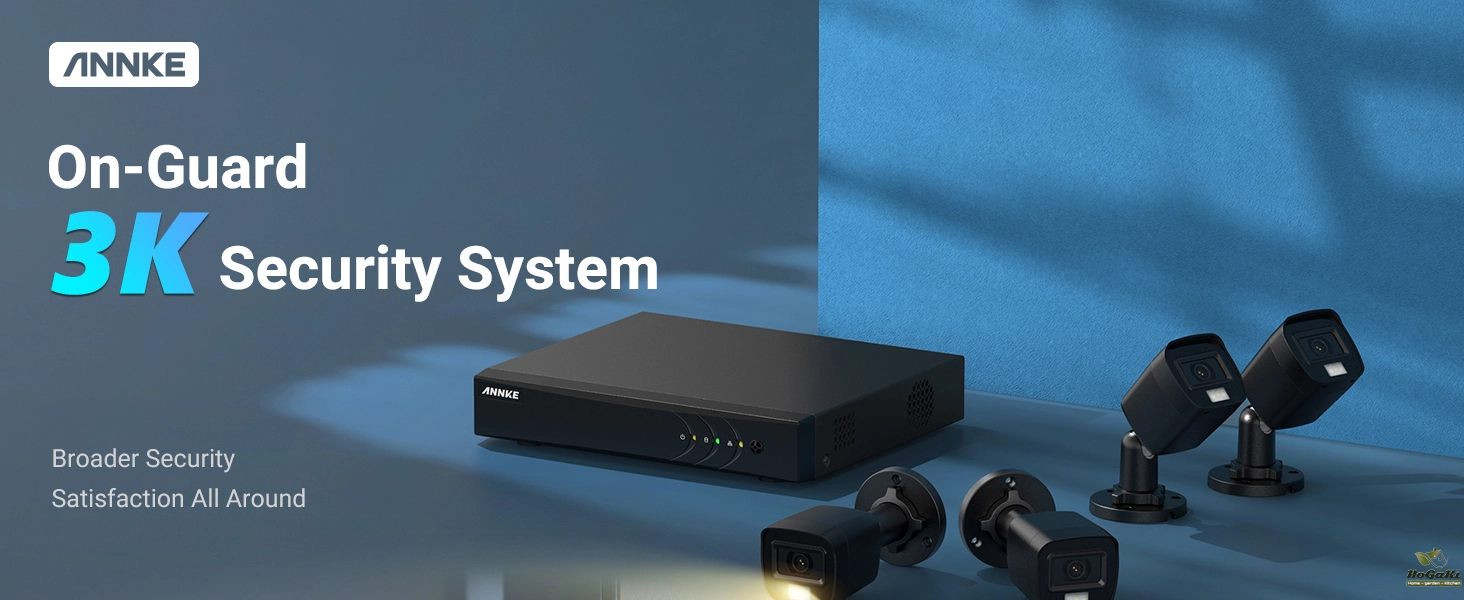

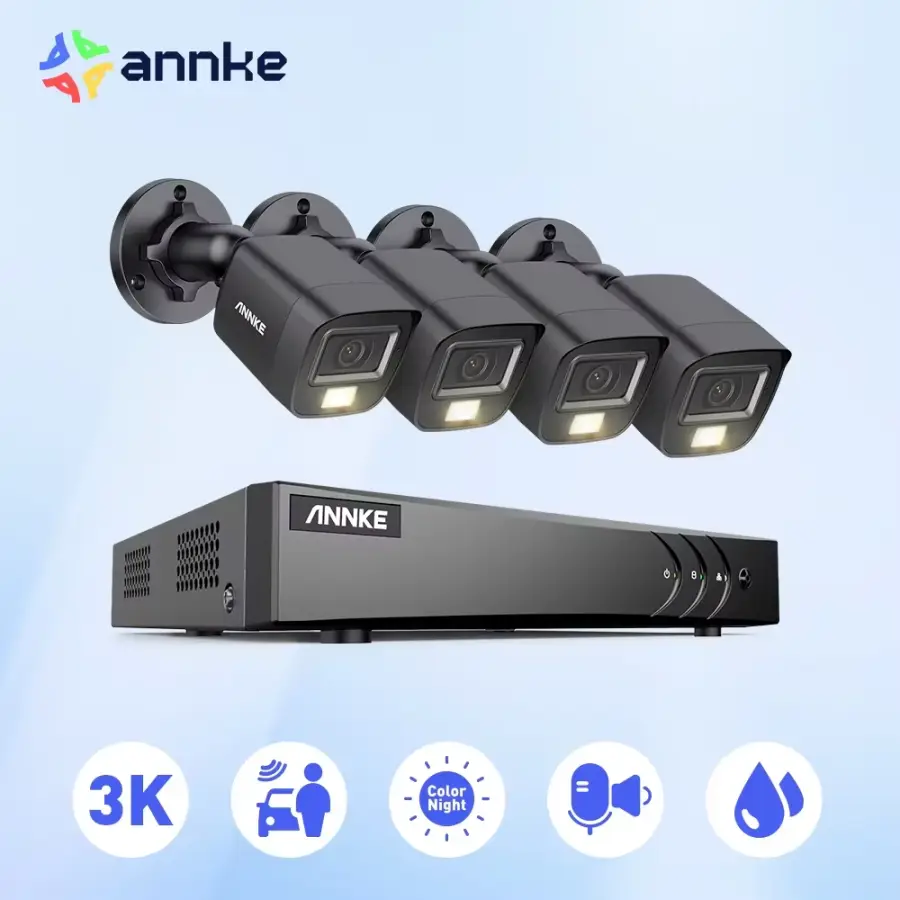

8CH 6MP Wireless Camera Dual Lens WIFI Security System Kit NVR Recorder Set IP Camera 2-Way Audio Video Surveillance System
1,014.72 675.84 $
DVR Features:
· Up to 3K high definition live viewing
· Up to 3K Lite recording & playback
· Advanced H.265+ Video Compression

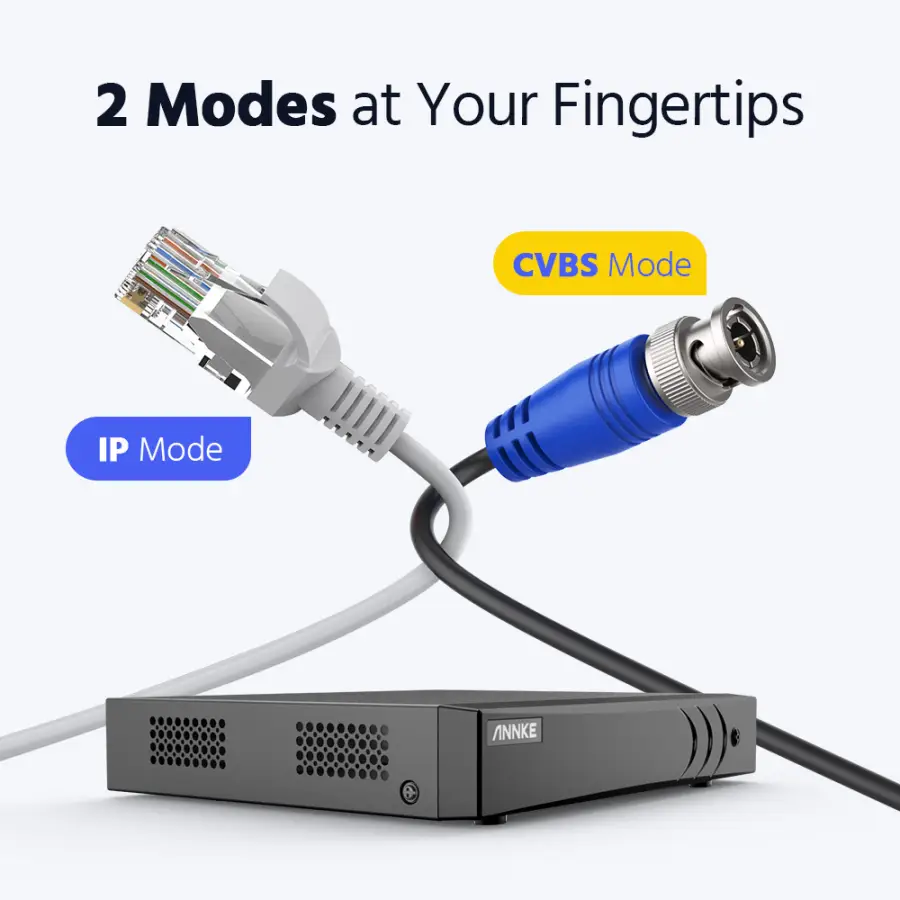

· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1
· Supports iPhone、iPad、Android mobile remote monitoring
· Deep learning based human and vehicle targets classification of Motion Detection 2.0 for all analog channels
· Quick search by object or event type
· Audio via coaxial cable

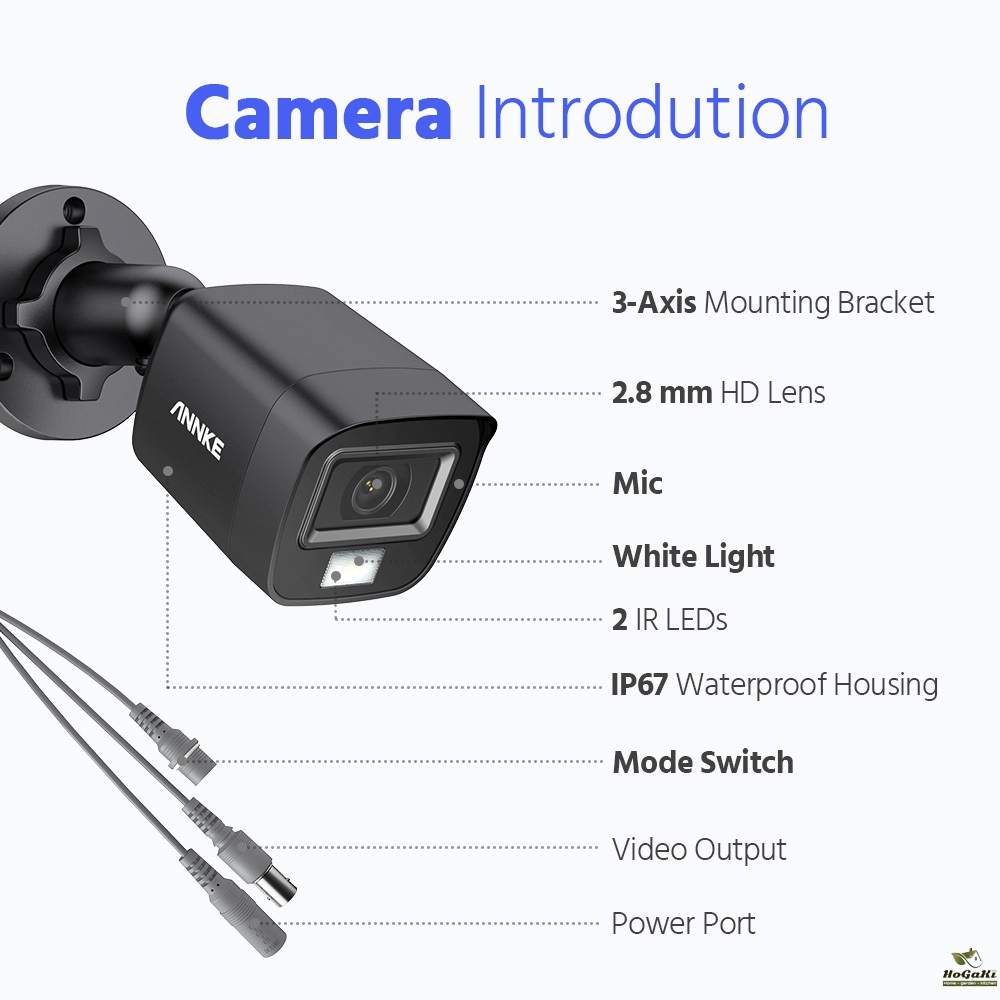

Camera Features:
*High quality imaging with 3K, 2960 × 1665 resolution
*2.8 mm fixed focal lens@F1.2
*High quality audio with audio over coaxial cable, built-in mic
*Up to 25 m IR distance for bright night imaging
*Up to 20 m white light distance for bright night imaging
*One port for four switchable signals (TVI/AHD/CVI/CVBS）

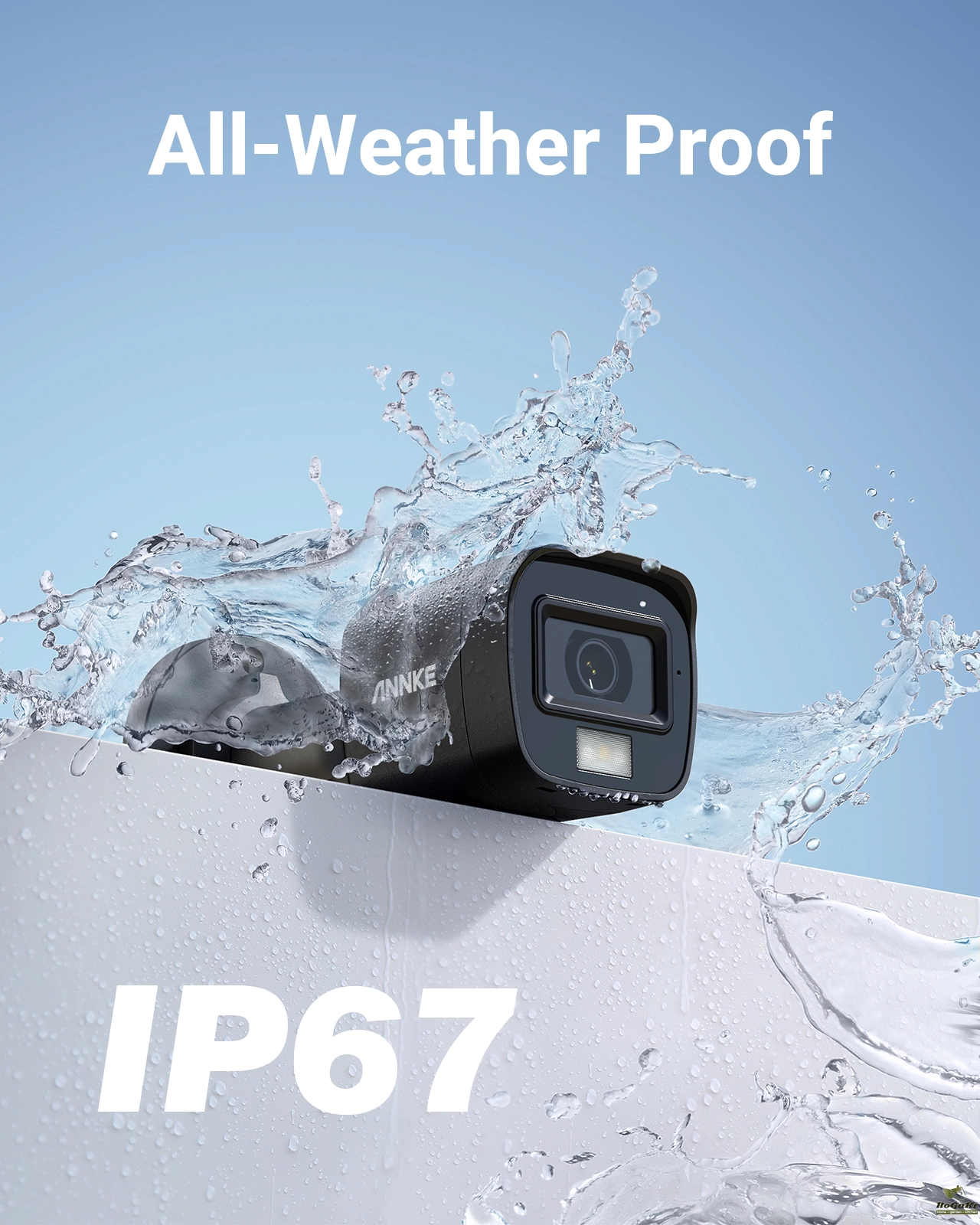

*Water and dust resistant (IP67)
3K UHD Shows Every Detail,New-Trend 3K Def.
3K outshines other cameras with lower resolution, providing vivid pictures with finer details. While 3K gives another budget-friendly choice than 4K cams, and the quality is also not far behind 4K.
Smart Dual-Light,Auto Light Brightness Control
B&W night vision turns into colot when human/vehicle is detected,Three night visions to adapt to your needs: smart light night vision, white light night vision, and IR night vision. The smart mode is the default as it can automatically turn on the color night vision once a human/vehicle is detected.
Intelligent Motion Detection
Adavanced algotithm analyzes human and vehicle at 99% accuracy which tells you real alerts via app pushes and emails. No more false alarms caused by bugs or leaves with specific zone setting.
Noise-Cancelling One-Way Audio
The built-in mic captures image and voice simultaneously to reveal the whole picture in the given area. No more mute clips to guess the real scenario.

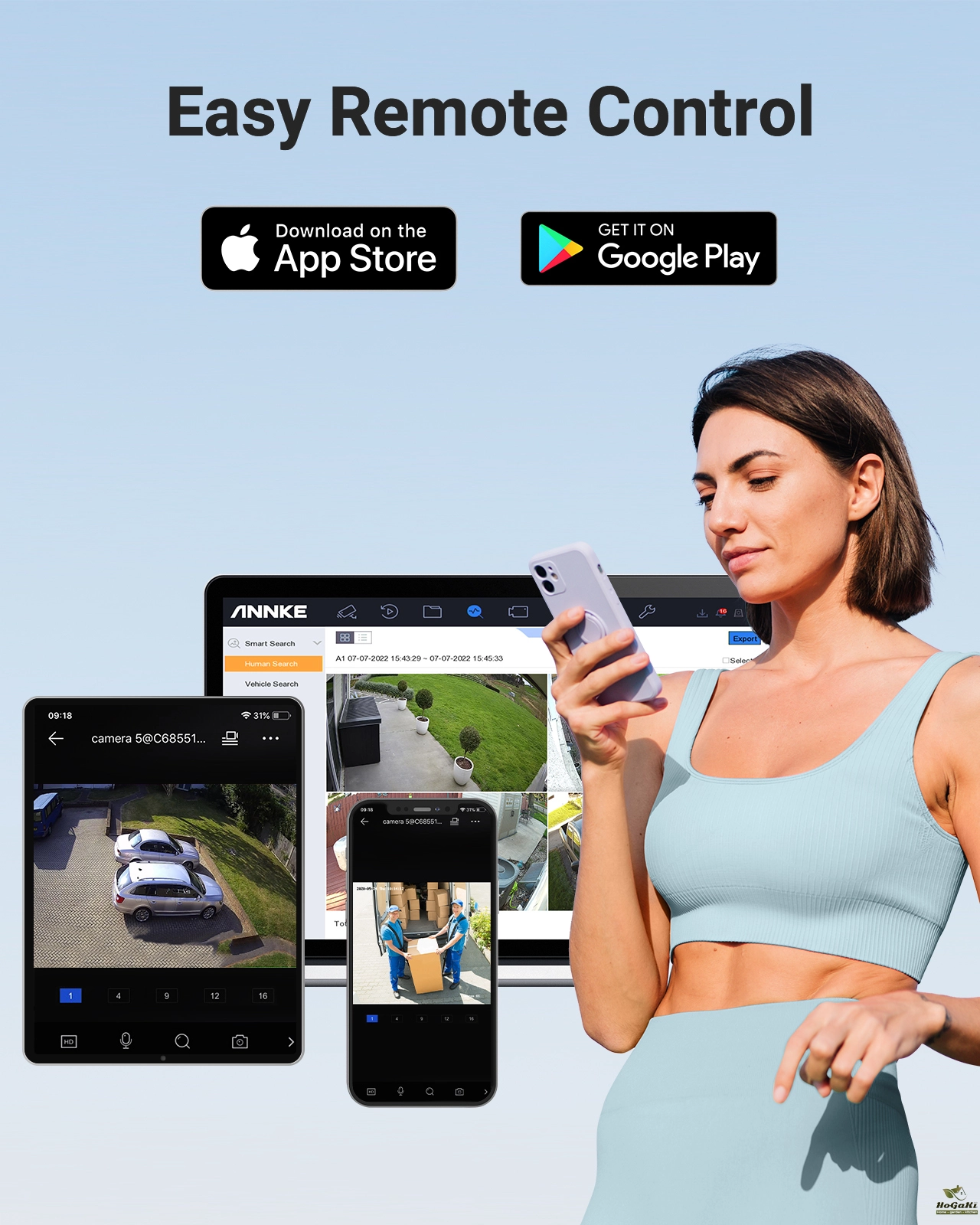

Reachable Remote Access
Smart Playback
Locate to the essentials in sec. No more time wasted on checking the time link to get the clips you need.

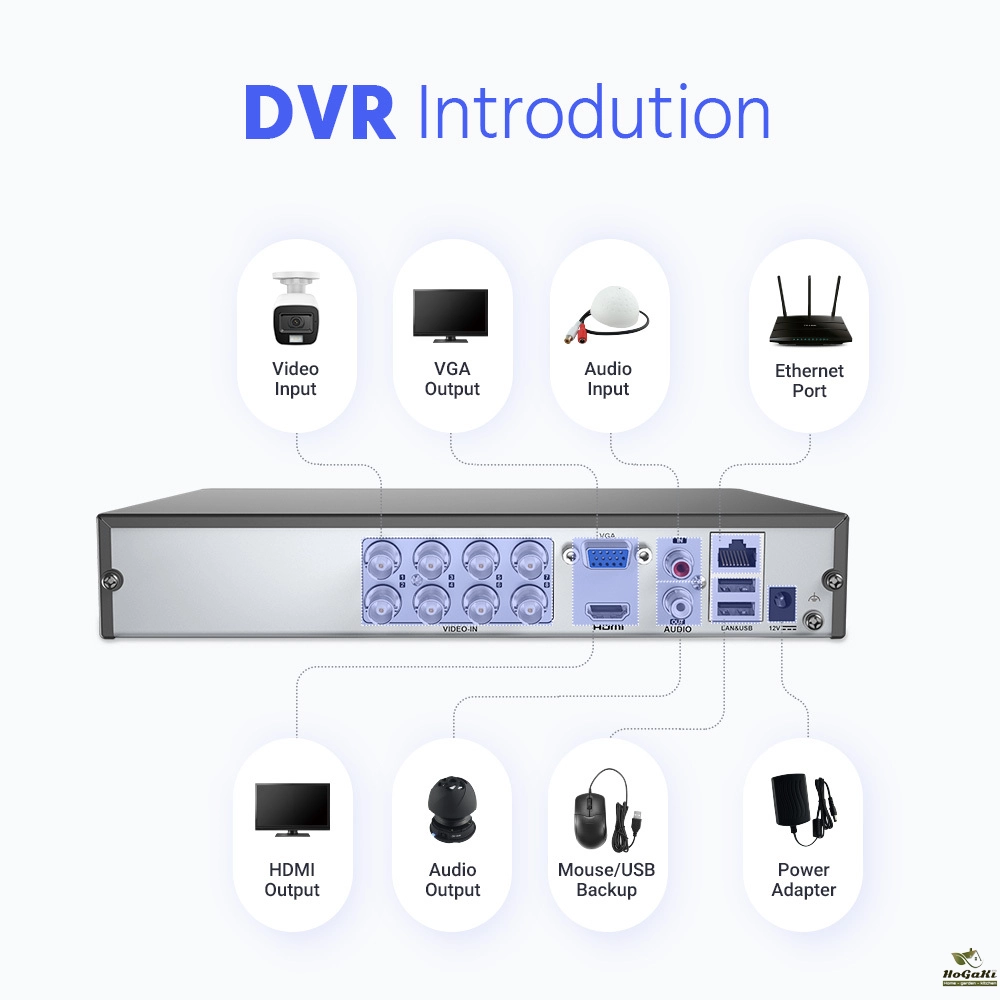

DVR | ||
Video & Audio | Video Compression | H.264+/H.264/H.265/H.265+ |
Video Input | 8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on) | |
Video Output | HDMI and VGA Up to 1080P | |
Audio Input | 1-ch RCA,8-ch via coaxial cable | |
Audio Output | 1-ch RCA | |
Supported Camera Types | Support HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p; | |
Analog HD Playback Resolution | 3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps | |
IPC Playback Resolution | Up to 6MP | |
Max Playback Channel | 2-ch | |
Protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS | |
Motion Detection 2.0 | All analog channels support human and vehicle detection to reduce false alarm | |
Hard Drive | HDD | 1 SATA interface |
HDD Capacity | Up to 10TB capacity | |
External Interface | Network interface | 1, RJ45 10M/100M self-adaptive Ethernet interface |
USB | USB2.0x2 | |
General | Operating Power | DC12V,≤ 12W (without HDD) |
Working Temperature | -14 °F – 131 °F /-10 °C – 55 °C | |
Dimensions(W x H x D) | 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) | |
Weight (without hard disk) | ≤ 1 kg (2.2 lb)(without HDD) | |
Analog HD Camera | ||
Camera | Image sensor | 3K CMOS Image sensor |
Video Resolution | 2960 (H) × 1665 (V)(16:9) | |
Signal System | PAL/NTSC | |
Frame Rate | TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps | |
Lens | 2.8mm | |
Min.Illumination | Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR | |

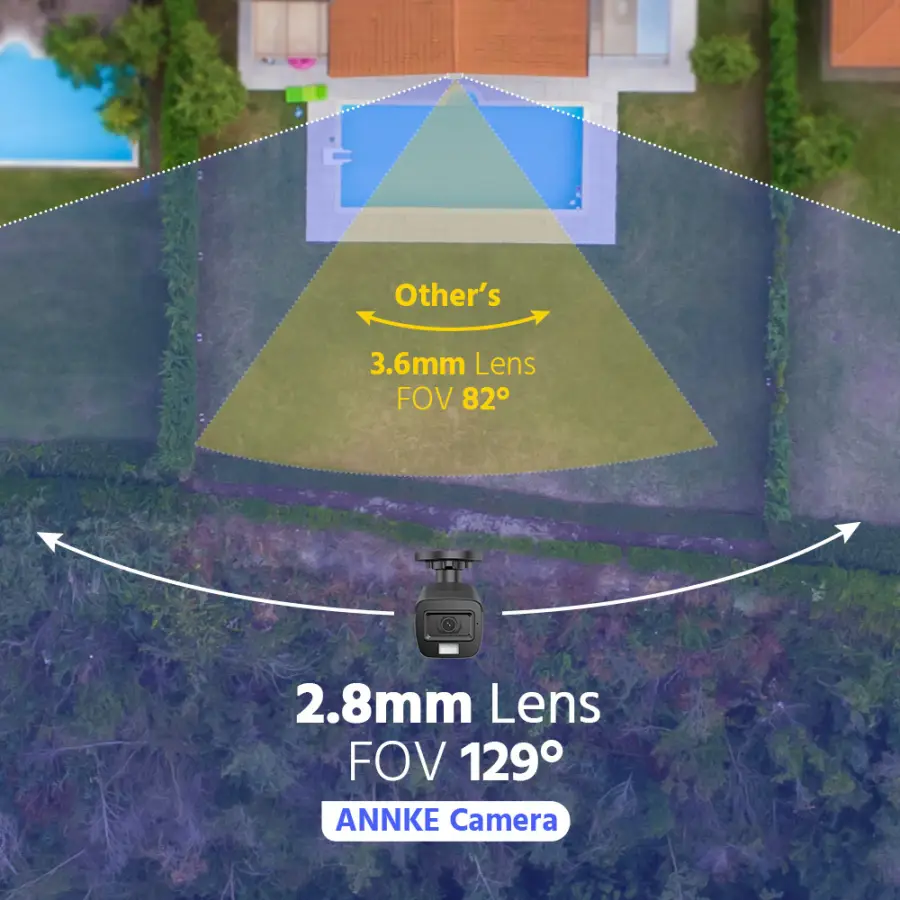

Angle of View | Horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129° | |
Supplement Light type | 1 white Light & 2 EXIR | |
Supplement Light Range | IR : Up to 25 m, white Light : Up to 20 m | |
Supplement Light Mode | IR light works normally, and it switches to white light when human or vehicle are detected at night. | |
Wide Dynamic Range | Digital WDR | |
Audio | Built-in mic | |
IR Cut Filter | Yes | |
Video Output | BNC, switchable TVI/AHD/CVI/CVBS | |
General | Housing | Plastic |
Color | Black | |
Operating Power | 12 VDC ± 25% | |
Consumption | Max. 2.9 W | |
Operating Temperature | -40 °F – 140 °F /-40 °C – 60 °C | |
Indoor/Outdoor | Indoor/Outdoor | |
Weatherproof Rating | IP67 | |
Dimension (L x W x H) | 138.8 mm × 60.9 mm × 57.9 mm (5.47" × 2.4 " × 2.3") | |
Weight | Approx. 155 g (0.34 lb.) | |
Packaging Details
- Unit Type:
- Package Weight: 10.000
- Package Size: 22x33x46
- Brand Name: ANNKE
- Origin: Mainland China
- Hign-concerned Chemical: None
- Model Number: DW81KT-R4CX
- Smart home platform: Other
- Resolution: 5 MP
- PCS of Camera: 4PCS
- Cable Length: 20m
- Certification: CE
- Certification: FCC
- Video Input: 8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on)
- Video Output: HDMI and VGA Up to 1080P
- Audio Input/Output: 1-ch RCA, 8-ch via coaxial cable
- Max Playback Channel: 2-ch
- Image Sensor: 3K CMOS Image sensor
- Video Resolution: 2960*1665
- Camera lens: 2.8mm
- Wide Dynamic Range: Digital WDR
- IR Cut Filter: Yes
- Feature 1: CCTV Video Surveillance
- Feature 2: Security Camera System
- Feature 3: CCTV Cameras System H.265+
- Feature 4: SECURITY CAMERA SYSTEM
- Feature 5: camera surveillance
- Feature 6: VIDEO SURVEILLANCE SYSTEM
- Feature 7: security video system
- Feature 8: CCTV Camera System
- Feature 9: annke 5mp
- Feature 10: kit video surveillance
- Feature 11: surveillance camera system
- Feature 12: camera system
