ANENG Q1 True-RMS Digital Multimeter Esrmeter Testers Automotive Electrical Dmm Transistor Peak Tester Meters Resistor
5.0 (7 votes) | 24 orders
Price:
US $62.37 - 100.33
/ piece
Discount Price:
US $
42.79 -
63.45
/ piece
-31%
- Ships From
- Color
-
-

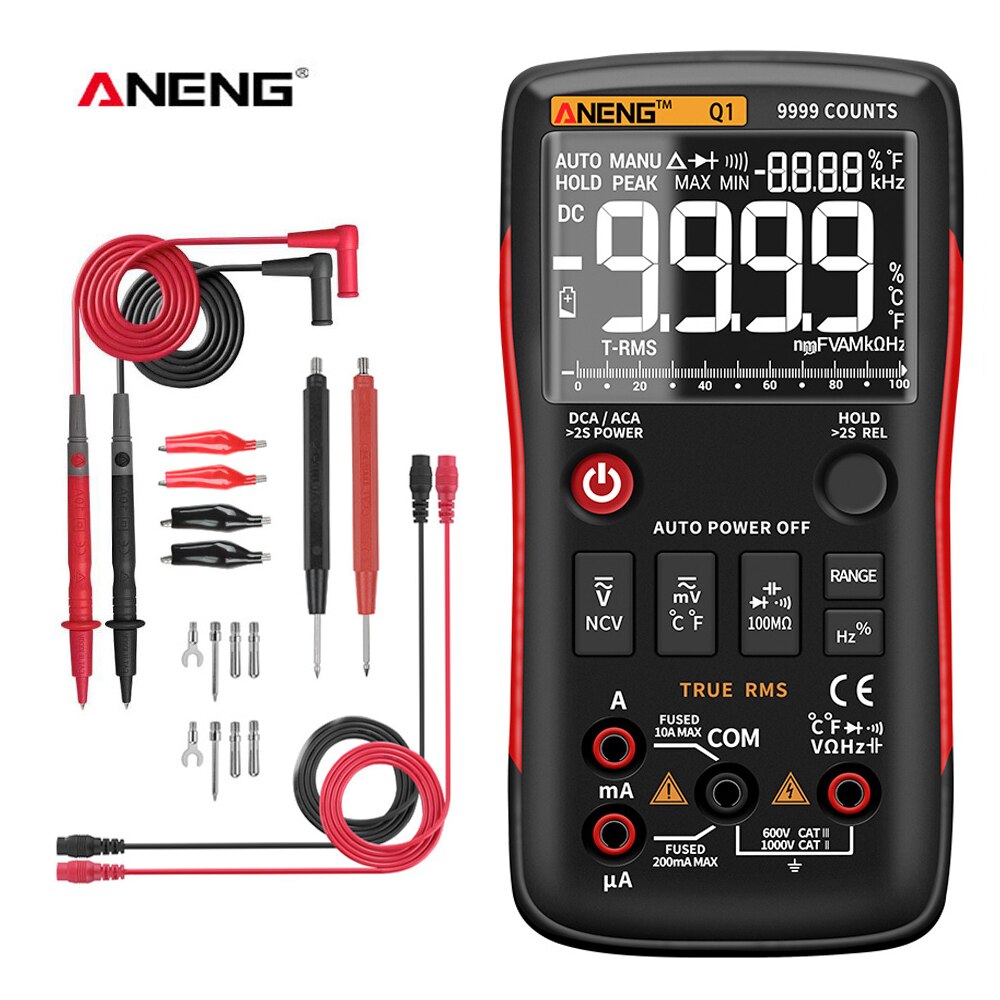

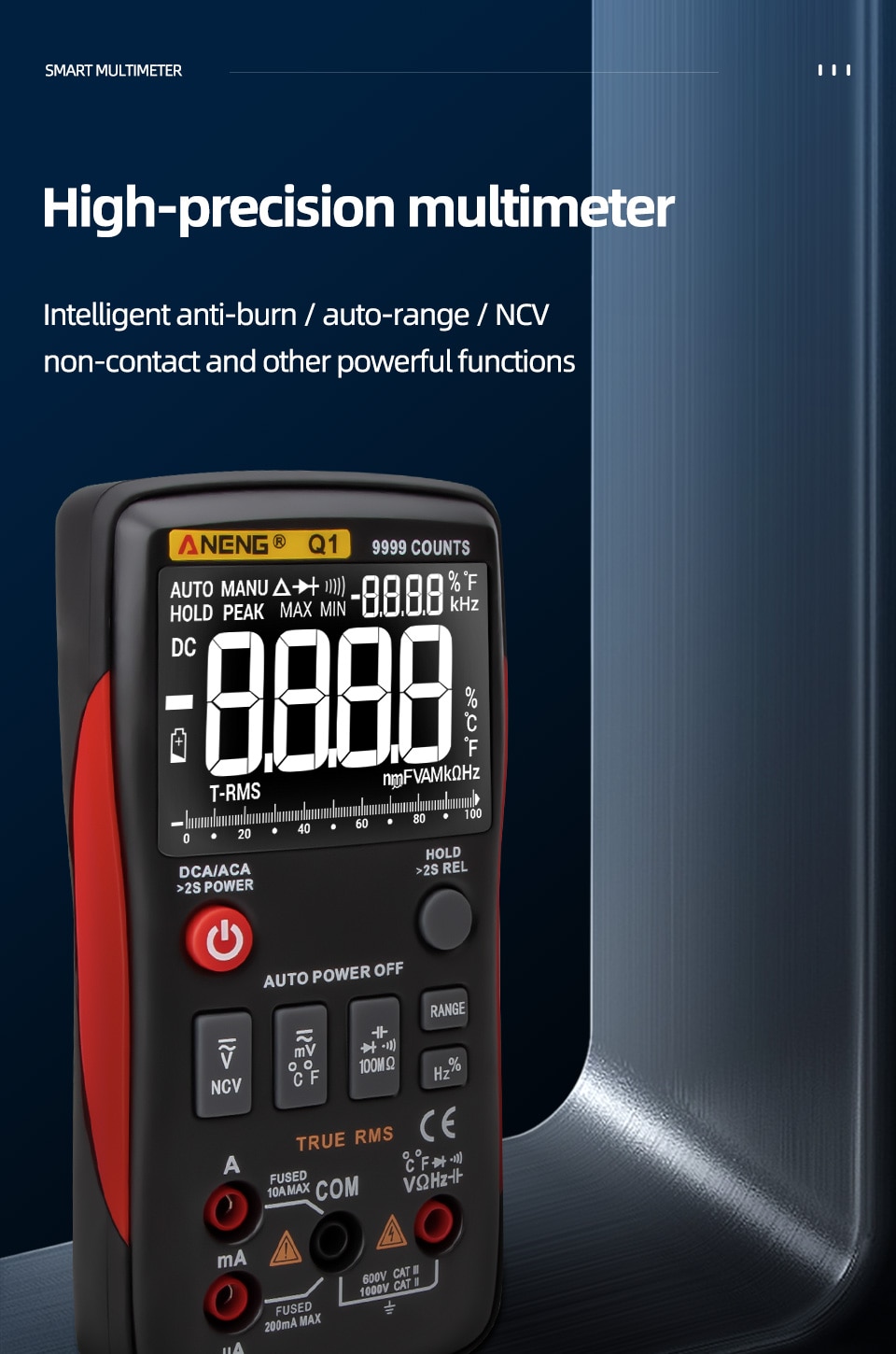

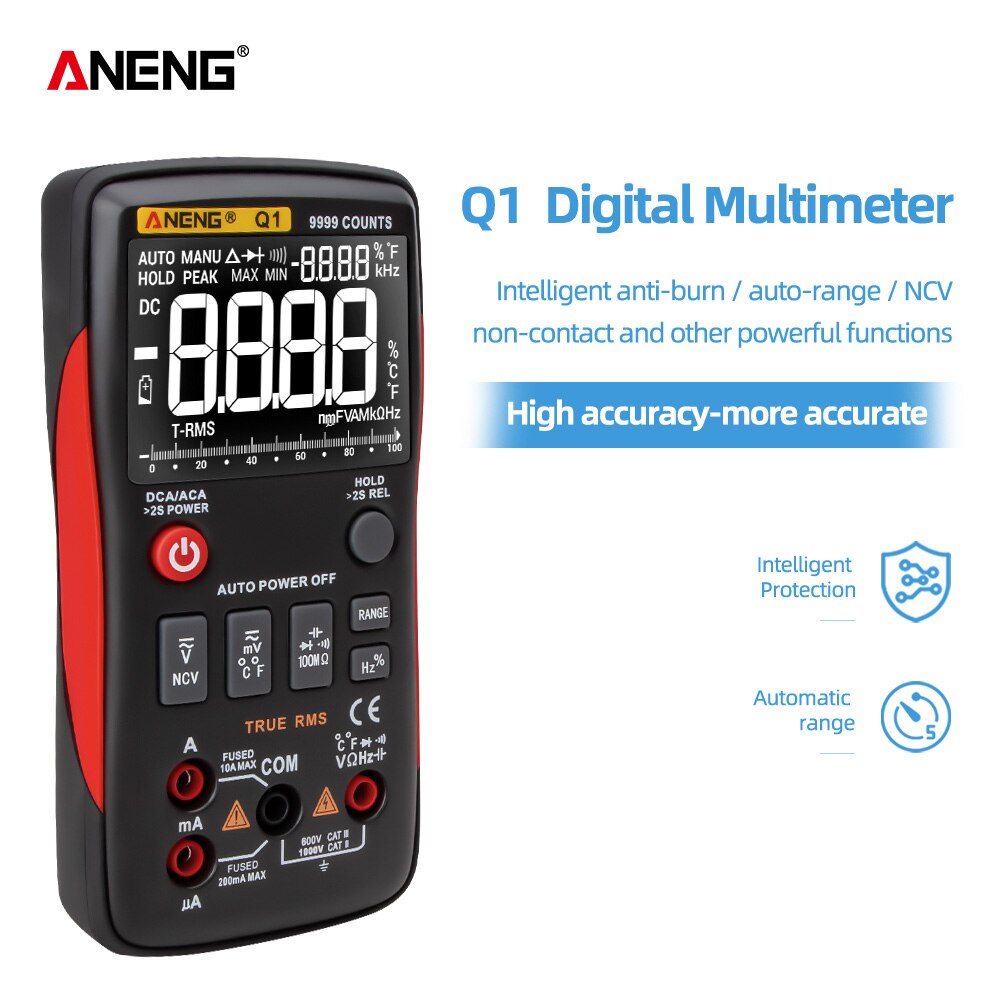

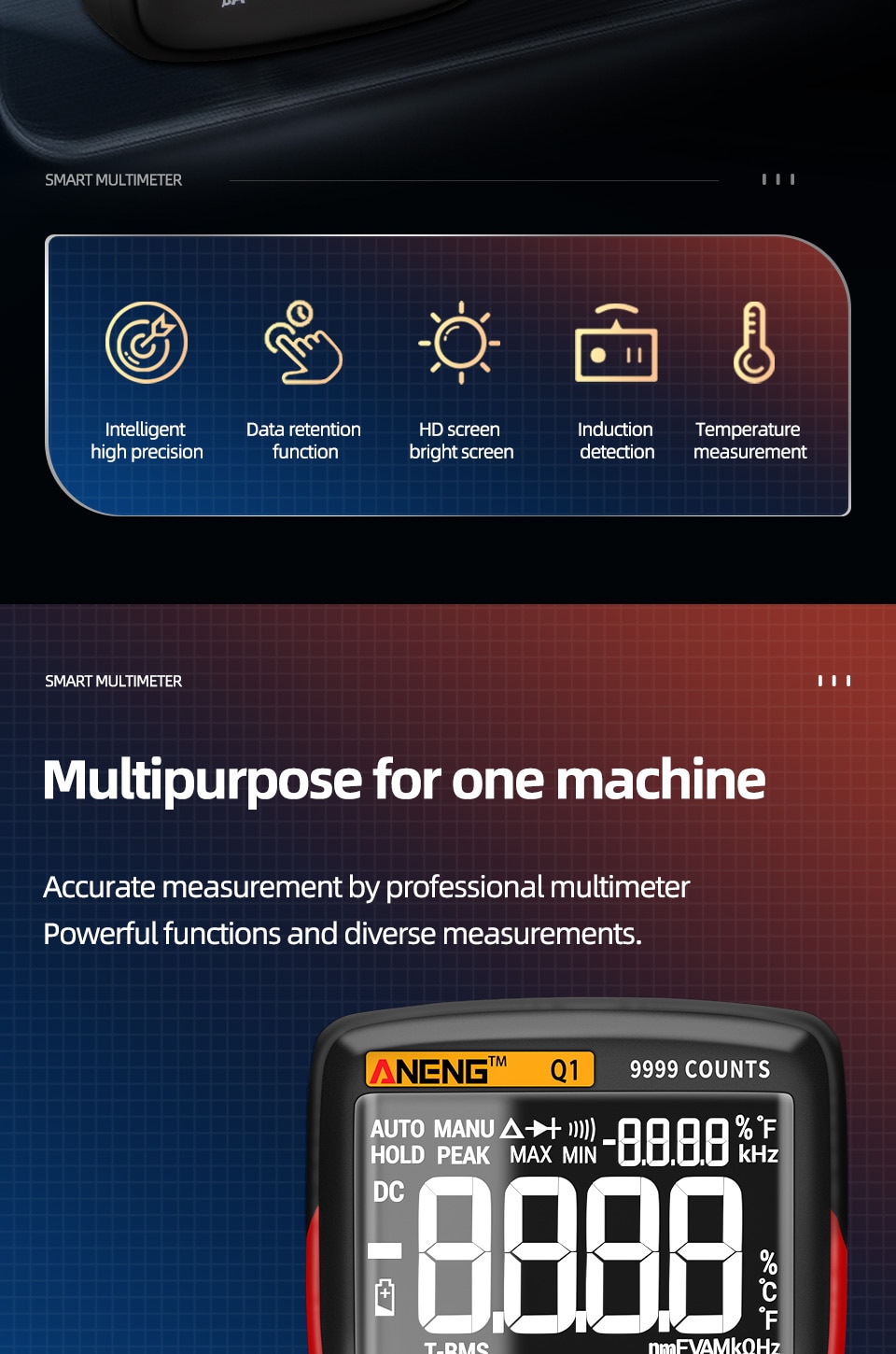

ANENG Q1 True-RMS Digital Multimeter Button 9999 Counts With Analog Bar Graph AC/DC Voltage Ammeter Current Ohm Auto/Manual
Q1 Specifications:
| Funtion | Range | Accuracy |

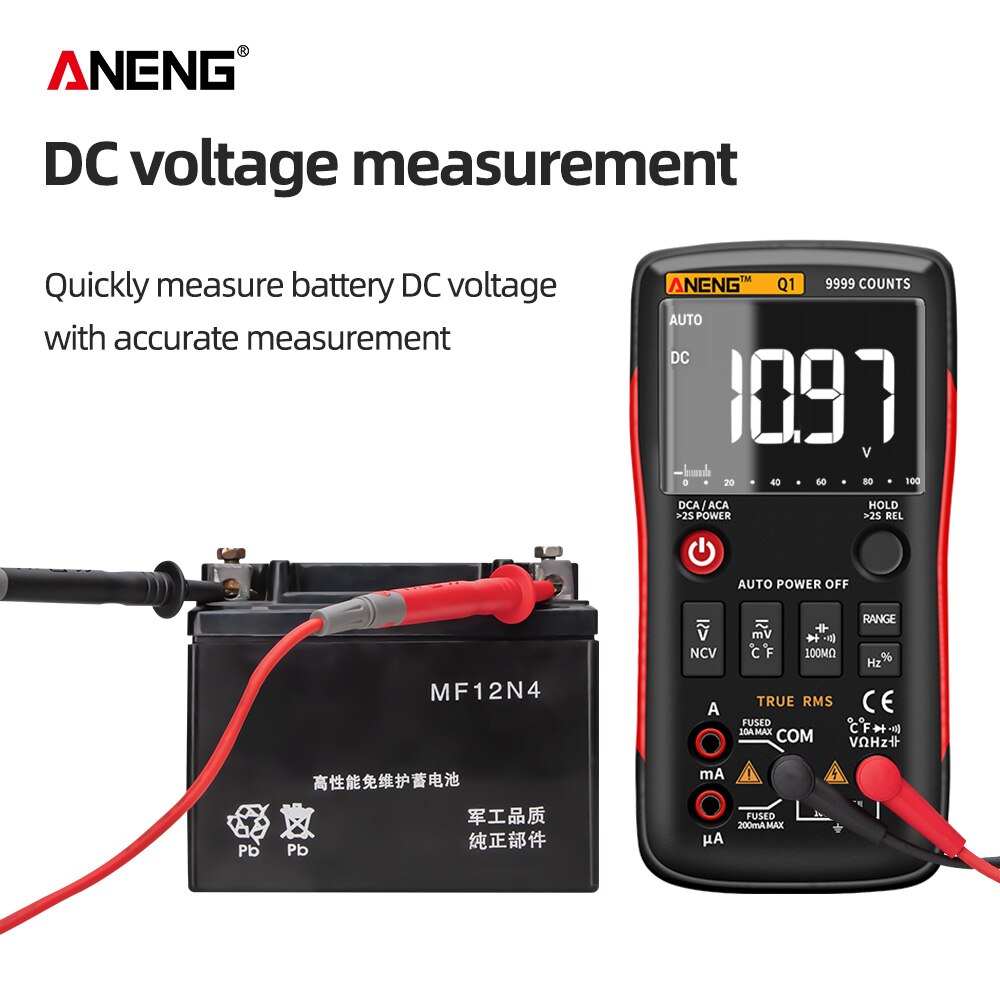

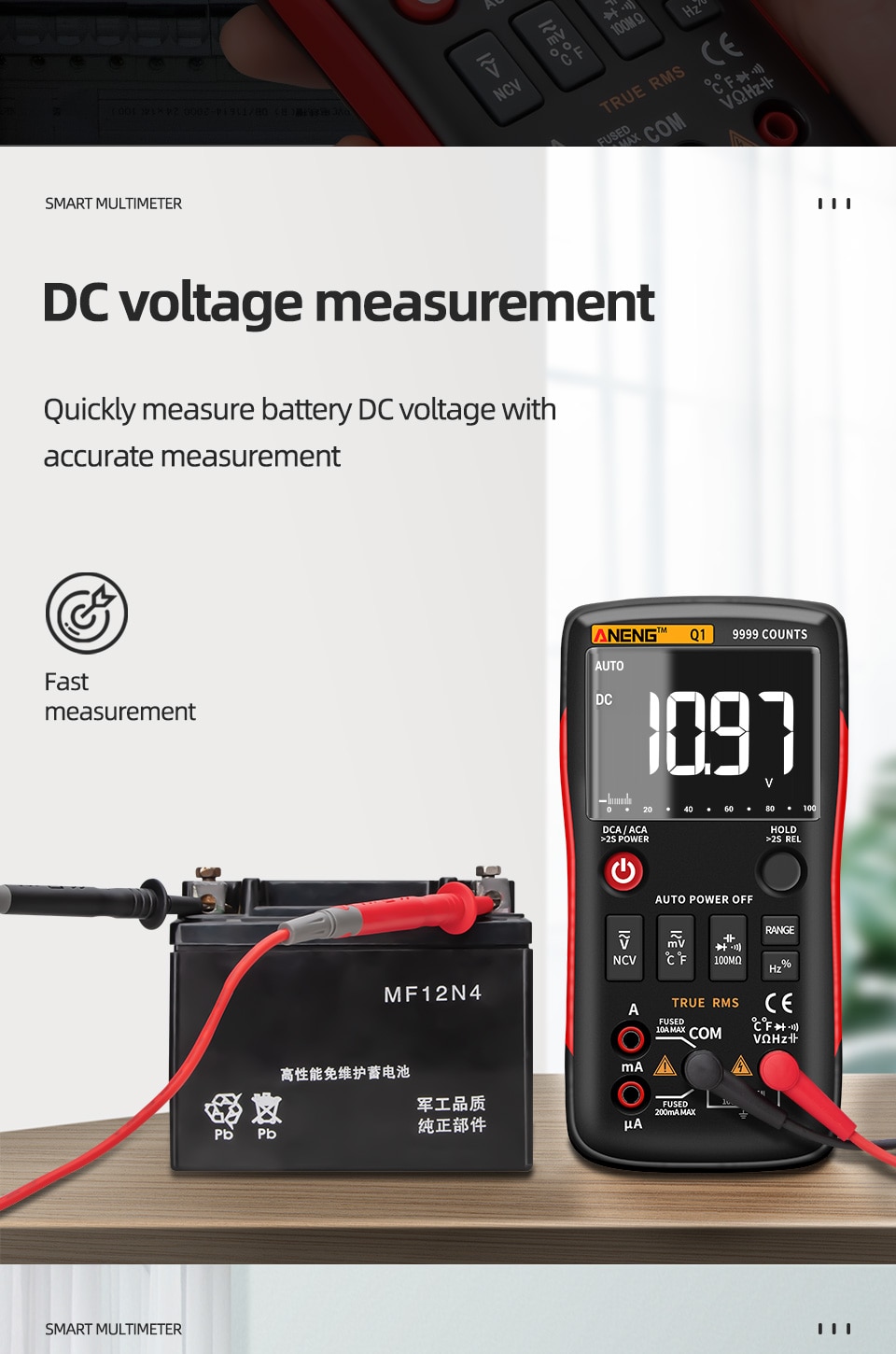

| DC voltage (V) | 999.9mV/9.999V/99.99V/999.9V | ±(0.5%+3) |
| DC voltage (mV) | 9.999mV /99.99mV | ±(0.5%+3) |
| AC voltage (V) | 999.9mV/9.999V/99.99V/750.0V | ±(1.0%+3) |
| AC voltage (mV) | 9.999mV /99.99mV | ±(1.0%+3) |
| DC Current (mA&A) | 999.9mA/9.999A | ±(1.0%+3) |
| DC Current (uA) | 9999uA | ±(0.8%+3) |
| AC Current (mA&A) | 999.9mA/9.999A | ±(1.0%+3) |
| AC Current(uA) | 9999uA | ±(1.0%+3) |
| Resistance | 99.99 | ±(1.0%+3) |
| Resistance | 999.9 /9.999k /99.99k /999.9k / | ±(0.5%+3) |
| Resistance | 9.999M | ±(1.5%+3) |
| Resistance | 99.99M | ±(3.0%+5) |
| Capacitor | 9.999nF | ±(5.0%+20) |
| Capacitor | 99.99nF /999.9nF /9.999F /99.99F /999.9F | ±(2.0%+5) |
| Capacitor | 9.999mF | ±(5.0%+5) |
| Frequency | 99.99Hz /999.9Hz /9.999kHz /99.99kHz /999.9kHz /2.000MHz | ±(0.1%+2) |
| Duty cycle | 1%~99% | ±(0.1%+2) |
| Diode :YES | Continuity :YES | NCV :YES |

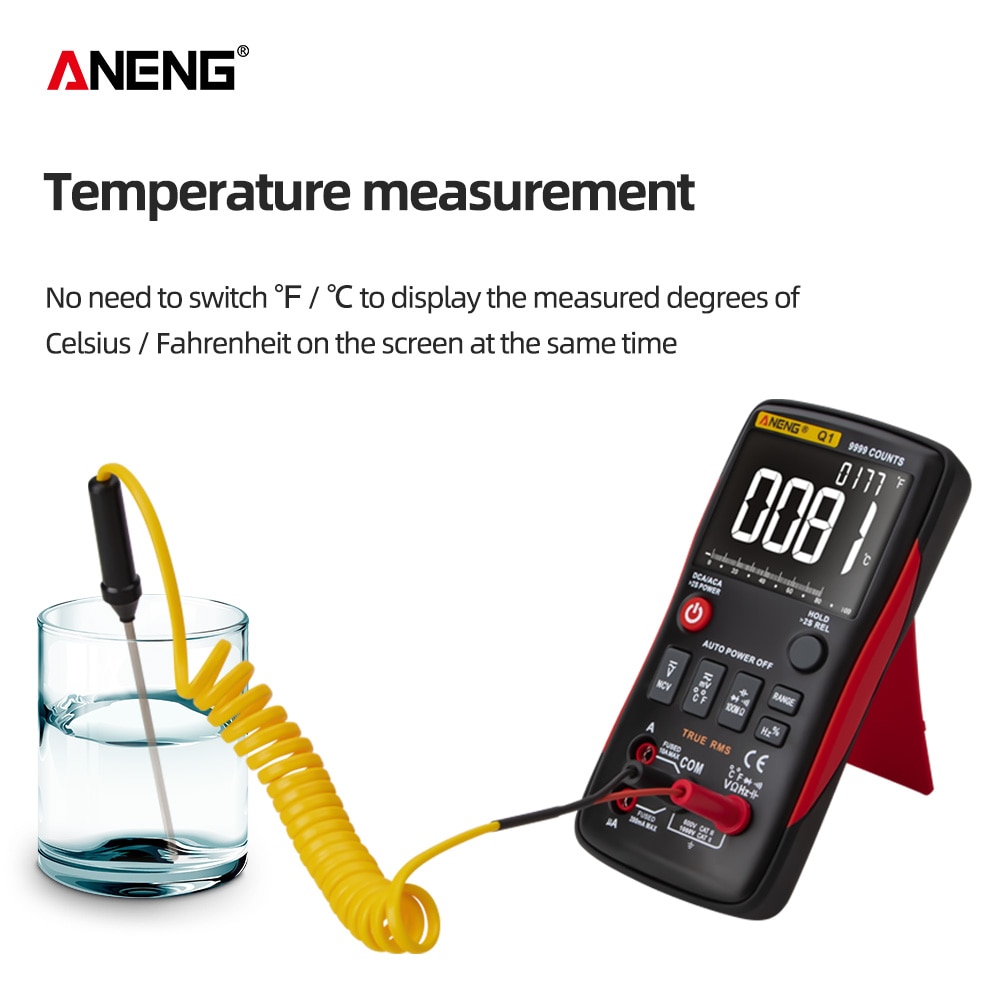

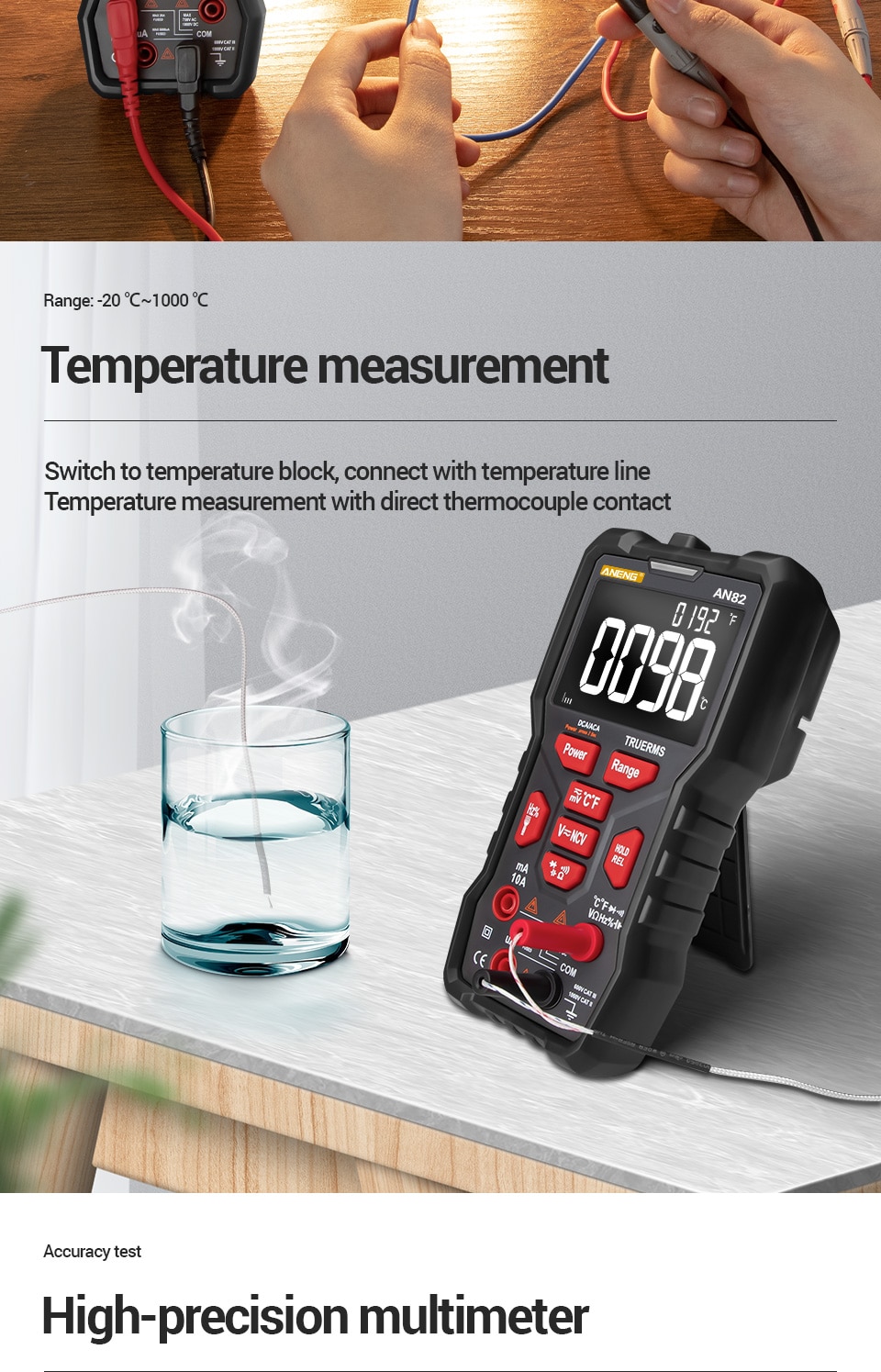

| Temperature | (-20~1000)° /(-4~1832)° | ±(2.5%+5) |
| Power | 2 * 1.5V AA batteries | (Not Included) |
| Sample Rate | 3 times per second |

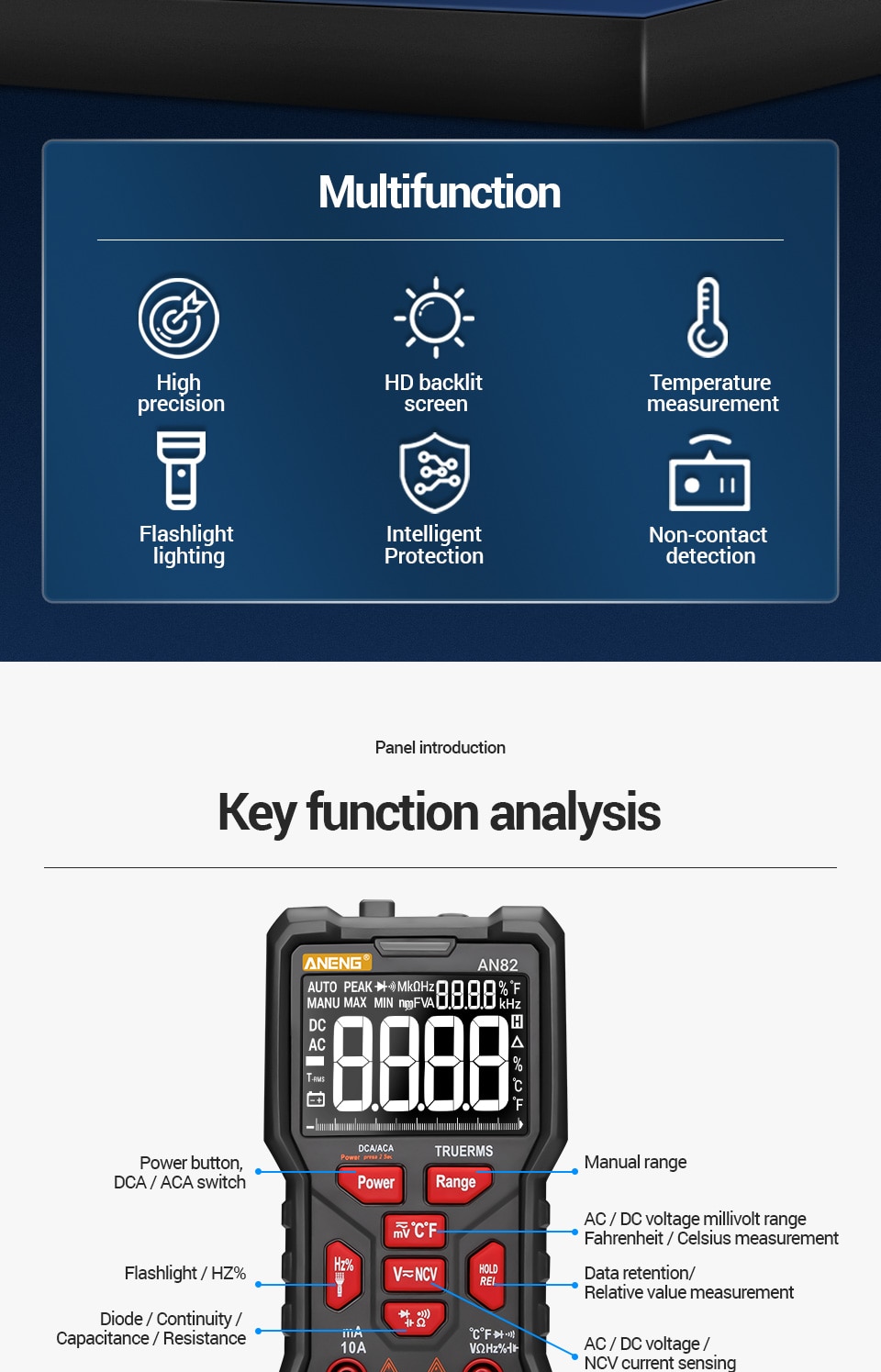

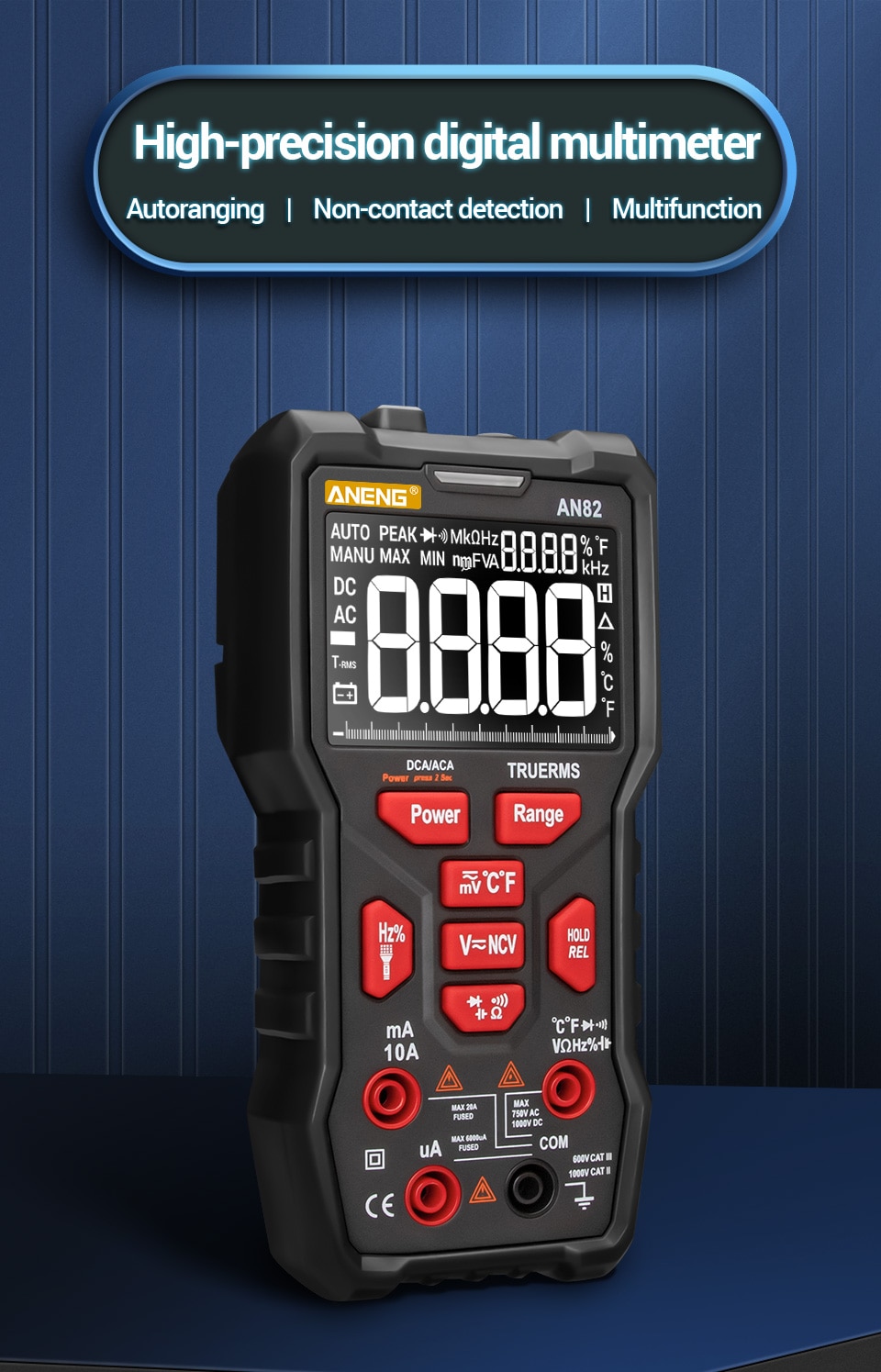

AN82 Specifications:
| Funtion | Range | Accuracy |
| DC voltage | 999.9mV /9.999V /99.99V /9.999mV /99.99mV | ± (0.5% + 3) |
| DC voltage | 999.9 V | ± (0.8% + 5) |
| AC voltage | 999.9mV / 750V /9.999mV /99.99mV | ±(1.0% + 10) |
| AC voltage | 9.999V /99.99V | ± (1.0% + 3) |
| AC current | 999.9uA /9.999mA /999.9mA | ± (1.0% +3) |
| AC current | 9.999A | ± (2.5% +10) |
| DC Current | 999.9uA /9.999mA /999.9mA / | ±(0.8% + 3) |
| DC Current | 9.999A | ± (2.0% +10) |
| Frequency | 99.99Hz /999.9Hz /9.999kHz /99.99KHZ /999.9KHZ /5.000MHZ | ± (0.1% + 2) |
| Duty Ratio | 0.1 – 99.9% | ± (0.1% + 2) |
| Resistance | 99.99W | ± (1.0% + 3) |
| Resistance | 999.9W | ± (0.5% + 3) |
| Resistance | 9.999KW /99.99KW /999.9KW /9.999MW | ± (1.5% + 35) |
| Resistance | 99.99MW | ±(3.0% + 5) |
| Capacitance | 9.999nF | ±(5.0% + 20) |
| Capacitance | 99.99nF /999.9nF /99.99MF /999.9MF /9.999MF | ± (2.0% + 5 ) |
| Capacitance | 9.999mF | ± (5.0% + 5) |
| Capacitance | 99.99mF | |
| Temperature test | -20 ° C to 300 ° C | ± (2.5% + 5d) |
| 301 ℃ －1000 ℃ | ± (2.5% + 5d) |

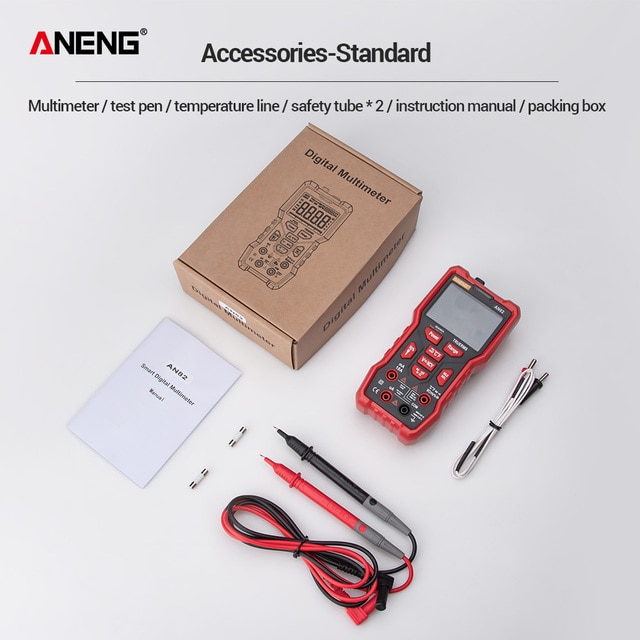

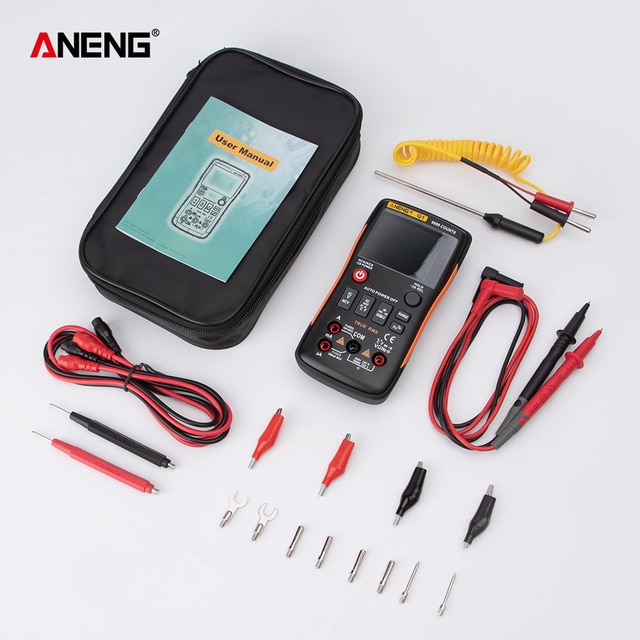

Packaging content:
1 x Multimeter
1 x Test lead+temperature sensor
1 x User Manual
1 x Storage bag(AN82 without)
1 x 16pc Test probe(AN82 without)
- DC Current: 999.9uA/99.99uA/999.9mA/10A
- AC Current: 999.9uA/99.99uA/999.9mA/10A
- DC Voltage: 999.9mV/9.999V/99.99V/999.9V
- AC Voltage: 999.9mV/9.999V/99.99V/999.9V
- Operating Mode: Auto/Manual Ranging
- Measuring Capacitance Range: 9.99nF/99.99nF/999.9nF/9.99uF/99.99uF/999.9uF/9.999MF
- Measuring Resistance Range: 99.99/999.9/9.999k/99.99k/999.9K/9.999M/99.99M
- Model Number: Q1

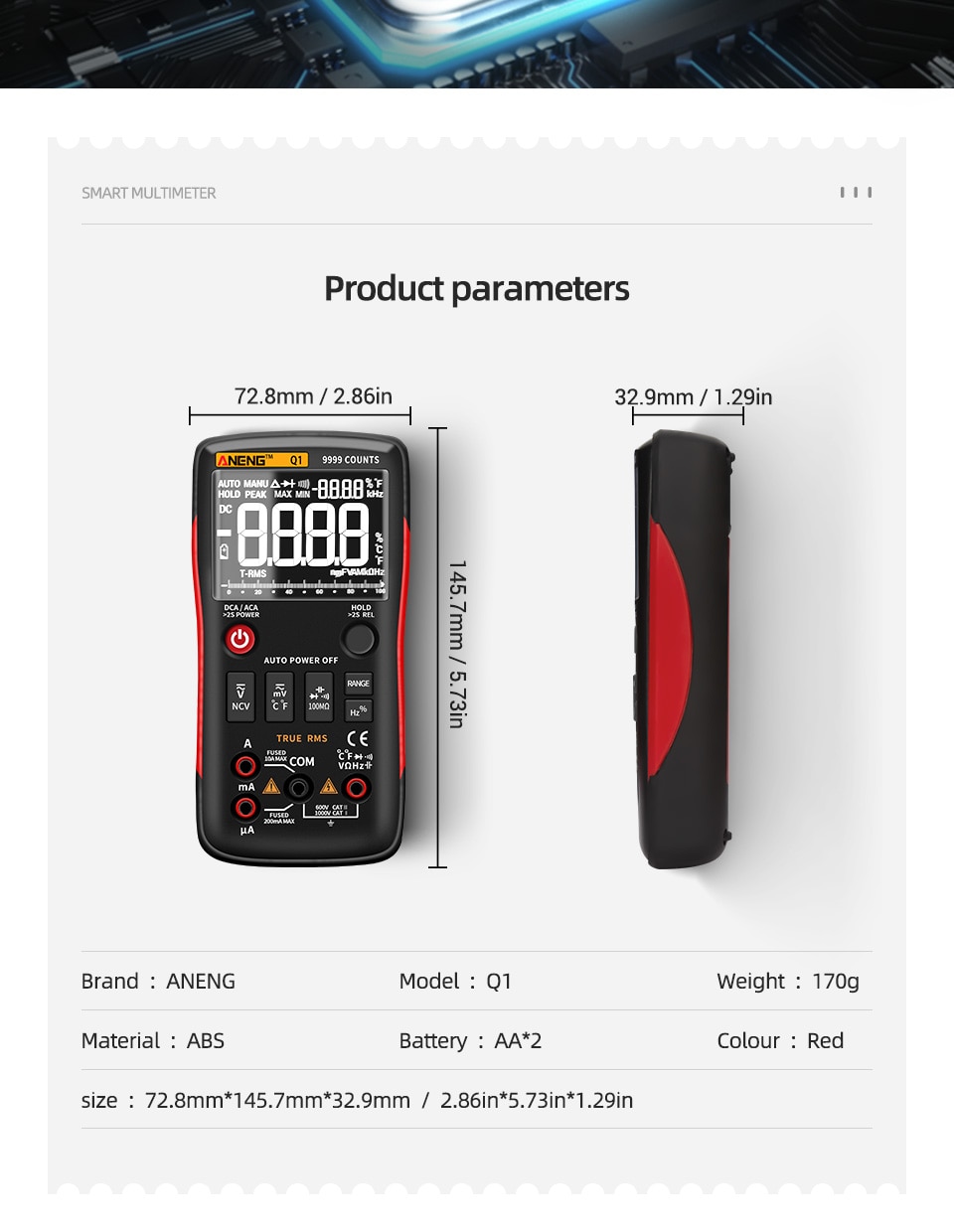

- Dimensions: 146x74x34 mm
- Operating Temperature: 0 - 40 ℃
- Measuring Inductance Range: NO
- Display Type: Digital display
- DIY Supplies: ELECTRICAL
- Brand Name: ANENG
- Origin: Mainland China
- Certification: CE
- Frequency Range: 99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/5MHz
- ACV/ACA Frequency Range: 40Hz-1Khz
- Temperature Range: -20~1000 C/-4~1832 F

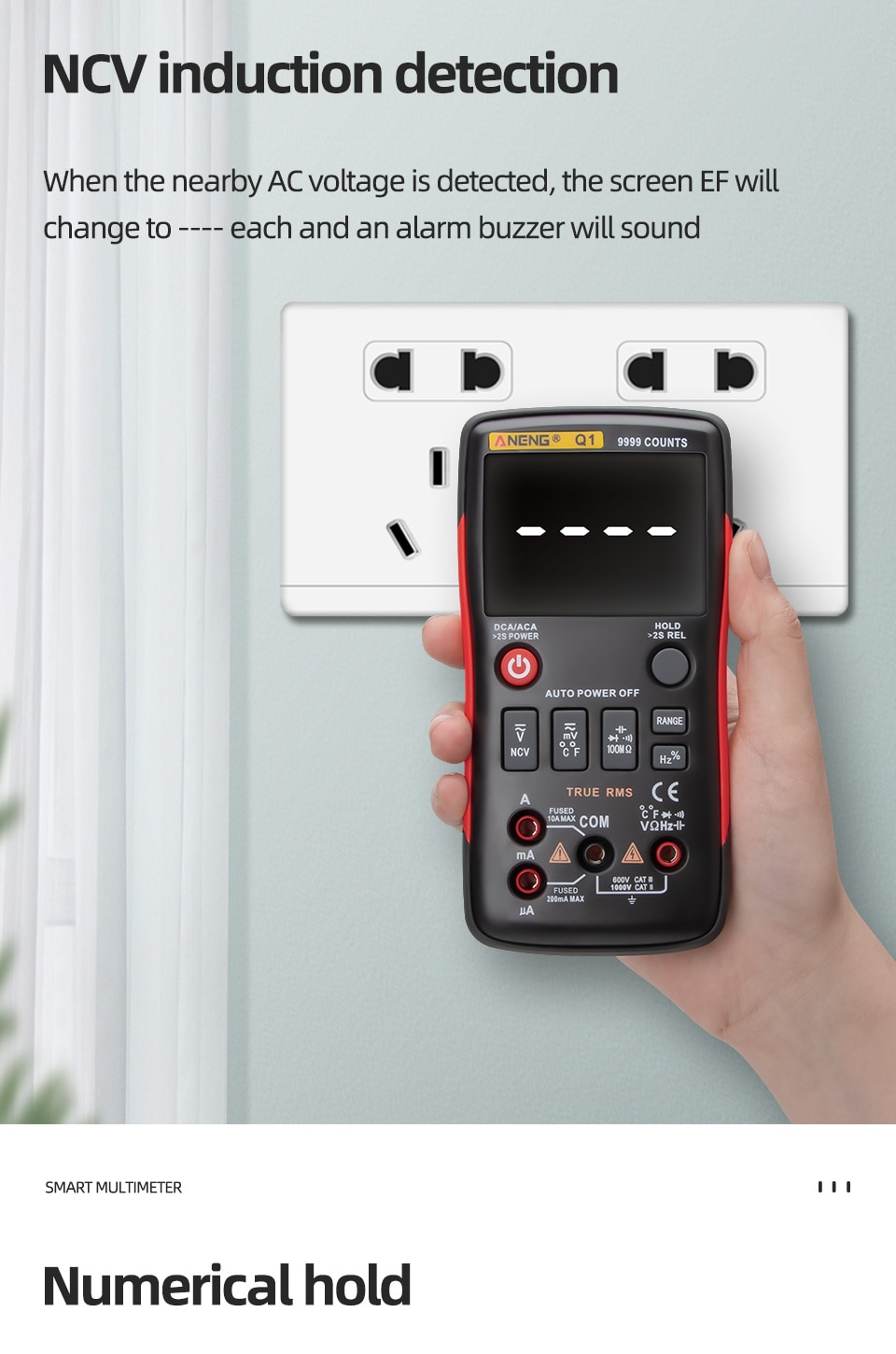

- NCV: None Contact Voltage Test
- Diode Test: Yes
- Duty Cycle: 1%-99%
- Continuity: Yes

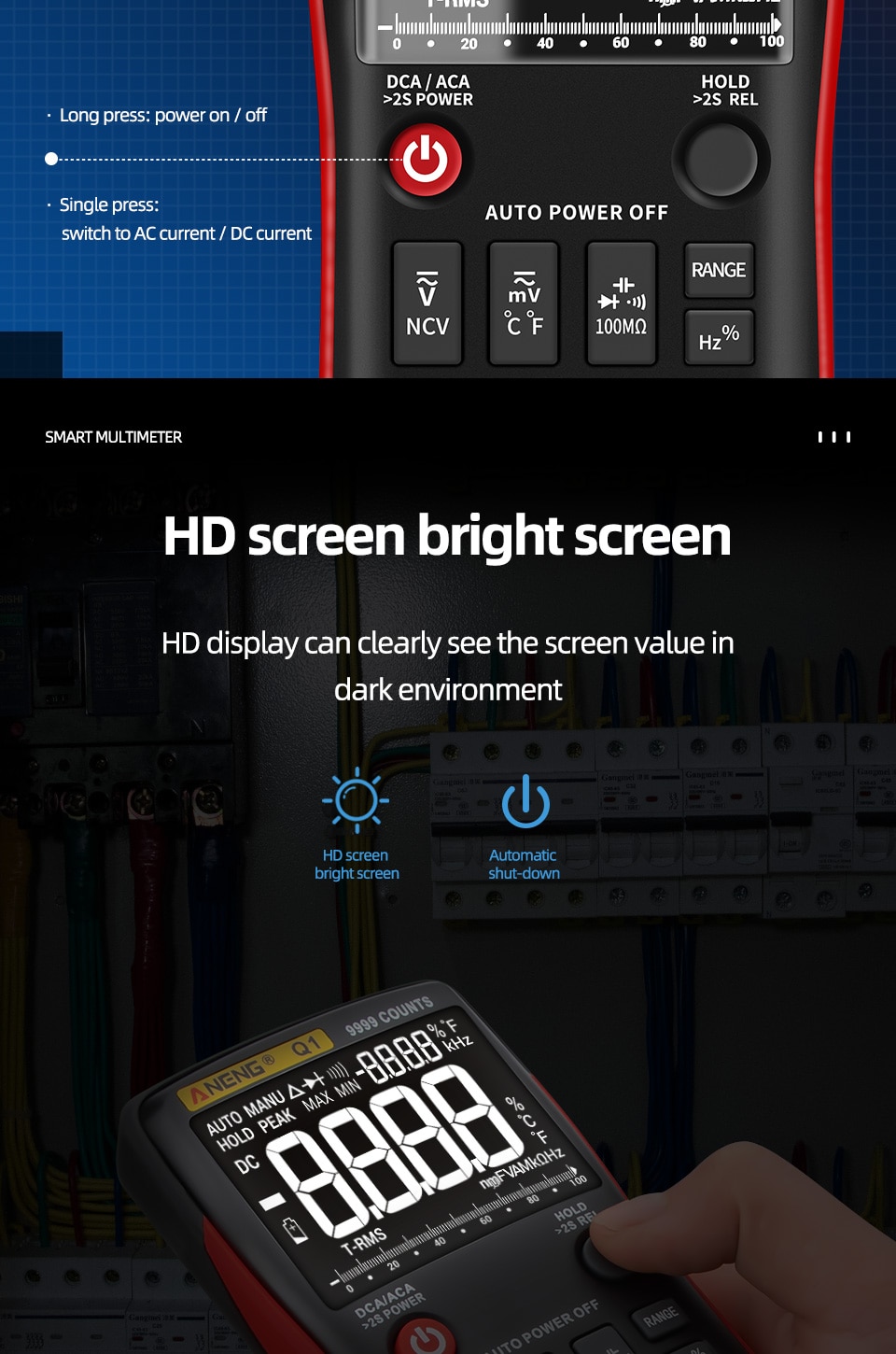

- Special Function: Button Type Function select
