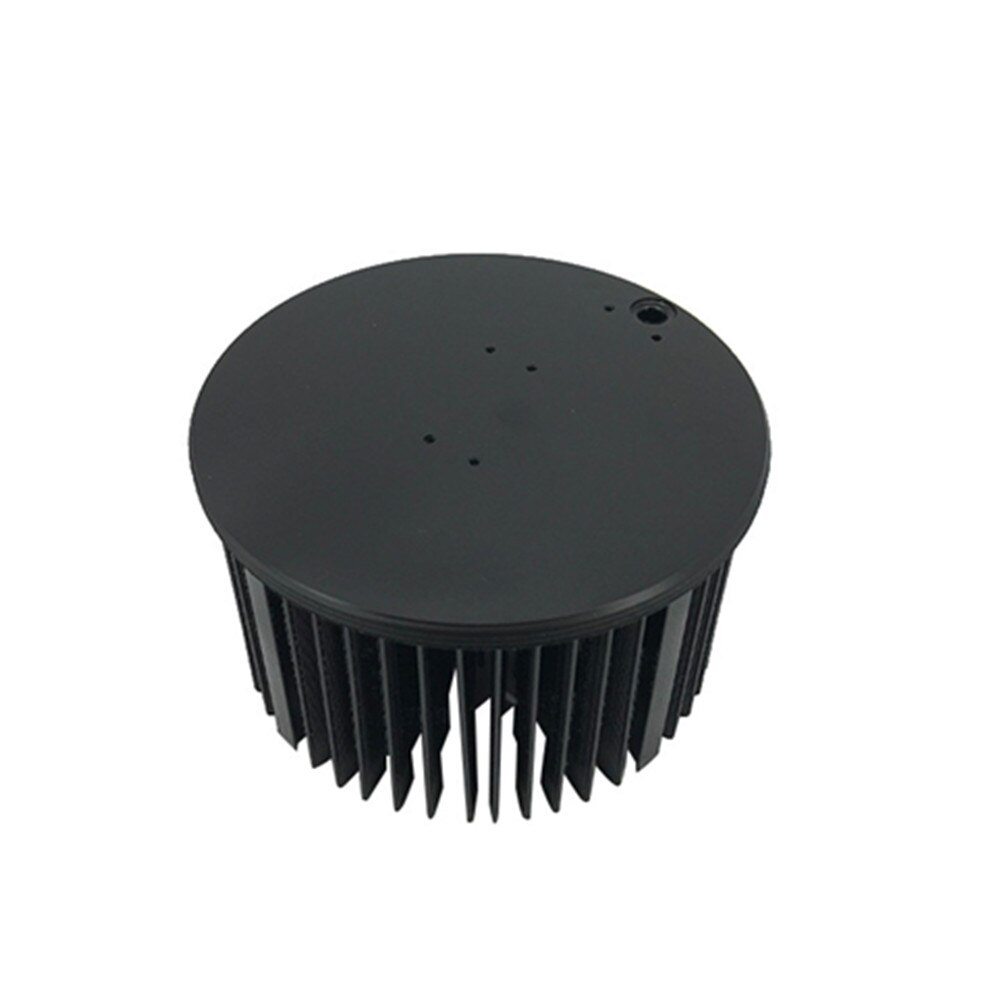

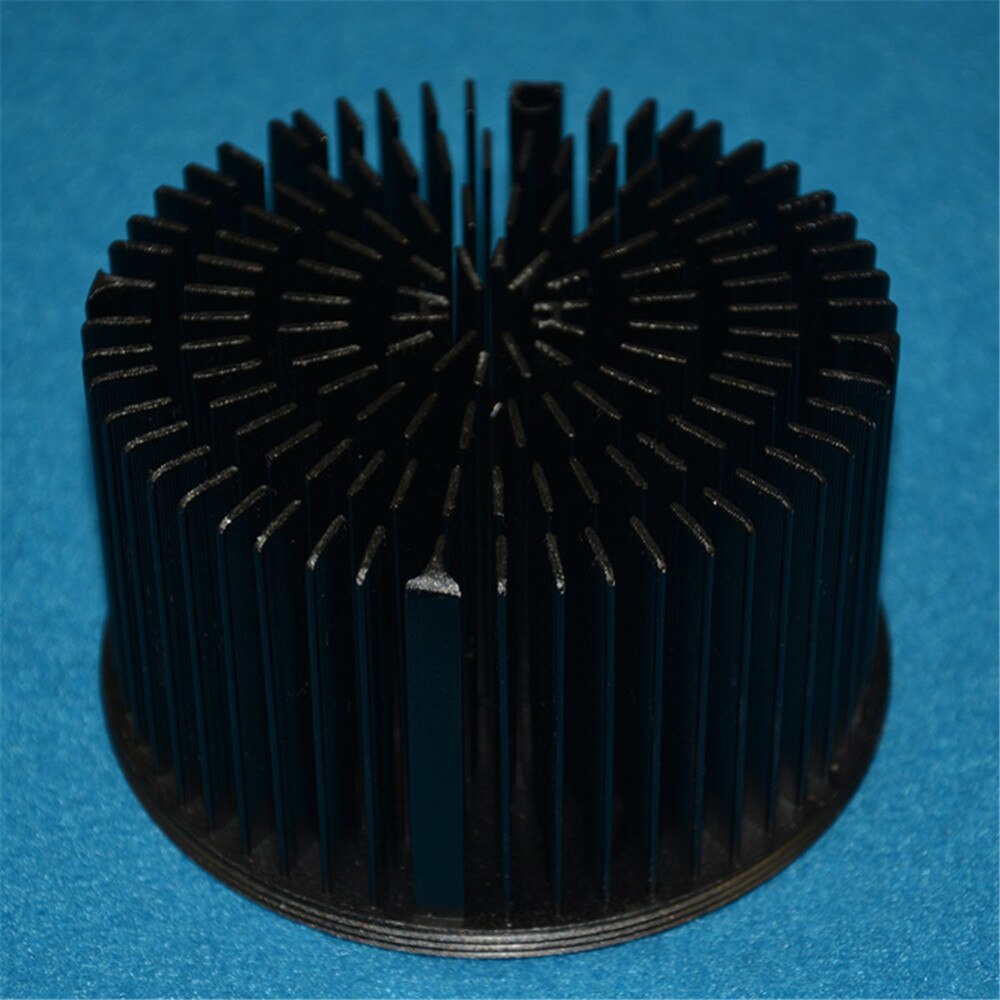

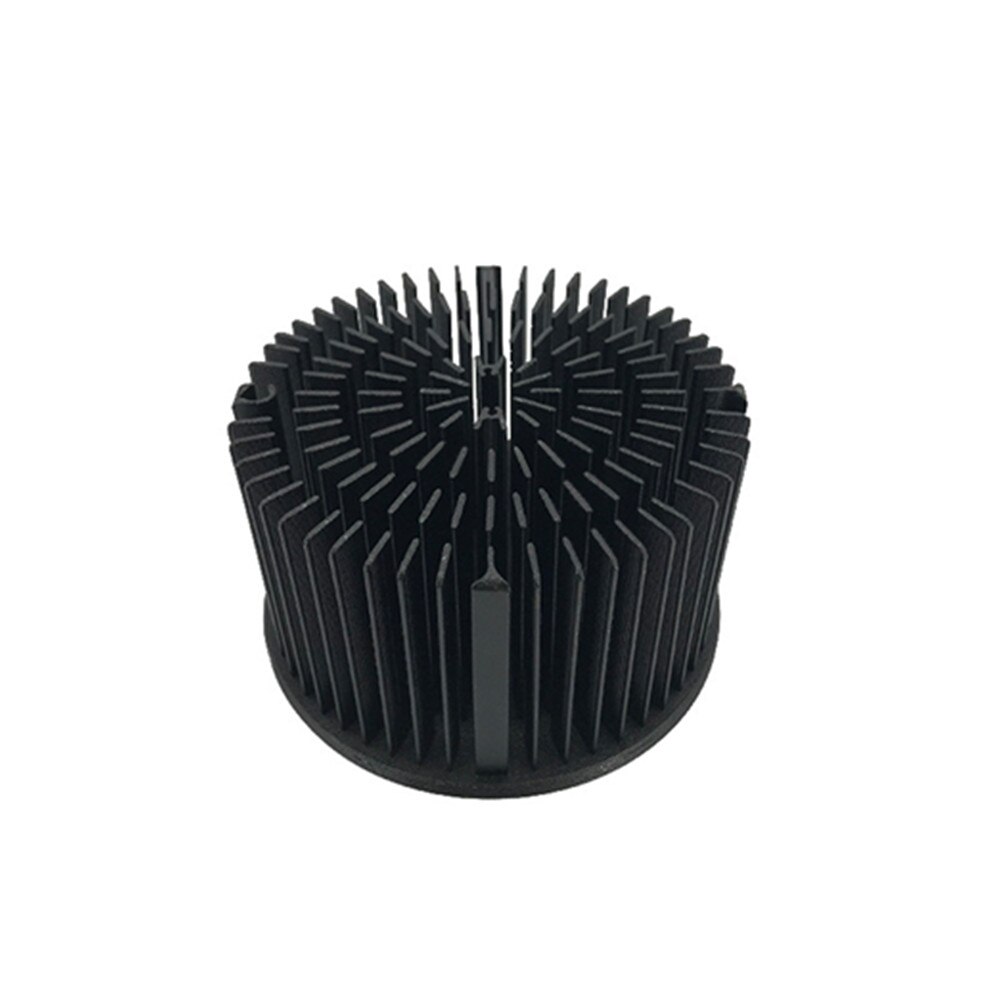

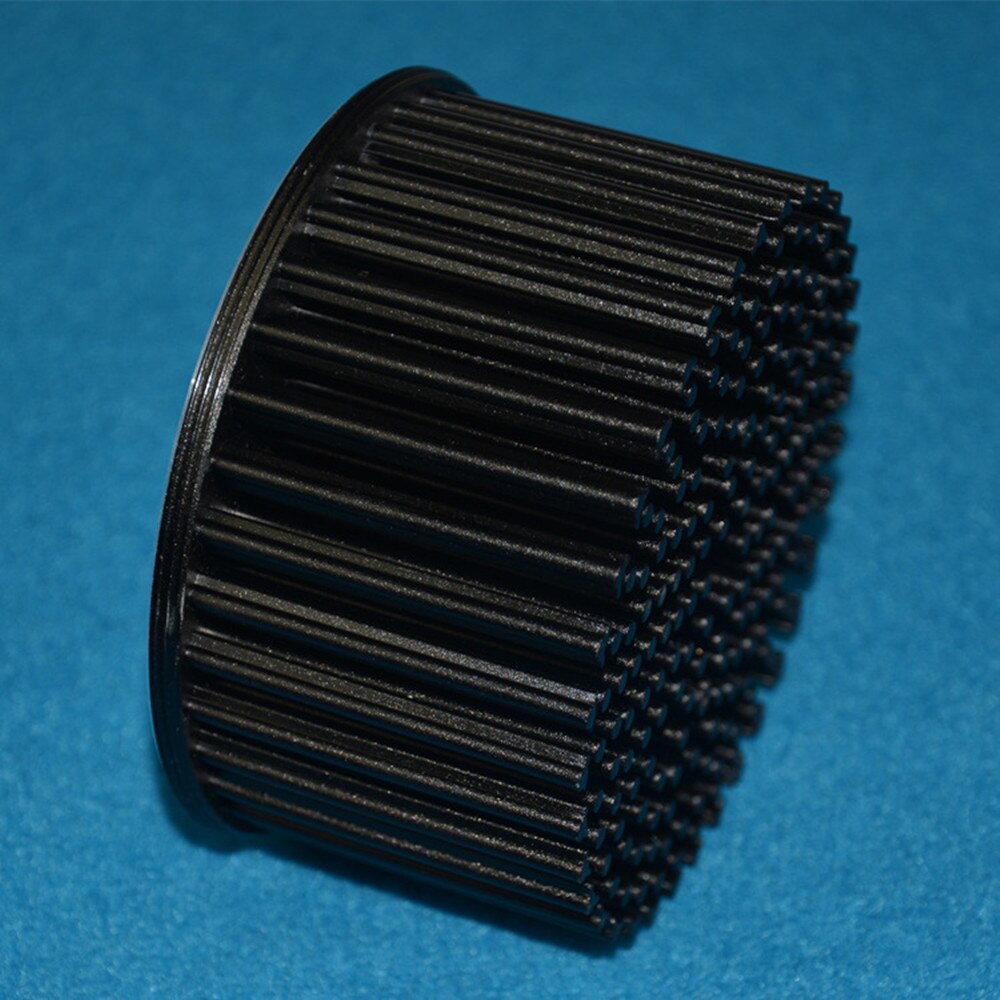

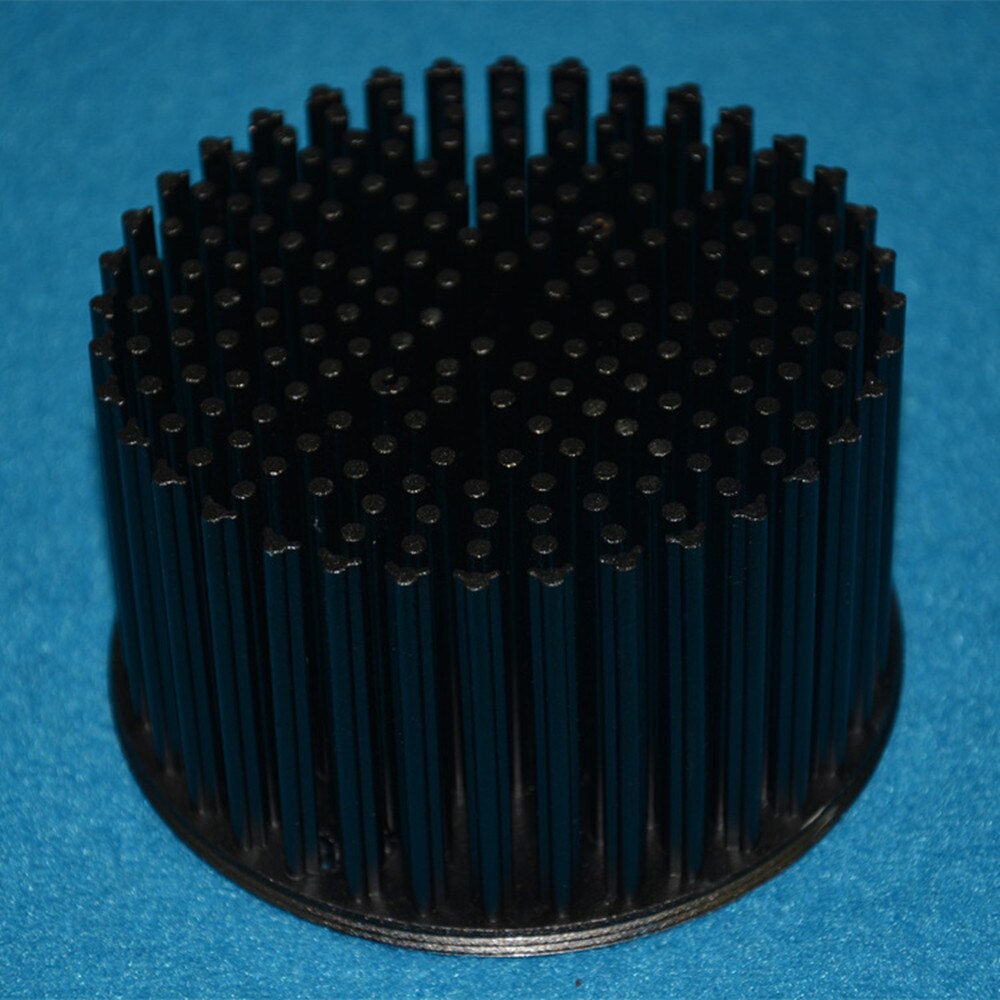

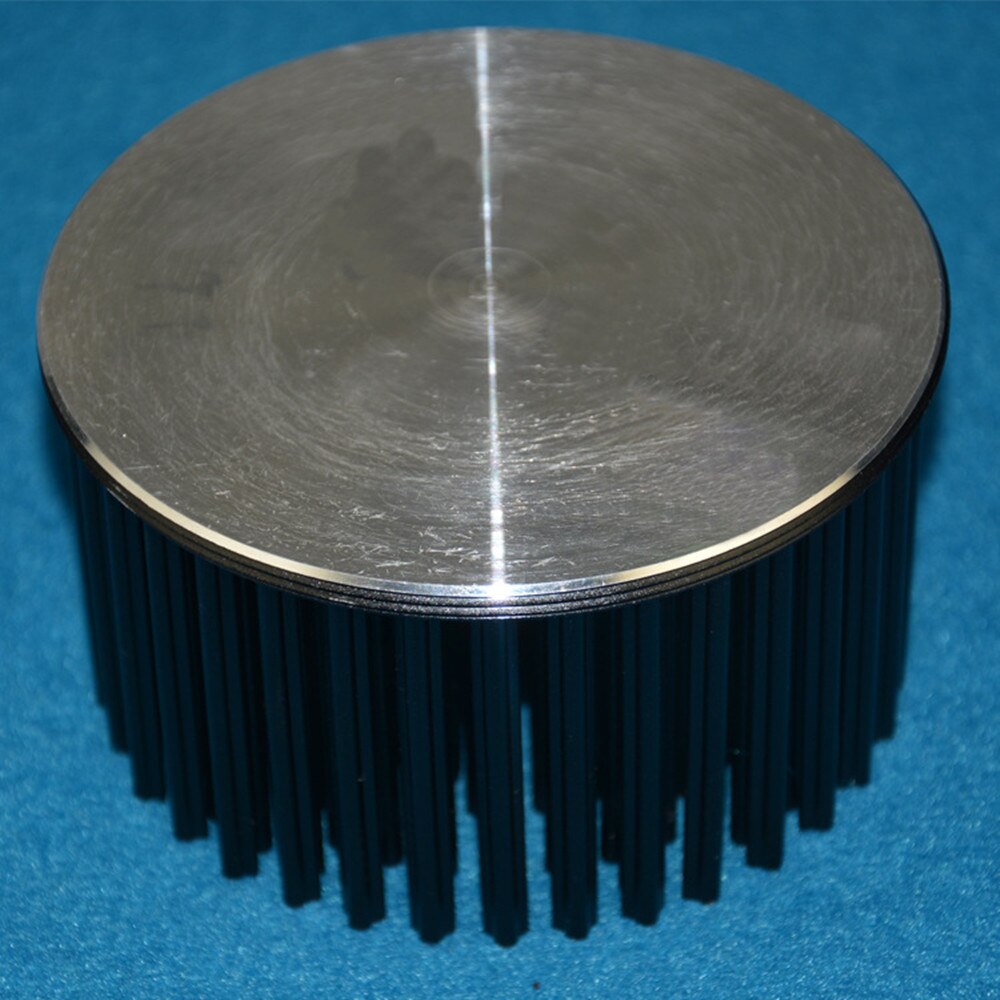

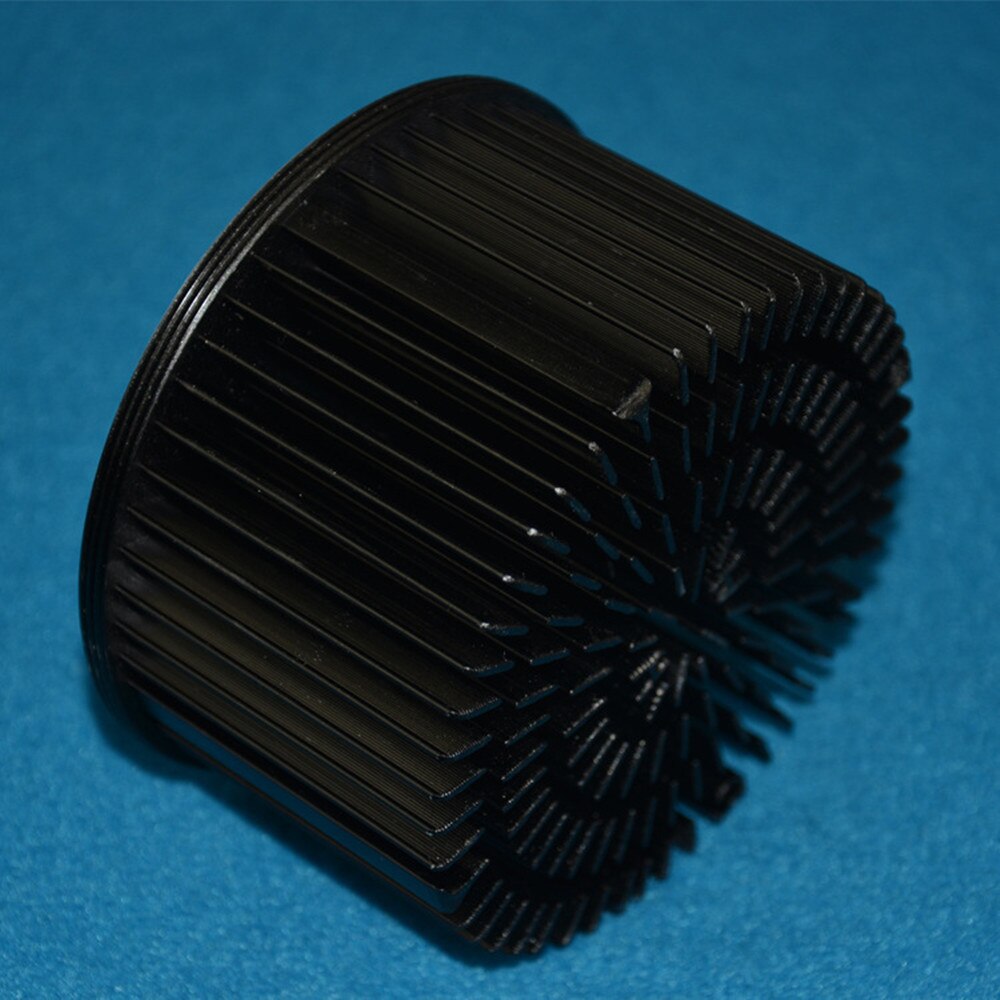

aluminium led heatsink 112*60mm for 30W-50W-100W leds diy radiator
0.0 (2 votes) | 12 orders
Price:
US $62.73
/ piece
Discount Price:
US $
48.75
/ piece
-22%
Note: If you need other colors, please leave a message or contact us, you need to drill or contact us.
product name | project | Performance parameter |
| model | YU11455 |

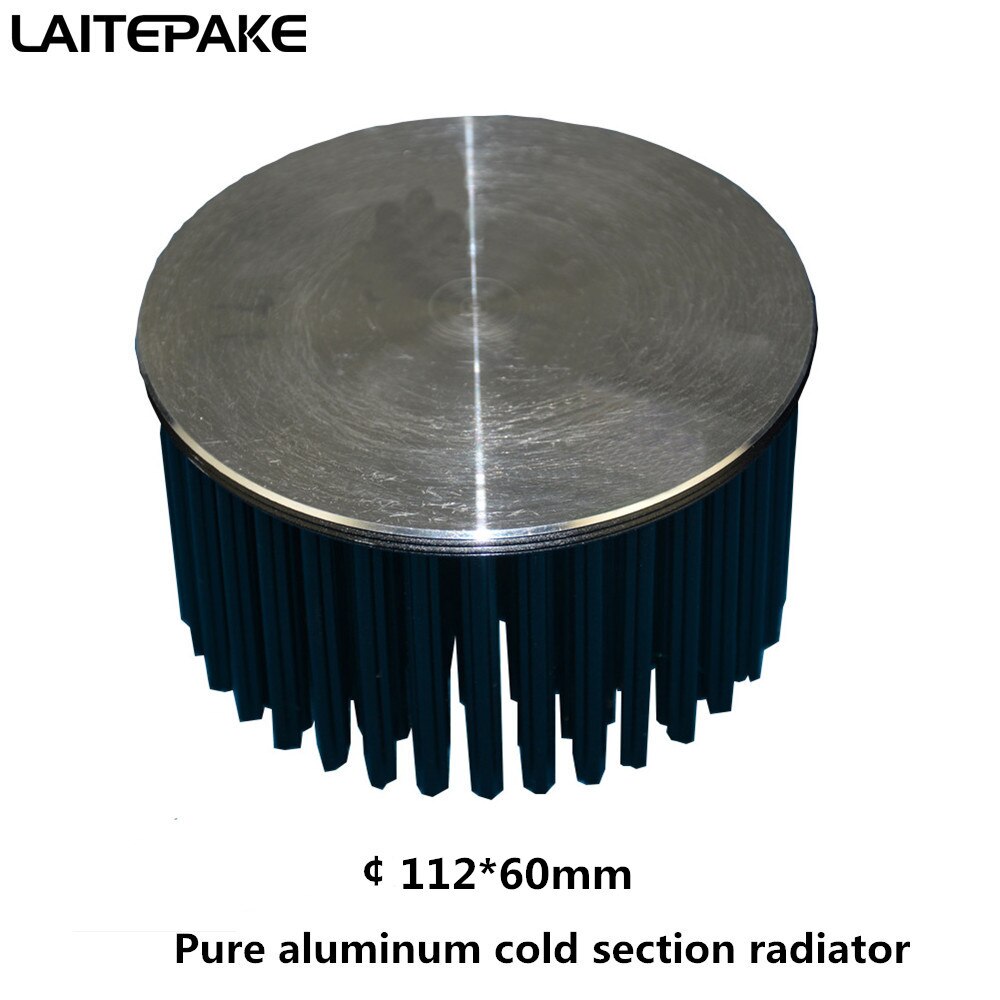

size | ¢112*H60mm | |
Material | A1070 pure aluminum | |
Product process | Cold forging | |
Heat sink shape | Blade type | |
Thermal Conductivity | 226W/m•K | |
Maximum power | 40W | |
Surface treatment | Anodized (oxidizable into various colors) |
Features
1, good thermal conductivity
The radiator of this product is made of pure aluminum one-piece extrusion.The thermal conductivity of pure aluminum (1070) is 226W/m.k, the thermal conductivity of automotive aluminum (6063) is 180W/m.k, and the thermal conductivity of common die-cast aluminum (ADC12) is only 96W/m.k.The greater the thermal conductivity, the faster the heat released by the LED can be conducted out, which is more conducive to the overall heat dissipation of the LED lamp.
2, good heat dissipation structure

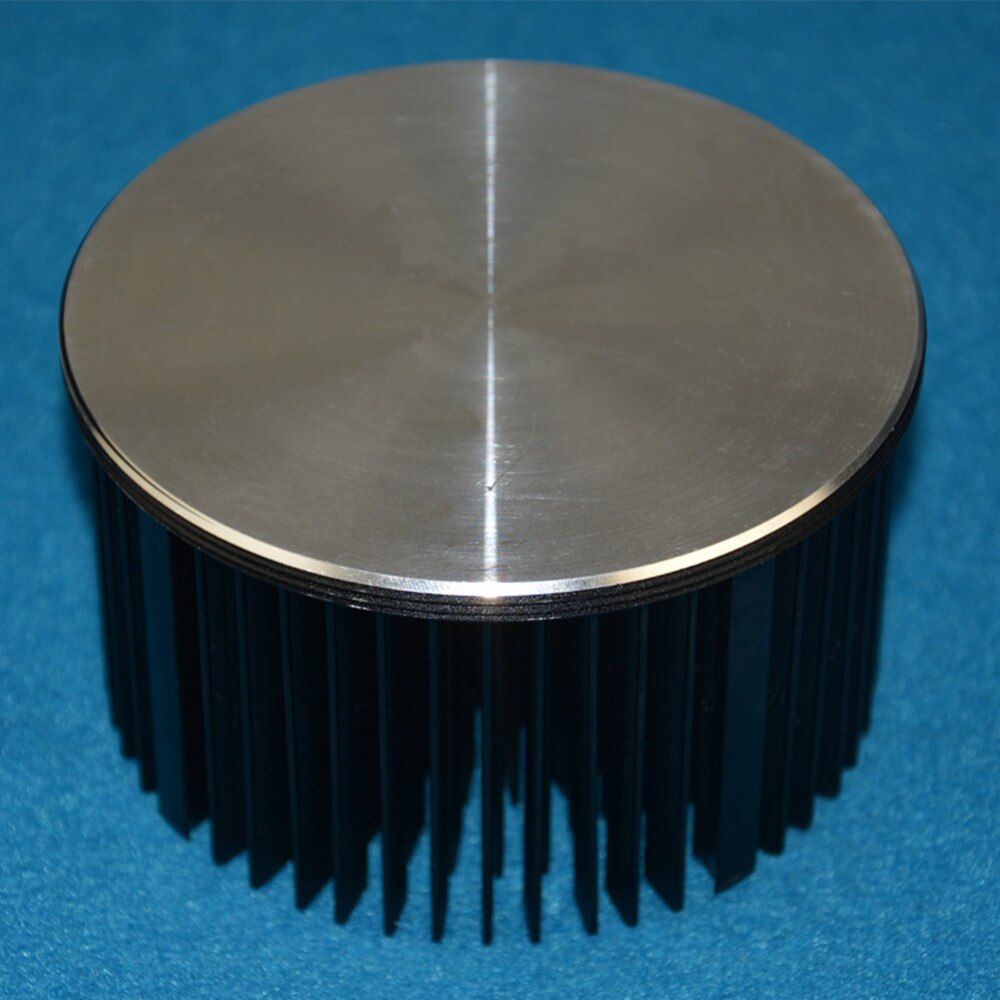

The heat sink base (the part that is in contact with the lamp bead substrate) is integrally extruded with the heat sink fins, and there is no gap between them.The heat of the pedestal can be conducted to the heat sink fins without blocking.In the aluminum parts of the car, the heat dissipation base and the heat sink are riveted together after machining, and there must be a gap between them; if the machining control of the riveting part is not precise enough, it is easy to generate a large gap;The thermal expansion and contraction during the use of time will also lead to the generation of gaps, increase the thermal resistance, and is not conducive to the conduction of heat.
3, large heat dissipation area
The heat sink fin thickness of this product can be 0.65MM, the pitch can be 1.5MM, and the thin and more heat dissipation fins greatly increase the contact area with air, which is more conducive to air convection heat dissipation.
4, small size and light weight
Compared with die castings and aluminum parts, pure aluminum cold forged radiators have the above advantages, and the same volume shape can be used for heat dissipation of higher power lamps (such as the traditional 5W radiator, the same shape of pure aluminum forging)The heat sink can do 7W).Therefore, the use of pure aluminum cold forged radiators will reduce the weight of LED lamps.
5, the appearance of quality is excellent
The radiator material of this product is pure aluminum, the surface can be anodized, smooth and beautiful, and can also oxidize different colors (silver, gold, black, etc.) according to customer requirements.The surface of die-cast aluminum is rough, and the surface needs to be sprayed, which is not conducive to heatdissipation.
- Inner Diameter: 55mm
- Outer Diameter: 112mm
- Brand Name: LAITEPAKE
- Origin: Mainland China
- Cooling area: 10,000 square centimeters
- The main material: A1070 pure aluminum
- Custom processing: stand by
- Adapted power: 10-100W

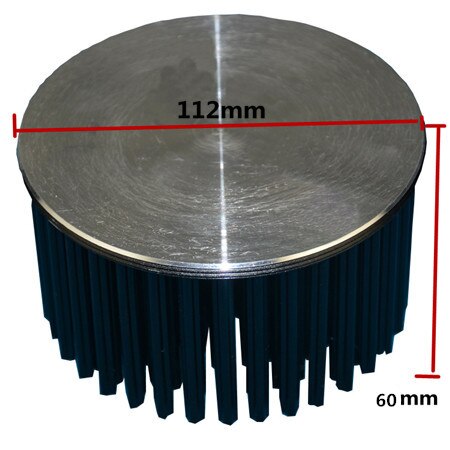

- Dimensions: D112*H60 mm
