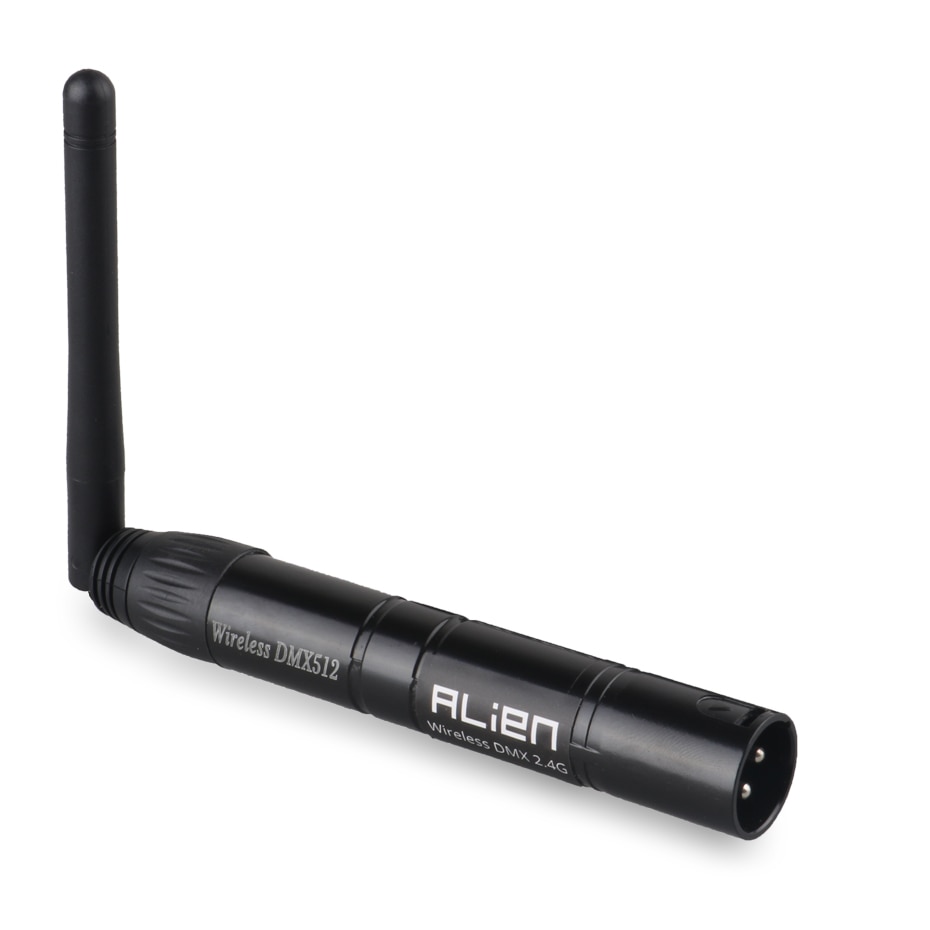

ALIEN DMX512 Wireless Controller Receiver Transmitter 2.4G ISM Dif Communication Distance 300m for Stage Par DJ Disco Bar Lights

4.8 (58 votes) | 107 orders
Price: US $48.58 - 447.39 / piece
Discount Price:
US $ 33.54 - 300.79 / piece
-31%
Color
Plug Type
Quantity

-2.4G wireless DMX512 R/T
-126 channels jumping frequency automatically,high anti-jamming ability,to ensure works reliability
-7 groups ID code settable, User can use 7 groups individual wireless net without any interfere.
-Each other in the same place (Tricolor LED displaying Indicators)

Specification

Input voltage: 5VDC 500mA MIN
Communication distance: 400M (visible distance)
Work frequency section: 2.4G ISM, 126 channels, frequency section
Max transmitting power rate: 20dBm
Receiver Sensitivity: -94dBm
CPU: 32-bit ARM Core
Modulation: GFSK
DMX Signal Interface:RS485
Operating temperature: -40 ~ 85 Celsius
Storage Temperature: -65 ~ 150 Celsius
Ambient Relative Humidity: 5 to 95% (non-condensing)
Automatic Reboot Trigger: Built-in WDT (watchdog timer)

ID code and LED color corresponding relationship

RED
GREEN
RED+GREEN
BLUE
RED+BLUE
GREEN+BLUE
RED+GREEN+BLUE
1. Press momentary switch above the side led indicator to indicate ID setting
2. Press again to set IC,to the color ID desired, adding 1 each time you press the switch will advance the color ID code.
3. Working condition:
LED constant lit up:No DMX or wireless signal.
Red LED flash:Transmitting
Green LED flash:receiving
4. RF frequency 2.400 - 2.525G,total 126 channels,it's searching automatically,
5. ID Code "1-7" groups ID code,press 'KEY' for setting,it only can work under same ID code of transmitter and receiver. (Same LED Color)

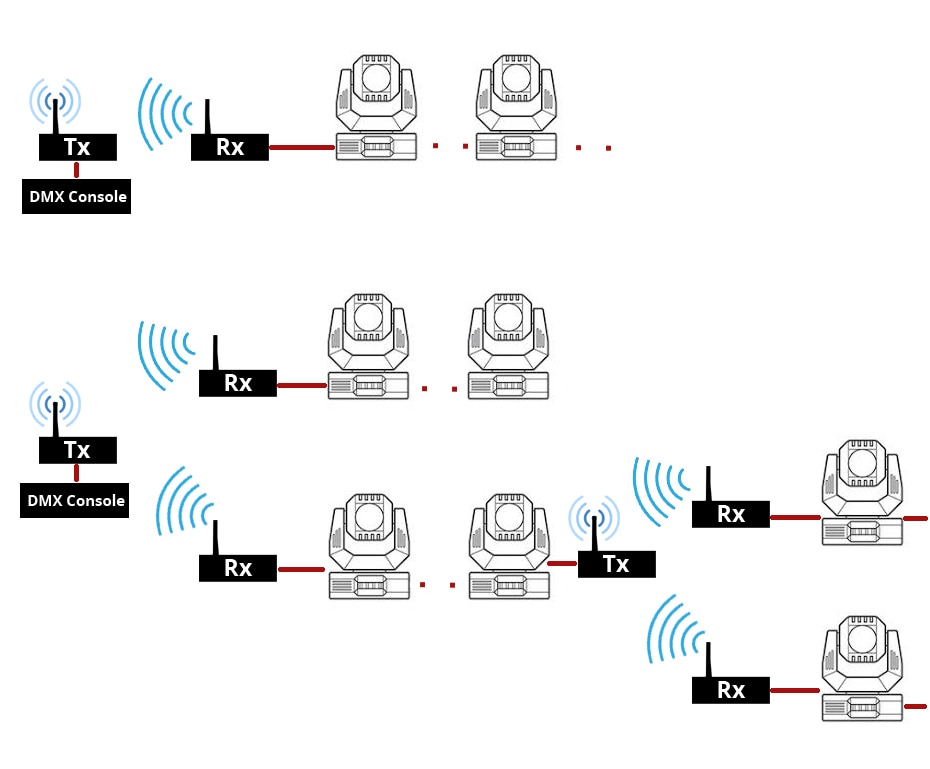

Establishing Communication

1. Power on DMX512 wireless received board first and then following to power up the transmitted boards.
2. Press "Key" button to set same ID value of transmitted board and received board. Please use different ID value if you need use more than 1 group wireless universals at same time in same place.
3. The red LED flashes when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section. Green LED flash till received corrected same ID value, LED flash more fast once DMX data more fast.
4. Communication was established correctly.

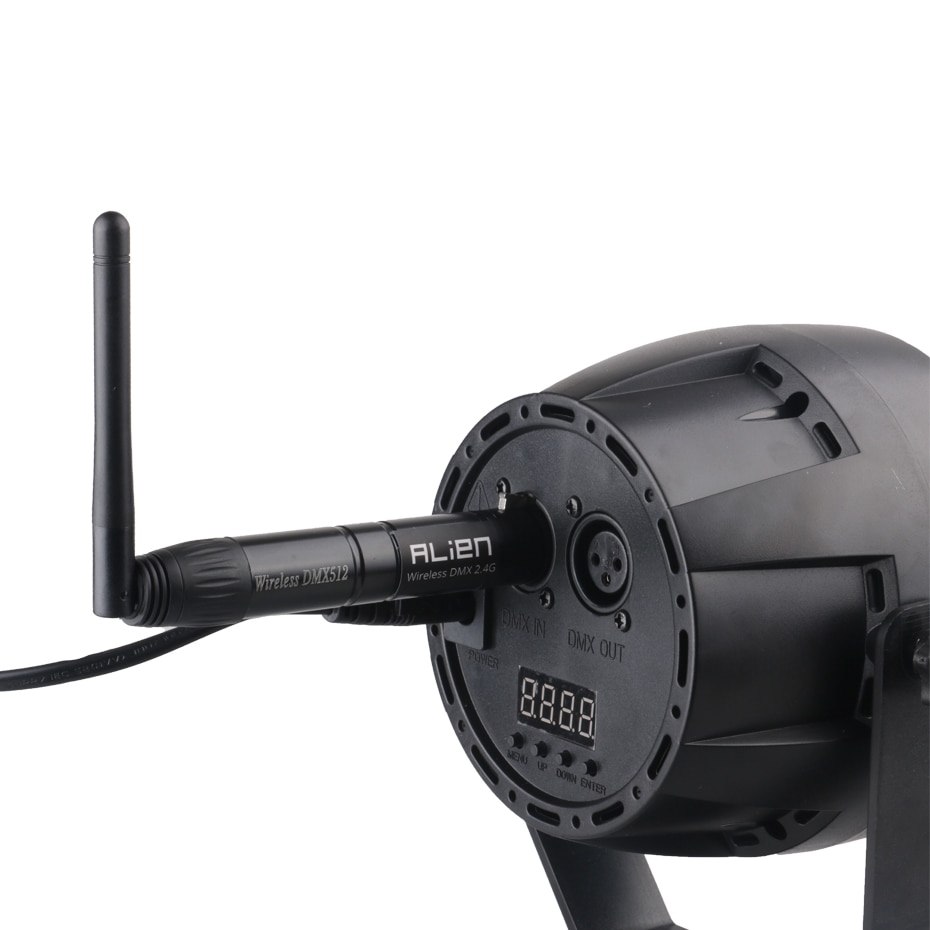

Please note some DMX fixtures need to be placed into slave mode for proper DMX control. If in the master mode they will send a DMX signal out the xlr jacks causing the auto scan transmitter/receivers to go into a transmitter mode due to the dmx signal being present.
Note : When using it , please pull up and down the antenna ,don't move the antenna heavily .

Which Plug did I need?

In order to get the package soon, place choose the right Plug Type.

Package include

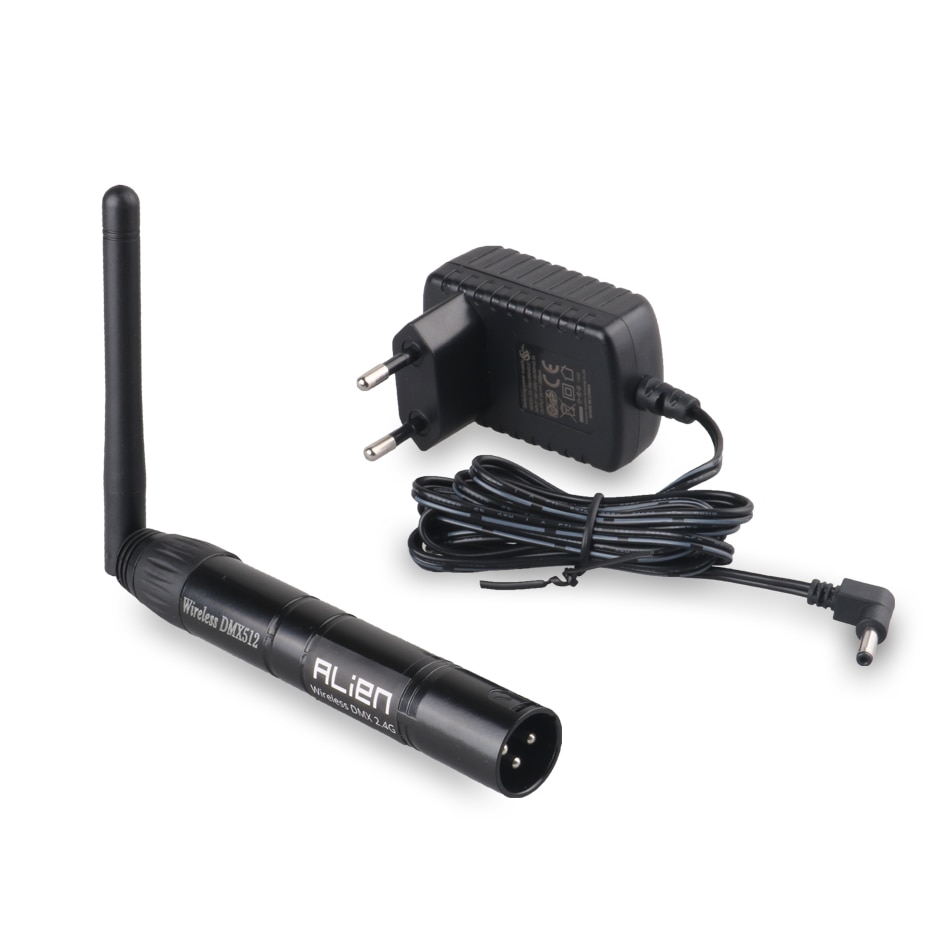

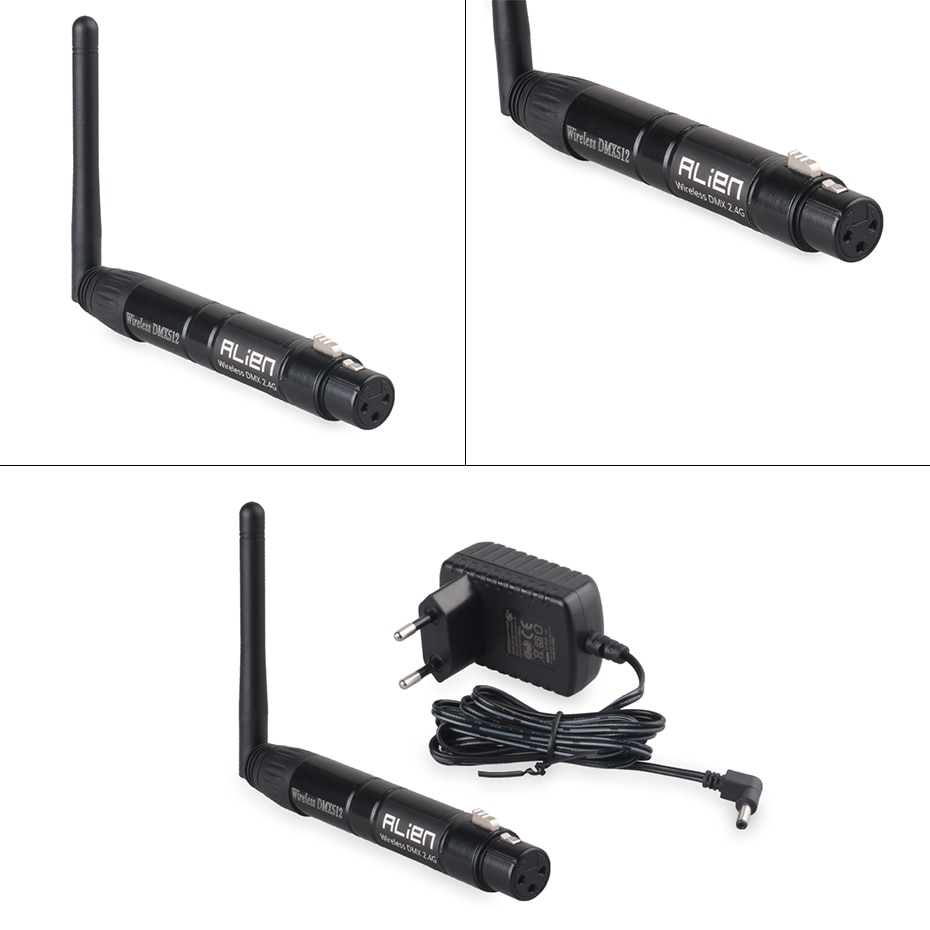

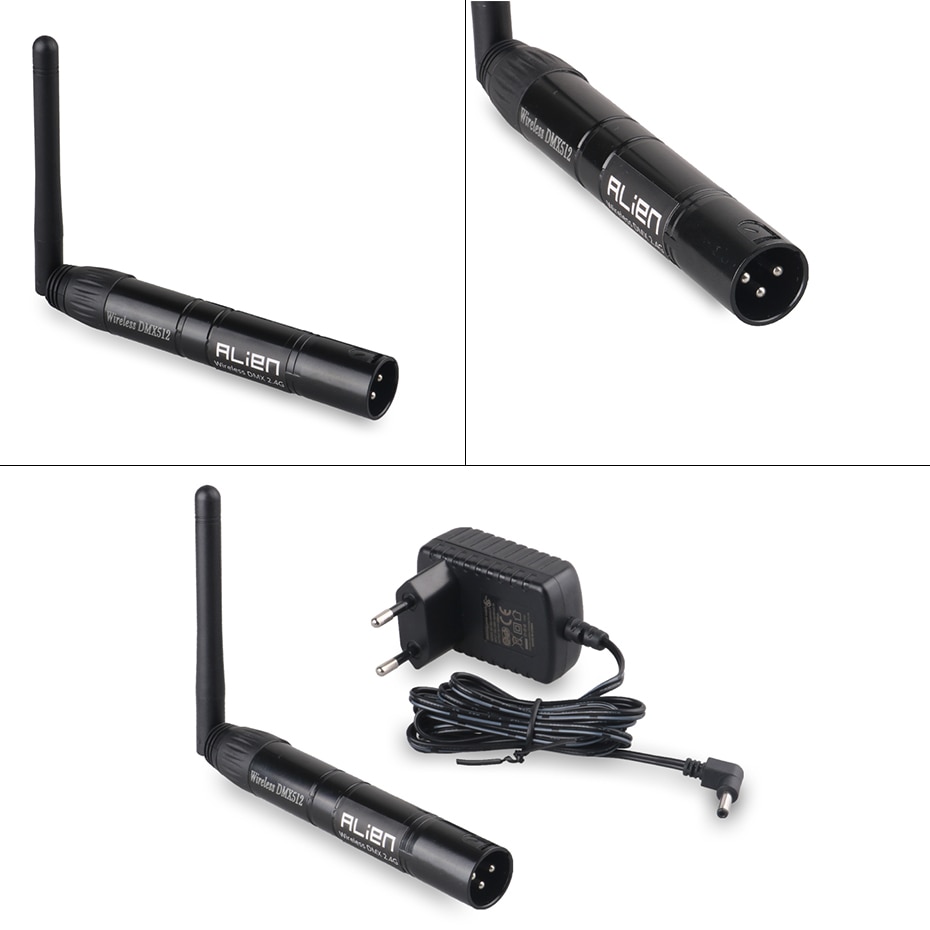

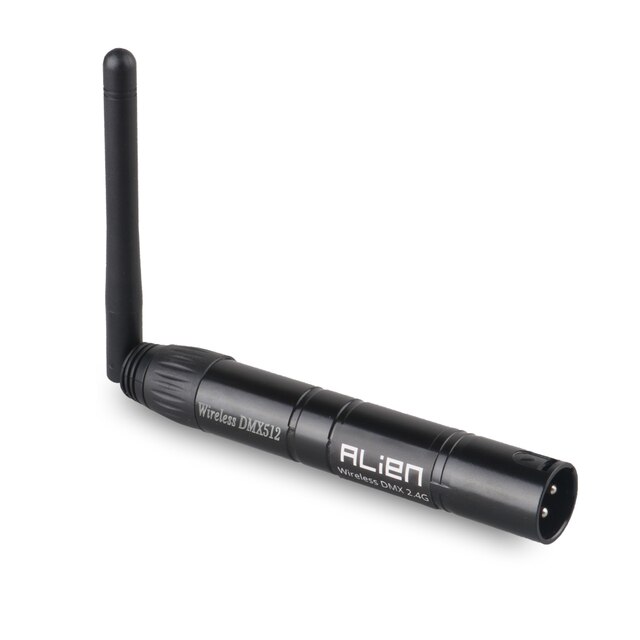

DMX 512 Wireless Lighting Controller Transmitte & Adapter (according to your choice)

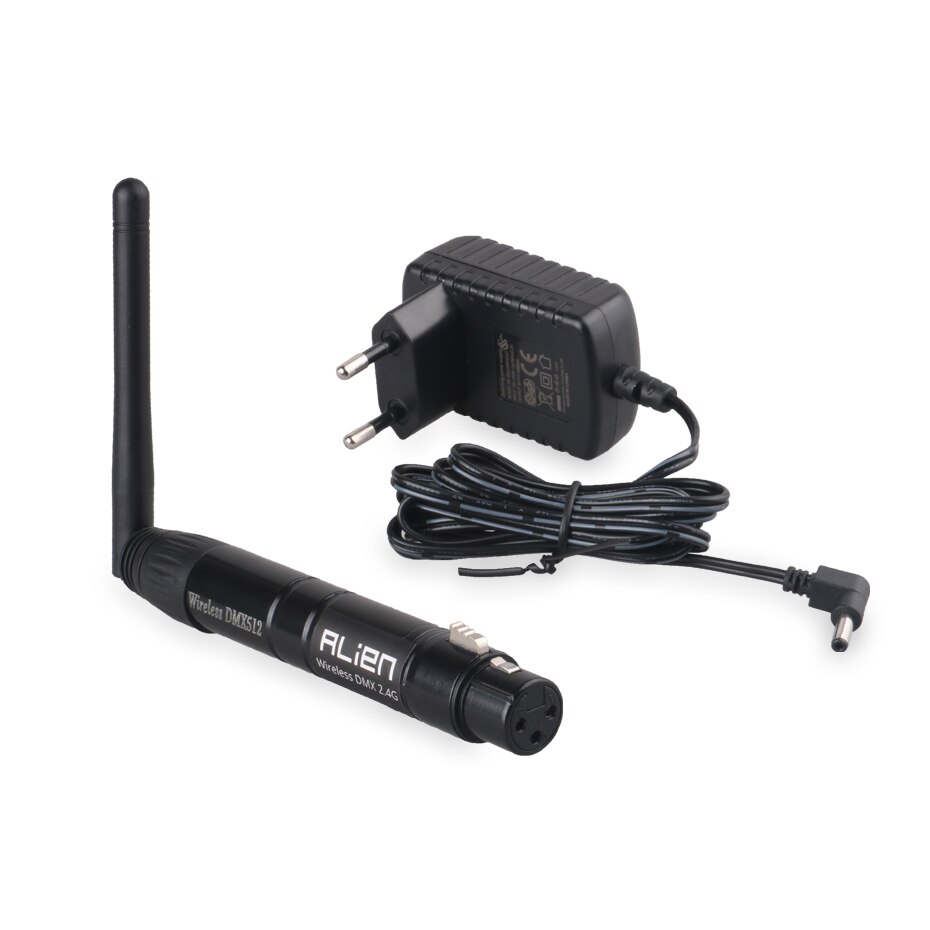

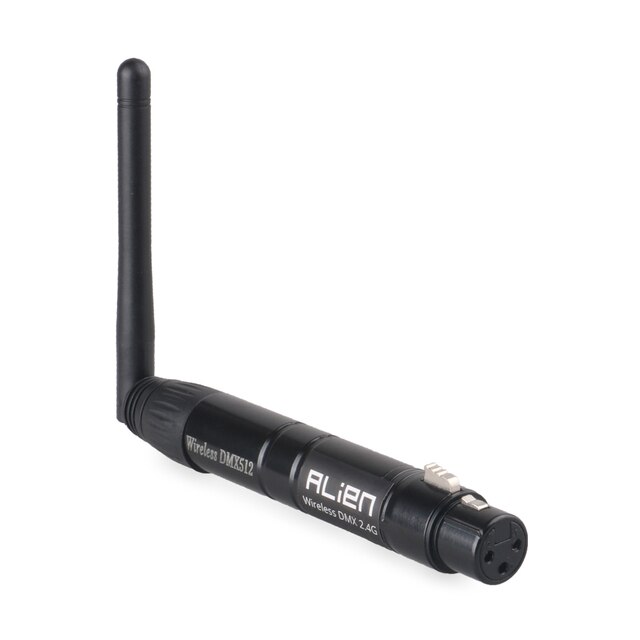

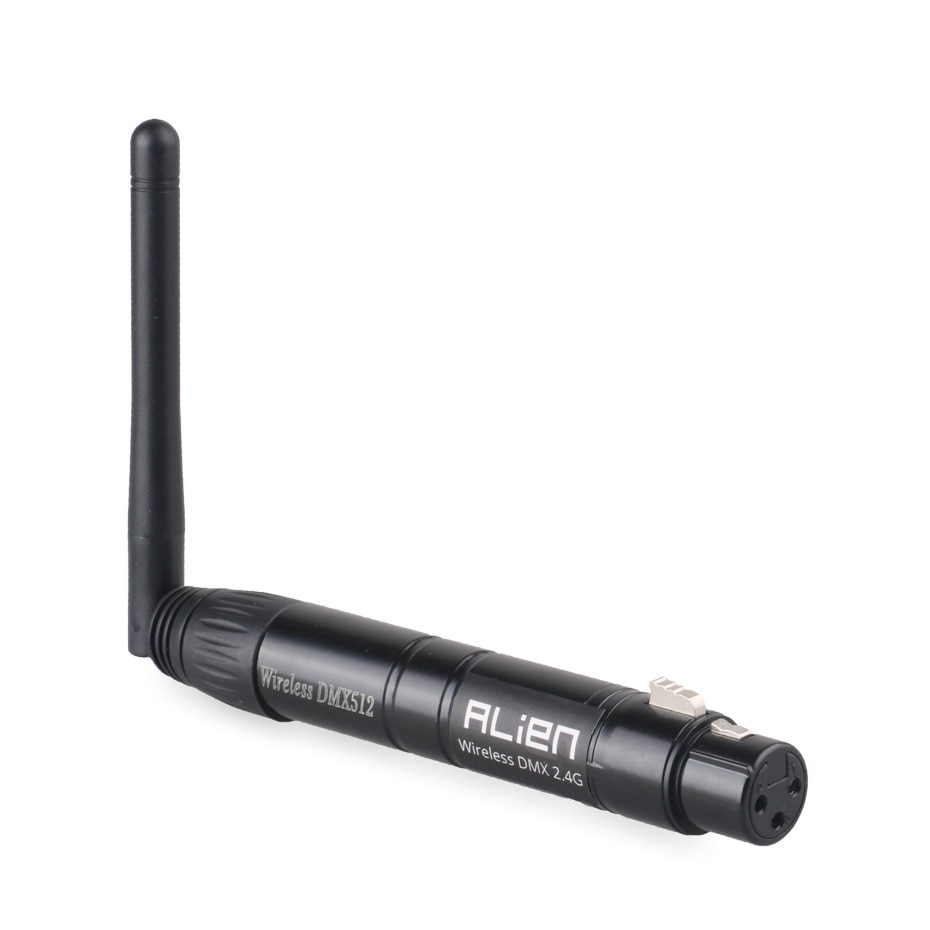

DMX 512 Wireless Lighting Controller Receiver & Adapter (according to your choice)
User manule

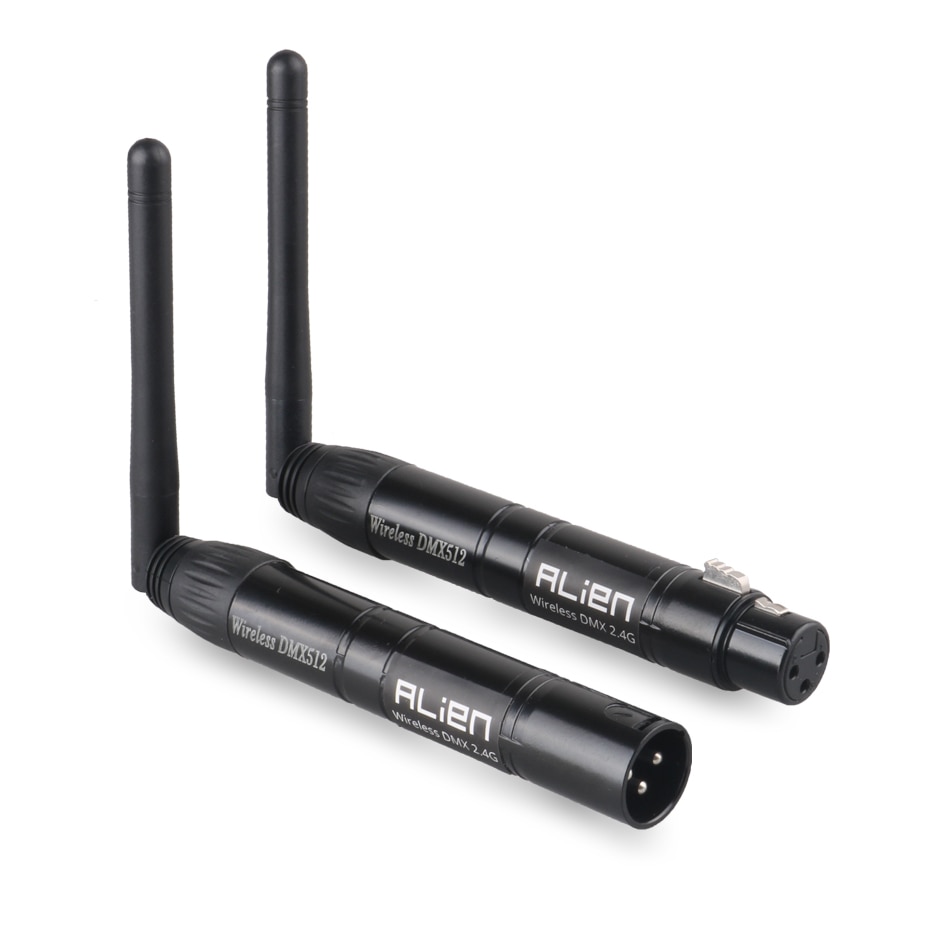

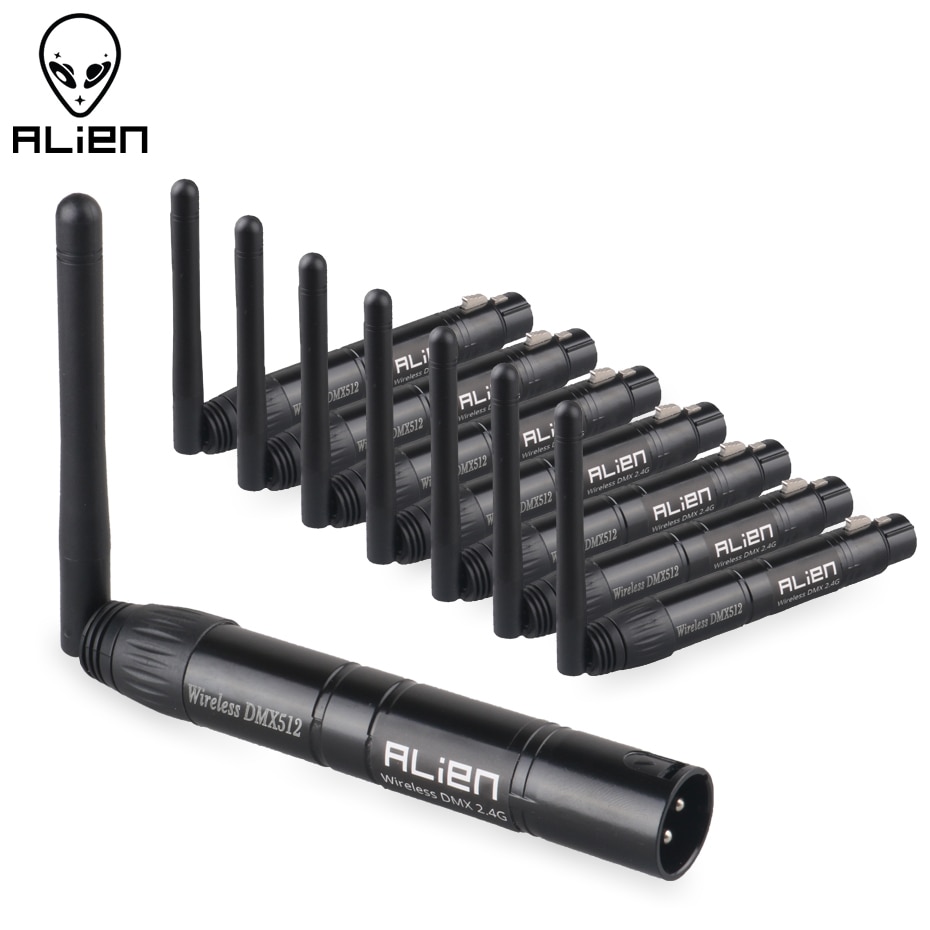

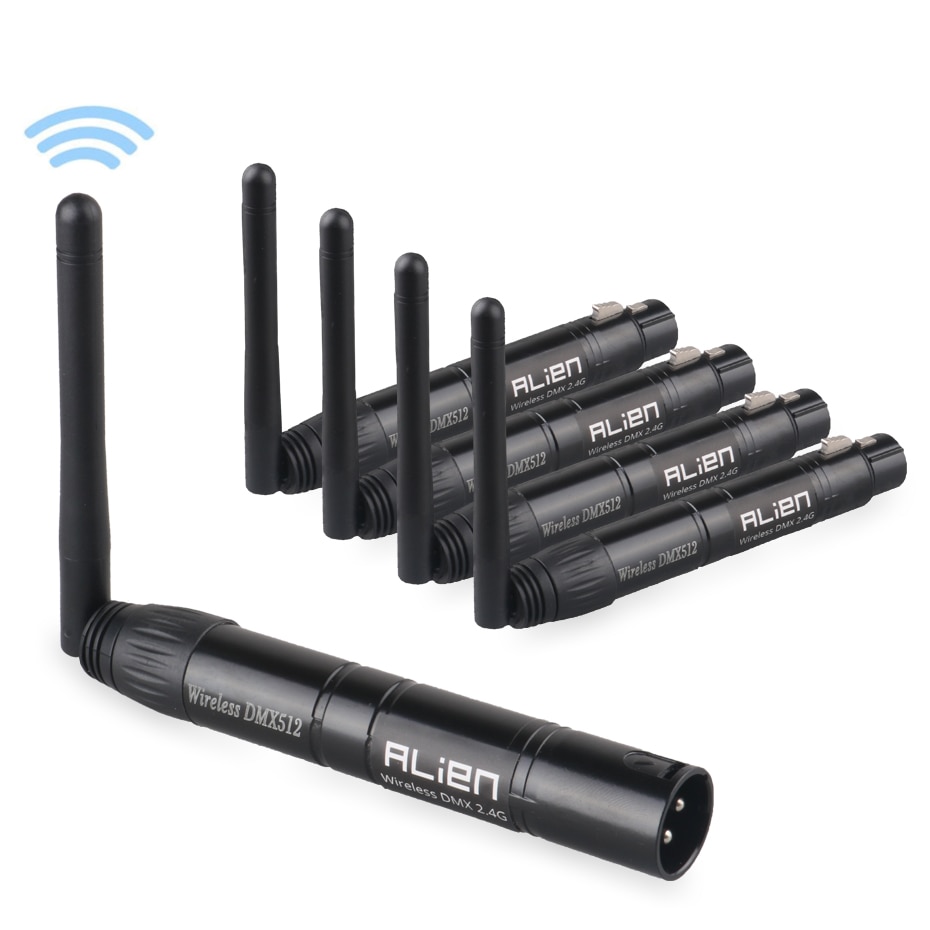

1PCS Transmitter & 1PCS Receiver ( 1PCS Transmitter , 1PCS Receiver , 2PCS Adapter )

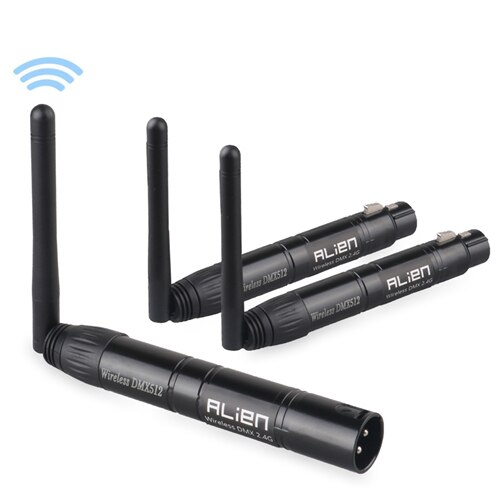

1PCS Transmitter & 2PCS Receiver ( 1PCS Transmitter , 2PCS Receiver , 3PCS Adapter )

1PCS Transmitter & 3PCS Receiver ( 1PCS Transmitter , 3PCS Receiver , 4PCS Adapter )

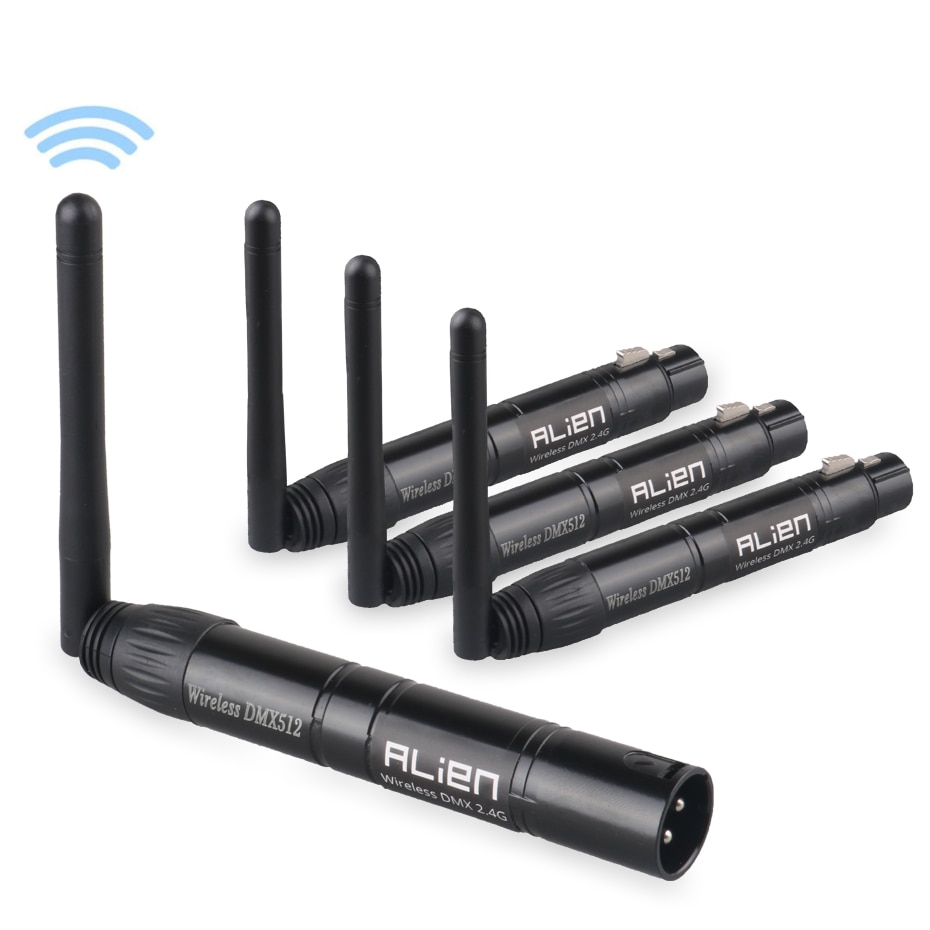

1PCS Transmitter & 4PCS Receiver ( 1PCS Transmitter , 4PCS Receiver , 5PCS Adapter )

1PCS Transmitter & 5PCS Receiver ( 1PCS Transmitter , 5PCS Receiver , 6PCS Adapter )

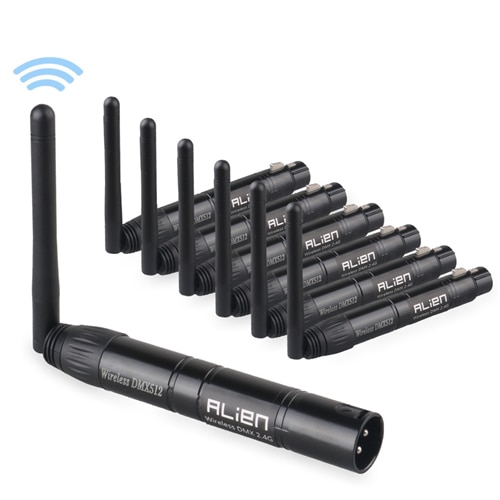

1PCS Transmitter & 6PCS Receiver ( 1PCS Transmitter , 6PCS Receiver , 7PCS Adapter )

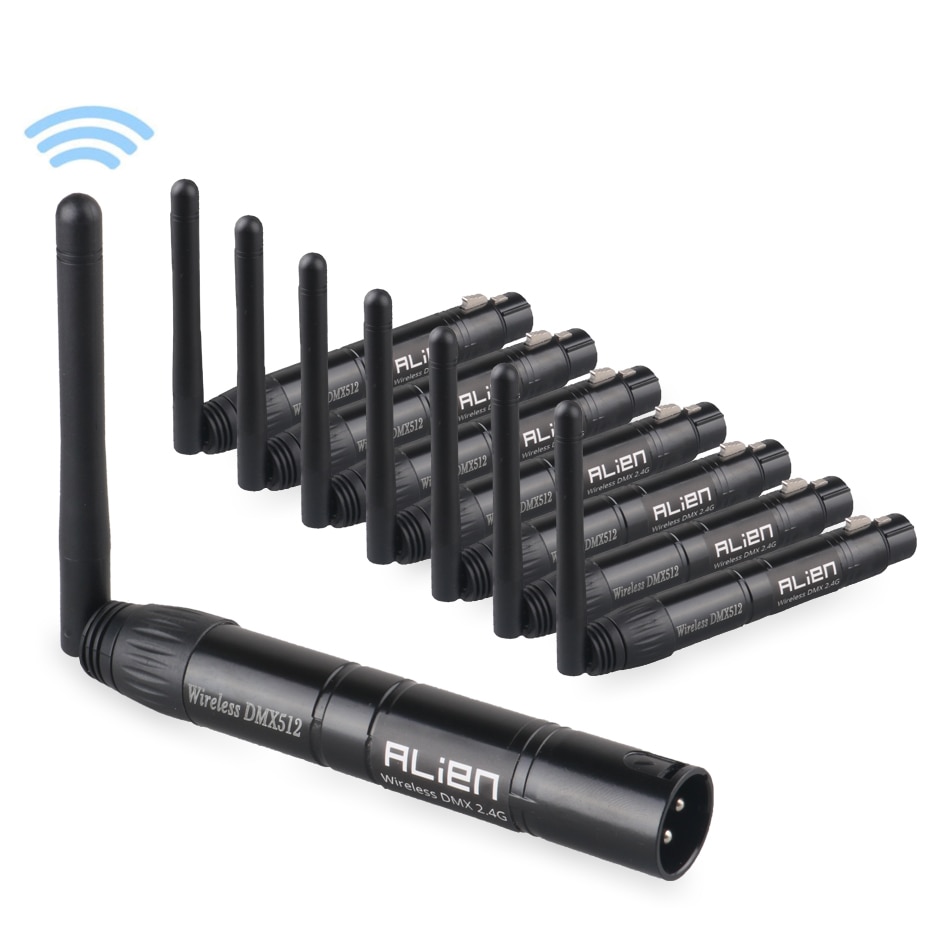

1PCS Transmitter & 7PCS Receiver ( 1PCS Transmitter , 7PCS Receiver , 8PCS Adapter )

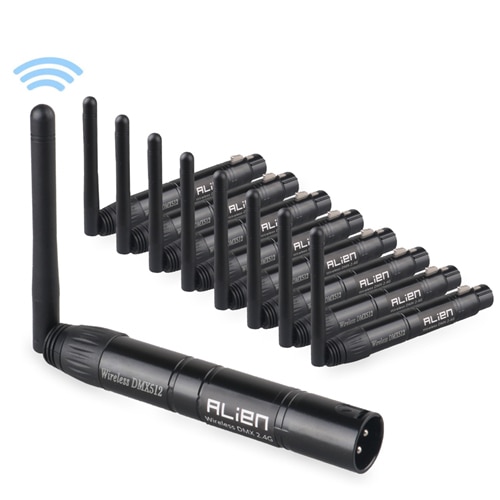

1PCS Transmitter & 8PCS Receiver ( 1PCS Transmitter , 8PCS Receiver , 9PCS Adapter )

Q : Can I use this with microphones ? Can I use to make the microphones wireless ?

A : No....this is for wireless DMX control of lights not audio .

Q : Does it have a 5 pin adapter for connecting to the DMX port on a lighting console?

A : It is a 3-Pin. If you need 5-Pin, you can contact ALIEN customer service .

Q : How many DMX addresses can be sent thru one transmitter and one receiver?

A : there are 7 channels for the ALIEN and they are colored red green purple blue and so on. The transmitter needs to match the color using on all receivers.

Q : Which plug i can choose ?

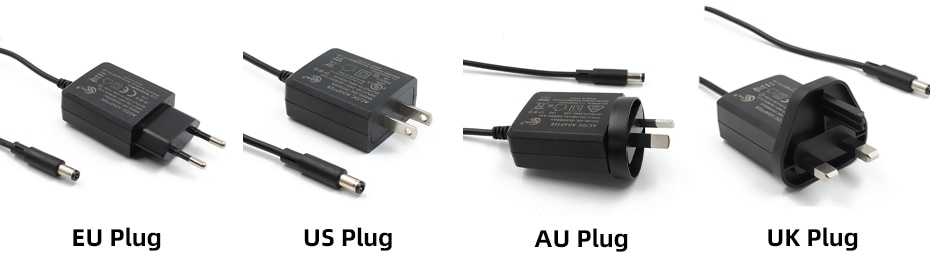

A : The plug type as images below







  • Voltage: 5V
  • Power: 3W
  • Model Number: WDBL-100
  • Occasion: Professional Stage & DJ
  • Style: DMX Stage Light
  • Brand Name: Alien
  • Certification: CE,RoHS
  • Origin: Mainland China
  • Item Type: Stage Lighting Effect
  • Input Voltage: 5V DC 500mA
  • Communication Distance: 400M (Visible Distance)
  • Max Transmitting Power Rate: 20 dBm
  • Receiver Sensitivity: -94 dBm
  • CPU: 32-bit ARM Core
  • Modulation: GFSK
  • DMX Signal Interface: RS485
  • Operating Temperature: -40 ~ 85 Celsius
  • Storage Temperature: -65 ~ 150 Celsius
  • Ambient Relative Humidity: 5 to 95% (Non-Condensing)
  • Automatic Reboot Trigger: Built-in WDT (watchdog timer)
  • Work Frequency Section: 2.4G ISM, 126 channels, frequency section
