Air Pipe Fitting 10mm 12mm 8mm 6mm 4mm Hose Tube 1/8" 3/8" 1/2" 1/4" Female Thread Brass Pneumatic Straight Connector PCF type
5.0 (8 votes) | 33 orders
Price:
US $11.44
/ piece
Discount Price:
US $
9.95
/ piece
-13%
- Color
-
-
|
|
Product Usage:
The contact tube connection port for pneumatic piping , also can be used for various purposes depending on the user's condition.
Product details:

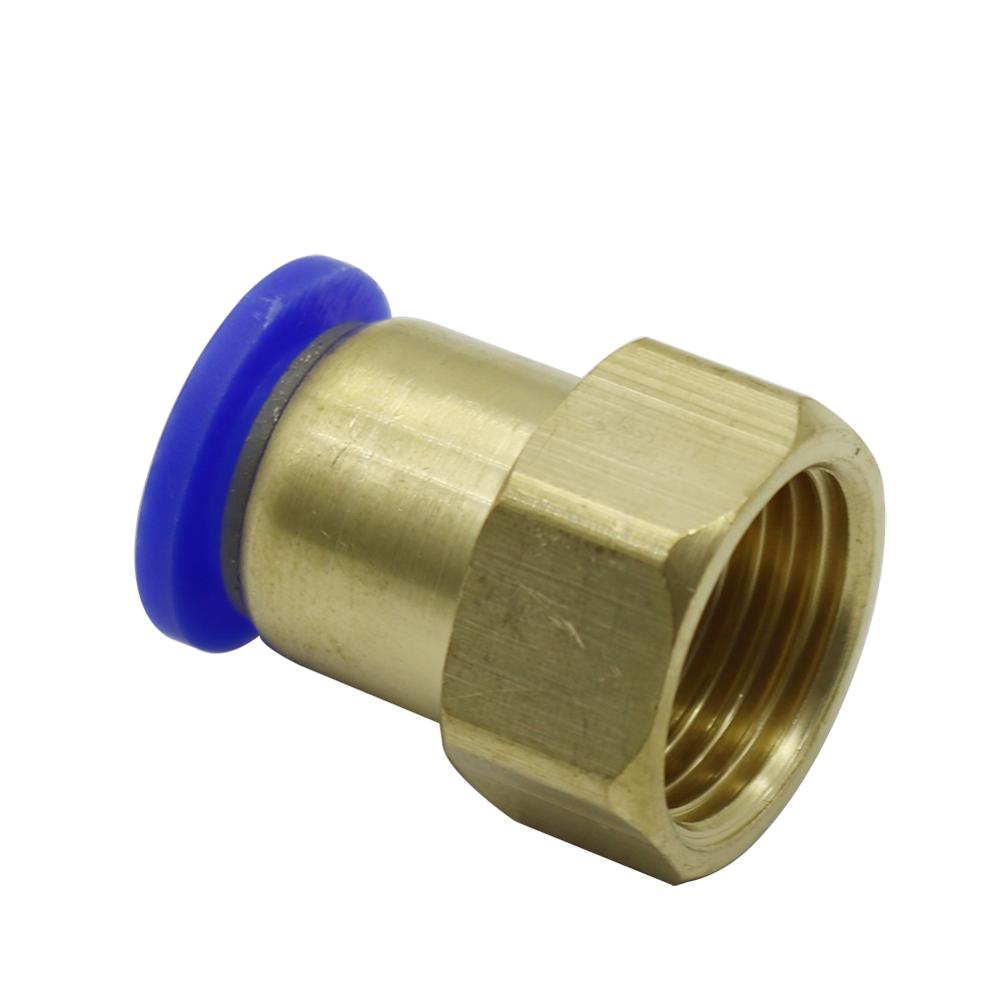

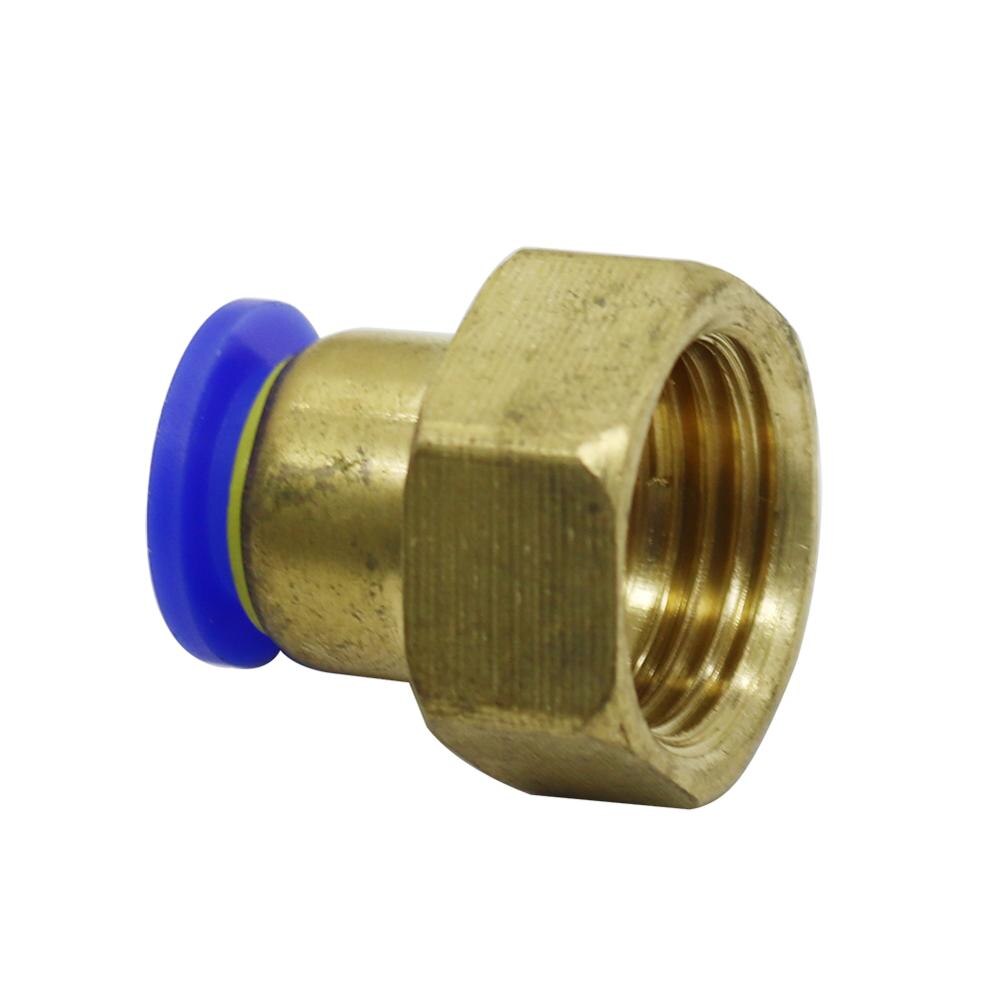

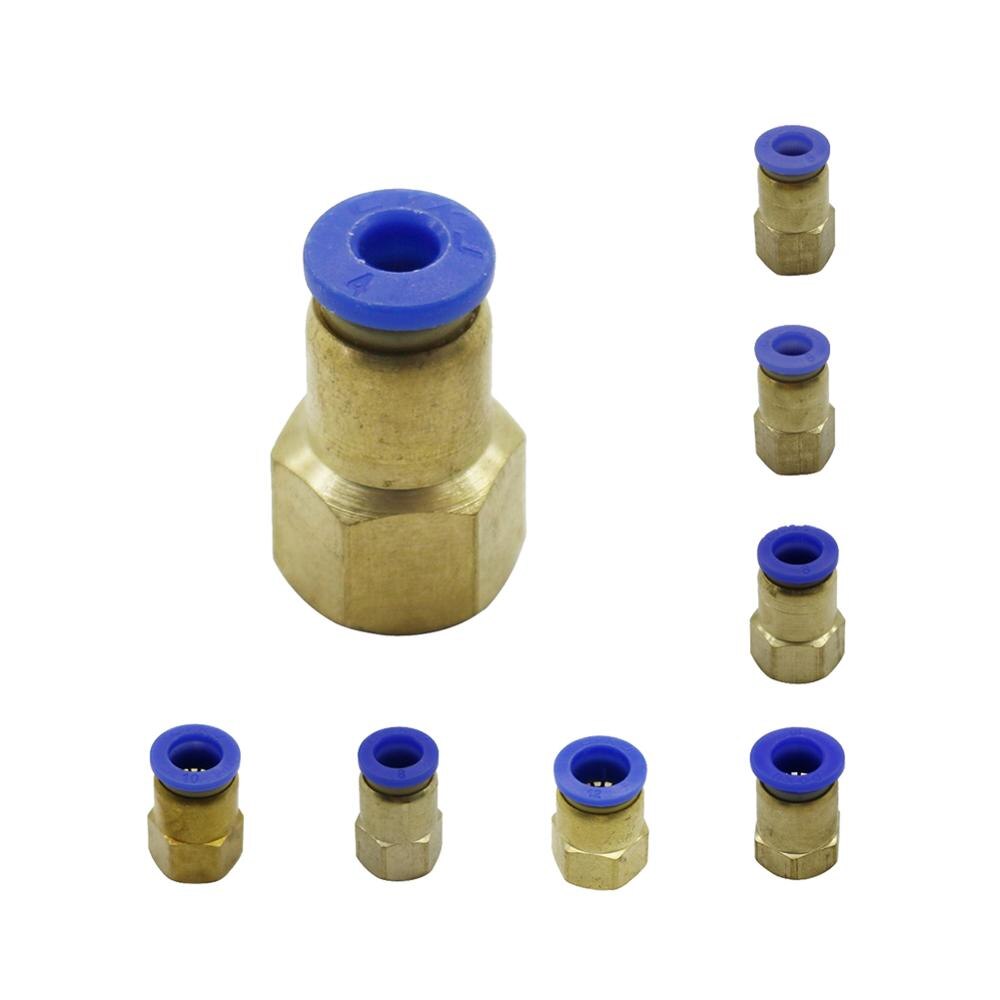

Product name: PCF internal thread straight pneumatic connector
Material: Plastic+brass
Circlip: Stainless steel
Working medium: Water/gas
Working pressure:0~0.9Mpa
Highest pressure resistance: 1.3MPa
Operating temperature range: 0~60°C
Applicable hose: Nylon/PU tube

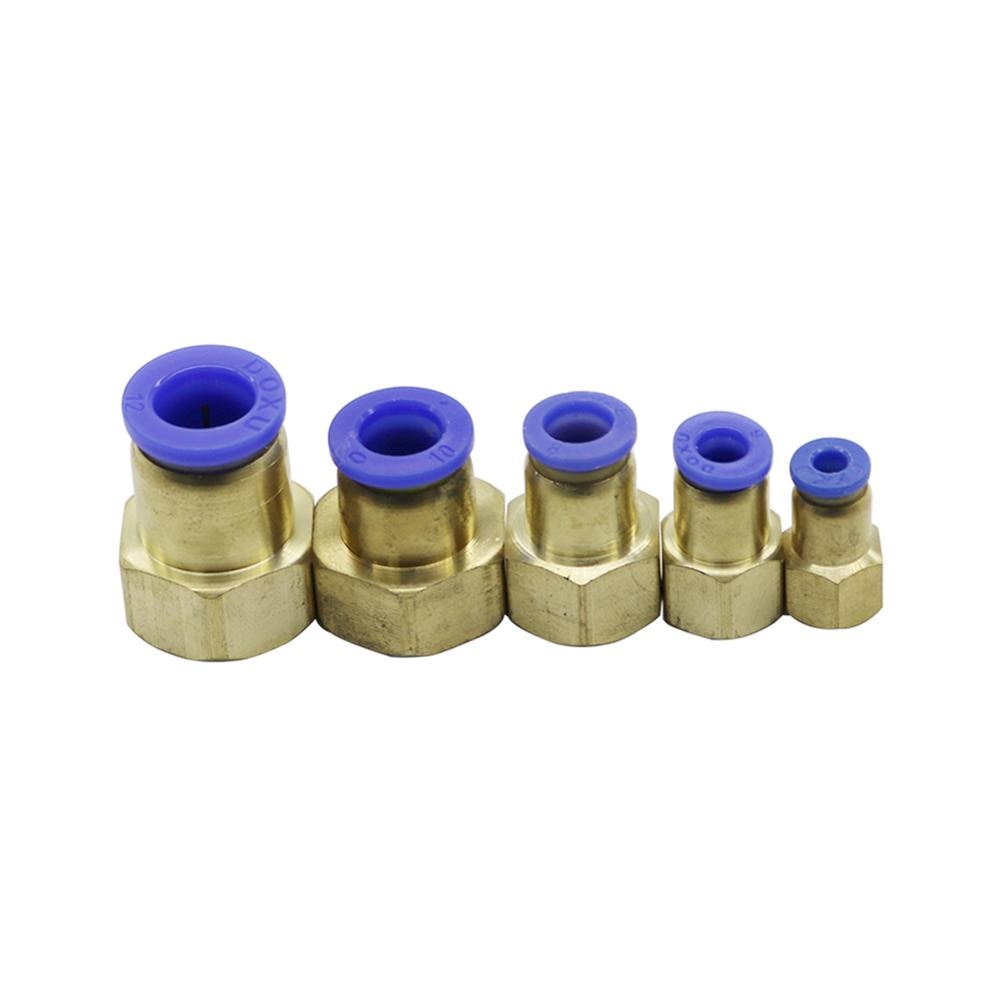

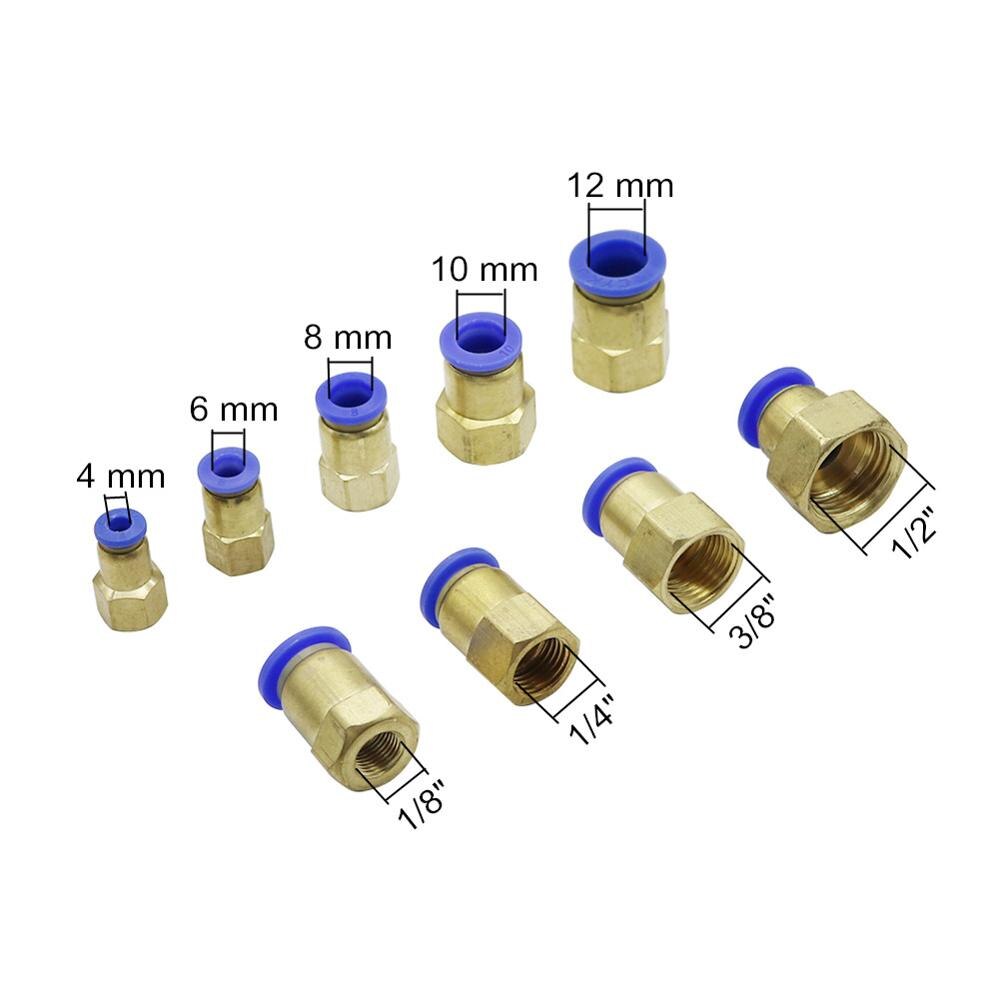

Pipe outter diameter: 4mm/6mm/8mm/10mm/12mm
Thread specifications:
01=1/8"≈9.5~10mm
02=1/4"≈12~12.7mm
03=3/8"≈16~16.2mm
04=1/2"≈20~20.3mm

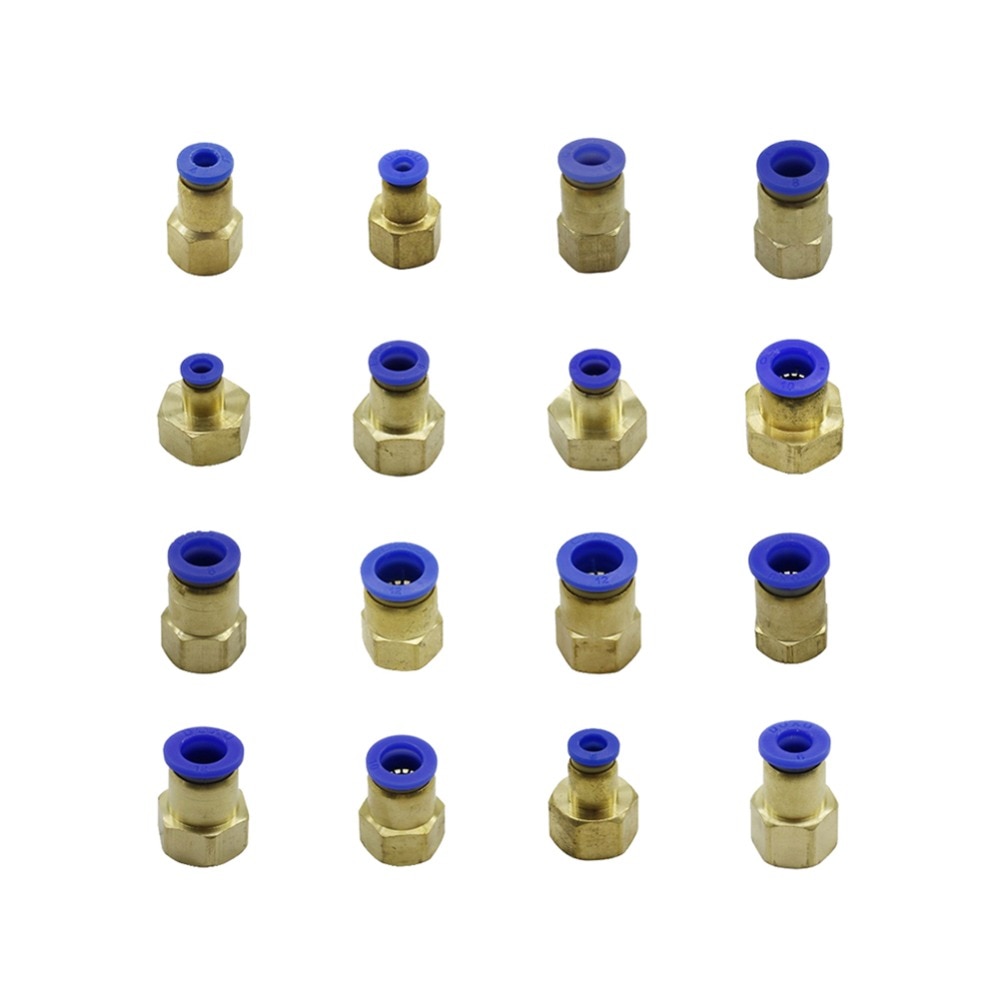

Specification:
PCF4-01: 4mm to 1/8" Female Thread

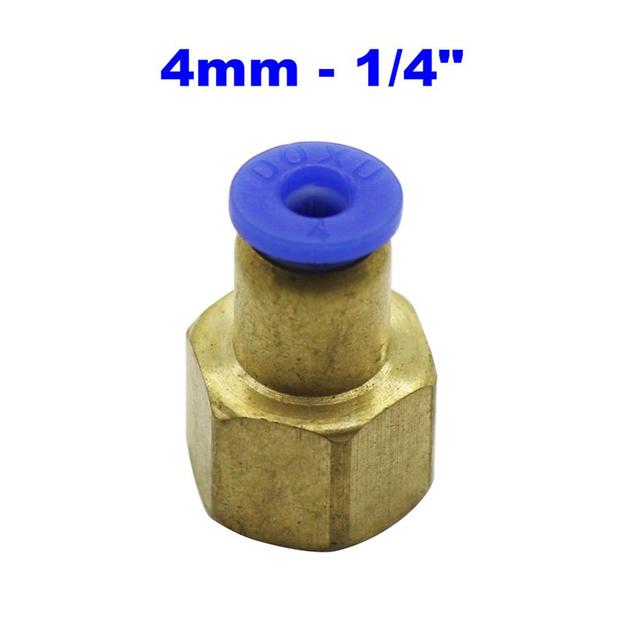

PCF4-02: 4mm to 1/4" Female Thread

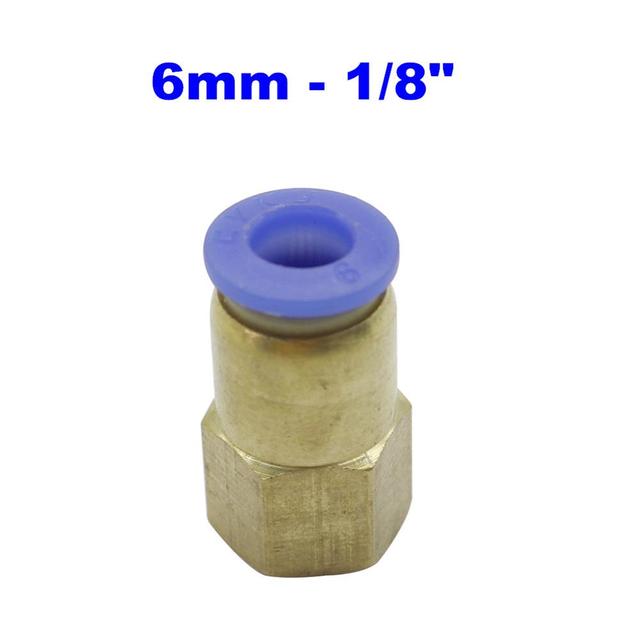

PCF6-01: 6mm to 1/8" Female Thread

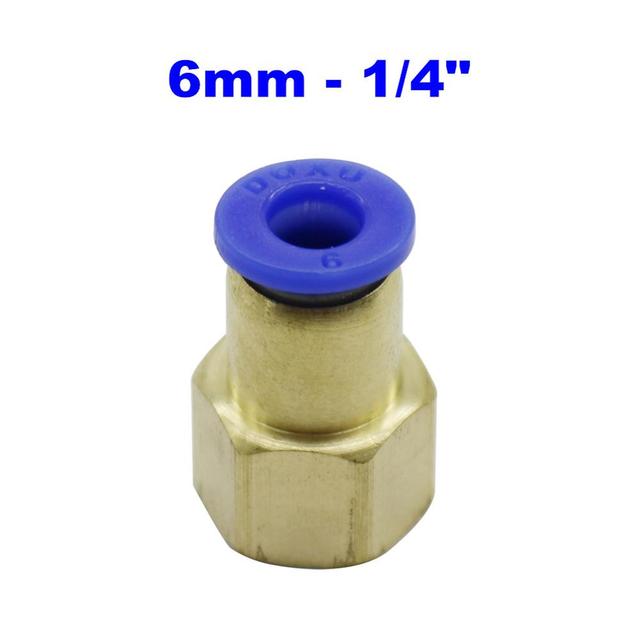

PCF6-02: 6mm to 1/4" Female Thread

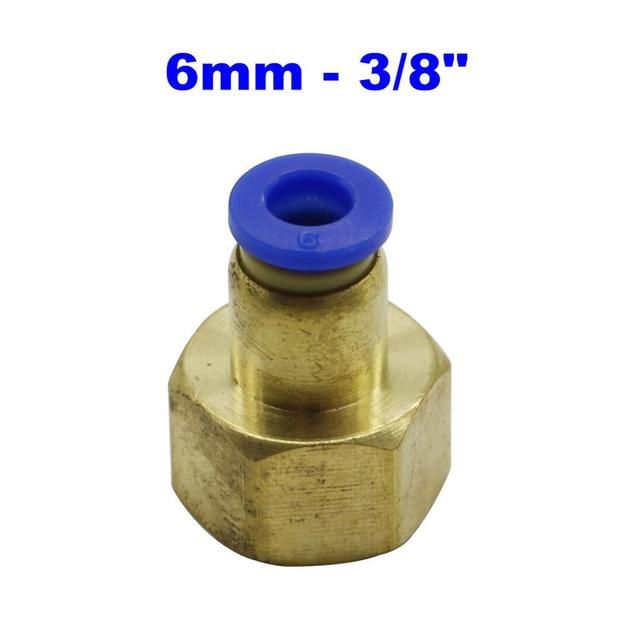

PCF6-03: 6mm to 3/8" Female Thread

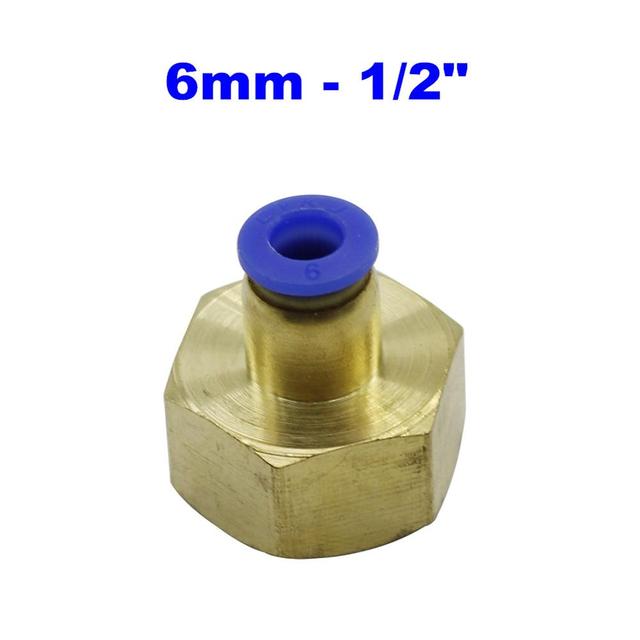

PCF6-04: 6mm to 1/2" Female Thread

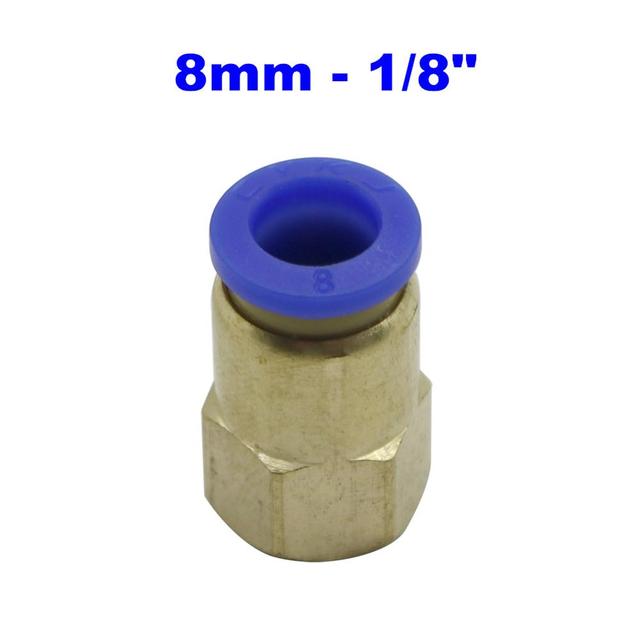

PCF8-01: 8mm to 1/8" Female Thread
PCF8-02: 8mm to 1/4" Female Thread

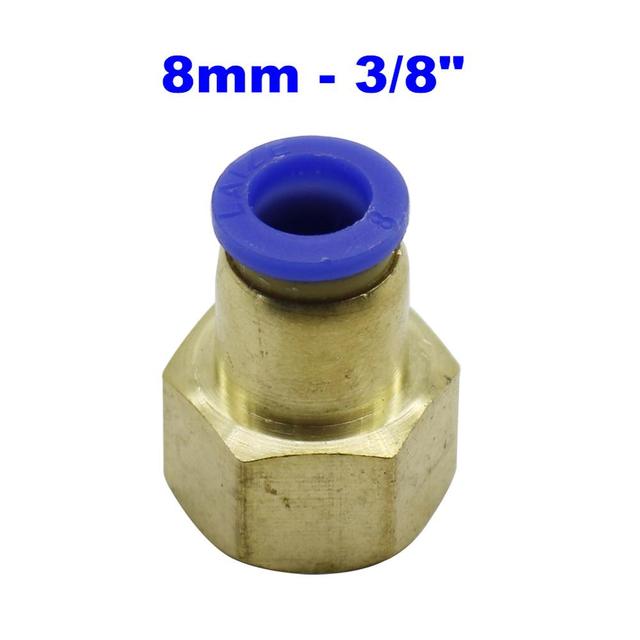

PCF8-03: 8mm to 3/8" Female Thread

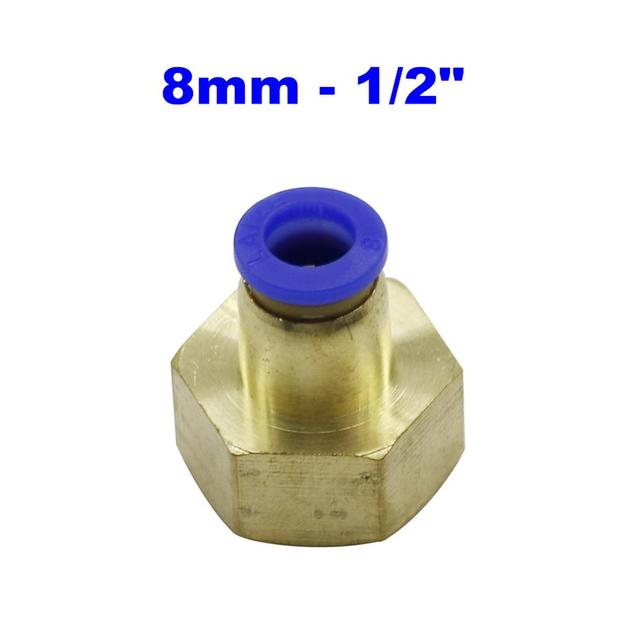

PCF8-04: 8mm to 1/2" Female Thread

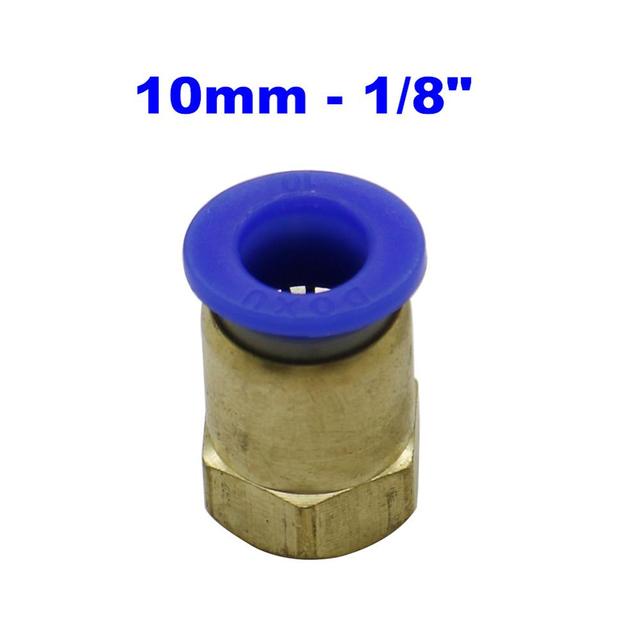

PCF10-01: 10mm to 1/8" Female Thread

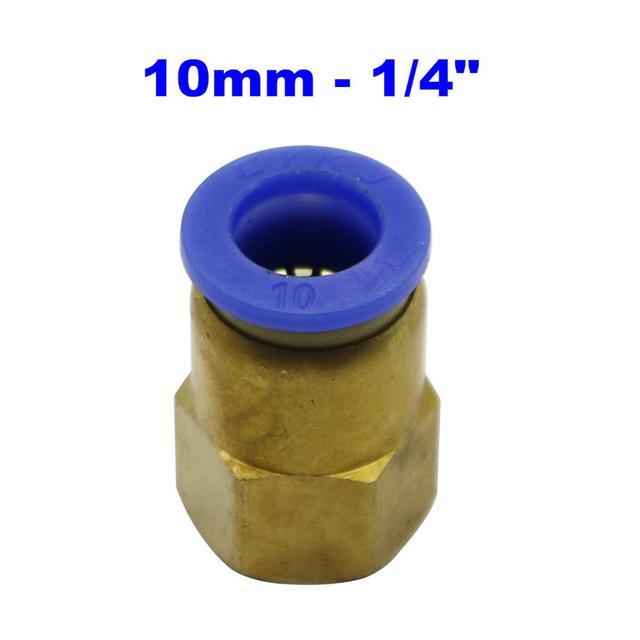

PCF10-02: 10mm to 1/4" Female Thread

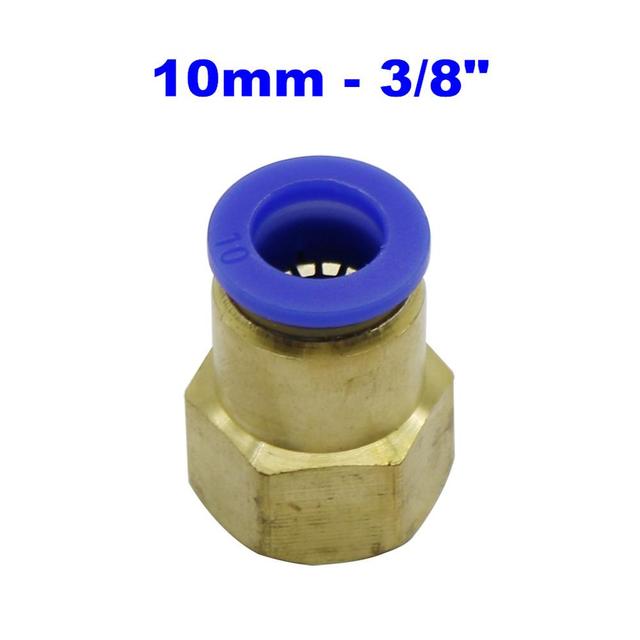

PCF10-03: 10mm to 3/8" Female Thread
PCF10-04: 10mm to 1/2" Female Thread

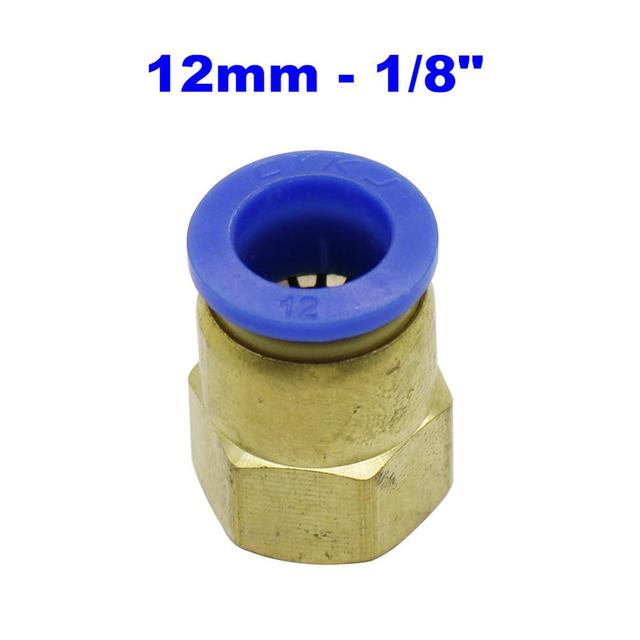

PCF12-01: 12mm to 1/8" Female Thread

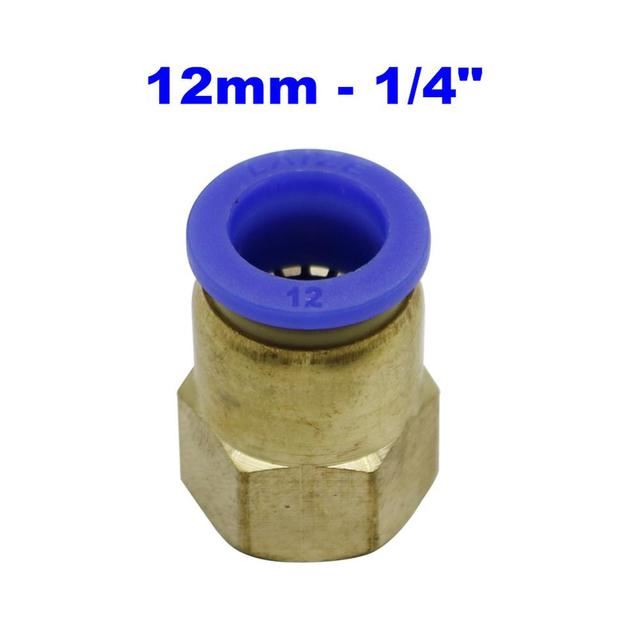

PCF12-02: 12mm to 1/4" Female Thread
PCF12-03: 12mm to 3/8" Female Thread

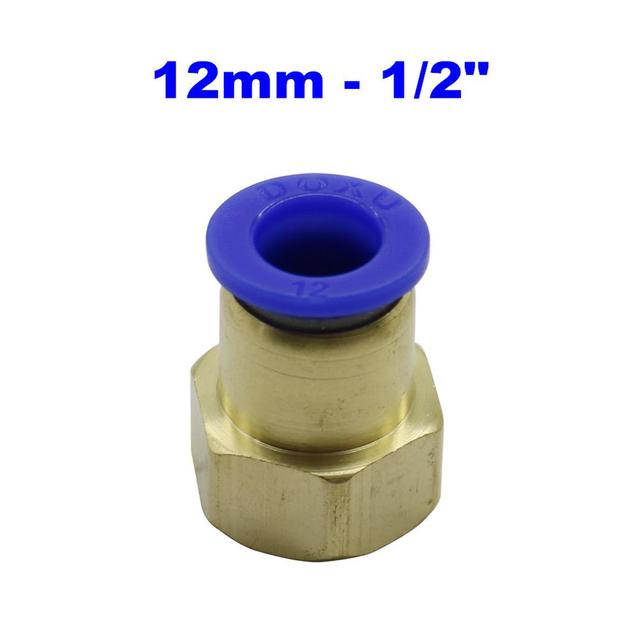

PCF12-04: 12mm to 1/2" Female Thread
Packing include:
1 pcs x PCF pneumatic connector (type as you choose)
Features:
1. Quick installation, simple and smart, saves space.
2. Various forms to meet the needs of any pneumatic pipe.
3. Even after installation, the plastic pipe body can be arbitrarily turned.
4. The connectors are equipped with hexagon sockets for easy installation in narrow places.
Precautions:
1. If a non-company's trachea product is used, it may cause leakage or abnormal connection and disassembly due to the tolerance of the trachea. Therefore, it is necessary to check whether the outer diameter conforms to the tolerance allowable size.
2. Please check to see if the end face of the trachea is cut at right angles. If there is any damage or scratch outside the trachea, insert it into the end to ensure the seal.
3. When disassembling the air pipe, check that the pressure in the air pipe is zero.
Connection pipe precautions:
(1) Make sure that the cut surface of the pipe is vertical, there is no damage on the outer circumference of the pipe and the pipe is not oval.
(2) When inserting the pipe, it must be inserted into the bottom of the joint. If the pipe is not inserted, it may cause air leakage.
(3) After the pipe is installed, pull the pipe to confirm that the pipe cannot be pulled out.
Precautions when removing the joint:
(4) Use a suitable tool to remove the pipe joint using the outer hexagon of the pipe joint
(5) It is necessary to remove the sealing material adhered to the opposite side of the pipe joint. Otherwise the adhered sealing material may enter the peripheral components, causing malfunction
Use warning:
1. In the fluid other than air and water, try not to use
2. If it is used in a place where sparks are generated, it may cause a fire, so it is forbidden to use it in such a place.
Please Note:
The size is measured by hands, please allow minor error of measurement. Photo color might be a little different from the actual product due to color display of different monitors.
- Model Number: PCF type
- Type: Fittings
- Product name: PCF internal thread straight pneumatic connector
- Material: Plastic+brass
- Circlip: Stainless steel
- Working medium: Water/gas
- Working pressure: 0~0.9Mpa
- Highest pressure resistance: 1.3MPa
- Operating temperature range: 0~60°C
- Thread specification: 1/8",1/4",3/8",1/2"
- Applicable hose: Nylon/PU tube
- Sale unit: 1 Pcs
