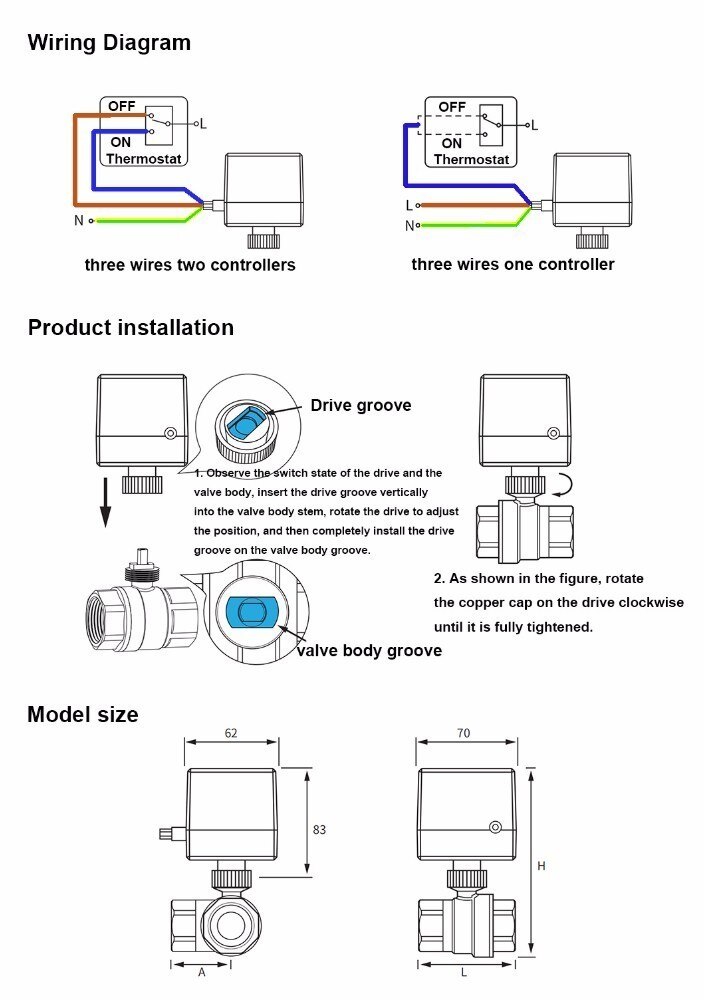

Air conditioning floor heating Parts miniature electric two way ball valve three wire two control one control Brass water heat

0.0 ( votes) | 1 orders
Price: US $28.47 - 143.49 / piece
Discount Price:
US $ 27.05 - 136.33 / piece
-5%
Ships From
Color
Quantity

Pre purchase instructions
Because the use and installation of this product are different. Please contact customer service before payment. Thank you for your understanding and understanding.


Product overview

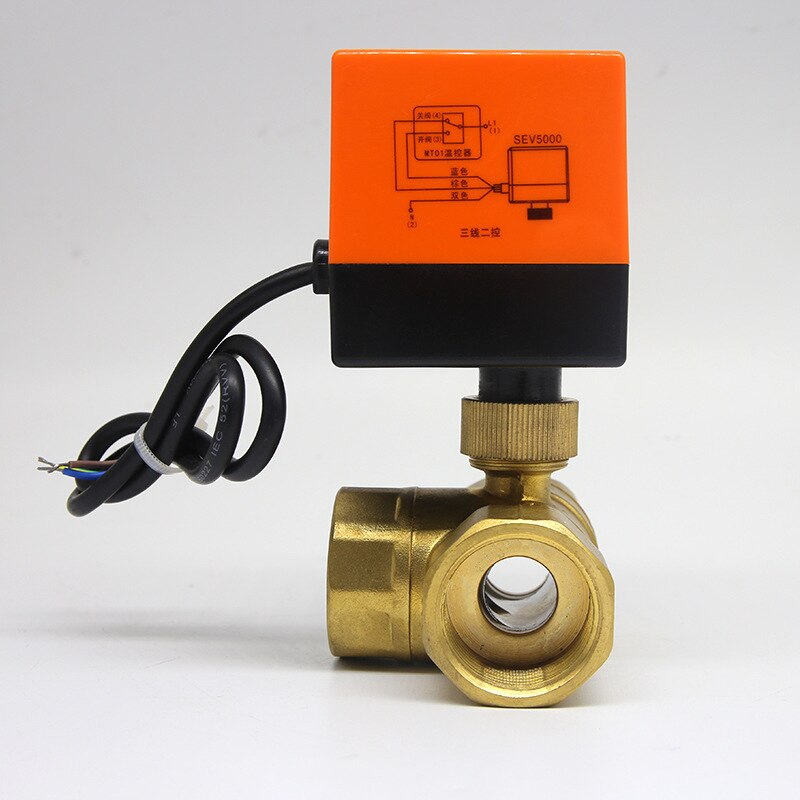

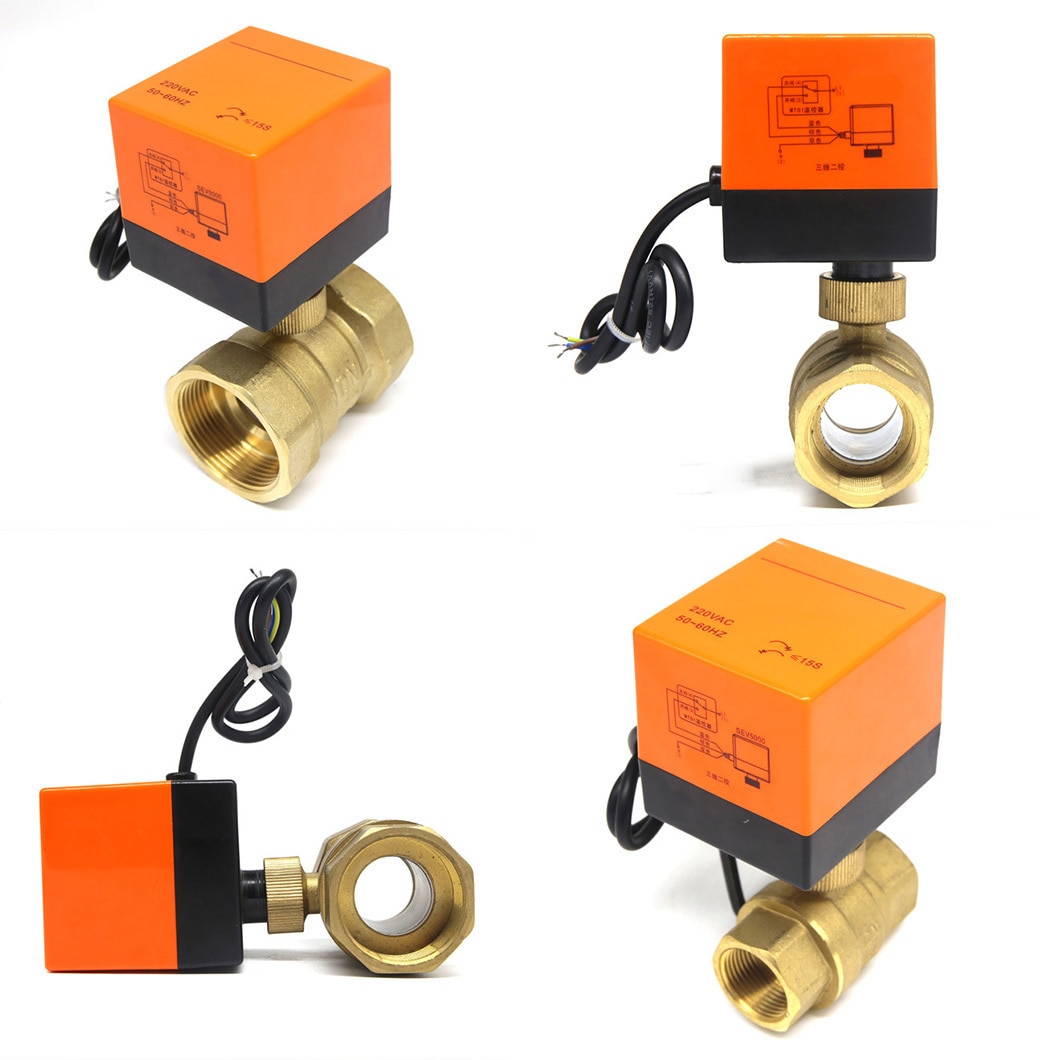

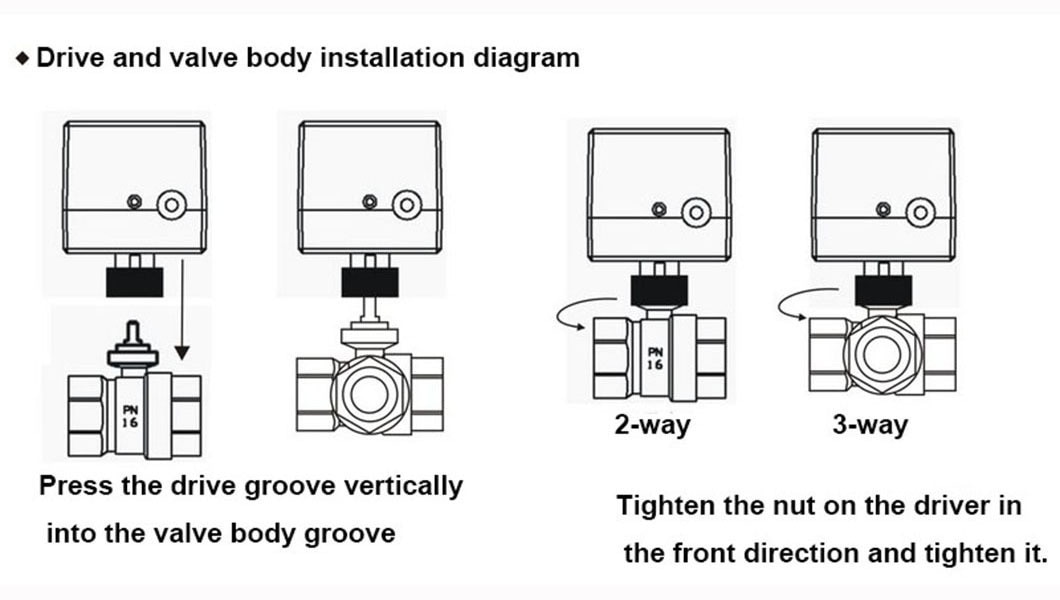

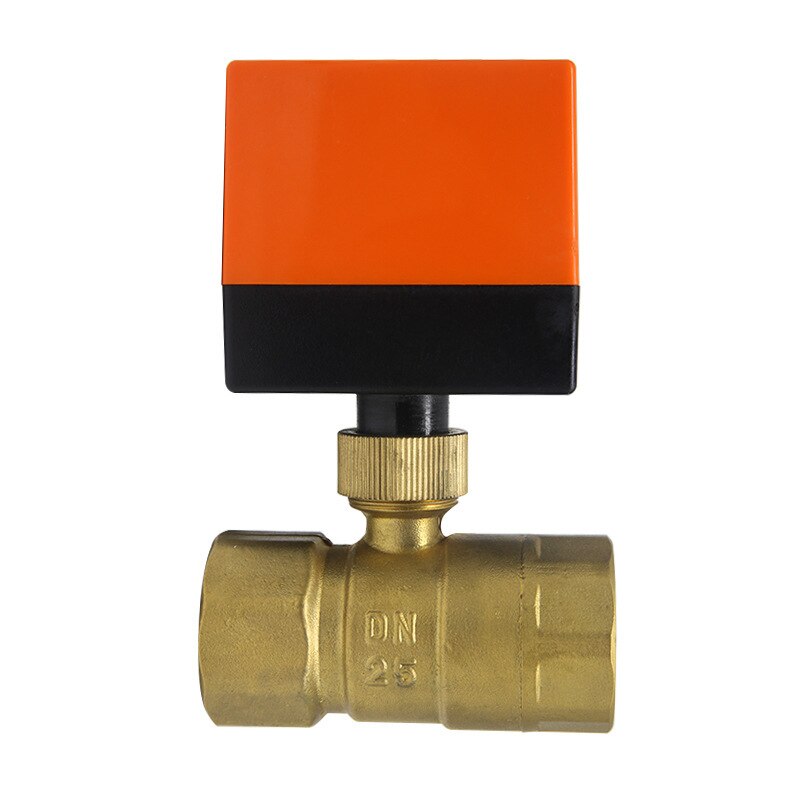

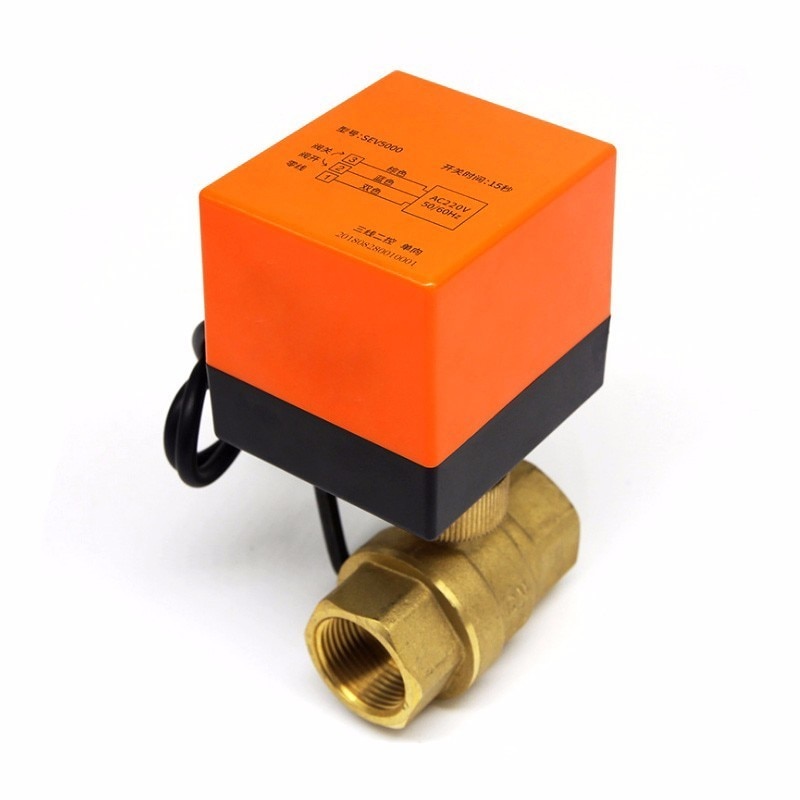

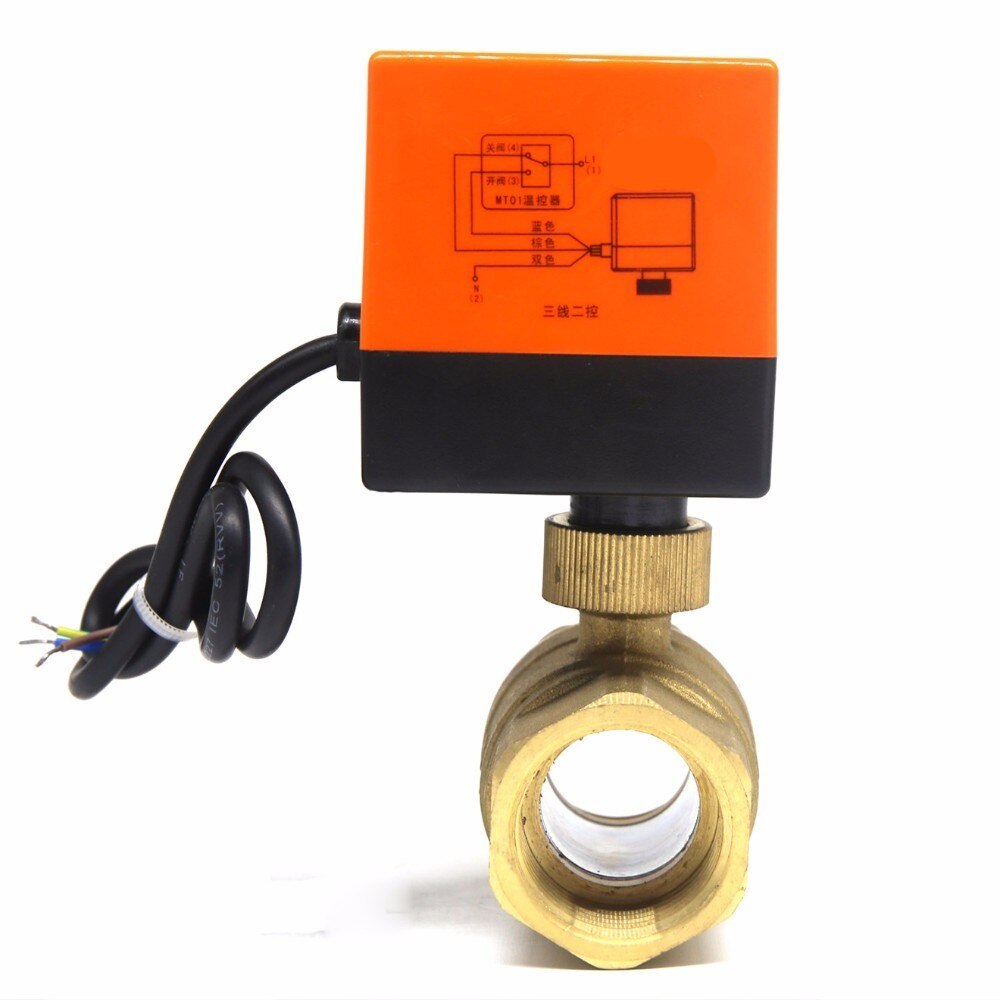

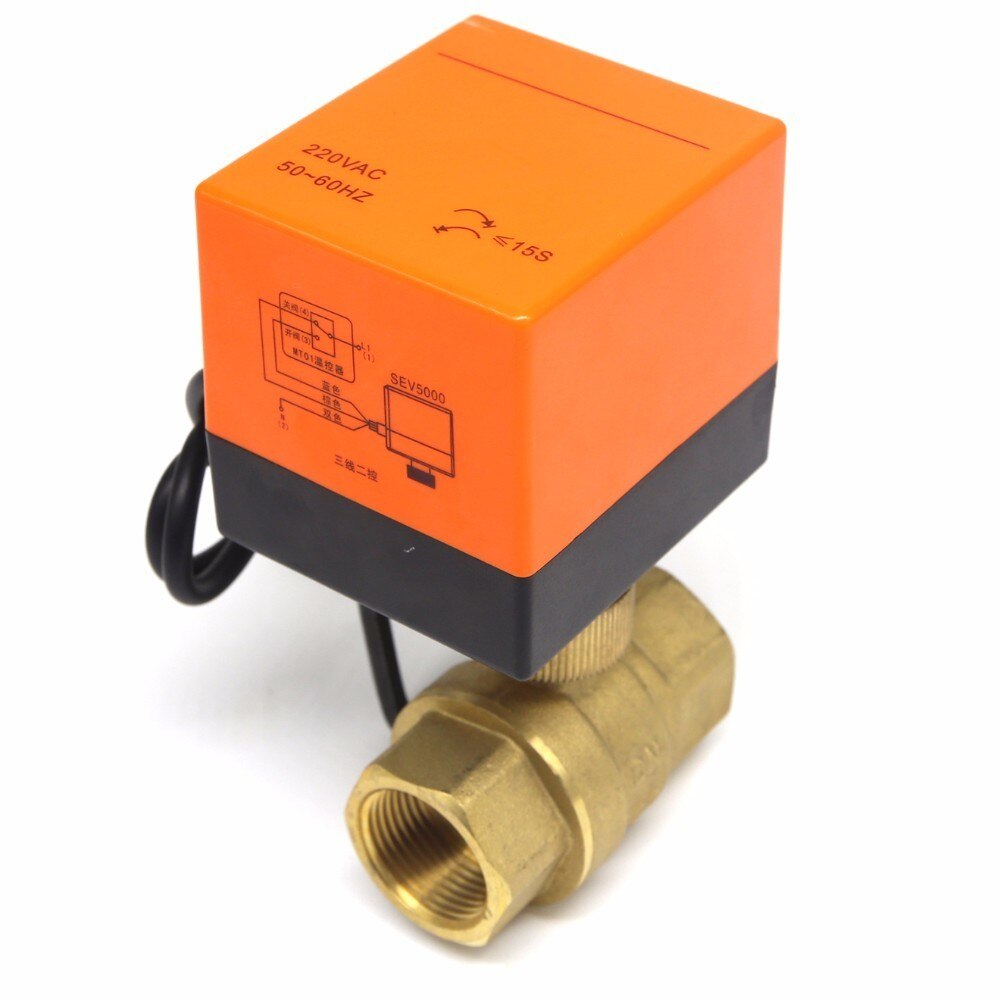

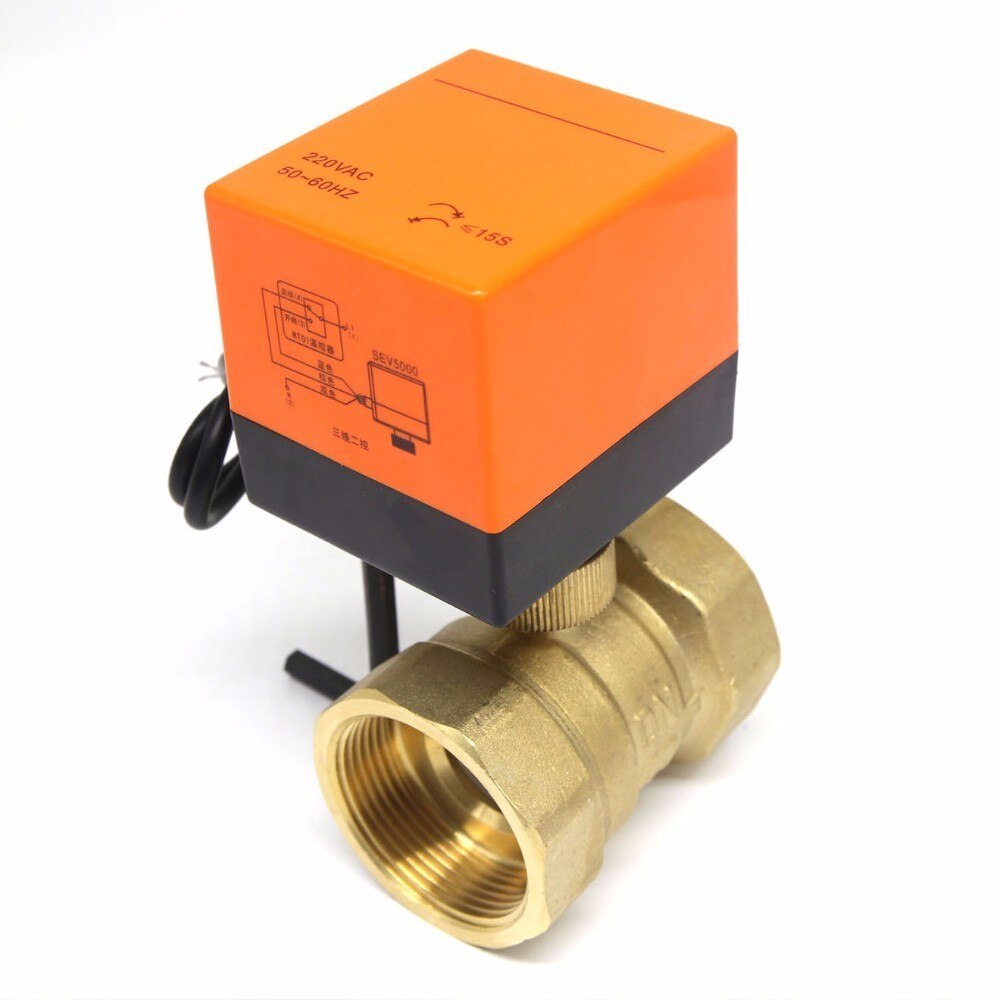

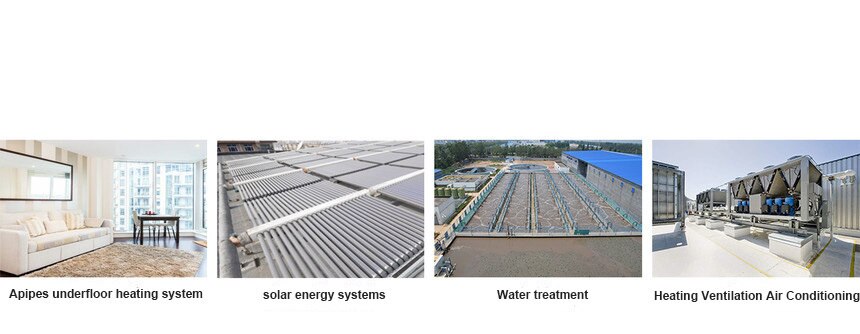

SEV5000Ball ValveIt is suitable for on-off control in heating system and fan coil system of air conditioning. It consists of ball valve and actuator. The actuator drives the ball to rotate 90 degrees. The actuator is driven by synchronous motor with built-in limit contacts, which can make the valve turn off when it is fully open or closed, and the action is stable. SEV5000 SeriesBall ValveIt is widely used in heat, air conditioning system, ground heating system, solar exhaust system and other systems.


- Product characteristics

Synchronous motor, two angle travel limit switch, keep valve status after power off
Low noise, running noise less than 40dB
Plastic rotating shaft, non-conductive, non-heat transfer
Long service life

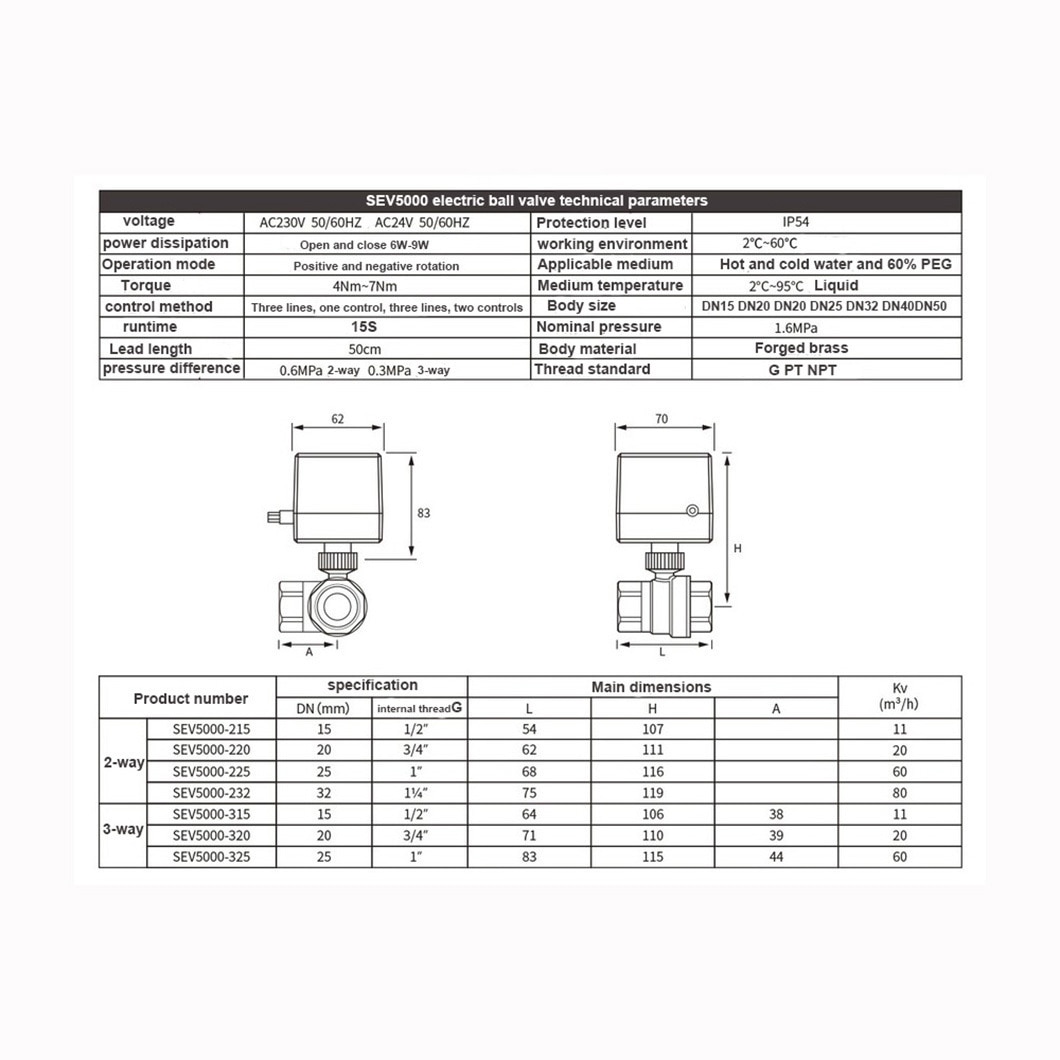

Technical parameters

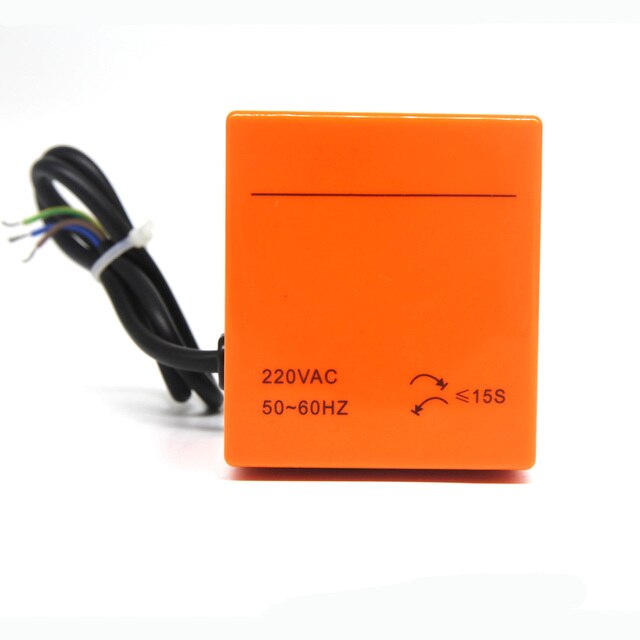

Power supply voltage: AC220V 50/60HZ or AC24V 50/60HZ
Operating power: 6W or 9W (only when valve is open or closed)
Switching time: 15 seconds
Protection Level: IP54
Operation mode: angle stroke 90 degree switch, positive and negative rotation
Torque: 4Nm~7Nm
Working environment: 2 ~60.
Applicable media: hot and cold water, ethylene glycol aqueous solution within 60%.
Medium temperature: 2 ~95.
Lead length: 50cm
Drive size: 62x70x83mm

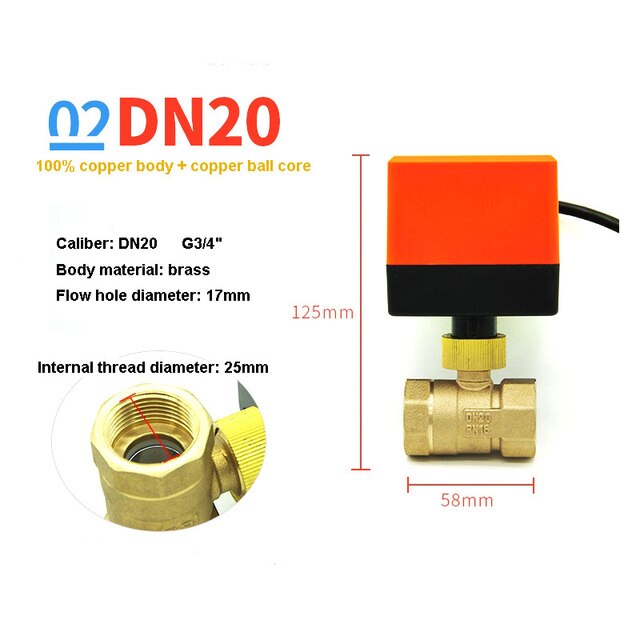

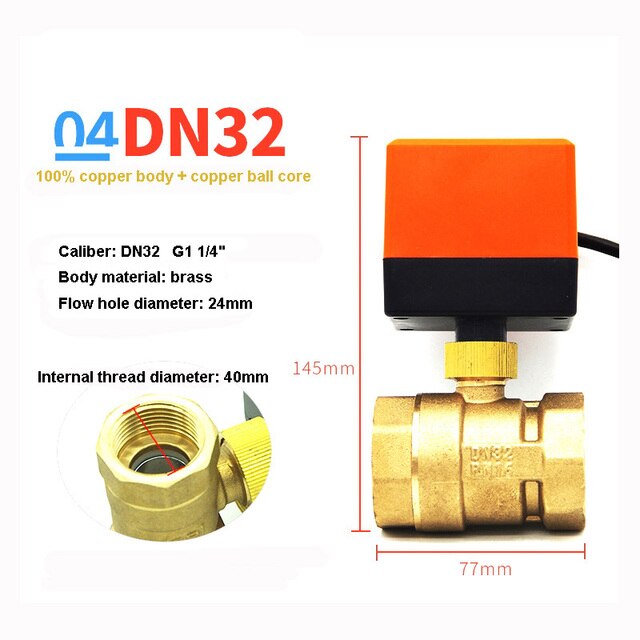

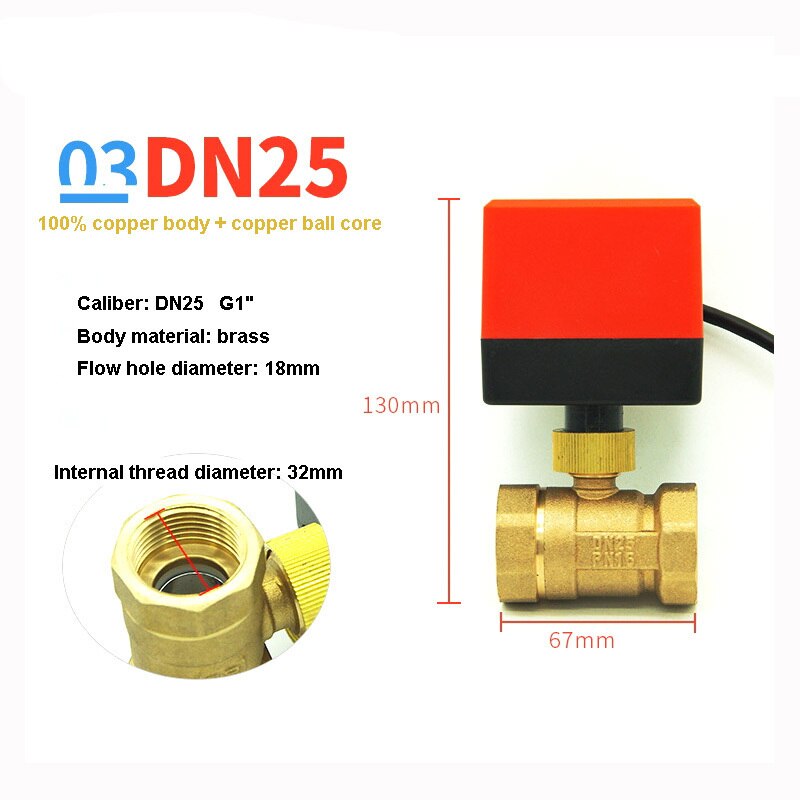

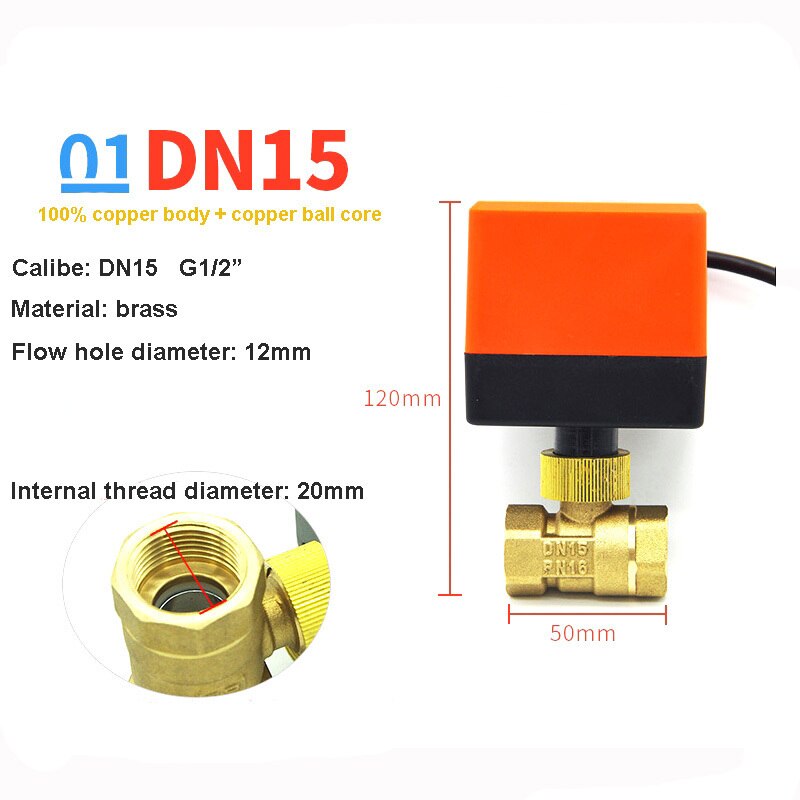

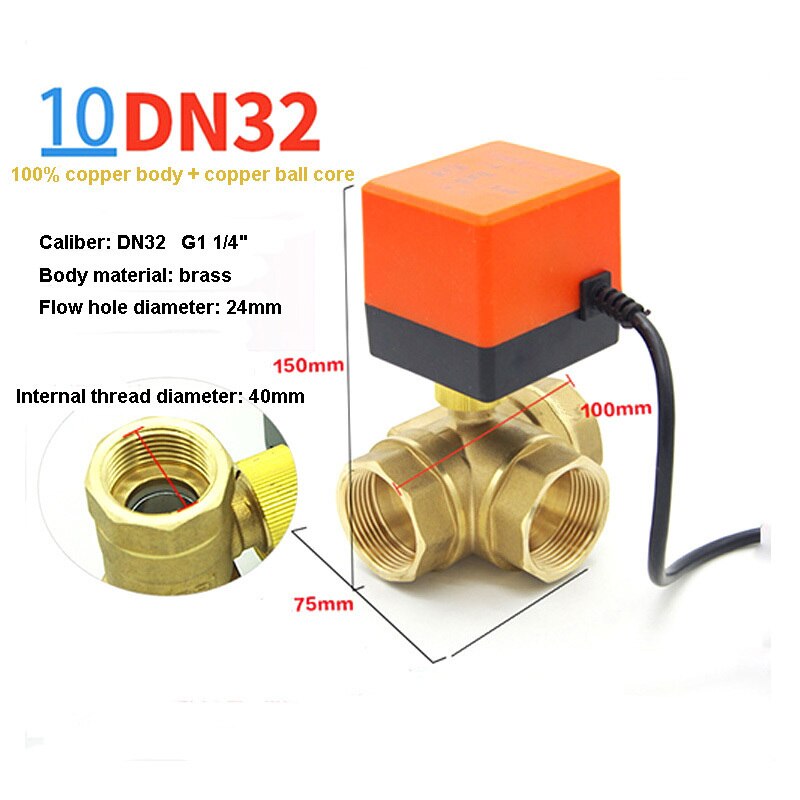

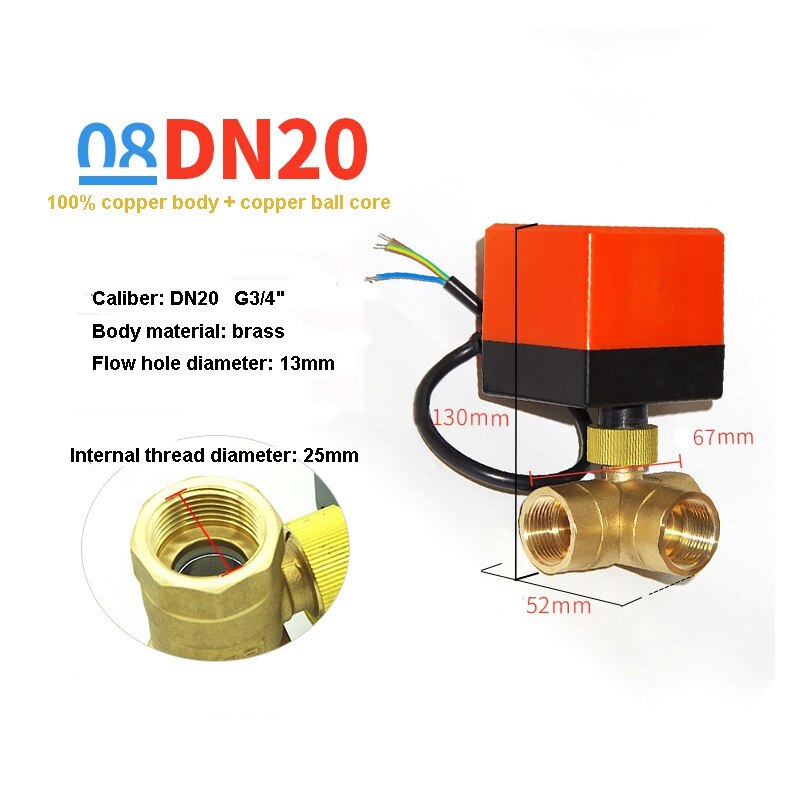

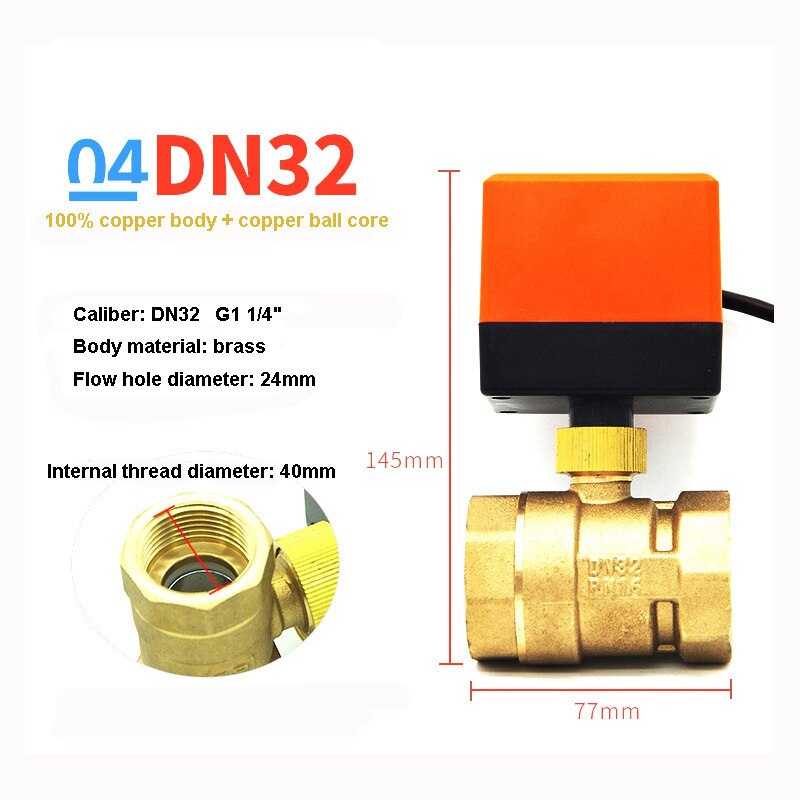

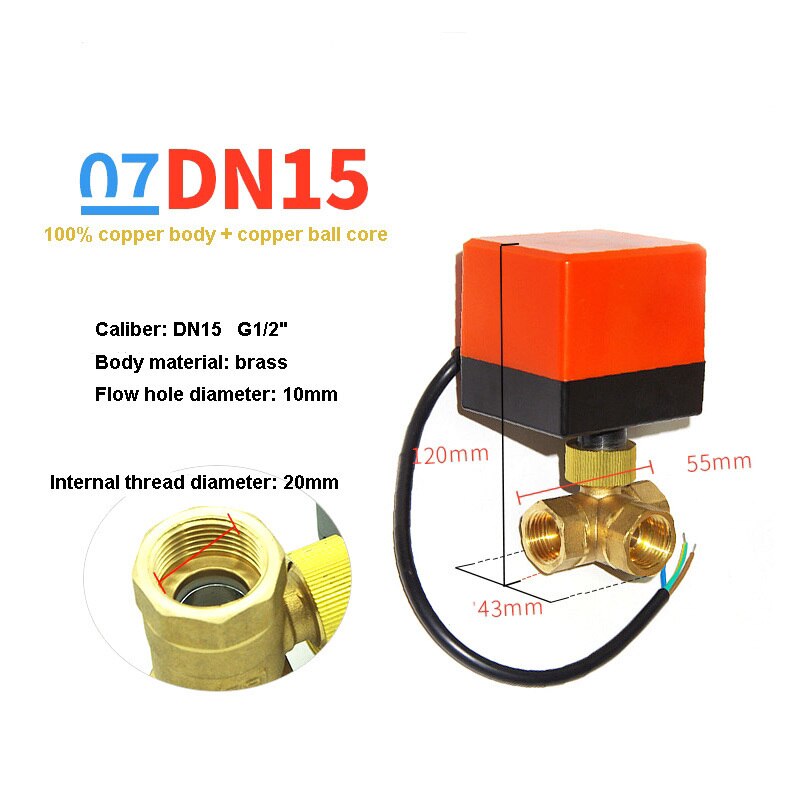

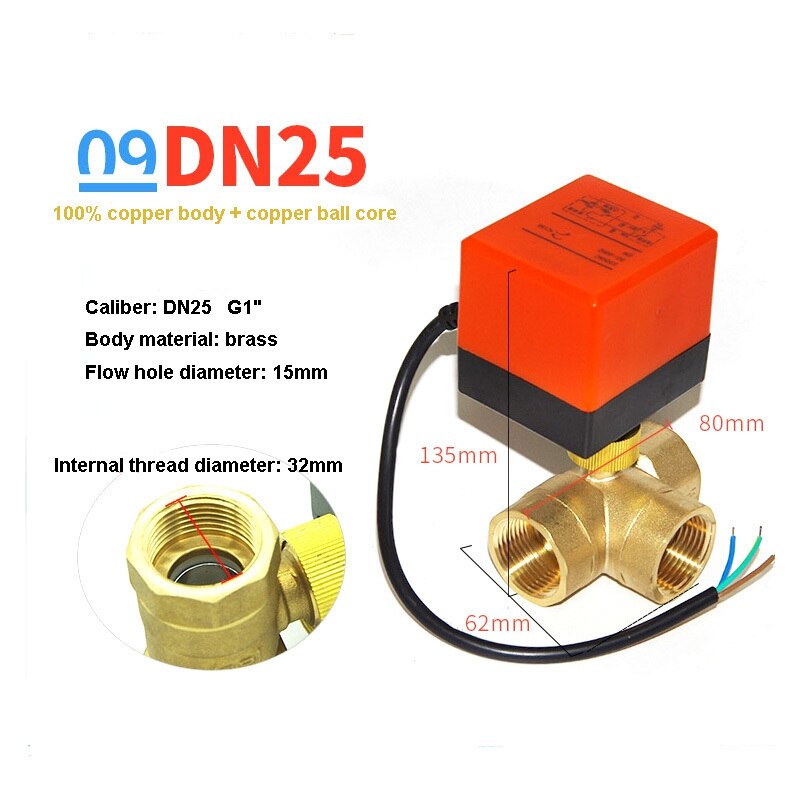

Valve body specifications: DN15/DN20/DN25/DN32 (two-way) DN20/DN25 (three-way)






About Payment
1. We accept all payment methods listed by Hogaki.
2. Payment must be made within 3 days of order.
3. If you have decided to buy this item,please pay as soon as you can,so we can immediately arrange delivery for you.
About Shipment
1. All the parcels will be sent via Hogaki official shipping method, and they will be all traceable.
2. After parcel sent out, it will become uncontrollable. We will appreciate your patience during the delivery period. Estimate delivery time is 15~45 days for most of the countries (except for Brazil). But delivery time may be longer during holiday or promotion period.
3. We are not responsible for any taxes or VAT on the customs of buyer's country.
4. If after 45 days you don’t receive the parcel, please contact us. We will submit a search with the shipping agent and help to track the logistics information for you. If after 60 days, you still do not receive the parcel, you can contact with us to fully refund to you.
About Warranty
1. For all products we offer one year warranty.
2. For products with quality problem, please provide us some photos or vedio. We will discuss the solution for you.
3. If you want to return/exchange products because of personal reason, it is available.You have 7 days to contact us and 30 days to return it from the date it was received. If this item is in your possession more than 7 days, it is considered used and we will  NOT issue you a refund or replacement.You also need to afford the returned shipping cost.
4. All returned items MUST BE in the original packaging and you MUST provide us with the shipping tracking number, reason for the return, and your order number.
About Feedback
1. We appreciate your early receipt confirmation.
2. Your feedback is very important for our store, we sincerely invite you to leave positive feedback (Five Stars) for us. Welcome to share our products to your solical website, such as Facebook, Twitter, Instagram, Yandex and so on. You can send the screenshots to us, so you can get a $1.00 coupon as a DISCOUNT.
3.Please don’t leave negative feedback or open dispute without communication with us. No matter what problem you meet, we will try our best to provide you a solution.Please actively contact us before leaving any negative or neutral feedback. Thank you for your understanding!




  • Voltage: 220V
  • Power: 100w/m2
  • Floor Heating Part Type: Floor Heating Pipes
  • Model Number: SEV5000
  • Floor Heating Valve: Thermostatic Mixing Valve
  • Type: Floor Heating Parts
  • Material: BRASS
  • Origin: Mainland China
  • Certification: CE
  • Body Material: Brass

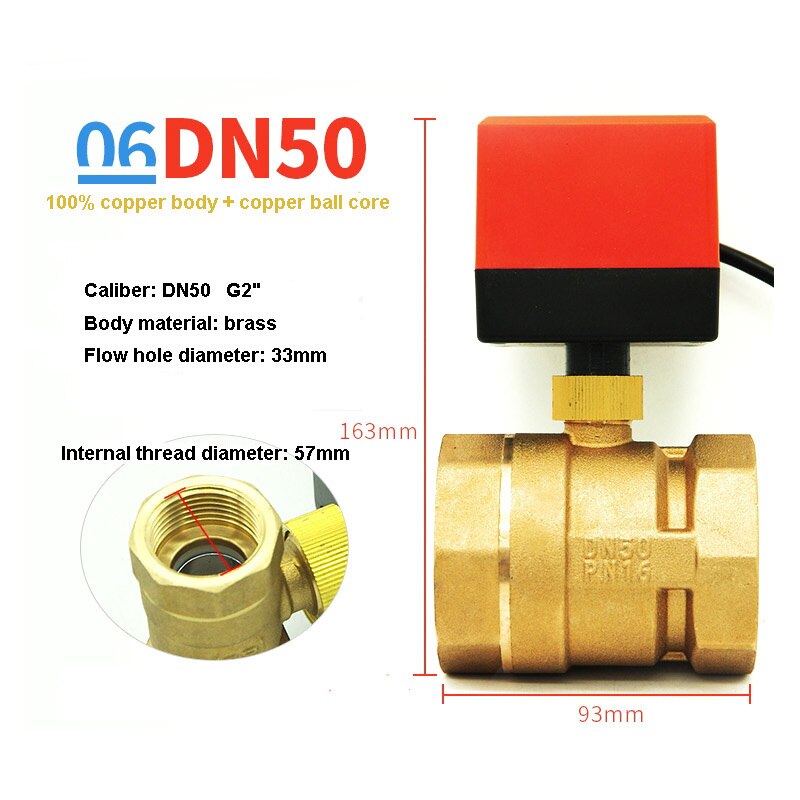

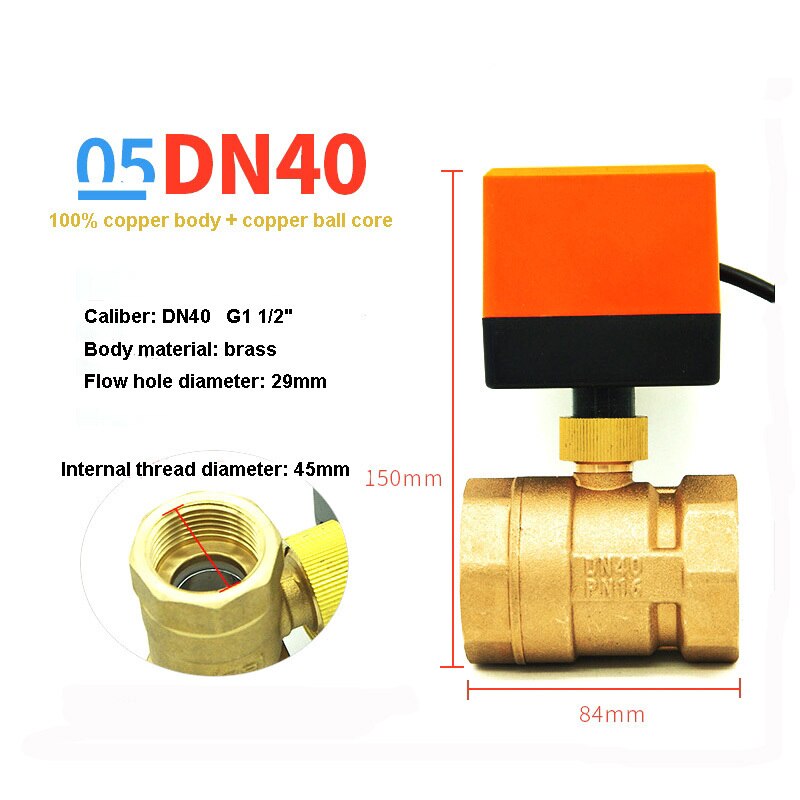

  • Nominal path: DN15 DN20 DN25 DN32 DN40 DN50
  • Valve performance characteristics: Thickening
  • Connection mode: Internal screw thread
  • Specifications: 4nm actuator
  • Actuator performance characteristics: Electric
  • Nominal pressure: 1.6MPa
  • Working medium: Water
  • Voltage: AC220V 50/60HZ or AC24V 50/60HZ
  • Protection Level: ip54
  • Flow direction: Two way
  • structural style: ball valve

SHIPPING AND DELIVERY

We are proud to offer international shipping services that currently operate in over 200 countries and islands world wide. Nothing means more to us than bringing our customers great value and service. We will continue to grow to meet the needs of all our customers, delivering a service beyond all expectation anywhere in the world.

How do you ship packages?

Packages from our warehouse in China will be shipped by ePacket or EMS depending on the weight and size of the product. Packages shipped from our US warehouse are shipped through USPS.

Do you ship worldwide?

Yes. We provide free shipping to over 200 countries around the world. However, there are some location we are unable to ship to. If you happen to be located in one of those countries we will contact you.

What about customs?

We are not responsible for any custom fees once the items have shipped. By purchasing our products, you consent that one or more packages may be shipped to you and may get custom fees when they arrive to your country.

How long does shipping take?

Shipping time varies by location. These are our estimates:

Location *Estimated Shipping Time
United States 10-30 Business days
Canada, Europe 10-30 Business days
Australia, New Zealand 10-30 Business days
Central & South America 15-30 Business days
*This doesn’t include our 2-5 day processing time.

Do you provide tracking information?

Yes, you will receive an email once your order ships that contains your tracking information.

My tracking says “no information available at the moment”.

For some shipping companies, it takes 2-5 business days for the tracking information to update on the system.

Will my items be sent in one package?

For logistical reasons, items in the same purchase will sometimes be sent in separate packages, even if you've specified combined shipping.

If you have any other questions, please contact us and we will do our best to help you out.

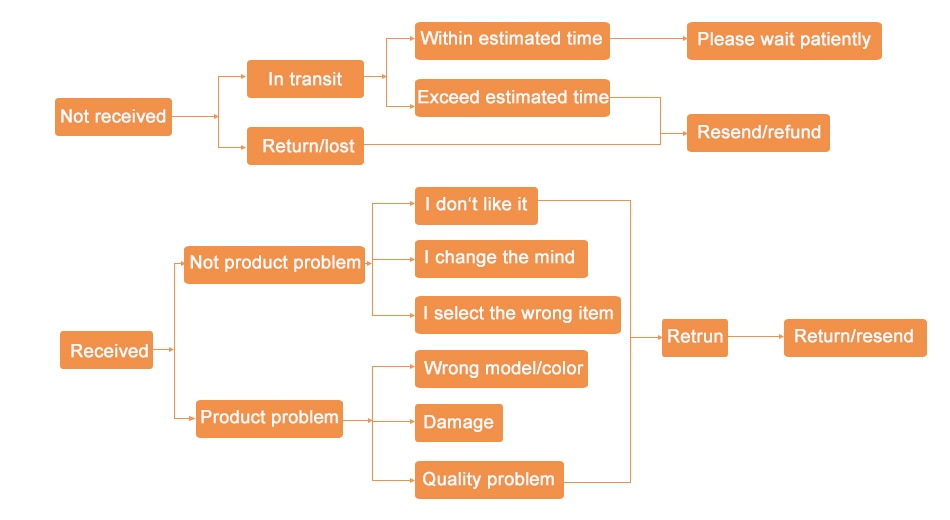

REFUNDS & RETURNS POLICY
