Ahd Camera Monitor,CCTV Tester,Ahd cvi tvi cvbs 4 in 1 Cameras Test Tool ,ptz Control,hdmi Input Monitor. DC 12V Power Out

5.0 (14 votes) | 21 orders
Price: US $277.38 - 296.38 / piece
Discount Price:
US $ 156.64 - 167.37 / piece
-44%
Ships From
Quantity

CCTV Camera Tester

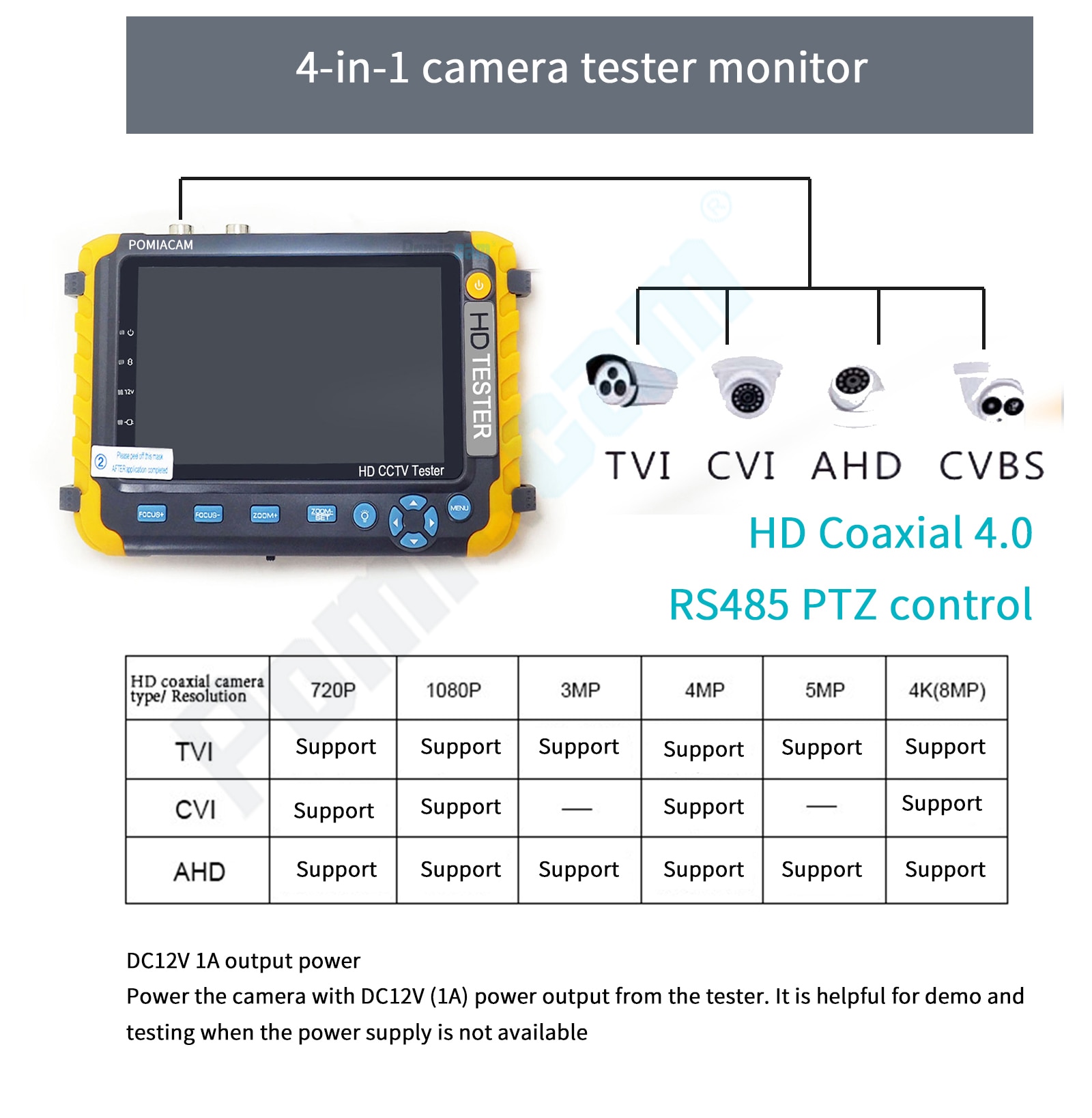

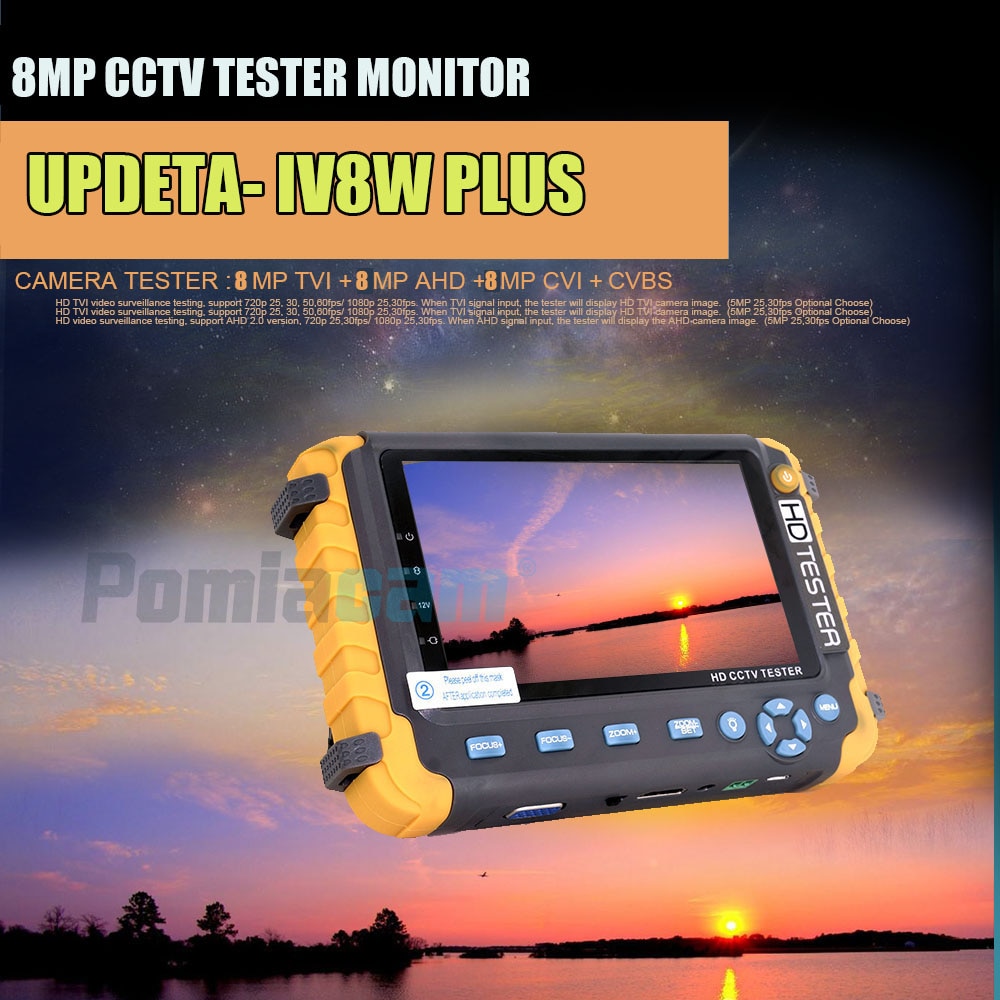

NEW - IV8W : Support CVBS + AHD (8MP) + TVI (8MP) + CVI (8MP) Camera

1. AHD camera test : 8MP 7MP 6MP 5MP 4MP 3MP 2MP 1MP

2. TVI camera test : 8MP 7MP 6MP 5MP 4MP 3MP 2MP 1MP

3. CVI camera test : 8MP 7MP 6MP 5MP 4MP 3MP 2MP 1MP

4. DC12V 1A output power supply

5. HDMI  input (only for DVR )


 This CCTV tester cannot support Digital Multimeter and IP camera
This item could not support IP camera testing .
Product overview
The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, having TVI, AHD,CVI. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, LED lamp etc.


Product Funtions


  •  Video signal testing

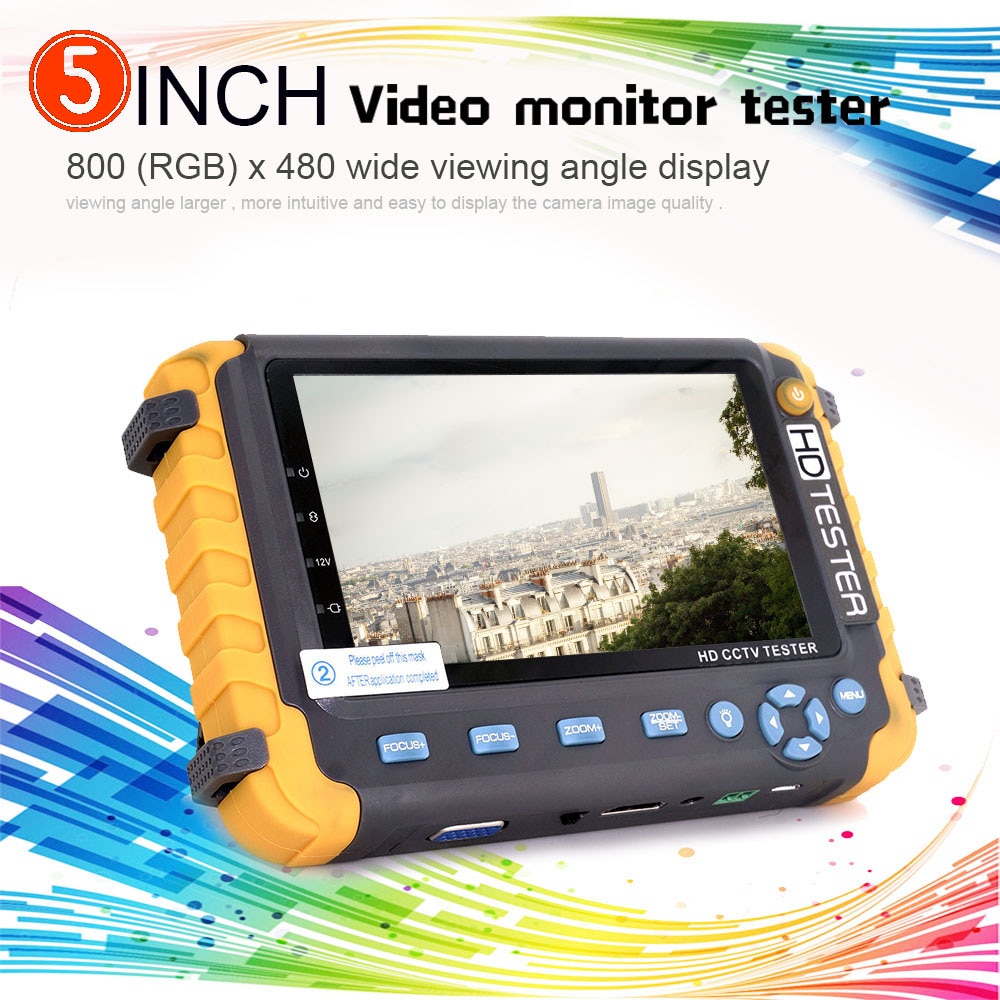

Vedio monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality.

  • PTZ controller

Video monitor tester built-in Pelco-D / P PTZ control protocol, etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.
  •  Image generator

Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section

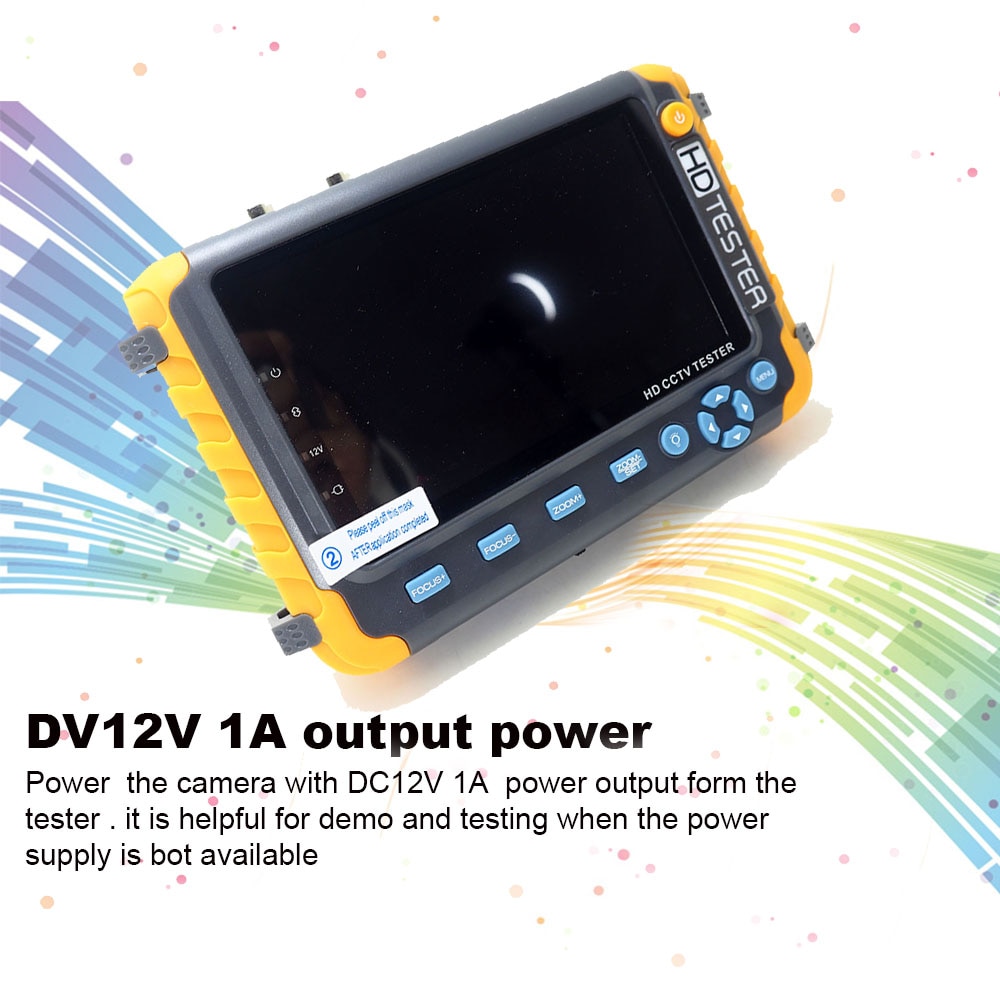

  • DC12V 1A output power

Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available
  • Audio testing

Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.
  •  Enhanced network cable testing

By UTP CABLE TEST port on the meter, you can test the connection of network cable.

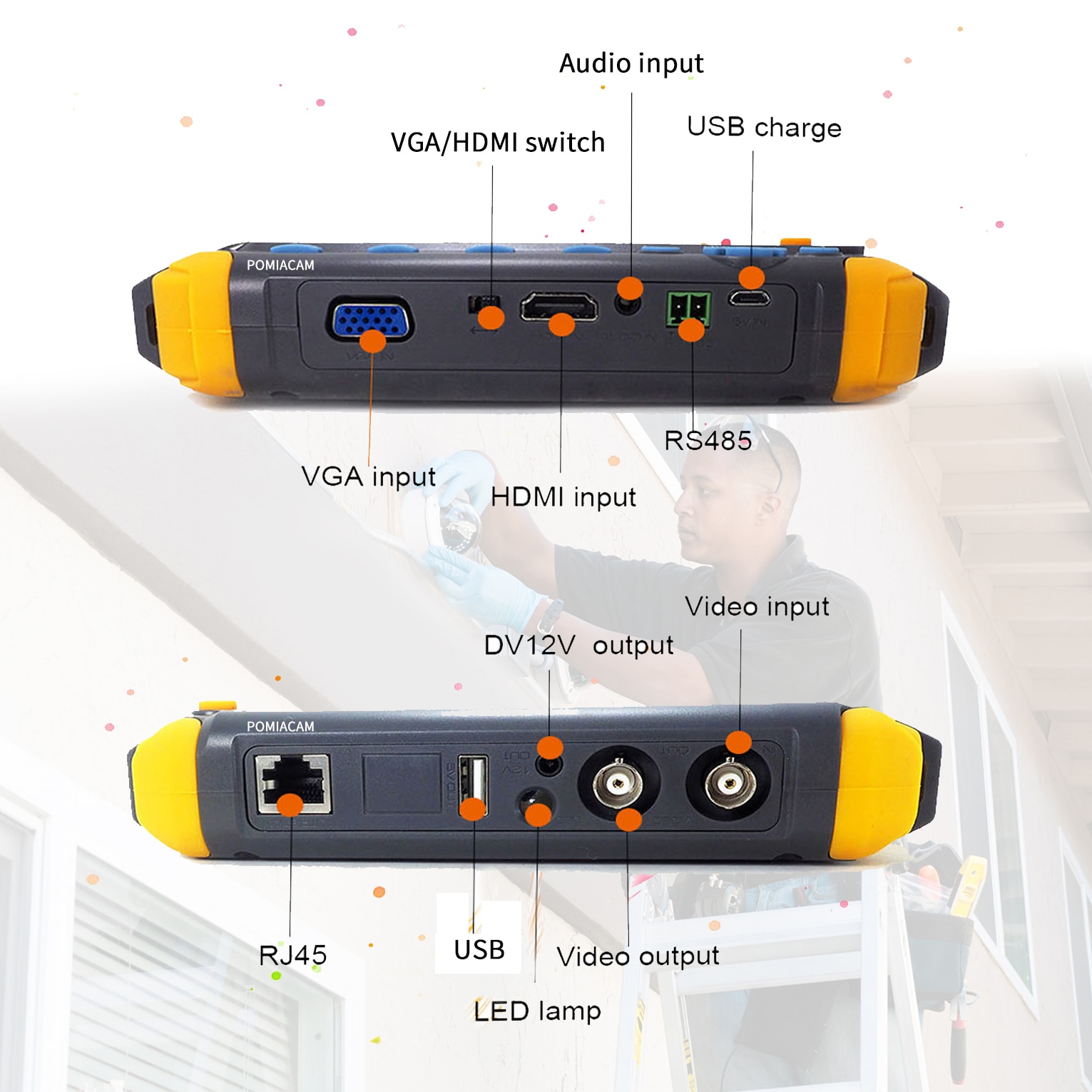

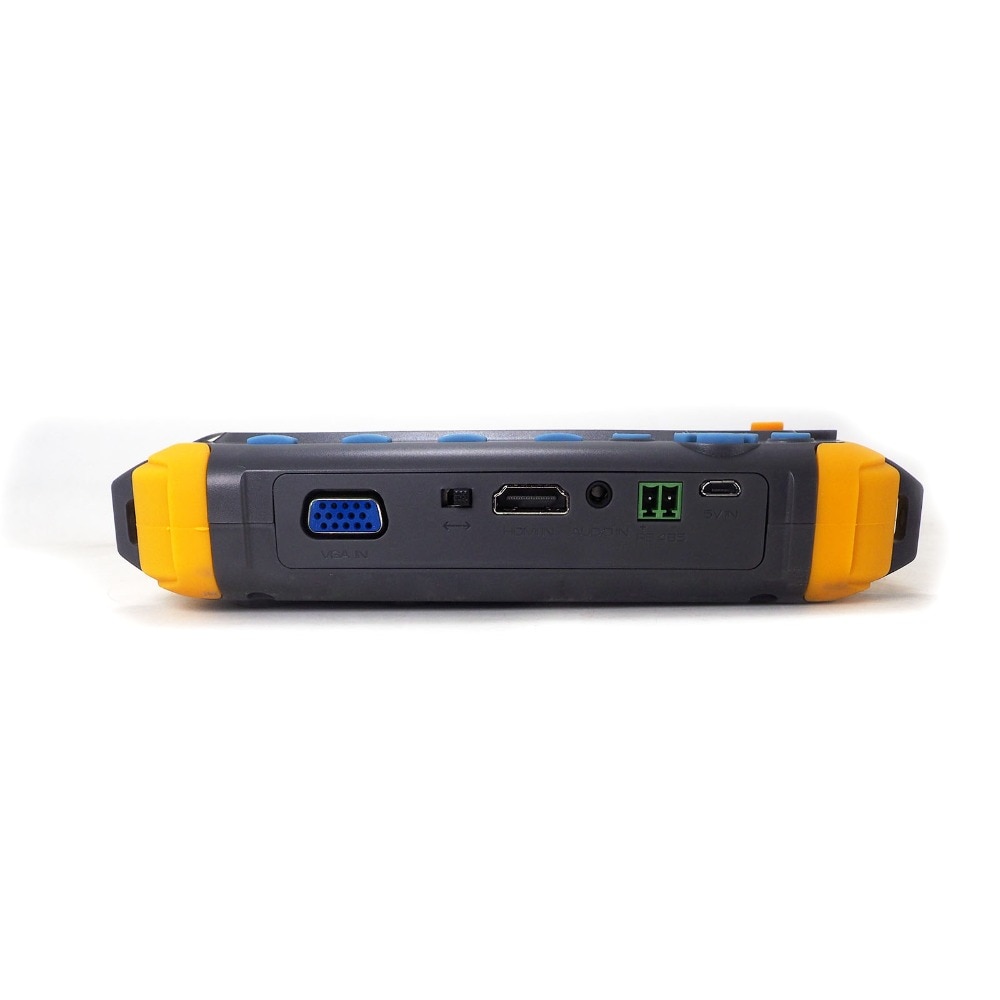

  •  VGA/HDMI input

Support VGA/HDMI 1.0 video input, once connect VGA/HDMI video, please switch selector to select HDMI or VGA mode. The maximum resolution is 1920 x 1440
  • TVI camera test

HD TVI video surveillance testing, support MAX 8MP. When TVI signal input, the tester will display HD TVI camera image.
  •  AHD camera test

HD video surveillance testing, support ,Max 8MP . When AHD signal input, the tester will display the AHD camera image.
  •  CVI camera test

HD CVI video surveillance testing, support Max 8MP. When TVI signal input, the tester will display HD TVI camera image.
  •  LED lamp

It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
  • The battery graphic display

The tester has advanced power control and protection circuit, low-power energy-saving, 4 to 5 hours on a single charge, can be used normally for 12 hours.

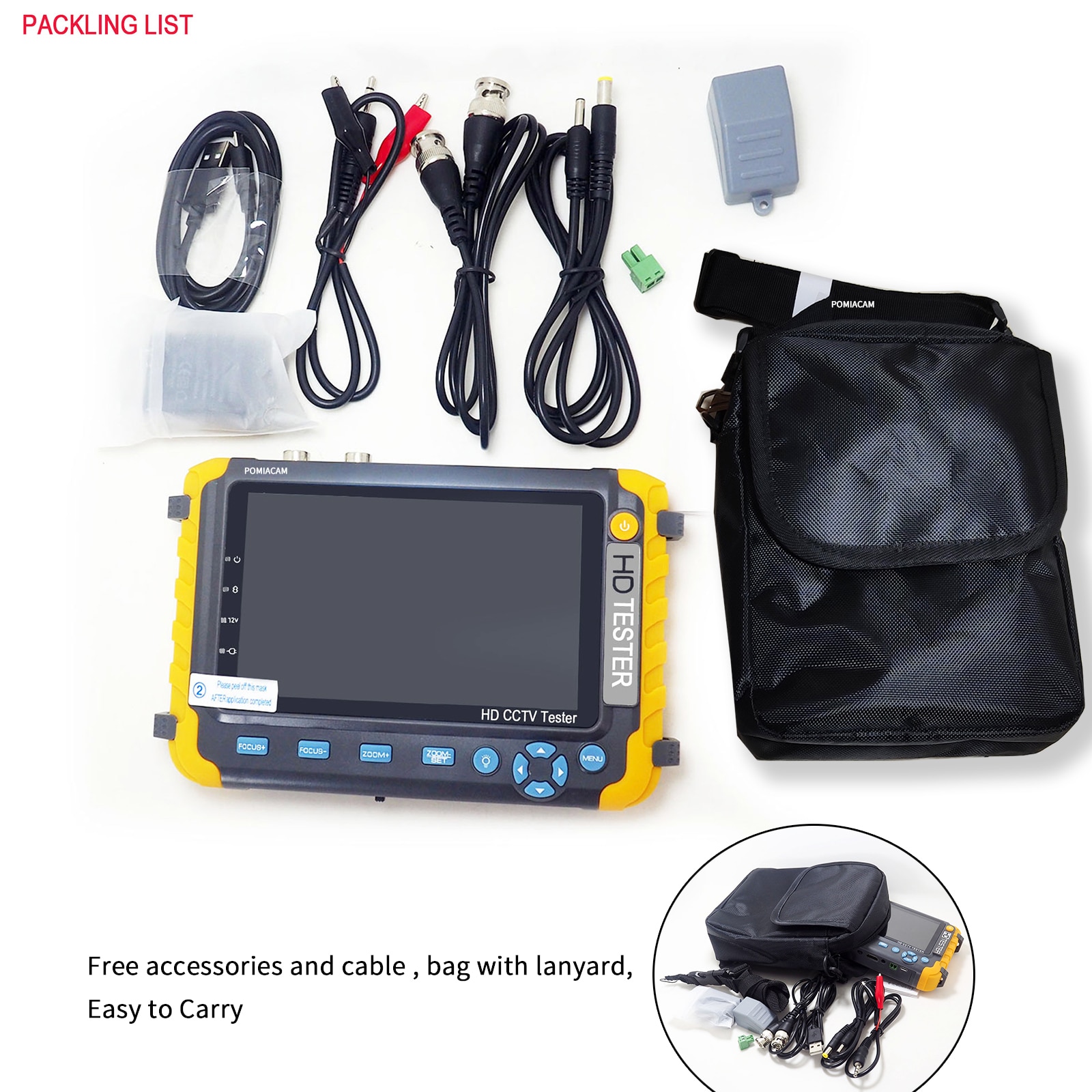

Package
  • HD coaxial tester

  • Adapter DC5V 1A(with USB cable)

  • International Standard 18650 2600ma battery

  • BNC cable

  • RS485 connector

  • Power output conversion cable

  • Audio cable

  • Lanyard

  • Tool bag

  • Instruction Manual







  • Plug Type: EU plug
  • Sensor Type: Video Surveillance CCTV Monitor Display CCTV Monitor tester
  • Model Number: IV8W plus
  • Maximum IR Distance(m): Video Surveillance CCTV Monitor Display CCTV Monitor tester
  • Sensor Size: Video Surveillance CCTV Monitor Display CCTV Monitor tester
  • Lens: Video Surveillance CCTV Monitor Display CCTV Monitor tester
  • Brand Name: POMIACAM
  • Origin: Mainland China
  • Certification: NONE
  • 1: Video Surveillance CCTV Monitor Display CCTV Monitor tester
  • 2: Video signal testing
  • 3: PTZ controller
  • 4: Image generator
  • 5: DC12V 1A output power
  • 6: Audio testing
  • 7: Enhanced network cable testing
  • 8: VGA/HDMI input
  • 9: TVI camera test
  • 10: HD coaxial tester Adapter DC5V 1A International Stand
  • 11: 5inch tester monitor
  • 12: 8MP TVI 8MP AHD 8MP CVI CVBS Analog Security Video Monitor
