Adjustable ZVS Capacitor High Voltage Boost Converter Board DC-DC DC 8-32V to 45~390V/DC 8-32V to ±45V-390V Step Up Boost Module
4.9 (23 votes) | 83 orders
Price:
US $16.32 - 17.84
/ piece
Discount Price:
US $
14.61 -
15.76
/ piece
-10%
- Ships From
- Color
-
-
DC 8-32V to DC 45V-390V
Description:

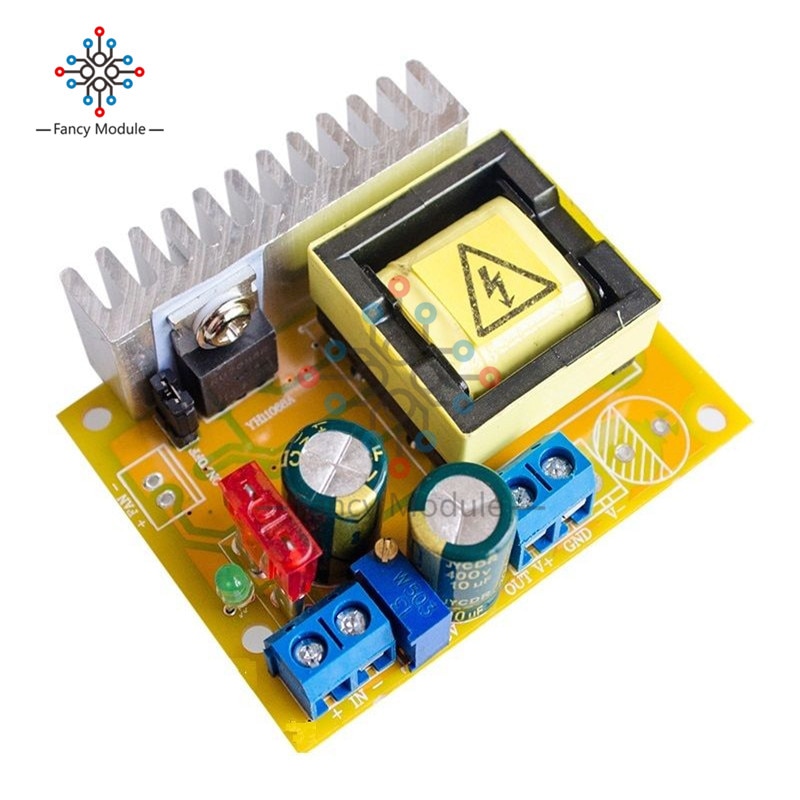

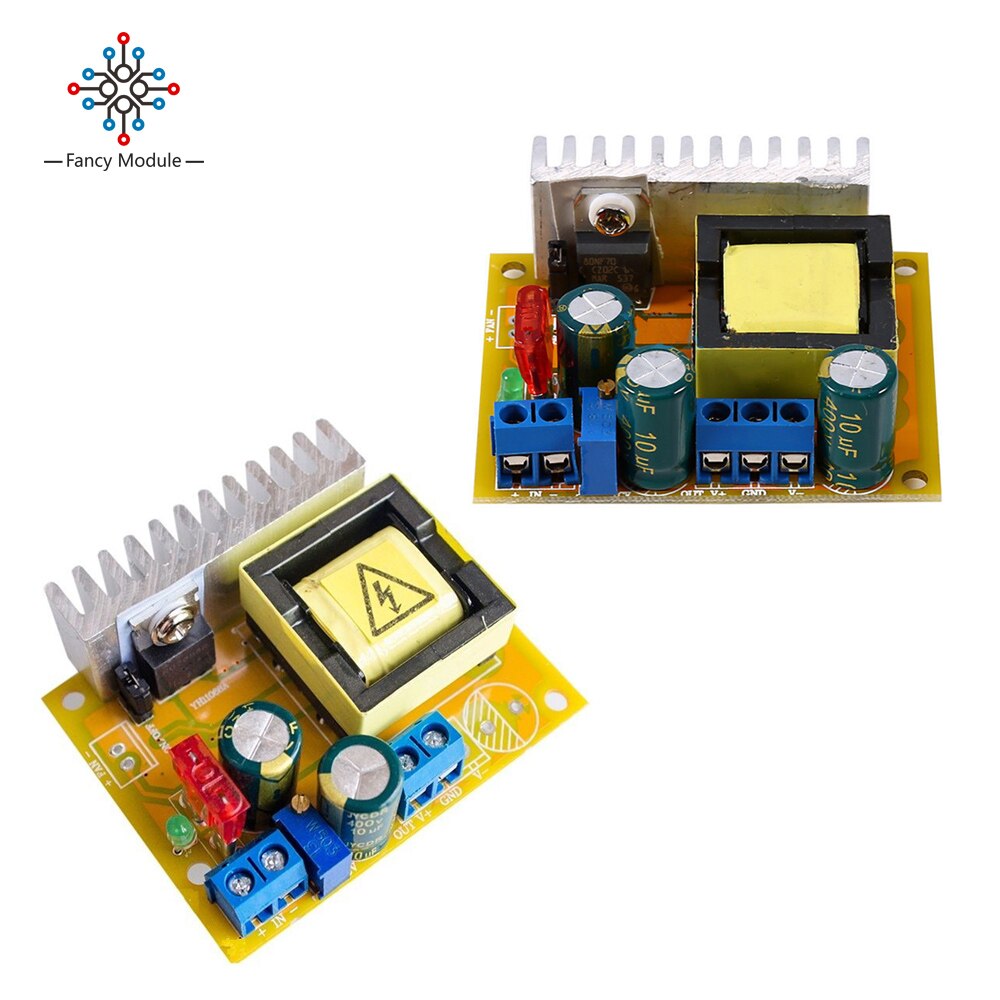

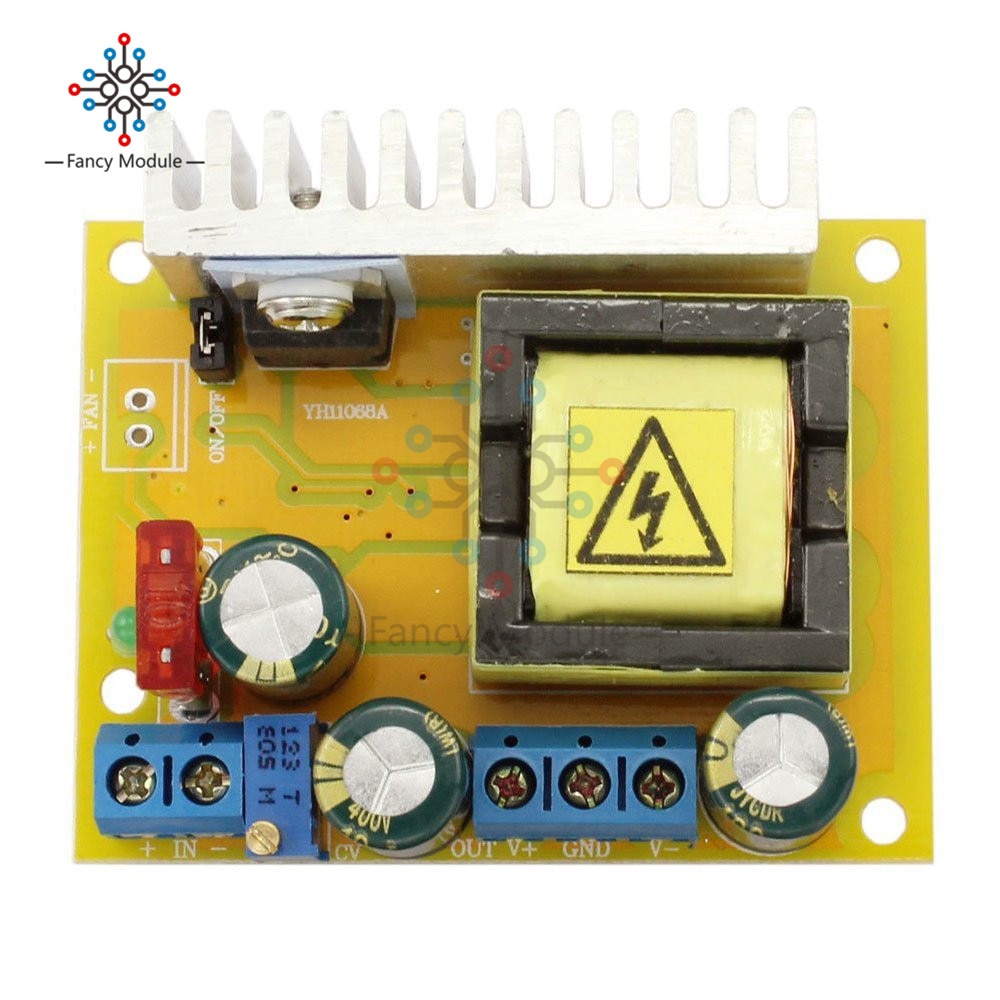

High Voltage Boost Module
Module Properties: Non-isolated step-up module
Input Voltage: 8~32V input(the default is 10~32V input.)
Input Current: 5A (Max)
Quiescent current: 15mA (12V liter 50V, the output voltage, the higher the current will increase too quiet)
Output Voltage: +45~390V continuously adjustable (default output ±50V)
Output Current: 0.2A Max(with input, output pressure related,the higher the output voltage, output current is smaller)
Output Power: 40W (Peak 70W)
Working Temperature: -40 ~ + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 75 KHz
Conversion efficiency: up to 88% (efficiency and input and output voltage, current, pressure-related)
Short circuit protection: Yes.
Over current protection: Yes. (Input current exceeds 4.5A, reducing the output voltage)
Over voltage protection: Yes. (Output voltage exceeds 410V, lowering the output voltage)
Input reverse polarity protection: Yes (non-self-healing, reverse burning fuse, try not reversed.)
Installation: Four 3 mm screws
Wiring: free welding output terminals

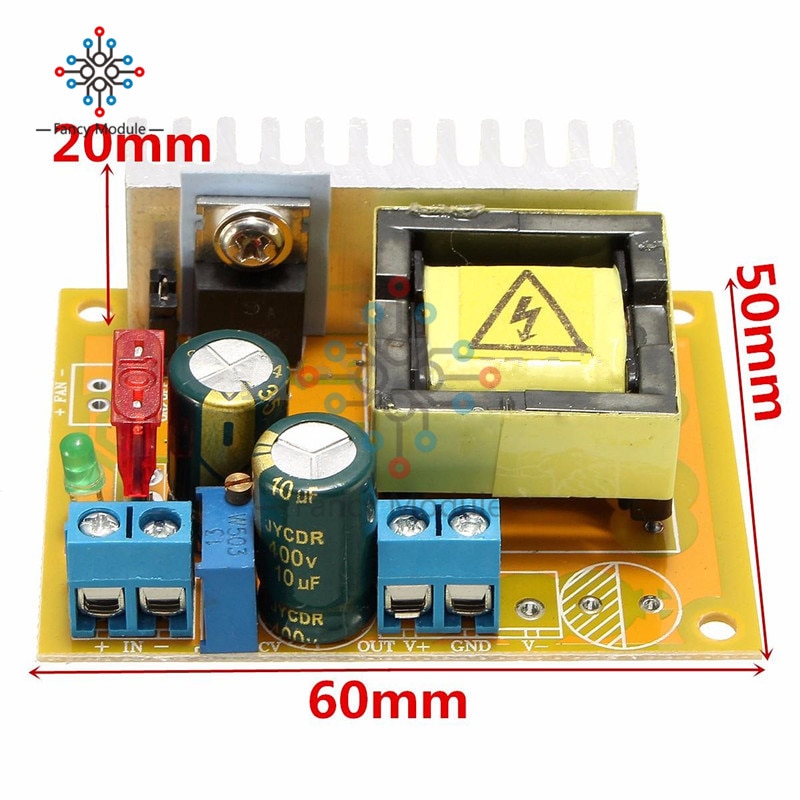

Size(L*W*H):60 x 50 x 20 mm
Applications:
1.Pressure test power.
2.Hunting,eradication of mice.
3.Capacitor charging,electromagnetic guns power supply.
4.The power supply for your electronic device, according to your system can set the output voltage value.
Package Included:
1 x Booster Module
Note:
Manual measuring, please allow 1 ~ 5 mm error,thank you.
DC 8-32V to DC ±45V-390V
Feature:
High Voltage boost converter module
Properties: non-isolated step-up module

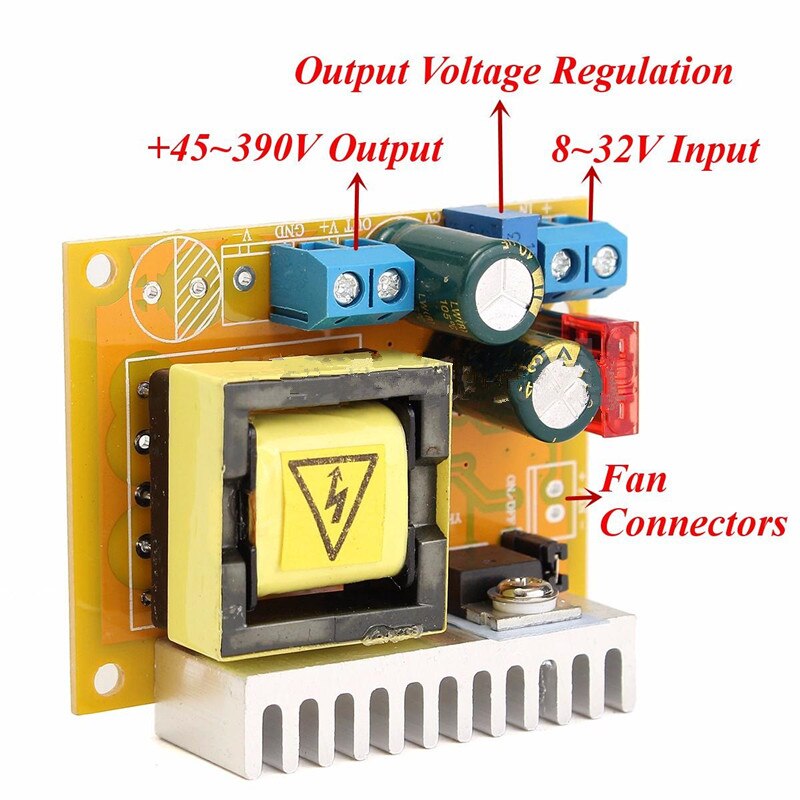

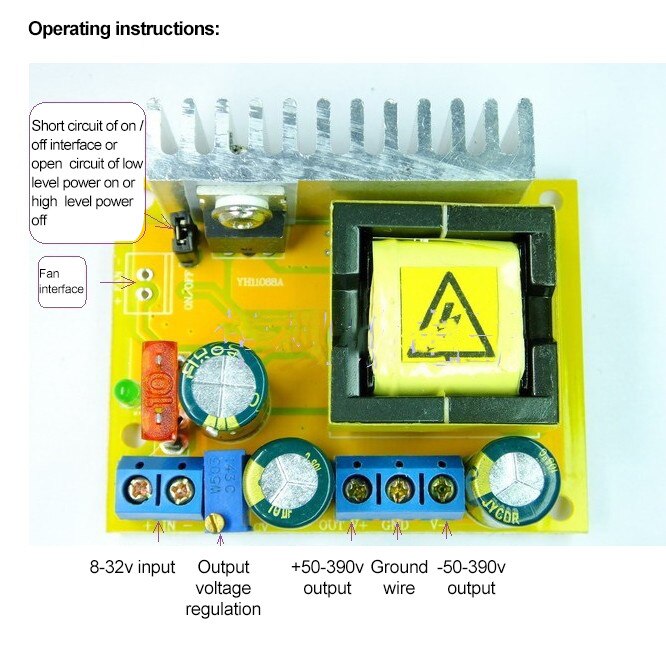

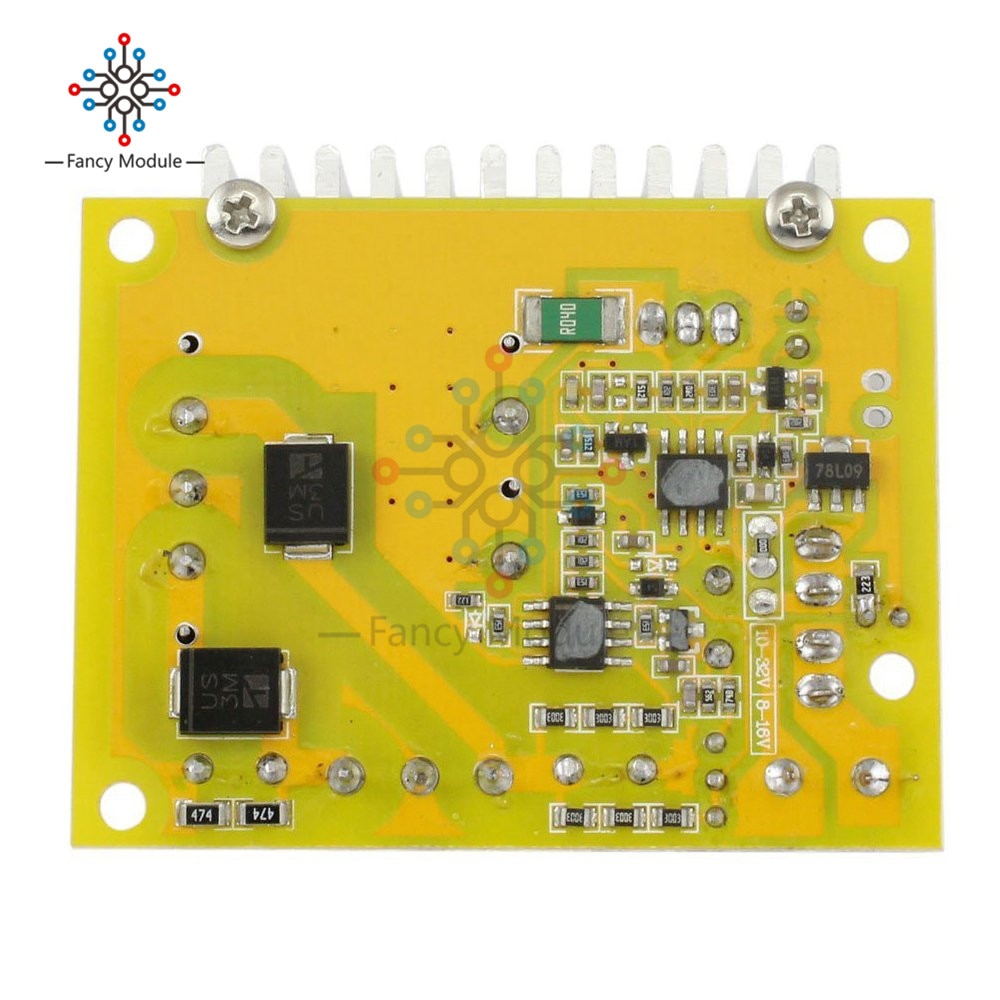

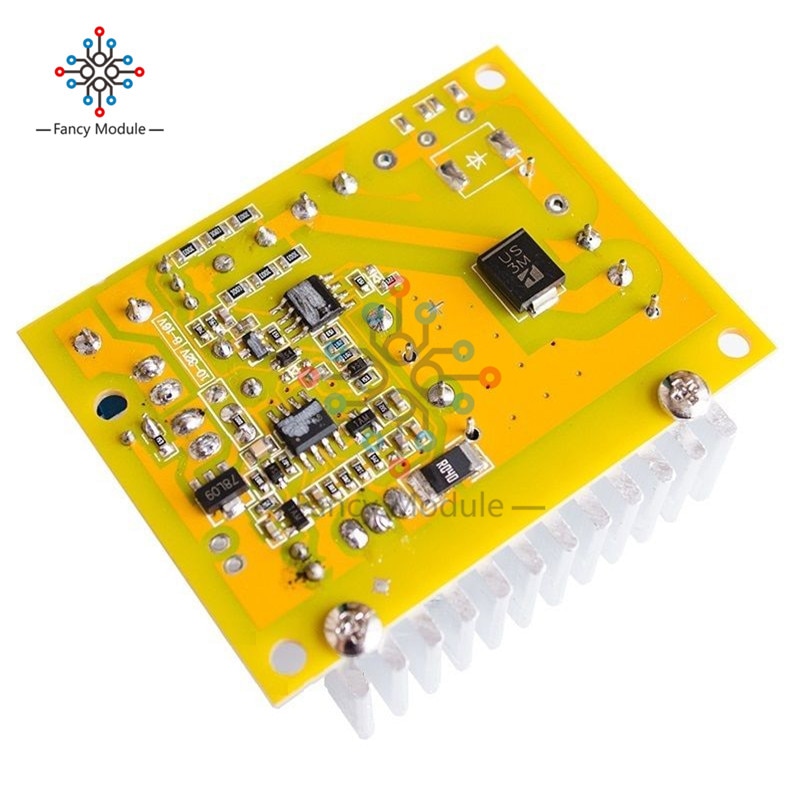

Input voltage: two input voltage range selectable, (jumper selectable through the back of the PCB, default setting 10-32V input)
1. 8V-16V input
2. 10V-32V input
Input Current: 5A (MAX)
Quiescent current: 15mA (12V step up to 50V, the higher the output voltage will increase the quiescent current)
Output voltage: ± 45-390V continuously adjustable (the default output ± 50V. This module has regulator function, after adjusted output voltage is stable and unchanging, not with changes in input voltage changes)
Output Current: 0.2A MAX
Output Power: 40W (peak 70W)
Working temperature: -40℃ ~ + 85℃
Operating frequency: 75KHz
Conversion efficiency: up to 88%
Short circuit protection: Yes. (Input 10A fuse, at the output please do not short circuit arc, it may damage component, if you need please add power resistor in series for limiting)
Overcurrent protection: Yes. (Input current exceeds 4.5A, reducing the output voltage)
Overvoltage protection: Yes (Output voltage exceeds 410V, lowering the output voltage) Input reverse polarity protection: Yes (non-self-healing, reverse burning fuse, you have better not reverse it.)

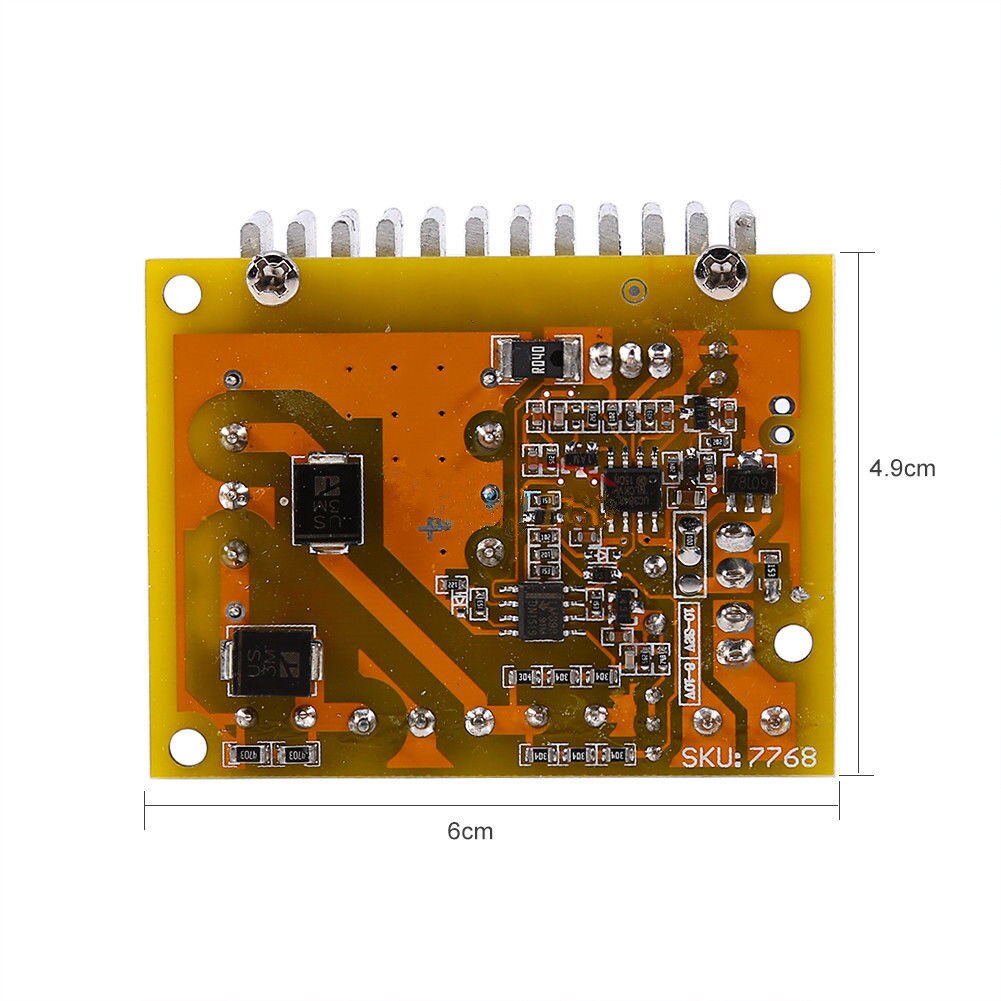

Dimensions: 60(L)*50(W)*22(H)mm
The capacitor charging time measured data:
470uF full charge to 390V time is 2 seconds
1000uF full charge to 390V time is 4 seconds
2200uF full charge to 390V time is 8 seconds
4700uF full charge to 390V time is 18 seconds
Warning! The module output is high voltage, on people, animals have life-threatening, the course please pay attention to safety precautions. We are not responsible.
Package Included:
1 x DC Boost Converter ±45-390V Output
- is_customized: Yes
- Model Number: ZVS
- Main Circuit Rating Current: 5A
- Main Circuit Rating Voltage: 390V
- Phase: 1
- Number of Pole: 1
- Electricity Type: DC
- Brand Name: diymore
- Origin: Mainland China
- Certification: CE
