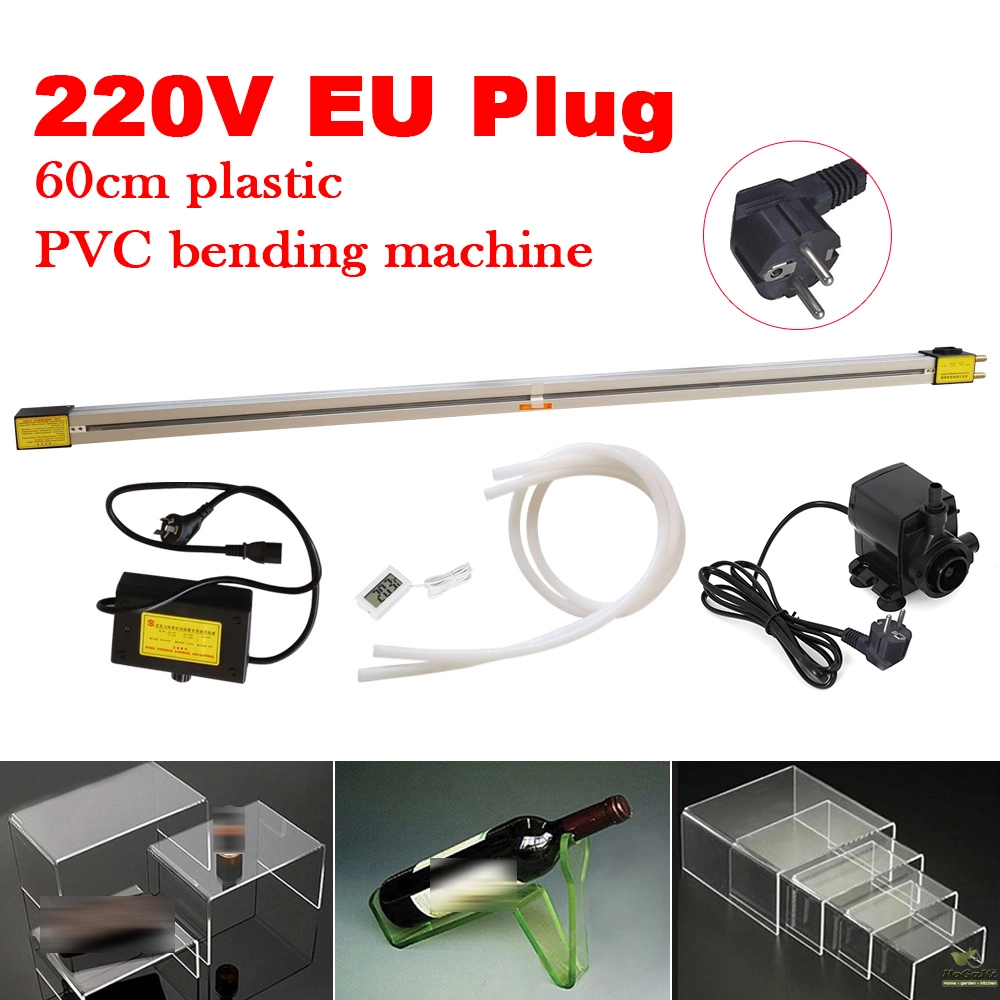

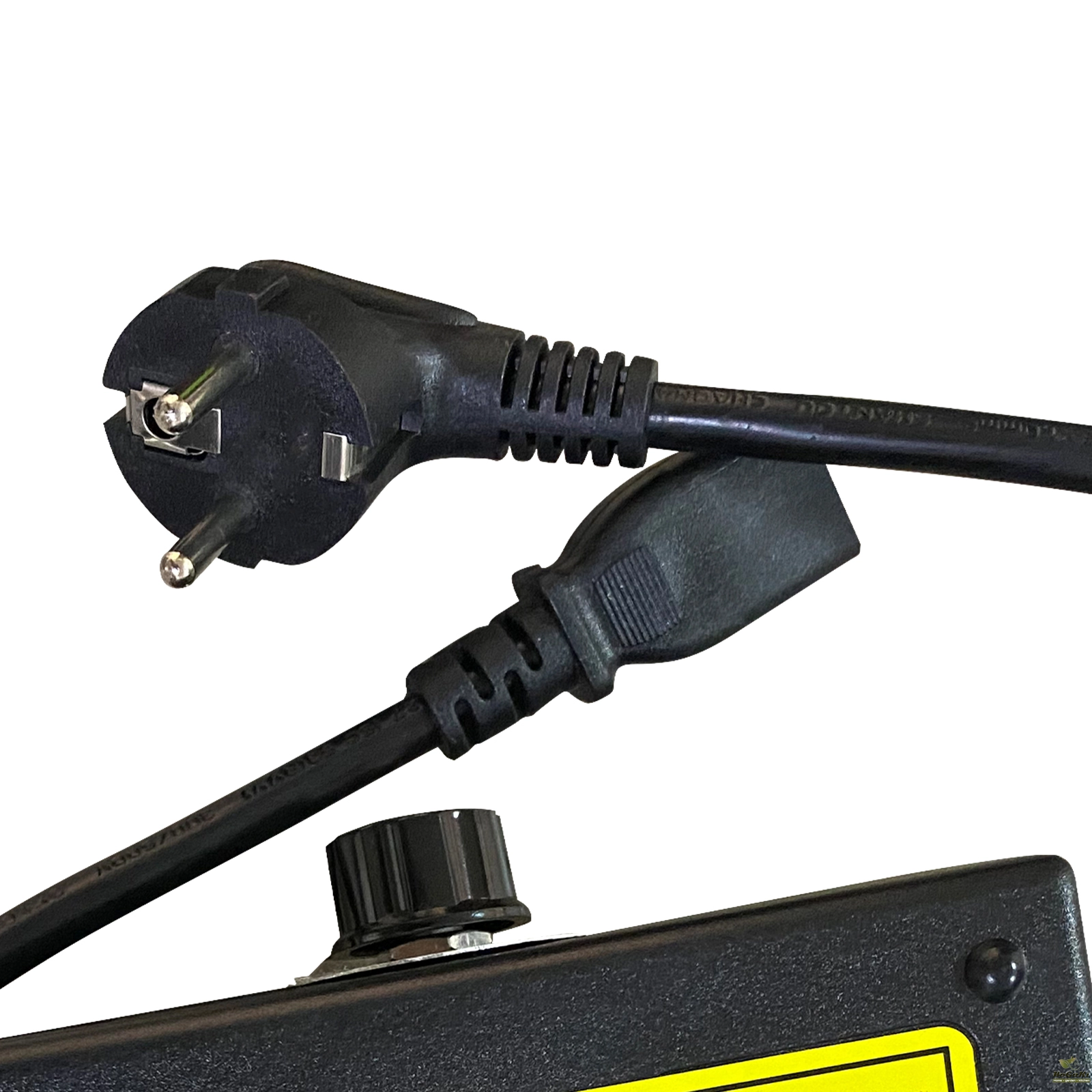

Specifications——EU Plug

Input Voltage: Ac 220V
Heating Peak: Zw-300 420 ℃, The Other 250 ℃
Bending Material Thickness: 1mm-6mm
Heating Width: 10-60 Cm
Power: 800W

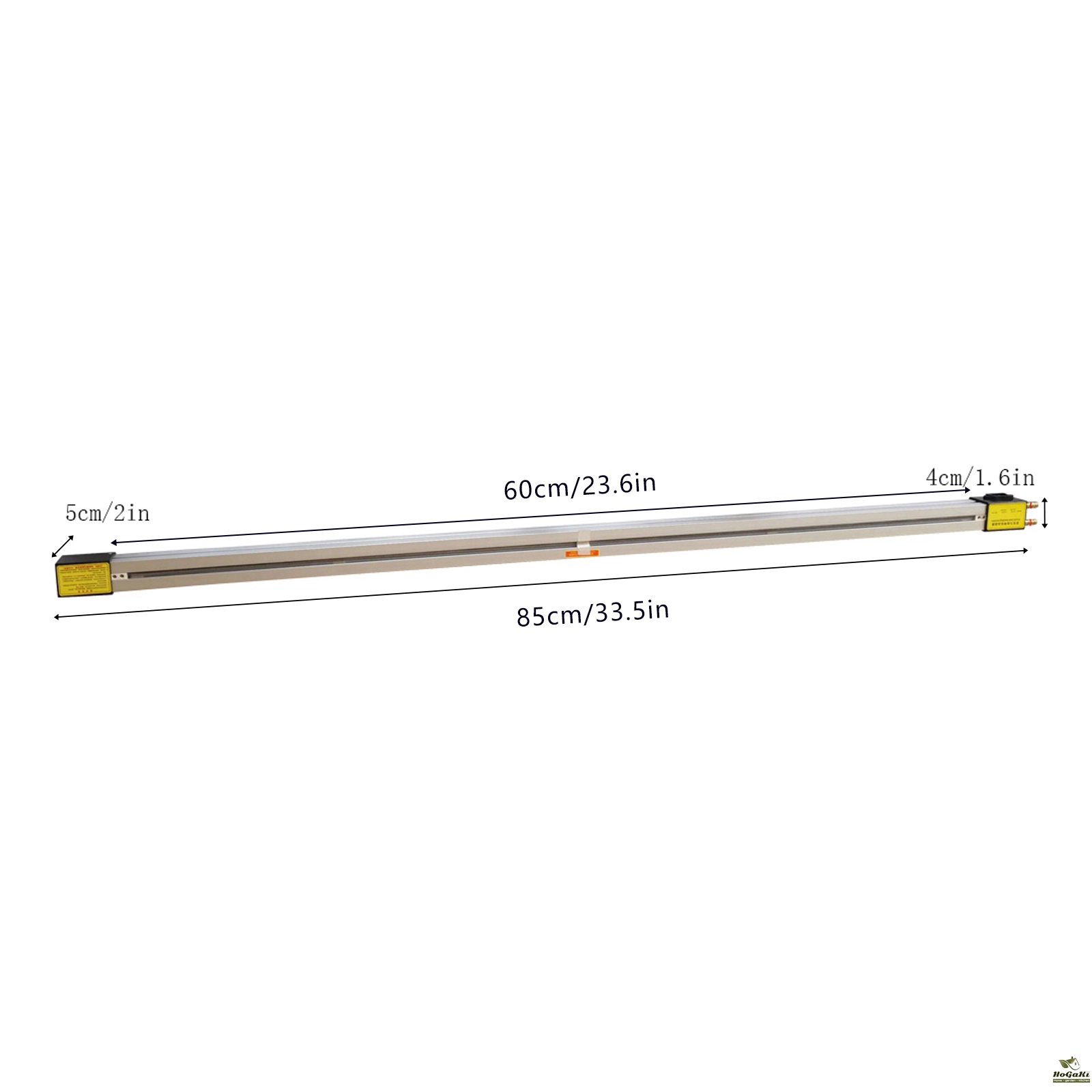

Product Size: 60*5*4cm(23.6*2*1.6inch)
Net Weight: 3kg
Gross Weight: 3.05Kg
Package Dimensions (L x W x H): 87*20*12cm

Specifications——US Plug

Input Voltage: Ac 110V
Heating Peak: Zw-300 420 ℃, The Other 250 ℃
Bending Material Thickness: 1mm-6mm
Heating Width: 10-60 Cm
Power: 800W
Product Size: 60*5*4cm(23.6*2*1.6inch)
Net Weight: 3kg
Gross Weight: 3.05Kg
Package Dimensions (L x W x H): 87*20*12cm

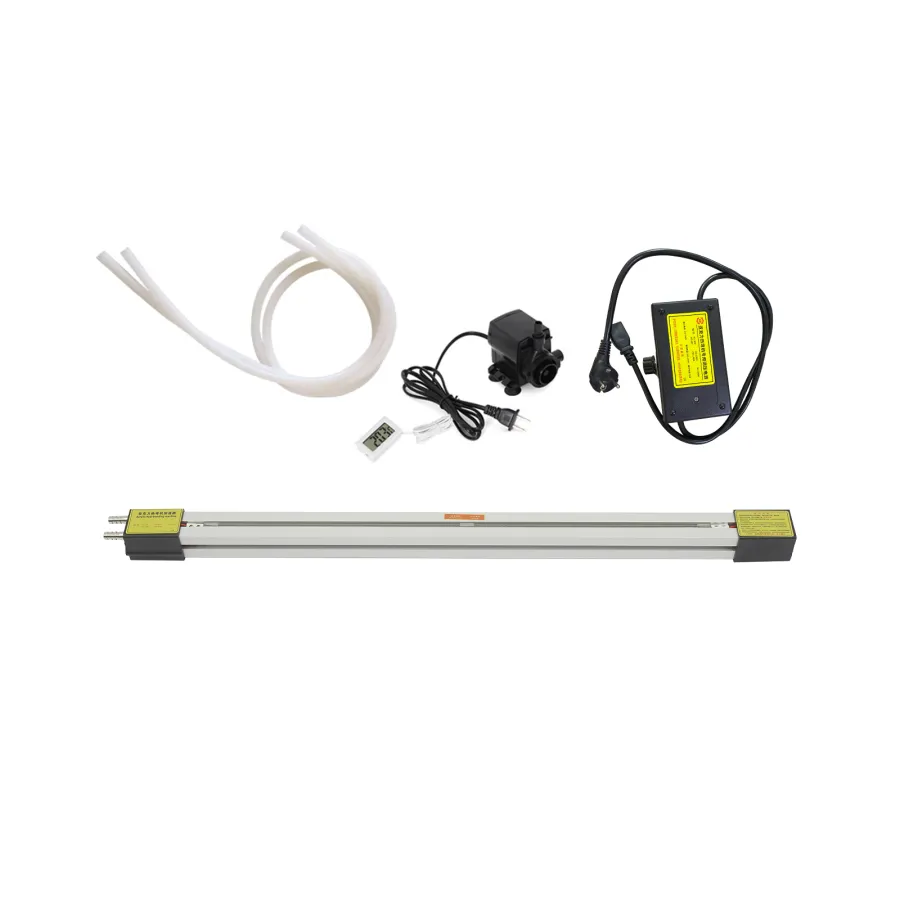

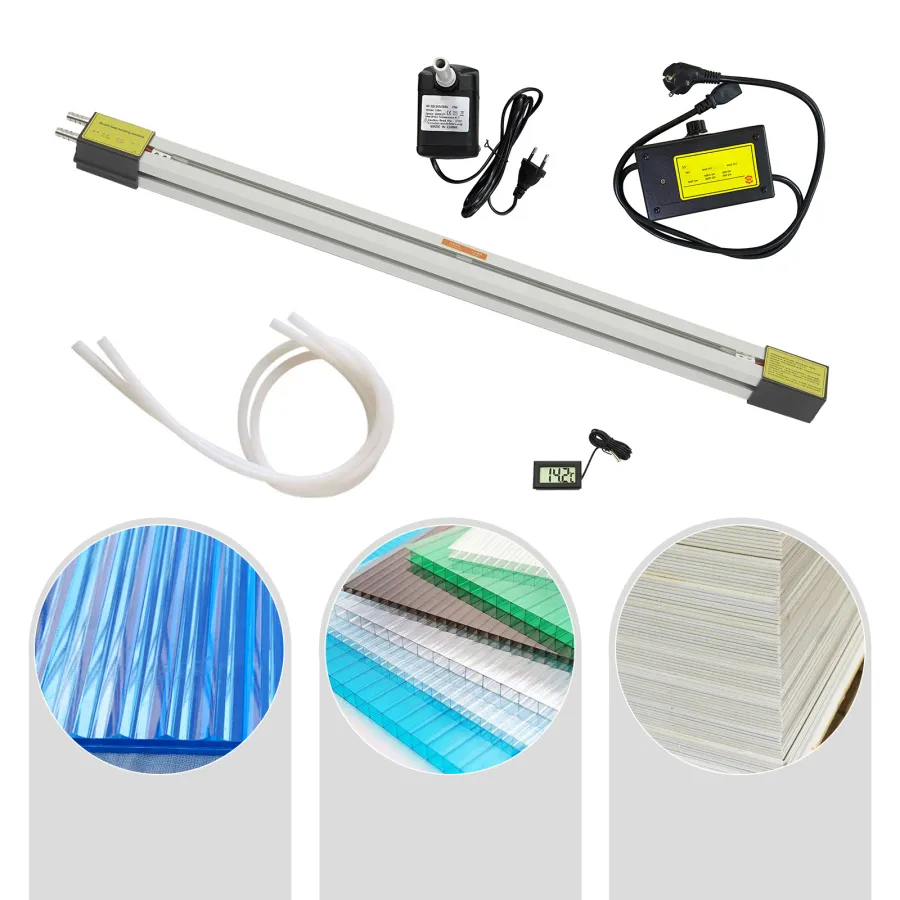

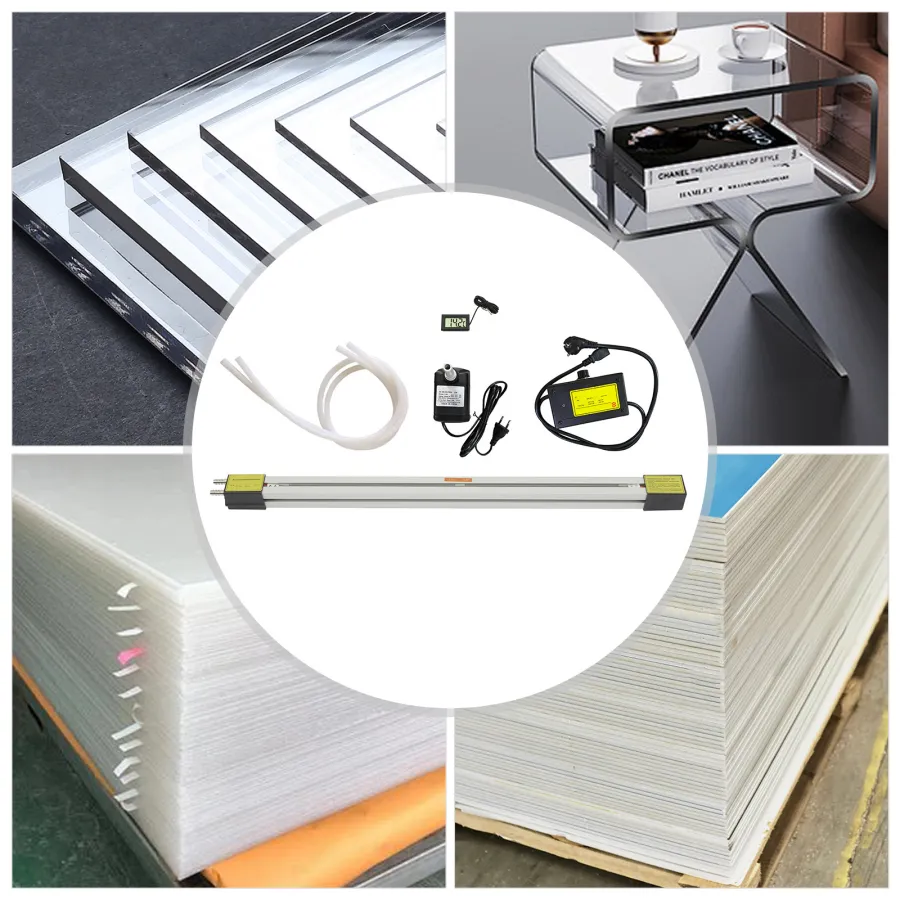

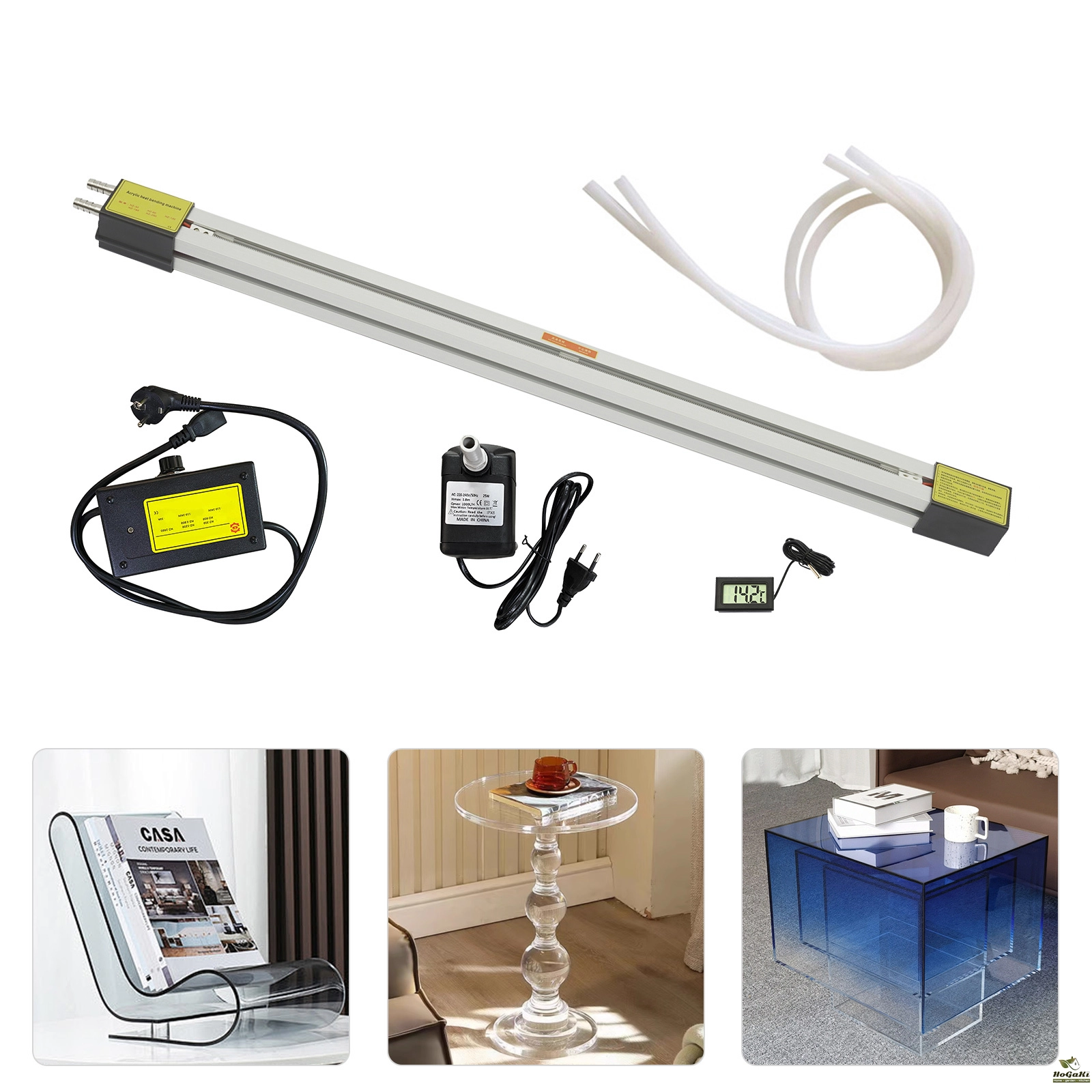

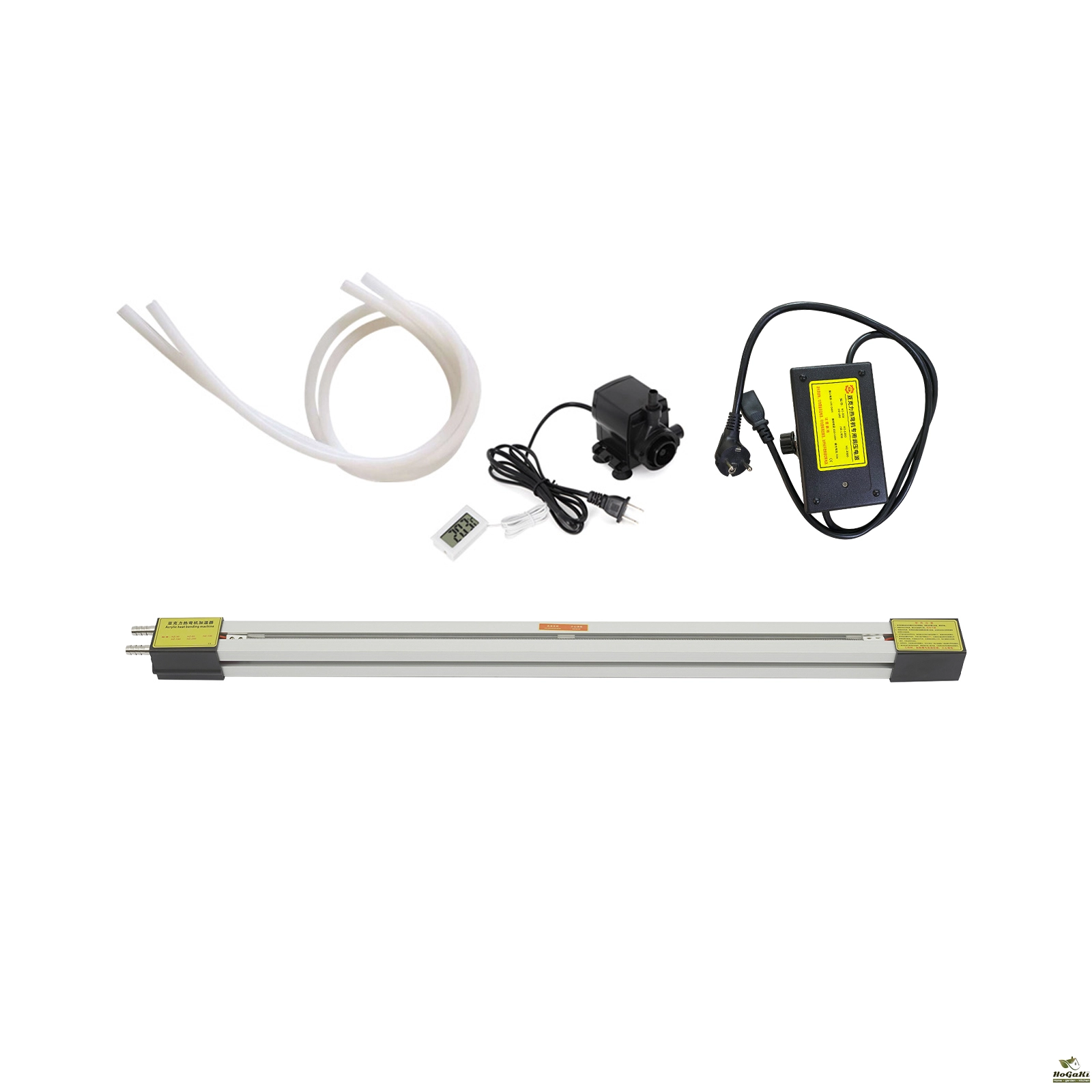

Packages:

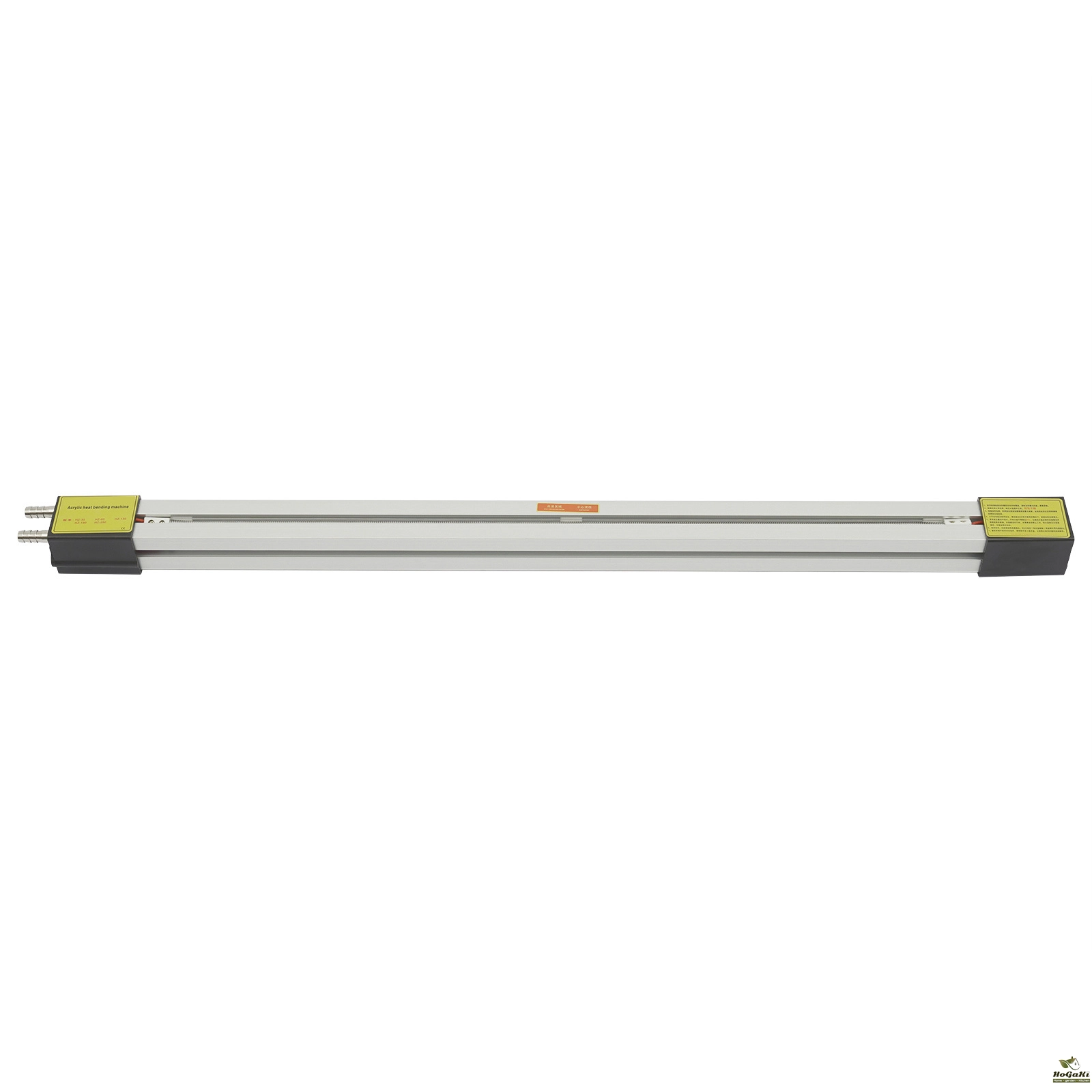

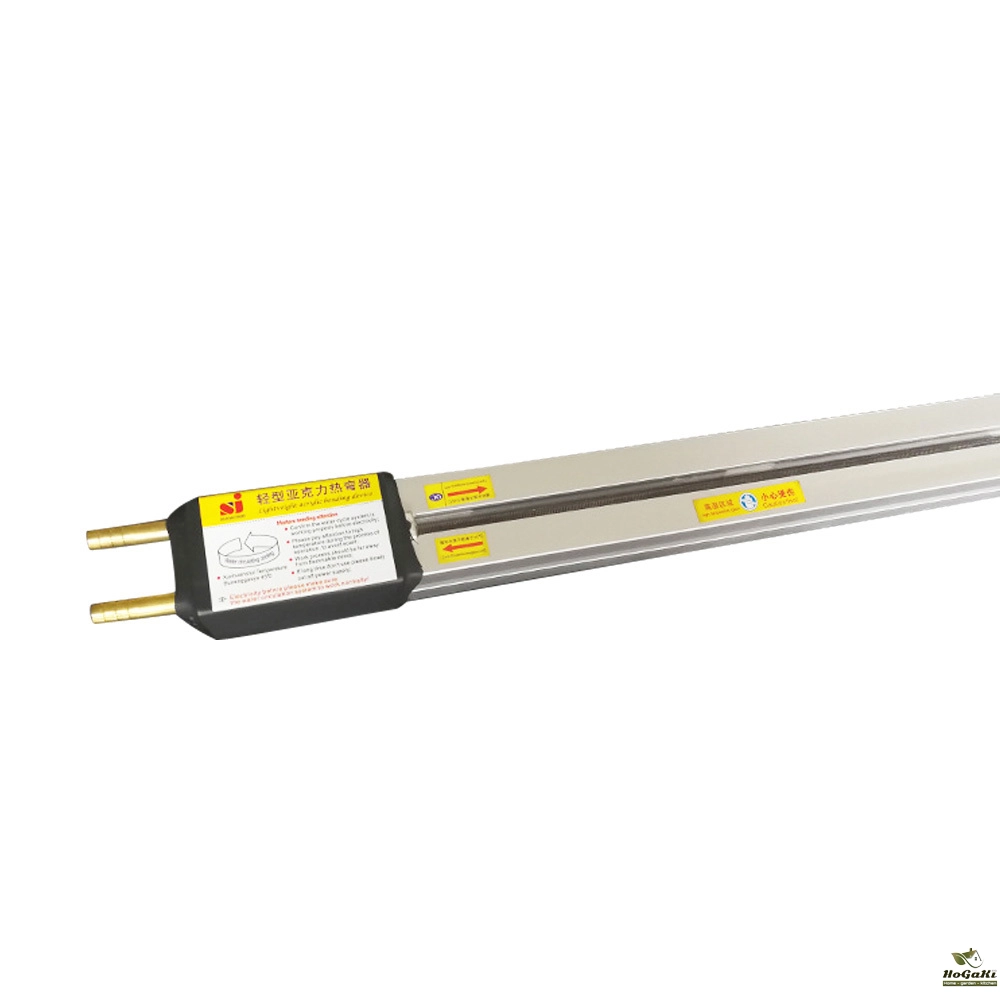

1 X Acrylic Pvc Bending Machine Heater

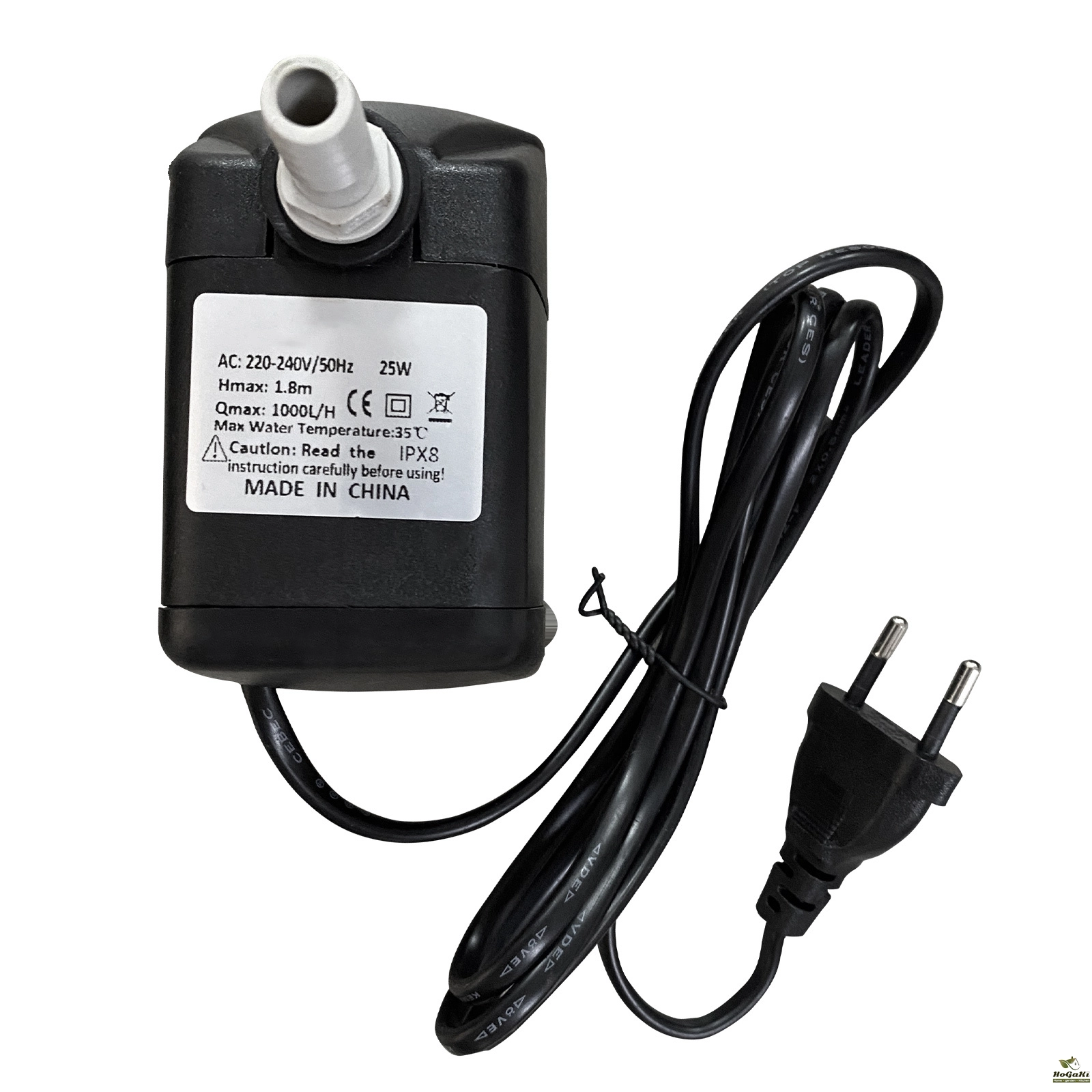

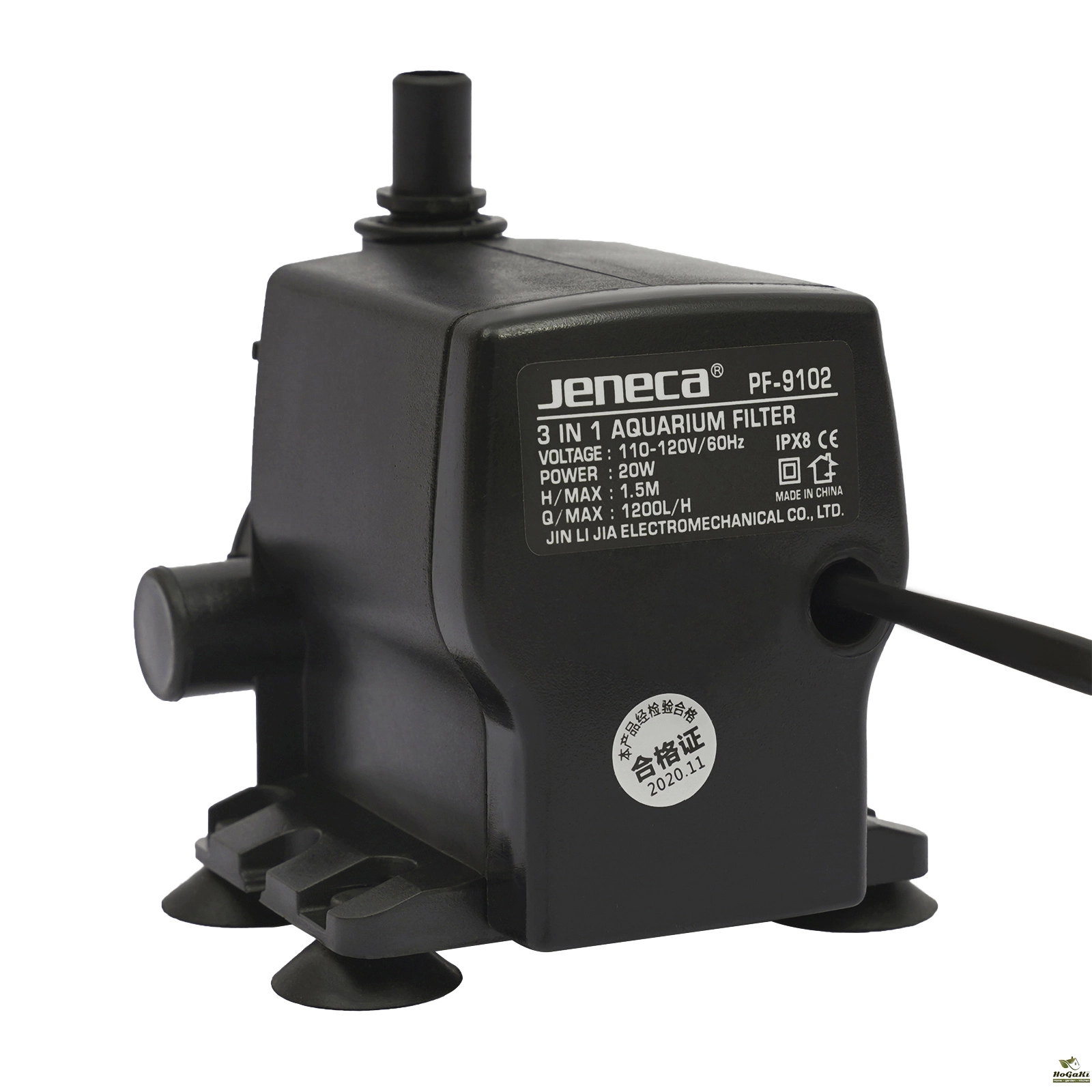

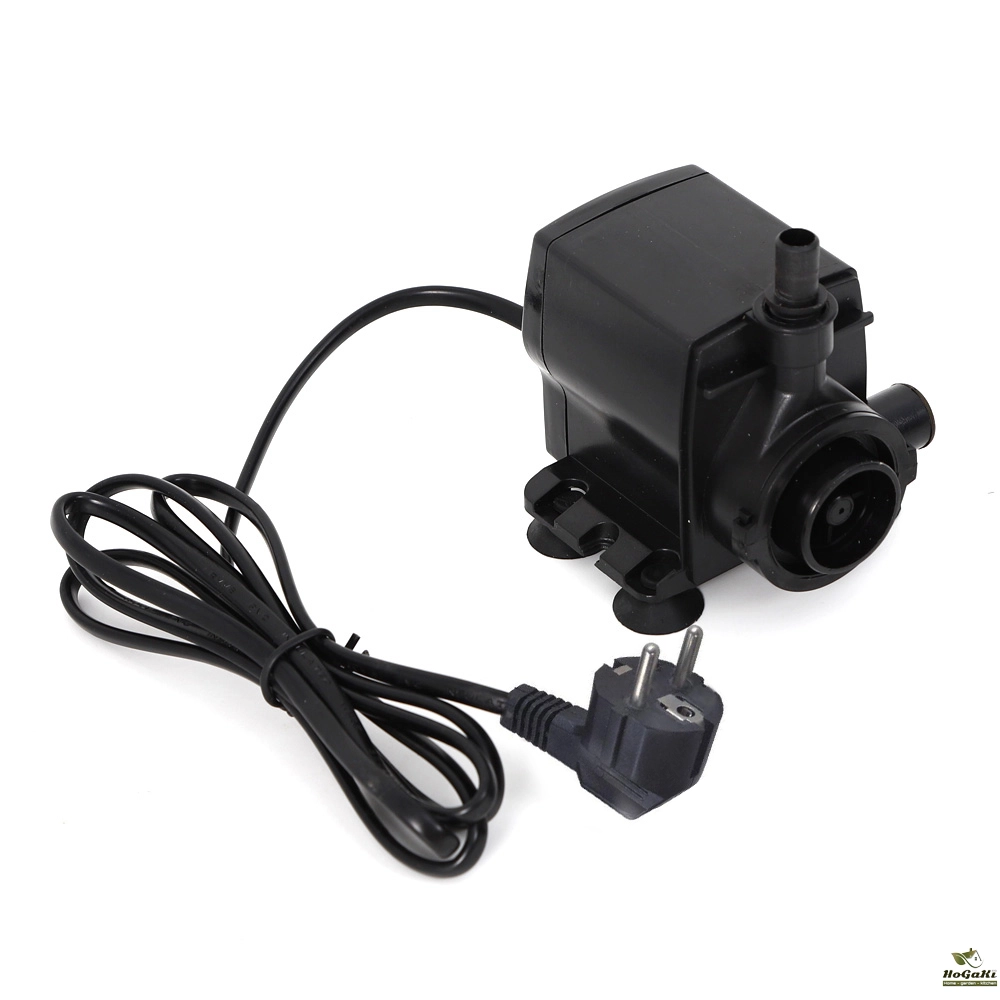

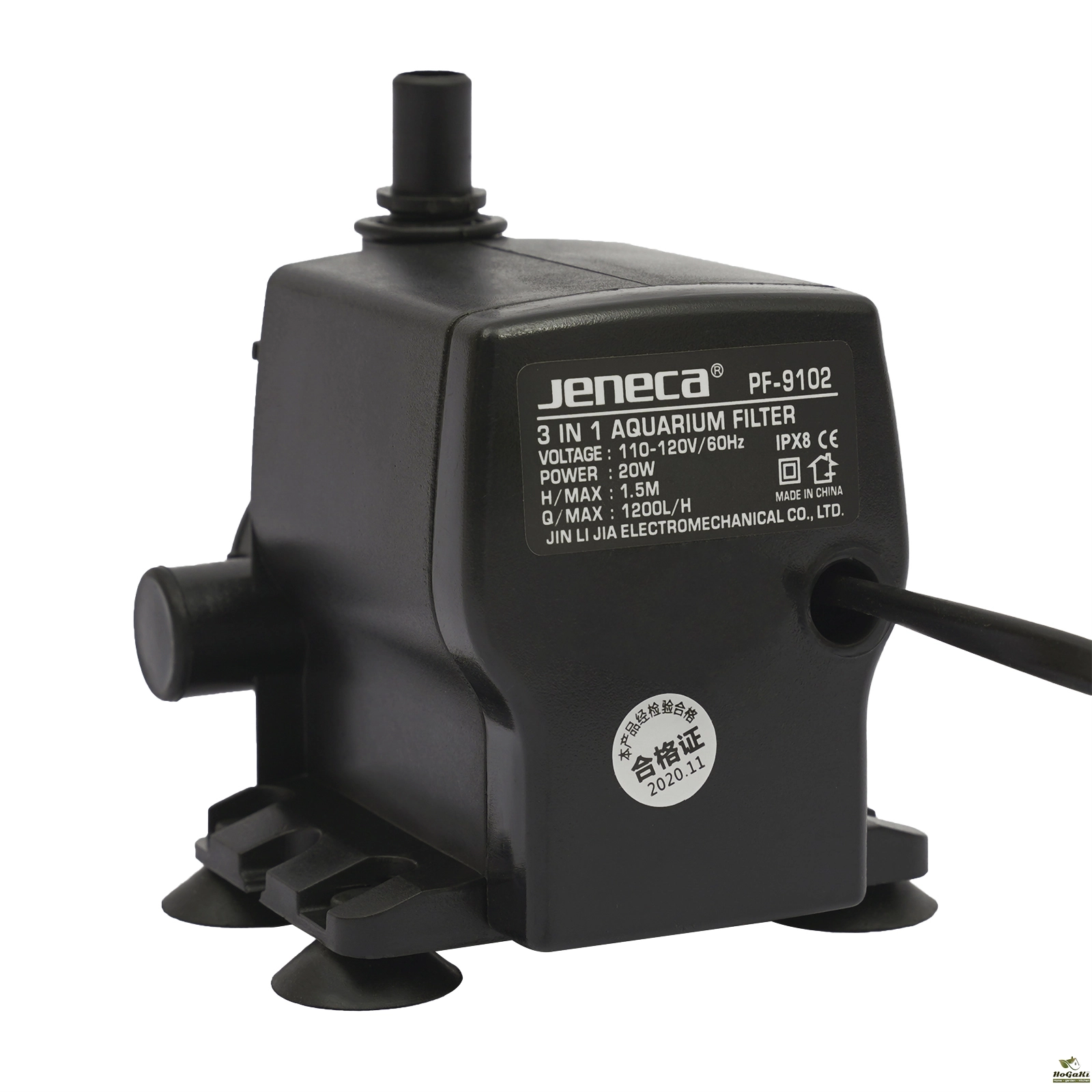

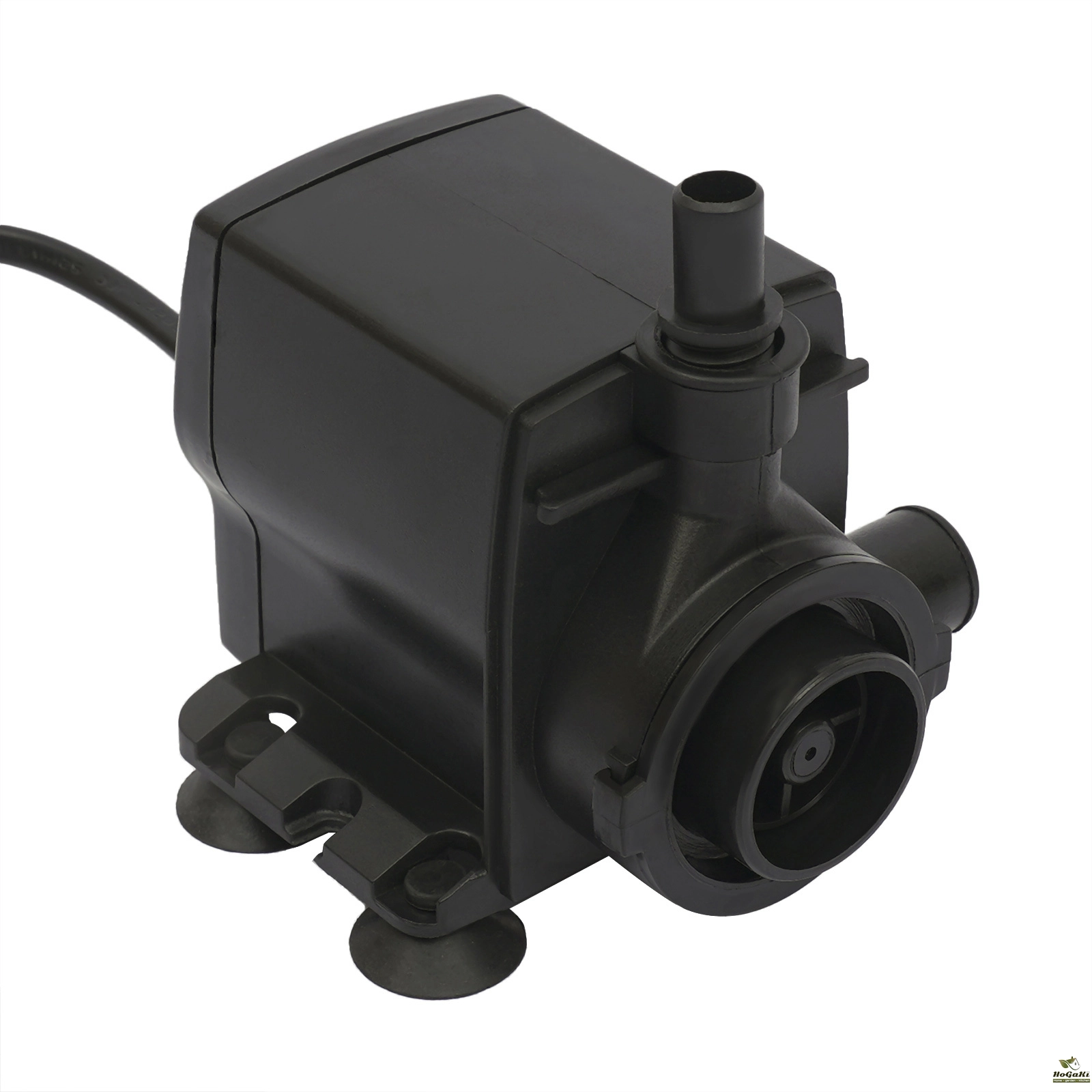

1 X Water Pump
2 X Silicone Tubes

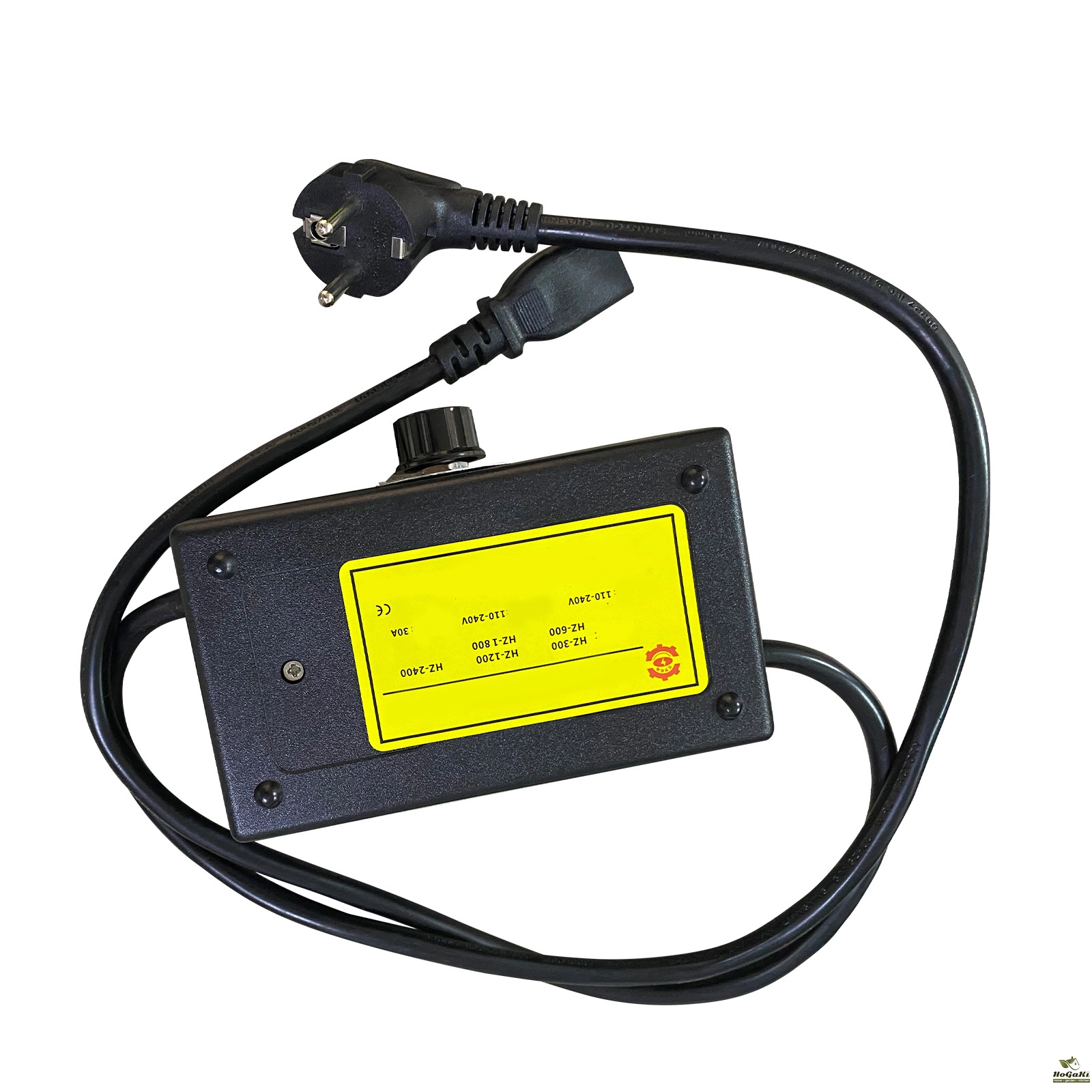

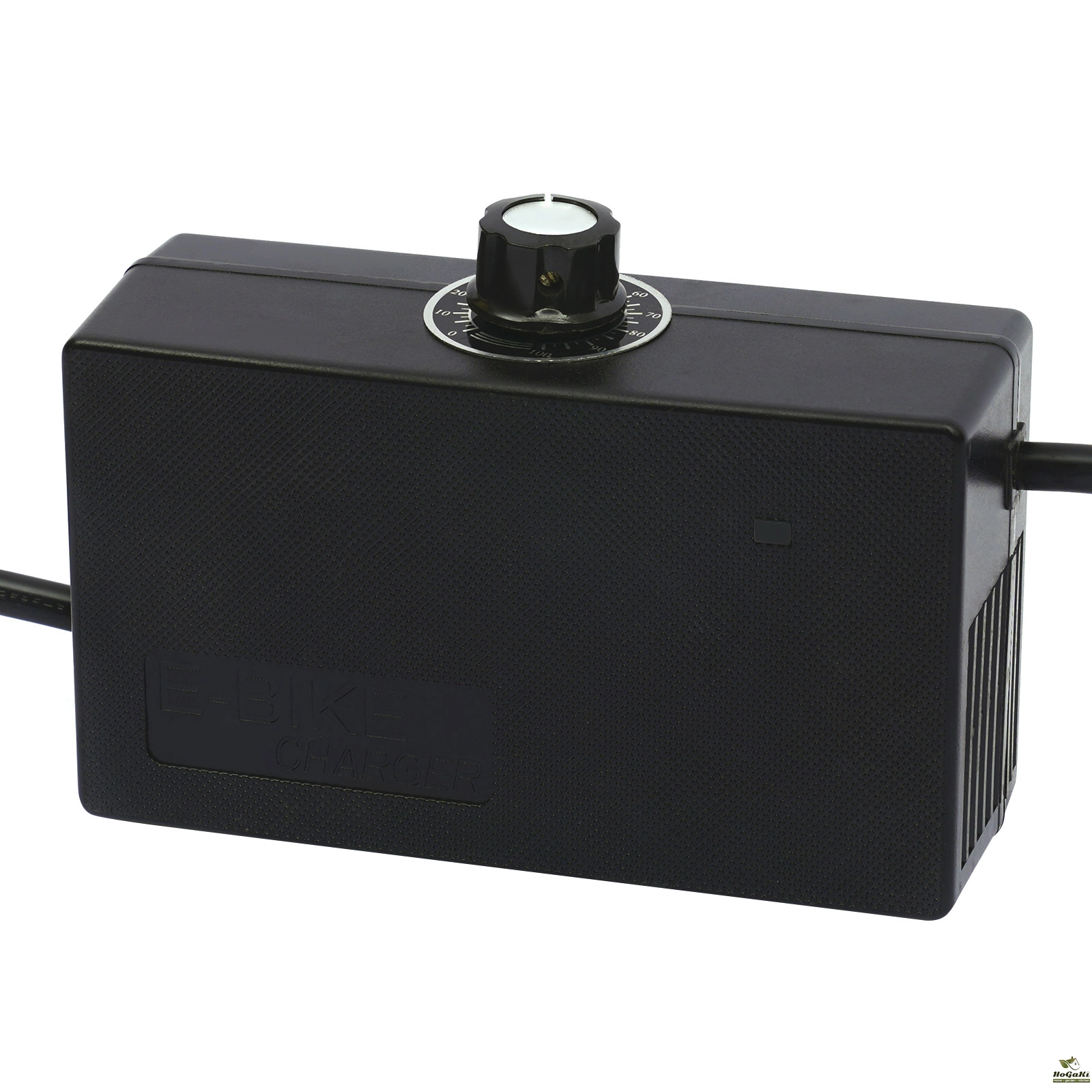

1 X Temperature Controller

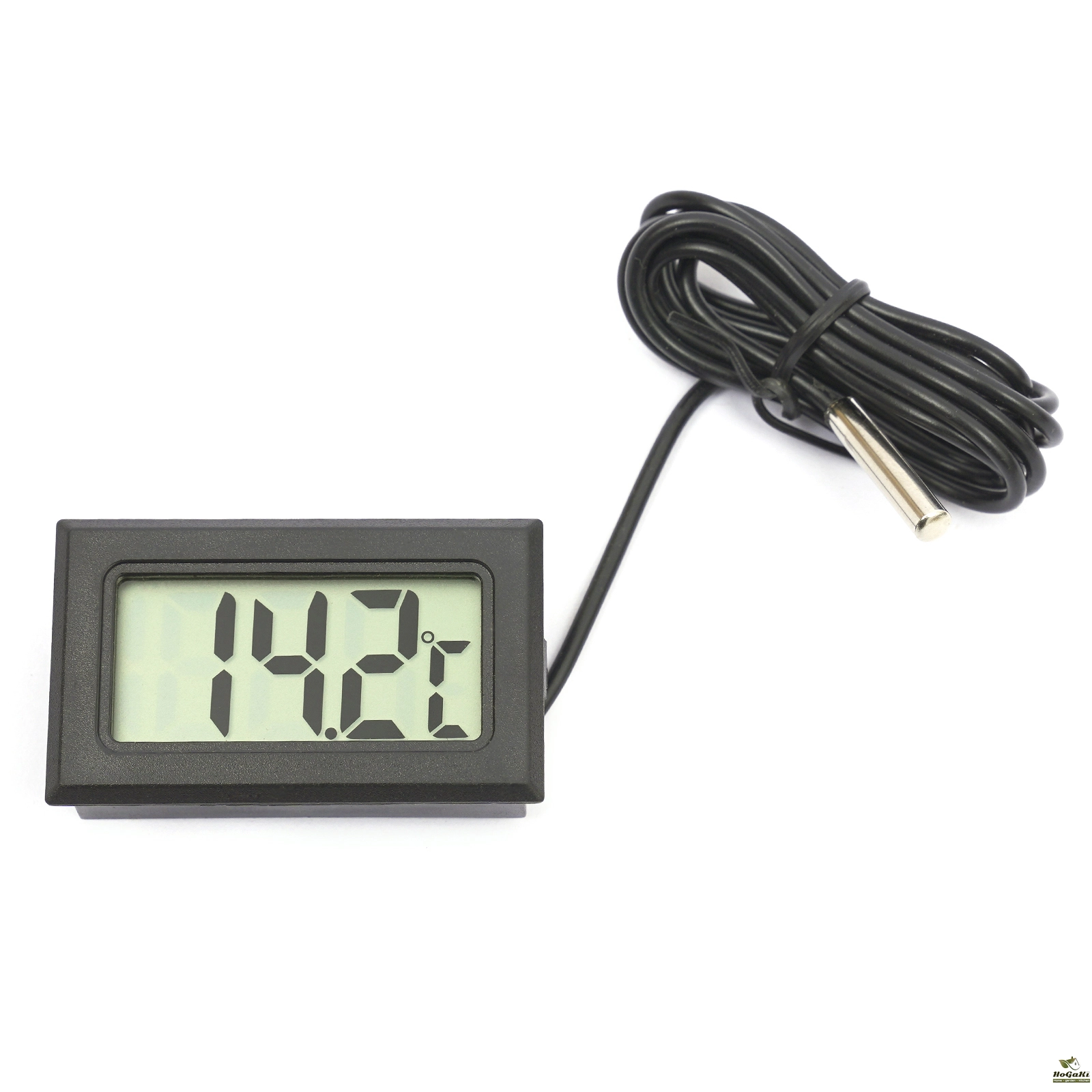

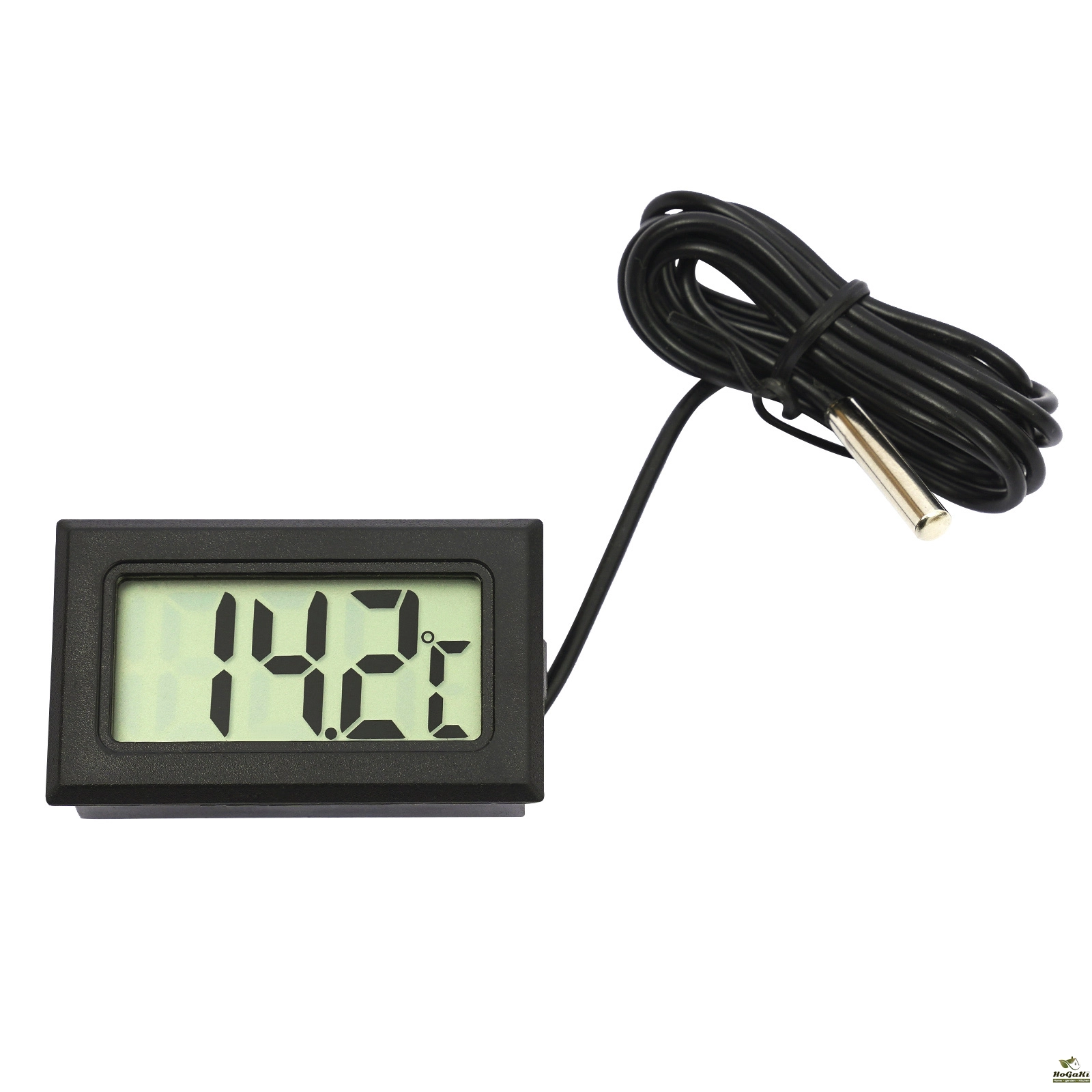

1 X Water Thermometer

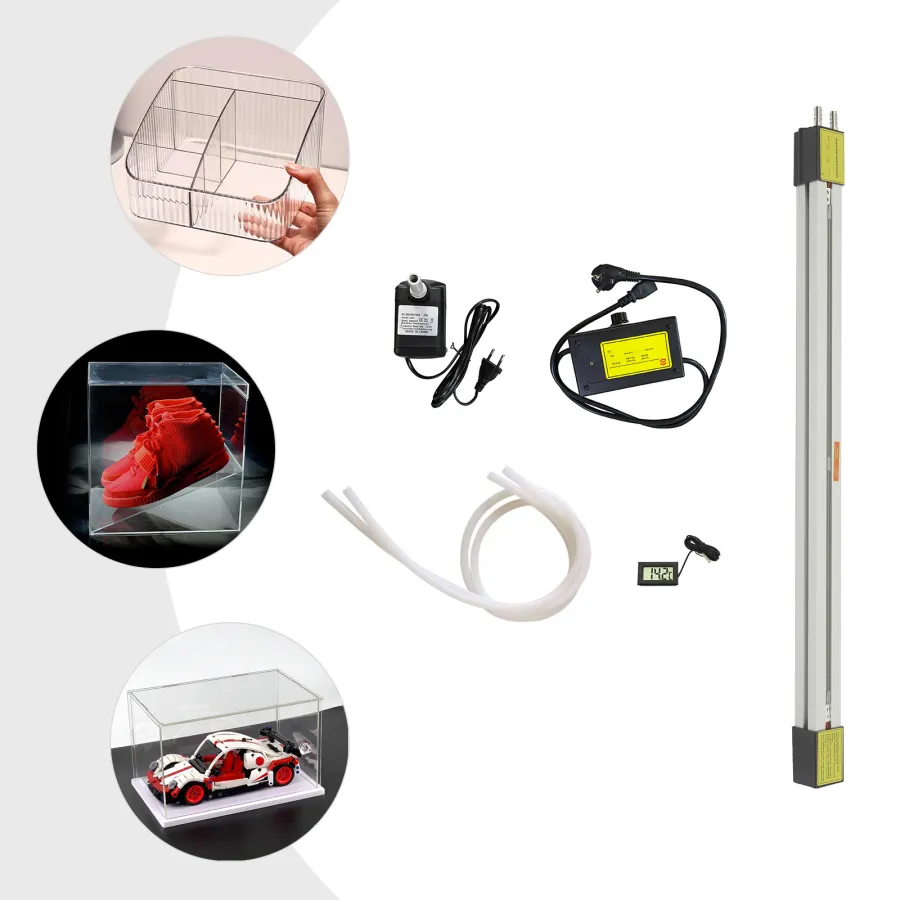

Main Uses

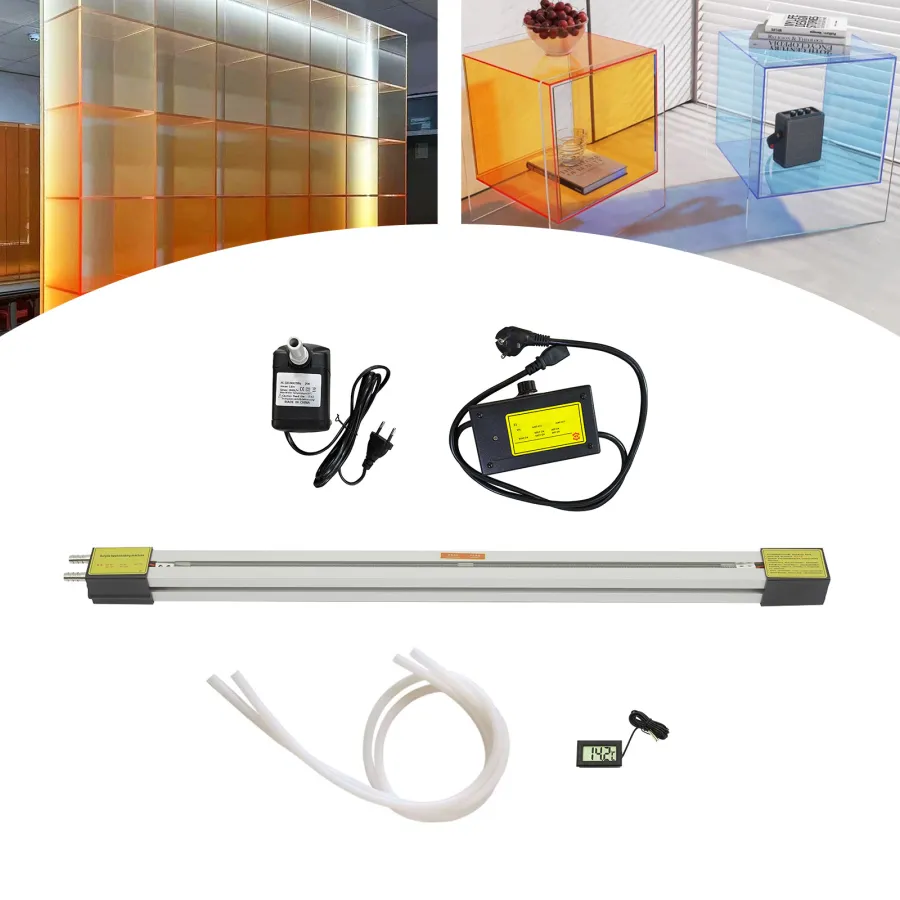

Widely Used In Decoration Engineering, Sign Making, Display Cabinets, Aquarium Wrapping, Lighting Led Channel Letters, Supermarket Shelves, Curtain Walls, Large Light Boxes, Etc
Applicable Materials: Acrylic, Organic Board, Pvc And Various Thermoplastic Materials

Features

Temperature Adjustable - Product Temperature Is Uniform, Water Circulation Cooling.
Portable - Light And Practical. Space-Saving, Hot Bending Of Plastic Sheets Of Various Materials, Such As Thickness More Than 6 Mm
Can Be Heated Up And Down Simultaneously By Two Heaters
Can Be Combined With Multiple Heaters To Heat Multiple Bending Points At One Time;
If Bending Thick Plates, Slotting Bending, Bending Angle Will Be More Beautiful, You Can Adapt To Local Conditions, Flexible Use.
Can Be Combined With The Worktable Into a Hot Bending Machine, Can Also Be Used Alone.
There Is Water Circulation Cooling On Both Sides Of The Heating Tube To Ensure That There Will Be No Thermal Deformation Except Where Heating Is Needed.

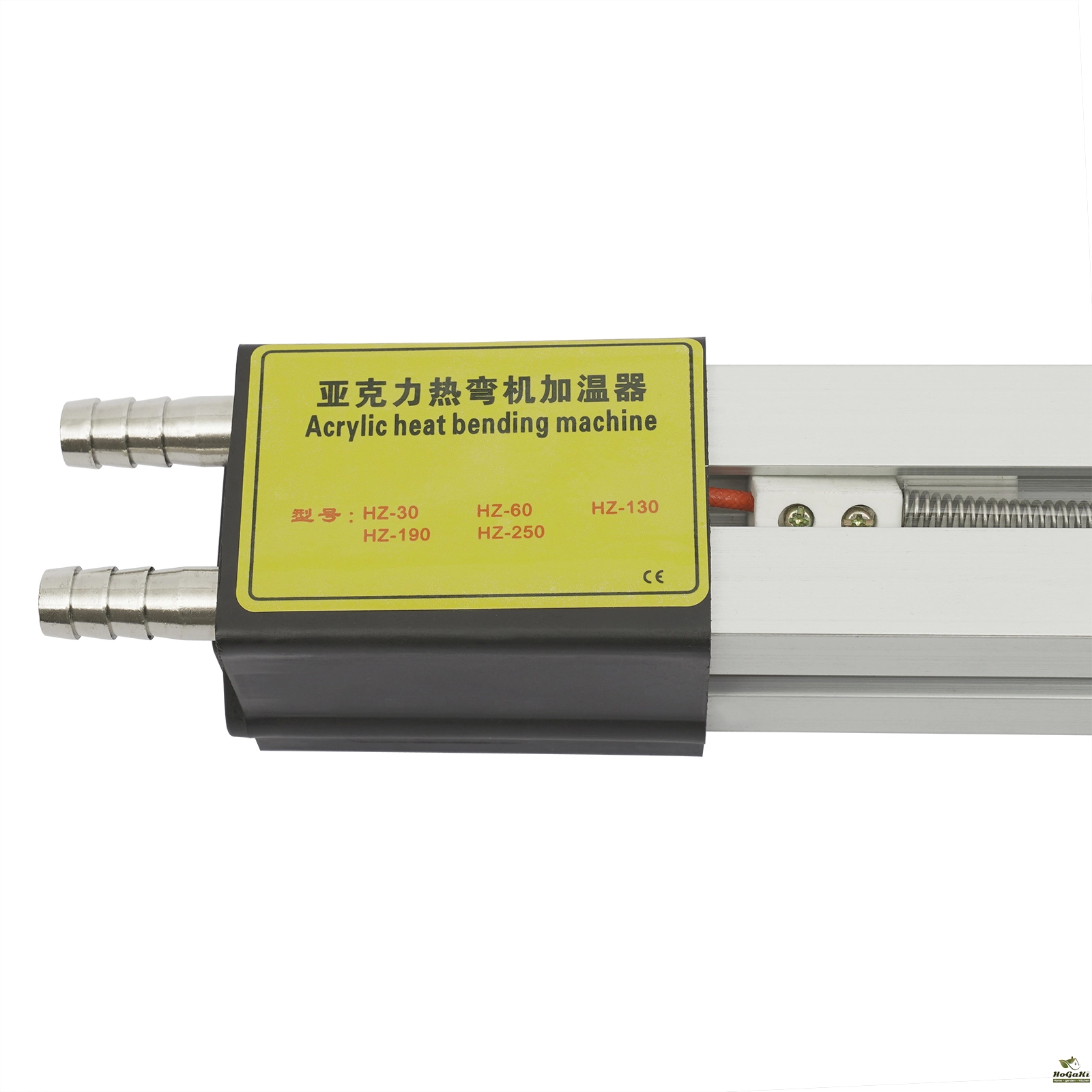

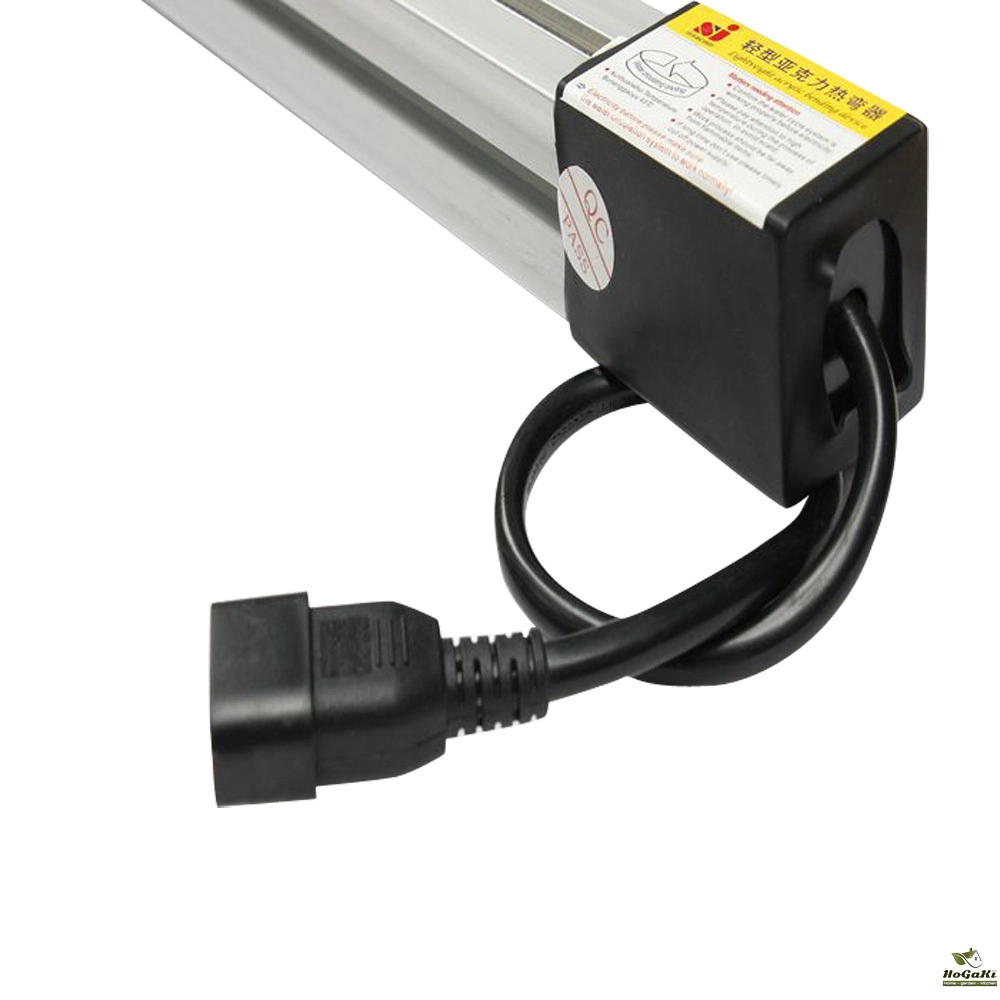

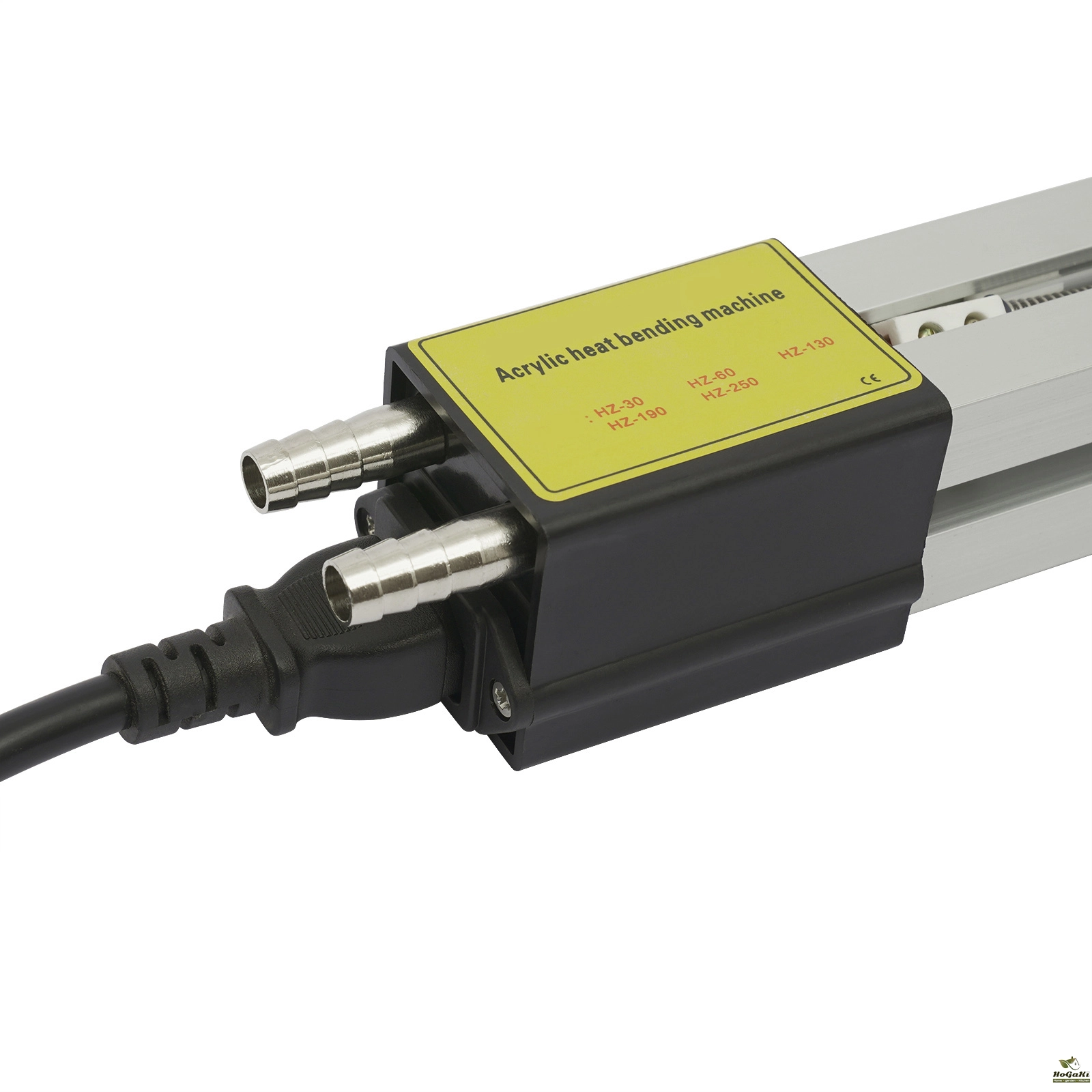

Power Supply And Water Pipe Are Connected At Both Ends Respectively. Hydropower Separation Is Safe And Intuitive, Easy To Plug And Pull, Convenient To Collect, And Easy To Assemble With The Workbench.

Instructions

Keep a Cooling Tank (Barrel) Of More Than 30 Liters. First, Connect The Heater Body And The Submersible Pump With a Silicone Hose. Place The Submersible Pump In The Cooling Bucket, Connect The Power Supply Of The Pump, And Wait For The Water To Circulate Out. (Note: The Water Temperature Of The Machine Will Keep Rising For a Long Time. Please Replace The Cold Water Clearly. The Temperature Of The Circulating Water Should Not Drop Abruptly. When The Water Temperature Exceeds 50 Degrees, The Power Supply Of The Heater Should Be Cut Off In Time, And The Circulating Water Should Be Replaced Later.)

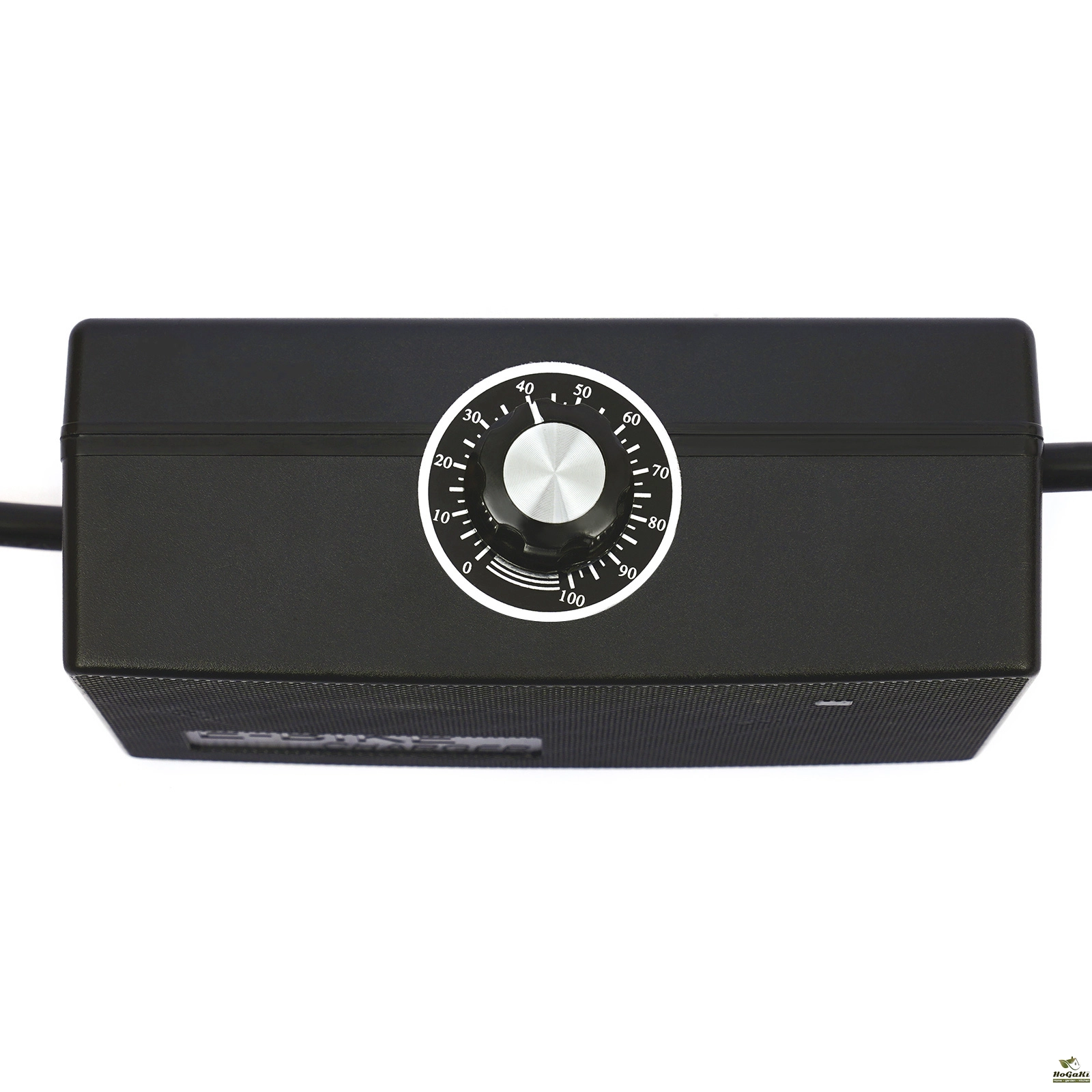

Connect The Thermostat With The Hot Bender And Connect It To 220V Power Supply. Adjust The Knob Of The Thermostat Controller. The Clockwise Direction Is To Raise The Temperature, And Vice Versa. When Adjusting, It Is Not Appropriate To Rotate Too Fast In Order To Avoid Damaging The Thermostat. (Note: It Is Advisable To Slowly Adjust The Thermostat To a Reddish Heat Pipe. Excessive Temperature Will Cause Damage To The Hot Bending Material And Affect The Service Life Of The Hot Bender).
When The Heating Pipe Reaches The Required Temperature, It Can Place The Plastic Sheet Which Needs To Be Hot-Bended On The Heating Trough. When The Sheet Is Soft Enough To Be Folded Manually, It Can Bend At Various Angles. According To The Different Materials, The Setting Time Is Different. Please Determine The Setting Time According To The Actual Situation.

Safety Precautions:
Product Heating Produces High Temperature, Heating Components Should Avoid Contact With Human Skin.
Please Pay Attention To The Use Of The Environment, Away From Inflammable And Explosive Goods.
If You Don't Use It For a Long Time, Please Cut Off The Power In Time.
