Description

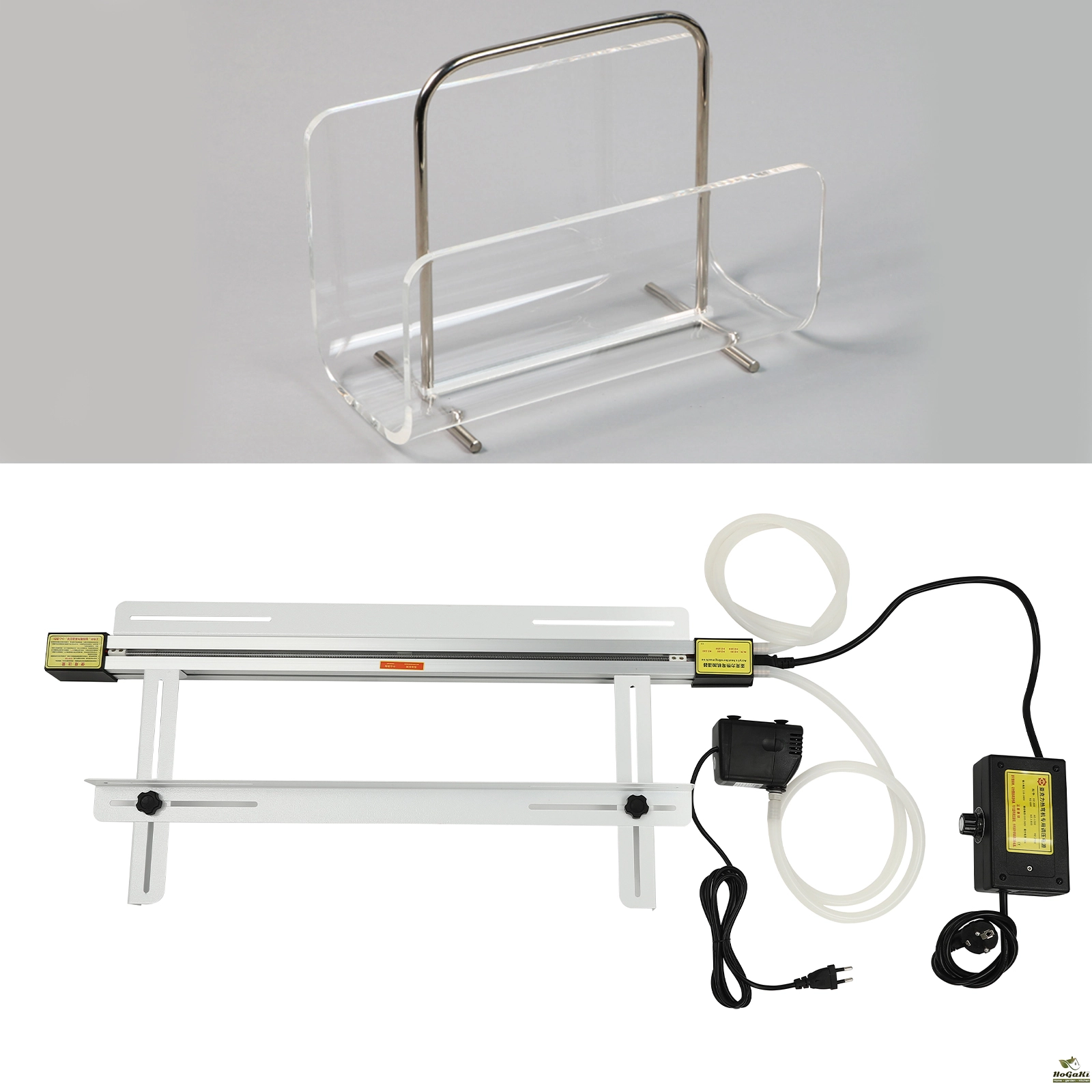

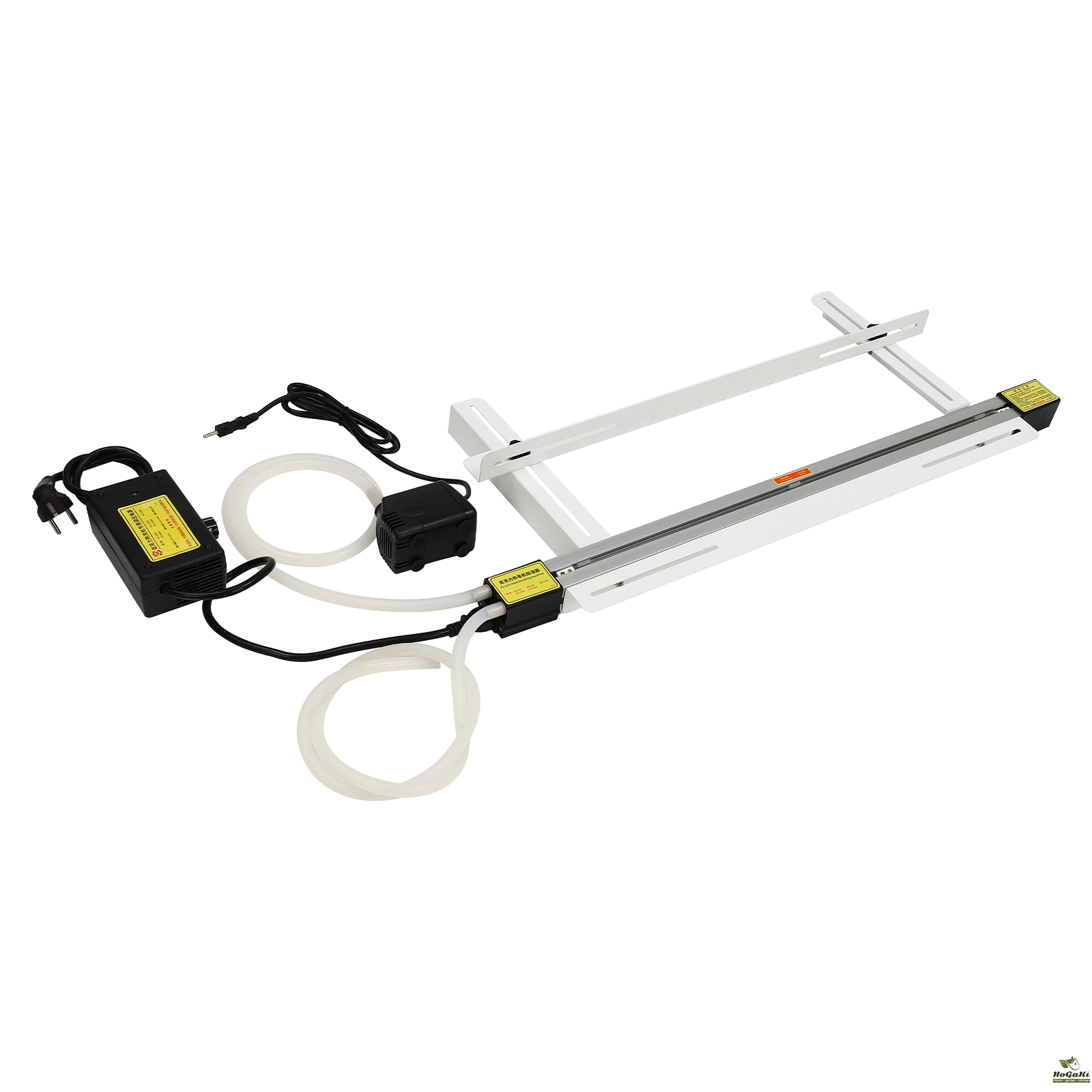

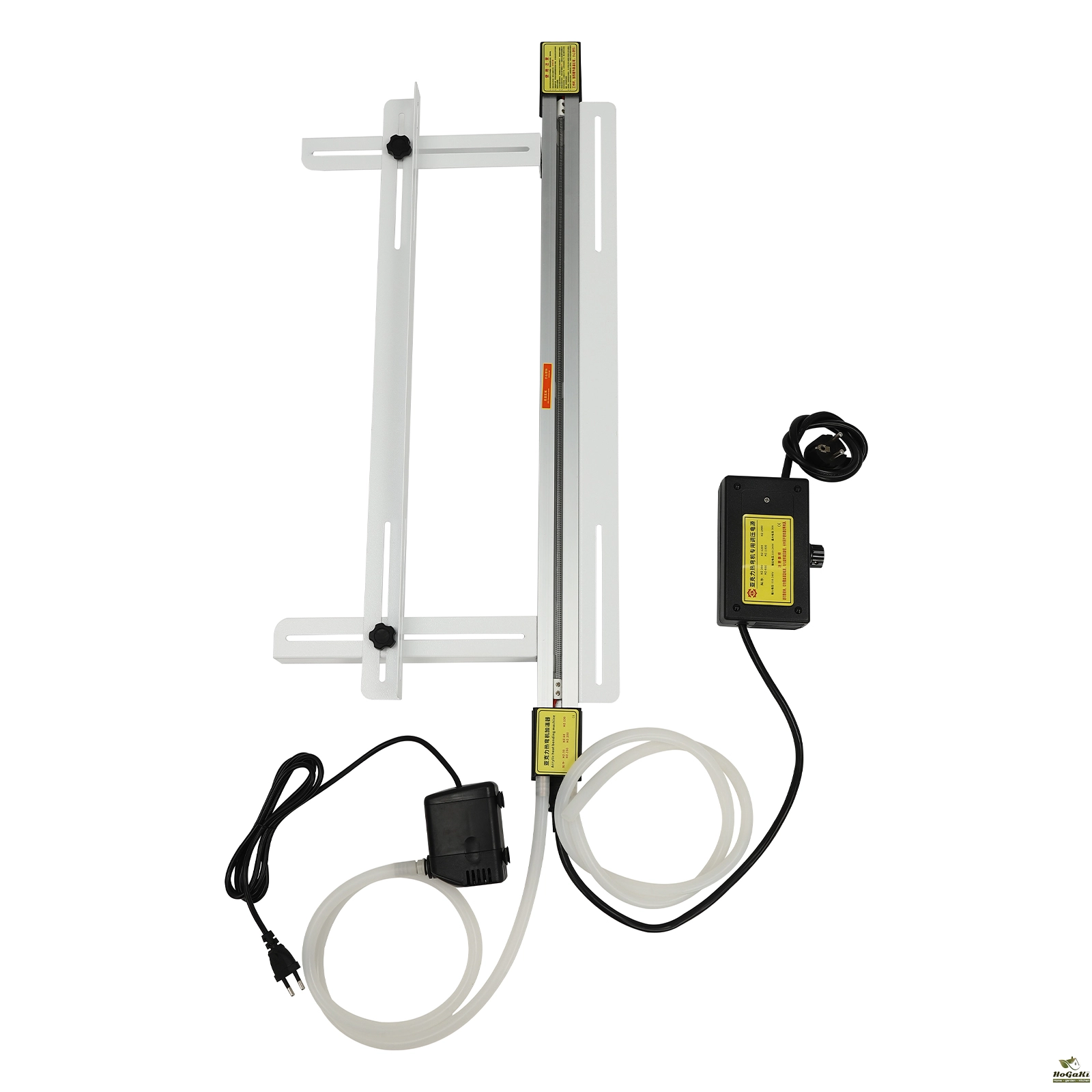

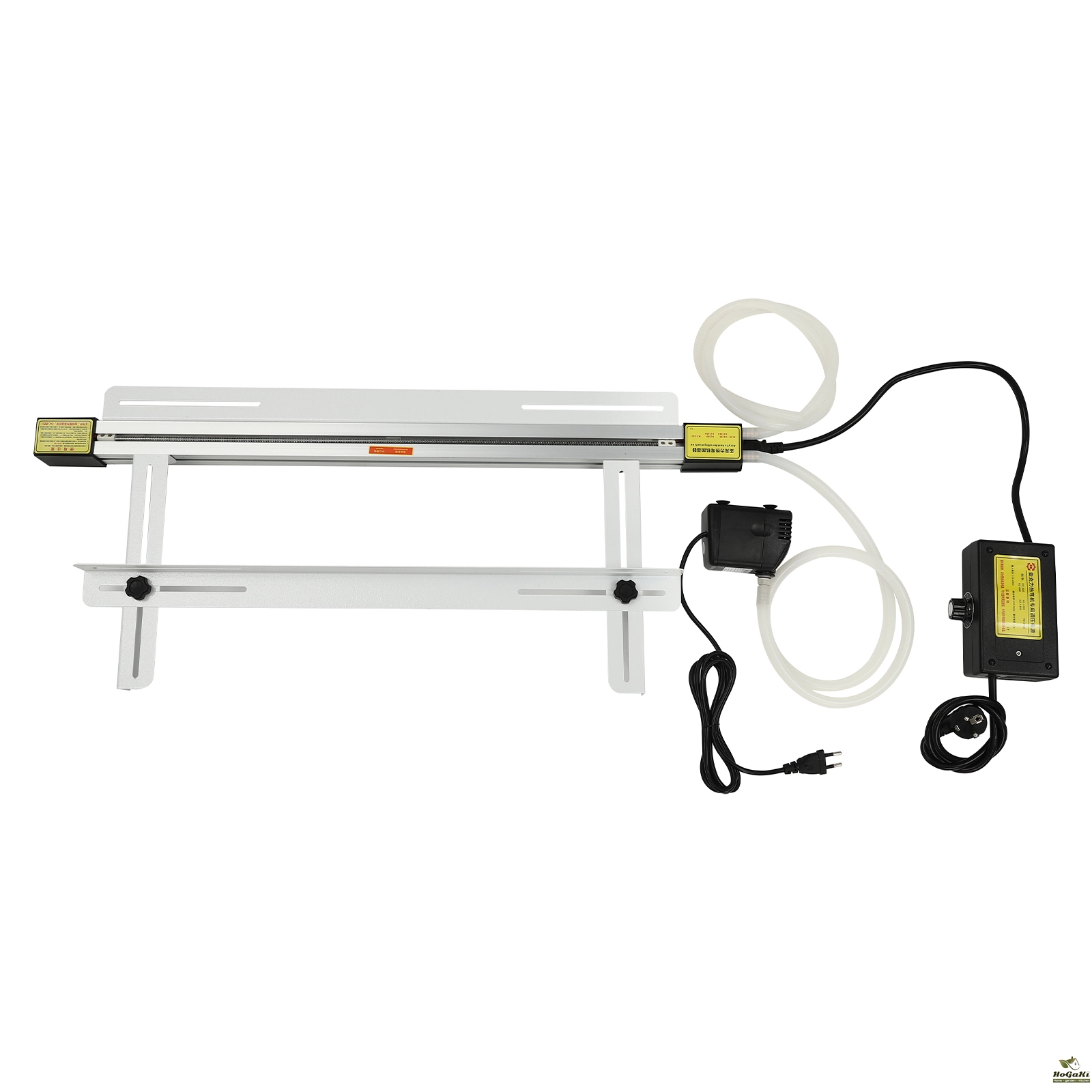

Do you want to bend acrylic easier and faster? Then try this acrylic heat bending machine. It is made of high-quality aluminum alloy, which is hard, durable, lightweight, and easy to carry. It is an efficient tool designed to easily bend materials, making it designed specifically for creating various DIY projects or professional manufacturing needs.

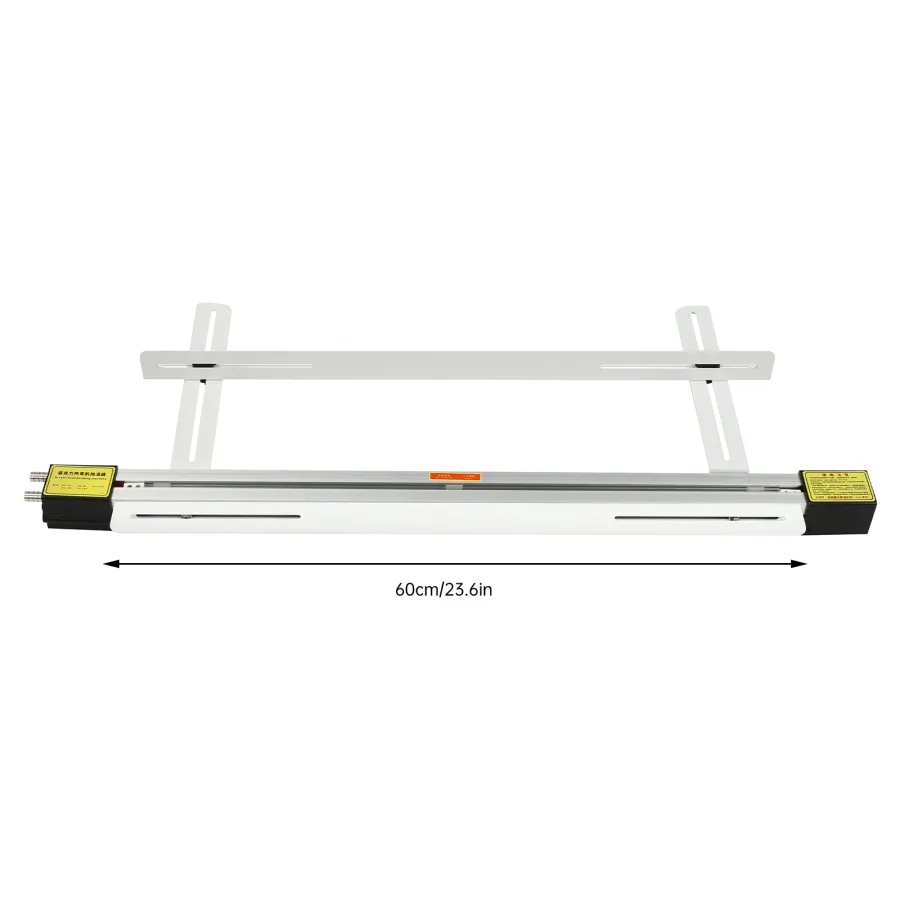

Specification----60mm

Color: White
Material: Aluminum Alloy, Electric Heating Wire
Plug Standard: EU Standard
Power: 1000W
Voltage: 110-240V
Maximum Current: 30A
Water Pump Voltage: 220-240V/50Hz
Power: 25W
Hmax: 2.0m/6.56ft
Qmax:1000L/264.17gal/H
Max Water Temperature: 35°C//95°F
Waterproof Grade: IPX8
Heating Thickness: 6mm
Adjustable Temperature: 0-100%(0-420°C)/32-752°F
Maximum Bending Width: 600mm/24inch
Length of Heating Part: 60cm/24inch
Adjustable Length of Bracket: 0-20cm/0-7.87inch
Adjustable Width of Bracket: 0-60cm/0-24inch
Package Size: 86*20*12cm/ 33.86*7.87*4.72inch
Gross Weight: 4.5kg/9.92lbs

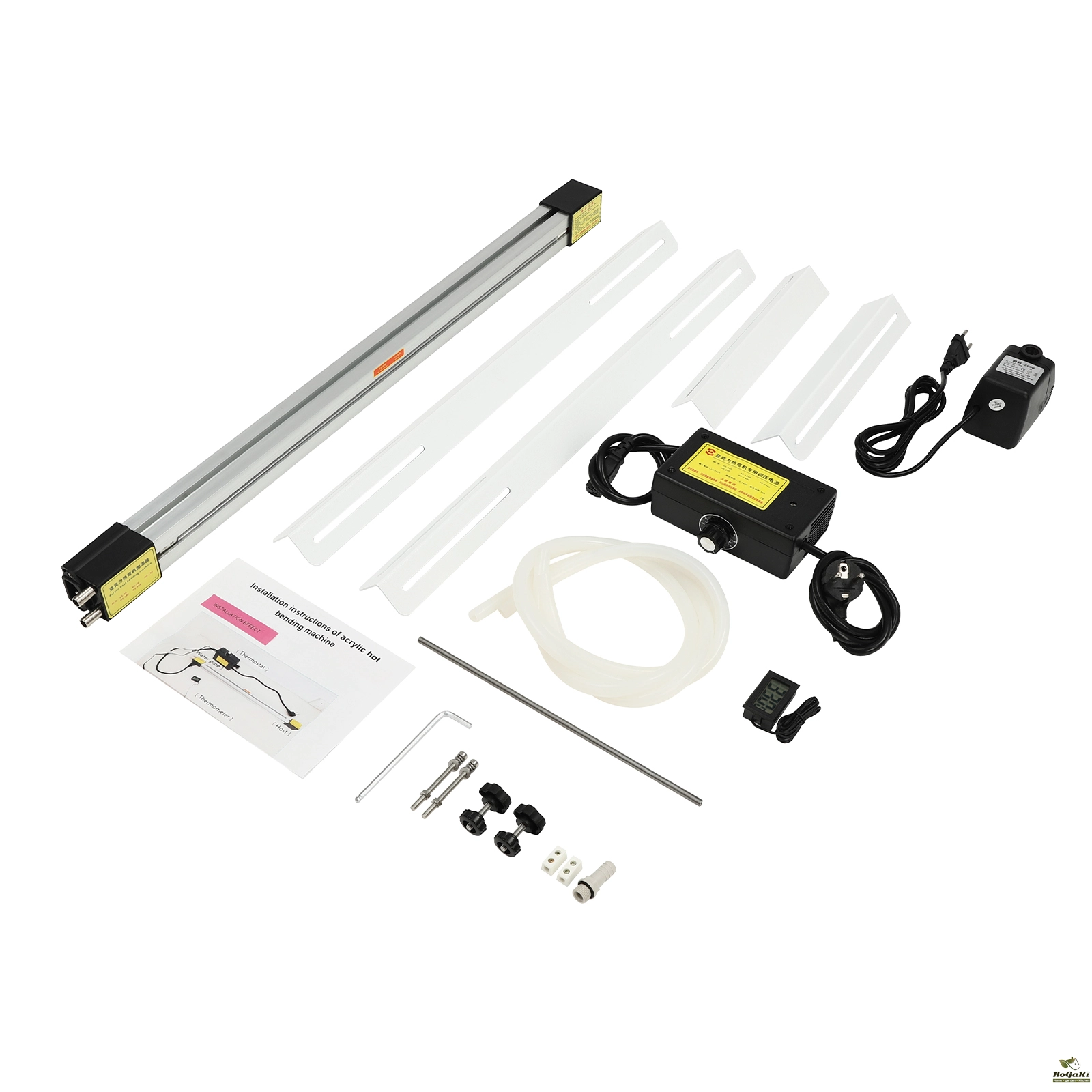

Package Included

1*Acrylic Heat Bending Machine
1*English Manual
1* Allen Key
1*Thermometer
1* Thermostat

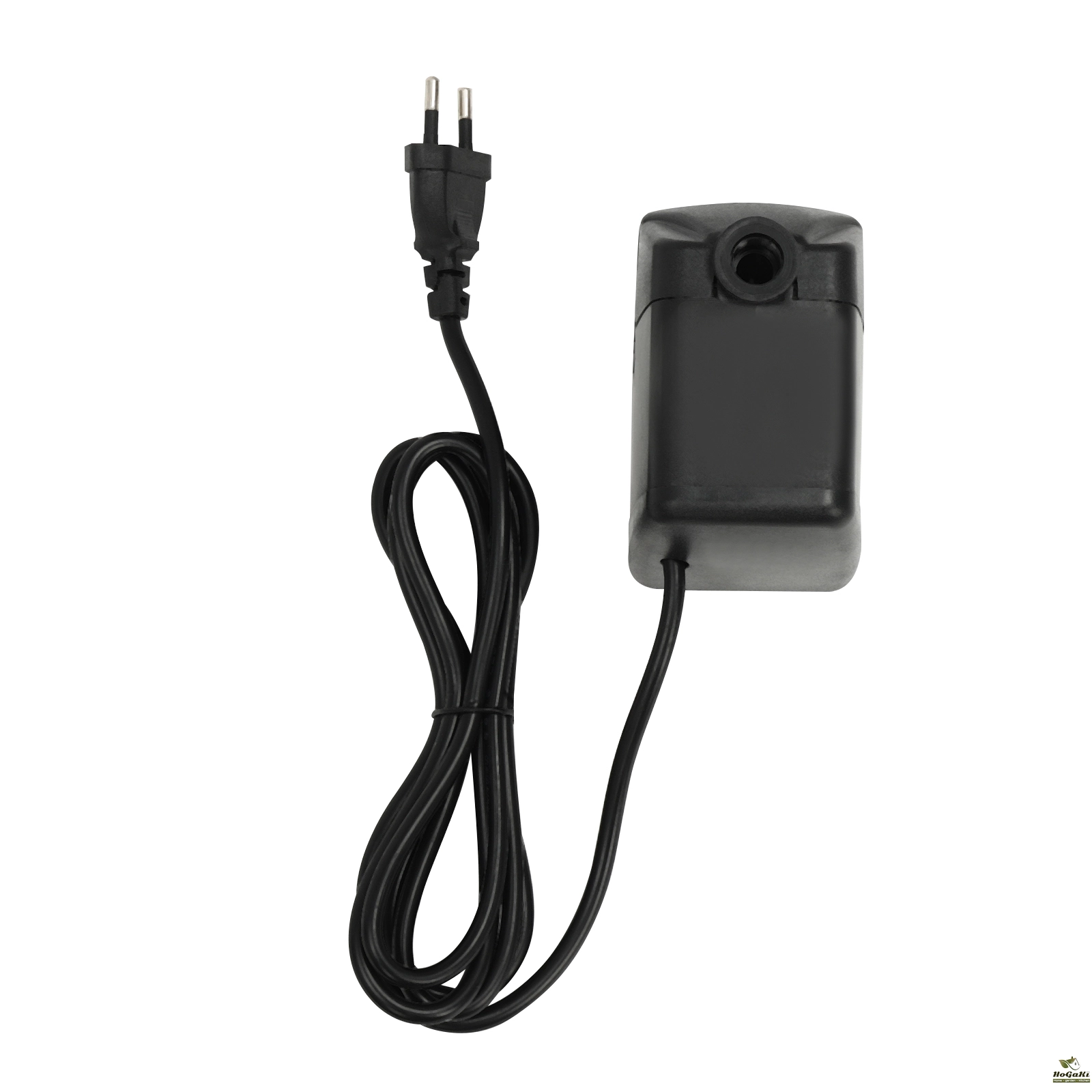

1*Water Pump
All Accessories for Installation

Key Features

Build to Last: This product is made of high-quality aluminum alloy, which has the characteristics of good hardness, strength, lightness, low consumption, and corrosion resistance, and can be used for a long time.

High Efficiency: It has high power(1000W), high-quality heating wire, adjustable temperature (0-100%: 32-752°F), improving work efficiency and saving manpower. In addition, you can also use multiple acrylic pipe bending machine heaters to simultaneously heat more pipes, saving time and effort.

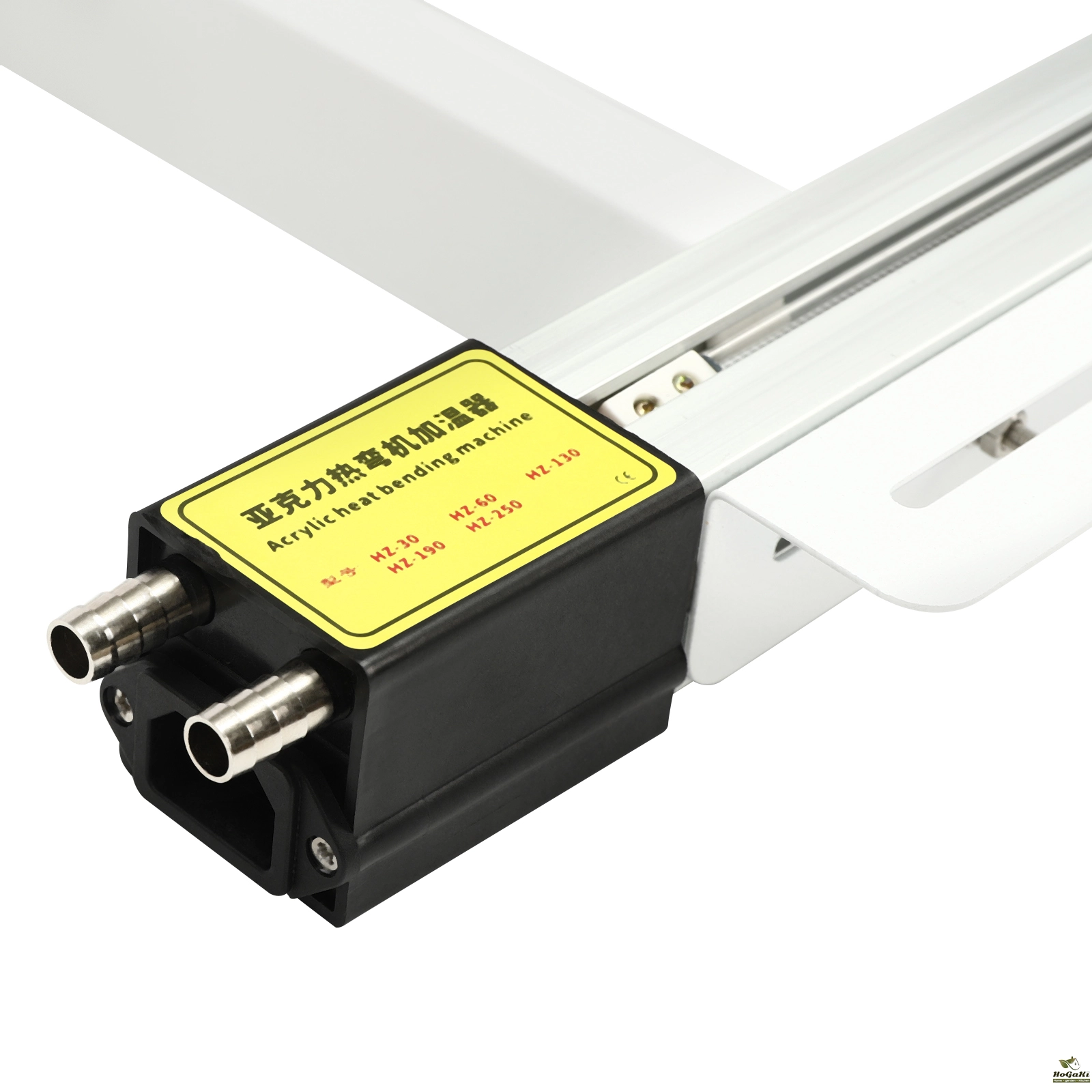

High Safety: The heating tube is equipped with a circulating cooling water system on both sides to ensure that other components (don't require heating) do not get thermal deformation. The digital thermometer makes it convenient for you to observe the water temperature in real time and monitor the operation process.

Easy to Use: The power supply and water pipes are connected at both ends, and this water and electricity separation design is not only safe but also intuitive. It is easy to plug and unplug, easy to collect, and very convenient to assemble with the workbench. Detailed instructions, convenient knobs, and clear markings also allow you to quickly learn to use and master it.

Space-saving: Compared with common hot bending machines on the market, this product has a reasonable design, compact size(24 inches), simple operation, convenient portability, and won't take up too much space, so you can bring it to the construction sites for processing.

Effortless to Clean: You can easily clean it without much effort and time because of the smooth surface and removable design with a dry rag and water.

Protective Package: To prevent the product from being damaged during transportation, we packed it with sponges to protect your products to the maximum extent possible.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

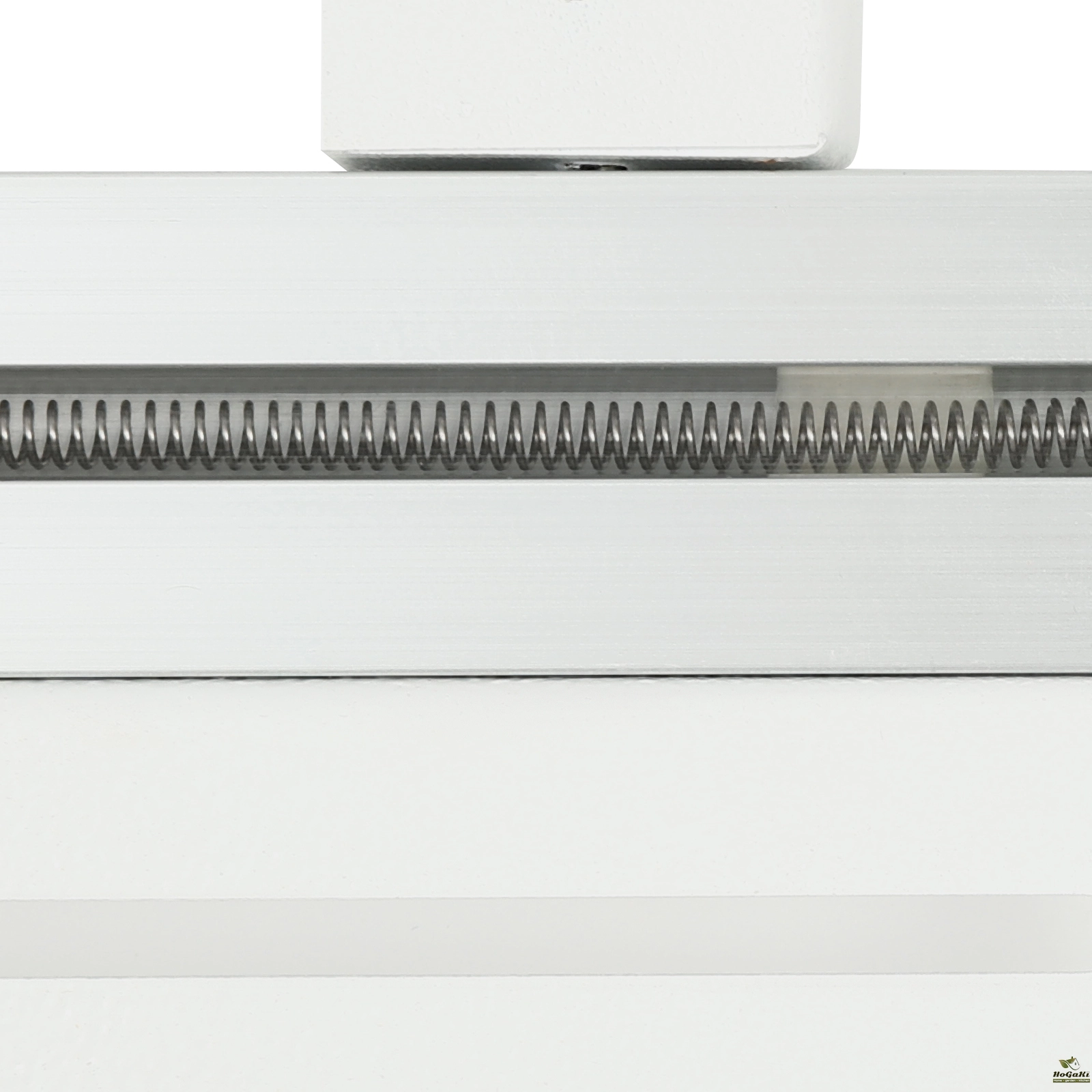

Smooth Surface: The smooth surface can provide a comfortable touch, thus better protecting your safety.

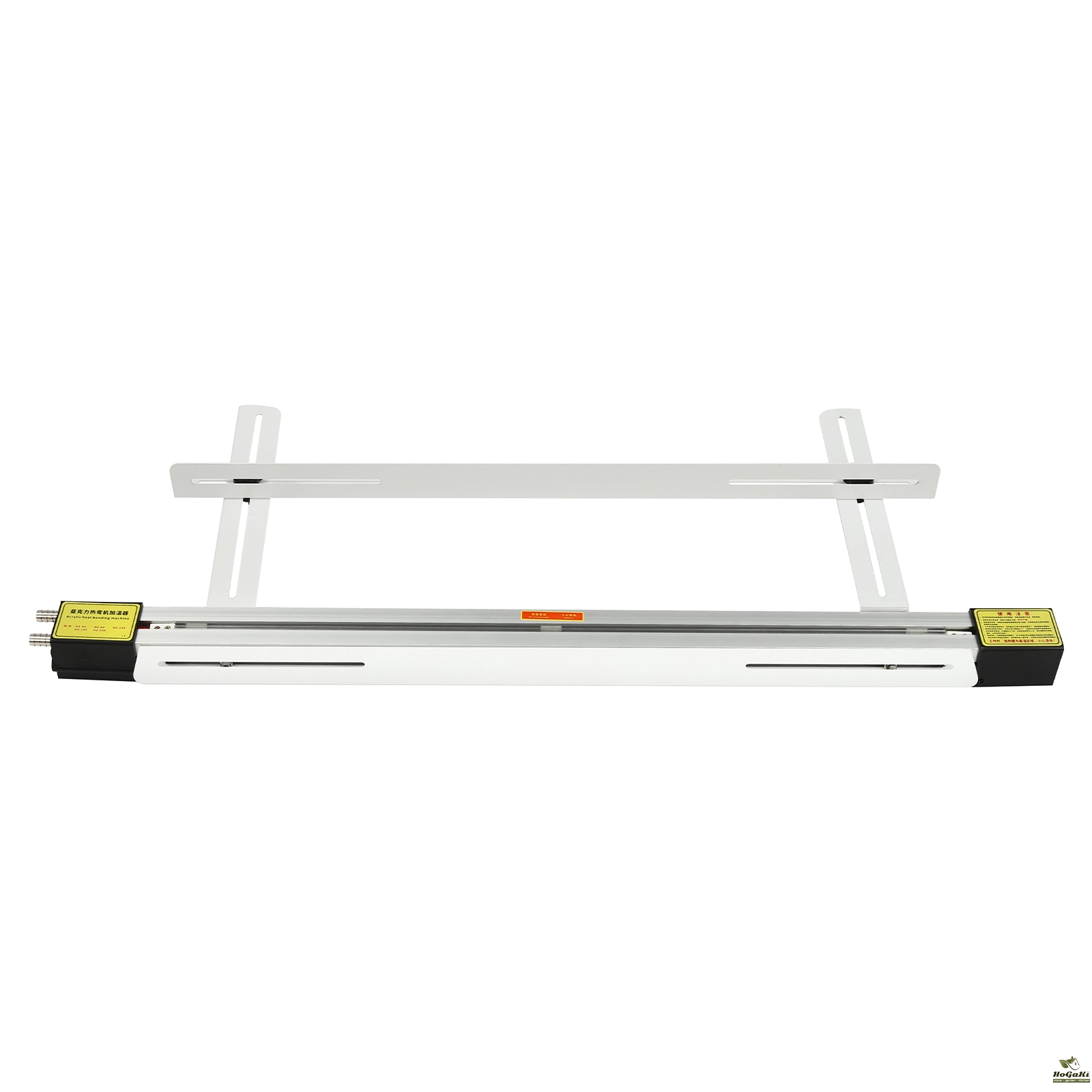

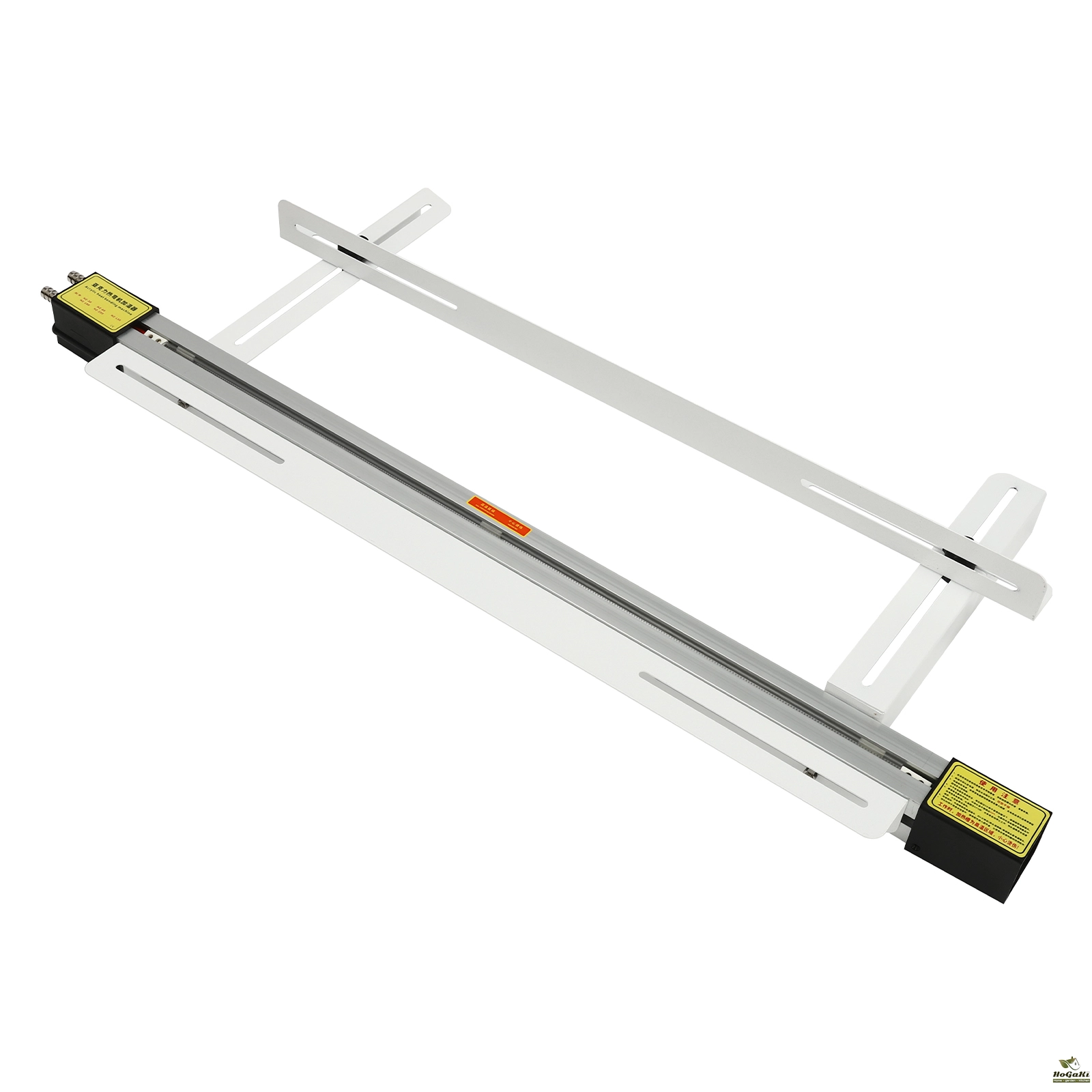

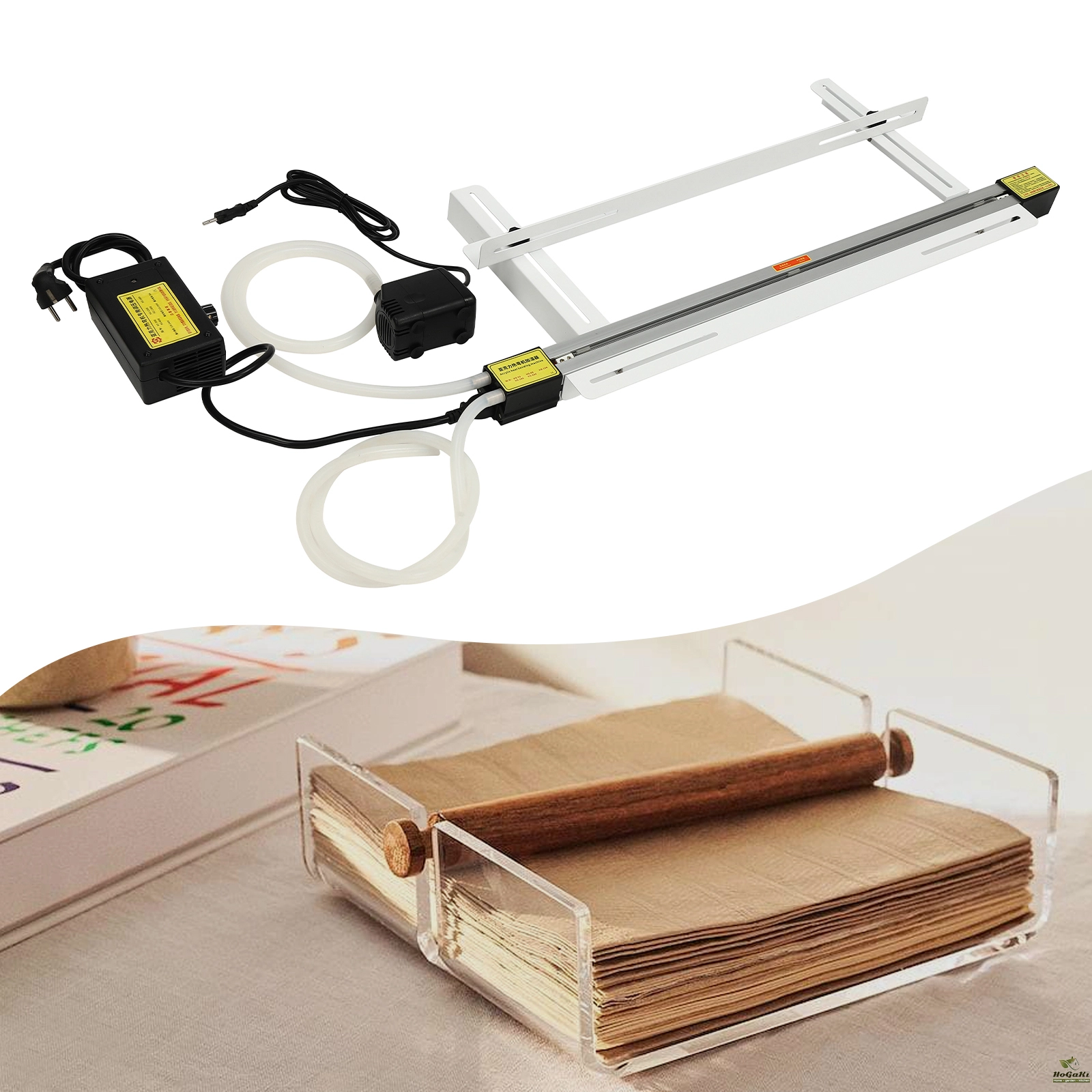

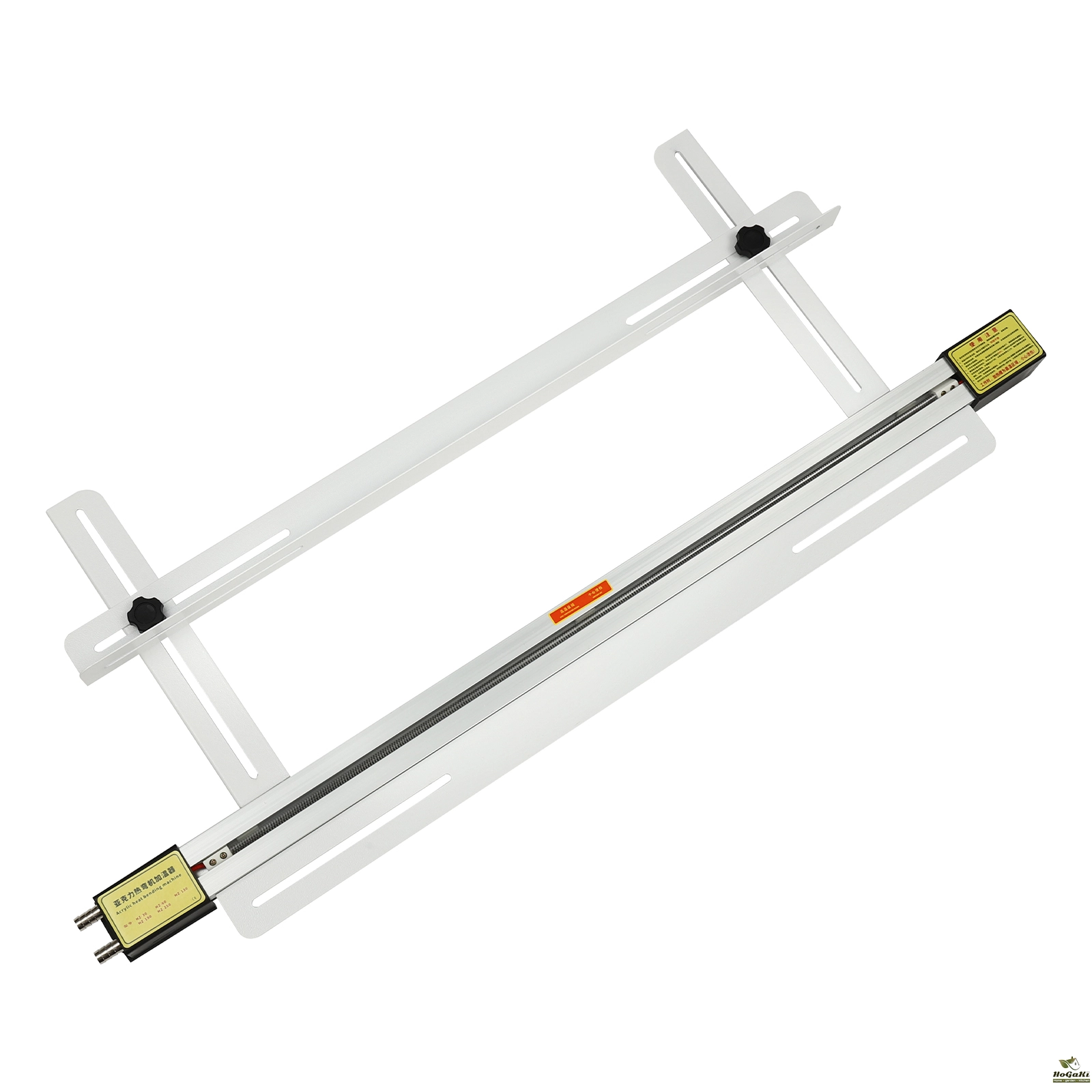

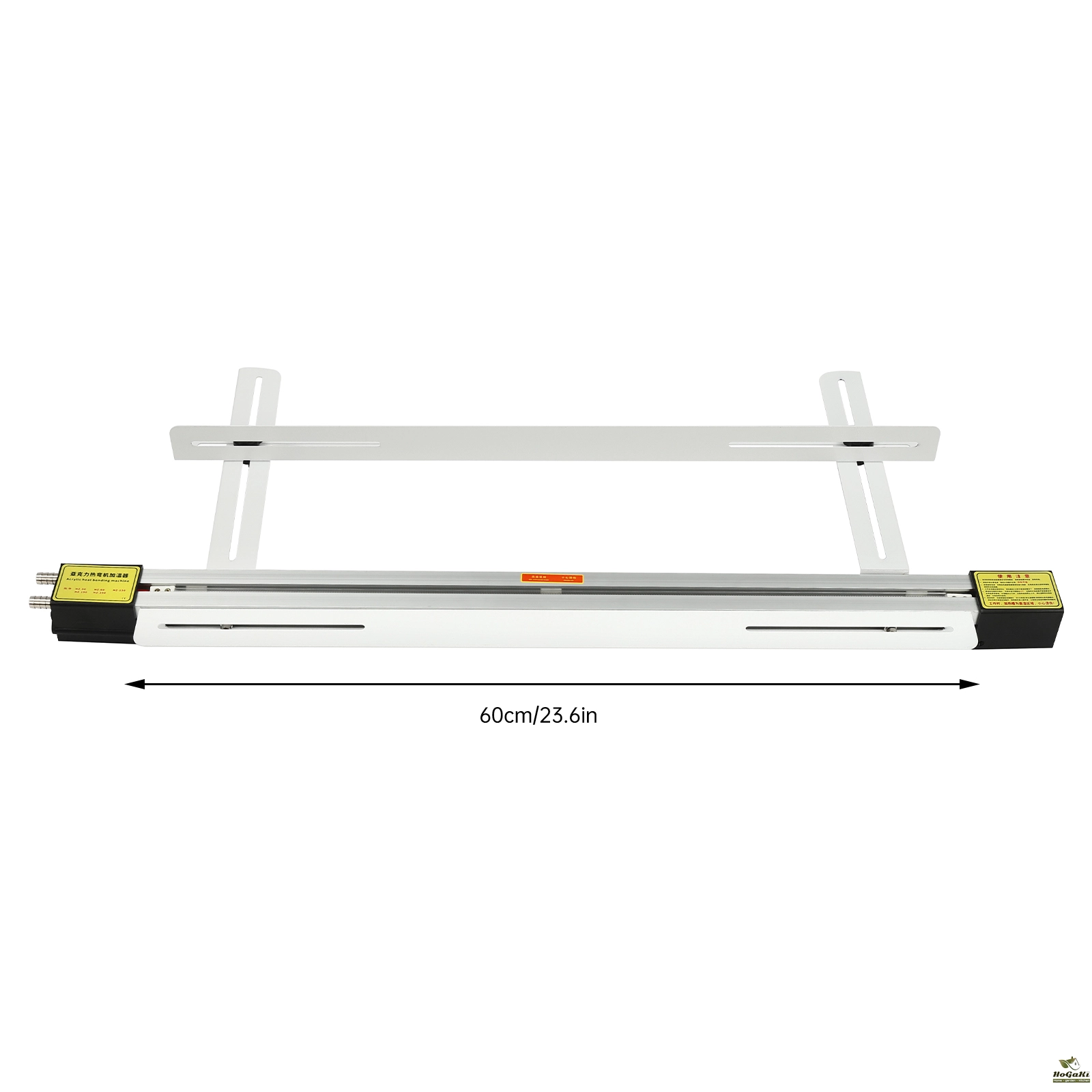

Adjustable Bracket: It can be adjusted according to the size of the product that needs to be bent, facilitating the fixation of the product and ensuring the safety of the operation process.

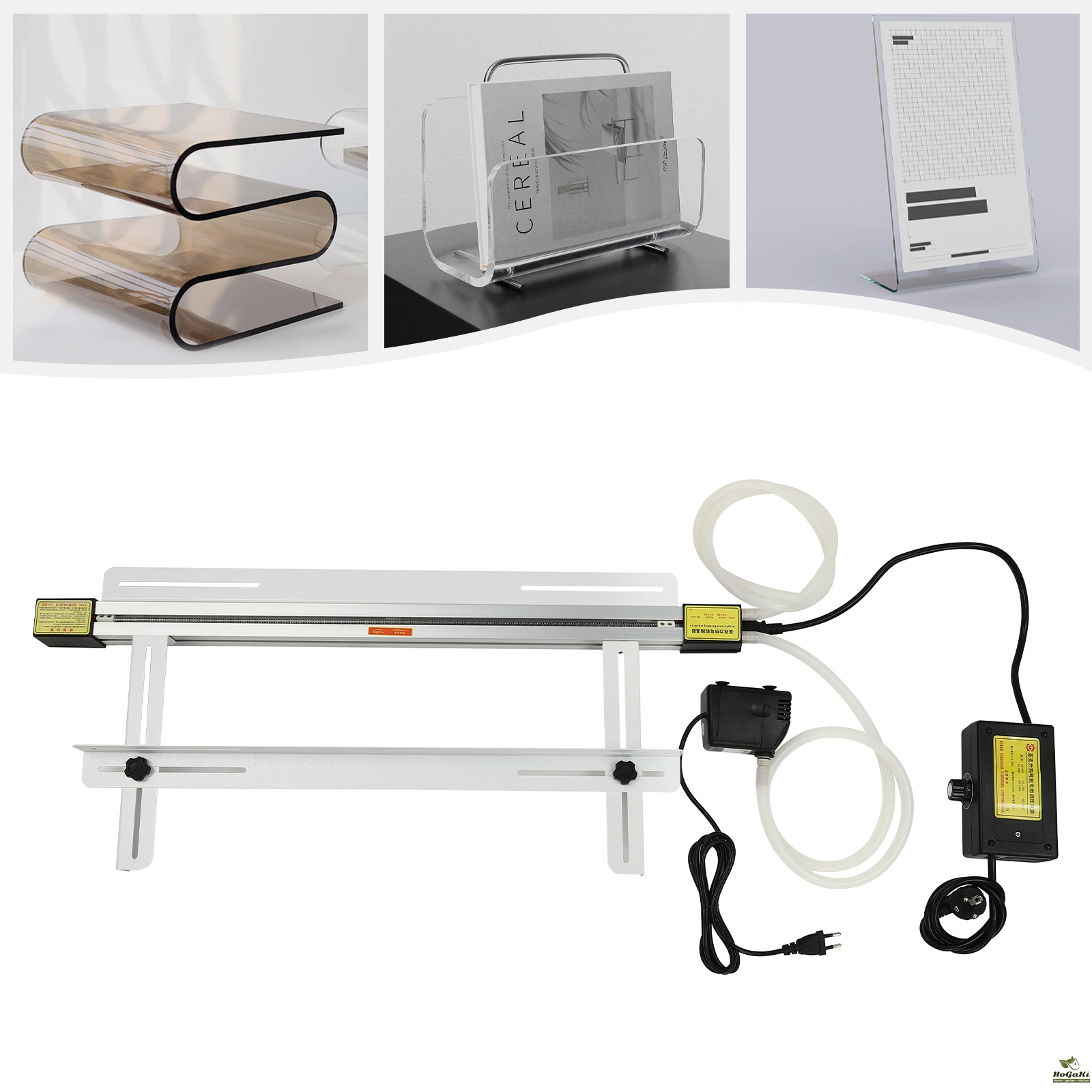

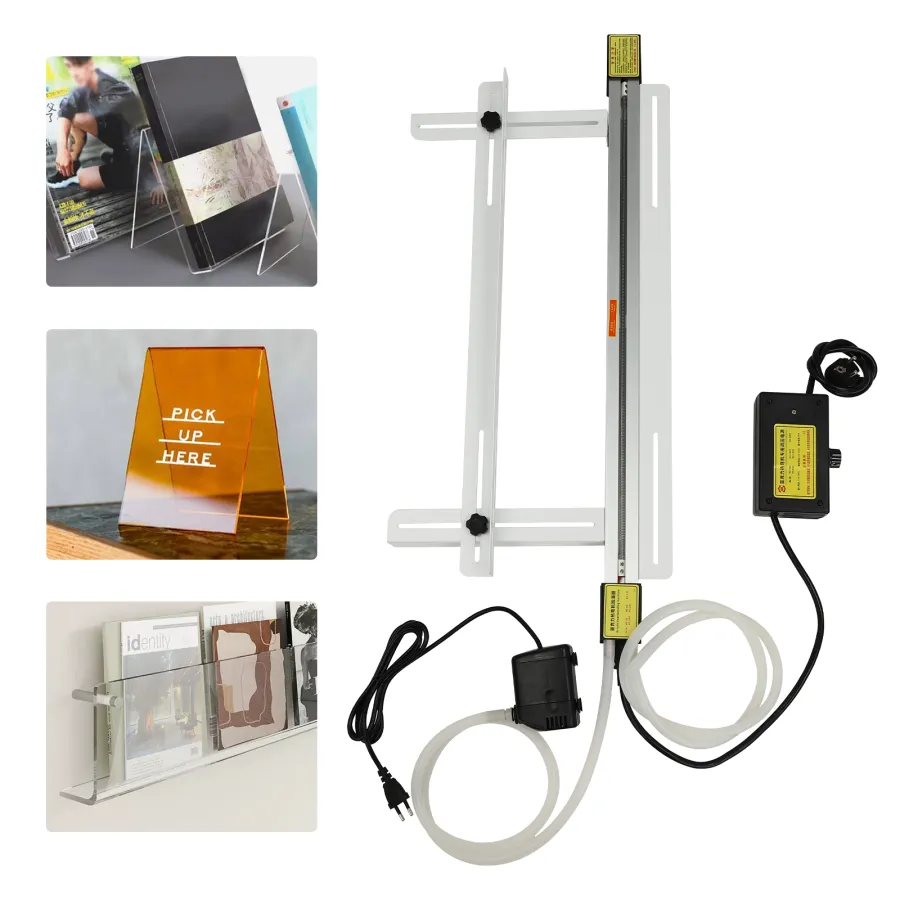

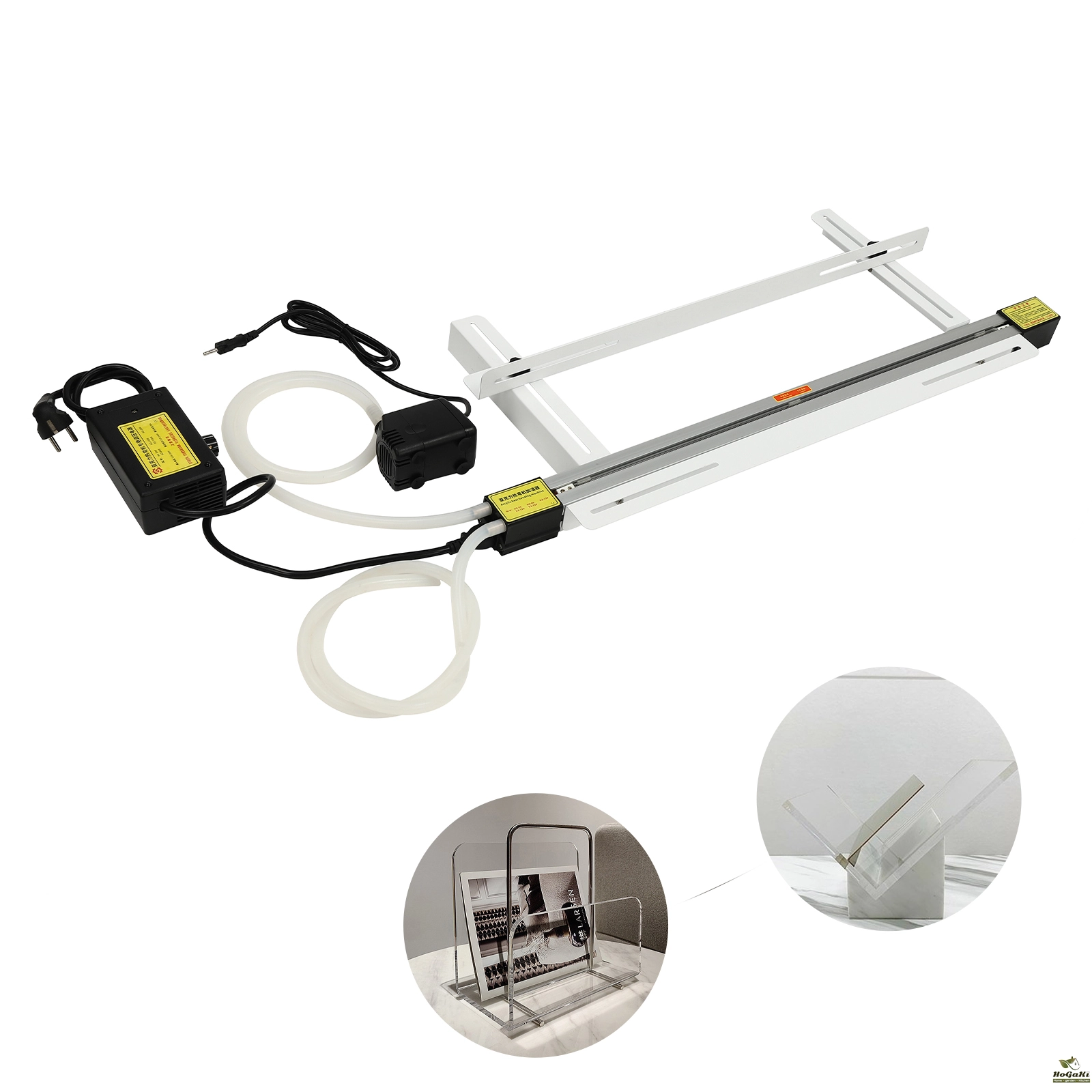

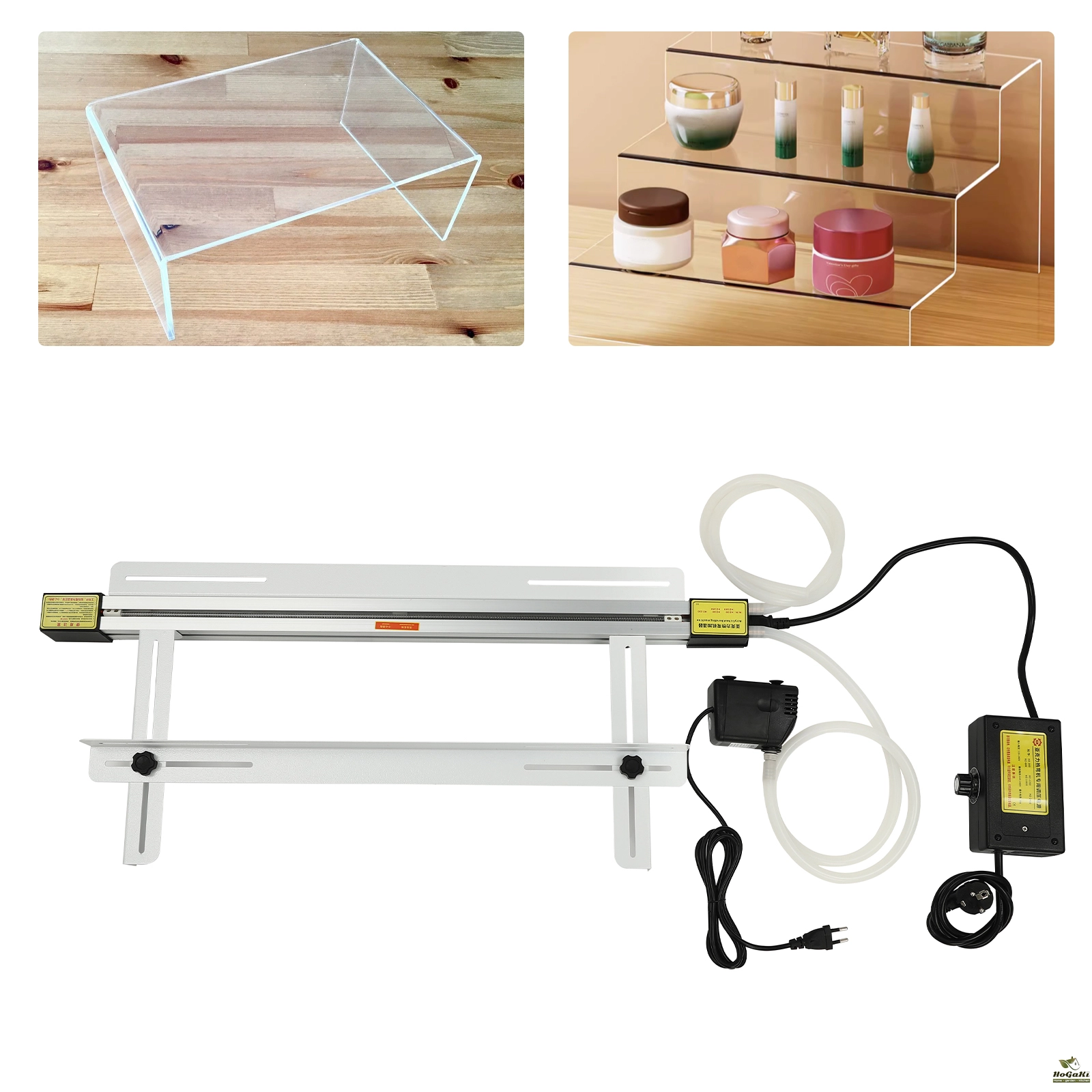

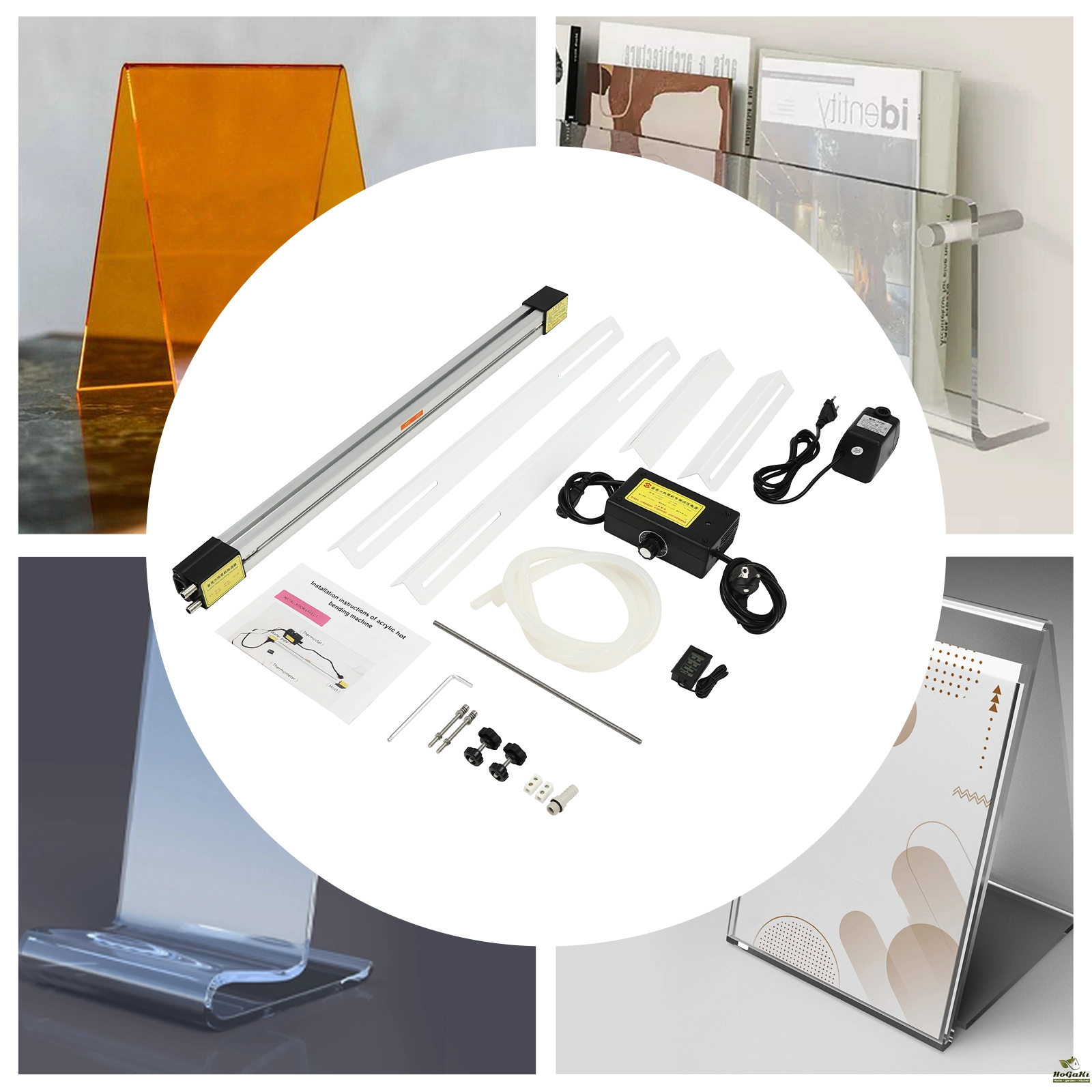

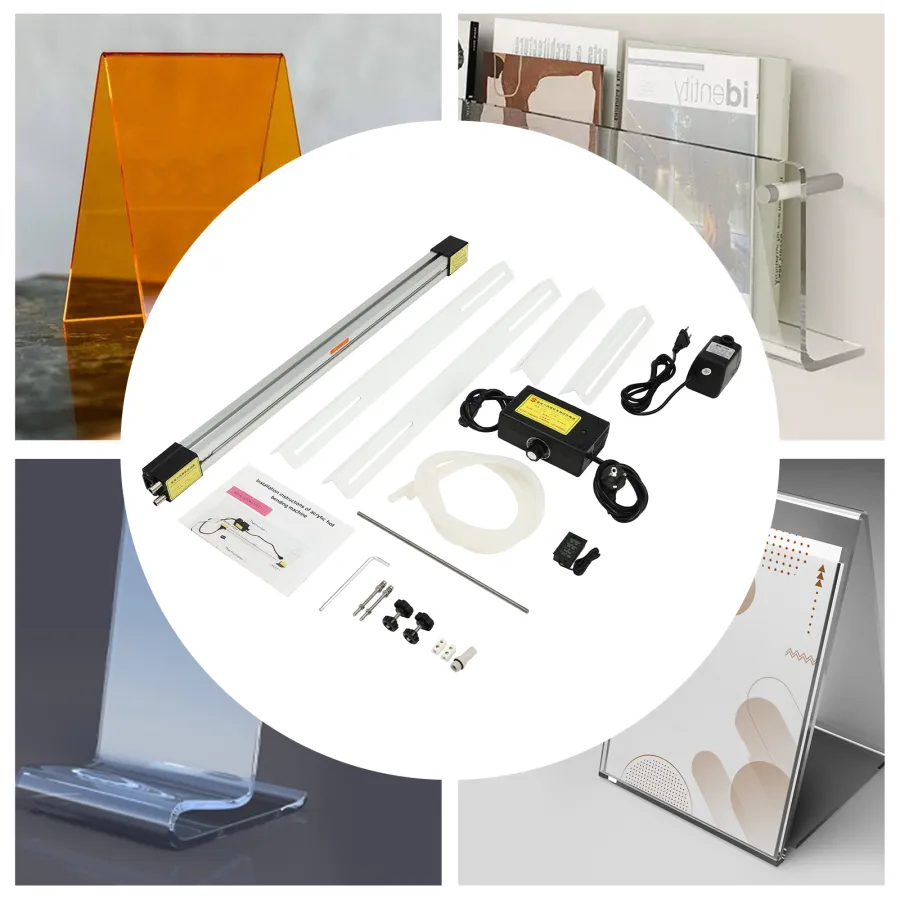

Application

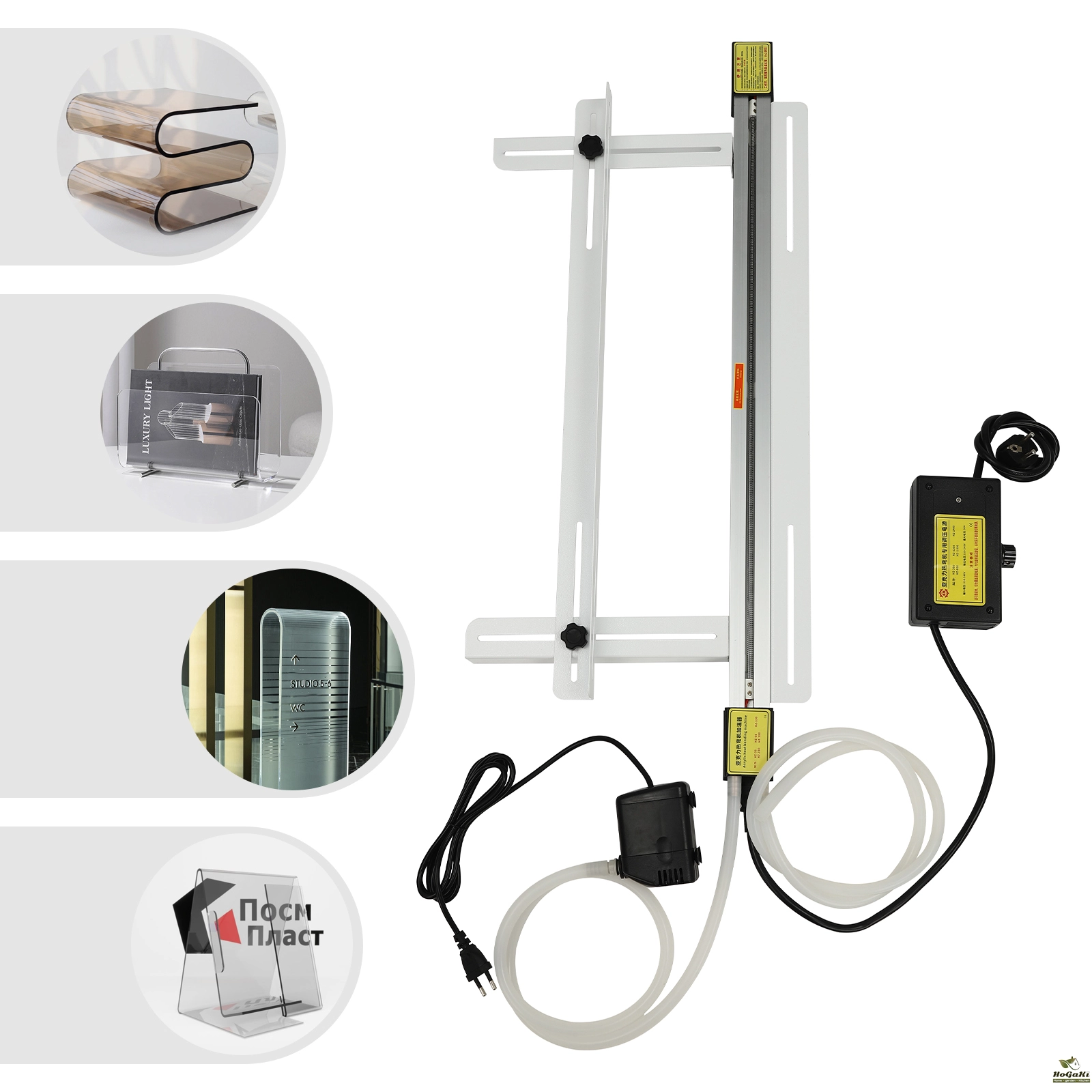

It is suitable for acrylic, plastic, plexiglass, PP, PVC, PC, PE, PS, and other heat-shrinkable materials. It can be widely used in decoration engineering, sign making, display cabinets, aquarium wrapping, lighting LED channel letters, bending supermarket shelves, curtain walls, large light boxes, acrylic plates, and plastic plates.

Recommended Temperature for Some Regular Materials

Acrylic: 210℃/410°F
Perspex: 195℃/383°F
PVC sheet: 155℃/311°F
ABS: 190℃/374°F
PET: 160℃/320°F

Notes

1.Please read the manual carefully and pay attention to the safety precautions inside. The recommended temperature data is for reference only. Please make corresponding adjustments according to the actual situation and operating habits.
2.It should be placed in a dry, clean, ventilated position, and the operation of the machine placed in a horizontal position and smooth. Please keep away from flammables and explosives. If the machine is not in use for a long time, please unplug the power cord.
3.For safety reasons, it should be connected to a reliable safety grounding device and the grounding device must have three feet connected to the ground. The heating process leads to high temperatures, so avoid contacting the heating area with fingers or skin.
4.If the thickness of the overheated product exceeds 6mm, two heaters can be used to heat up and down simultaneously, and multiple heaters can be combined with multiple bending points at once; If you bend thicker plates, slot and fold them, the corners will be more beautiful, and you can operate according to your own needs.
5.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.

Detail---60mm Bending Machine

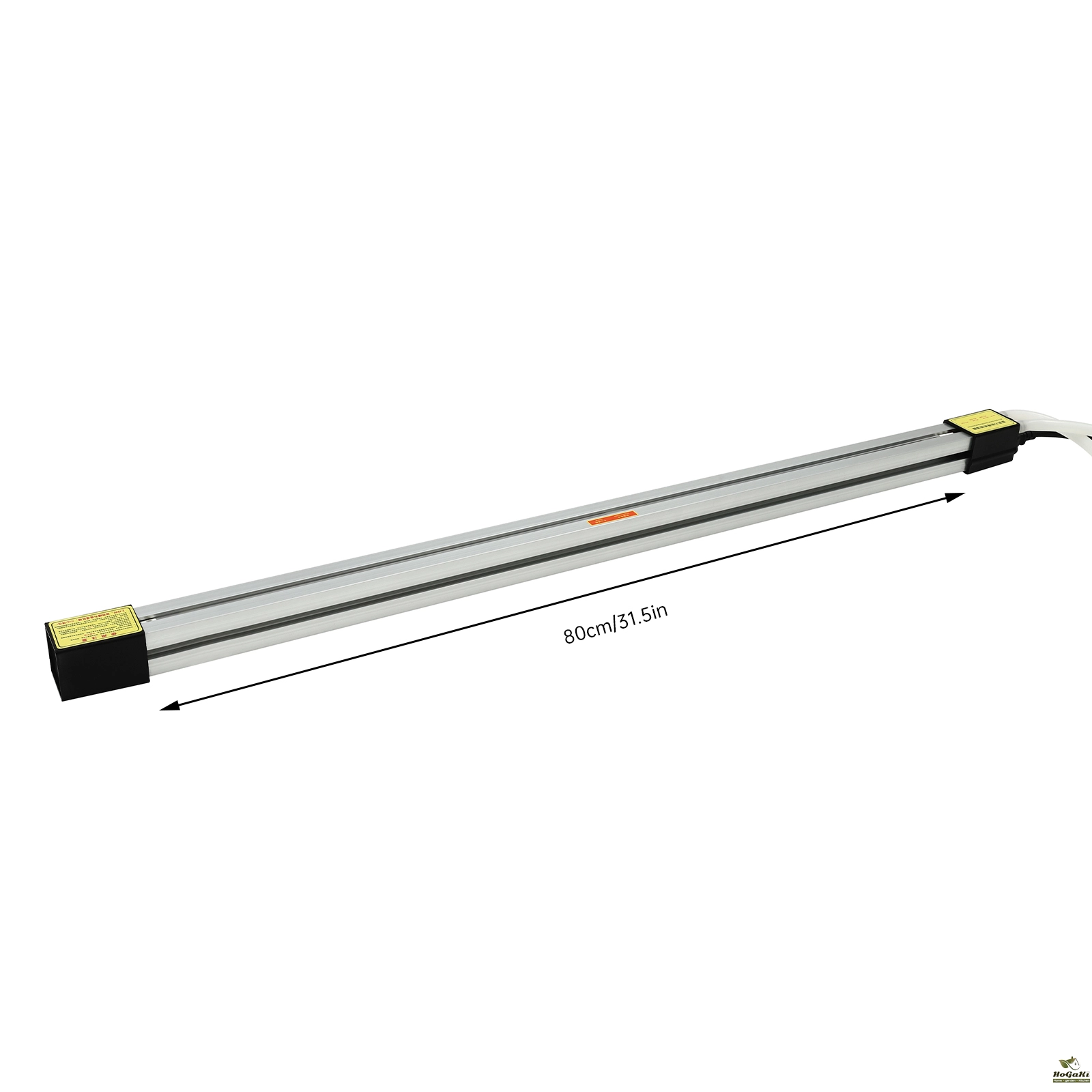

Specification----80mm

Material: Aluminum Alloy, Silicone
Color: Silver
Operation Mode: Electric
Plug Type: EU Standard
Power: 1000W
Water Pump Power: 25W
Voltage: 220-240V/50Hz
Hmax: 2m/6.56ft
Qmax: 1000L/H / 264 Gal/H
Max Water Temperature: 35 ℃/95℉
Heating Width: 8mm/0.31 in
Adjustable Temperature Range: 0-400℃/32-752℉
Silicone Tube Length: 1m/3.28ft
Adaptable Thickness: 1-6mm/0.03-0.23in
Adaptable Length: Within 80cm/31.5in

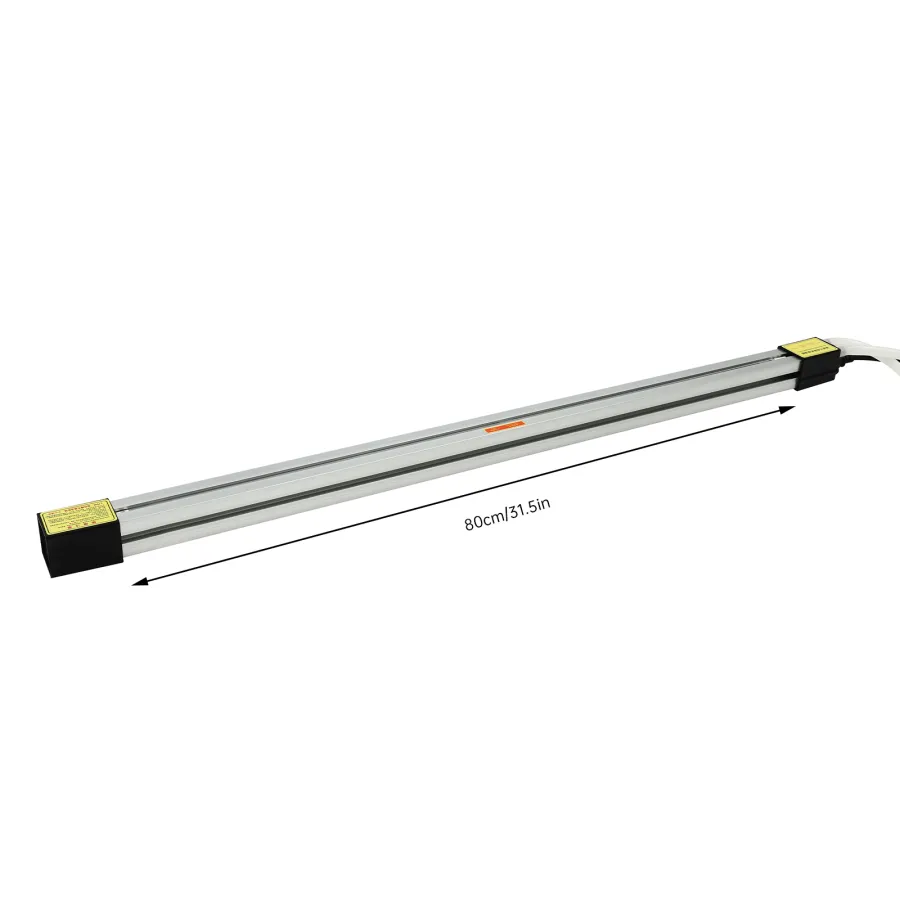

Product Length: 80cm/31.5in
Package Size: 106*20*12cm/41.7*7.9*4.7in
Gross Weight: 4kg/7.7 lbs

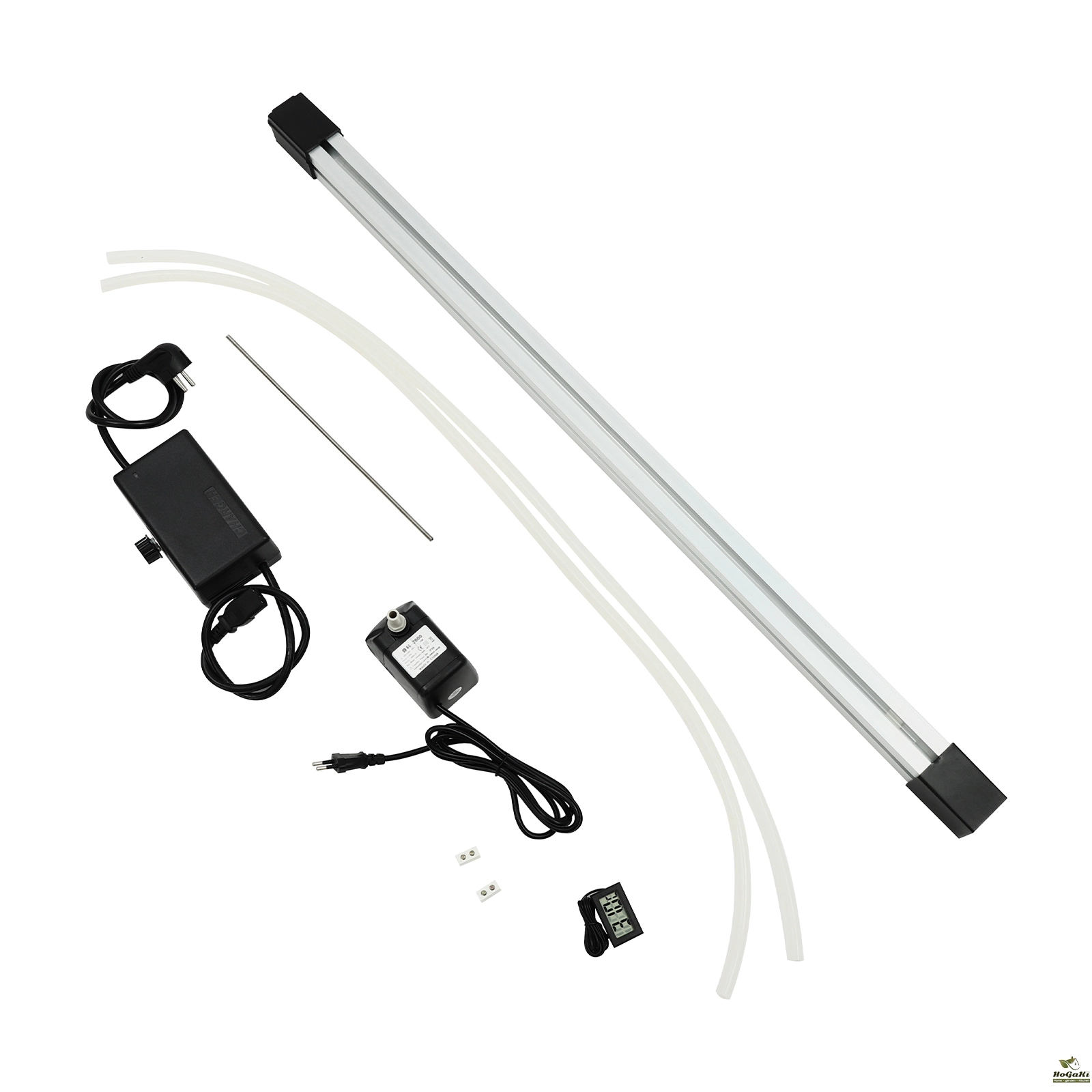

Package Included

1 *Acrylic Bender
1 * Water Pump
2 * Silicone Tubes

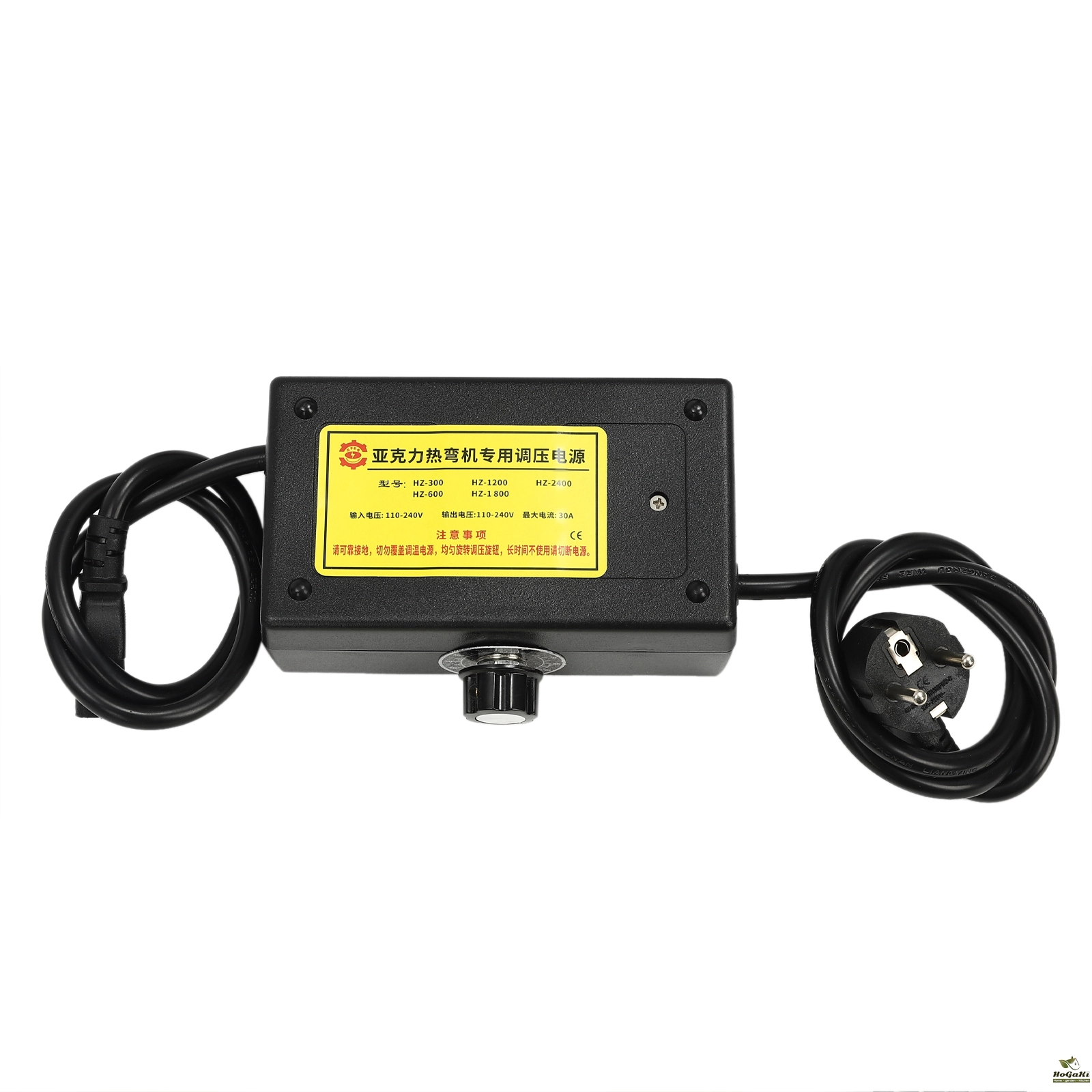

1 * Temperature Regulator
1* Spare Heating Wire
1 * Thermometer
2 Pair* Screws
