ID: 58261

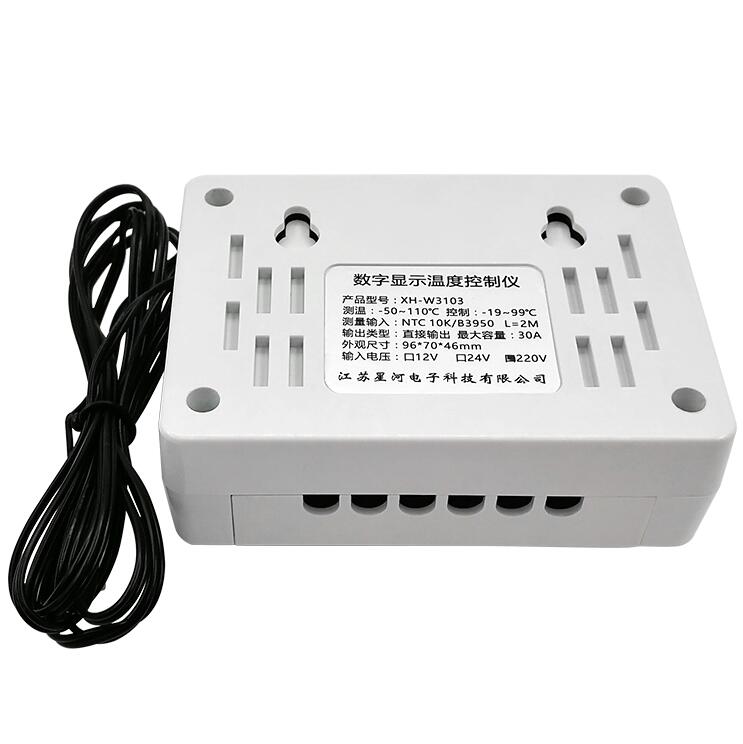

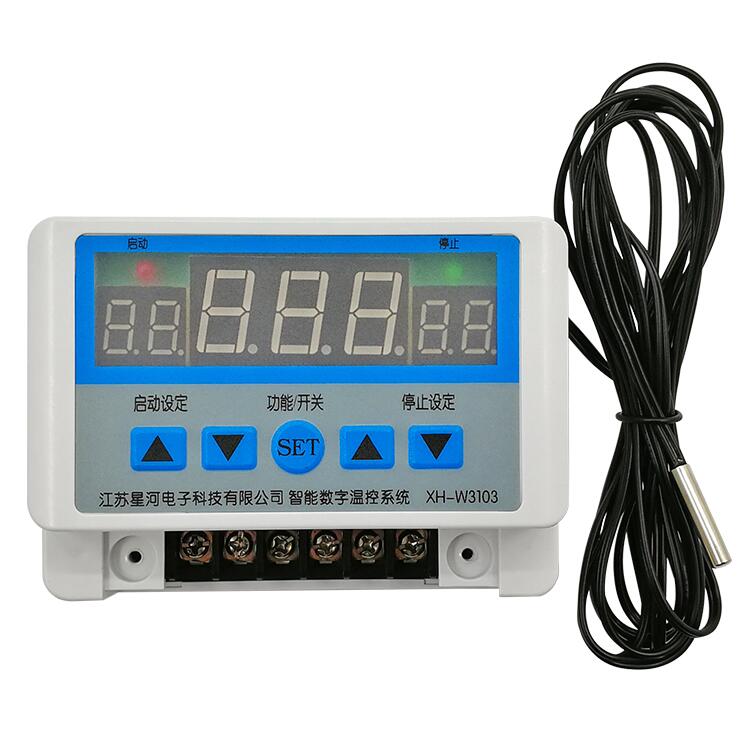

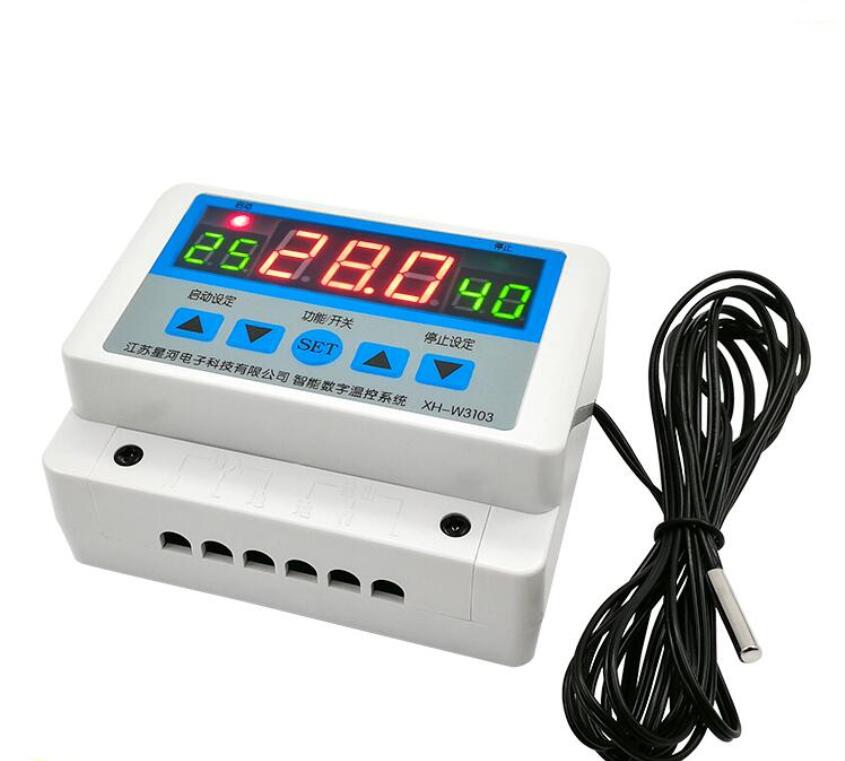

AC 220V DC 12V 24V Digital Thermostat 30A Temperature Controller Temperature Control Switch Wall Hanging max 6600W

0.0 (4 votes) | 13 orders
Price: US $37.96 - 39.67 / piece
Discount Price:
US $ 31.88 - 33.33 / piece
-16%
Color
Quantity

RM1307731645732043

working voltage: AC 220V / DC 12V/ DC24V
output type:Direct output
max current:30A
Temperature control range: -19℃~99℃
Power:DC12V 350W / DC24V 720W / AC220V 6600W
Sensor:NTC10K/B3950 200CM
Size:96*70*46
Weight:156g



Setting up the start temperature:Directly press the left and down keys(▼▲)Setting up the start temperature

Setting stop temperature:Directlypress the right up and down key(▼▲)Setting stop temperature

Setting temperature correction:The long press SET key 2 seconds into the correction mode, long press on the right and down key(▼▲)Setting the numerical value, the actual temperature measurement is large, the correction setting the negative temperature, the small setting temperature, the left button to exit

Restore factory settings:Hold down the right up and down keys at the same time(▼▲)2seconds

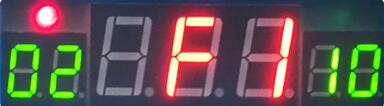

Intermittent work setting:Select F1 according to SET key, stop at F1 interface and do not return! ! !Set up valid

Z1

On the left side, the device begins to work for 2 minutes

On the right time, the device stops working for 10 minutes

The default startup time is 2 minutes, and the stop time is 10 minutes

Timing shutdown setting:Select F2 by SET key, stop at the F1 interface and do not return!!!

Z2

Left time = hour     Right time = minutes



Default shutdown time is 30 minutes, exit F2 mode, stop timing function

Resume by Alarm:Select F3 according to SET key, stop at F1 interface and do not return!!!!!! Set up valid

Z3

Left time = hour  Right time = minutes

Default opening time is 30 minutes, exit F3 mode, stop timing function





Use an example/Heating mode


Example:Control heater, temperature <> start heating 15 ℃, environment temperature 25 ℃ when stop heating
Press the up and down the left key set the start temperature of 15 ℃, press the right key set to stop the temperature is 25 ℃



Use an example/Cooling mode
Example:Control refrigeration equipment, environmental temperature 10 ℃> start cooling, environmental temperature < - 5 ℃ to stop cooling
Press the up and down the left key set start temperature is 10 ℃, press up and down at the right stop setting for - 5 ℃





x10X2X3X4X6X5x9








  • Theory: Temperature Controller
  • Usage: Industrial
  • Max Measuring Temperature: 70°C- 99°C
  • Display Type: DIGITAL
  • Power Type: Charger
  • Display Size: 2.0 - 3.9 Inches
  • Style: Wall Hanging
  • Brand Name: TCXRE
