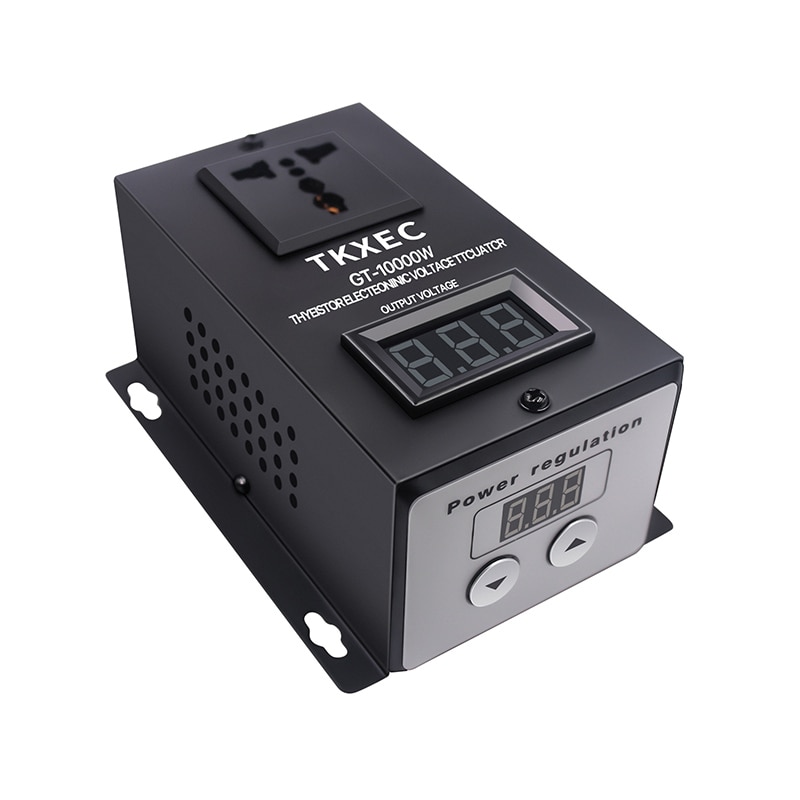

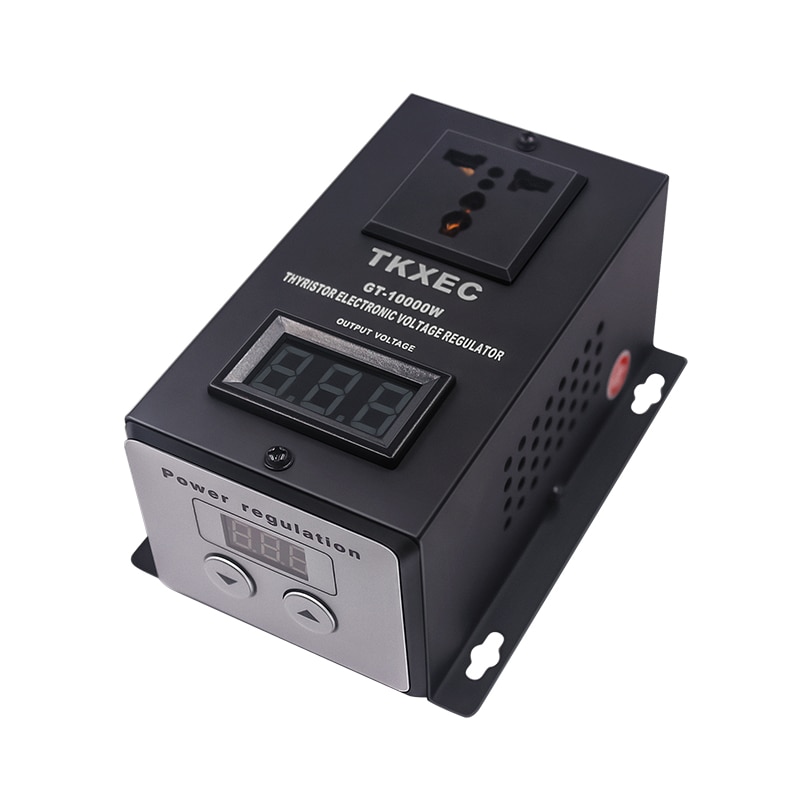

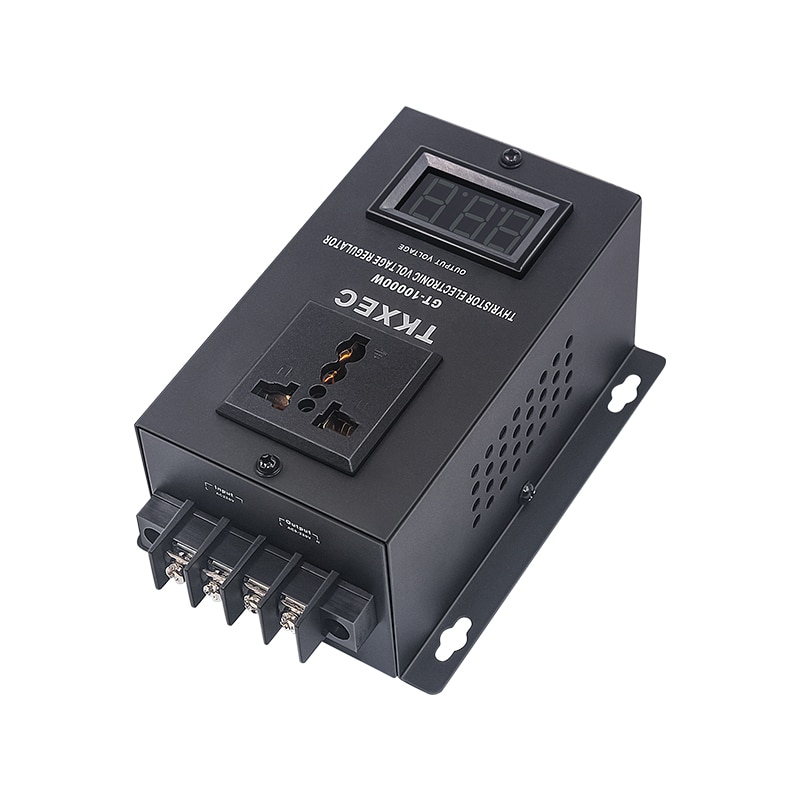

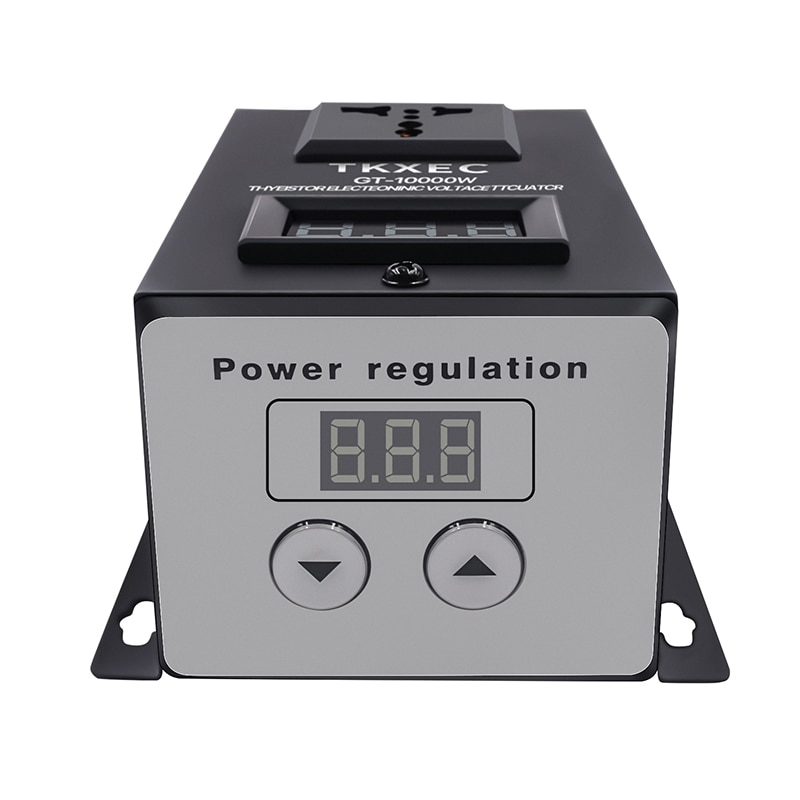

AC 220V 10000W SCR Electronic Voltage Regulator Temperature Speed Adjust Controller Dimming Dimmer Thermostat

The EU plug can insert for this Socket

Input voltage: AC220V 50/60 Hz
Output voltage: 0-220V adjustable ( Output voltage display)
Limit power:10000W (adapt to 5000W resistive load)
Adjustable voltage range: 0-220V Promise adjustable (under load conditions) step-down to OV, step-up 10V from 9A
Rated current: 22.7A
Max current: 100A(Peak chip current)
Product size: 130 * 80 * 60mm
Product weight: 480g
Package size: 150 * 120 * 110mm
Package weight: 550g
MEAS: 485 * 305 * 450mm

Power off memory function:Automatically save the value, automatically start the last set value after power on

When you test it ,must connect to load !

Features
Zero hysteresis, zero delay, on behalf of the peak voltage absorption circuit to effectively protect high-power
thyristor against surge, anti-spike, RC absorption of multiple protection

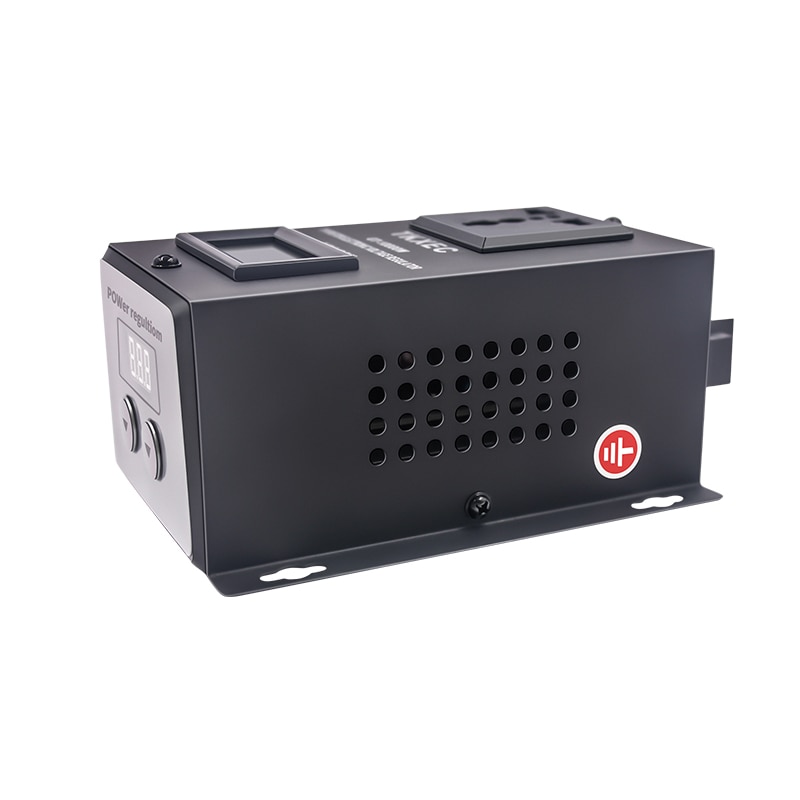

Design Introductions
This product is the metal shell thickening of the shell material, high temperature, anti-flame, no rust, the internal chip
for high-power, SCR. Product design compact and lightweight, four-sided cooling cavity does not heat, no deformation,

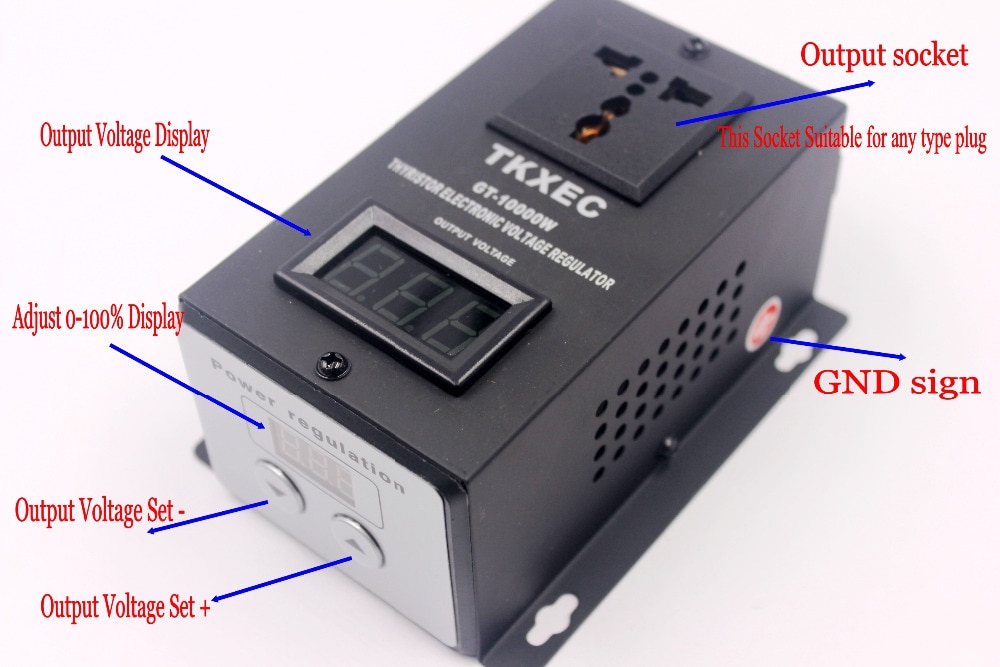

Safe and durable. The shell is equipped with a universal multi-purpose socket and Output voltage meter display,
adjustable knob stepless voltage regulator, convenient and quick!

Main Function

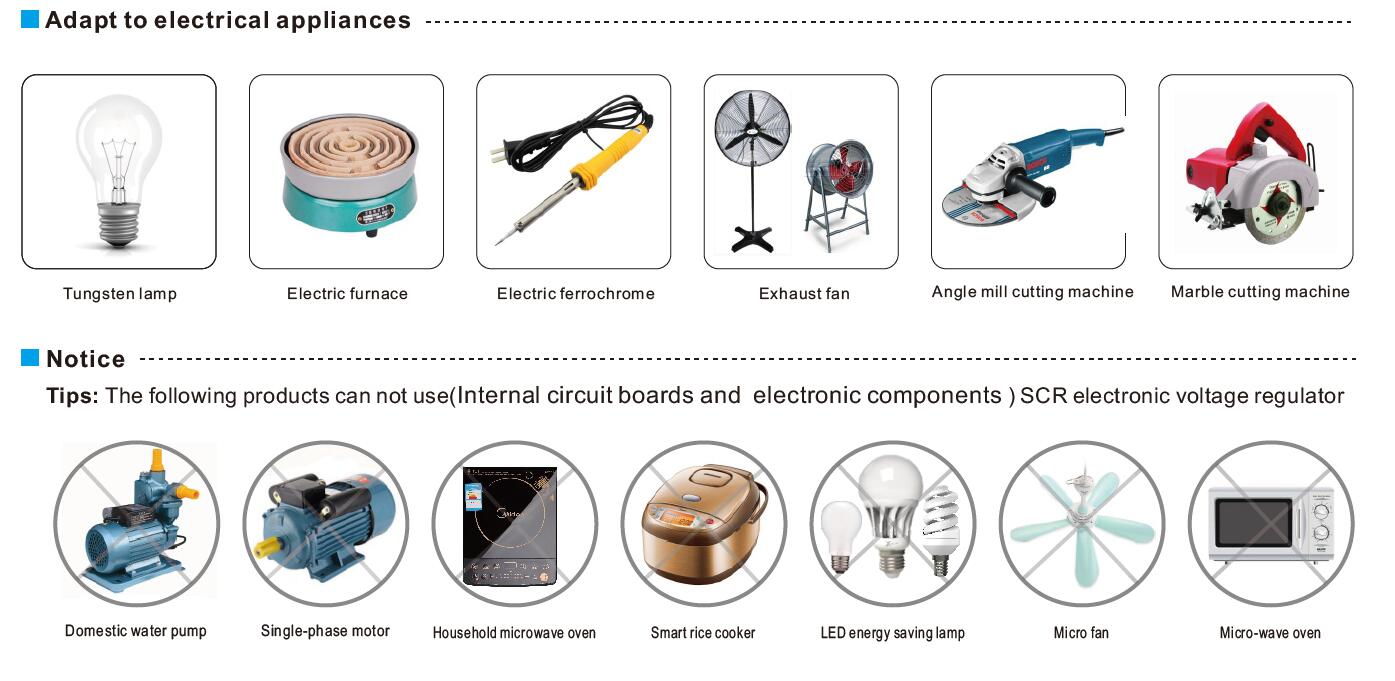

●Temperature adjustment:Resistance, heating wire, heating tube, electric furnace, etc.
●Light adjustment:dimming incandescent lamps,dimmable LED Lamps,HV halogen lamps and Tungsten filament bulbs, etc.
●Speed adjustment:Fans, exhaust fans, electric drills, angle grinders, etc.
●Voltage adjustment:Reduce the mains voltage and change the load power.
Warning:will not work on soft/slow start voltage regulator and inductive transformer,Ordinary LED lights, household
The machine has functions such as temperature adjustment, light adjustment,speed adjustment, and voltage adjustment.
appliances cannot be used.

  Mini size, portable and lightweight, strong power, easy to use.
● High power SCR voltage regulator, stepless regulation, help adjust speed, temperature, voltage and light.
● Adopt high-temperature resistant FR-4 circuit board, origin imported chip SCR, full aluminum thermal fin, precisions
resistancewith high voltage condenser.
● No postpone and no delay, with crest voltage absorb circuit, can protect the high power SCR effectively.
● Anti surge, anti-spike, RC absorb and multiple protection.
● Flame retardant insulation outshell, high temperature resistant, rustproof, anti high pressure and with fine durability.
● Adopt multi functional industrial sockets, thicken copper part design, with fine contact and safety.
● Humanized installation hole design, keep flat place or hanging on it is decided by yourself.
● Silent work, energy saving, stable anti-noise, and with wide range of use.
● Suitable for heating tube, electric furnace, tungsten lamp, small motor, electric iron and electric drills etc.
● Executive standard:GB14536.1-2008

Precautions and instructions for use
1.When the machine is empty, the measured output voltage is a virtual voltage, and a load above 20W must be
connected to measure the correct output voltage(Attention must first load and then adjust the voltage).
2.Please use within the rated power and voltage range, only suitable for AC grid.
3.The 10000W mentioned above refers to the limit power when working in a resistive load. The inductive load is 1/3 of
the resistive load. The resistive load refers to the tungsten filament lamp, heating wire, etc., and the inductive load
refers to the series motor. And so on, there are circuit board electronic products used with caution.
5.The metal shell of this product must be safely grounded.
6.The machine does not adapt to work on soft start or slow start voltage regulator
