AC 110/220v 2 Channel Vehicle Loop Detector For Garage Door Opener Car Parking Management
ID: 16316

AC 110/220v 2 Channel Vehicle Loop Detector For Garage Door Opener Car Parking Management

0.0 ( votes)
Price:
US $ 76.48 / piece
Quantity

Buy Now
Add to Cart

inductive vehicle loop detector Double channel:



Pls Remark the input voltage:AC110/220v , the default is 220V

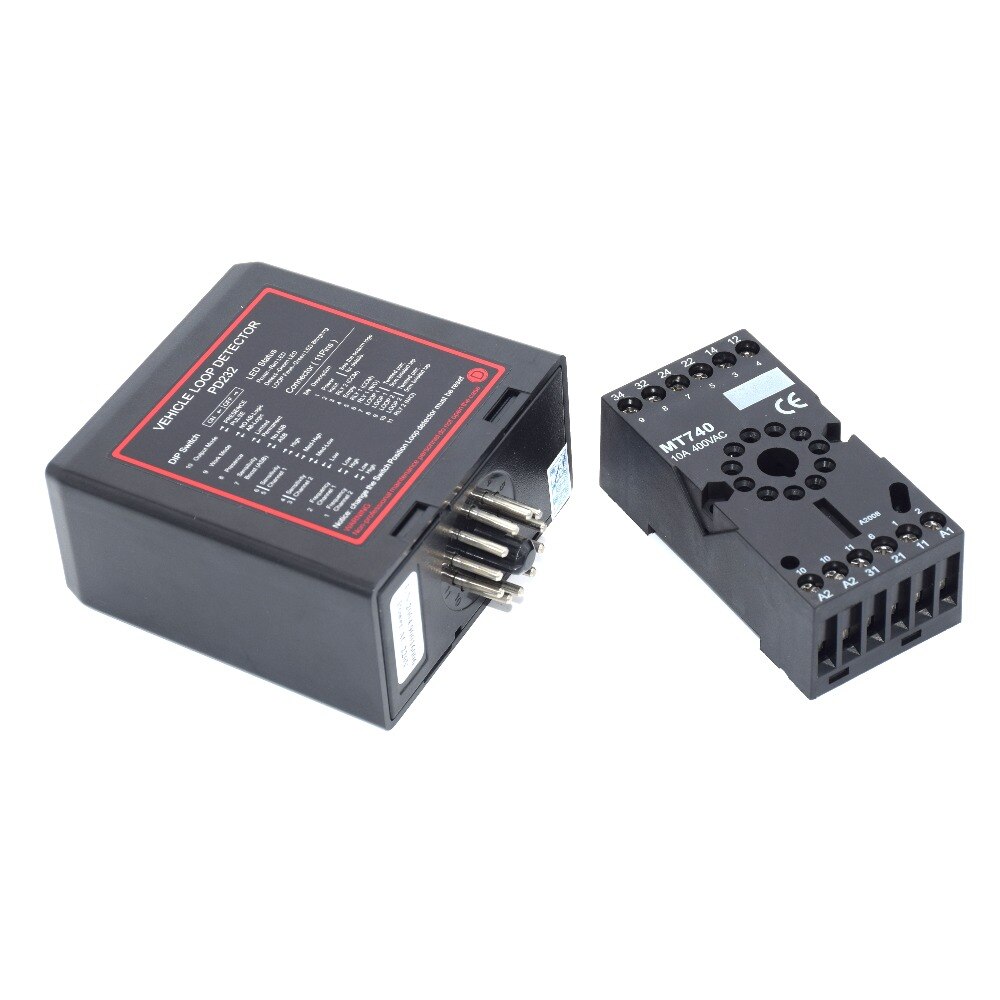

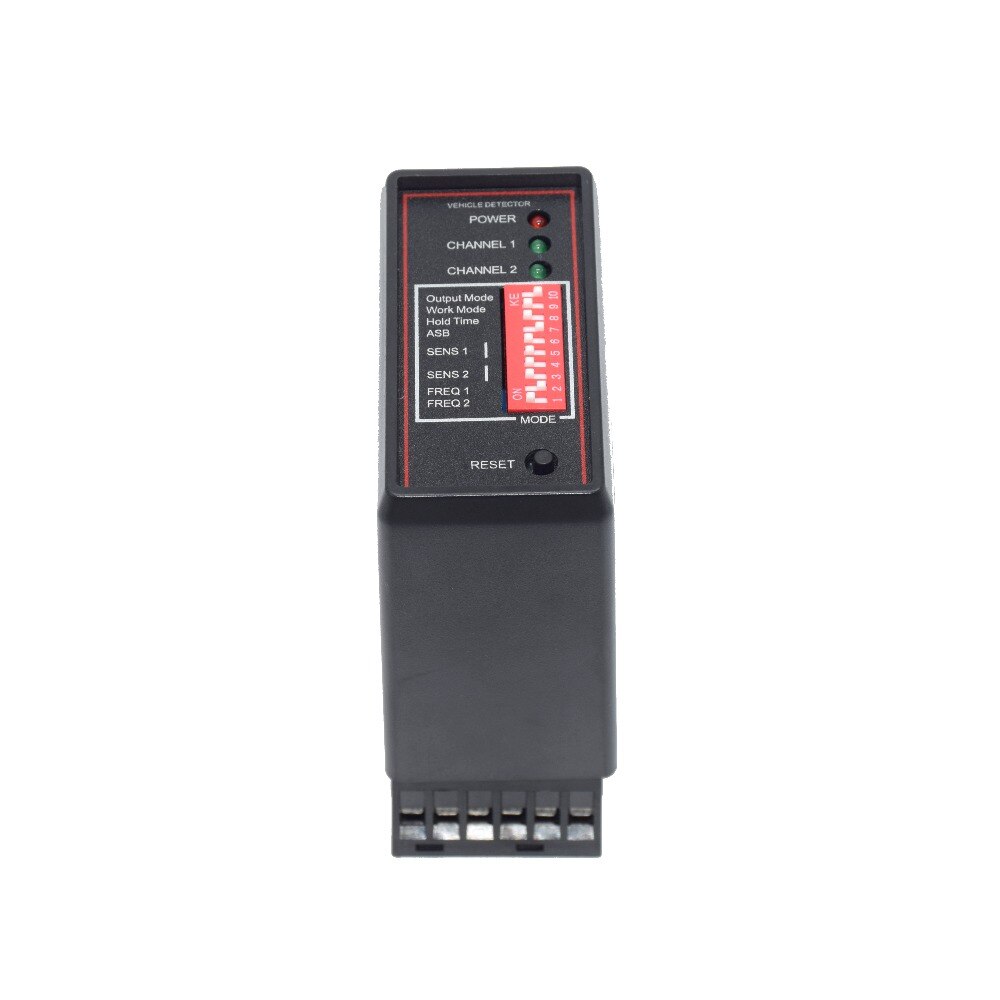

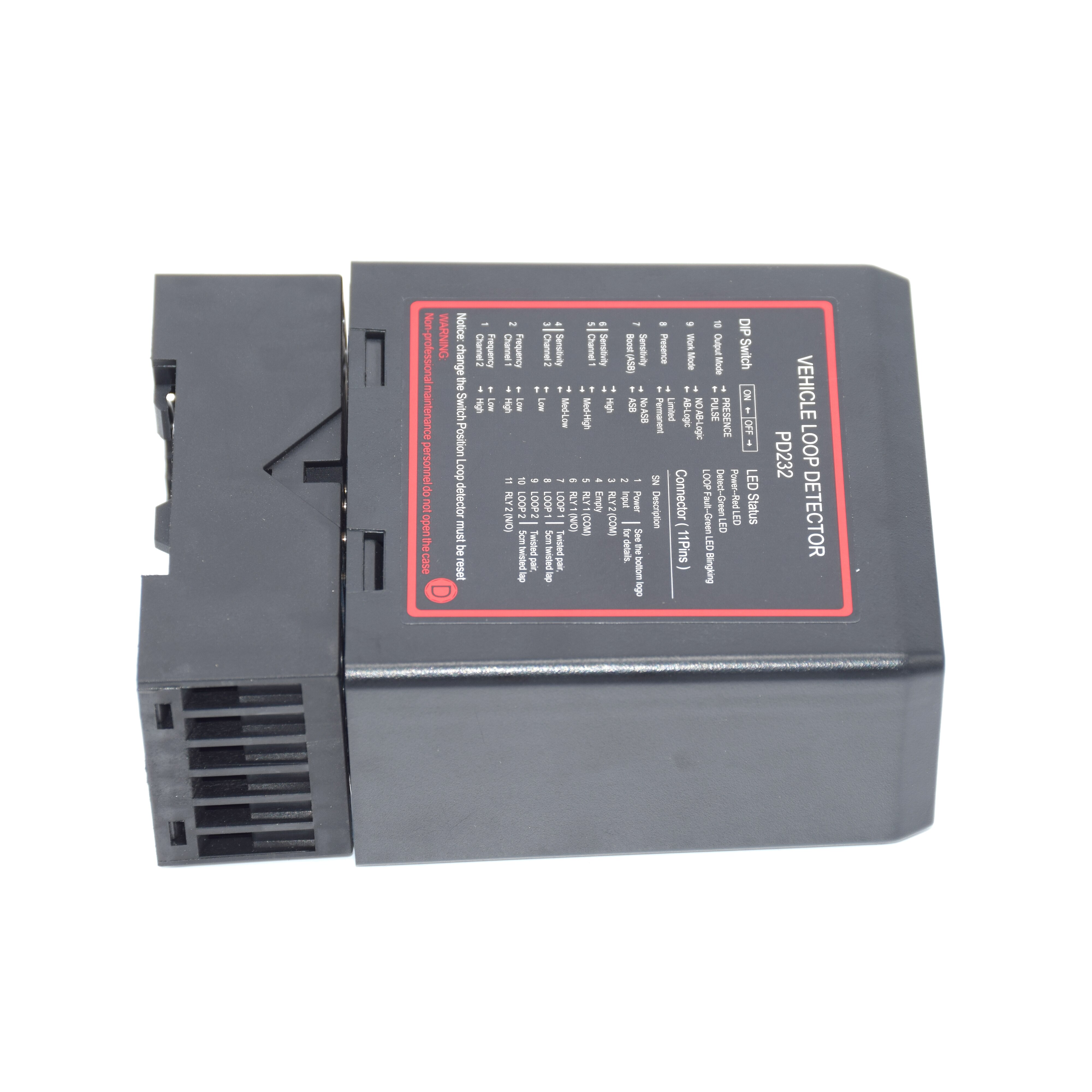

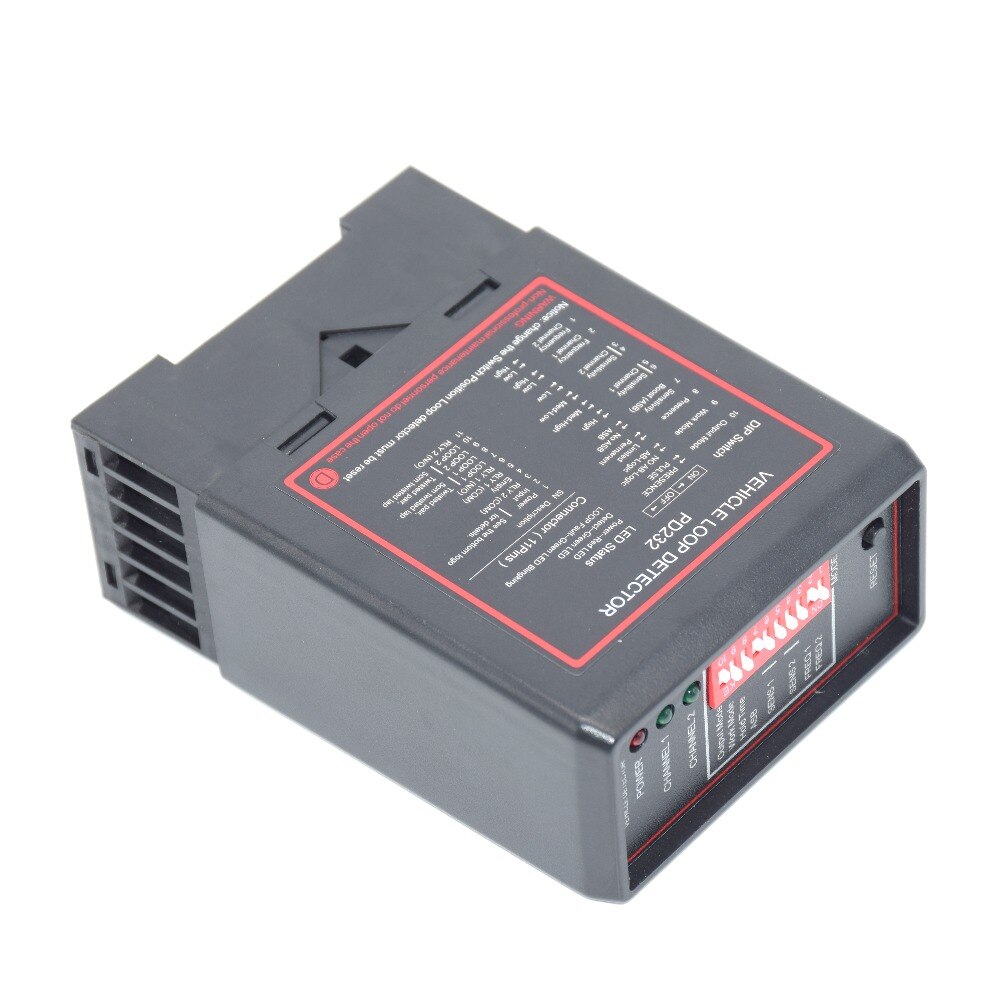

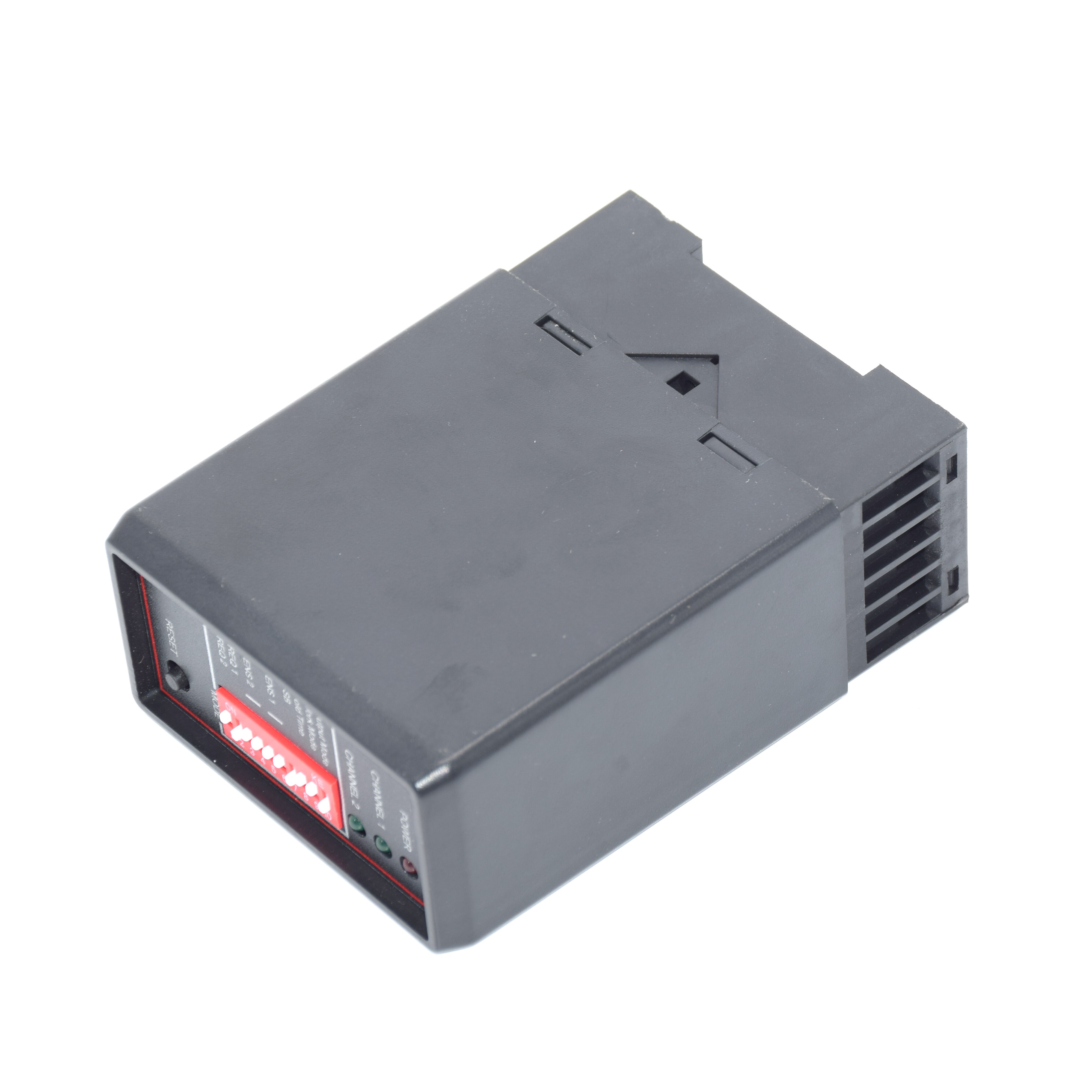

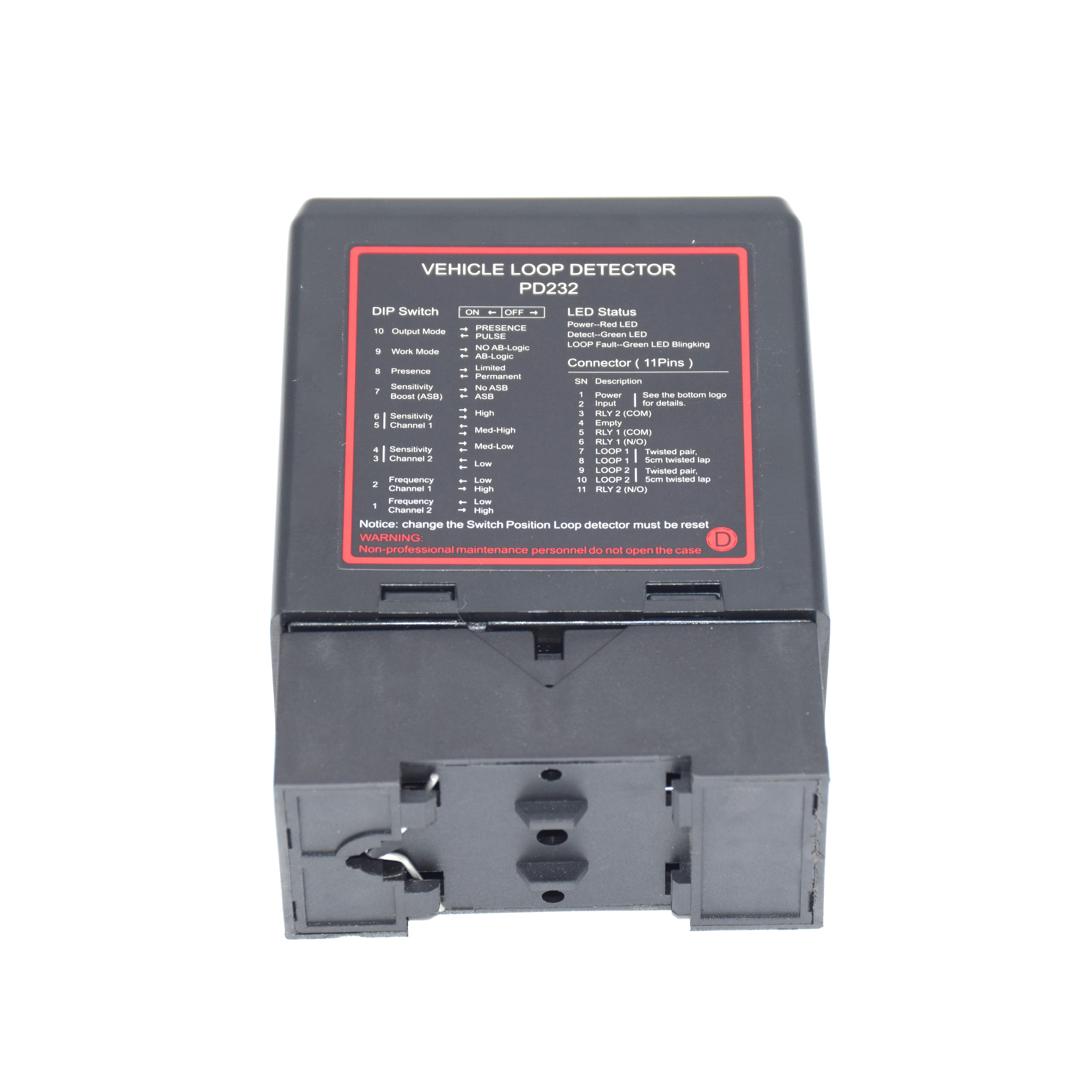

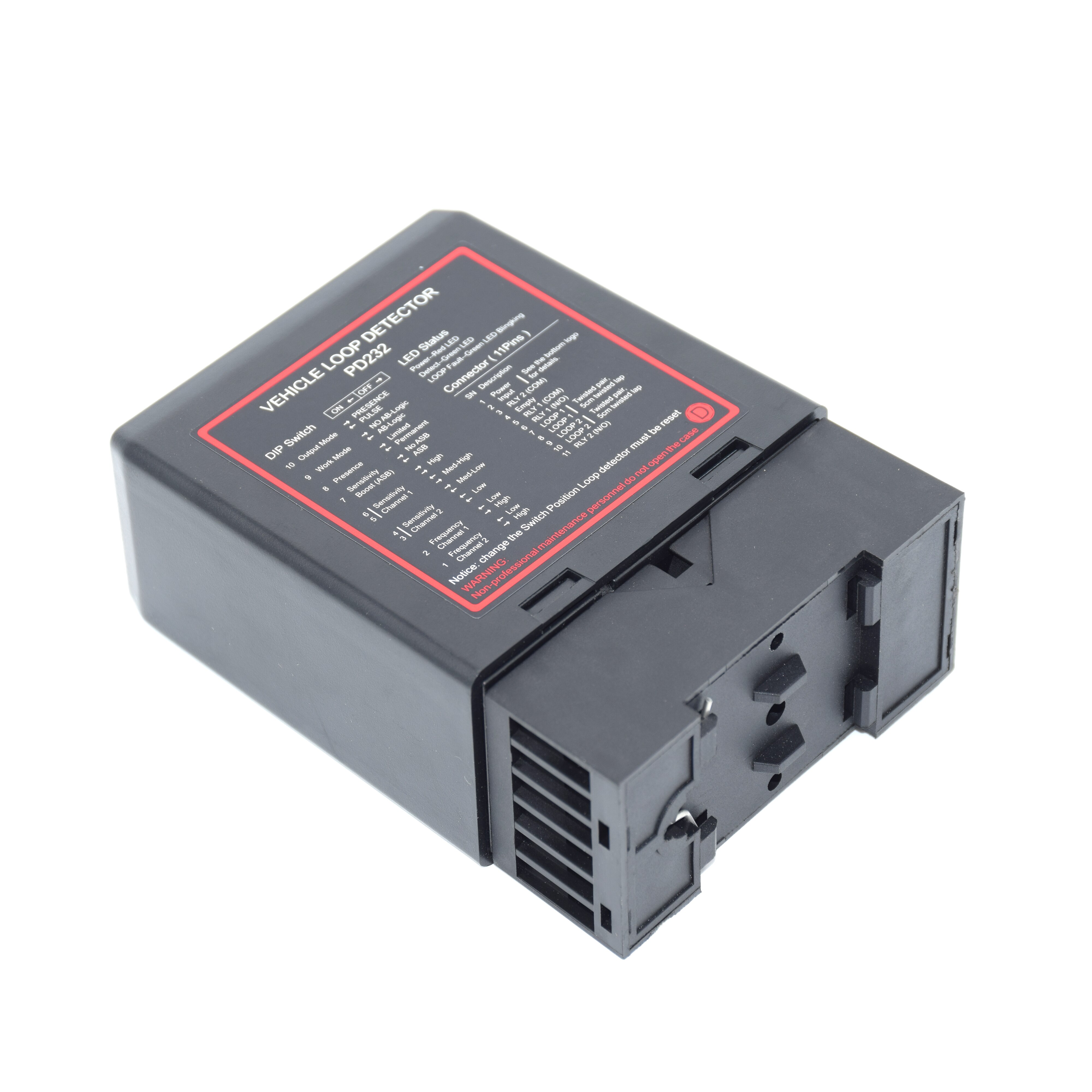

PD232 Loop detctor

The detector must be installed in a convenient weatherproof location as close to

the loop as possible.



Introduction of Loop Detector

Vehicle Loop Detector is used for wherever vehicles have to be detected, for example for monitoring and safe-guarding access ways or for counting vehicles. The output signal can be used for controlling door and gate drive mechanisms, operating barriers, controlling traffic light systems or activating card dispensers in parking lots.



Functions of Loop Detector



Vehicle Loop Detector has one-way output relays. Two outputs of them are unlimited when the corresponding loop is permanently covered, while the others are multi-mode that can be set by users. The direction detecting Function can be used to statistics the vehicle flux. The principle is based on a change in the inductance within the loop which is caused by the metallic components of passing vehicles. The changes are picked up and evaluated by a microprocessor. Ease of use thanks to automatic calibration when the operating voltage is applied.


PD-232 Double Channel Vehicle Loop Detector for car parking management and toll system

Specifications:

double channel loop detector(double channel can detect direction)

1.Easy using and installation

2.Compatible with parking system(barrier gate and ticket box)

3.Two-way or four-way output relays

4.High temperature stability

5.Strong anti-jamming ability and stability




Product Description:

1.Loop detectors are used wherever vehicles have to be detected. Like monitoring and safe guarding access ways for counting vehicles. The output signal can be used for controlling door and gate drive mechanisms, road barriers, controlling traffic light systems in car parks or activating card dispensers in car parks.


2.The Product is a channel inductive loop detectors. The principle is based on a change in the inductance within the loop which is caused by the metallic components of passing vehicles. The changes are picked up and evaluated by a microprocessor. Ease of use due to the automatic calibration when the operating voltage is applied.




Loop detector Specifications:


The Product has two-way output relays

One is unlimited output when loop is temporarily covered, while the other is multi-mode that can be set by users

Operation Voltage: AC 220V±10%

Power consumption: <5W

Output: relay output

Frequency range: 20kHz to 170kHz (4 grades adjustable)

Reaction time: 20ms

Sensitivity adjusting: 10 grades

Loop inductance:

Ideal: 100uH to 300uH (include connecting wiring)

Maximum: 50uH to 1000uH (include connecting wiring)

Loon connection wiring: recommend down-lead not more than 100 meters, twist 20 times at least per meter for the loop, total resistance ≤10 Ohm

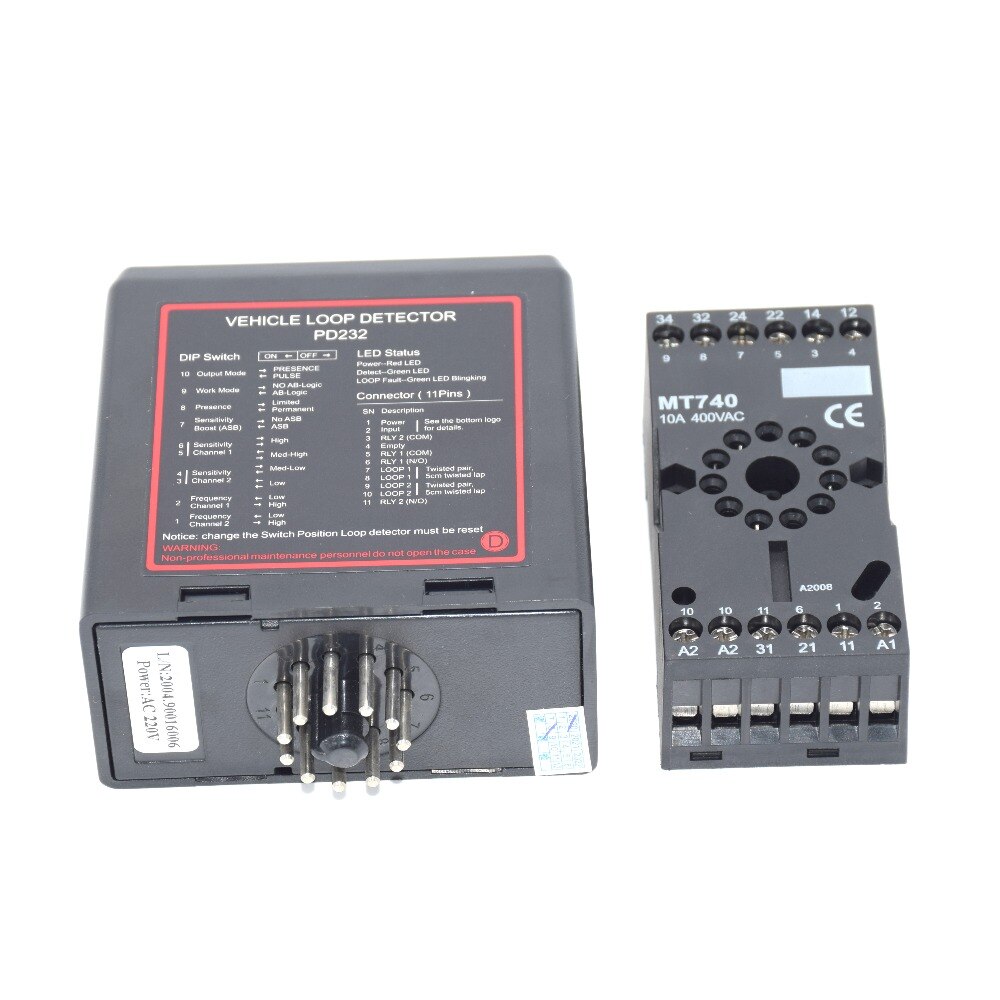

Connection method: 11-pin socket

Shell: PC and ABS engineering plastics

Installation: DIN rail

Operation temperature: -30 to 70 Degree

Storage temperature: -40 to 85 Degree

Relative humidity: ≤95% RH





  • Model Number: pd232a
  • Brand Name: BADODOSECURITY
  • Origin: Mainland China
