8pcs 100m Wireless RF Remote Control Switch kit 433Mhz AC 120V 240V 220V 30A Relay for Light Lamp Water Pump Door Access System
ID: 160497

8pcs 100m Wireless RF Remote Control Switch kit 433Mhz AC 120V 240V 220V 30A Relay for Light Lamp Water Pump Door Access System

0.0 ( votes) | 7 orders
Price: US $170.64
Discount Price:
US $ 86.35
-49%
Quantity

Buy Now
Add to Cart
8pcs 100m Wireless RF Remote Control Switch kit 433Mhz AC 120V 240V 220V 30A Relay for Light Lamp Water Pump Door Access System
Features:
Features

Convenient to install and easy to use.

It can work with most AC Voltage, from AC 90V to AC 256V.

It can be used in homes, farms, factories, offices, laboratories, supermarkets and so on.

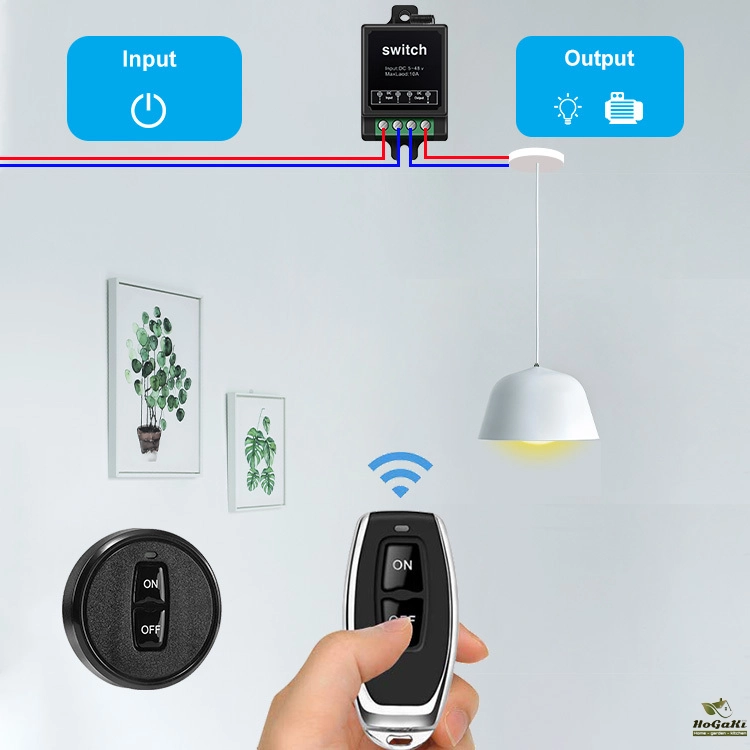

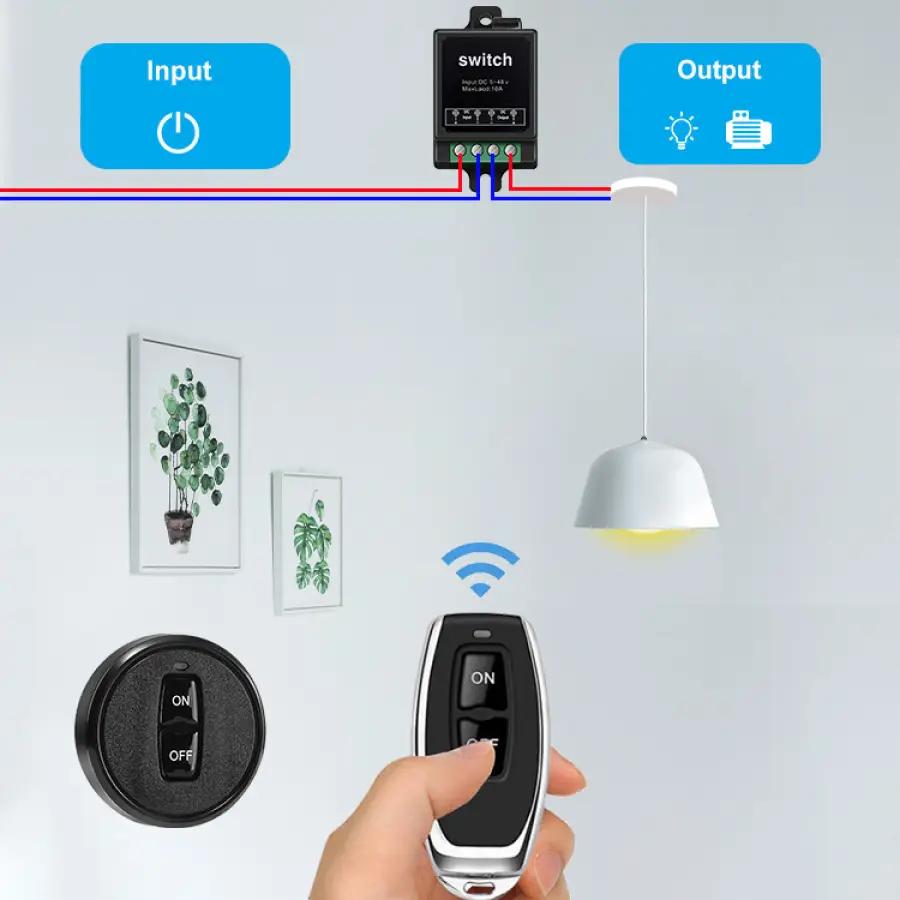

You can remotely operate every device connect with the relay receiver through the remote control.

It can be used in lights, pump, wireless security alarm, fan, lamp, wireless door alarm, ventilation device, monitor, printer, fountain, etc.

The wireless signal can pass through walls, floors and doors; Max range is up to 328ft with no obstacle.

Built-in power relay with 30A switching capacity provides an excellent switching performance.

Stable performance and low-power consumption, long service life.

Remote control

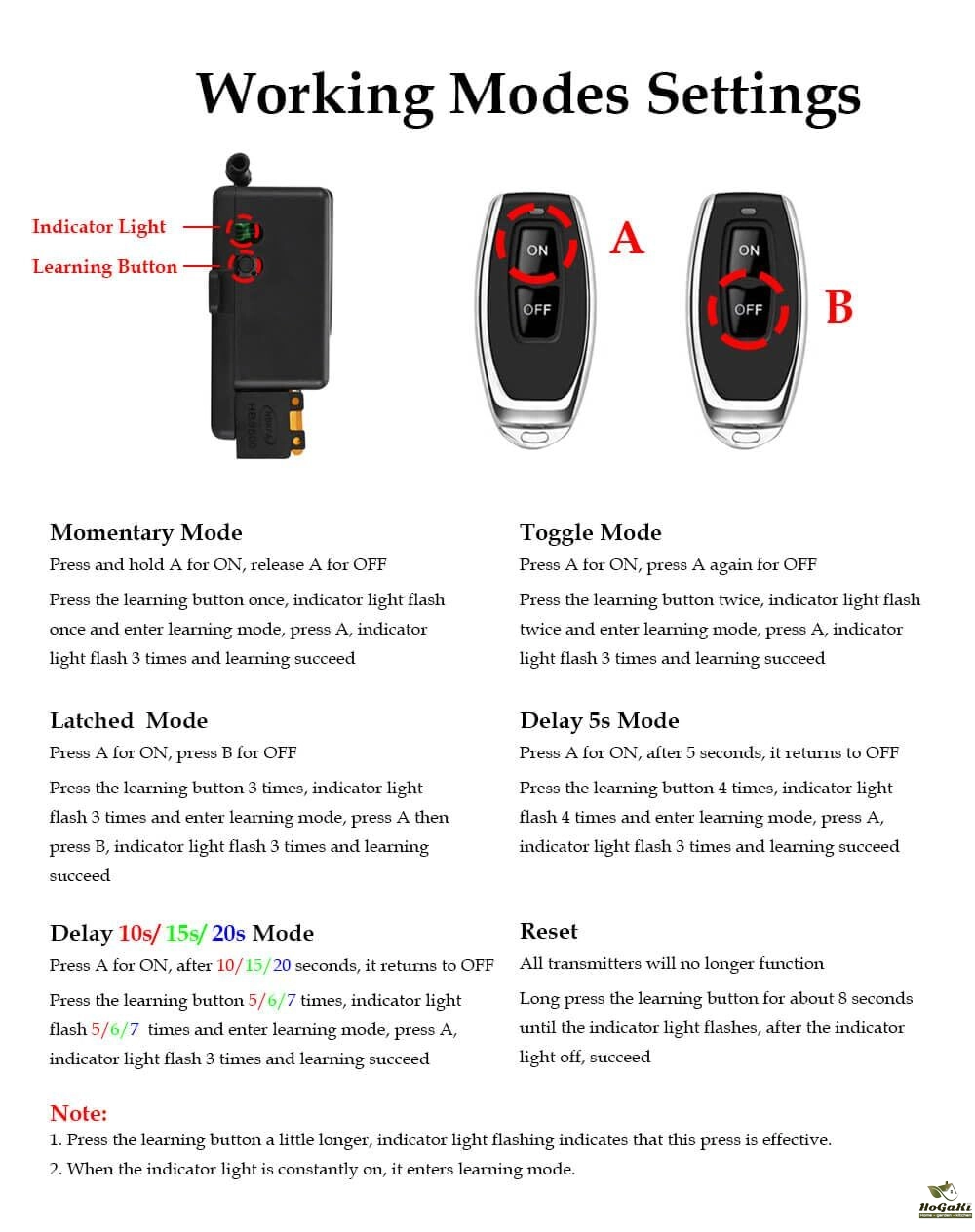

Operating Settings:

Working Mode:

Momentary: Relay: Press and hold -> On; Release -> Off.
Toggle: Relay: Press -> On; Press same button again -> Off·
Latched: Relay: Press -> On; Press other button -> Off.
Delay time :
Press remote control button, the corresponding relay actuates and keeps working until the time out.


How to Reset?

Long press the learning button for about 8 seconds until the indicator light flashes, succeed.

After reset, all transmitters will no longer function and need to learn again.

How to set Latched Mode?

Press the Learning Button 3 times, the Led indicator flash 3 times, then press button A, after 3 seconds then press button B, the Led indicator flash for 3 times, learning succeed.

We set Latched Mode as default mode, if you want to set other mode, please check user manual for reference.

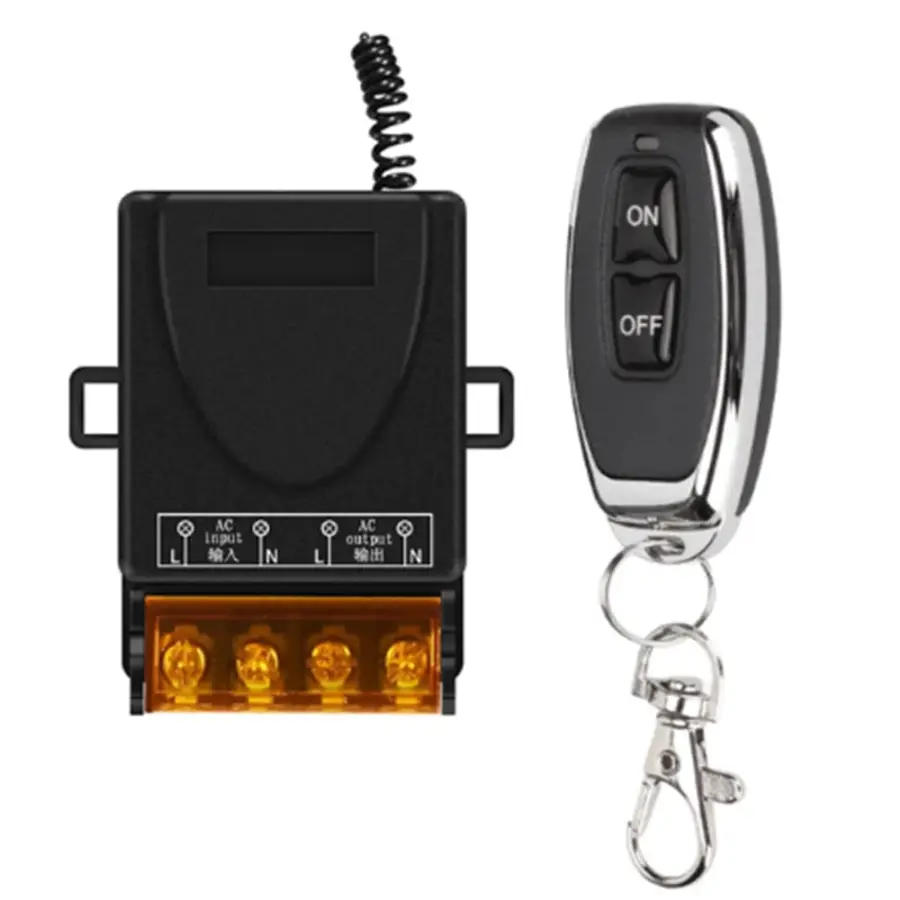

About Receiver

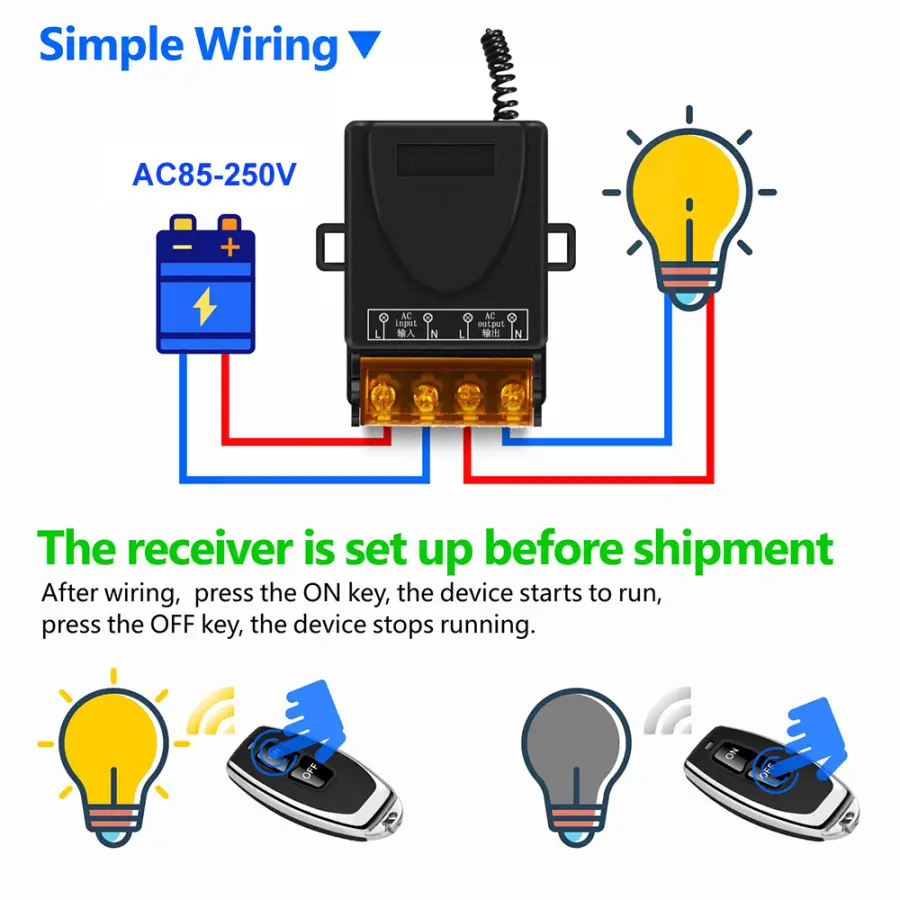

Operating Voltage: AC 90V- AC 256V

Receiving Range: 328ft (Open space)

Operating Mode: Momentary/Toggle/Latched/Delay mode

RF Frequency: 433MHz

DC Encoding Type: Learning code

RF Channel: One

Transmitter Support: Max 26

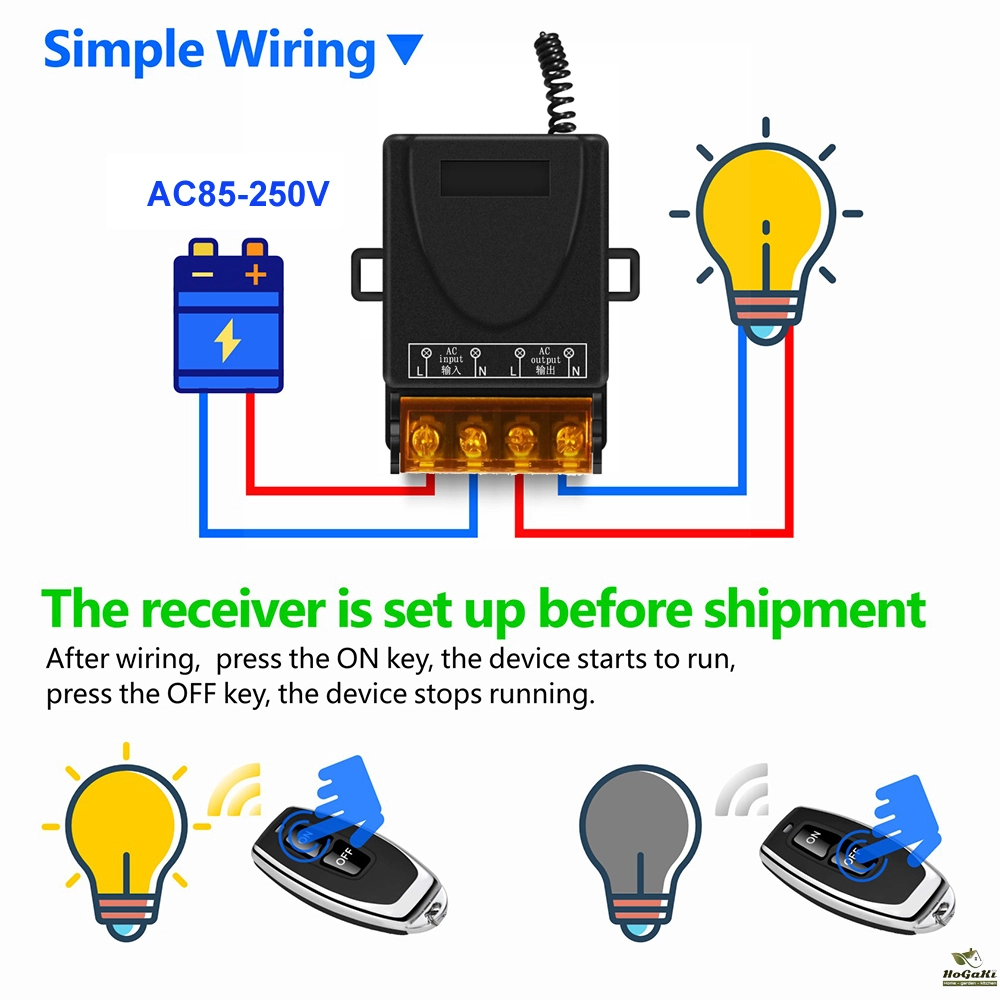

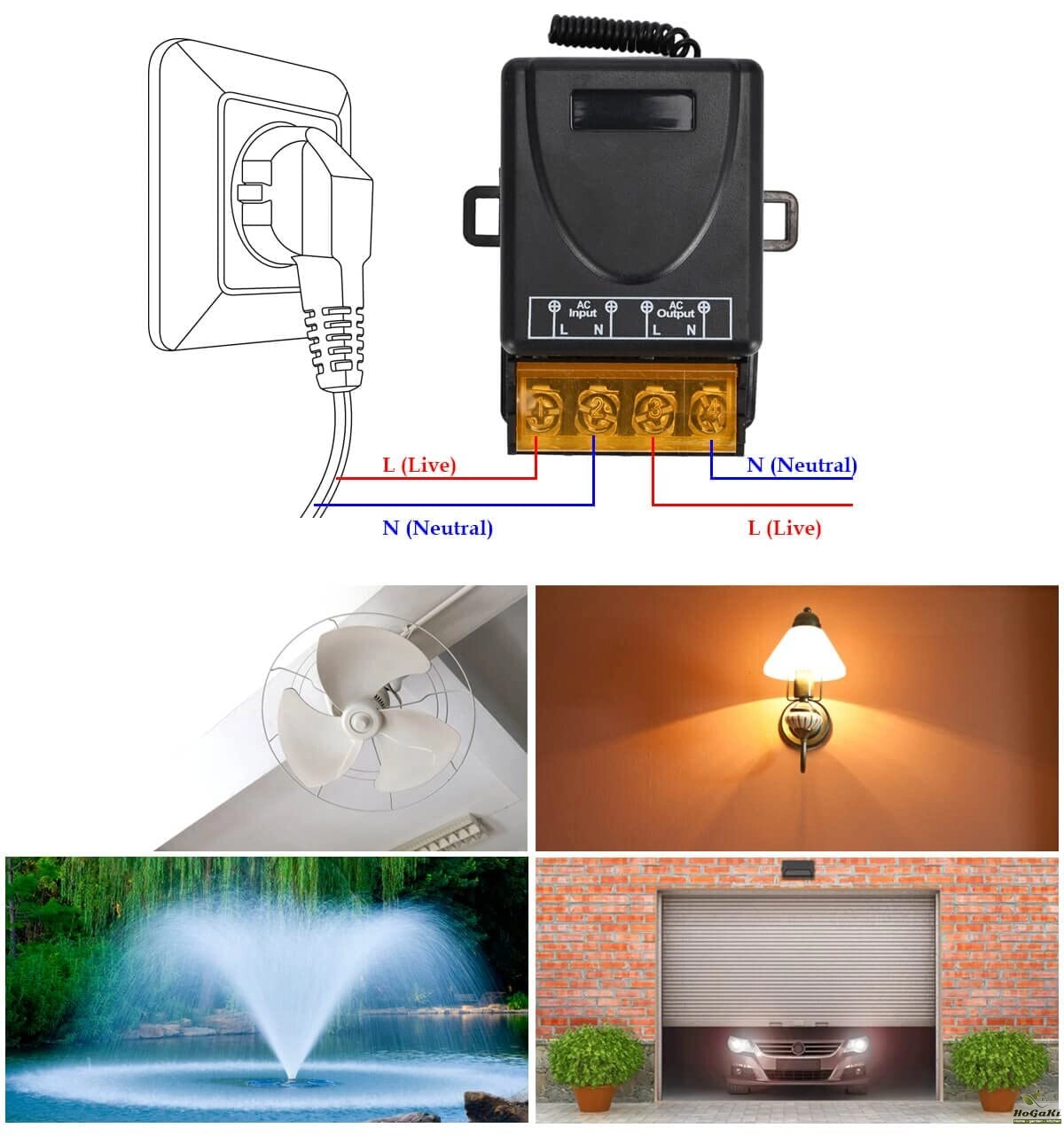

Input Terminals: Live (L) and Neutral (N) electrodes

Output Terminals: Live (L) and Neutral (N) electrodes

Case Construction: ABS Plastic

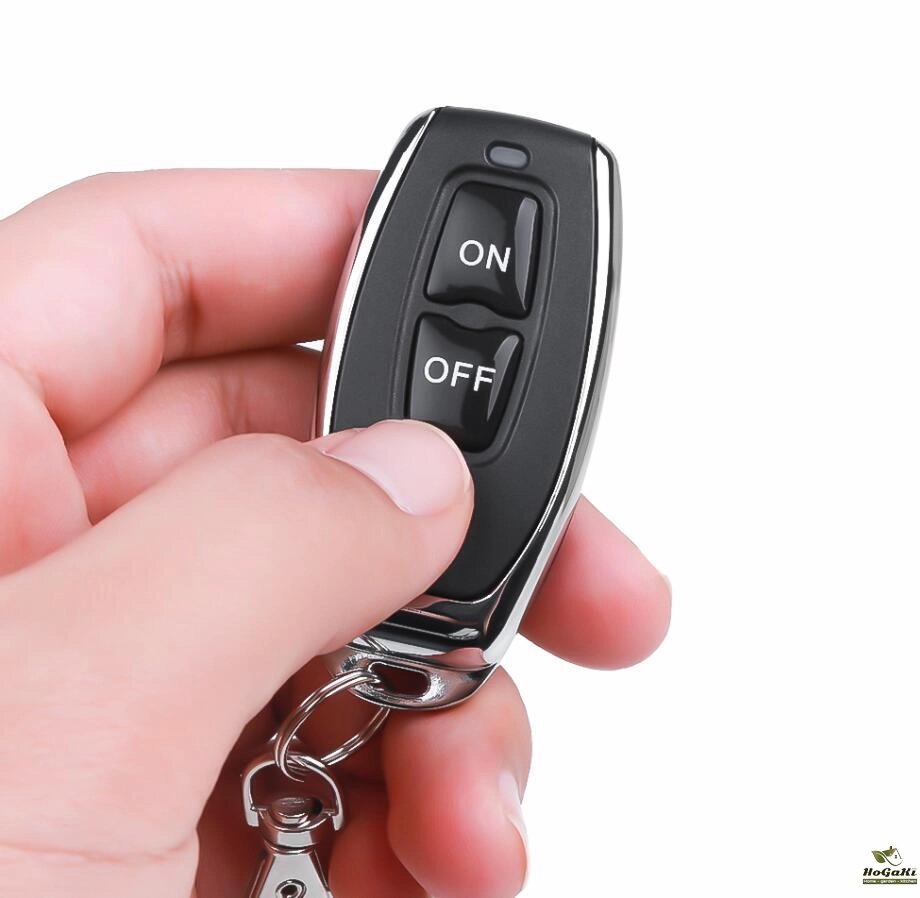

Remote Transmitter

Power Source: CR2016 Battery Operated (Included)

Number of Batteries: 2

Service Life of the Battery: 50000 cycles tested

Transmitting Frequency: 433MHz

Number of Buttons: 2

Emission Distance: 100m / 328ft (Open area)

Encoding Type: Fixed code

Enclosure Color: Black

Enclosure Material: ABS Plastic


Packaging Details

  • Unit Type:
  • Package Weight: 1.500
  • Package Size: 10x10x10

  • Brand Name: EOENKK
  • Hign-concerned Chemical: None
  • Origin: Mainland China
  • Model Number: HC801A
