8mm Width 20W/m can be used inside pipes Self-regulating Freeze Protection Heating Cable/Hot wire for defrost, snow melting,etc.
4.8 (31 votes) | 187 orders
Price:
US $600.04 - 6275.38
/ Meter
Discount Price:
US $
370.48 -
4078.54
/ Meter
-38%
- Ships From

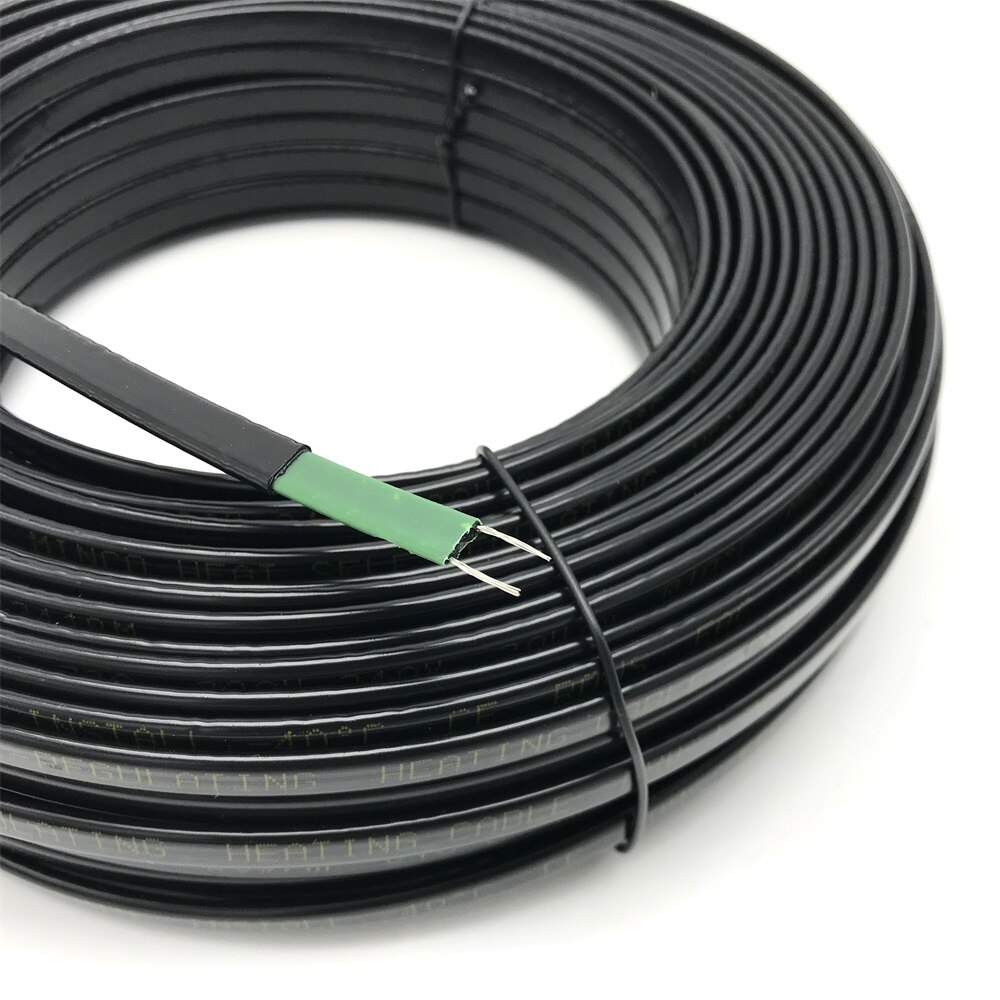

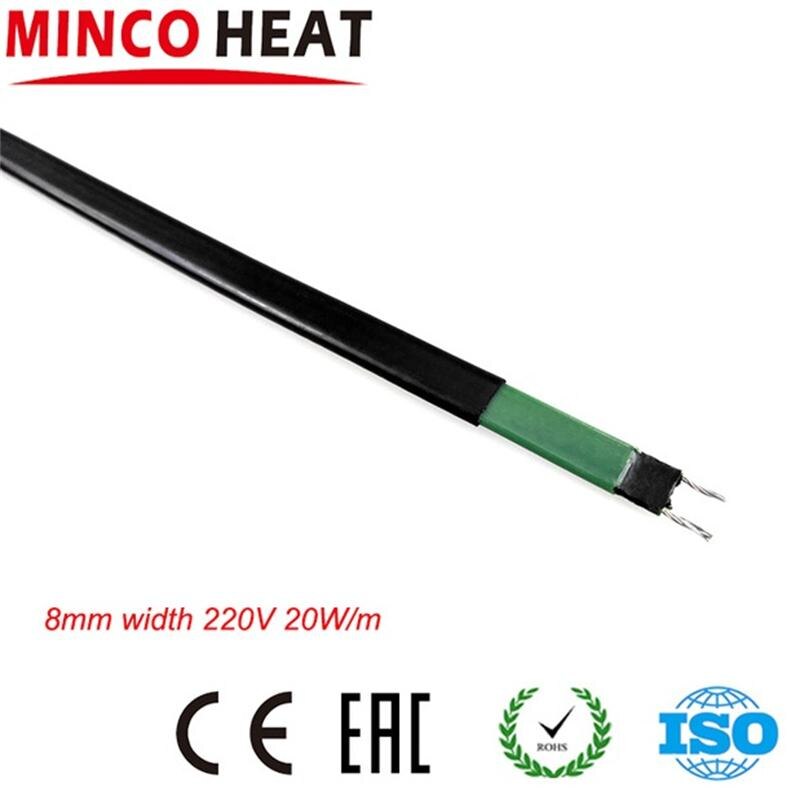

8mm Width 20W/m can be used inside pipes Self-regulating Freeze Protection Heating Cable/Hot wire for defrost, snow melting, preventing icing, etc.No Need Temperature Controller
This cable is suitable for household drinking water pipe, drain pipe freeze protection in winter and other heating applications.
The cable can self regulate the output power according to the temperature, it won't overheat, so the temperature controller is not necessary.
The cable is with high quality PE jacket, and inner has the PE composite insulation layer, better water-proof and good quality.

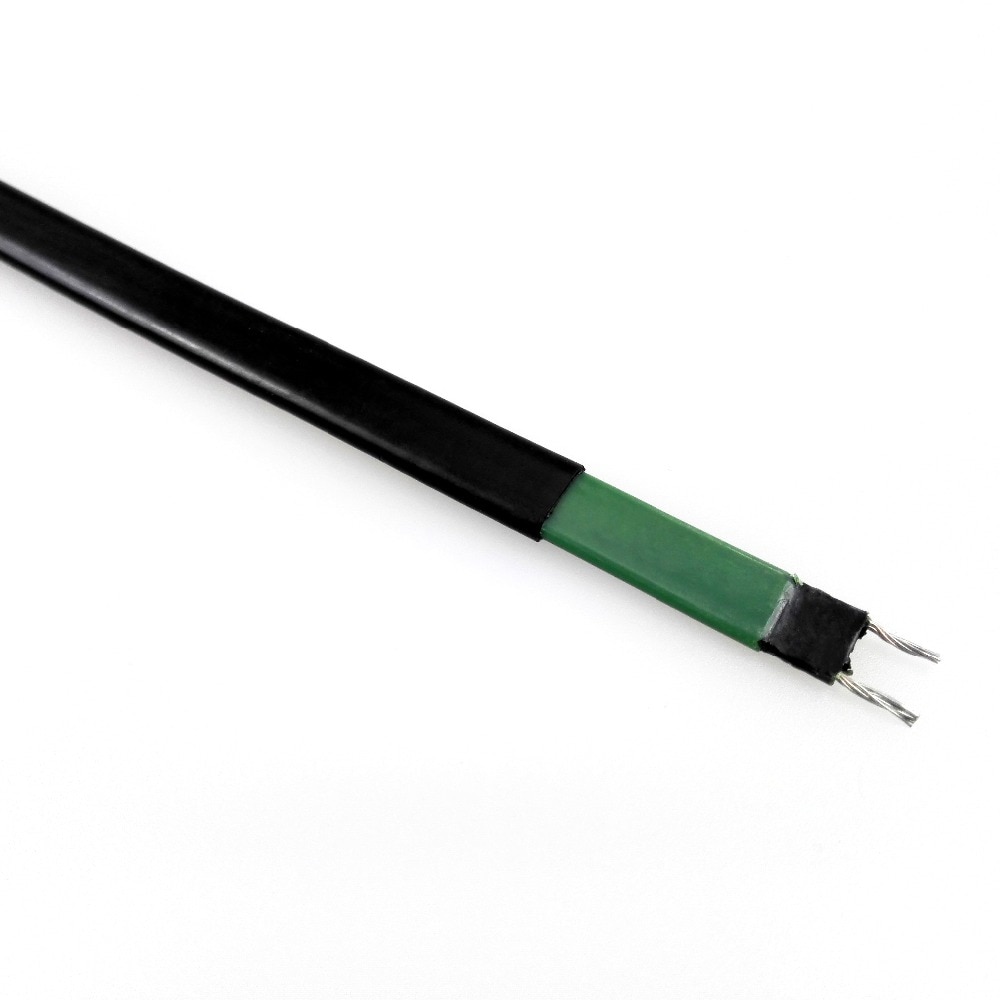

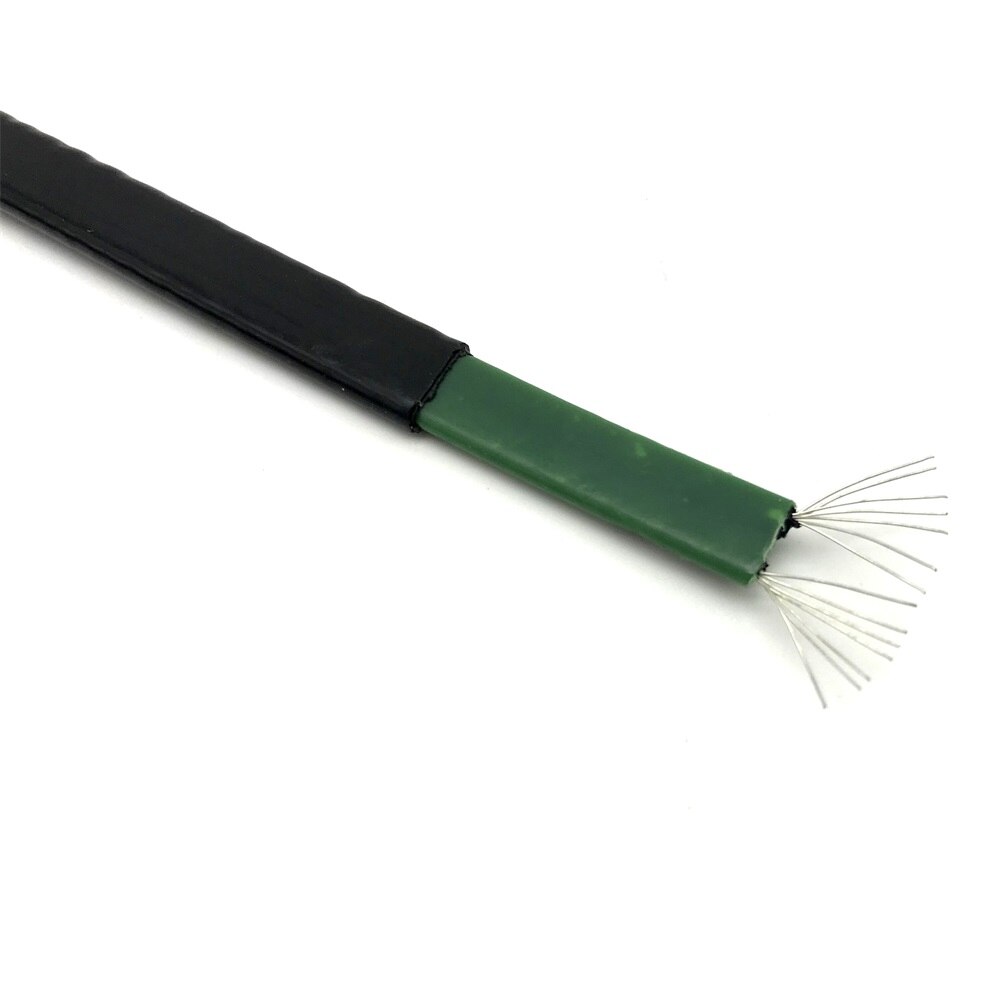

Cable structure:
1. Copper-core wire: double 7×0.2mm
2. Conductive heating element
3. Insulation of heating element
2. Conductive heating element
3. Insulation of heating element
4. HD polyolefin outer jacket
Specifications:
1. Standard color: black, (custom)
2. Temperature range: Max. Working temperature 60±5°C;
1. Standard color: black, (custom)
2. Temperature range: Max. Working temperature 60±5°C;
Max. Exposure temperature 85°C;
Max. Enduring temperature:105°C
3. Minimum installation temperature:-40°C
4. Start-up current ( 10°C ): ≤0.6A/m
3. Minimum installation temperature:-40°C
4. Start-up current ( 10°C ): ≤0.6A/m
5. Max circuit length: 20m
6. Dimension: 3mm thickness, 8mm width.
7. Working voltage: 220~240V 50/60Hz
8. Power: 20W/m (big orders can customize)
Advantage:
1. Equal temperature safe and reliable.
2. Save electric energy.
3. Rapidly Temperature increase
4. Low cost of installation and operation
5. Easy to install and maintain.
6. Convenient for automatic management.
7. No pollute environment.

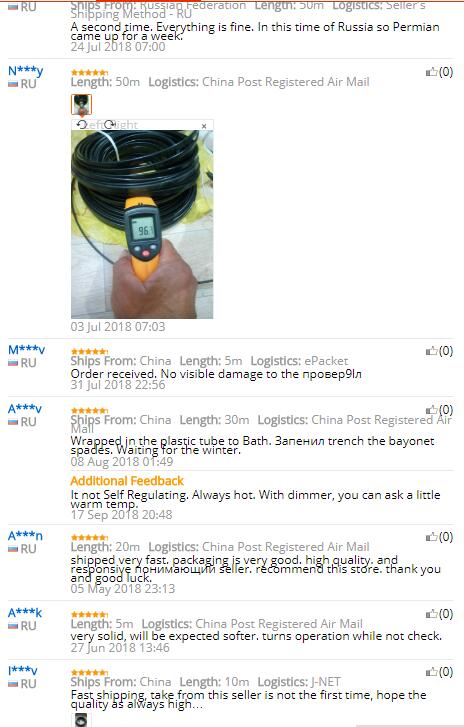

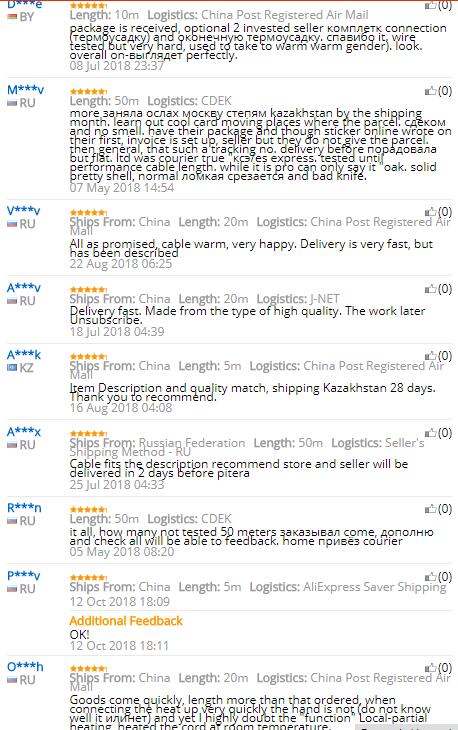

100% satisfied Feedback:
If you need the end cap 1 and 2, please click the above picture to buy.

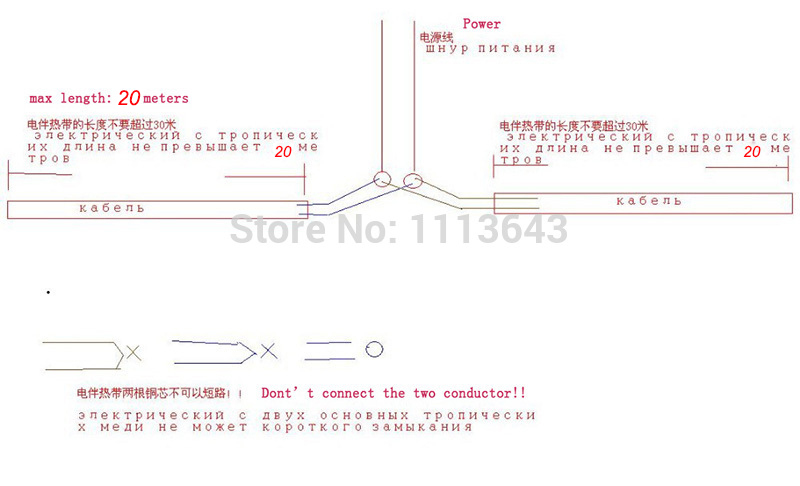

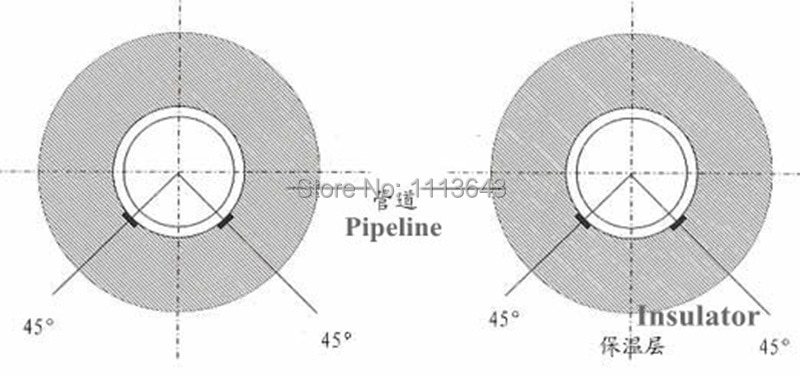

Installation diagram:
1) Seal the end of the cable with heat shrinkable tube or other electrical insulating tape.DO NOT connect the two conductors together!
2) Connect the other end with cold wire or plug (for connecting to the power supply).

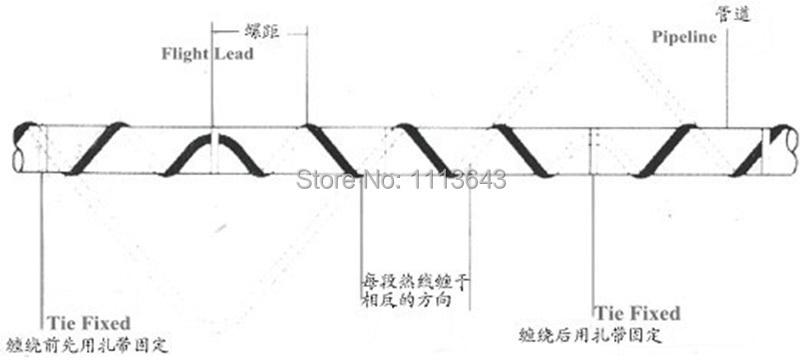

3) Wrap the heating cable on water pipes or fastening straight on pipes, both are ok. Put the whole cable on the pipes and fasten it every 30~60cm with thermal tape or aluminum tape(sold in my store).
4) Suggest to wrap a layer of rubber insulation on the pipe, enhance efficiency of the heating cable and save energy, also can protect the heating cables.
5) Connect or plug into 220~240V. The heat trace system is finished.
Tips: max circuit length ~ 20 meters.
The self regulating heating cable is widely used for pipe/tank freeze protection, such as water pipe, solar water heater pipe, oil pipe, downspout.
Soil warming for plants
Floor heating and other heating applications.
Q:Self Regulating Heating? Best Choice Or Not?
-------Self regulating heating cable controls the temperature is not too high nor too low compared to other heating devices, because the temperature is automatically adjusted. With explosion-proof, all-weather performance, high reliability and long service life. It can solve other difficult issues, such as: long-distance pipeline heat tracing, narrow space heating and so on. May be self regulating heating cable one-time investment is higher,but it is the most economical heating measures in long running.
- is_customized: Yes
- Insulation Material: PE
- Conductor Type: Stranded
- Conductor Material: Copper
- Application: Heating
- Type: Insulated

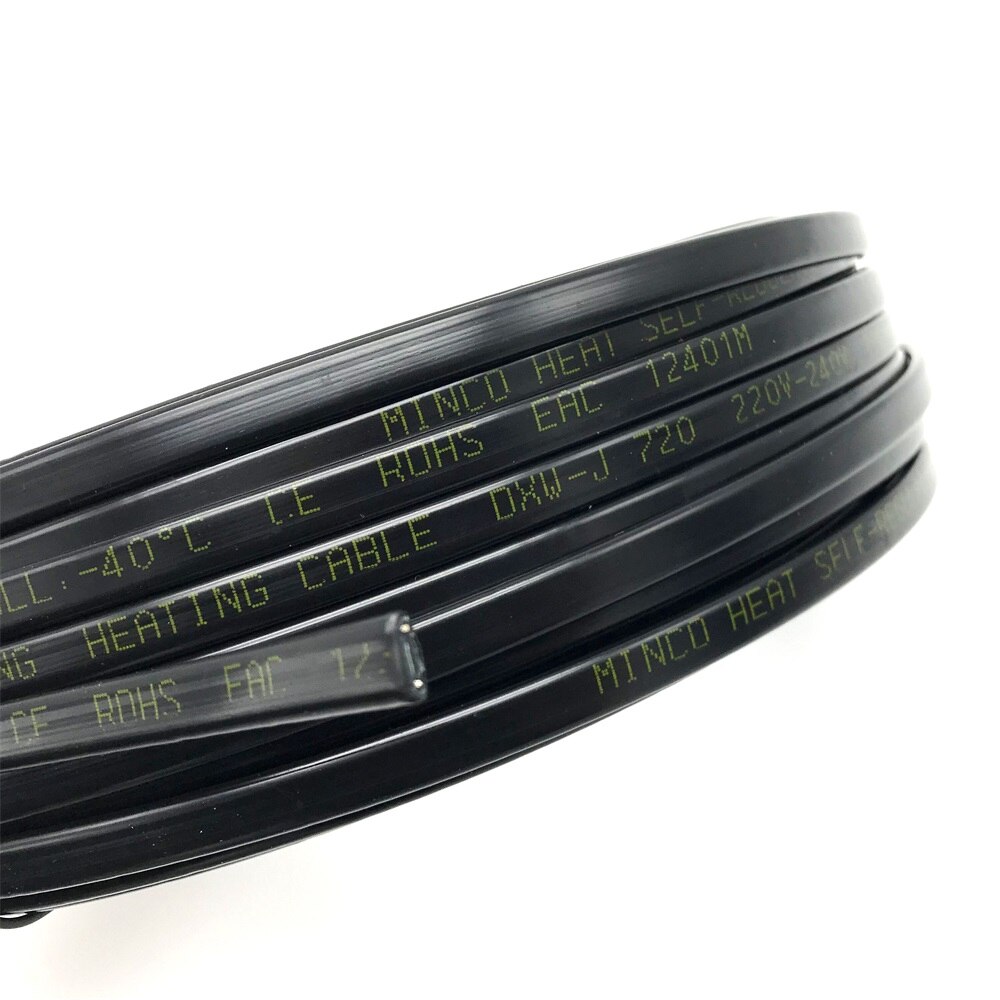

- Model Number: DXW-J 720
- Brand Name: MINCO HEAT
- Origin: Mainland China
- Certification: CE
- Color: Black
- Voltage: 220v, 230v, 240v
- Power: 20 w/m
- Thickness: 3mm
- Width: 8mm
- Core wire size: 7*0.2mm
- Application: defrost, snow melting, heat trace,ect.
- Max length: 20 meters
- Warranty: 2 years
