8Bit Channel WS2812 5050 RGB 8 LED Light Built-In Full Color-Driven Development Board Strip Driver Board for Arduino 8 channel
3.7 (3 votes) | 22 orders
Price:
US $11.44
/ piece
Discount Price:
US $
9.95
/ piece
-13%
- Color
-
-
8 Bits White RGB LED
Description:

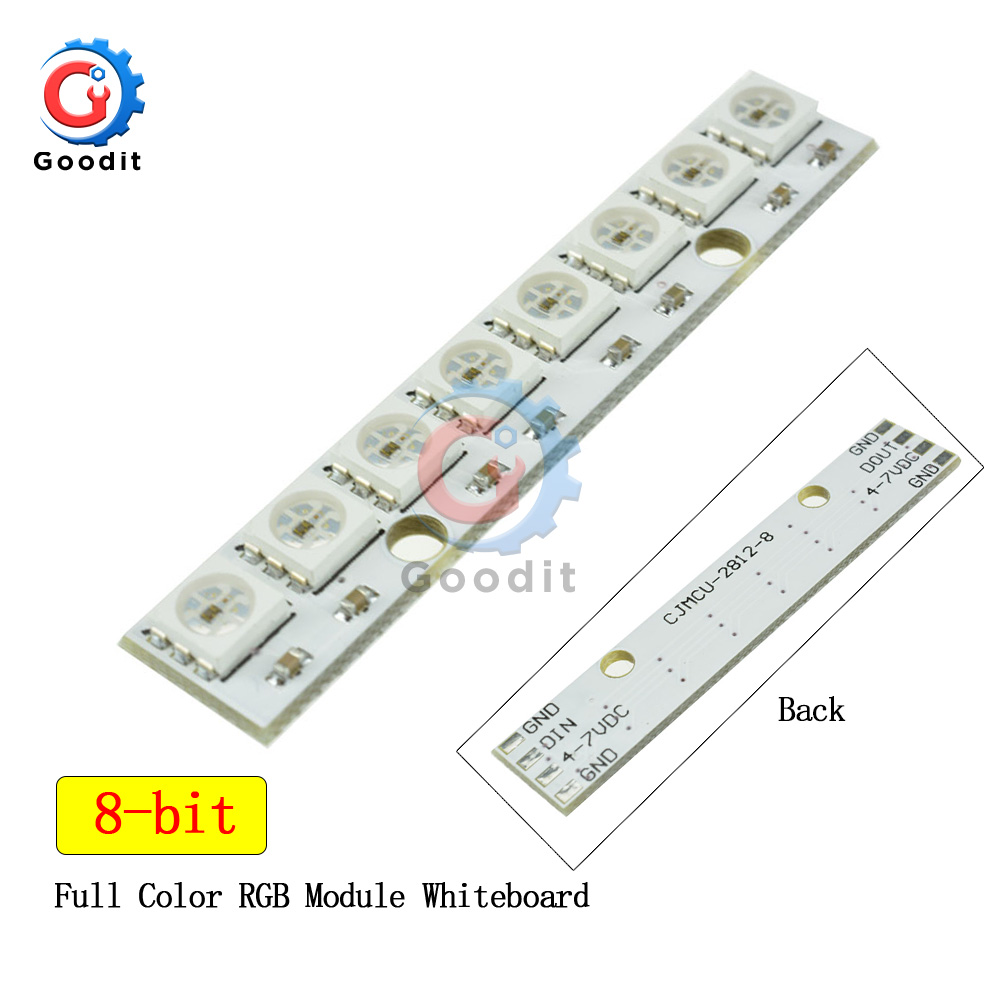

A small chainable board with eight 5050 WS2812 RGB LEDs.
The WS2812s are each addressable as the driver chip is located inside the LED.
Each Stick has ~18mA constant current drive,so the color will be very consistent even if the voltage varies, and requires 5V.
Every stick is equipped with a single data line
with a very timing-specific protocol requiring a real-time microconroller
with a 8MHz or faster processor such as an AVR, for Arduino, PIC, mbed, etc.
There are solder pads on the back for connecting wires or
breadboard pins and two mounting holes for securing this board to many different surfaces

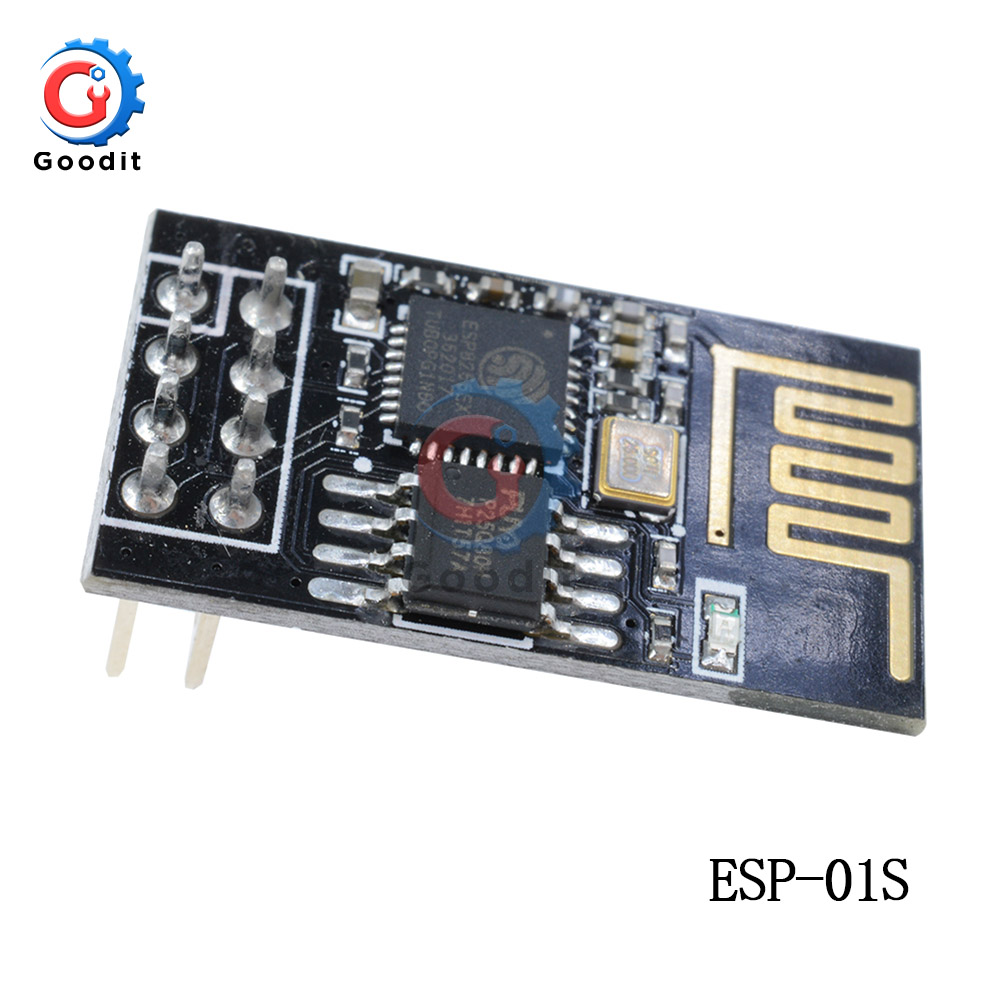

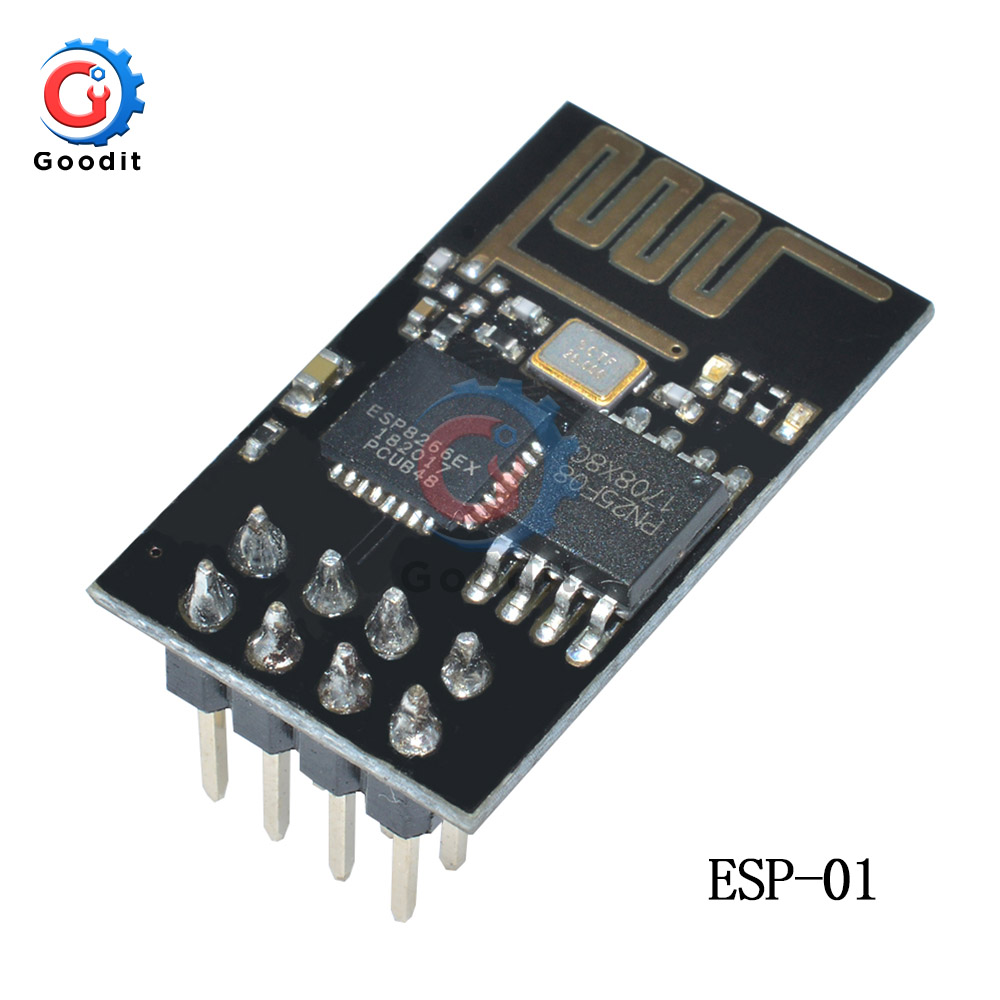

ESP8266 ESP-01 ESP-01S Wifi Module
Description:
This is a WS2812 RGB LED control module based on ESP-01 / 01S. With it, you can easily control the WS2812 light bar / light ring. DIY own lighting control system. Support for Ard uino IDE programming.
Specifications:
* Master: ESP-01 / ESP-01S (This module include ESP-01 / ESP-01S)
* Control Pin: GPIO2
* Interface: 3Pin PH2.0 connector
* Operating Voltage: DC 3.7V-5V (Please note: The positive supply voltage VCC on the board is connected to the VCC on the WS2812 3PIN connector. Therefore, if your light bar / lamp ring is 5V powered, use DC 3.7V-5V power supply.)
* Support 3.7V lithium battery
Note: It dose not include battery
Application example:
1. Power supply: 3.7V-5V DC power supply to the VCC GND (2.54mm pin)
2.Download the program to ESP-01S
3. Insert the ESP-01 / ESP-01S into the 2 * 4 Pin header

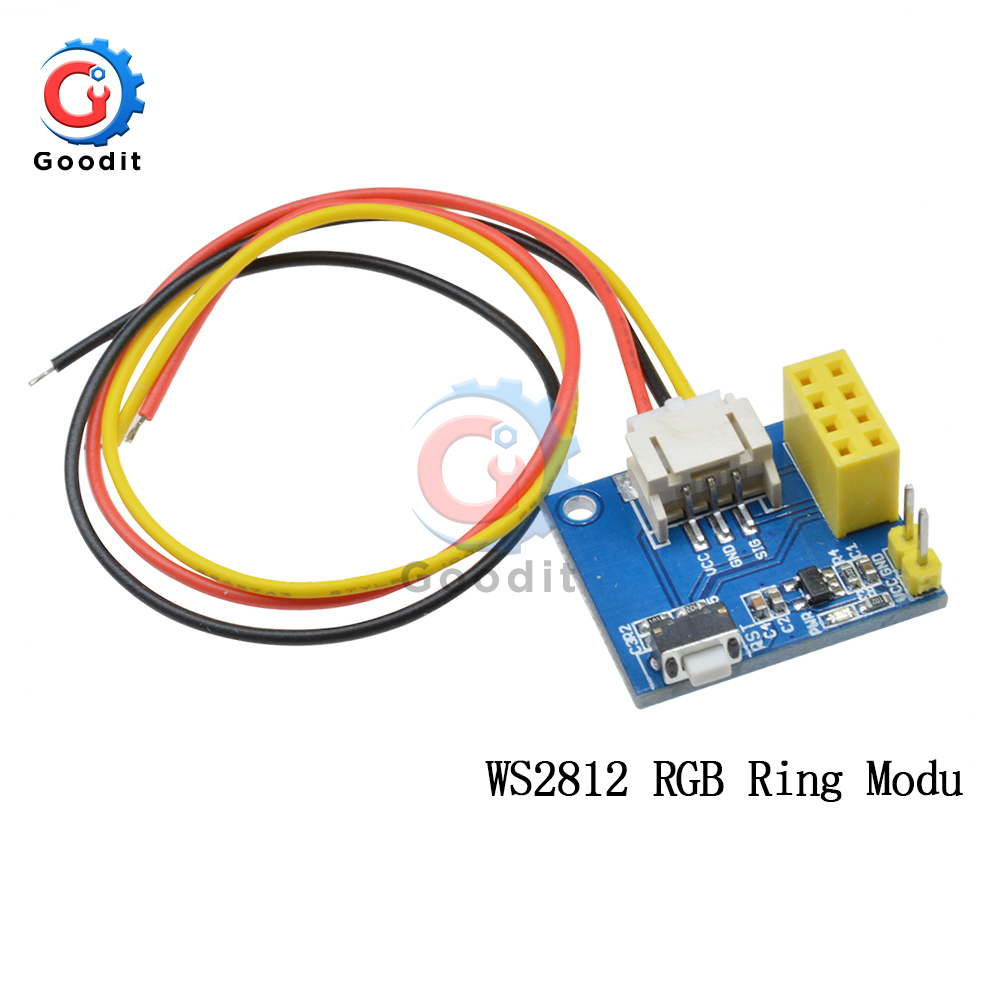

WS2812 RGB Module Wiring
This is a WS2812 RGB LED control module based on ESP-01 / 01S. With it, you can easily control the WS2812 light bar / light ring. DIY own lighting control system. Support for Ard uino IDE programming.
Characteristic:
* Master: ESP-01 / ESP-01S (This module does not include ESP-01 / ESP-01S)
* Control Pin: GPIO2
* Interface: 3Pin PH2.0 connector
* Operating Voltage: DC 3.7V-5V (Please note: The positive supply voltage VCC on the board is connected to the VCC on the WS2812 3PIN connector. Therefore, if your light bar / lamp ring is 5V powered, use DC 3.7V-5V power supply.)
* Support 3.7V lithium battery
Application example:
1. Power supply: 3.7V-5V DC power supply to the VCC GND (2.54mm pin)
2.Download the program to ESP-01S
3. Insert the ESP-01 / ESP-01S into the 2 * 4 Pin header (in the direction of the arrow)
- Length: Pls check description
- Width: Pls check description
- Height: Pls check description
- Model Number: WS2812
- Features: 8-Bit Full Color LED
- Certification: CCC
- Voltage: Pls check description
- Brand Name: Gaqqee
- Origin: Mainland China
- Item Type: LED Modules
