811+4151 EFFIO-E Chipboard for CCTV Camera not with fiter
ID: 159912

811+4151 EFFIO-E Chipboard for CCTV Camera not with fiter

0.0 ( votes) | 4 orders
Price: US $81.68
Discount Price:
US $ 78.52
-4%
Quantity

Buy Now
Add to Cart
Description
This CCD board adopts with SONY Effio 3rd generation technology (the image signal processor Effio-A) which can deliver HD resolution image quality for perfect day & night and indoor & outdoor application. The high horizontal resolution up to near 800TVL is performed as well as 2D + 3D noise reduction with anti-blur function that extremely improve the low-light environment with superior image quality. Powerful defog function will detect the fog automatically and uncover the fog and resume it to original environment. Intelligent scene recognition function and intelligent scene selection function will comfort every scene to be a best image quality automatically. Well power manager control with weak and strong IR-LED light output for various object distances, shading compensation for IR-LED hot spot & Intelligent Color Night Mode function truely perform a good color image quality without noise interference even in a very low illumination environment (eg. less than 0.001 illumination/F1.2).



  • 1/3" SONY Super HAD CCD II (ICX811AK)

  • SONY 3rd generation Effio-A CXD4151 DSP

  • Near 800TVL resolution

  • Most cutting edge 2D + 3D-DNR(Digital Noise Reduction) with Anti-blur technology extremely improve the low-light environment with superior image quality

  • Defog function

  • Scene recognition function & scene selection function

  • IR optimizer

  • Color night mode

  • Coaxial control through UTC

  • ATR-EX2 (Adaptive Tone Reproduction)

  • Motion detection (Frame rate link)

  • Privacy mask

  • HLC (High Light Compensation)

  • Exposure control for IR light

  • Slow shutter (Sens-up)

  • E-zoom

  • Preset OSD menu for more intuitive operation

  • The day and night real conversion function, you can directly drive filter ICR double switch

  • a new digital wide dynamic (D-WDR) function, in contrast, relatively strong light can get a good case of the dynamic image effect

  • Model No. : CCD811

    DSP Chips : SONY CXD4151+CXD5148

    CCD Chip : ICX811AK (ICX810AK for NTSC)

    CCD Type : 1/3" SONY Super HAD CCD II

    Resolution : near 800TVL (960H)

    Low Illumination : 0.001LUX/F1.2

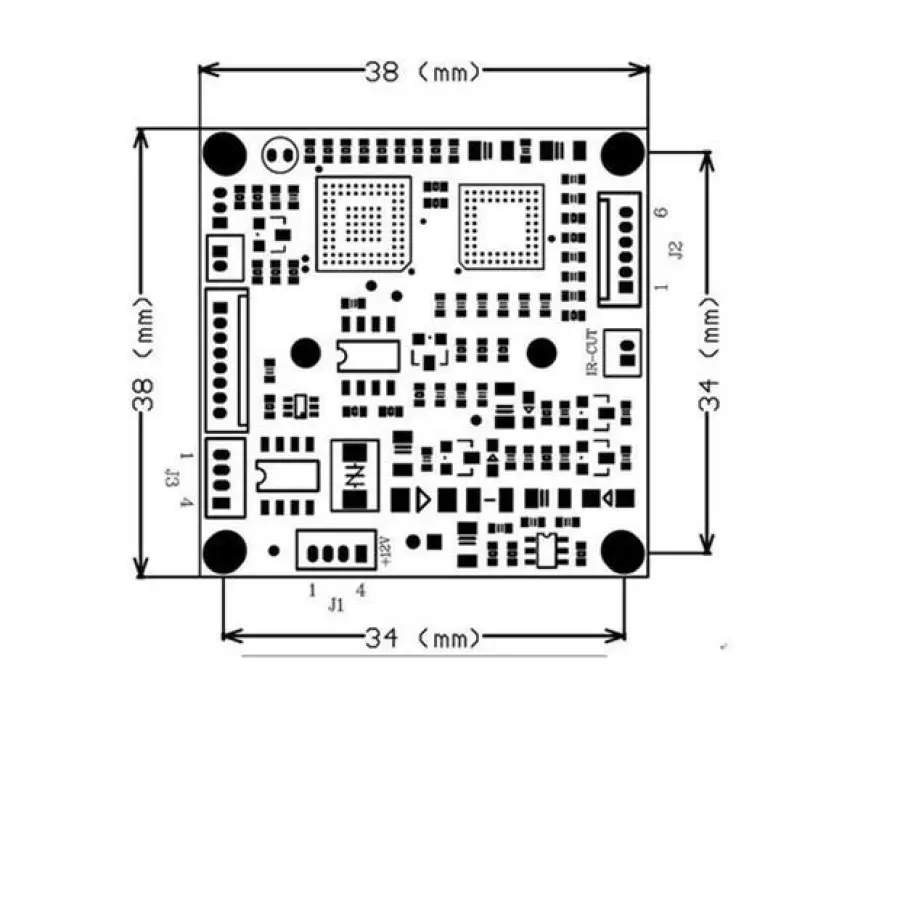

    Size : 32 x 32mm with 38 x 38mm holder (H x V) x 1.6mm(T)

    SONY Effio-A solution*NEW*, 2D+3D DNR with Anti-Blur, Defog, Scene recognition, Scene selection, IR Optimizer, Color night mode, Coaxial control, Preset OSD, D-WDR, Privacy Mask, Motion Detection, Color to B/W(D/N), sense of infrared, HLC, license plate captured function, lighting-protection design.


  • System

    Specification

    Model Number

    CCD811

    CCD

    Image Device

    1/3" SONY Super HAD CCD II

    System synchronization

    2:1 Interface

    Total Pixels

    PAL: 1020(H) x 596(V)600K
    NTSC: 1020(H) x 508(V)520K

    Effective Pixels

    PAL: 976(H) x 582(V)570K
    NTSC: 976(H) x 494(V)480K

    Min. Illumination

    0.001LUX/F1.2

    Electric Property

    Horizontal Resolution

    near 800TVL

    Shutter

    PAL: 1/50(Sec.)~1/100,000(Sec.)
    NTSC: 1/60(Sec.)~1/100,000(Sec.)

    Slow Shutter

    0 ~ 256 FLD

    SNR

    ≥56Db (AGC OFF)

    Sensitivity

    Can be adjusted

    Lens Type

    Auto/Manual

    Syn-system

    Inter-sync & Line Lock Mode

    Video Output

    CVBS : 1.0Vp - p/75Ω

    Function

    Scene Select

    Custom/Full Auto/Indoor/Outdoor/Backlight/ITS

    ATR-EX

    On/Off  Clear Face: Low/Middle/High/Off

    Flip

    OFF/V/H/HV

    Shutter/AGC

    Auto/Manual/Fix/Slow Shutter

    AGC(automatic gain control)

    6、12、18、24、30、36、42、44.8 DB optional

    Picture Adjust

    Brightness/Contrast/Sharpness/Hue/Color Gain

    Wide Dynamic Range

    150 DB

    Day/Night Switching

    Auto/Day/Night

    HLC/BLC

    Off/HLC/BLC

    Motion detection

    On/Off

    OSD

    Simplified Chinese/English/Japanese/German/French
    /Spanish/Russian/Portuguese

    White Balance

    ATM/Push/User1/User2/Manual/Push Lock

    E-zoom

    On/Off

    DIS

    On/Off

    Privacy Masking

    15 Areas Selectable, Area selection/Display/position/color/Transparency/Mosaic

    Color Rolling Supression

    Yes

    Defog

    Auto (On/Off)

    Back Light Compensation

    On/Off/Super strong inhibition function

    Exposure Mode

    Electronic Exposure

    Digital Noise Reduction

    2D, 3D

    Gamma

    0.45/1.0

    Digital Image Stabilizer

    Yes

    Intelligent Scene Recognition & Scene Selection

    Yes

    Color Night Mode

    On/Off

    ATW

    1800K ~ 10500K

    Lens Shading Compensation

    Yes

    UTC Controller

    Yes

    Power consumption

    Input Voltage

    DC 12V±10%

    Power consumption

    <1W

    Electric Current

    75mA

    Size

    32 x 32mm with 38 x 38mm holder (H x V) x 1.6mm(T)

    Working Temperature

    -10~50°C

    Storage Temperature

    -20~60°C






Packaging Details

  • Unit Type:
  • Package Weight: 0.120
  • Package Size: 8x8x12

  • Brand Name: DPWESTEK
  • Certification: CE
  • Origin: Mainland China
  • Model Number: 4151+811
  • Hign-concerned Chemical: None
