8" 4K CCTV IPC Tester Monitor POE++ 90W SFP 4K IP Camera 8MP AHD/TVI/CVI CCTV Camera Tester HDMI & VGA input
4.2 (5 votes) | 11 orders
Price:
US $
676.64 -
859.34
- Color
-
-

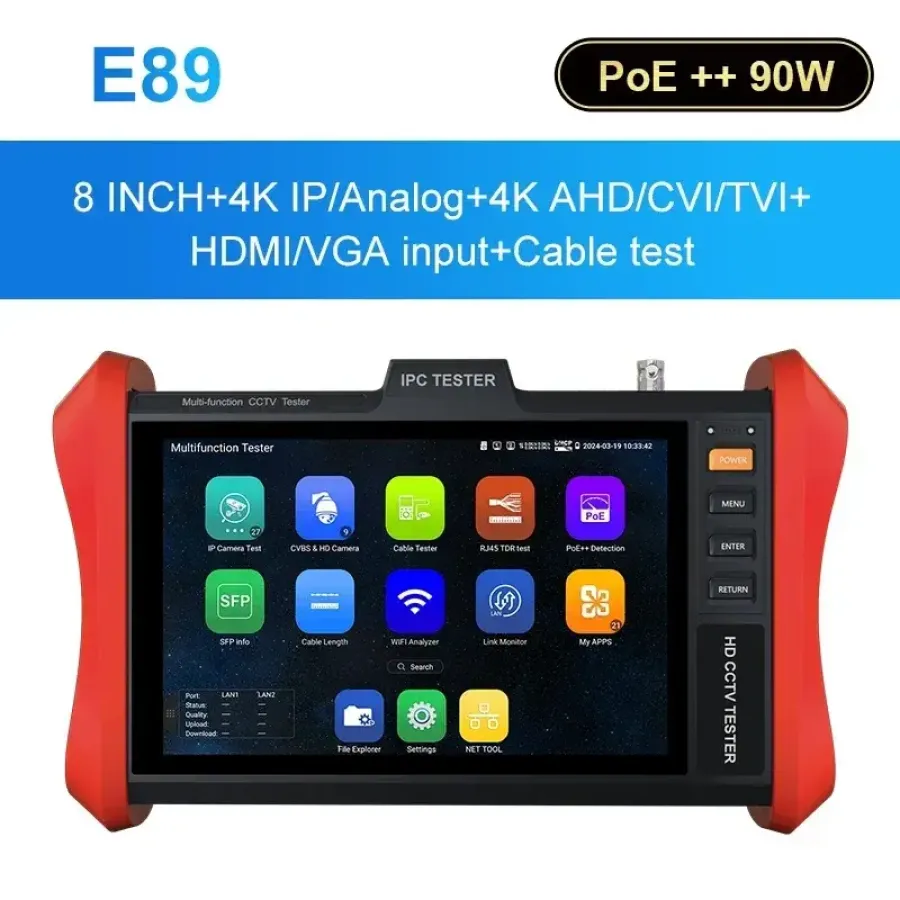

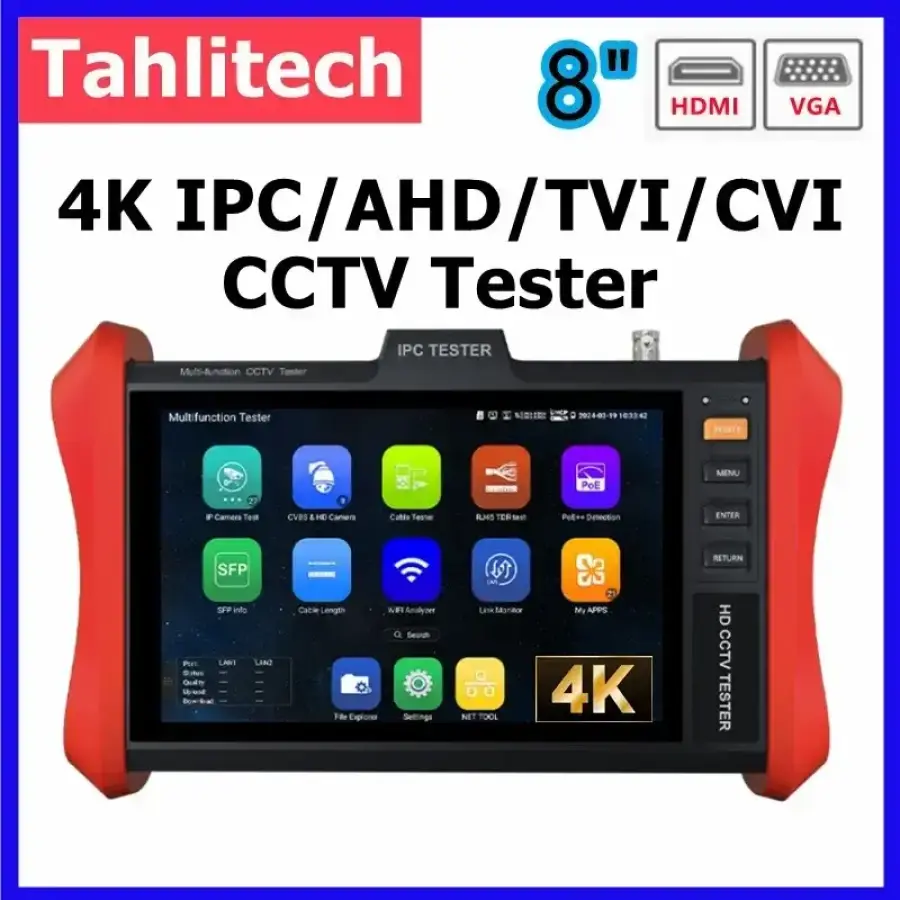

CCTV Tester 8 inch POE++ 90W SFP 4K H.265 IP 8MP AHD/TVI/CVI CCTV Camera Tester HDMI & VGA input
Model: E89
● 8 inch IPS touch screen, 1920*1200 resolution
● 8MP CVI/ TVI/ AHD camera test, analog camera test
● 55V PoE++ power output, max power 90W
● DC12V 3A, DC24V 2A power output
● 4K 30FPS HDMI Input, VGA input
● Brand new dual gigabit Ethernet ports
● WIFI analyzer, support 2.4G frequency band
● ONE Gigabit SFP optical fiber module port
Feature:
Optical fiber network test / Fiber test:
● NEW ONE Gigabit SFP port, support insert SFP optical fiber module, for optical fiber network testing
Camera test:
● 8 inch IPS touch screen, 1920*1200 resolution
● H.265 & H .264 IP, 4K video display via mainstream

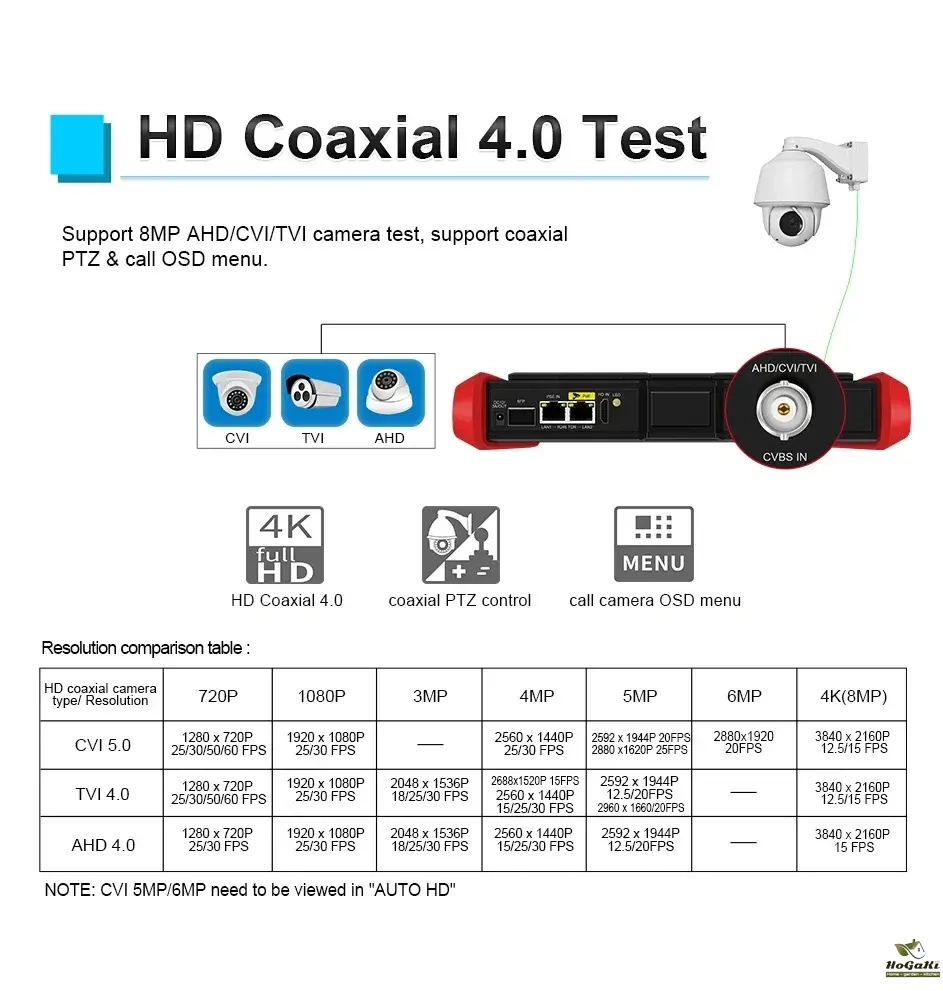

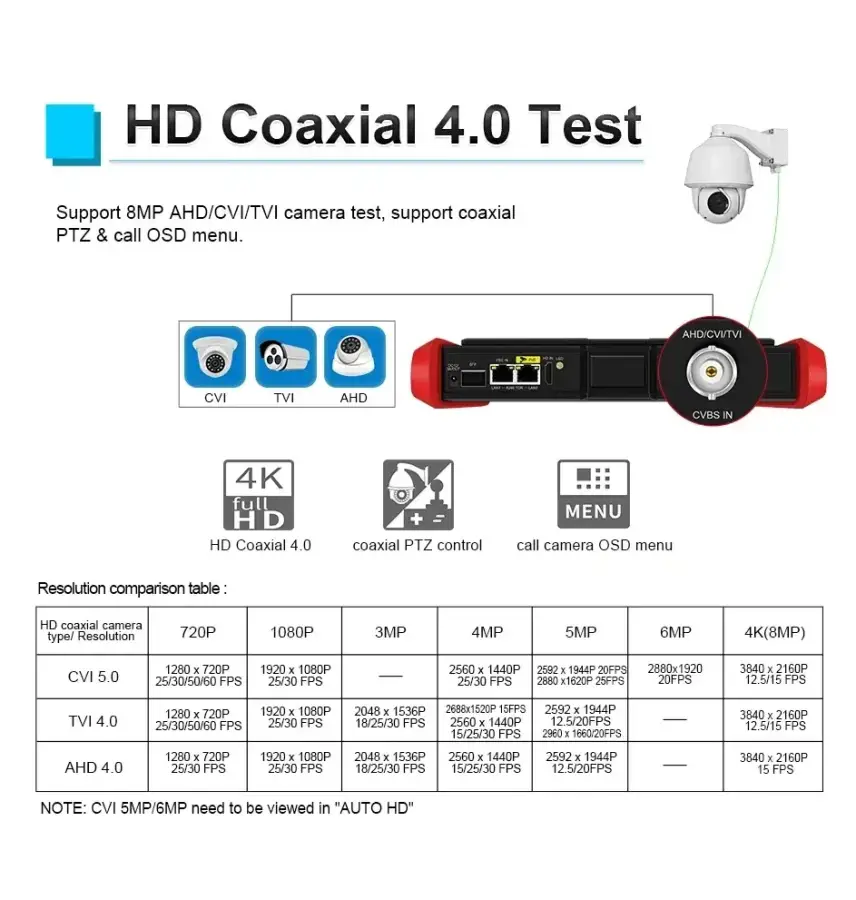

● 8MP TVI test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu
● 8MP AHD test, 3840 x 2160P 15 FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu
● 8MP CVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
● Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu.
● 4K 30FPS HDMI Input

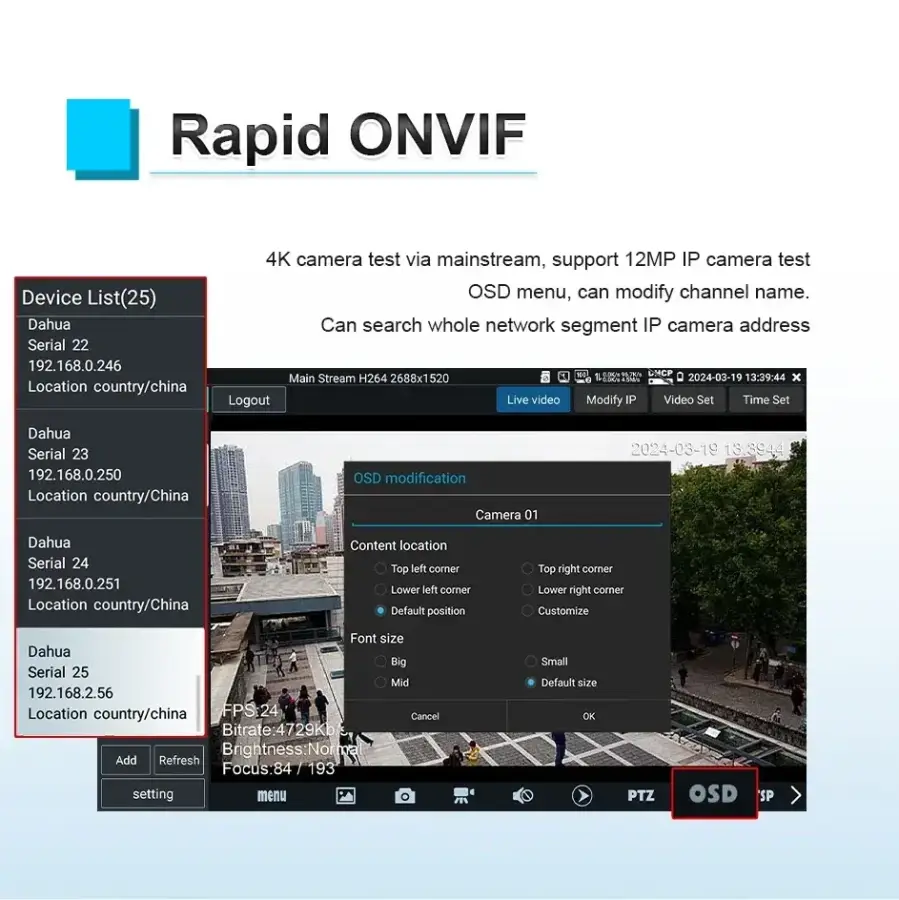

● Rapid ONVIF, Auto log in and display image, one-key create testing report, including camera IP address, resolution, encoding and other related information; support cross-network segment test; audio and video synchronization test; face recognition and other functions
● CVBS camera test and PTZ control

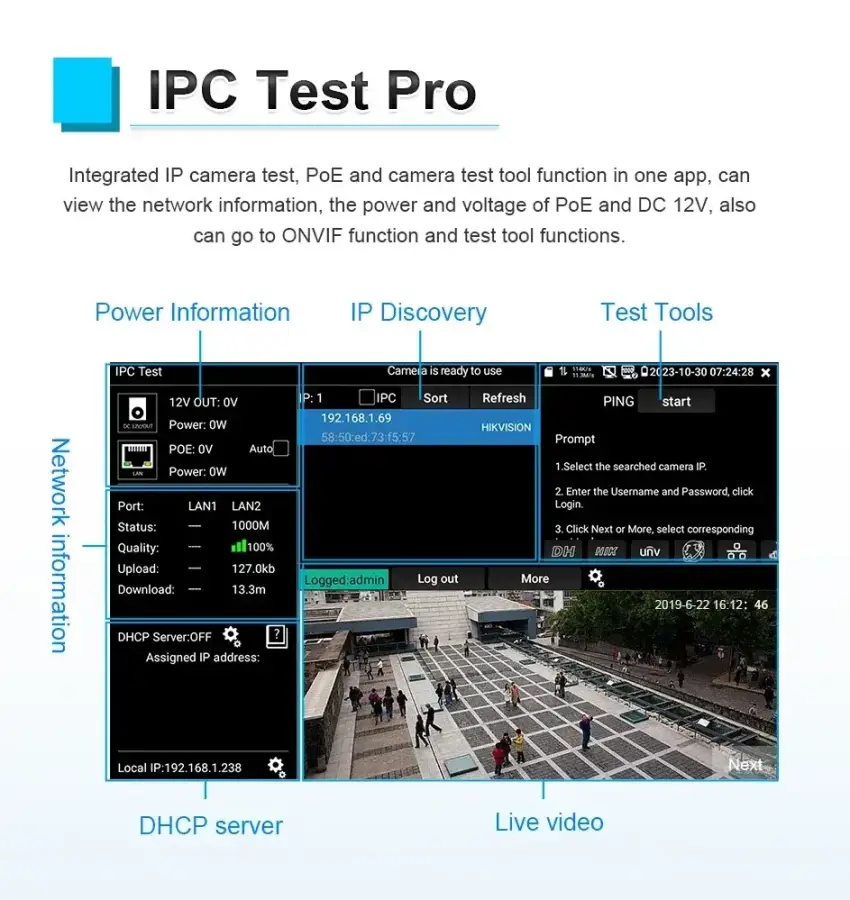

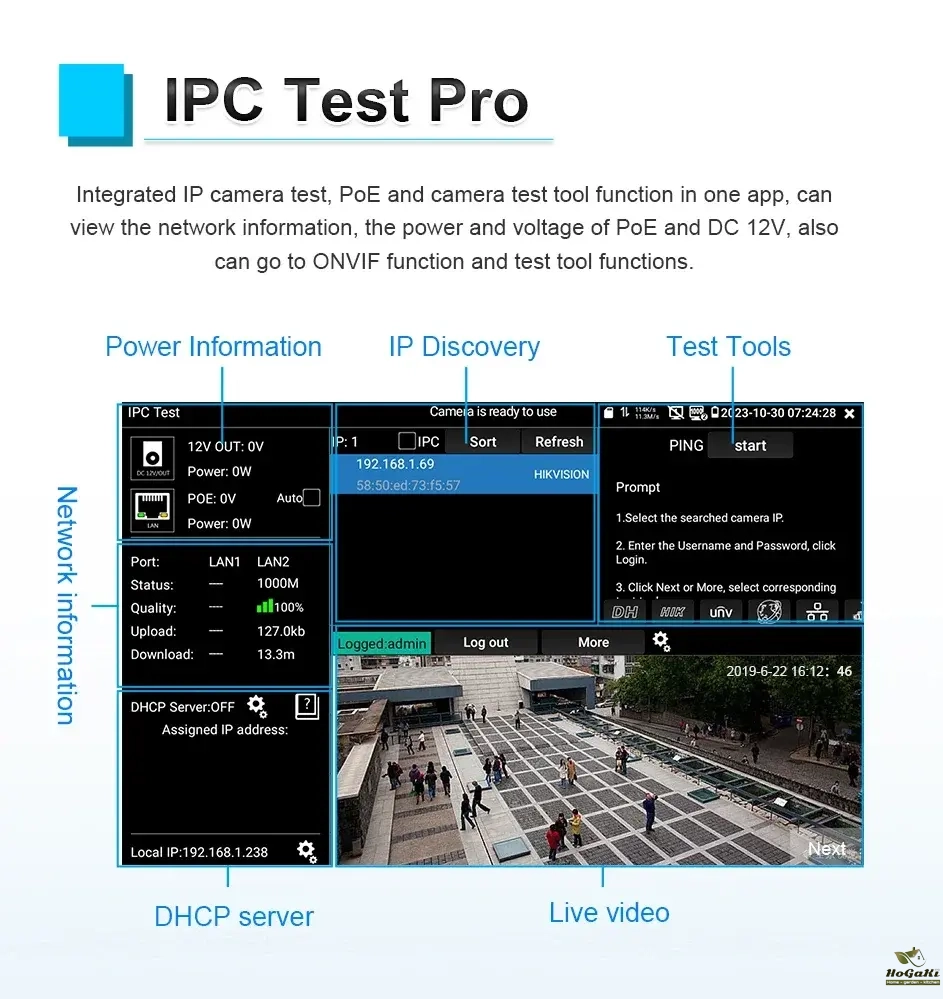

● IPC TEST, HIK test tool, DH test tool

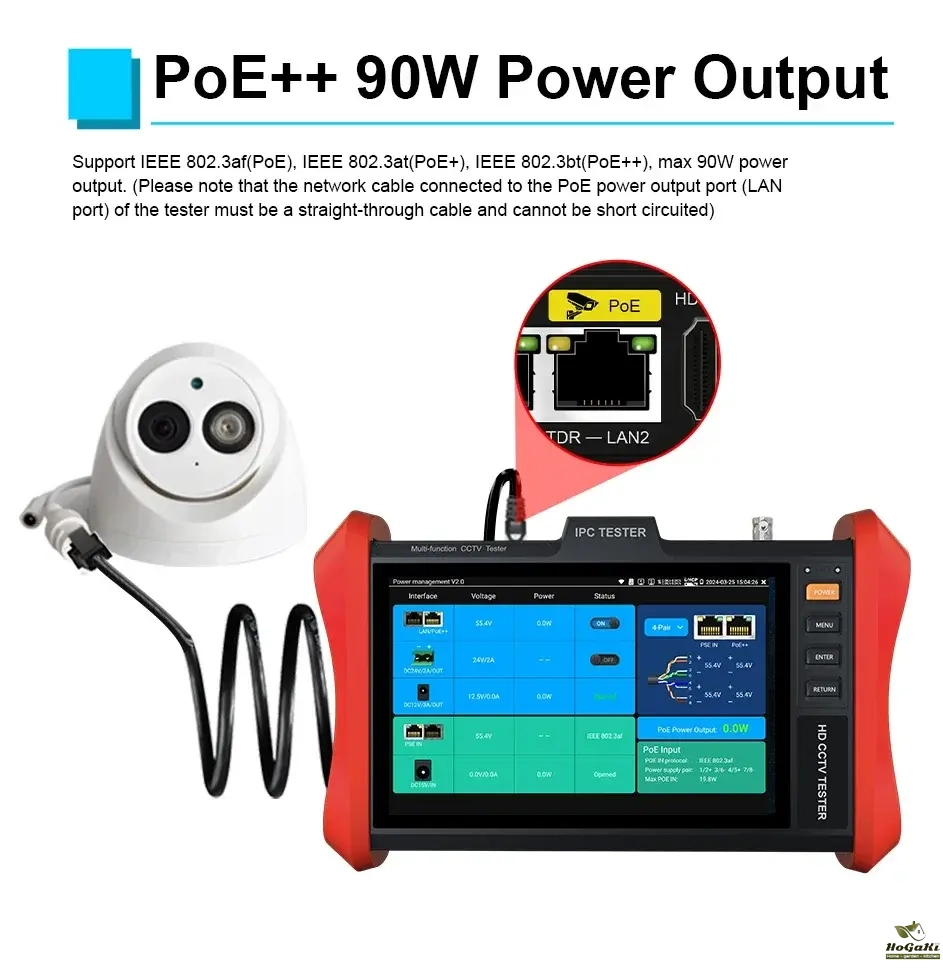

● PoE++90W power output, support IEEE 802.3af(PoE), IEEE 802.3at(PoE+), IEEE 802.3bt(PoE++)
● DC12V/3A, DC24V 2A power output
● DC5V 2A power output, can connect USB camera, USB and Mouse, as power bank

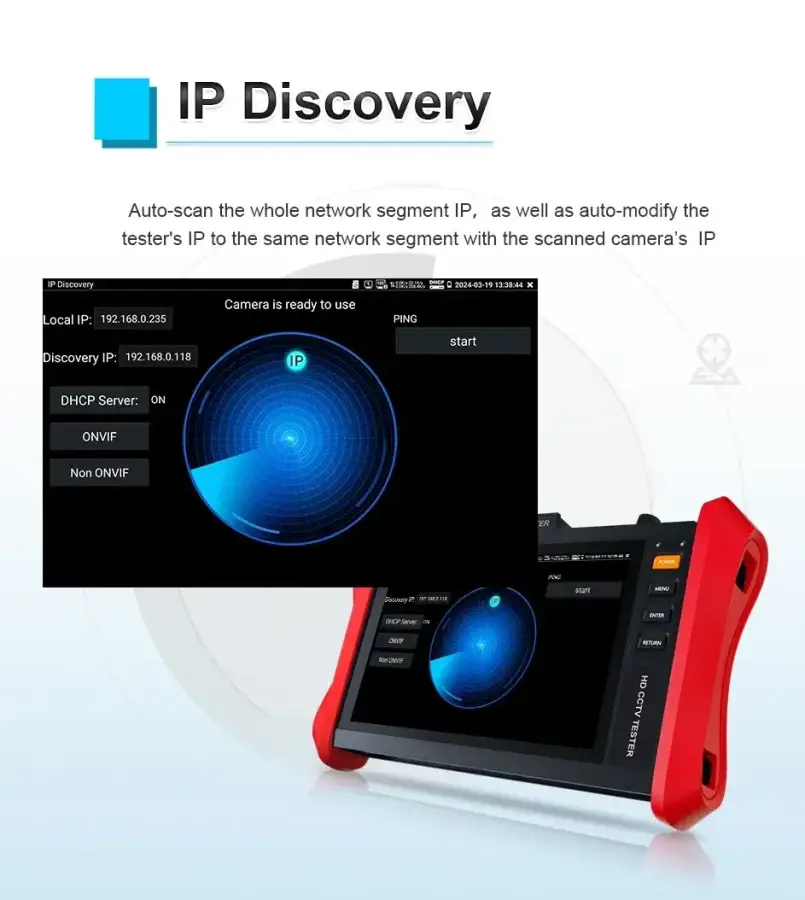

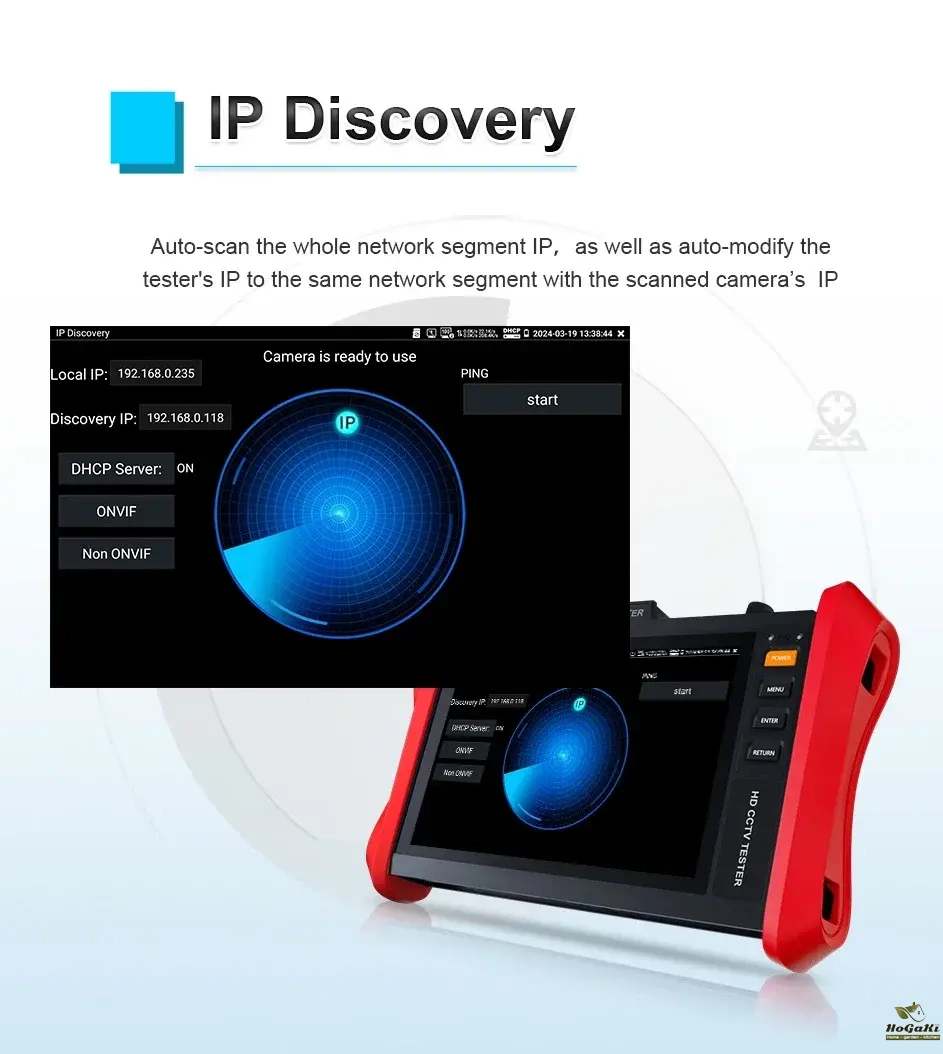

● Rapid video, just by one key to detect all network cameras and auto display
● Built in Wi-Fi Analysis, support 2.4G frequency band, can test Wi-Fi camera, create Wi-Fi hotspot
Cable test:
● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized,and detect near-end, mid-end and far-end fault test of RJ45 cable plug
● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
Other functions:
● TesterPlay, support remote control and voice intercom

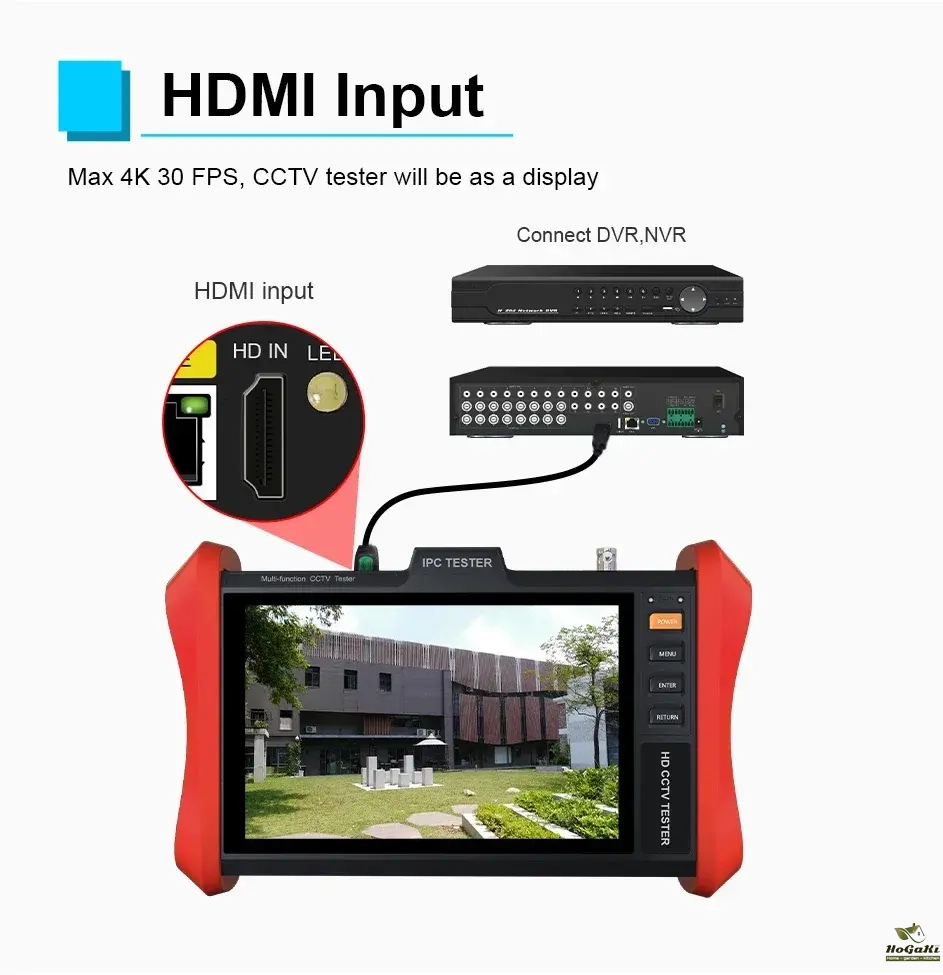

● HDMI Input support 4K 30FPS

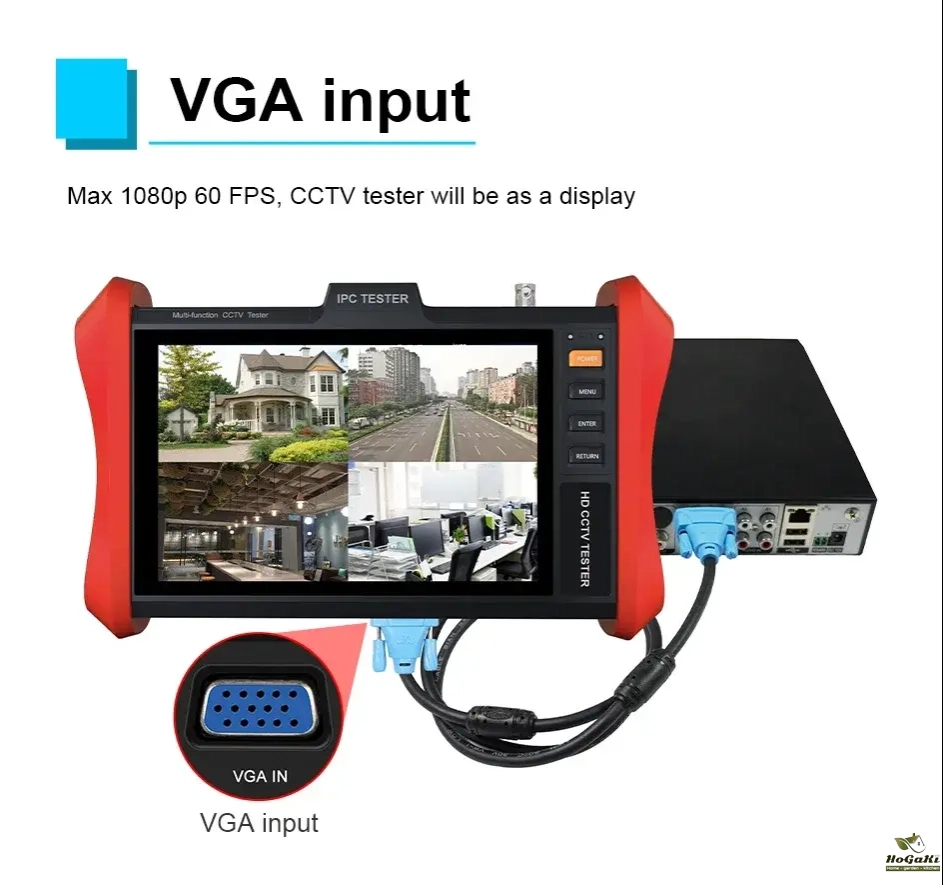

● 2K 60FPS VGA input
● Professional WIFI Analyzer, detect the surrounding wifi signal and signal strength
● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
● Tester Play: Tester, android version mobile phone and PC display at the same time
● Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc
● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
● Self-update software, you can install apps with android version
● Media player, 4K video files and MKV/MP4 media files play
● Quick office, quick office app (support excel, word, ppt format) doc. editable
● Display its genuine resolution of the IP camera images
● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
● 11.1V/5200mAh Lithium Ion Battery, after 3.5 hours charging, working time lasts 11 hours
Packaging Details
- Unit Type:
- Package Weight: 2.500
- Package Size: 22x15x35
- Brand Name: TahLiTech
- Lens: 2.8mm
- Origin: Mainland China
- Hign-concerned Chemical: None
- Sensor Size: 1/4 INCH
- Maximum IR Distance(m): 10-20m
- Model Number: E89
- Certification: CE
- Sensor Size: 1/3 inch
