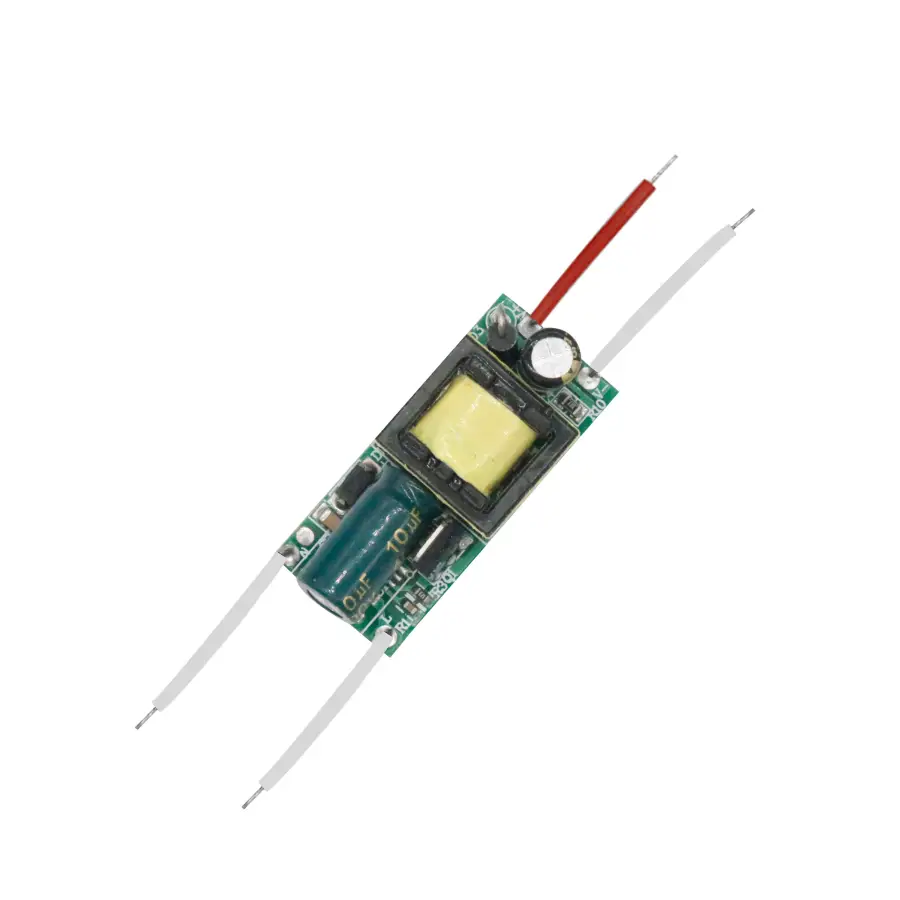

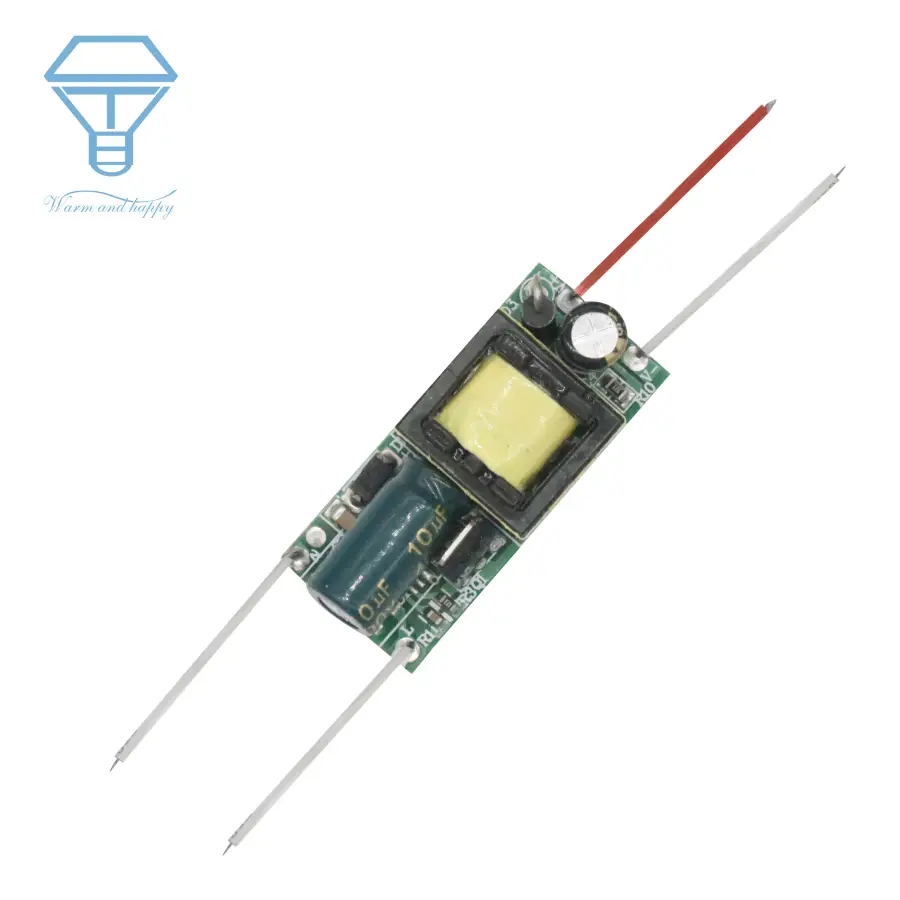

8-12W LED Driver 260-280mA For LEDs Automatic Voltage Power Supply Lighting Transformers For LED COB Spotlight Fix Bulb Lamp
4.8 (185 votes) | 324 orders
Price:
US $10.82
Discount Price:
US $
9.95
-8%
Isolated Driver

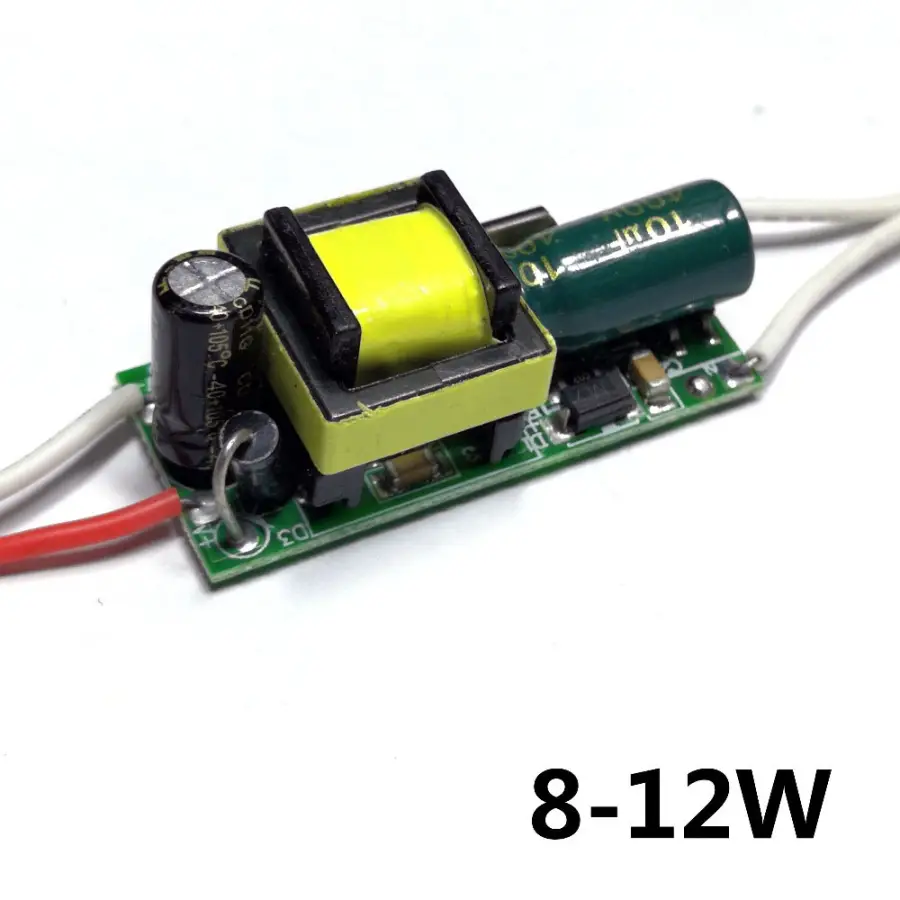

8-12W LED Drive（Use 2 years）
Input Voltage : 100-260V
Output Voltage : 20-44V
Output Current : 260-280mA
Size : 40*18*15mm
Note：
Use For LED COB Lamp Bead
series and parallel circuit:
2parallel And 7series-2B8C-2B9C-2B10C-2B11C--2B12C
Advantage ：

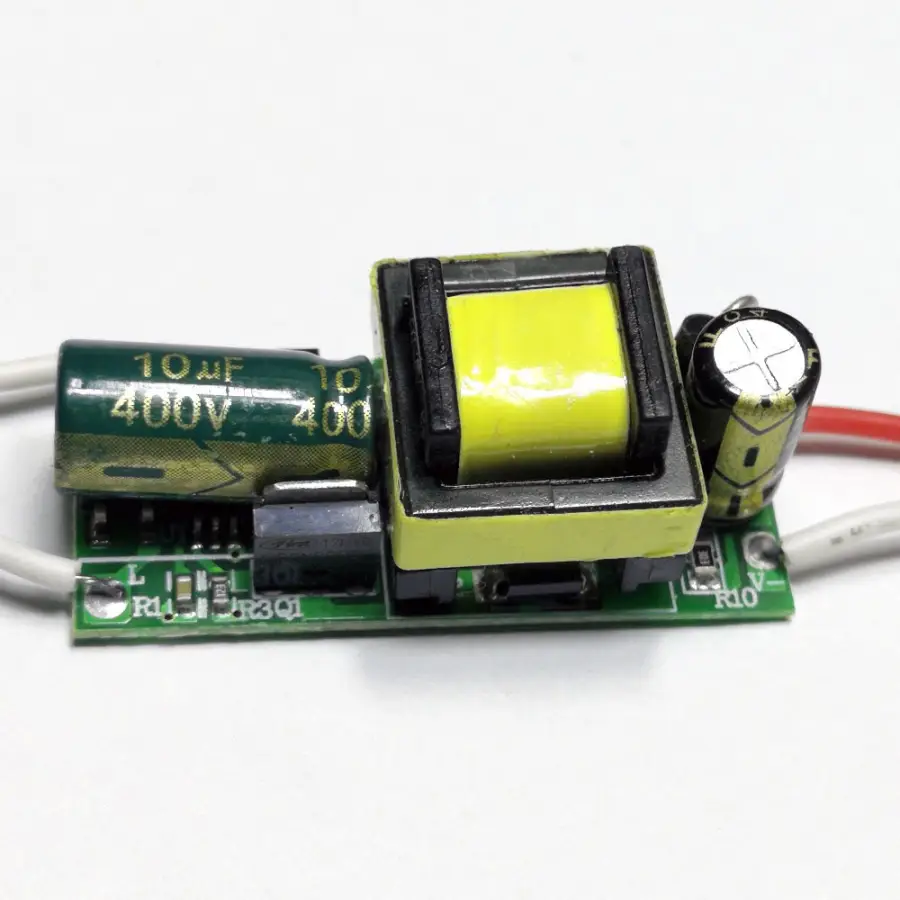

1-Transformer
Bold copper wire, PC44 core
Power is sufficient and temperature is low.
2-Chip
Adopting the first-line brand IC-Aishi
High quality intelligent constant current
Overvoltage protection, overload protection,
overheat protection, short circuit protection
No flicker
3-Electrolytic Capacitor
High frequency low resistance capacitor
Life expectancy 10,000 hours
If the temperature is kept below 65 degrees, the life is up to 30,000 hours.
4-Processing Technology
All use mechanized patches, efficient and stable. Eliminate manual soldering and lead to poor contact of electronic components.

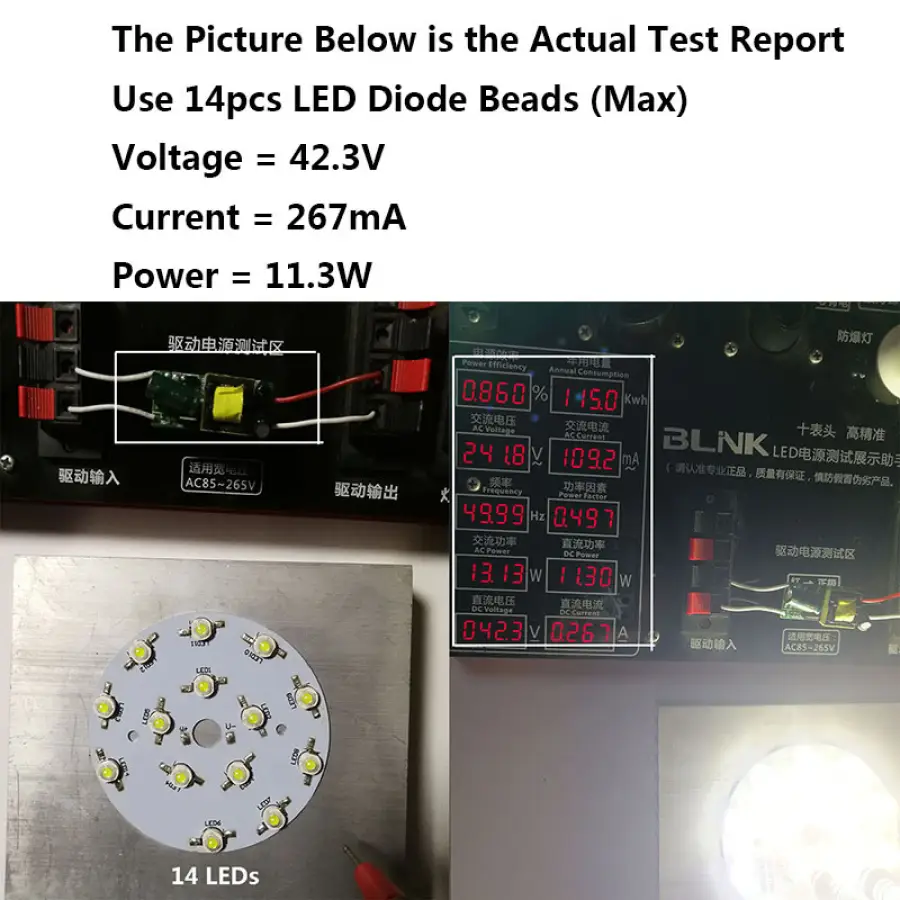

This Picture Below is the Actual Test Report
Use 14pcs LED Diode Beads (Max)
Voltage = 42.3V
Current = 267mA
Power =11.3W
Packaging Details
- Unit Type:
- Package Weight: 0.010
- Package Size: 10x3x10
- Brand Name: warm and happy
- Hign-concerned Chemical: None
- Origin: Mainland China
- Output Signal: DC
- Output Voltage: 20-44V
- Material: Plastic Alloy
- Plug Type: None
- Certification: CCC
- Certification: ce
- Certification: ROHS
- Certification: VDE
- Features: Isdated driver
- Input Signal: AC
- Input Voltage: 100V-265V
- Item Type: Lighting Transformers
- Warranty: 2 Years
- Weight: 10
- Model Number: 1231
- Output Current: 260-280mA
- Power: 8W/9W/10W/11W/12W
- Input Voltage: 100V-265V
- Output Voltage: 20-44V
- Parallel and Series Circuit:: 2parallel And 7series-2p8s-2p9s-2p10s-2p11s--2p12s
