7 Lamp 614 mm LED Backlight Strip For Sharp LC-32LB261U LC-32LD170E LC-32LD171K LC-32L0171K LC-32LB480U Bar Kit TV LED Line Band
5.0 (1 votes)
Price:
US $74.77 - 308.83
/ 3 Pieces
Discount Price:
US $
64.42 -
240.43
/ 3 Pieces
-14%
- Ships From

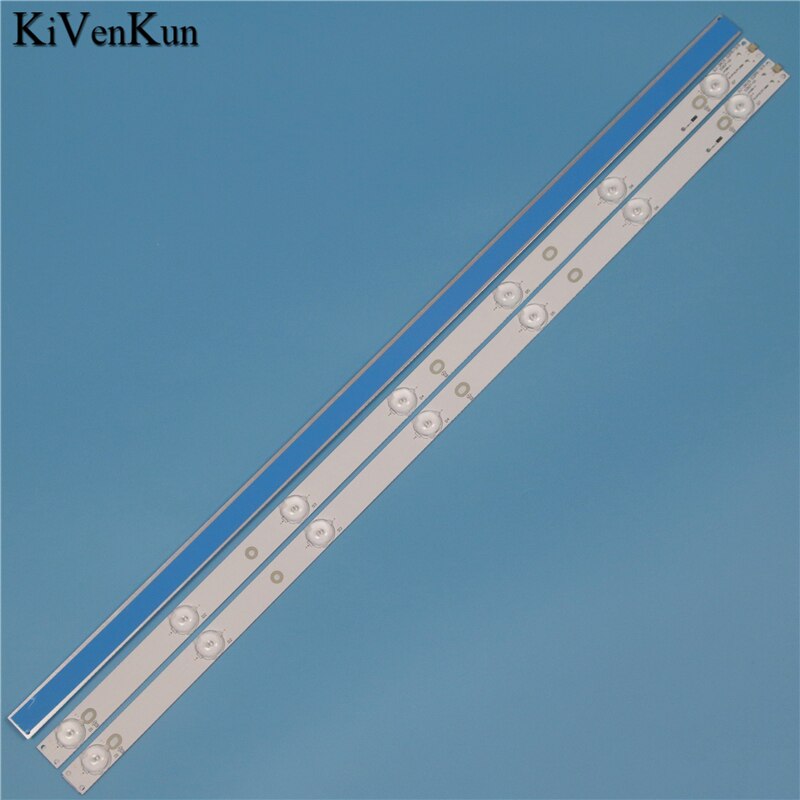

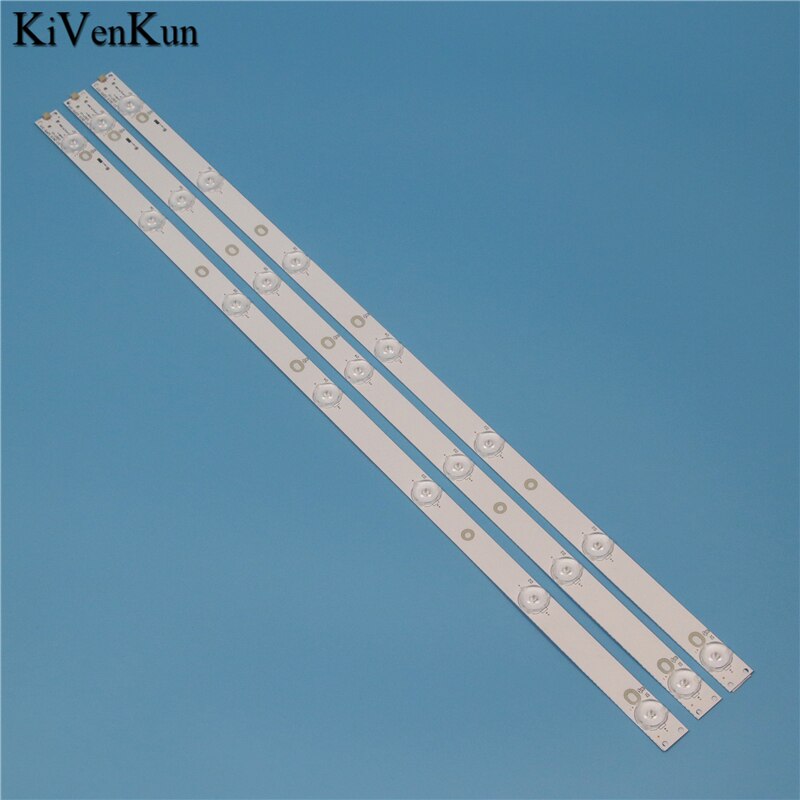

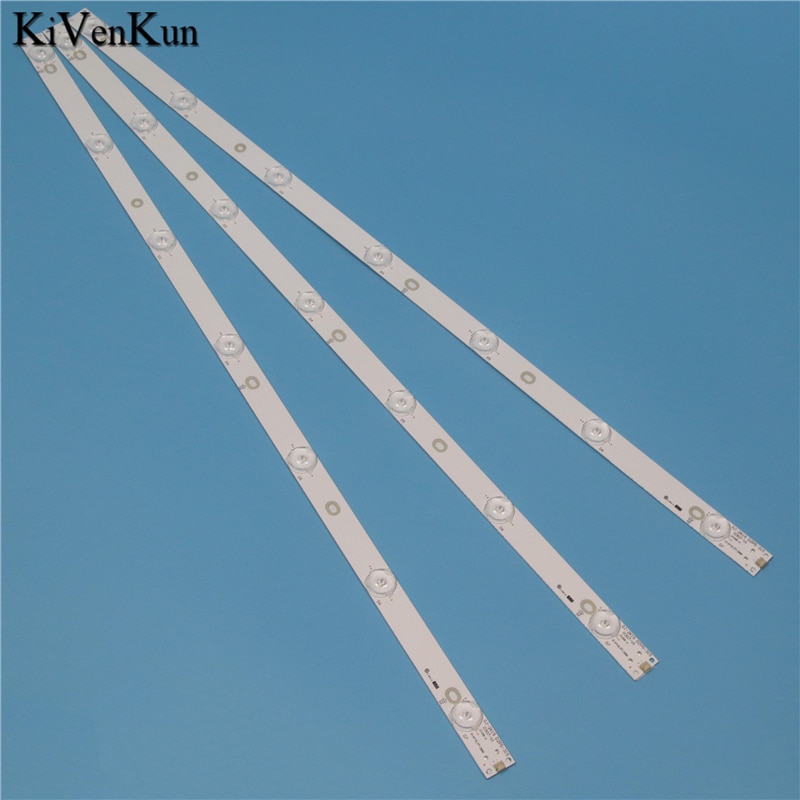

7 Lamp 614 mm LED Backlight Strip For Sharp LC-32LB261U LC-32LD170E LC-32LD171K LC-32L0171K LC-32LB480U Bar Kit TV LED Line Band
This backlight strip is factory-customized and its interface shape and voltage are identical to the original. We offer a 90-day warranty.
Make it easier to install

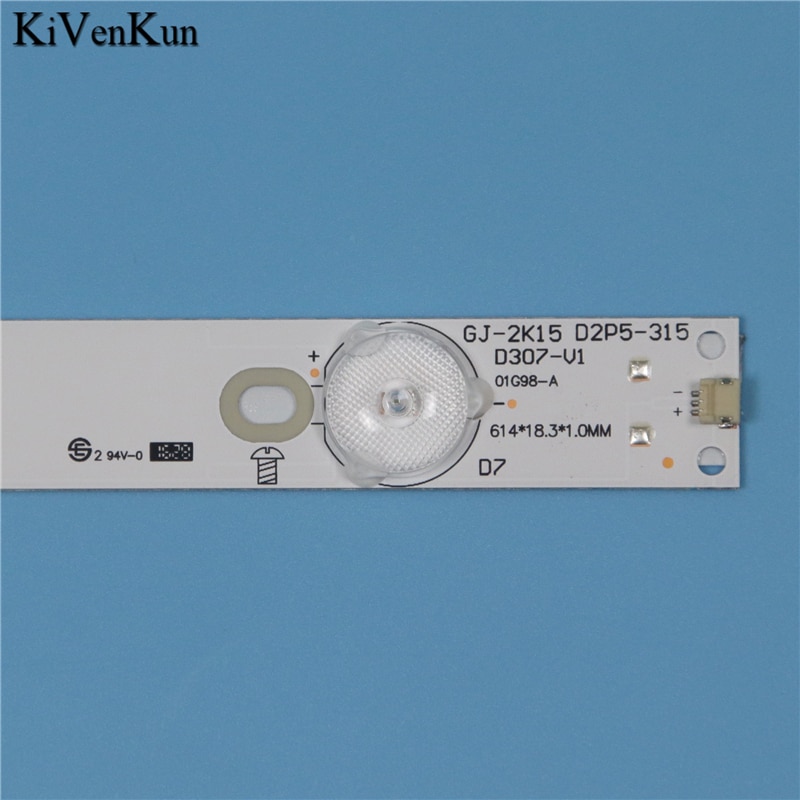

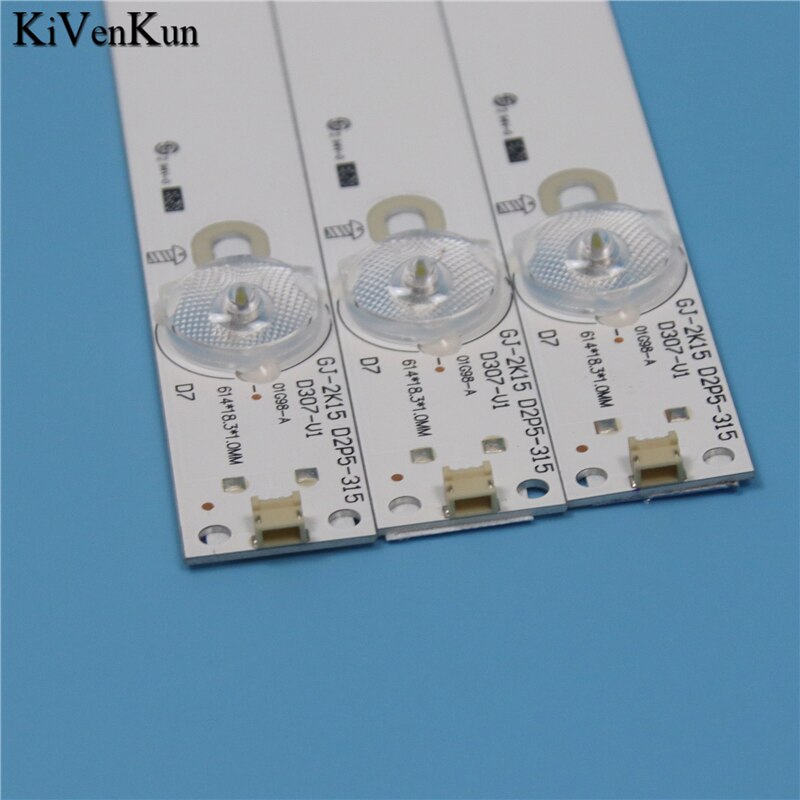

Number on the light bar
If you have already taken apart your TV, we recommend that you compare the numbers on the light bar with what we have provided, and if they are consistent, you could purchase it. If inconsistent, you could get help by contacting us. Because the same light bar may have different Strip number:
LBM320P0701-FC-2
GJ-2K15 D2P5-315 D307-V1
GJ-D2P5 2K15-315 D307-V3
GJ-2K16 GJ-DLEDII P5-315 D307-V6
GJ-DLEDII P5-315 D307-V7
GJ-D2P5 2K15-315 D307-V3
GJ-2K15 D2P5-315, D307-V1.1 (17.8mm) 614MM*17.8mm*1.0mm
GJ-2K15 D2P5-315 D307 AJV2-V1
Applicable TV model
If you haven't opened your TV yet, you could compare your TV model to the TV model we offer. If they are the same, you could buy it, if you can't find your TV model, you could get help by contacting us. But we recommend that you compare the code of backlight strip, it will be more accurate.
The following are the TV models for which the backlight bar is applicable
LC-32LB261U HNXE6Y
LC-32LD170E
LC-32LD171K
LC-32L0171K
LC-32LB480U
LC-32LB481U
Backlight strip production information
1.Consistent with the original, Brand New, no need to modify it, easy to install
2.Long operating life, typically lasting over 100,000 hours
3.Brightness is consistent with the original, brightness up to 700 nits
4.Product length:
614 mm( length) * 18.3mm (width) * 1.0 mm (height) , 7 LED Lamps
5.Voltage: 0-94V
Packaging and logistics
1. Package: PVC Plastic pipe (it will be safer during transportation)
2. Product contains: 3 pice / Set,
3. Logistics information could be tracked, Shipping takes approximately 10-14 days.
Precautions
1.Because the product will be upgraded, there would may be a little difference between the picture and the goods that you received. But we promise the connector and function will the same as our description.
2.the price is for the set, in order to avoid the color difference of the display after replacement (because the brightness of the old Backlight Lamp strip will be reduced), we recommend that you purchase a complete set.
3.We recommend that lowering your TV's "brightness" or "backlight" setting by 20-25% before installation to reduce risk of repeat failure.
4.Please do not sign the goods if the package is damaged.
5.In order to avoid your loss, please contact us if you have problems during the installation process or other problems with the goods.
Service and FAQs
Q1: What are the common symptoms of LED Backlight failure?
A1: Symptoms can include but are not limited to: Sound but no picture, Faint image on the screen (can be seen with a torch) , Flashing / pulsating screen, Flashing standby light, Tripping, Dark / light patches on screen and/or Rings on screen. Other parts within the tv can cause similar faults but these are the common ones we see.
It is advised to get your TV diagnosed properly by a trained professional before ordering any parts. Power supplies can also cause a no backlight fault!
Q2: How do I test my LED Bars?
A2: D.C. voltage can be used to test most LED strips on the test points. Alternatively, we stock a specially designed LED tester which requires no electronics experience to use
Q3: What should I do if my product is not suitable for my monitor / TV?
A3: We could resend the correct product to you if it is caused by our mistakes. However, you need to pay attention to whether your model is the same as the model for this product. We recommend that you contact us if you are not sure if the product is suitable for your monitor. As long as the part has not been fitted, we accept returns. Return postage will be at the buyers cost
Q4: Do you offer trade discount?
A4：Yes, please contact us about trade benifits
Q5: What should I do if the goods are damaged during the warranty period?
A5: In the case of non-human damage, we would send you new parts for free. If it is caused by human reasons, we are not responsible for the warranty, but we could offer you a discount if you are willing to buy again.
- Model Number: LBM320P0701-FC-2 GJ-2K15 D2P5-315 D307-V1 D307-V1.1
- Origin: Mainland China
- Goods status: Brand New, consistent with the original

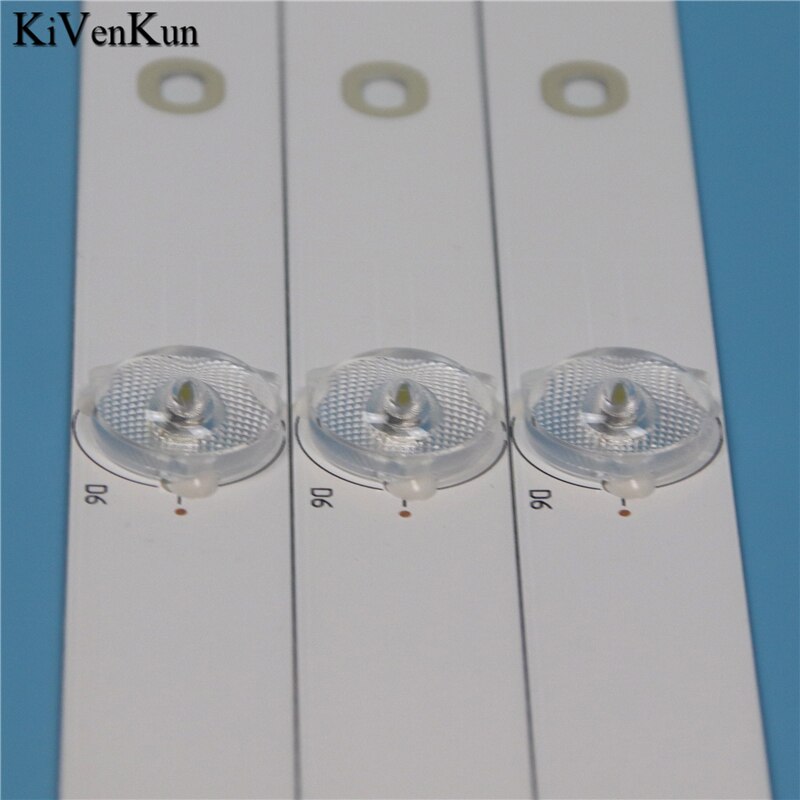

- Material: Aluminum circuit board , high quality LED lamp bead, HD lens
- Applicable TV brand ans Size: For Sharp 32 inch TV
- LC-32LB261U: LC-32LD170E
- LC-32LD171K: LC-32L0171K
- LC-32LB480U: LC-32LB481U
- GJ-2K15 D2P5-315 D307-V1: GJ-2K15 D2P5-315, D307-V1.1 614MM*17.8mm*1.0mm
