6V 12V 24V 28V 3A 80W DC Motor Speed Controller PWM Speed Adjustable Reversible Control Potentiometer Switch 1203BB Motor Driver
4.8 (136 votes) | 800 orders
Price:
US $10.98
Discount Price:
US $
10.61
-3%

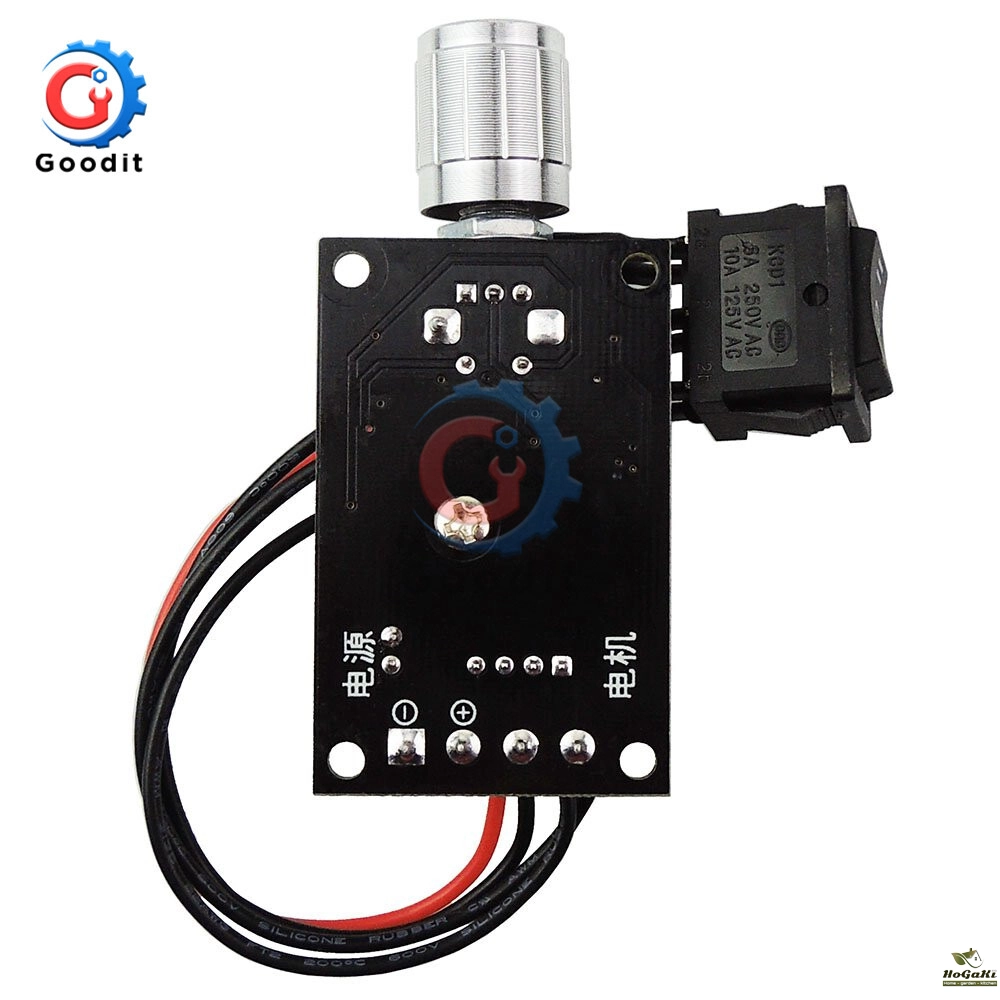

6V 12V 24V 28V 3A 80W DC Motor Speed Controller PWM Speed Adjustable Reversible Control Potentiometer Switch 1203BB Motor Driver
Description:

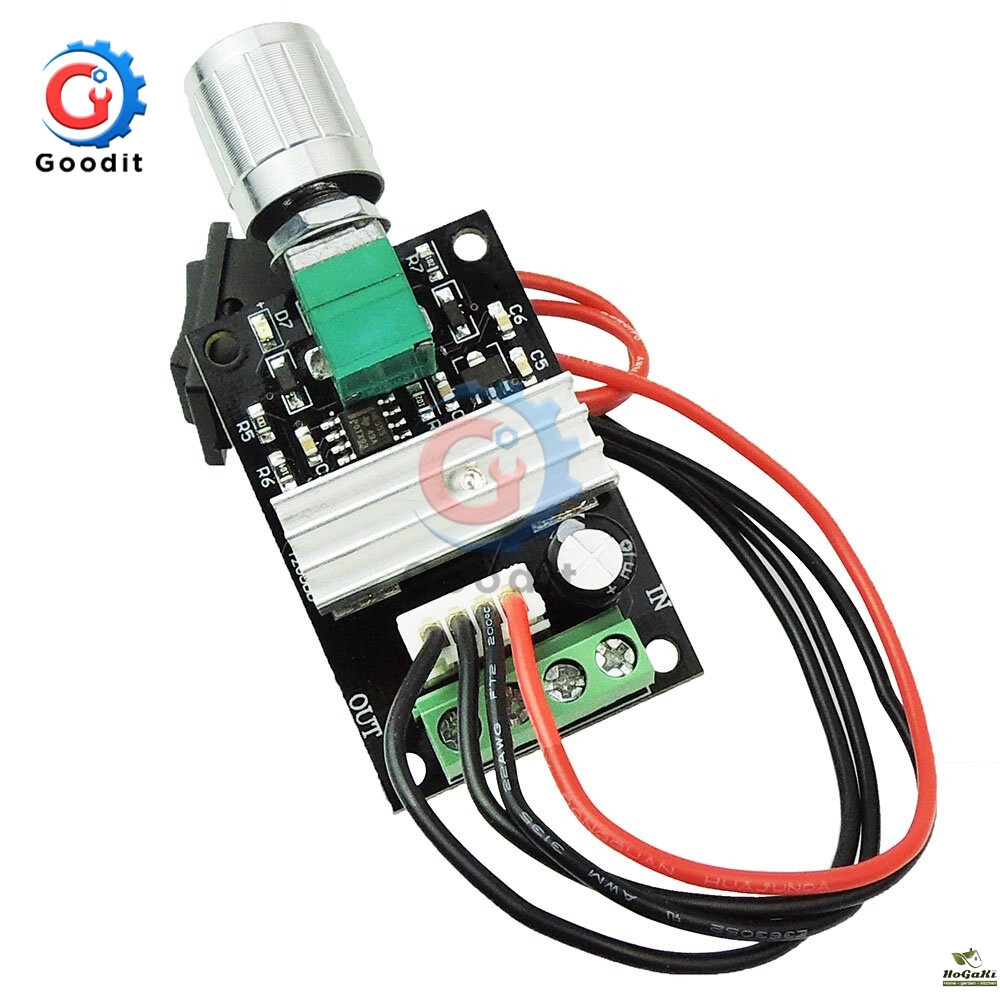

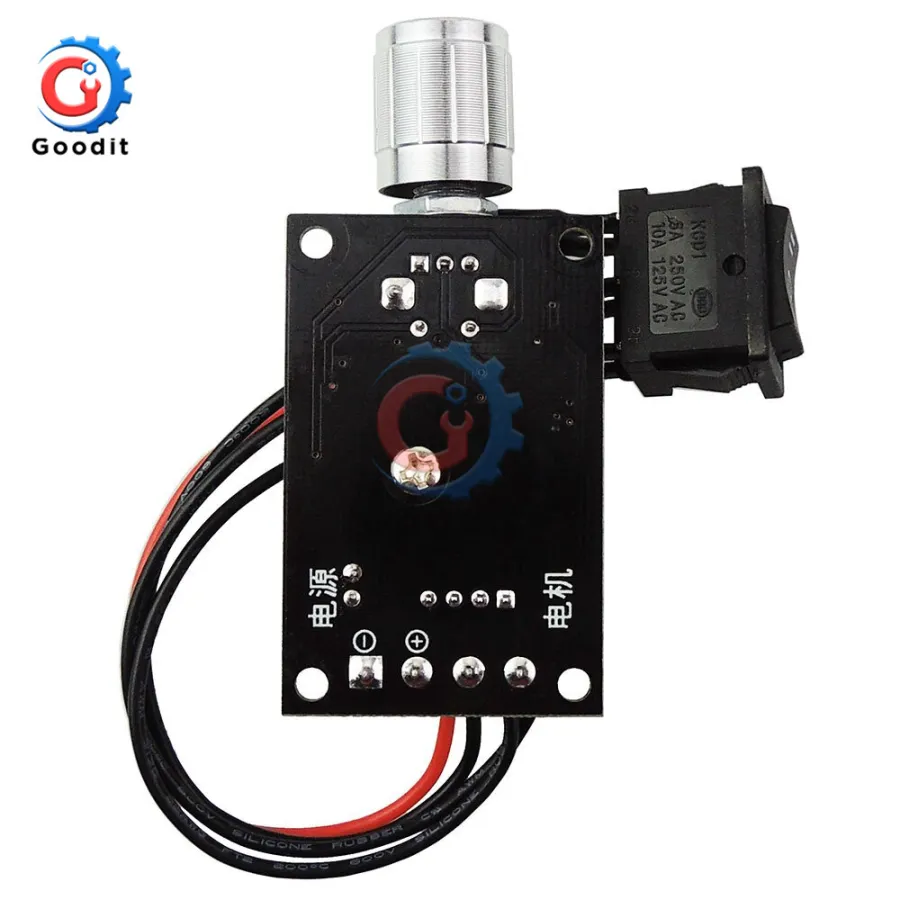

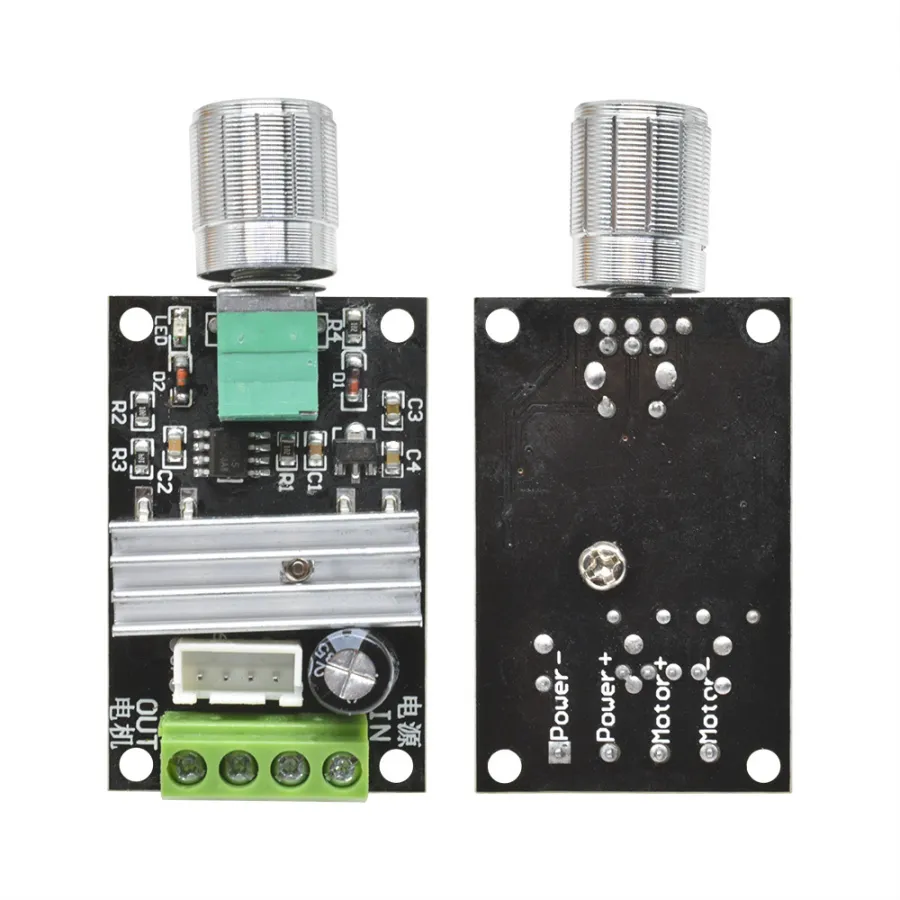

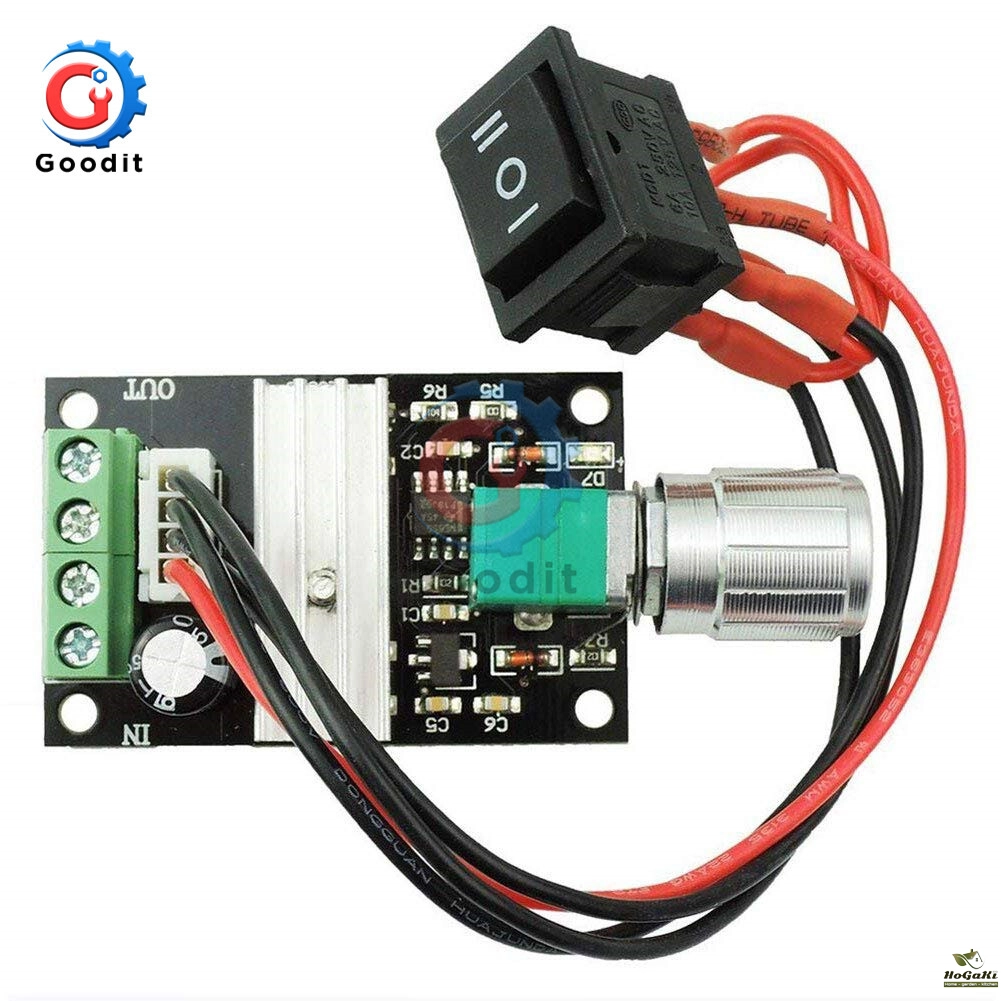

The 1203BB DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM). It provides a continuous current of 3A to your DC motor or other DC load. Besides, the circuit also includes a 3A fuse, with reverse connection of power supply and control the forward or reverse direction and the stop of DC motor by switch.
Specifications:
- Color: As the pictures show.
- Material: Metal.

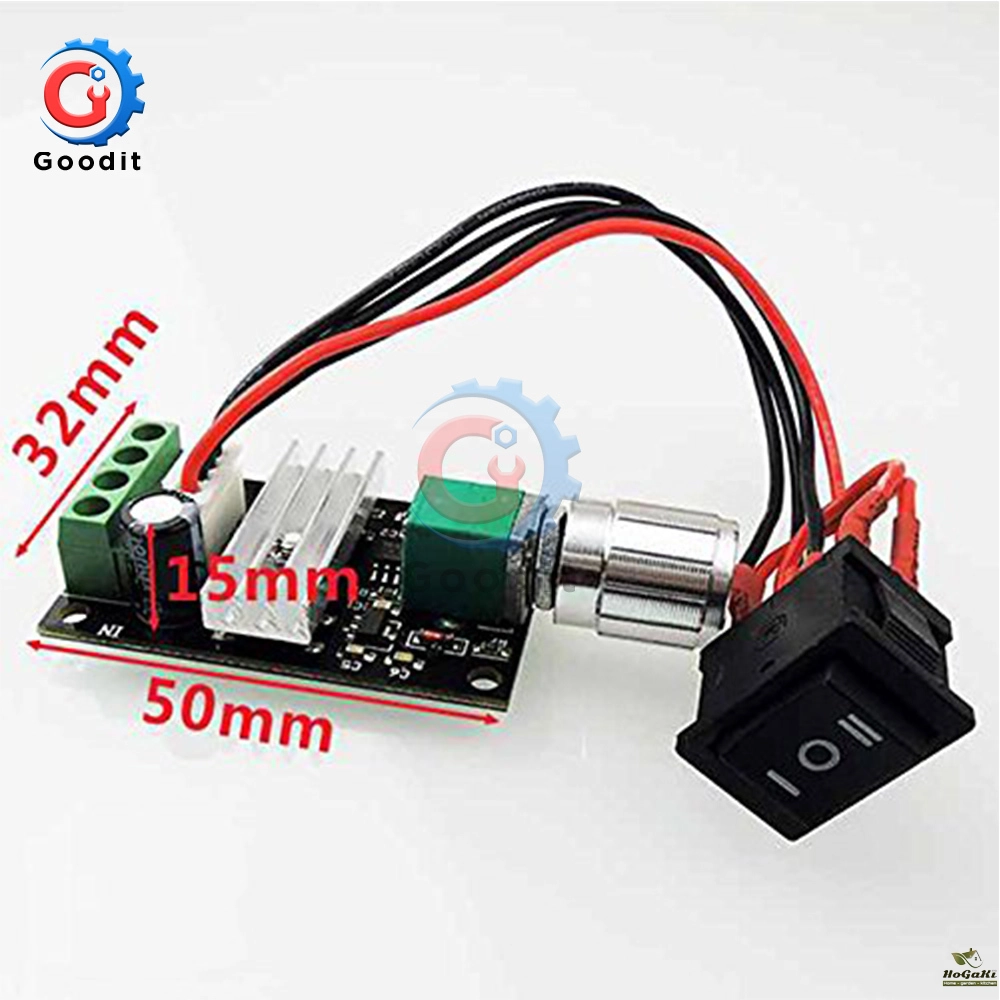

- Size: 5 * 3.2 * 1.5cm.
- The input power range is DC6-28V.

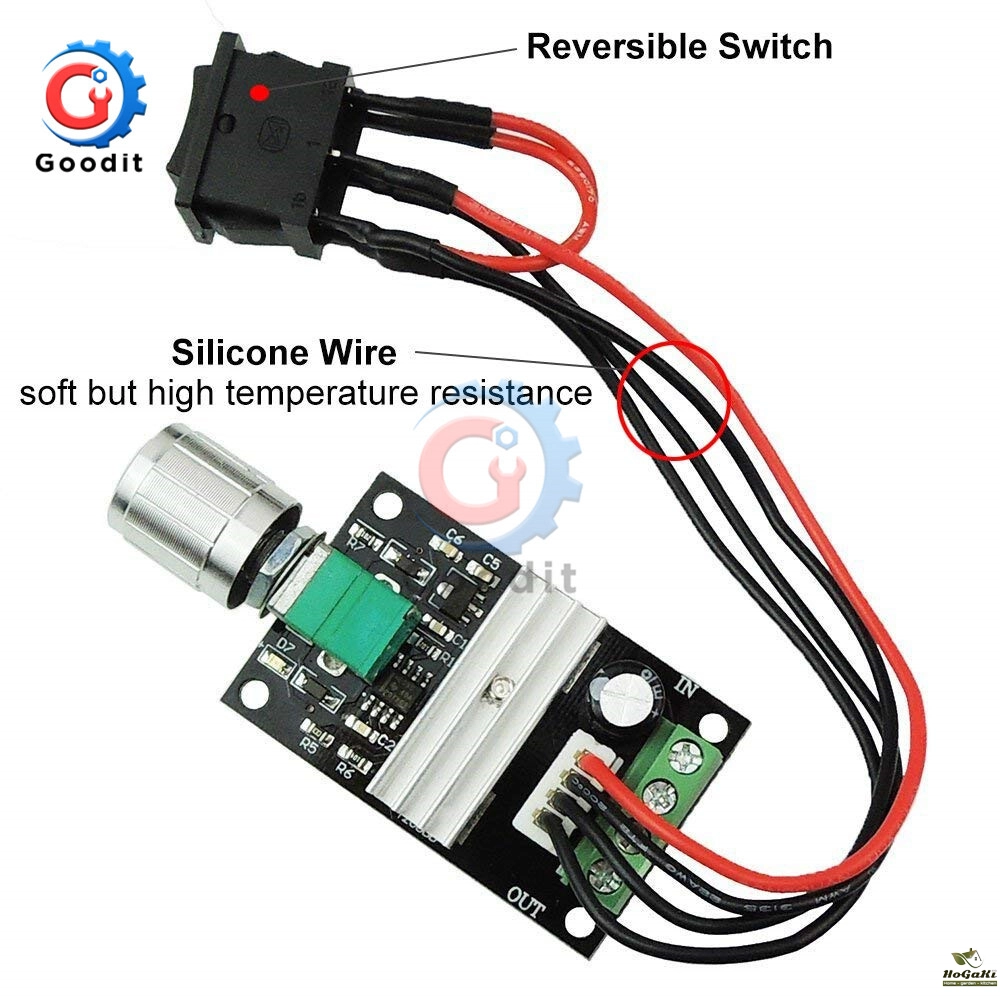

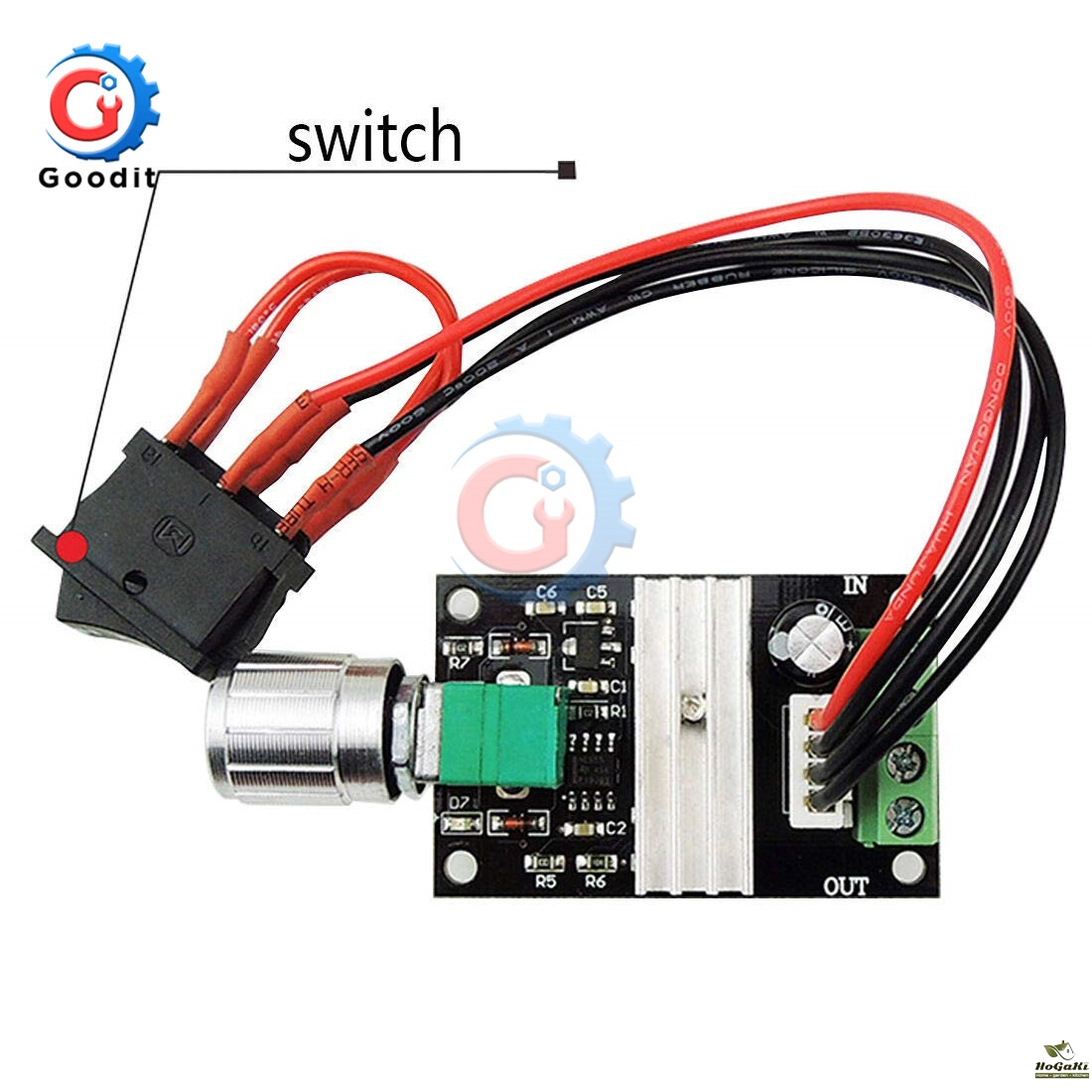

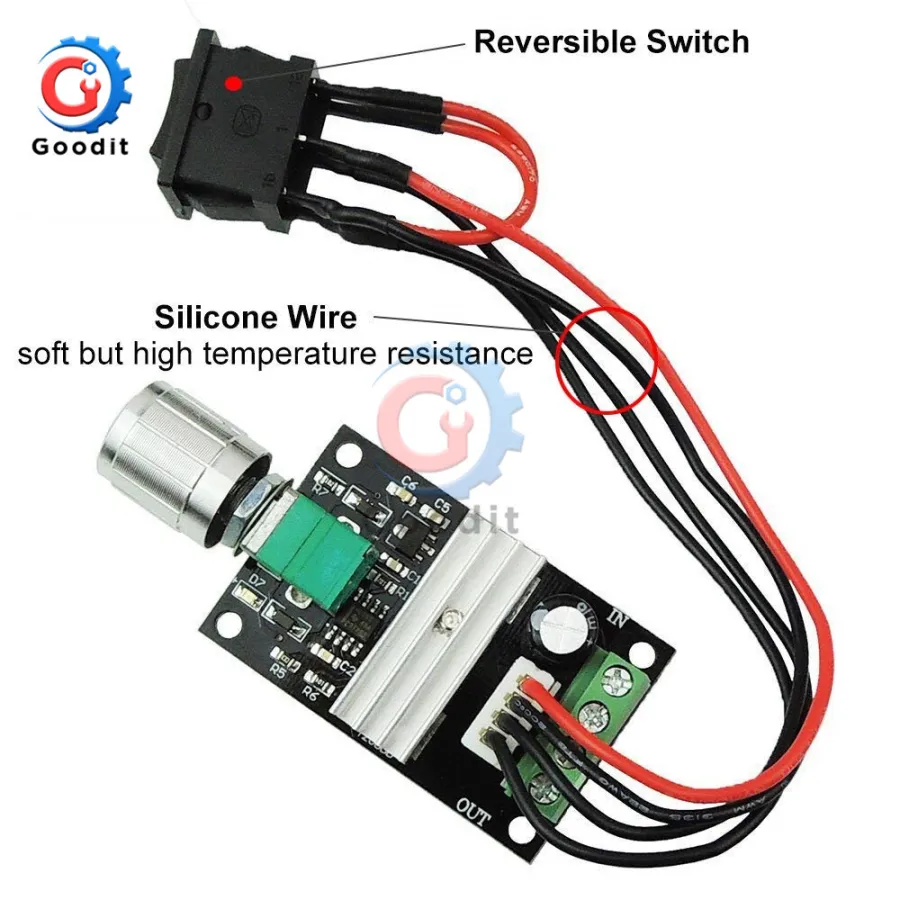

- Control the forward or reverse direction and the stop of DC motor by switch.
- Potentiometer with switch function.
- The switch cable length 15cm.
Operating instruction:
Before you attempting to wire the controller, make sure that the power is off.
1. Connect wires refer to the wiring diagram.
2. Turn on the power, and adjust the potentiometer.
3. The LED indicates the power up and the speed of motor.
Warning: Do not reverse positive and negative power loads. This will damage the controller!
Package included:
1 x 1203BB 6V 12V 24V 3A 80W DC Motor Speed Controller (PWM) Adjustable Reversible Motor Driver Switch
Packaging Details
- Unit Type:
- Package Weight: 0.048
- Package Size: 10x10x10
- Brand Name: Gaqqee
- Hign-concerned Chemical: None
- Origin: Mainland China
- Motor Type: DC Motor
- Model Number: DC 6V-28V
- Motor: DC Motor
- Certification: CE
- Material: plastic, metal
- Size: 5 * 3.2 * 1.5cm
- Input voltage: DC6V-28V
- feature: Speed control
- Supply Voltage: 6V 12V 24V
- Rated current: 3A
- Features 1: Speed regulation
- Features 2: Forward and reverse
- Choice: yes
- semi_Choice: yes
