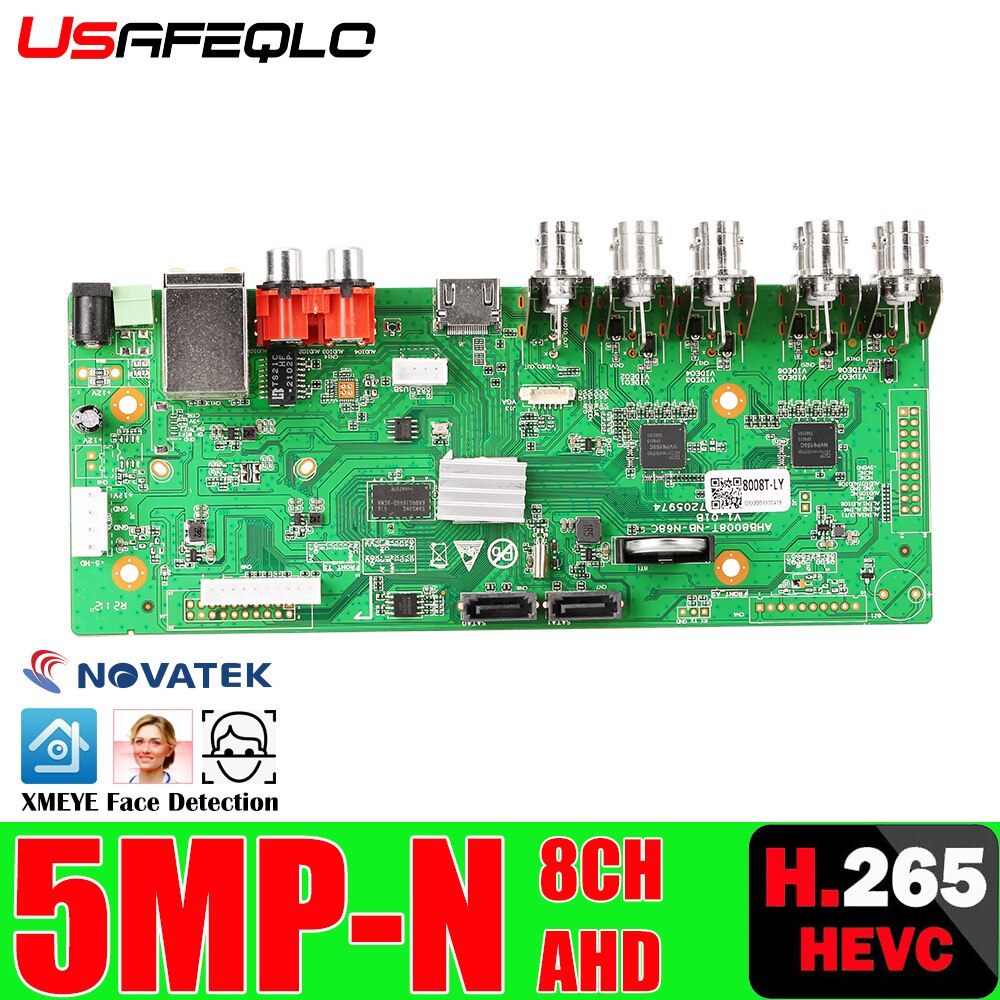

6 in 1 H.265+ 8ch 5MP-N AHD DVR Board for AHD 5MP 4MP 1080P 720P Camera Save Big RAM HDD Xmeye CCTV DVR Board AHD DVR
4.9 (43 votes) | 122 orders
Price:
US $125.76
/ piece
Discount Price:
US $
58.73
/ piece
-53%

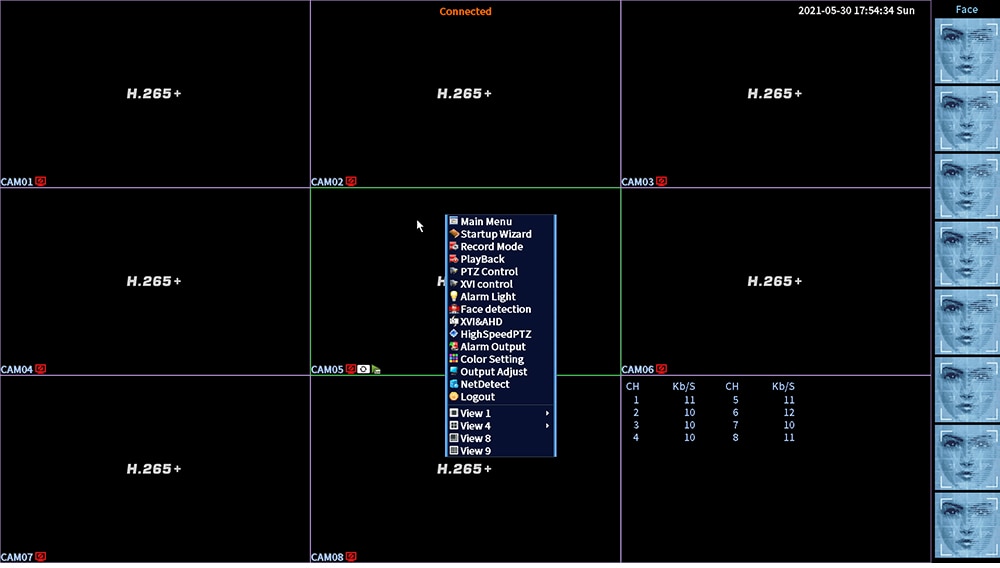

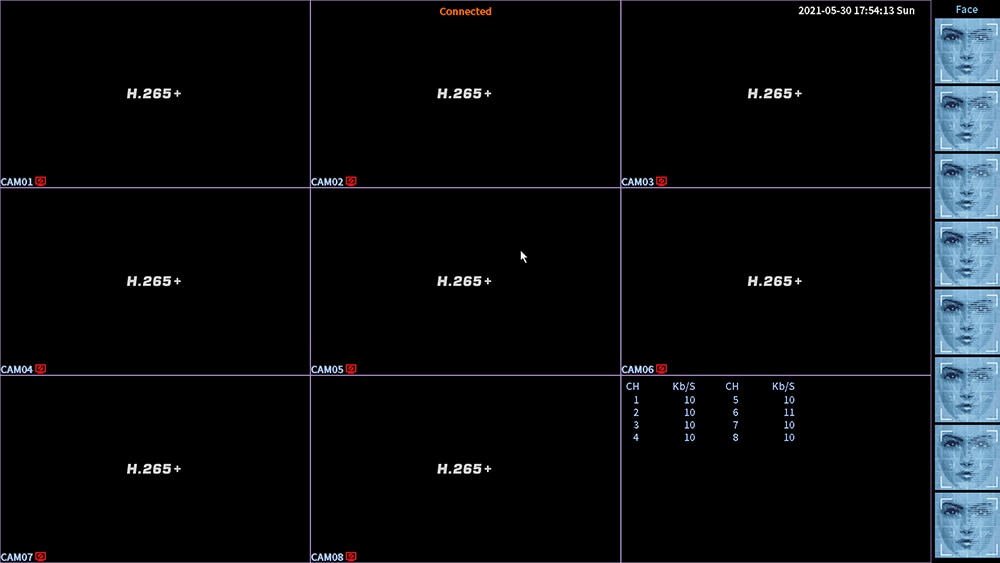

New Function Support Face detection
This function need your camera must be XM face detection AHD camera
The below items can match with this DVR face detection function
Note:
This one have defult output resuliton
No matter use HDMI-Compatible or VGA, Please make sure your monitor have the same resulution
About the HDD:
We only recommend to use the security HDD.
TOSHIBA,Seagate,WD all have security HDD.
If your cameras is buy from other stores, please contact us to make sure they can work together, or we will not accept any dispute because use other brands items on our items.

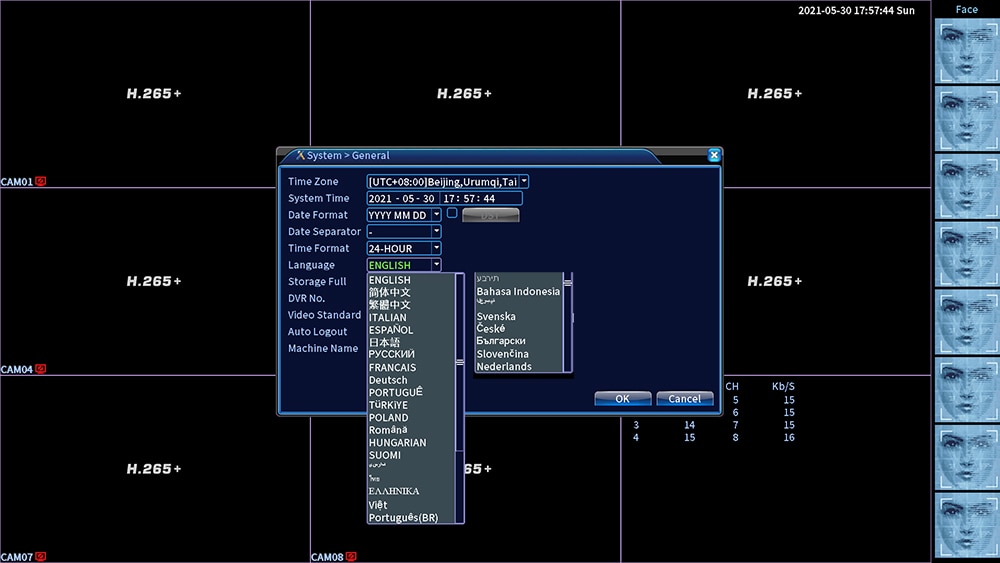

Many languages support
Please make sure include your country language, we will not update firmware to other language
Support PAL and NTSC Mode
Newest H.265 AHD Mode
This is the AHD H.265, not the same as IP H.265,No require for the camera, if your camera is the AHD camera and contact this dvr, it will be H.265 storage, can save around 50% RAM than normal ahd dvr

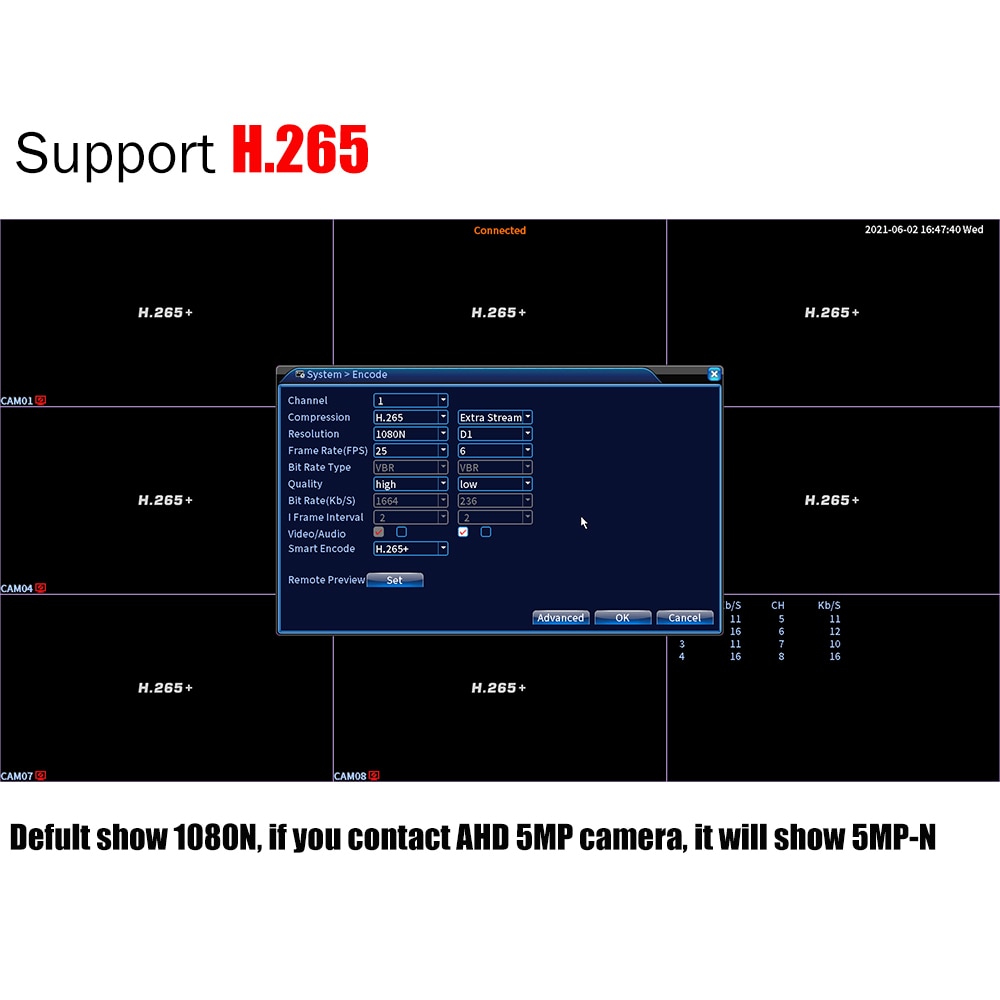

The Encode menu will show only 1080N for defult, you must contact your AHD camera then will have the right information of this camera, for example,if you contact AHD 4mp camera, it will show 4MP-N, not 1080N.

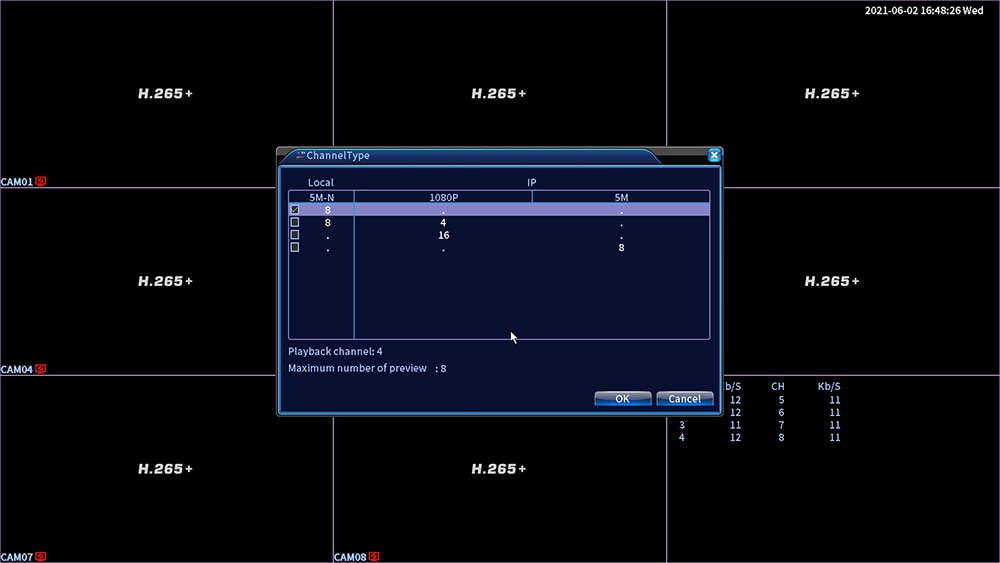

Different Models optional
1: 8CH 5MP-N XVI/AHD/CVI/TVI
2: 8CH 5MP-N XVI/AHD/CVI/TVI+4CH 1080P IP
3: 16CH 1080P IP
4: 8CH 5MP IP
Support 3G Wifi
If you want to know which 3G and Wifi model can support, please ask the seller first.
When you want to use the 3G,Wifi you need do as below (or it will not work):
Step1: take off the power---Step2:contact the 3G or Wifi adapter---Step3:Contact the DVR power
Features:
Ø Support H.265+ encoding, ultra-low bitrates, compatible with H.264 surroundings;
Ø Support VGA, HDMI-Compatible full HD output simultaneously;
Ø Support ONVIF; access third party;
Ø Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
Ø Support web, CMS, center platform management software MYEYE, provide SDK development;
Ø Support various mobile monitoring (iPhone, Android);
Ø Remote Access, With DNS (ARSP),easy to monitor remotely
Ø Support UTC, control signal& video stream transmit through one single coaxial
Ø Support XVI/AHD/TVI/CVI/CVBS/IP six signals;
Ø Support Digital to analog conversion,Instant playback

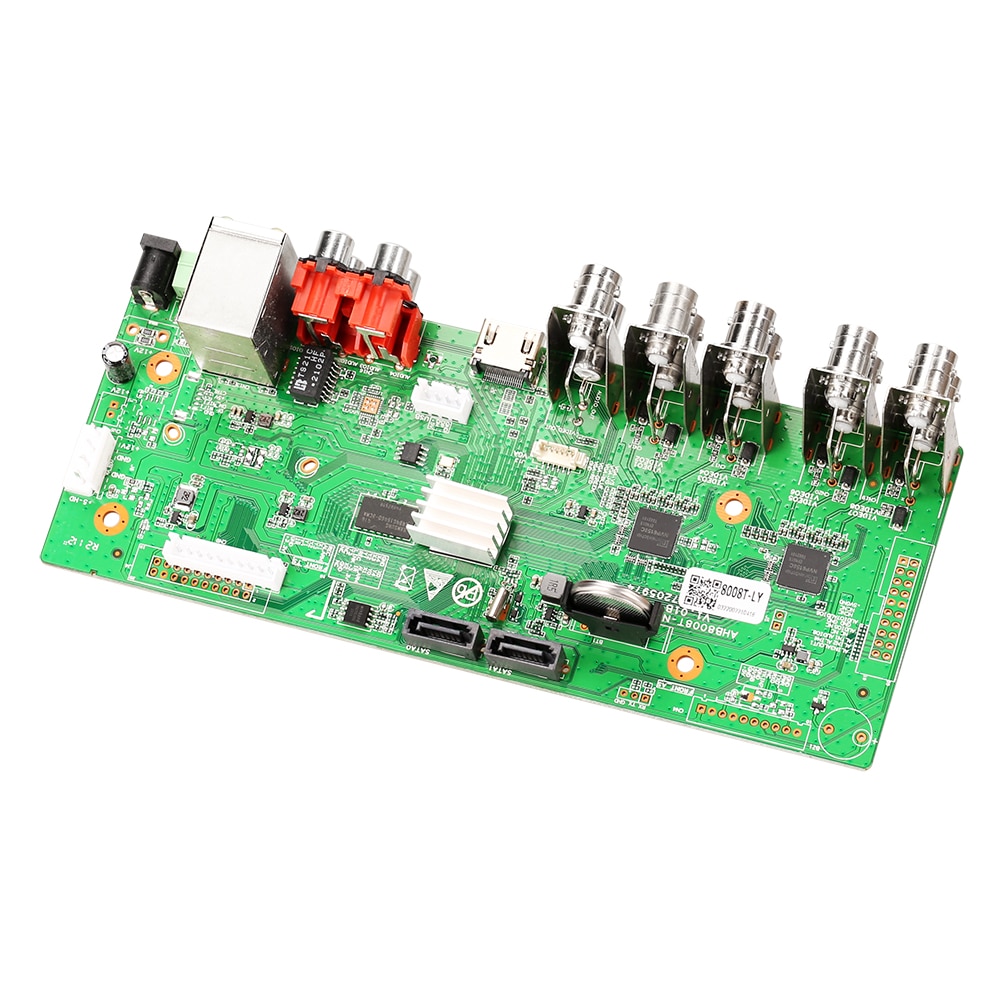

Model | 8008T-LY This PCB Have 485 Connector, but have no 485 Function, if you want RS485 function, should make OEM order to us, 100 pcs or more can add this function. | |
System | Main processor | NOVA |
Interface | Preview | 1/4/8/9 |
Video | Codec | H.265+ |
Monitor quality | VGA(1080P at most);HDMI-Compatible(1080P at most) | |
Preview ability | 8*5M-N@12fps(6 in 1)/ 8*4M-N@15fps(6 in 1)/8*1080P(XVI) Default:5M-N (12FPS means your camera should be 12FPS) | |
Encode ability | 8*5M-N@12fps(6 in 1)/ 8*4M-N@15fps(6 in 1)/8*1080P(XVI) Default:5M-N | |
Decode ability | 8*5M-N@12fps(6 in 1)/ 8*4M-N@15fps(6 in 1)/8*1080P(XVI) Default:5M-N | |
Multi-mode input | Analog:8*5M-N HVR:8*5MP-N+4CH IP1080P Digital to analog conversion: support Network:16*1080P;8*5M | |
Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) | |
Audio | Audio compression | G.711A |
Intercom | support | |
Record & playback | Record mode | manual>alarm>motion detection>timing |

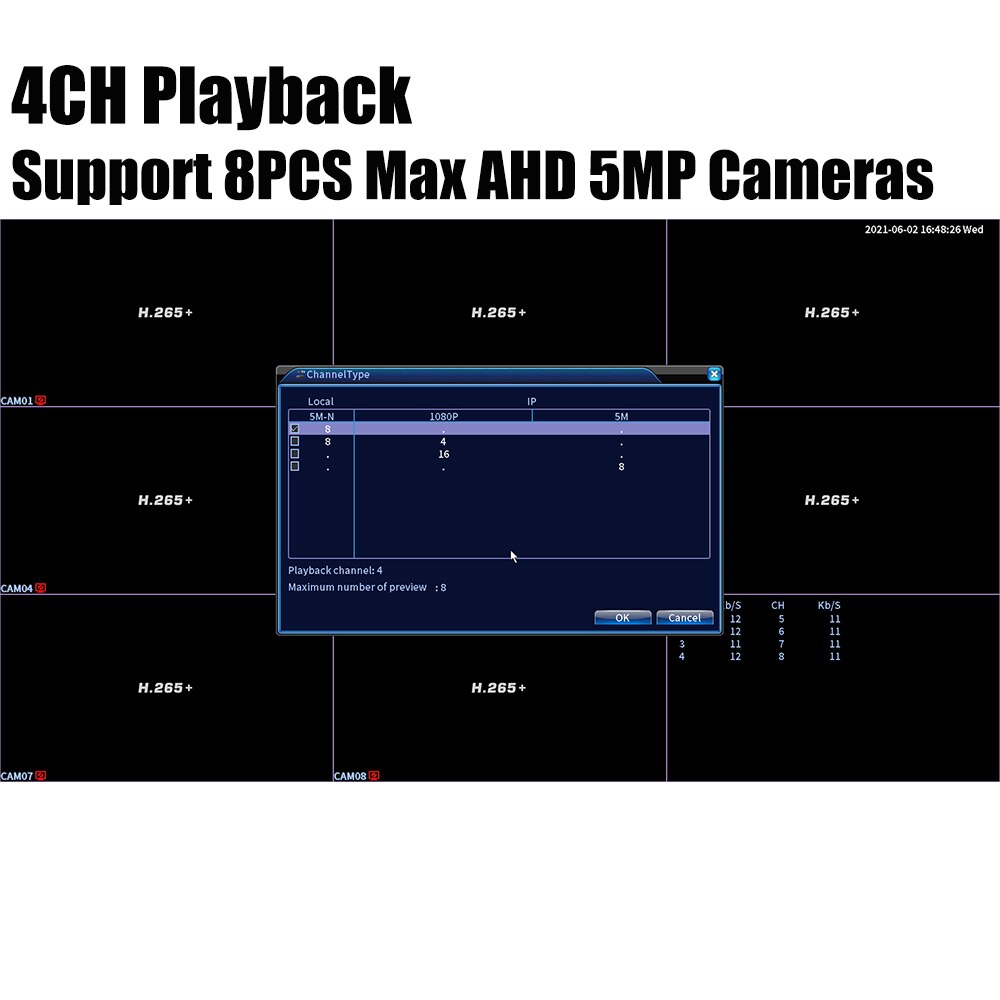

Local Playback | 4ch(analog input mode) | |
Search mode | Search by time, calendar, event, channel | |
Storage & backup | Video storage | HDD, network |
Backup mode | Network, USB hard disk, USB burner, SATA burner | |
External Interface | Video input | 8ch BNC |
Video output | 1ch VGA, 1ch HDMI-Compatible | |
Loop Vout | N/A | |
Audio I/O | 4/1 | |
Alarm I/O | 1/1 | |
Network interface | RJ45 10M/100M self-adaption | |
PTZ control | Not Support | |
USB | 2* USB 2.0 ports | |
HDD | 2*SATA ports (Max 8TB/per) | |
Wireless | 3G, WIFI (extend via USB,need to buy adapter) | |
The power supply is not include,if you use the HDD,please use the 12V4A or more | ||
General | Power supply | 12V/4A |
Power Consumption | <15W (without HDD) | |
Working environment | Temperature:0℃-+55℃,Humidity:10%-90%,Atm:86kpa-106kpa |

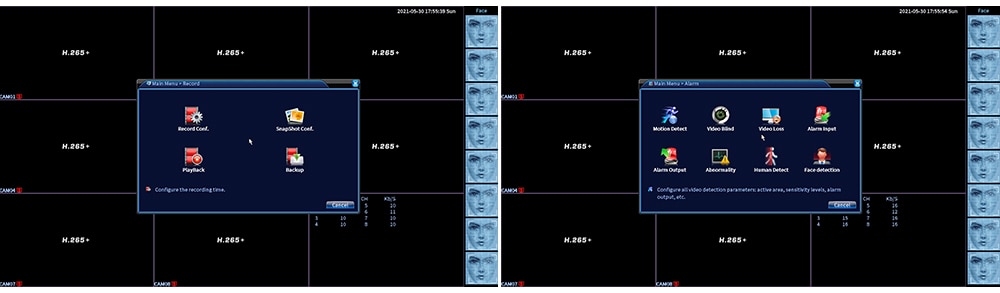

Item menu style
How to receive the parcel without problem ?
When the item dispatch to your place, the first need to check weather have Severely deformed, if yes, You can take some photos and reject the parcel.
Then send the photos to us, we will help you make full refund first, then if you need, you can make a new order to us.
All the International mail allow receiver to check the parcel before receive it.
Shipping
Orders prcessed timely after the payment vrification within 1-3days, we only ship to confirmed order addresses.
If you do not receive your shipment within Delivery protection time, please contact us at firstly.
Warranty&Returns
12 months Manufacturer's limited Warranty for defective items (excluding temns damaged and/or misused after recelpt).
Defective items must be reported and returned within the warranty period.
Feedback
We maintainhigh standards of excellence and strive for 100% customer satisfaction! Feedback is very imporant.
Please contact us before you give us neutral or negative feedback, so that we can address your concerns satisfactorily.
- DVR Power Supply: DC12V
- e-Cloud(P2P): YES
- Two-way Audio: No
- Alarm Action: Email Photo,Local Alarm
- Backup Type: Hard Drive
- Supported Operating Systems: Microsoft Windows 98,Microsoft Windows 2000,Microsoft Windows XP,Microsoft Windows 7,Mac OS
- Supported Mobile Systems: iPhone OS,Android,Windows Mobile
- IP Mode: Static IP address
- Wireless Security: WEP
- Network Protocol: SMTP
- Communication Interface: NONE
- Network Interface: RJ45 10/100M
- Hard Drive Size: 3.5''
- Hard drive Interface Type: SATA
- Video Adjustment: Auto White Balance
- Audio Output: 1CH RCA
- Video Resolution: 5mp
- Video Standard: PAL
- Audio Compression Format: G711A
- Audio Input: 4 Channel
- Video Input Interface: BNC (1.0 Vp-p, 75Ω)
- Compression Format: H.265,H.264
- HDD Capacity: None
- Technology: Analog,AHD,HDCVI,HDTVI,Network
- Model Number: 8008T-LY
- Brand Name: USAFEQLO
- Origin: Mainland China
- Smart home platform: Xmeye
- Certification: NONE
- Encode capacity: 5MP-N
- Video output: 1ch VGA, 1ch HDMI-Compatible
- HDD Connector: 2 SATA ports(each max to 8TB)
- USB: 2* USB 2.0
- Power supply: 12V4A(not include)
- CMS: Support
- Support Camera: AHD/Analog camera
- Email photo: Send message to email, not photo
- HVR: AHD/CVI/TVI/CVBS/IP/XVI
