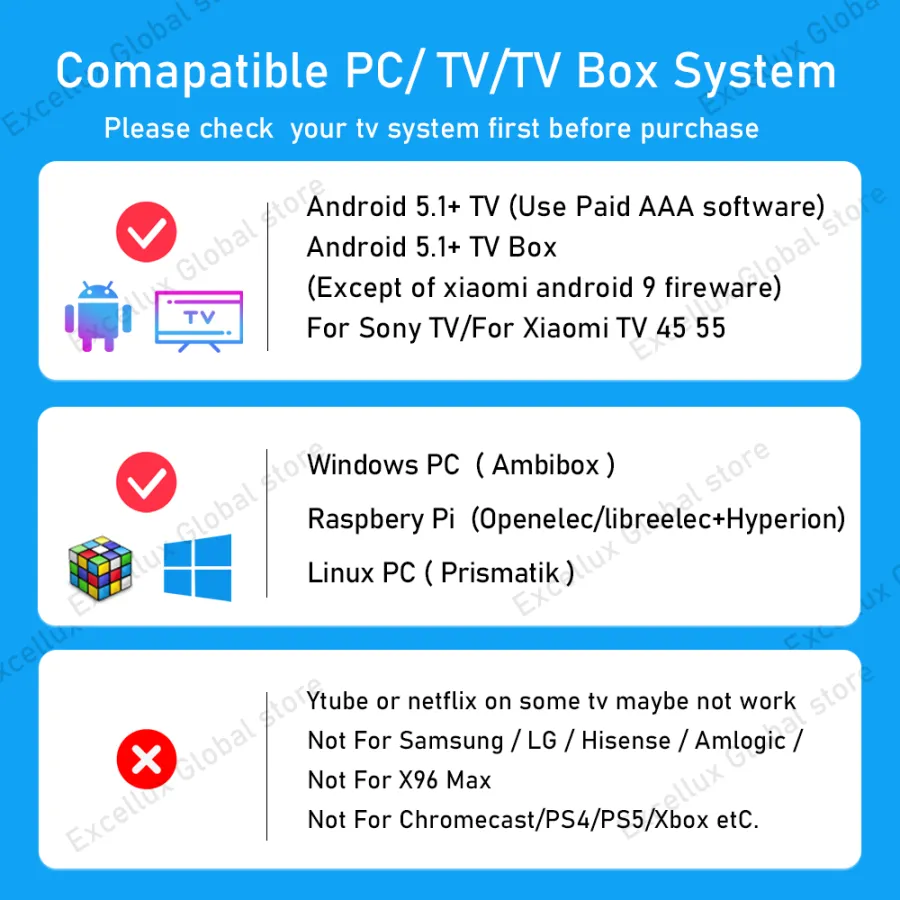

(1)Windows: use Ambibox or Prismatik

Download link:https://drive.google.com/file/d/1aR1z_wcBfGw2ixTBYI01CshD_q8RMxxc/view?usp=sharing

(2)Android system TV/TV boxs (Android 5.1+ version):not work forAndroid 9 Xiaomi firmwares' ;

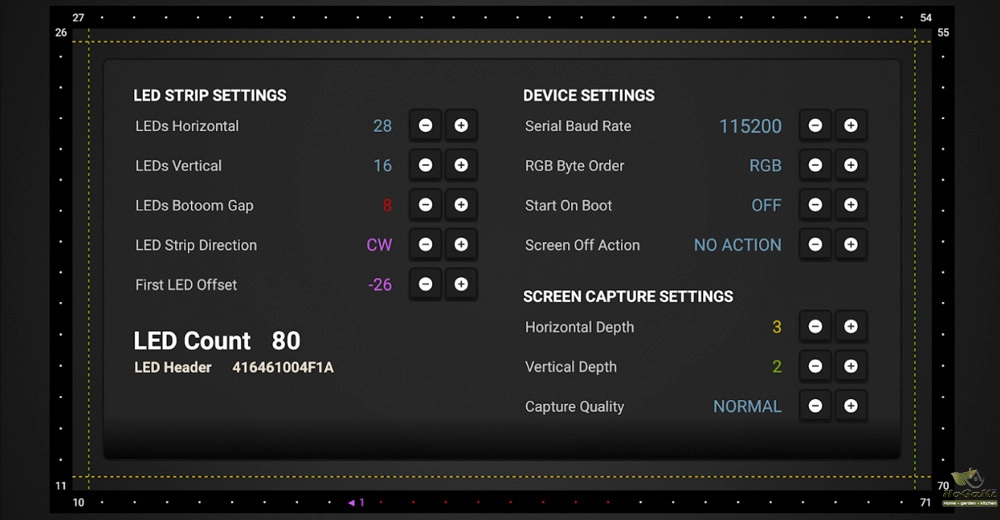

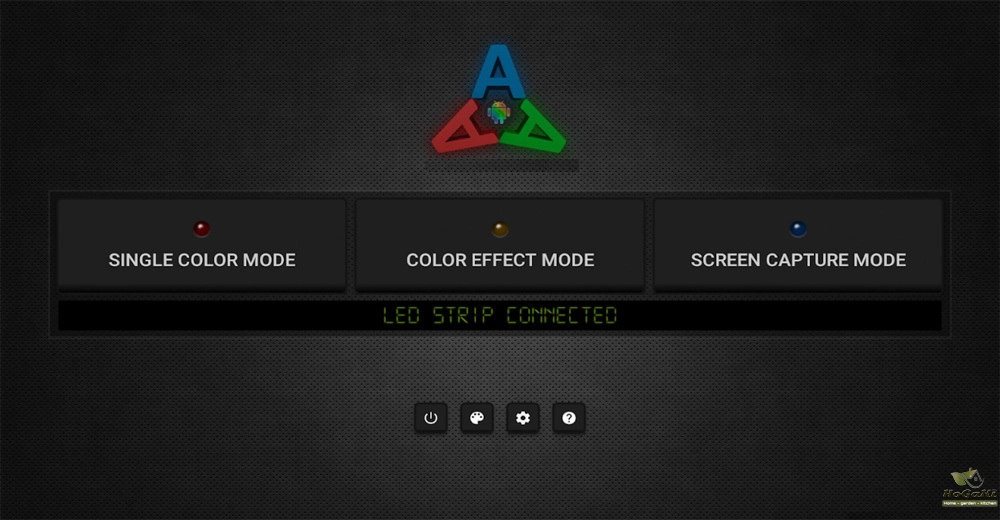

use Ambient light Application for Android (Additional software fees are required)

(3)Raspberry Pi: Openelec/libreelec+Hyperion

(4) Linux PC : use Prismatik

2.Important To Know First !!!

The picture from the TV tuner is not processed at the Android OS level, the backlight with regular tv channels will not work. The backlight works only in Android OS applications that do not use protected content. 4K performance depends only on the capabilities of the equipment.

Unfortunately, programs such as YouTube and Netflix use protected content, the backlight in such programs will not work. This may not work properly on the latest Android 9 Xiaomi firmwares.In order to make it work you should use the special client. For example SmartYoutbe.

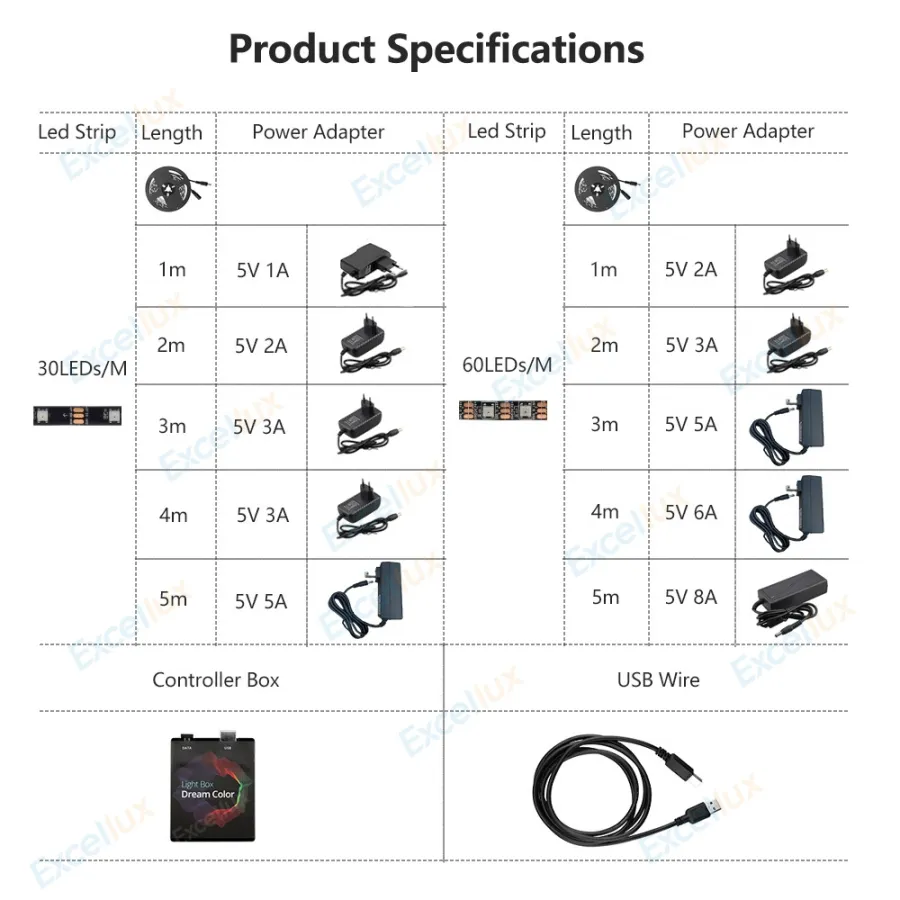

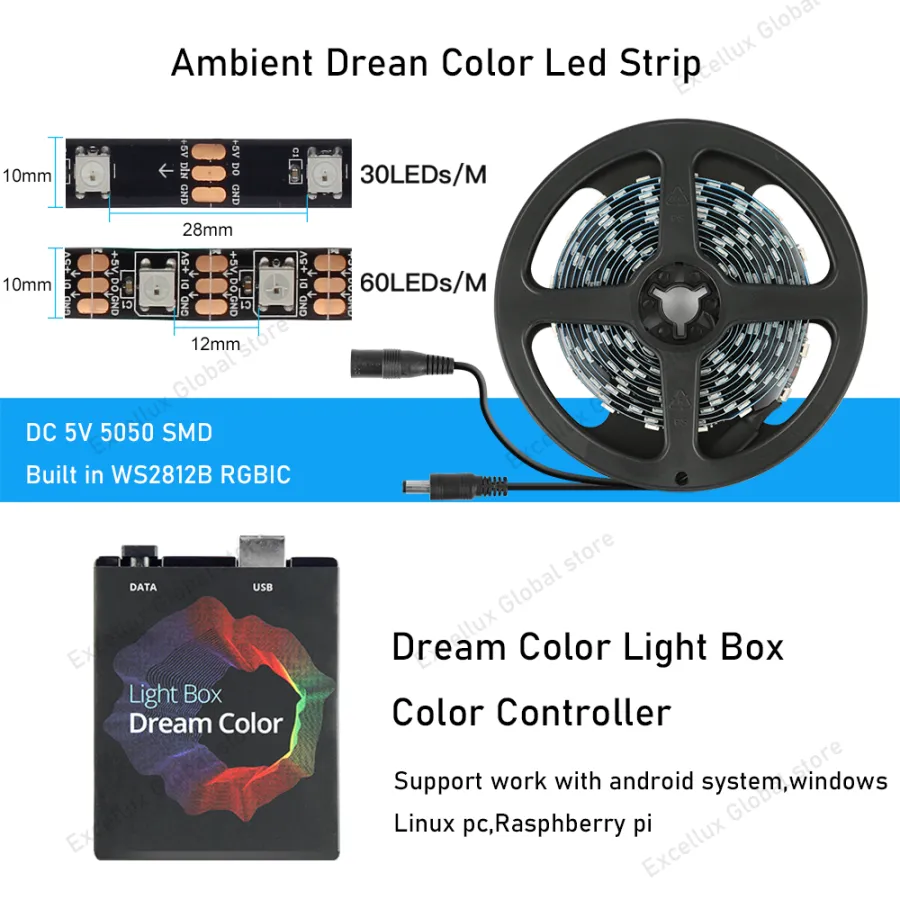

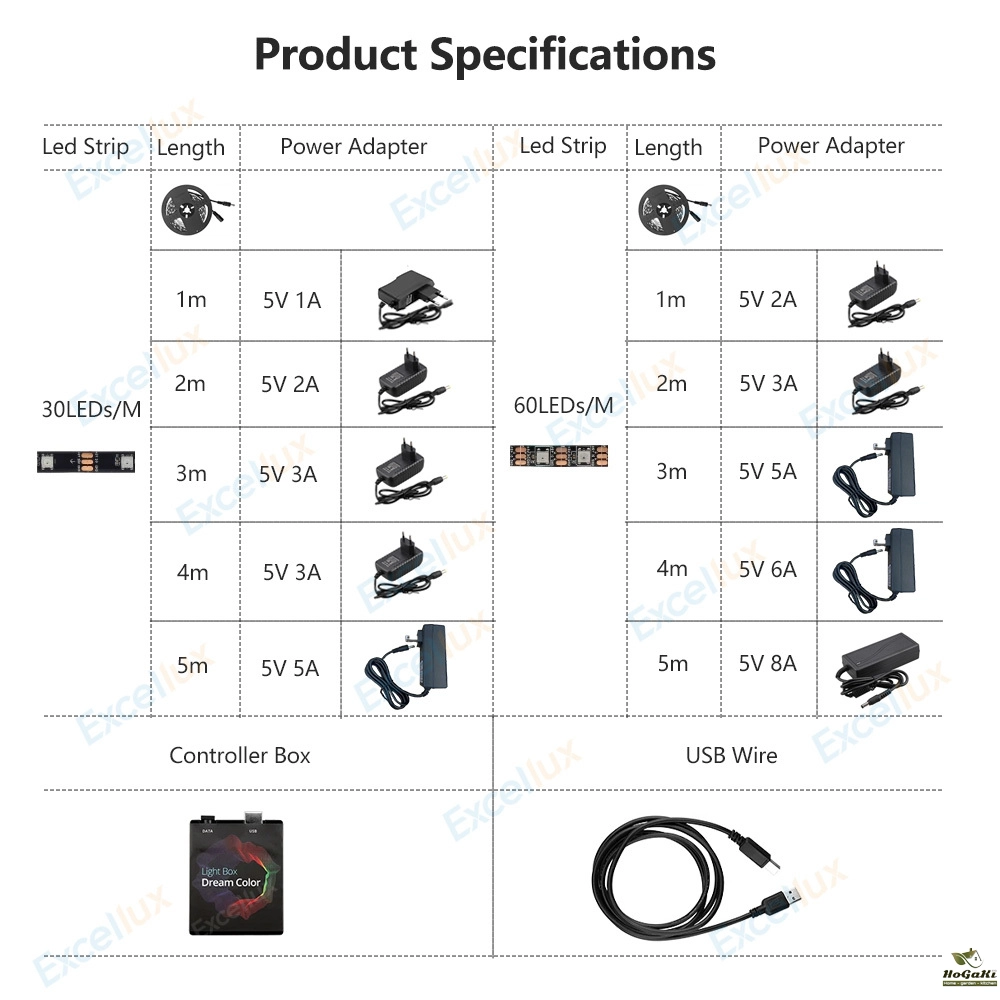

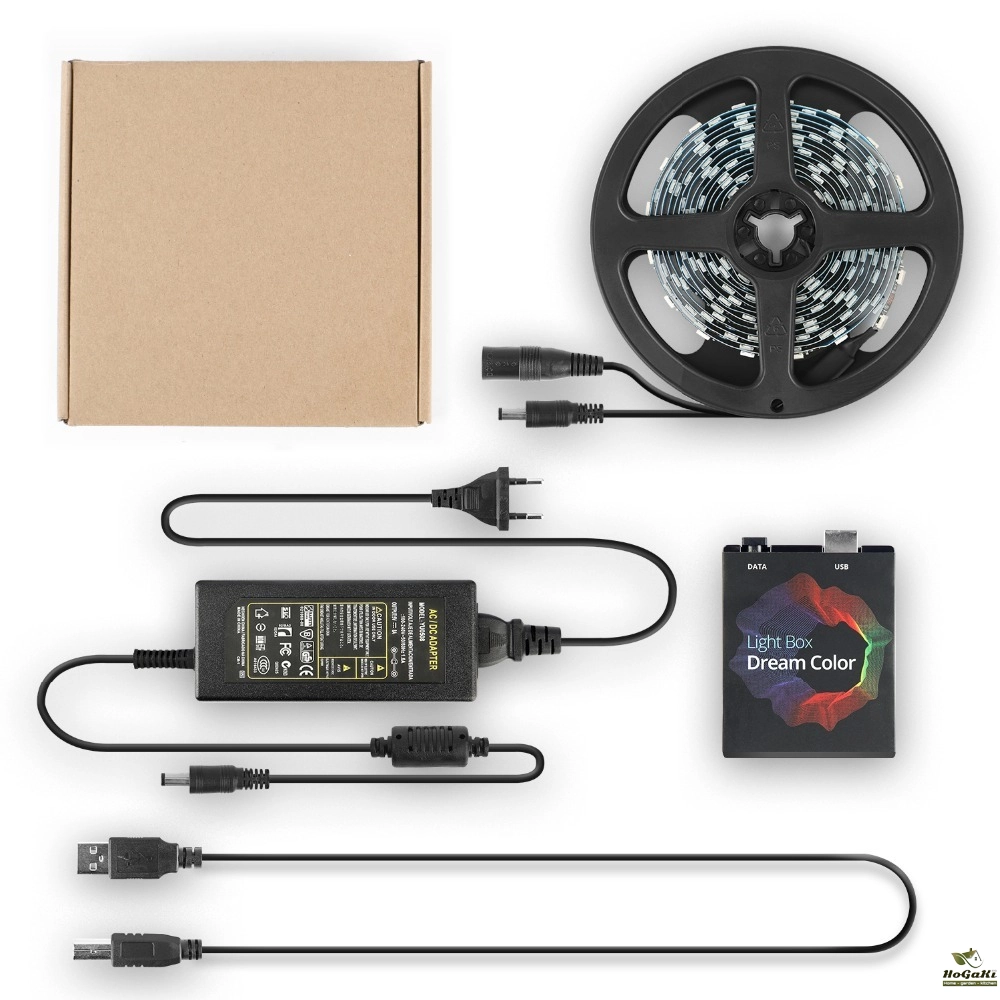

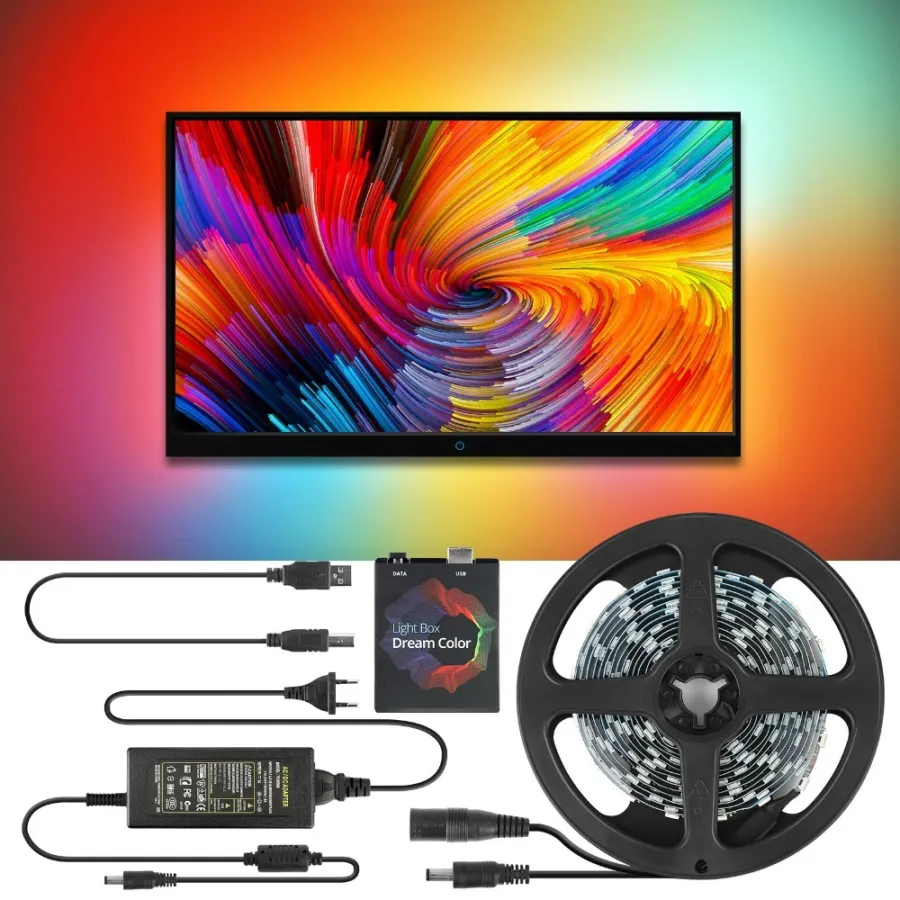

3.Package included:

1) Controller box

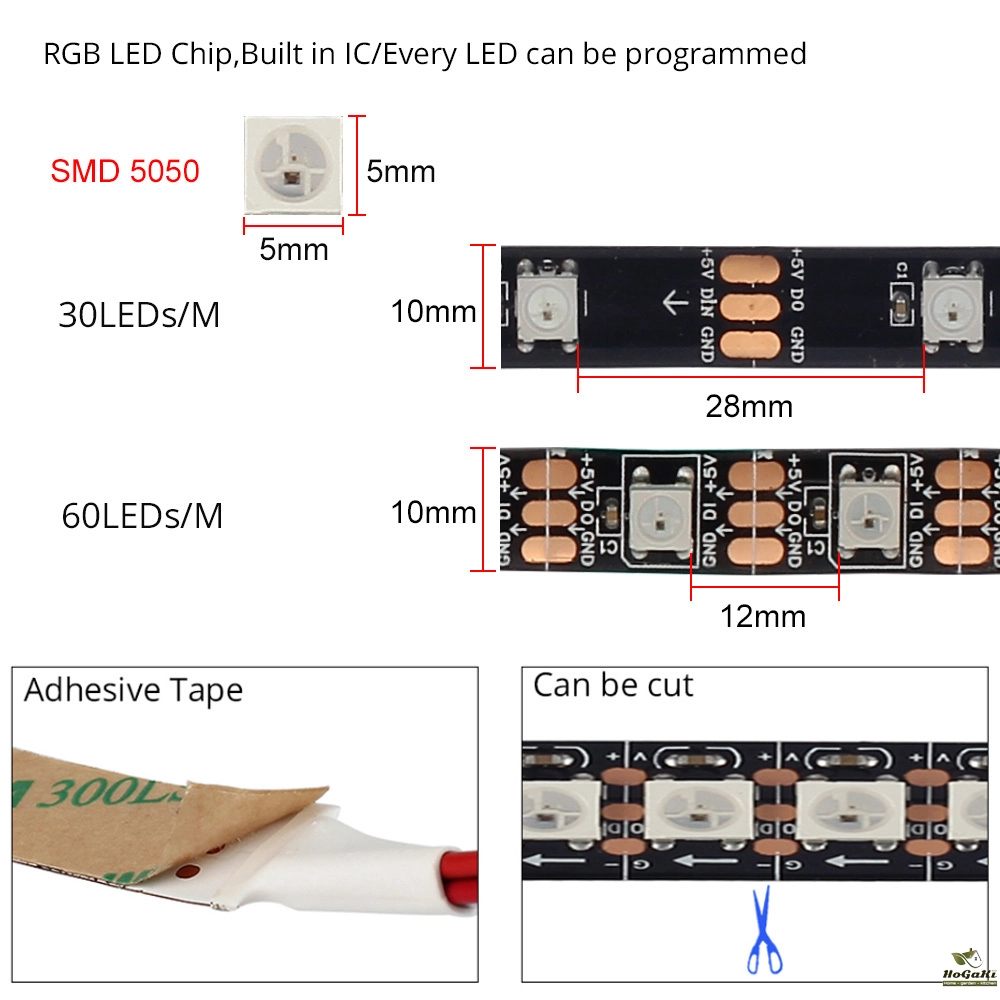

2) Hight quality led strip

3) USB cable

4) 5V Power adapter EU/US Options (If you need UK or AU Plug,please let me know first before order,thank you)

If you need the L shape connectors,you should buy seperatly.

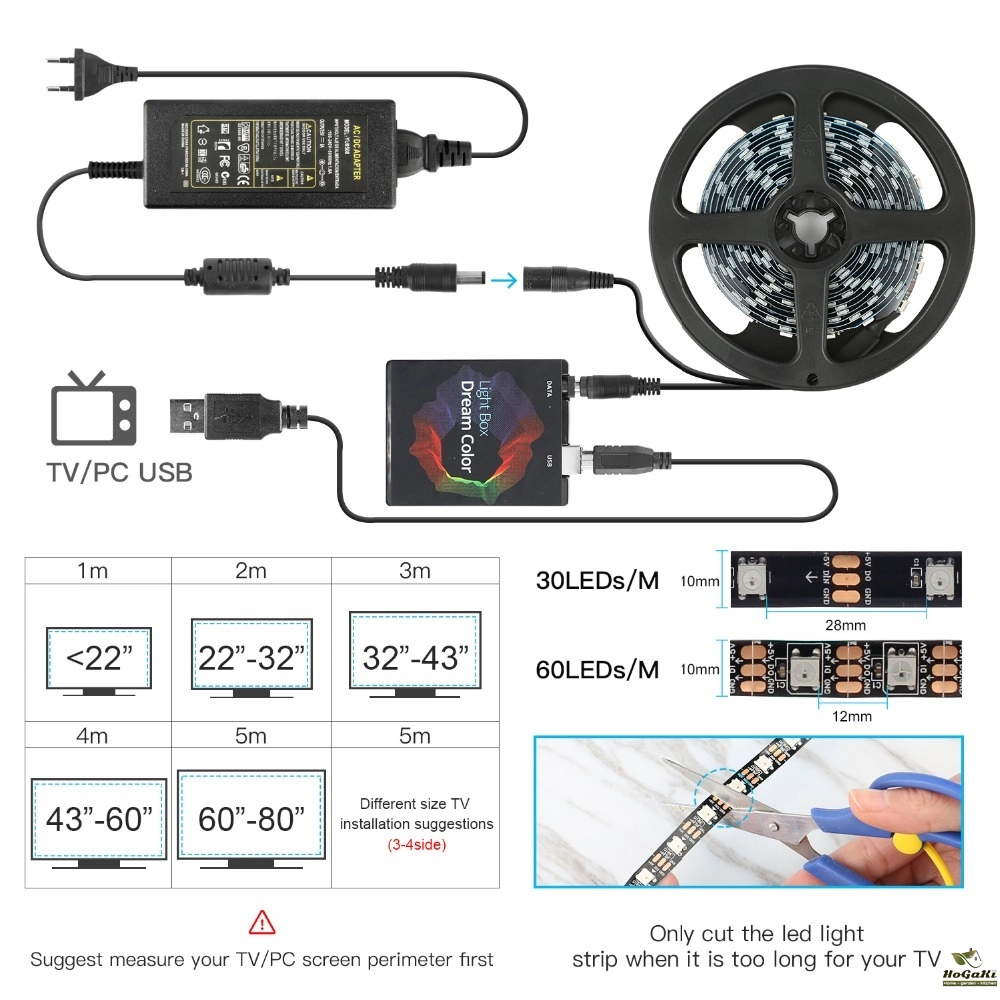

You could choose the kit according to your needs,depending on the size of your PC monitor or TV screen

How to use on Android TV?

Needs:Android TV/TV boxs(Android 5.1/6/7/8/9): 'Ambient light Application for Android'Paid software）

Note:Please confirm if yourTV/TV boxcan run this app before purchasing.

（Or, the video signal of the computer is output to TV , TV as monitor.)
（Or, install or run Openelec/libreelec+Hyperion on your TV/TV box.)

How to use on PC?

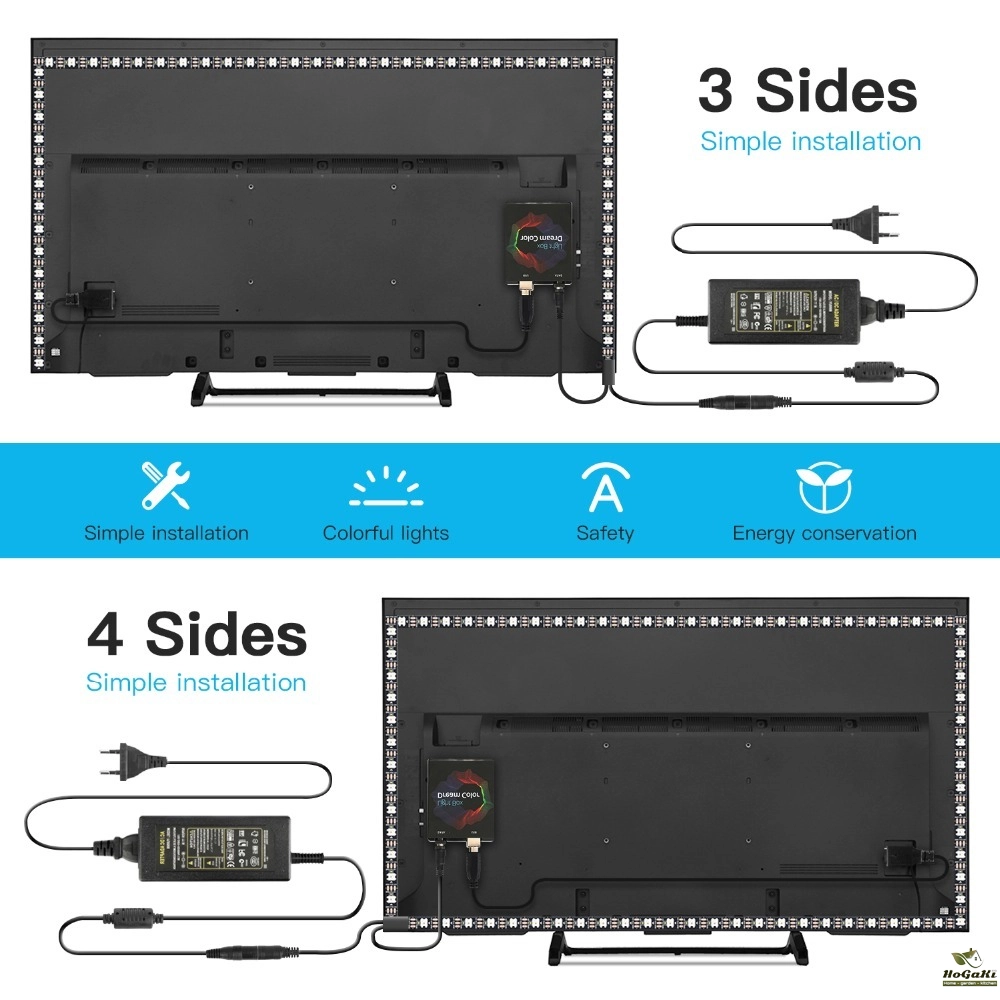

Step 1: Install LED light on your PC. (please refer to the video for details)

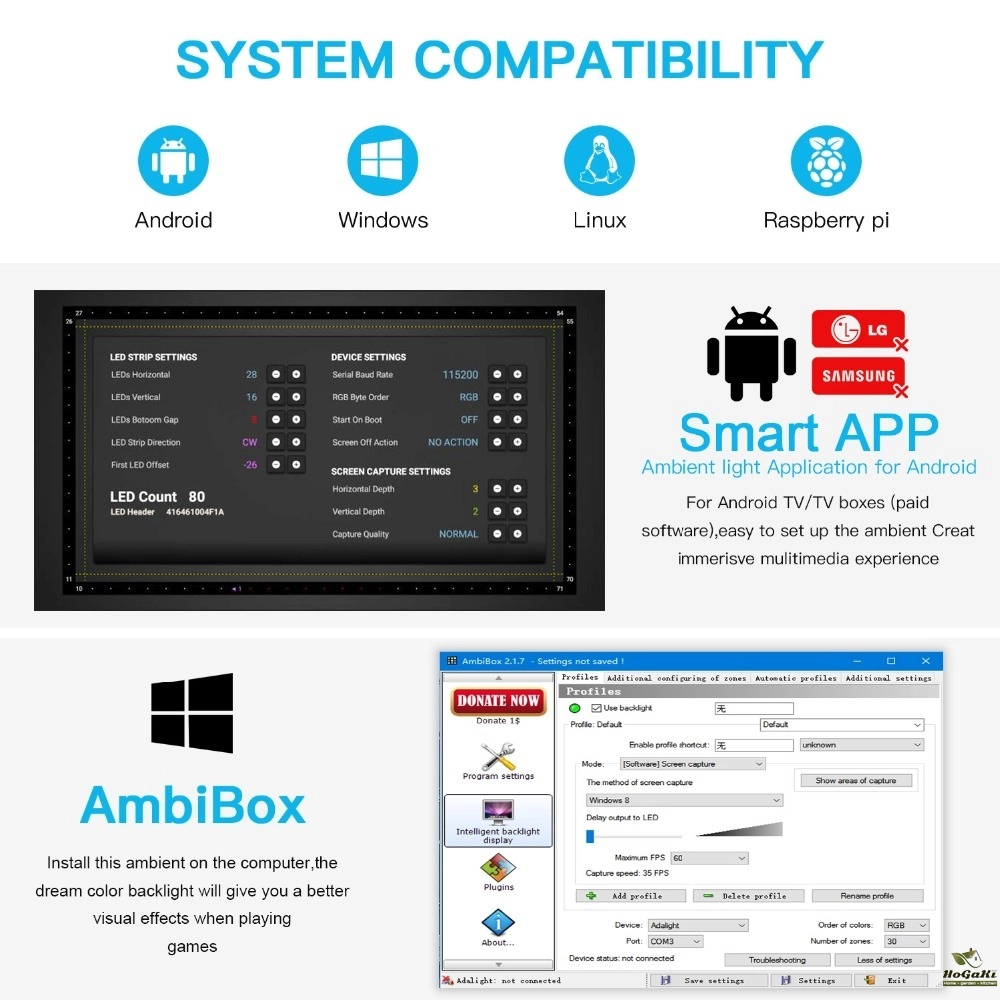

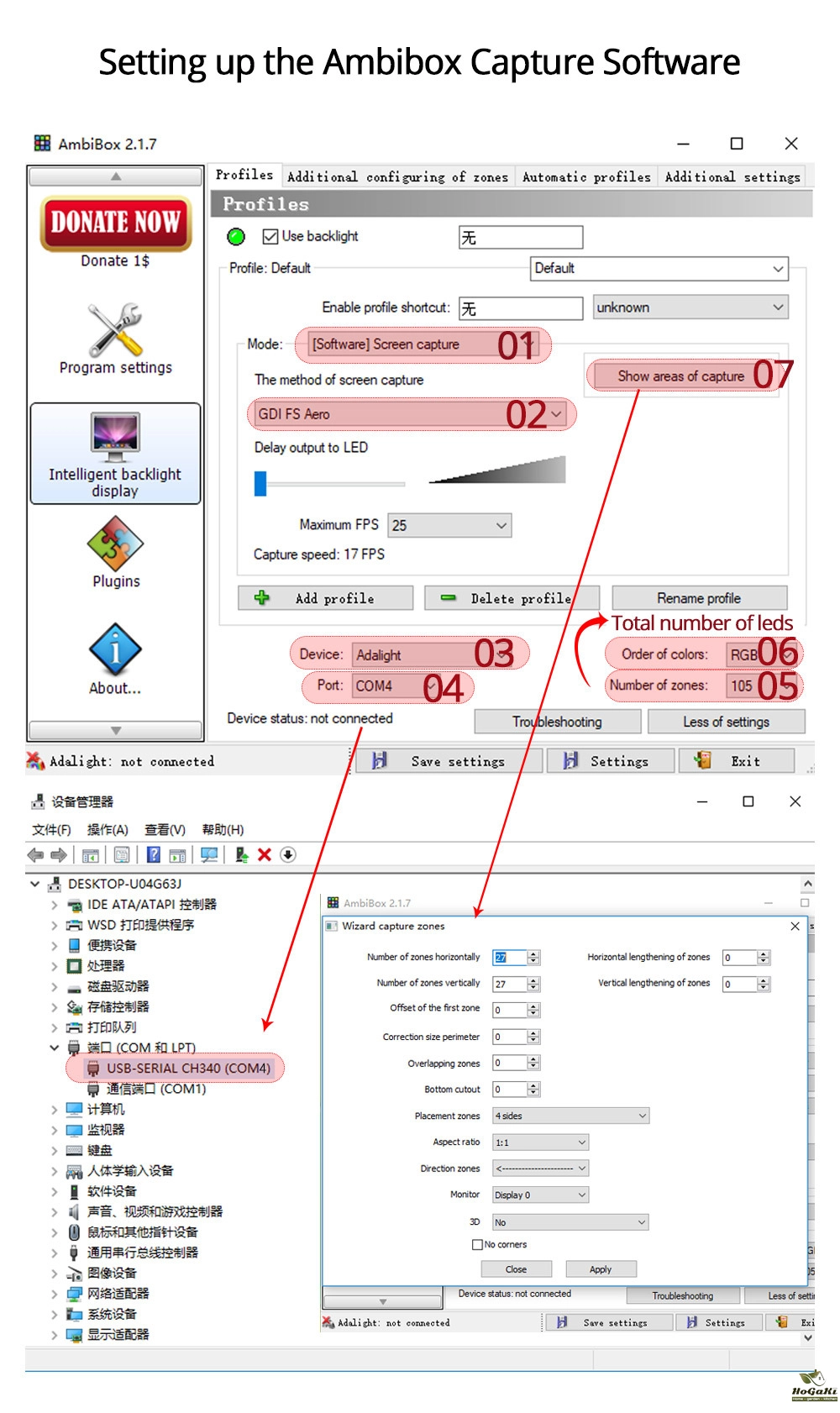

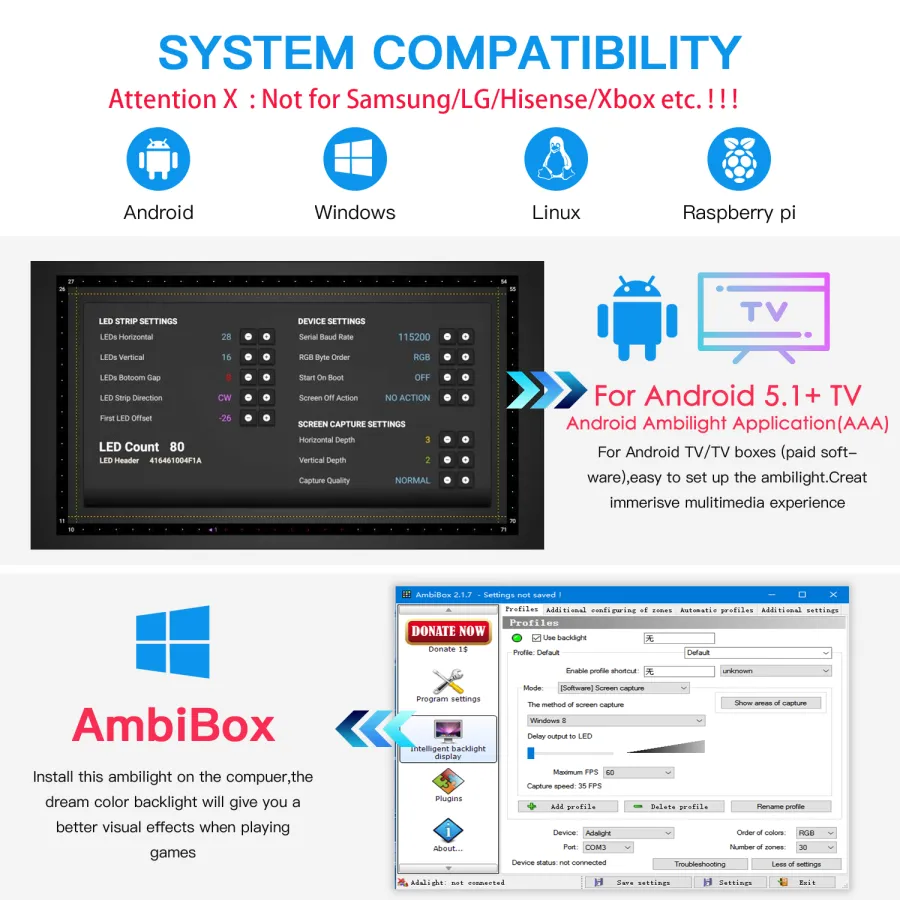

Step 2: Setting up the Ambibox Capture Software.

a. Ambibox software(Shareware); Download link:https://drive.google.com/file/d/1aR1z_wcBfGw2ixTBYI01CshD_q8RMxxc/view?usp=sharing
b. Run the Ambibox software, when installing, it recommends to use PlayClaw, I wouldn't recommend to using it.
c. Select device and set this as "Adalight", under menu of "Intelligent backlight display", select the Port and the COM Port that your device has been detected. If select correctly, you can see Device Status: Connected, also down the bottom left it will say Adalight: connected.
d. Once you setted up, you can select the "Wizard capture zones" which will automatically generate all capture zones for you.

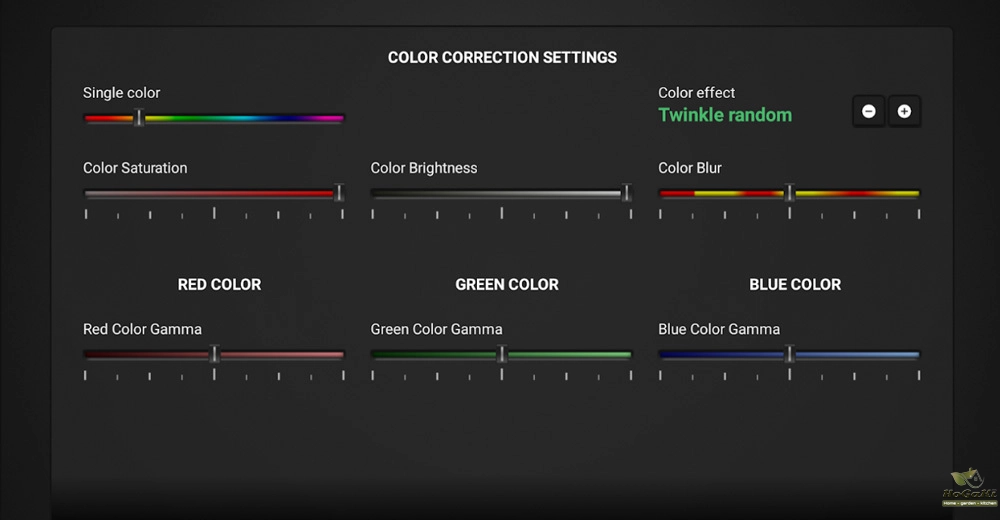

PRO TIPS:if you find your colours are washing out or seem very white rather than colourful, adjust your gamma settings, if you getting a white backlight on a pure black screen, increase the size of sample zones, It will take a bit of fine tuning but worth it!

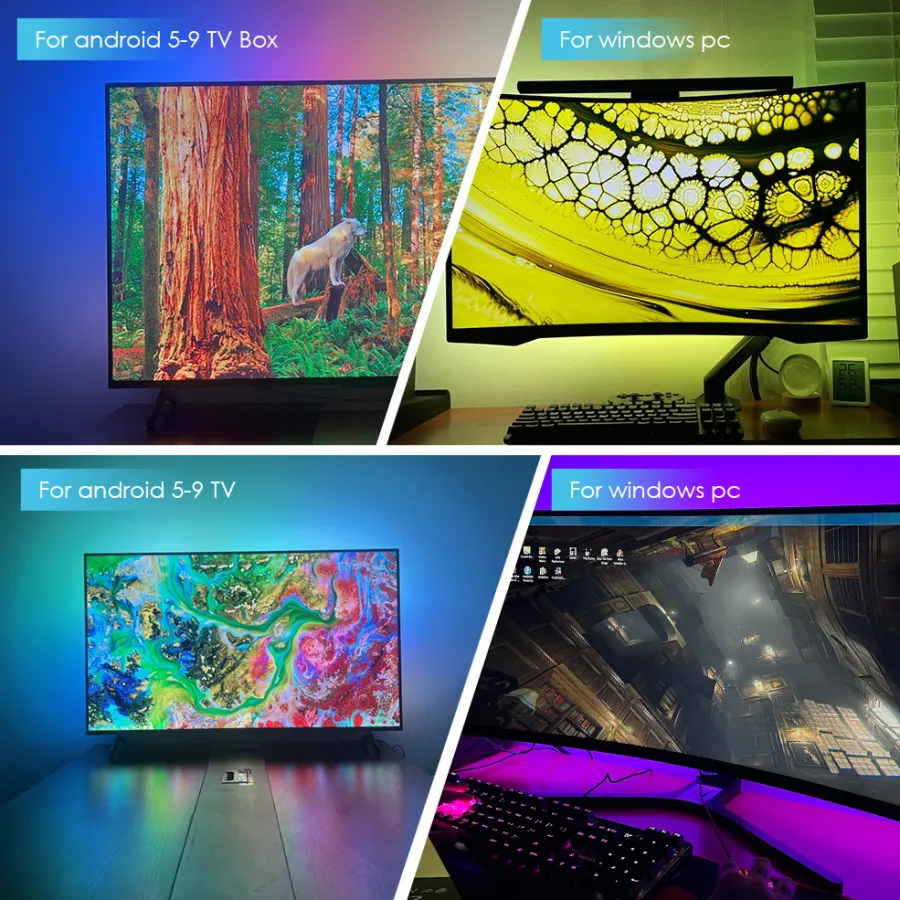

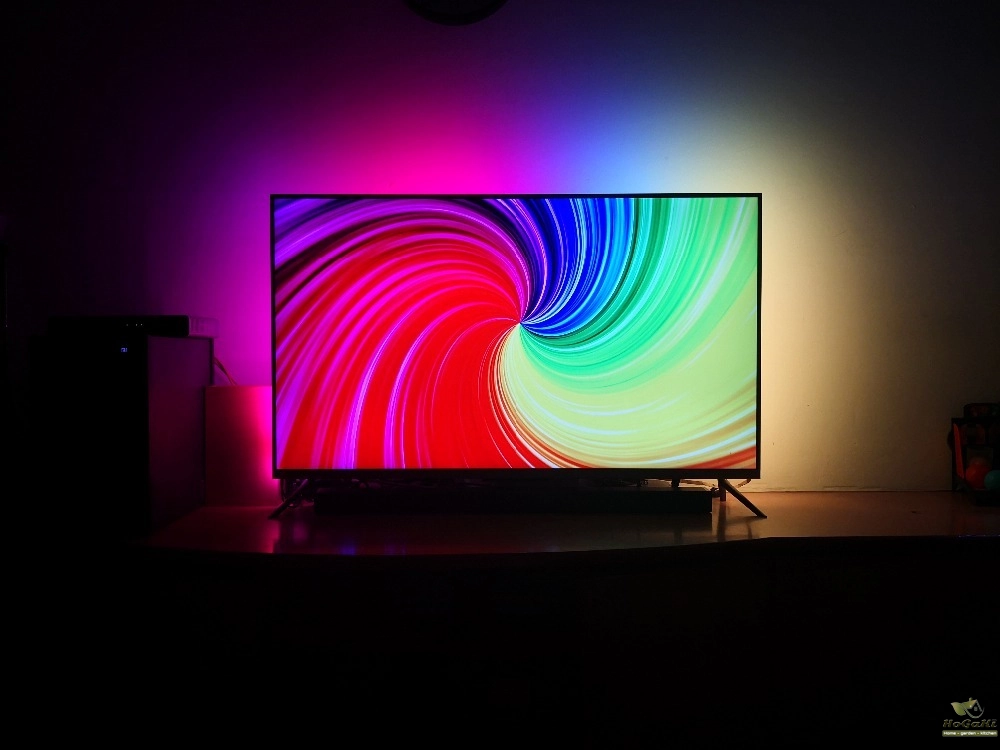

Effect For TV

Effect For PC

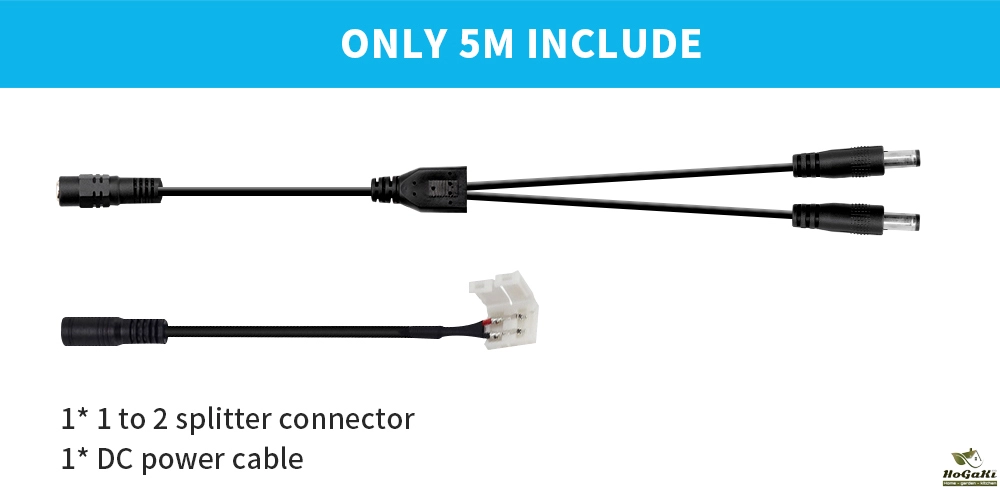

This link is not included any connectors.The led strip can be bent at the corner .If you need the L shape connectors,you can buy in our store ,we can ship together ! ! ！
