5KW 220V 500KHZ-1100KHZ HDG-5 super high frequency Induction heating for brazing small parts
0.0 ( votes) | 1 orders
Price:
US $
2560.00
/ piece

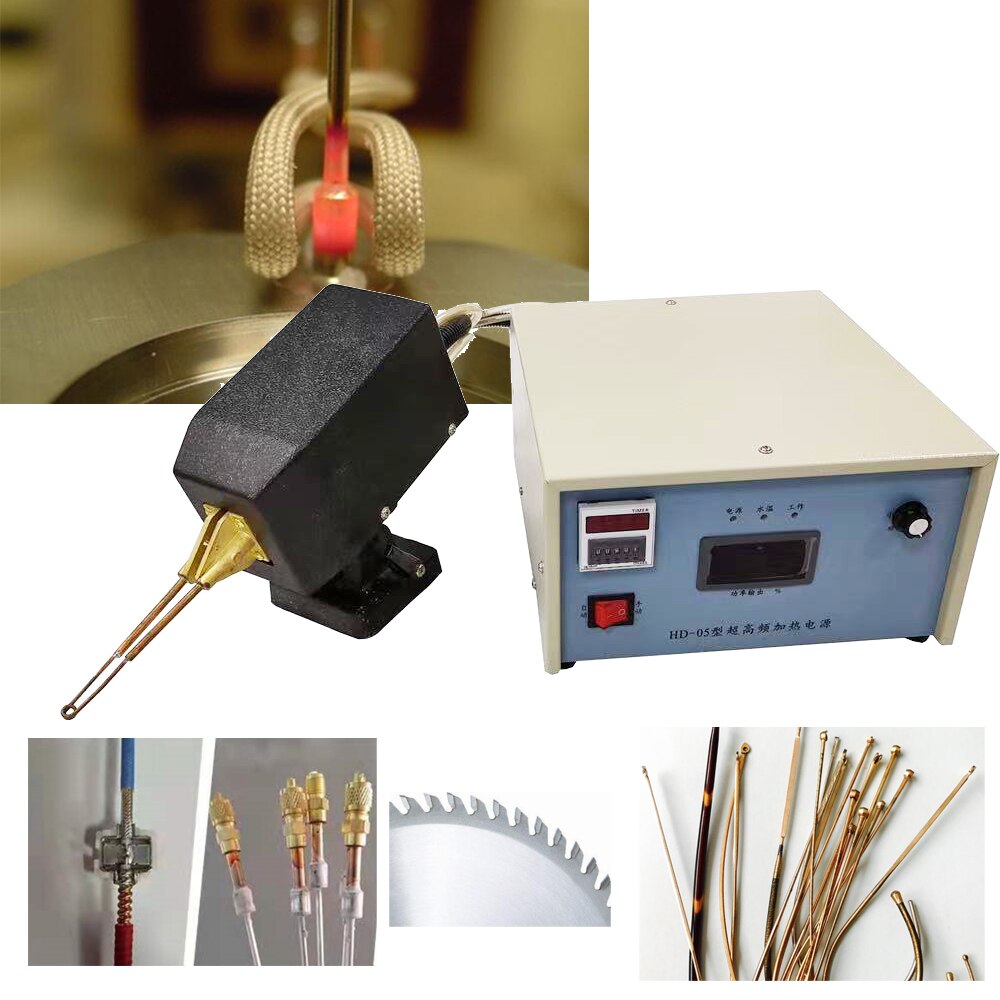

500KHZ-1100KHZ HD-05 UHF Induction Heat Machine ForsolderingAnd Brazing
Specification
Item | 5kw UHF Induction Heater |
Max Output Power | 5KW |
Oscillation frequency | 500KHZ-1100KHZ |
Input Voltage | Single Phase 220V 50/60HZ |
Cooling Water request | 0.2Mpa 2-5L/min |
Duty Cycle | 80% |
Cable length | 1.2 Meter |
Heat Time | 0.1-99.9 Seconds |
Host Generator reference dimension and weight | 320x280x150mm 8kgs |
Heater head reference dimension and weight | 230mmx110x110mm 4.5KGS |
Features
The frequency is up to 1.1MHZ, which can effectively control the quenching depth. It is especially suitable for heating small parts and filament parts.
2, Smithermal UHF-5 using MOSFET power devices and our third-generation converter control technology, equipment reliability is higher, maintenance costs are low;
3, using conventional MOSFET devices, the Smithermal HD-05 UHF equipment operating frequency up to 1.1MHZ, advanced control technology, higher heating efficiency;
4, the installation is simple, just use electricity and water to use, no need to install someone;
5, miniaturization, save equipment installation space, and easy maintenance;
6. The automatic control type can adjust the heating time, which is beneficial to improve the repeatability of heating quality and simplify the operation of workers;
Applications
1. Heat treatment: local or integral quenching, annealing, tempering, and heat transfer of various metals;
2, welding: brazing of various metal products, various carbide tools, saw blade saw tooth welding, steel pipe, copper pipe welding, and the same species
Dissimilar metal welding;
3. It is especially suitable for hot rolling of small drill bits, no suction, high efficiency, energy saving from smithermal.

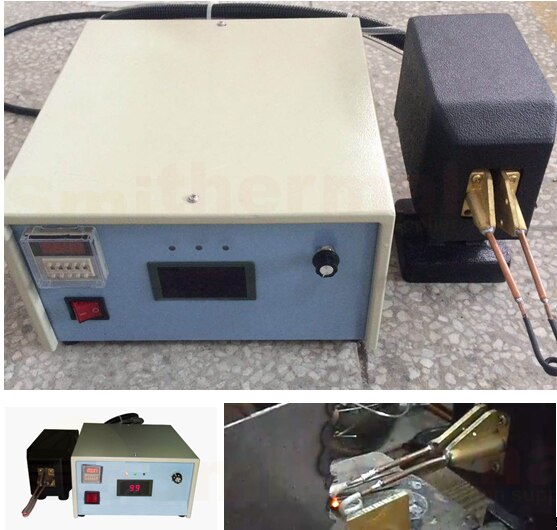

One Heater packaged with 2 Coils.
One for "O" shape
One for Open "U" shape
Any questions on induction brazing machineplease feel free to contact with John
More Products
- Power: 5kw
- Voltage: 220V
- Model Number: HDG-5
- Brand Name: ZASBIN
- Origin: Mainland China
- Certification: CE
- Input Voltage: AC220V 50Hz/60Hz
- Output Power: 5KW
- Output Frequency: 500KHz-1100KHz
- Machine Size: 48*20*44cm
- Machine Weight: 8kg
- Heating Type: Induction Heating
- Free Shipping: Yes
