Air cooled dc motor 110v CNC spindle motor kit ER11 chuck 500W spindle motor + carving power supply for CNC milling machine
268.07 225.30 $
SALE
ID: 11272
Quantity
500W Air Cooled Spindle Kits 0.5KW Spindle Motor+ DC Spindle Power Supply+52mm Clamp+ER11Collet ,Spindle for CNC Milling Machine
0.0 ( votes) | 2 orders
Price:
US $221.94 - 280.16
/ piece
Discount Price:
US $
180.28 -
229.41
/ piece
-19%
- Ships From
500W Air Cooled Spindle Kits 0.5KW Spindle Motor+ DC Spindle Power Supply+52mm Clamp+ER11Collet ,Spindle for CNC Milling Machine

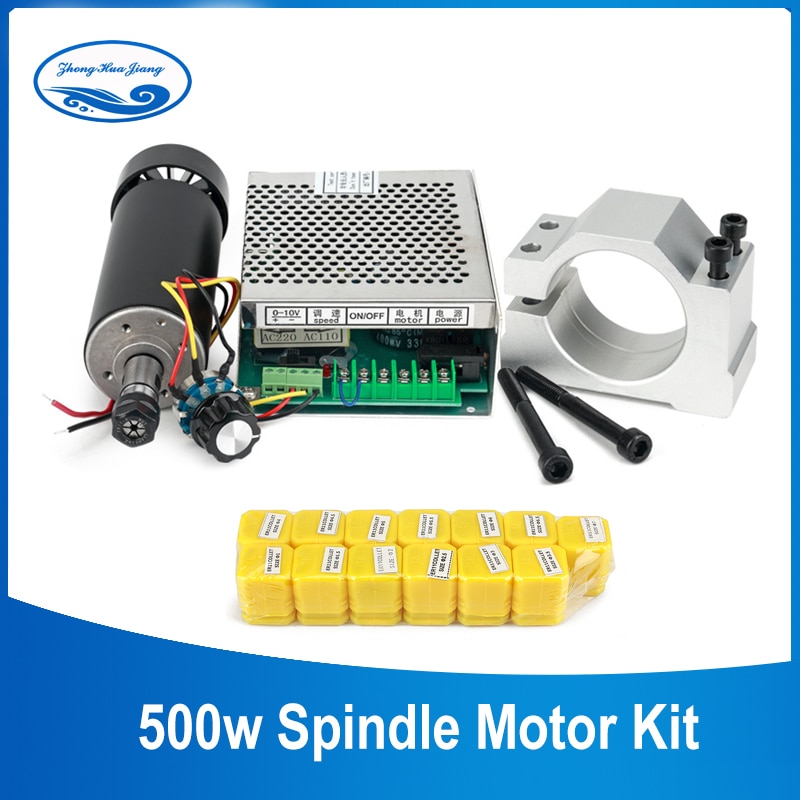

Package include:
1 x 0.5kwSpindle Motor
1x 52mm clamp +4x Screws
1x Power Supply speed governor
13pcs ER11
Features:

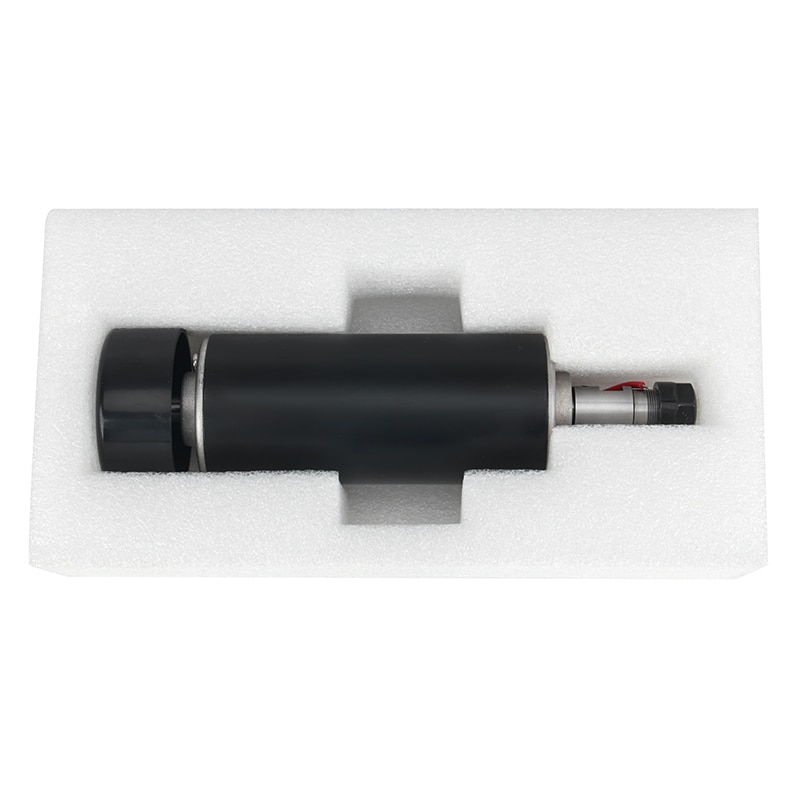

500W Air Cooled Spindle
Input: AC110V± 10%50/60Hz
Operating voltage: 100VDC
Power: 500W
Current: 4A

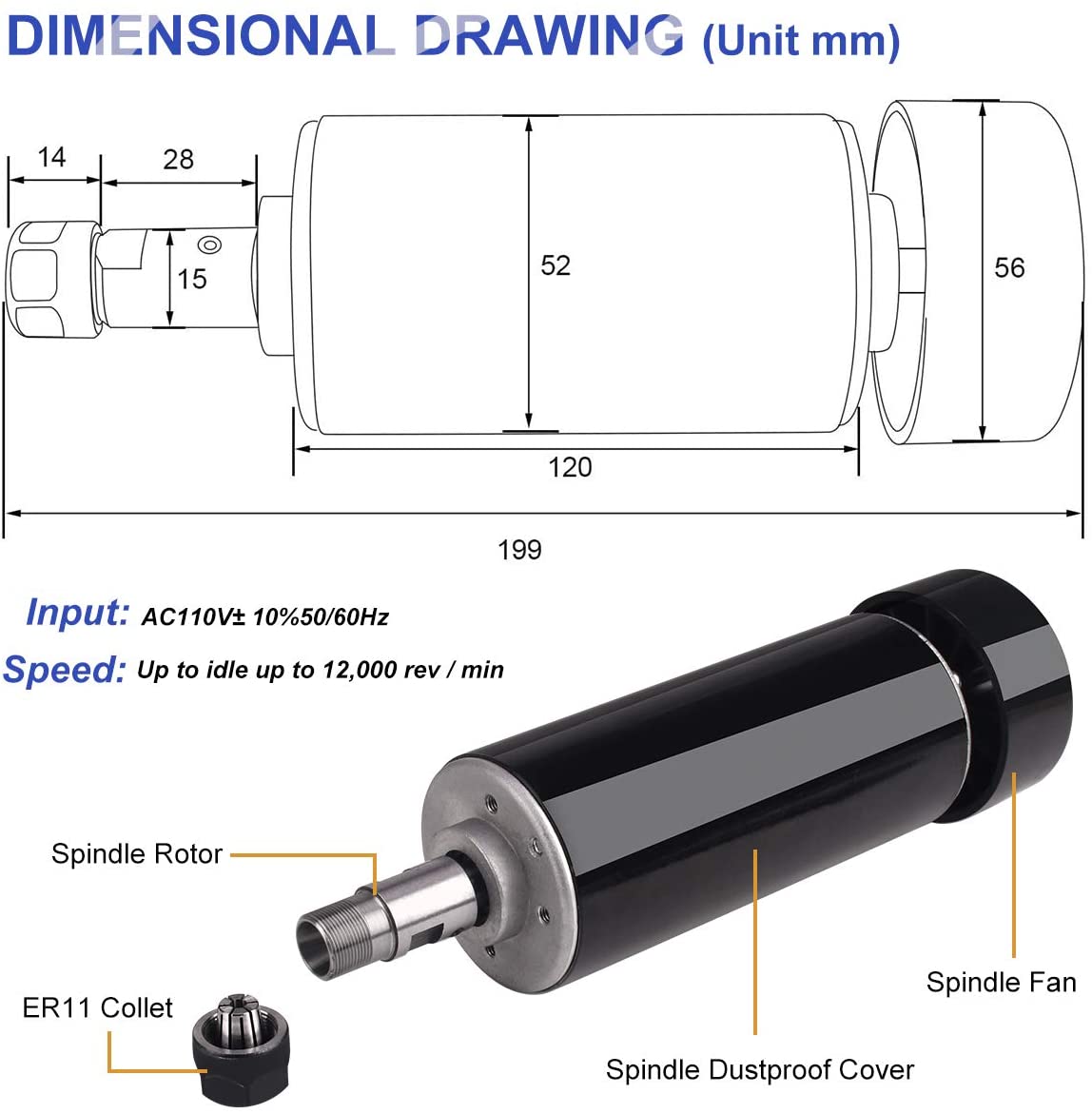

Motor Length: 200MM
Speed: Up to idle up to 12,000 rev / min
Torque: 5000G/CM
Insulation resistance:> 2 megohms
Dielectric strength: 400V
High precision spindle runout 0.01-0.03

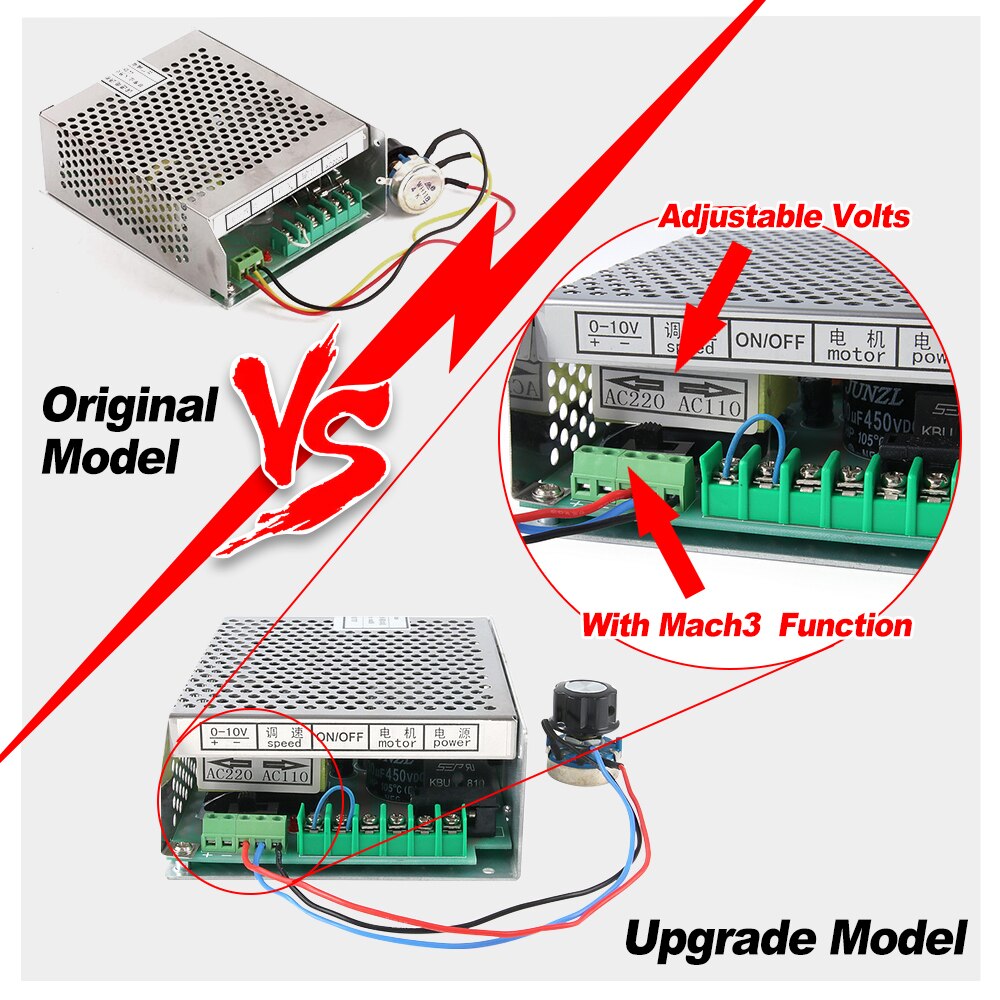

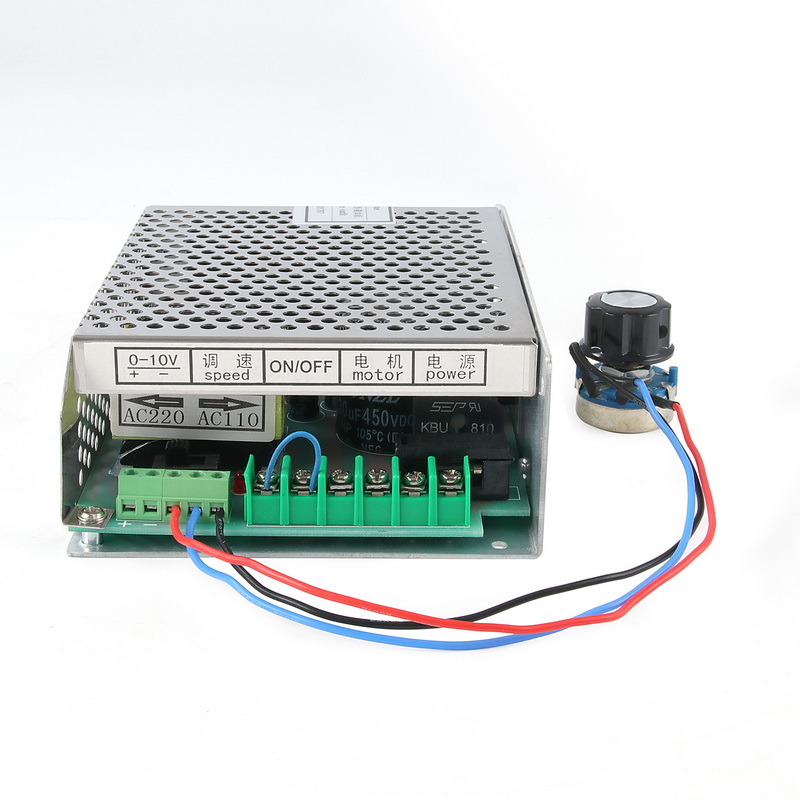

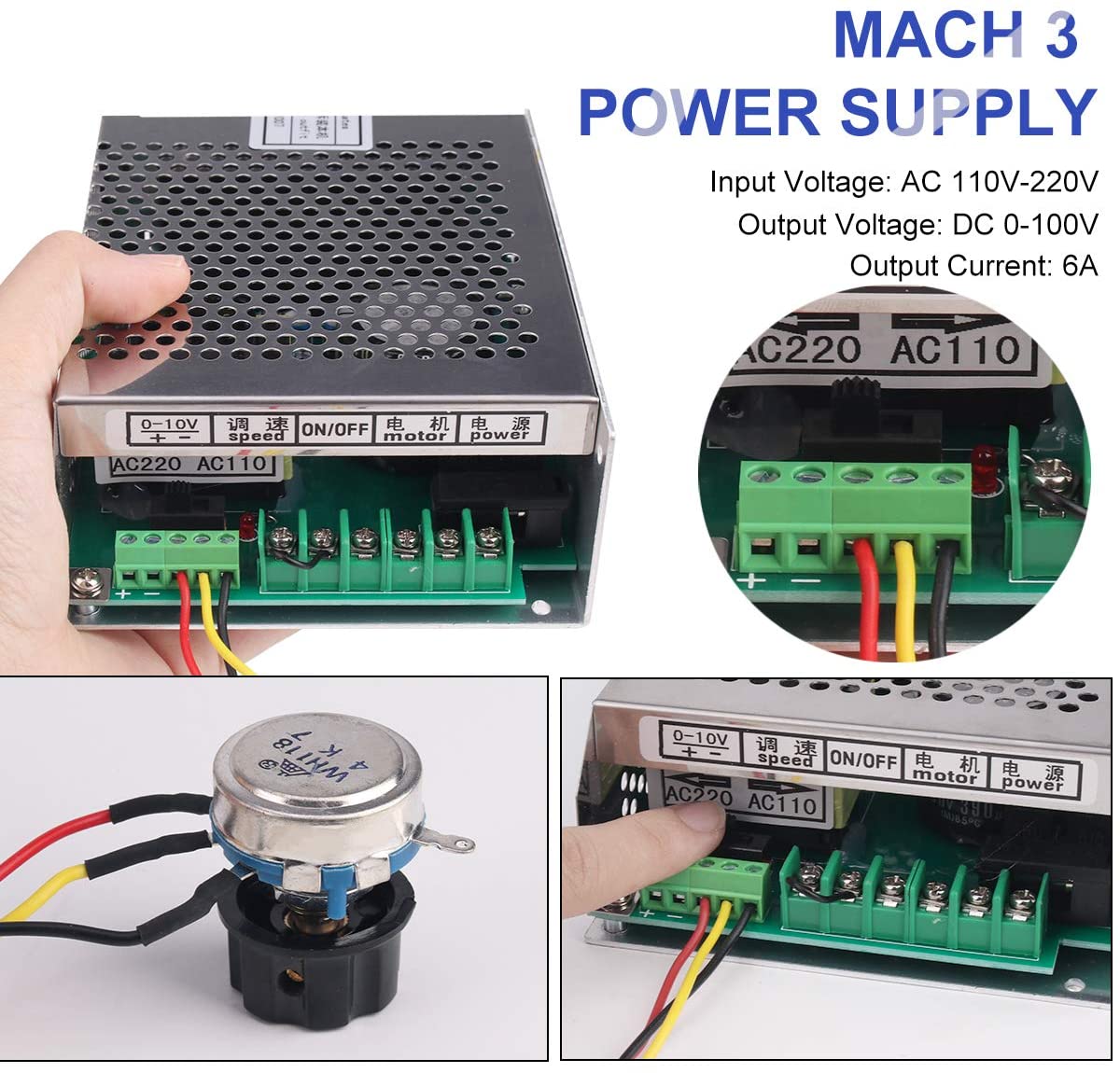

Speed Power Converter
Input voltage: AC110V/220V, 50/60Hz
Output current peak: 6A
Adaptive motor power: 100W-500W
Output voltage: DC0-100V
Size: 5.5×4.3×2inch
Air temperature around: -10～40°C
RH(relative air humidity) under 85%, draughty
Please install in the place that is draughty, no dramatic impact, no vibration, no explosion hazard medium, no conductive metal particle.
52mm Clamp
Diameter: 52mm
Chuck portion length: 45MM
Chuck portion diameter: 16mm
Made of high quality cast aluminum, this spindle motor bracket clamp is strong and durable.
The surface is well finished by sand blast which ensures a better smoothness.
This motor bracket clamp would be a great replacement for CNC part.
Advantages:
【Air Cooling & Low Noise】This main shaft is equipped with forced air cooling which has a great cooling performance and Low noise, smooth operation. Reduce motor friction, makes sure the motor can work for a long time, and extend the service life.
【500W CNC Spindle motor】Operating voltage: 100VDC, Power: 500W, Input: AC110V, Speed: Up to idle up to 12,000 rev / min, Torque: 5000G/CM. Insulation resistance:> 2 megohms, Dielectric strength: 400V. Motor Length: 200MM, High precision spindle run out 0.01-0.03.

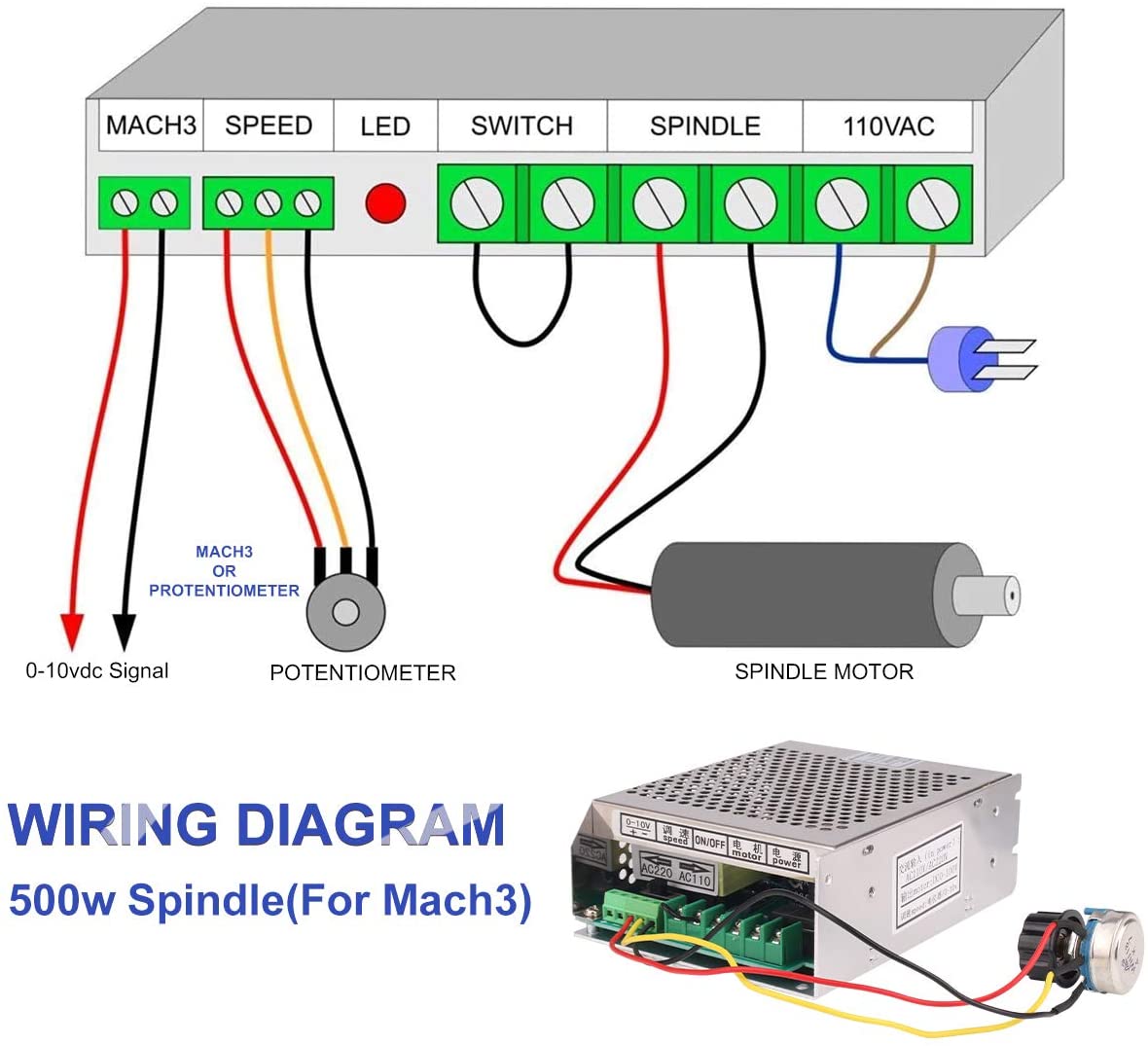

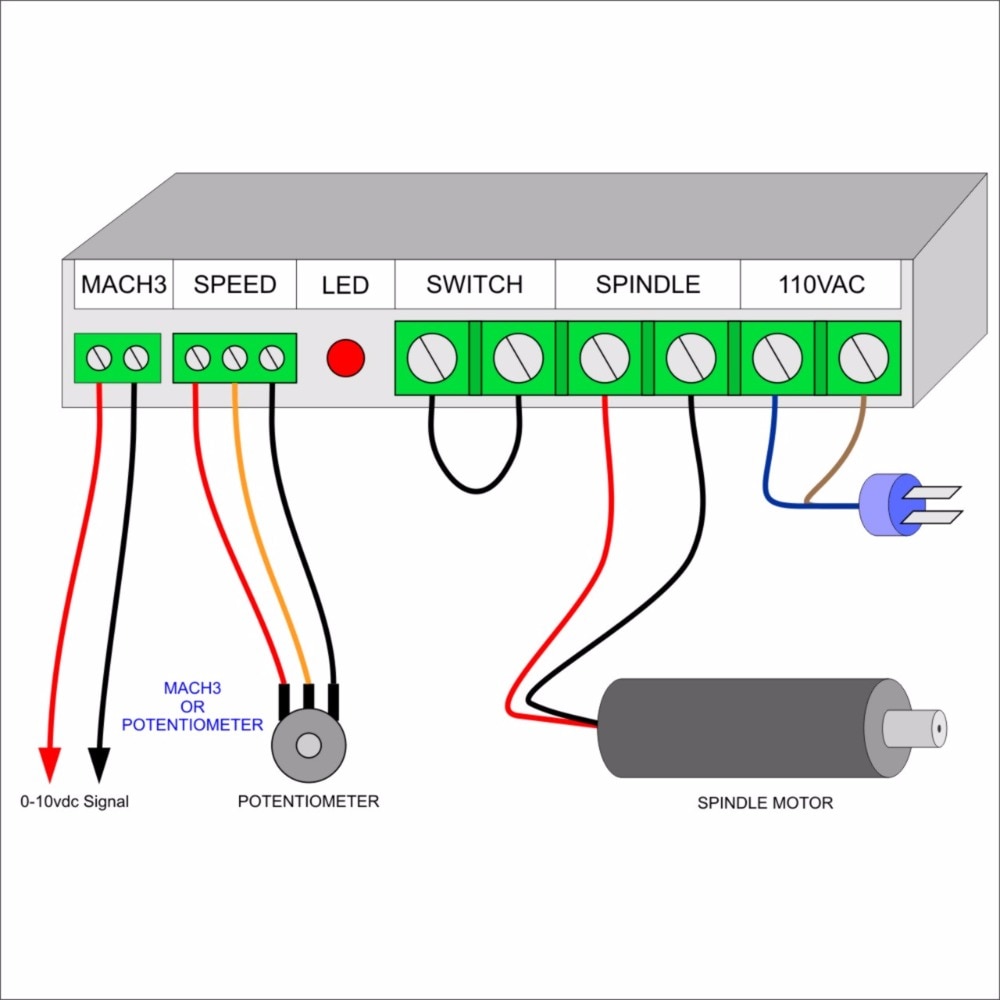

【Adjustable Speed Power Supply】Input: AC 110/220V±10%, 50/60Hz; Output: DC 0-100V, maximum current: 6A; Support: Manual Speed Adjustment or Mach3 G code Speed Adjustment.

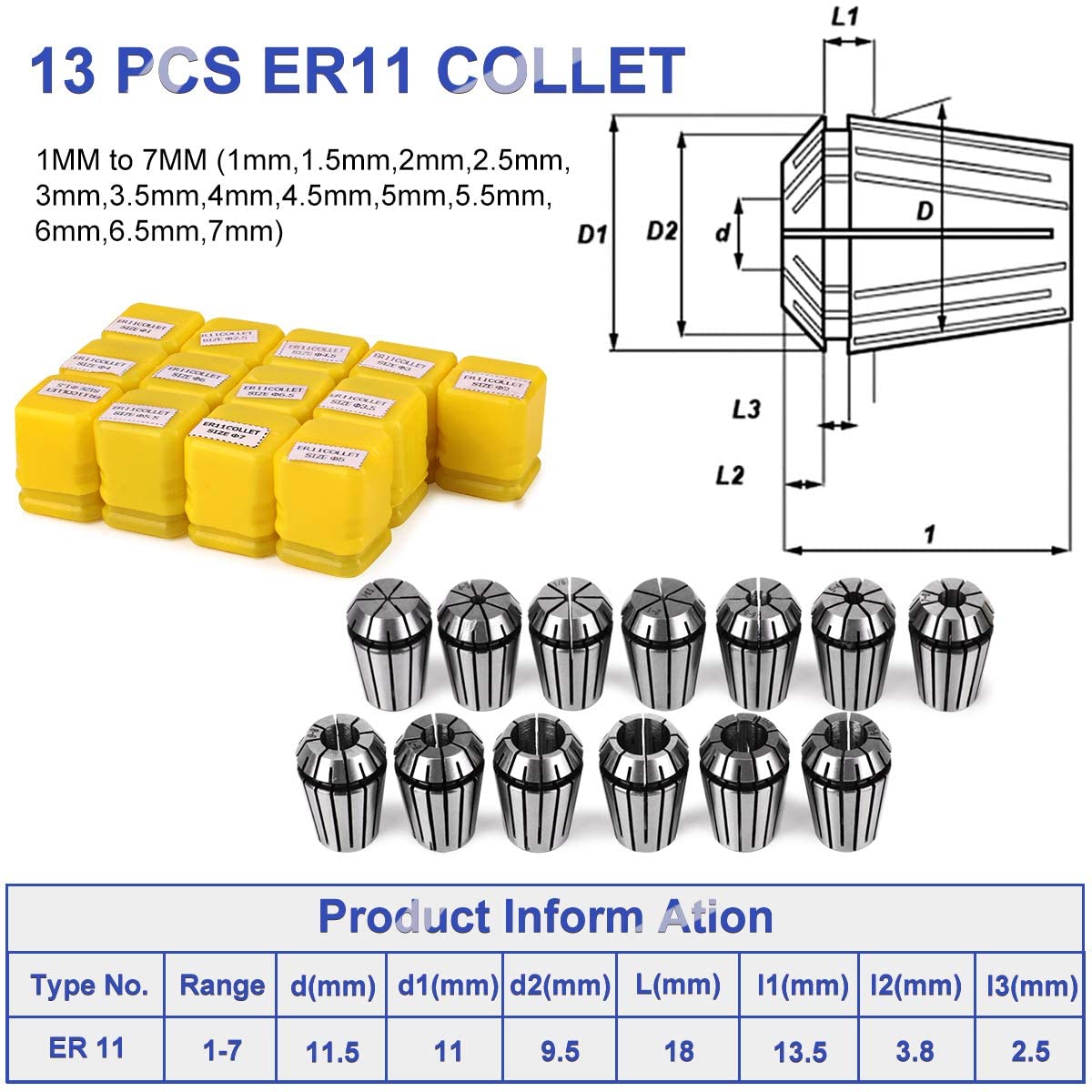

【ER11 Collet Chuck】- 13Pcs ER11 Collet Set Gripping Range: 1MM to 7MM(1mm,1.5mm,2mm,2.5mm,3mm,3.5mm,4mm,4.5mm,5mm,5.5mm,6mm,6.5mm,7mm). Run-out tolerance 0.01mm. For CNC milling Lathe Tool & Work holding Engraving machine.
- Operating Speed: 3000-12000rpm
- Application: Milling
- Model Number: 500W Spindle
- Drive: Motor
- Origin: Mainland China
- Certification: CE
- Type: 500W Spindle
- Cooling: AIR Cooled
- Speed: 3000-12000rpm
- Voltage: 100V DC
- Collet: ER11
- Size: 52mm
- is_customized: Yes
- Function: Brushed Spindle
