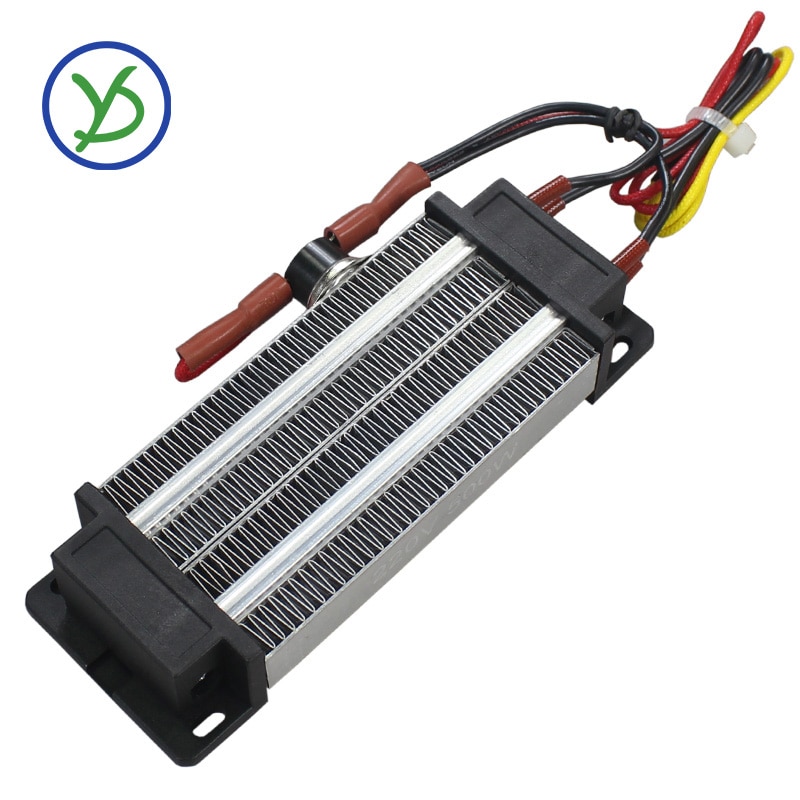

500W 220V Incubator heater Thermostatic-Insulated PTC ceramic air heater heating element Electric heater 140*50mm

5.0 (3 votes) | 42 orders
Price: US $30.91 / piece
Discount Price:
US $ 23.79 / piece
-23%
Ships From
Quantity

>>Ships From: Russian Federation<<

* Moscow-----2-4 days delivery

* Areas around Moscow-----7-15 days delivery

Item Description

Power Consumption:500W

Voltage:220V

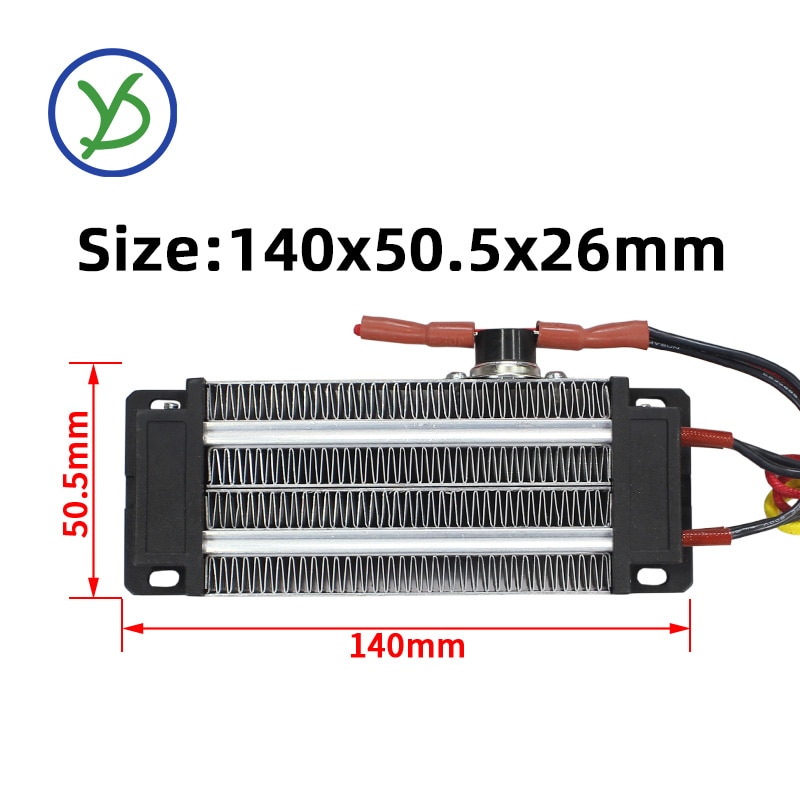

Dimension:140 x 50.5 x 26mm

Dimension of Fin:96 x 51mm

Dimension of Mounting hole:120 x 42mm

Remarks:with 150 degrees normally closed thermostat protector

Product Name
PTC air heater 220V 500W
Heat material
PTC Thermistor
Heat methods
Heat radiation by air flow
lead wire
Silicone high temperature line
the length of lead wires
200mm
the length of bare wires
10mm
Used
Air conditioning units / Electric Heater /Car / Equipment/ General electric appliance/Air curtain machine/Humidifier

Specifications

1.give out heating quickly and constant
2.longer life time
3.self-control temperature
4.keep stable power
5.small sound

PTC Insulative corrugated heater(PTC Air heater insulator,PTC Heater for warm air-conditioner) is a kind of large power Non-Surface-Electrified PTC heater with wind blowing.PTC element is fixed in aluminium tube and keep insulated with the aluminium tube.


PTC Insulated Ripple heating element are dynamic heating elements designed to heat up moving air.

The large surface area of the aluminum fins ensures a homogeneous heat transfer adjusting the air volume flow.

This system allows an automatic regulation of the heating power within certain ranges.

Due to the features, there are many application possibilities. In addition to the standard types, special versions for specific applications are available.


Item Size

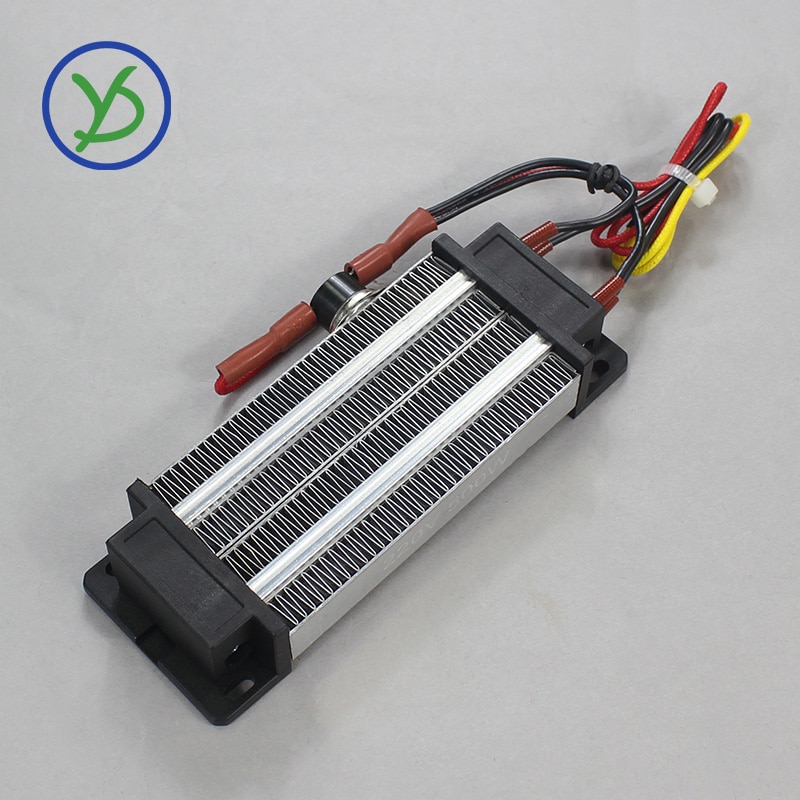

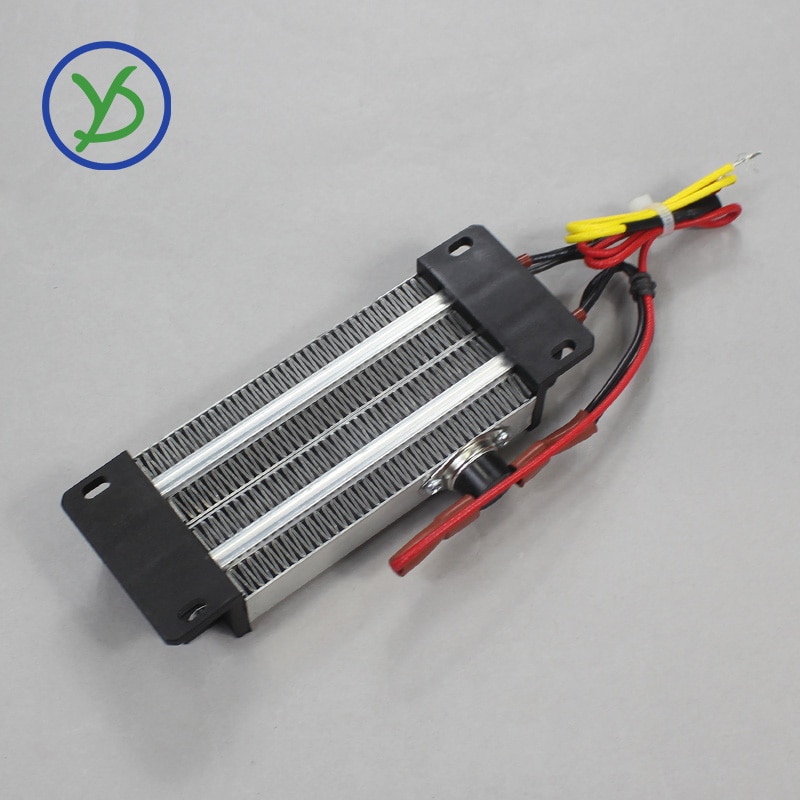

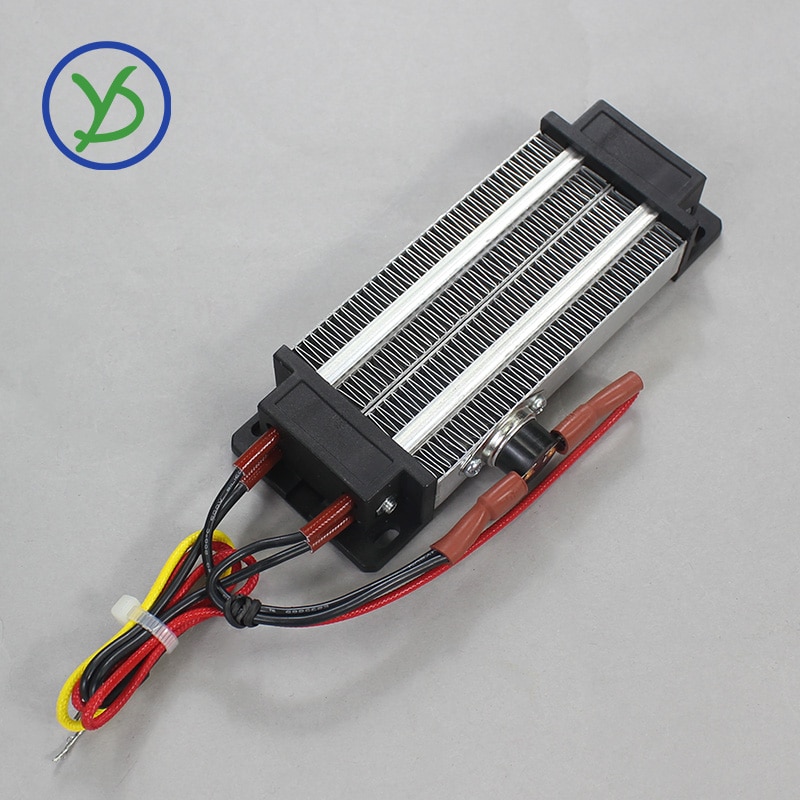

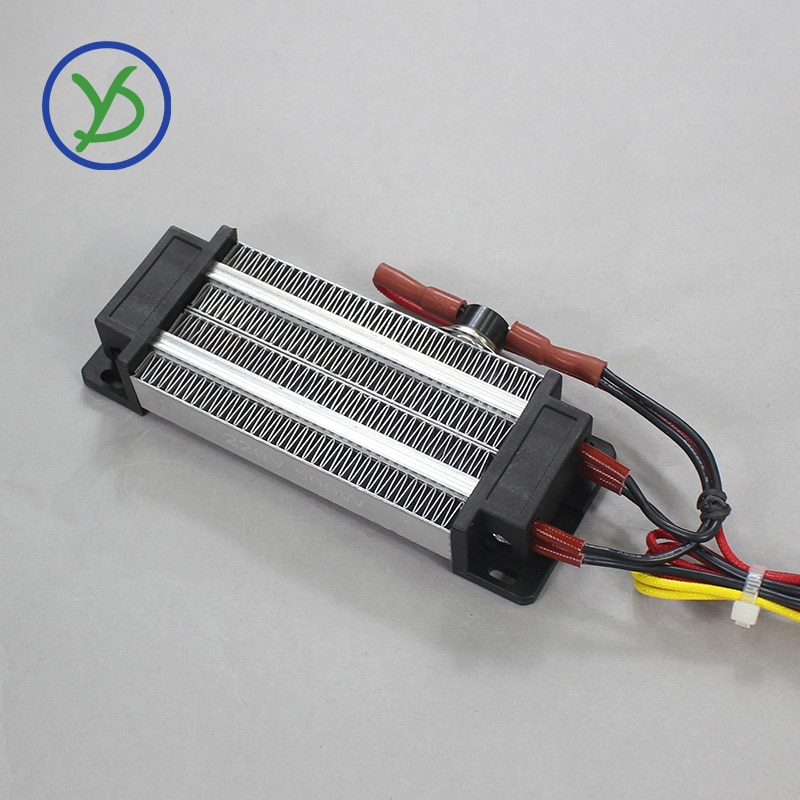

Item Show

Instruction manual(PTC Air Heater 500W 220V):

1. The power line does not distinguish between positive and negative, you can freely link power 220V.

2. When the heater is dry, low thermal efficiency, it is recommended to use with the fan.

3. Can be placed under a wet environment, but can not be placed in water.

4. For the first time, will produce a small amount of smoke, is a normal phenomenon, it will disappear within a short time.

5. Built-in 230 degrees Celsius heater chip, when dry the surface temperature of about 200 degrees Celsius, the fan blowing, the surface temperature of about 120 degrees Celsius.

6. Both ends of the product wearing bracket (PA66 high temperature nylon)

7. Test: Ambient temperature 24 degrees Celsius, the wind speed: 3.3 m / s, distance from the outlet 10 cm. Hot air temperature of about 50-60 degrees Celsius.

8. Under normal circumstances, PTC heater in a very short time after the start, it will have an impact power, which is about 1.5 to 3 times the rated power, but will rapidly decline, which is normal. Please understand!

9. Life: about: 3--5 years.

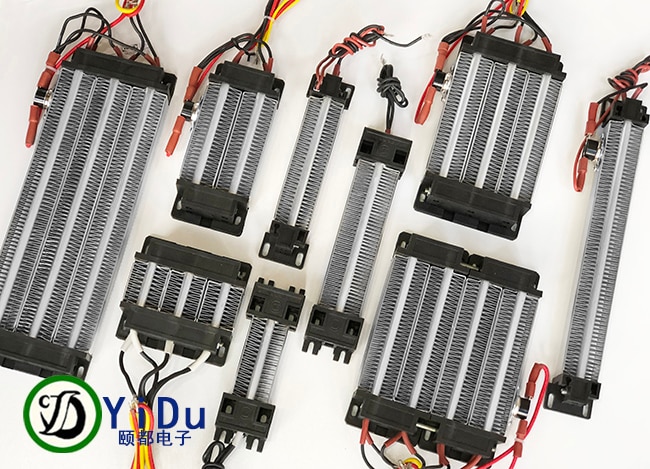

we  have different power and size to choose

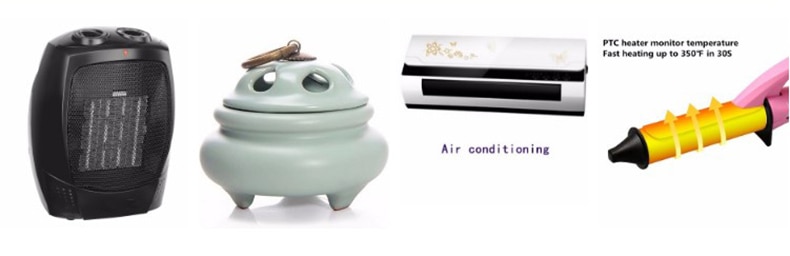

Application

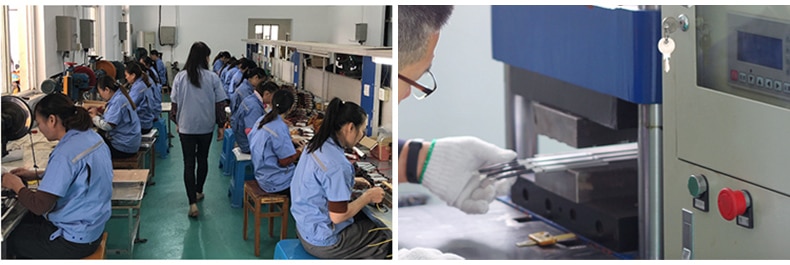

Our Company

Shanghai Yidu Electronic Co., Ltd is the professional manufacturer of PTC products. We are specializing in the production of PTC air heaters, PTC fan heaters and PTC liquid heaters.Our most popular products are the insulated air heaters.Widely used in new air conditioners, air conditioners, incubators, car assisted heating, ticket collection systems, beauty salons and all kinds of household appliances.

Packing & Delivery

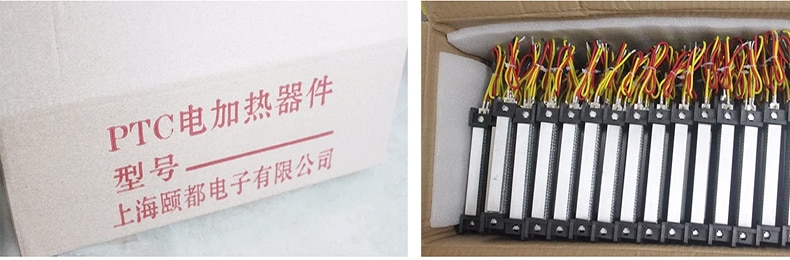

Packing Details : Packing, 50pcs/carton

Delivery Details : 1-3 days after order

FAQ

Q: Are you trading company or manufacturer ?

A: We are professional PTC factory.

Q: Can you customize different requirements products?

A: Sure, we have a professional R & D team, so we can customize different sizes, power, voltage... according to your specific requirements.

Q: How long is your delivery time?

A: Generally it is 1-3 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 50% T/T in advance ,balance before shippment.
If you have another question,please send us your RFQ.







  • Model Number: MZ45-96A2-500-220
  • Brand Name: PTCYIDU
  • Origin: Mainland China
  • Type: Electric Heater Parts
