5000W ZVS Induction Heater High frequency Induction Heating PCB Board Melted Metal + Coil+Pump
0.0 ( votes) | 1 orders
Price:
US $514.59 - 623.42
/ piece
Discount Price:
US $
426.87 -
497.74
/ piece
-17%
- Color
-
-
5000W ZVS Induction Heater Induction Heating PCB Board High frequency Heating Machine Melted Metal + heating Coil + Pump
this is not included power supply,need to prepare it by yourself,thanks
This product is DC48V power supply, maximum current 100A power 5000W small
power induction heater, mainly used for heating and quenching of small ferrous metal

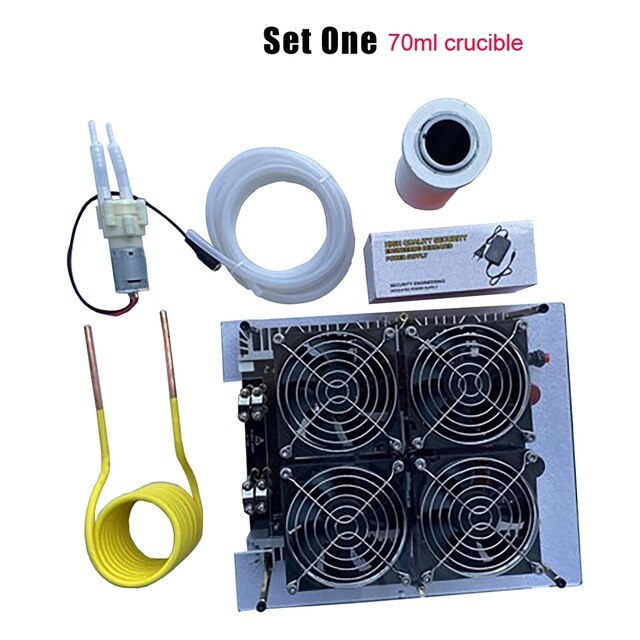

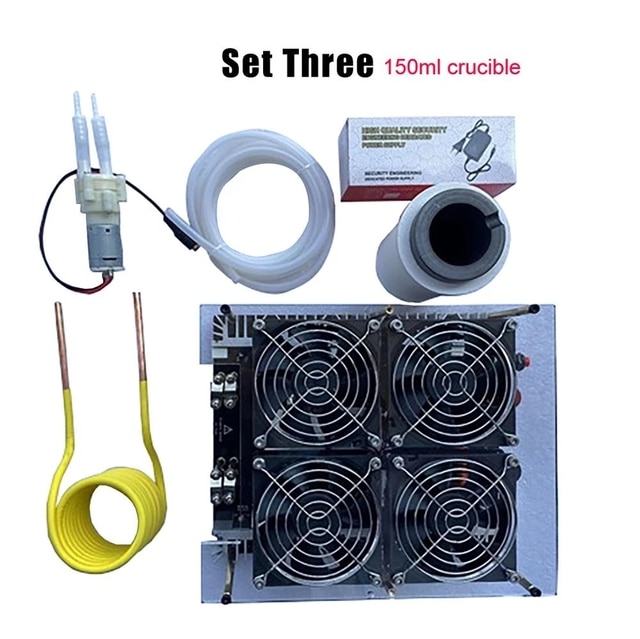

materials, with supporting 70mL or 150ml graphite crucible maximum temperature up
to 1600 degrees Celsius.

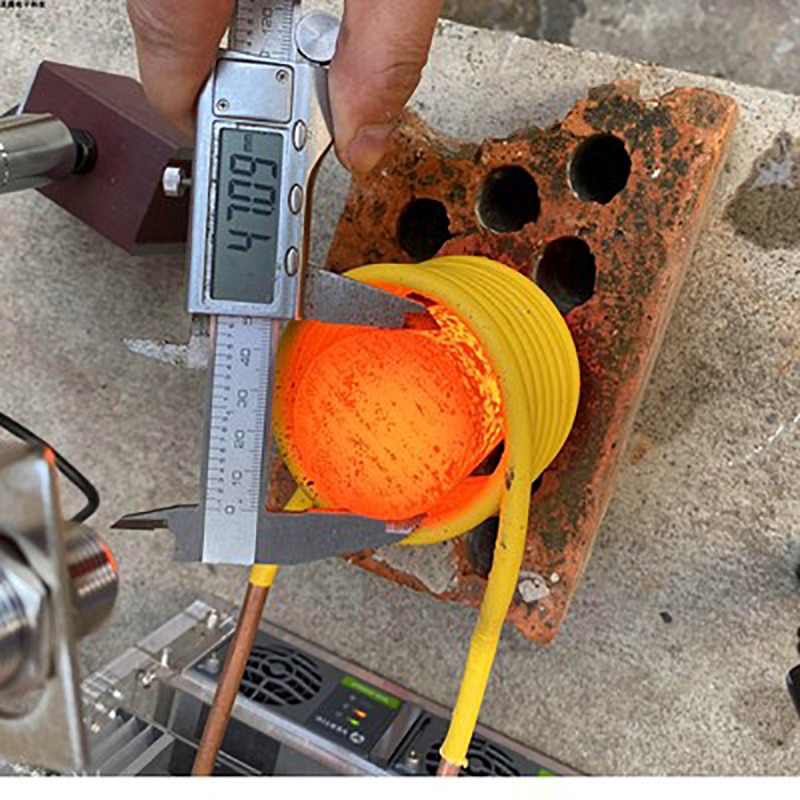

Easily melt iron copper gold Silver and other metals.

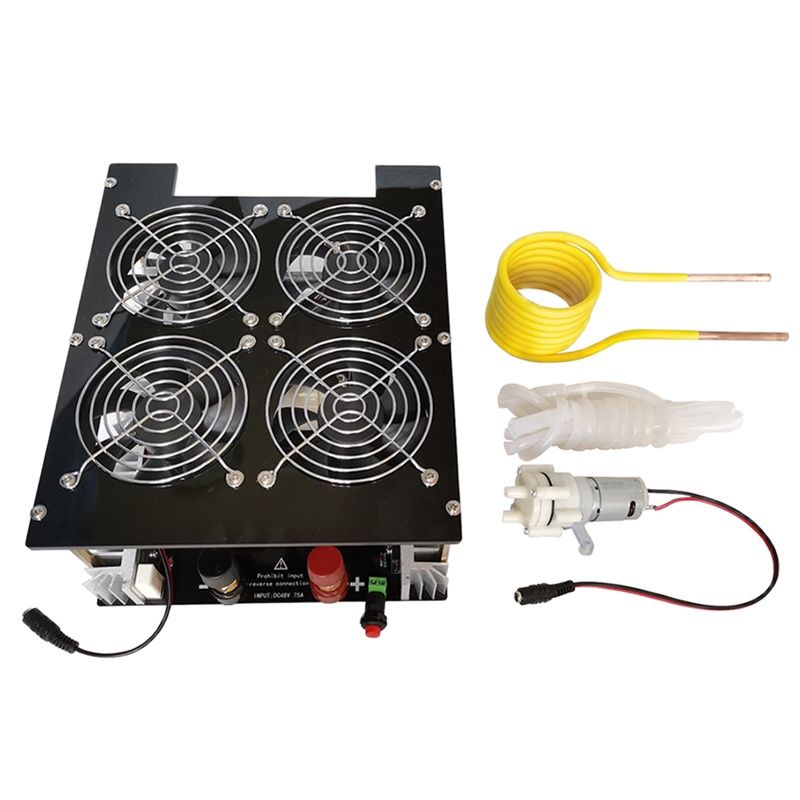

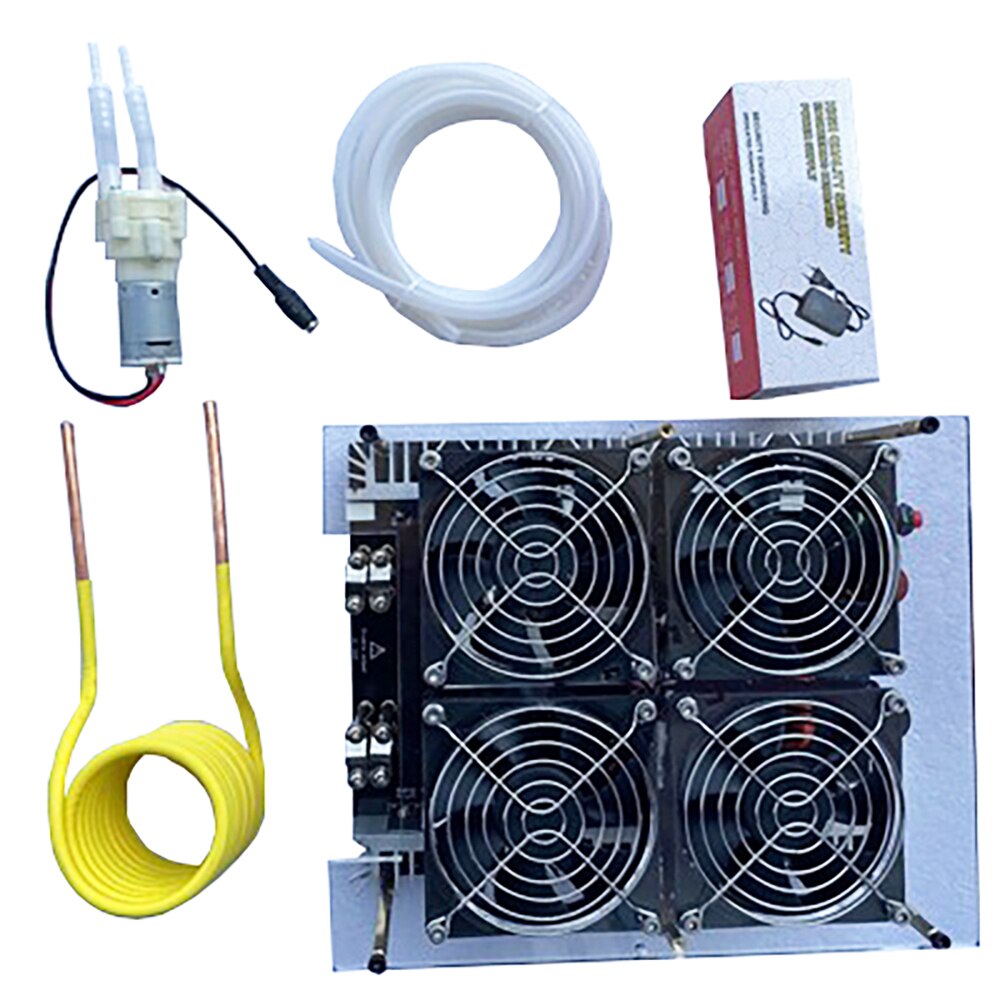

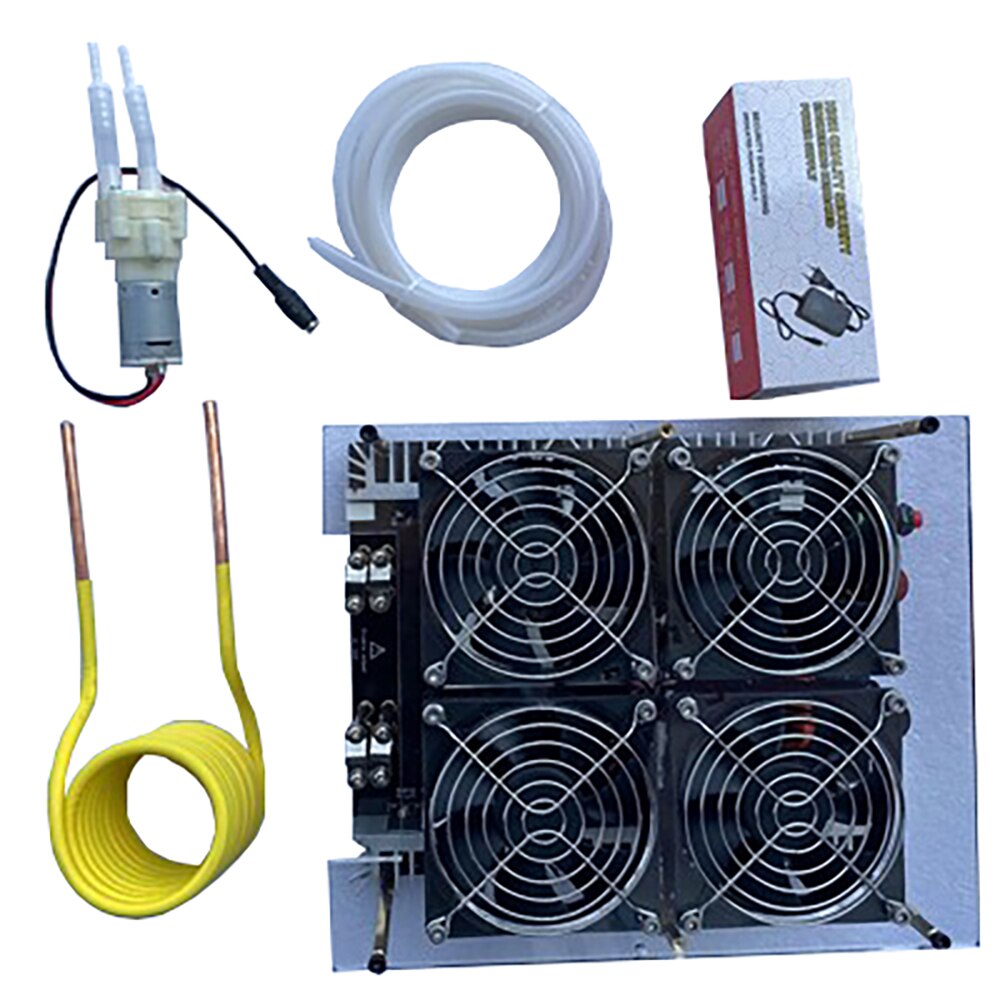

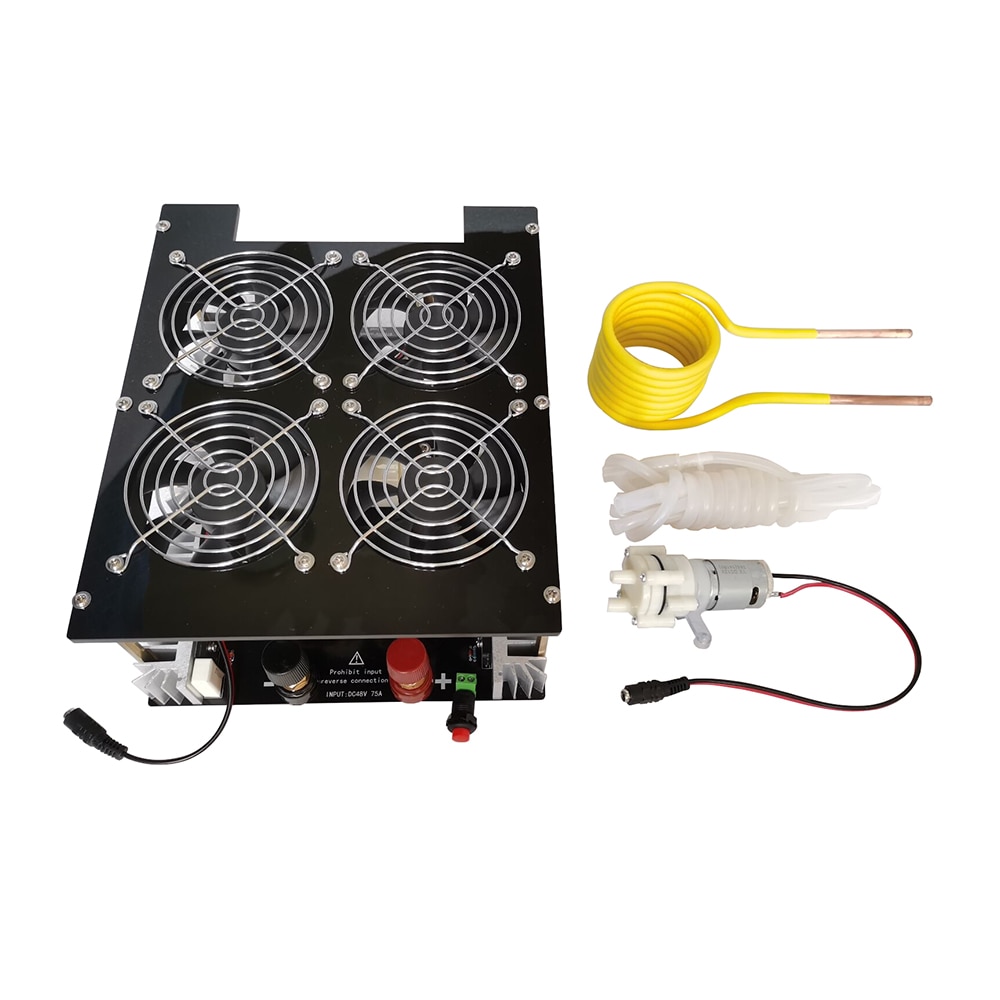

1 x PCB Board
1 x 48V Copper Tube
1x water pump

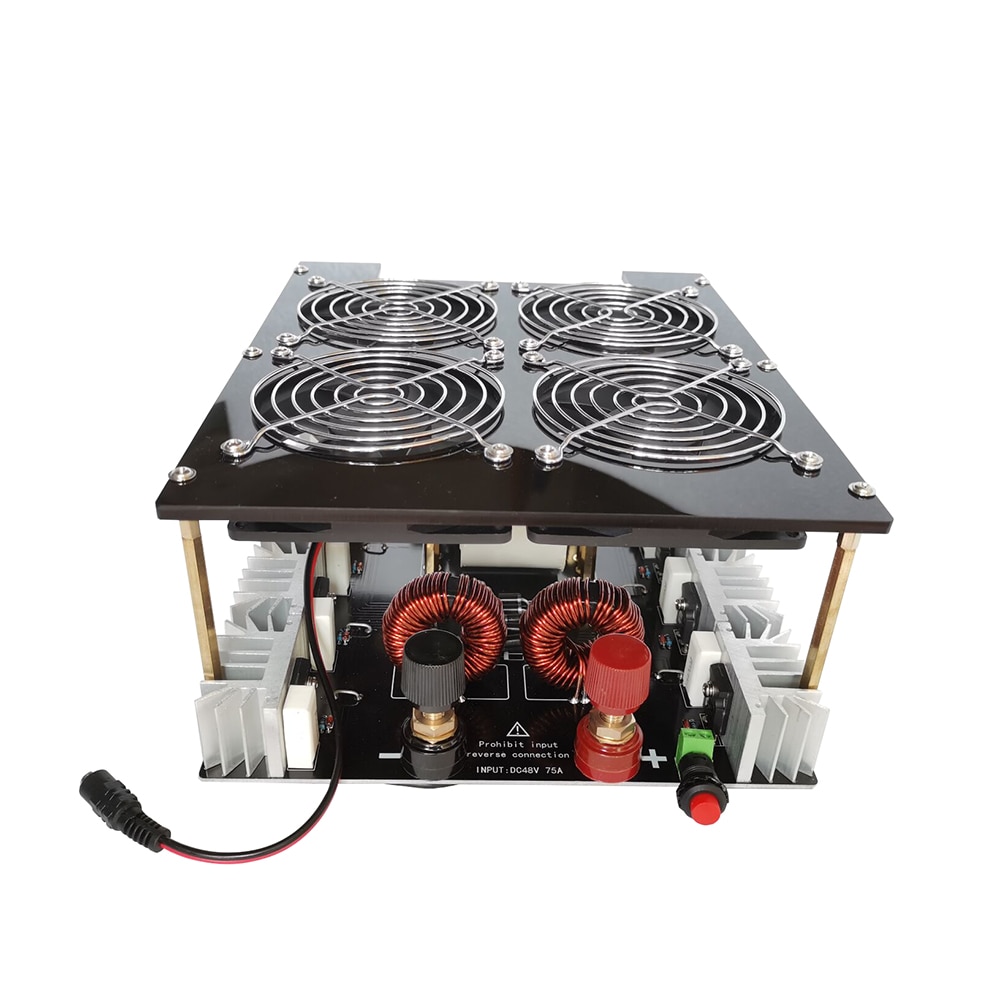

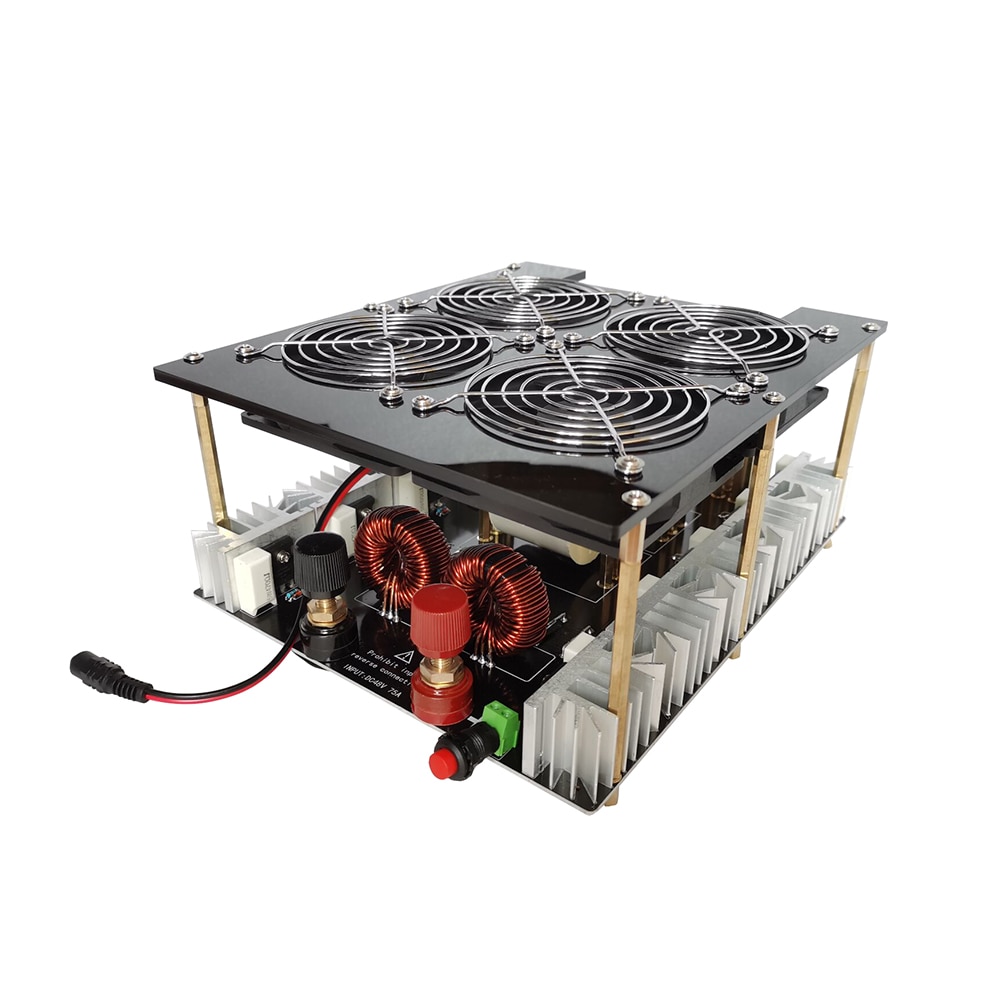

1. Use 2mm thickness PCB design, copper thickness 2OZ, large current, good heat
dissipation;

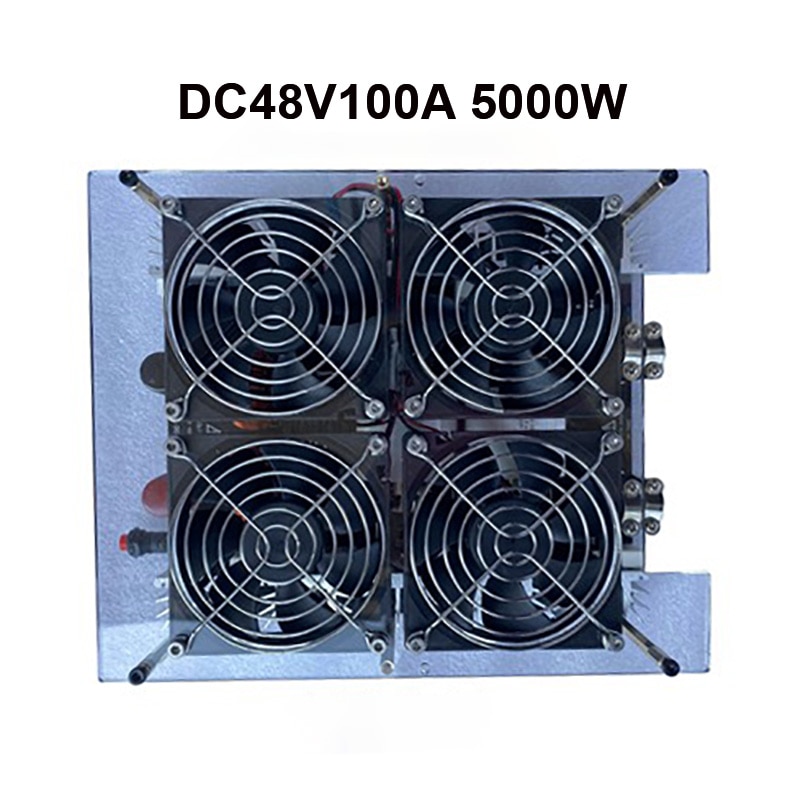

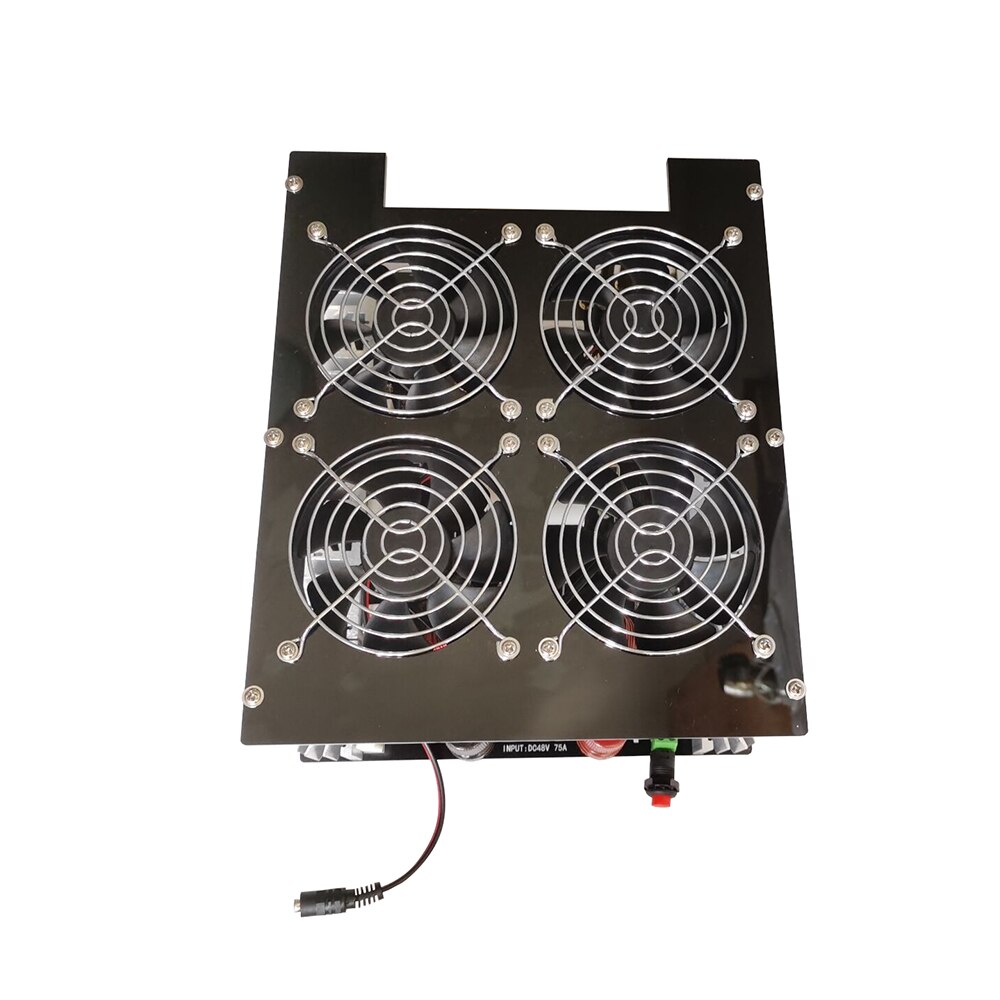

2.4 high-power cooling fans;
3. The heating ring is wrapped with high-temperature insulation materials to prevent
short circuits during heating, and a specific heating ring is customized;
4. The input terminal uses high-current power terminals, which can be directly
connected to a dedicated 100A power meter;
5. Send the matching water pump for water cooling of the heating ring, and send a
temperature sensor to monitor the temperature of the motherboard at any time;
6. Optional external control board function, which can realize external button soft
control, control board integrated overload protection temperature protection, etc.
1. Dimensions: length, width and height 256 * 210 * 115 (unit: mm);
2. Heating ring size: 60 * 70 * 73 or 70 * 80 * 73 (inner dia * outer dia * height);
3. Input voltage: DC48V;
4. Maximum power: 5000W;
5. Maximum DC working current: 100A;
6. The maximum temperature of metal iron directly heating is above 1000 degrees
Celsius;
7. The maximum temperature of the crucible is 1600 degrees Celsius;
matters needing attention
1. Users who only purchase the main board and do not purchase the power supply must
use their own power supply to ensure that the power supply can stably output more than

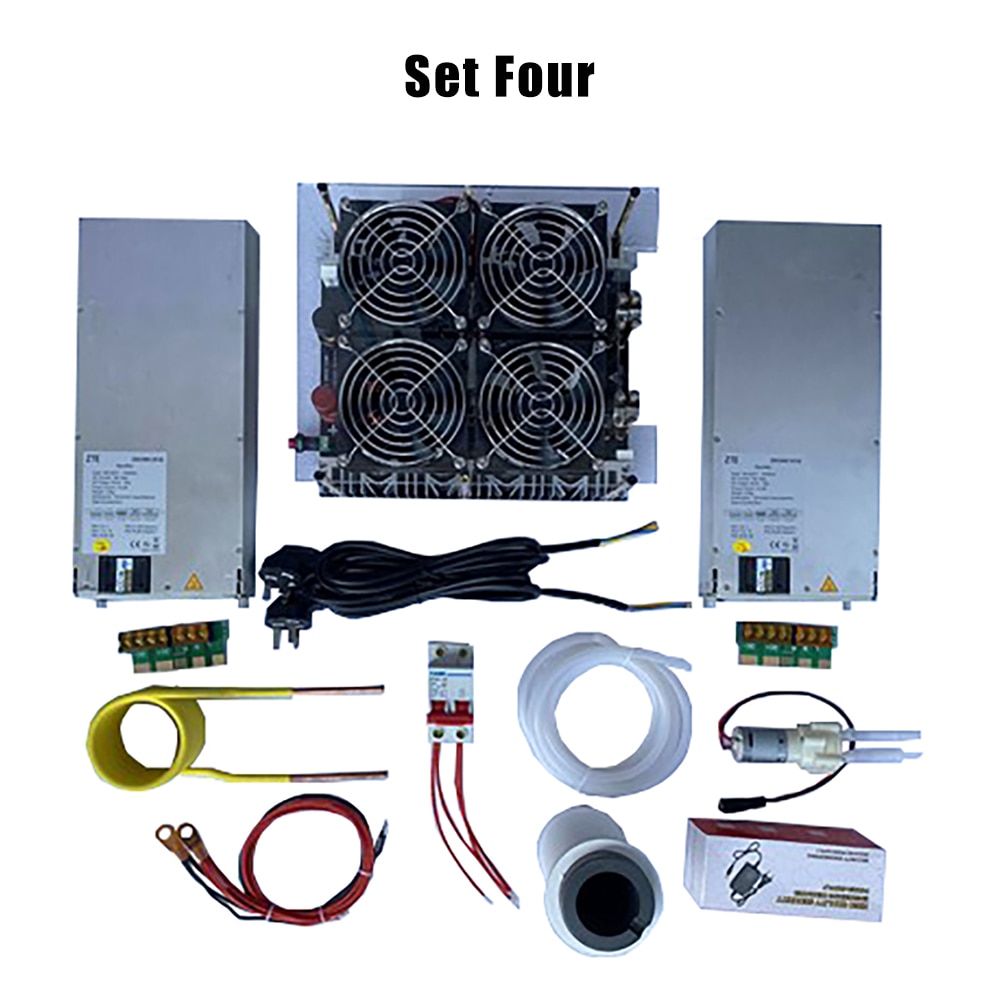

100A of current.Generally, two 50A communication power supplies are used in parallel
2. The boot sequence should follow the power supply to the power supply, wait a few
seconds for the power supply to stabilize, then connect the power supply between the
power supply and themotherboard (recommended to use a 100A current switch), and
finally press the red button on thegreen control interface . Do not make mistakes,
otherwise the motherboard will be burned directly and unprotected. When shutting
down, first turn off the red button, then turn off the switch between the motherboard
and the power supply, and finally turn off the power switch.
3. Water cooling and air cooling must work at the same time when working. If any of
them does not work, you should immediately disconnect the power and contact the
manufacturer for a solution;
4. If conditional water cooling can be used, cold water can be directly discharged into the
hot water without circulation, so that the heat dissipation effect is better;
5. For long-term use of crucibles, more crucibles should be prepared. The high
temperature heating of graphite will react with oxygen to generate carbon dioxide and
gradually consume the crucible;
6. Pay attention to the changes of various parameters of the display at all times,
especially the voltage and current and the temperature of the main board. Once the
abnormality is found, the power must be disconnected immediately.
one year warranty
We are not responsible for any custom duty or import tax, it is buyer’s responsibility.
- Power: 5000W
- Voltage: 220V
- Model Number: ZVS
- Origin: Mainland China
- Certification: NONE
