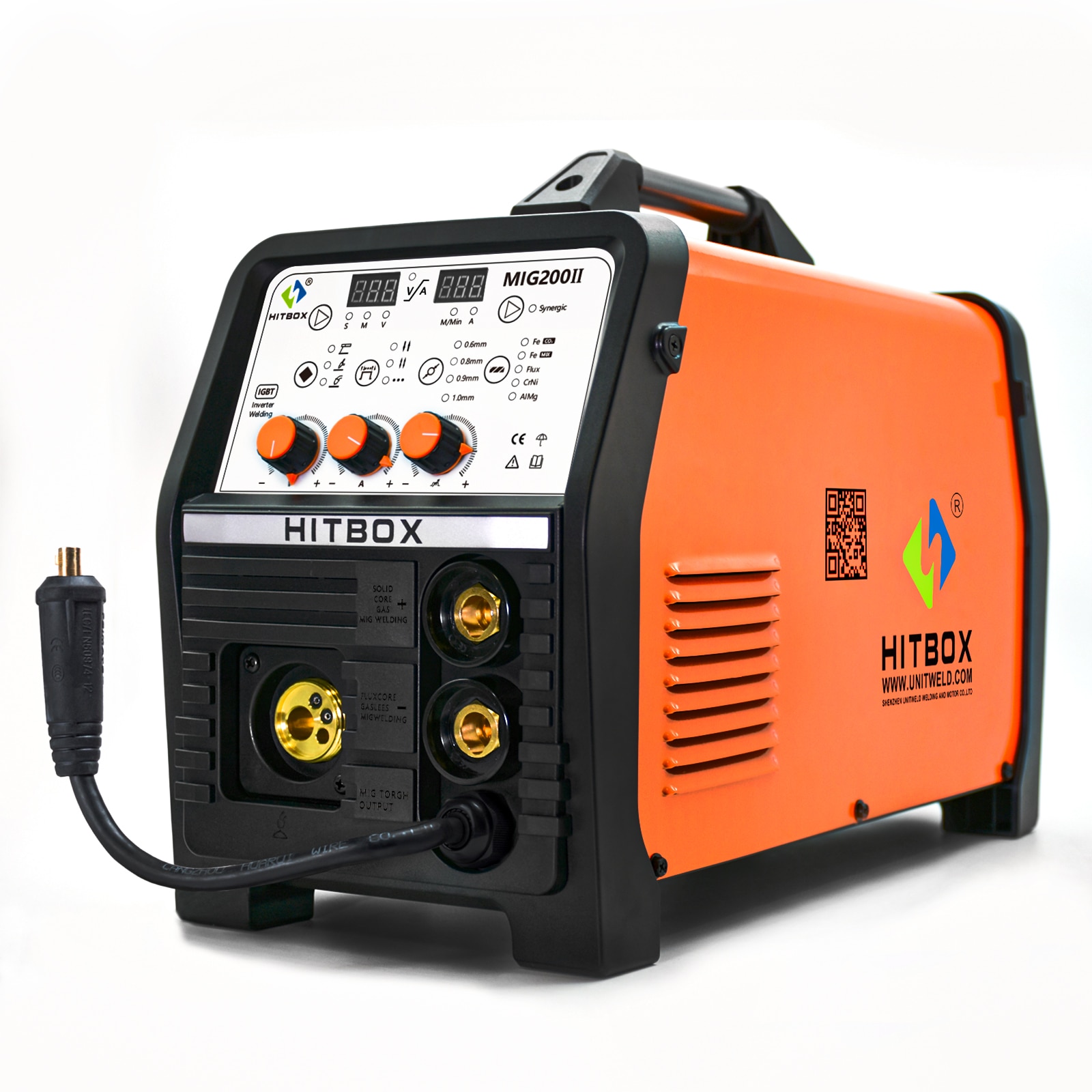

5 in 1 MIG200 HITBOX Stainless Steel Iron Mig Welder Semi-Automatic ARC TIG MIG Aluminum Welding Machine DC Gas and Gasless
4.7 (24 votes) | 180 orders
Price:
US $1178.04 - 1541.68
/ piece
Discount Price:
US $
822.22 -
1047.68
/ piece
-30%
- Ships From
- Color
-
-

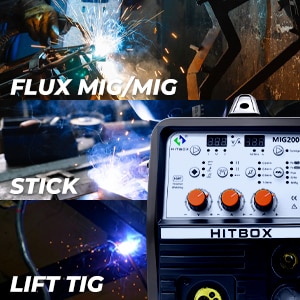

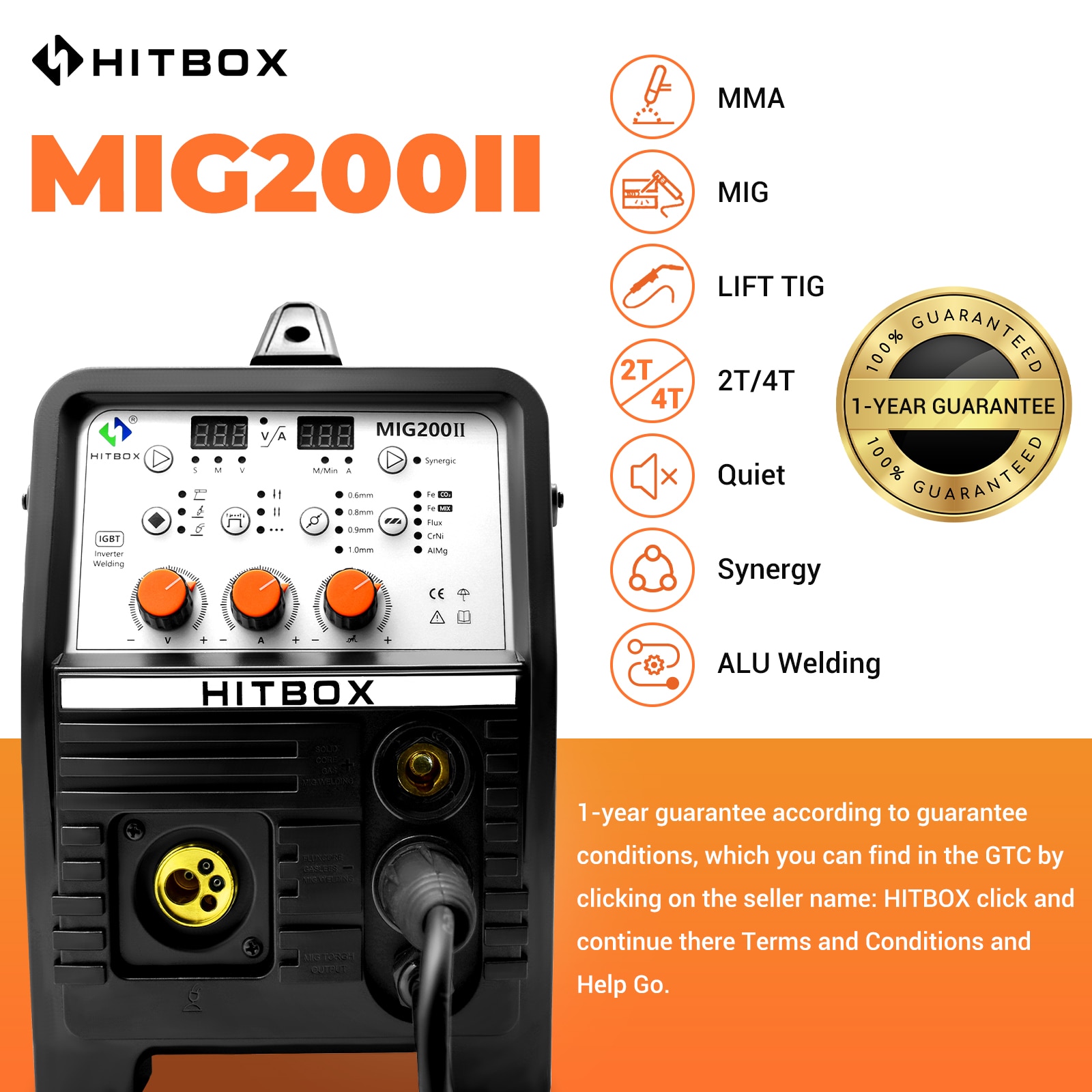

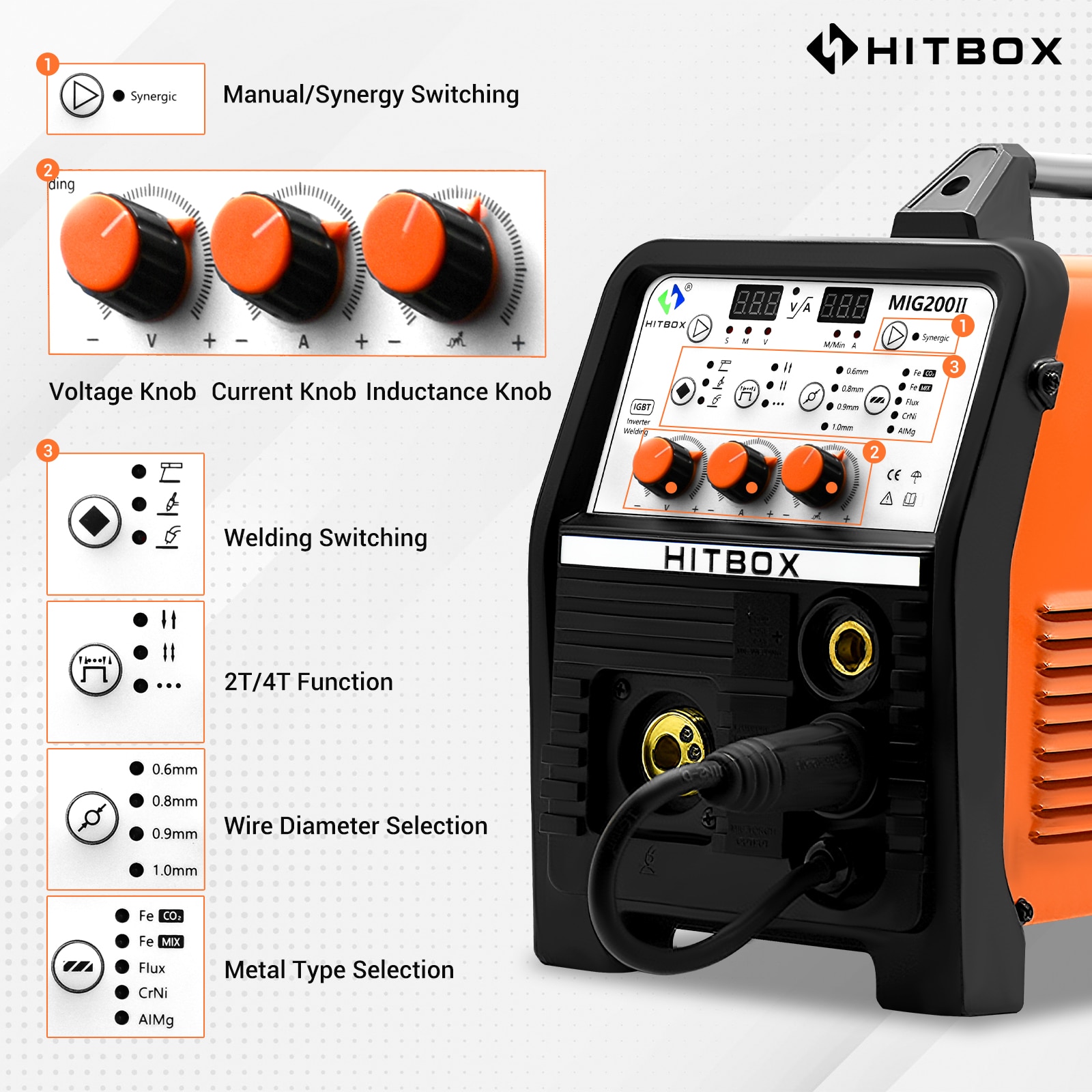

【5 in 1 Powerful MIG Welding】Multi-process welding machine with Gas MIG, Gasless MIG,MIG Aluminum, Rod/MMA, LIFT TIG. The HITBOX MIG200II MIG welding machine provides 2 welding modes: manual welding and synergic welding. Synergic welding offers many welding parameters to weld, such as | Welding voltage | Welding current | Welding function | Wire diameter | Type of metal | 2T/4T | Pre/post gas time |
【SYNERGIC MIG】Digitally controlled, it automatically adapts to the recommended current and wire feed speed by selecting wire diameter and gas material, you can also configure the welding current to suit your soldering habits. Easy to use for beginners or professional welders.
【Multi-Function MIG Soldering Iron】The MIG soldering iron has special features such as adaptive crater, quench control and forward/reverse flow to improve your welding efficiency. 2T/4T 2 welding methods to meet your needs. Silent protection reduces noise pollution and the fan only turns on automatically when the temperature rises too high.
【Revolutionary LED Display】The exclusive human-machine interactive LED display design provides you with accurate data visualization and facilitates clear reading without taking off the helmet. The HITBOX MIG200 is perfect for outdoor maintenance, farms, road equipment and home DIY.
【1 Years Warranty】Our 24-hour online customer service will help you with repairs. Buy your HITBOX machine with confidence!

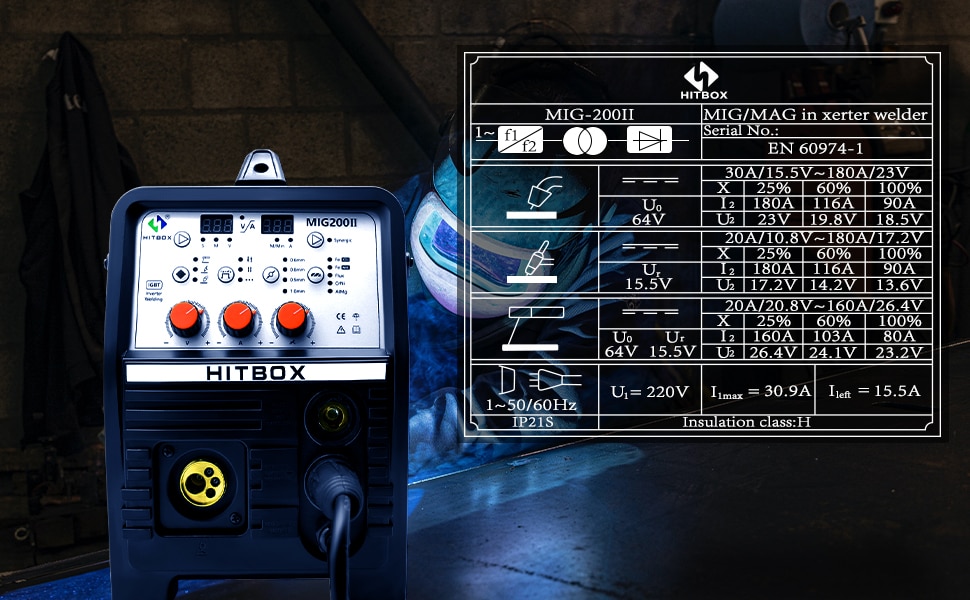

Specifications:
Brand name: HITBOX
Model: MIG200 II
Inverter technology: IGBT
Input voltage: AV220plusmn15%V
Frequency:50/60HZ
Max OCV:60V
Power factor:0.73
Postflow time: 1.0plusmn0.5
Packing dimension:425*183*290mm
Wire diameter:0.8/1.0mm
Applicable thickness: Over 0.8mm
Wire feed speed:0-18m/min
Output current:0-200Amp
Welding wire diameter :1-5KG 0.6/0.8/0.9/1.0MM
Rated output current :
MMA：20-200A
MIG:17-200A
Lift TIG: 30-200A
Duty cycle :200A@30%, 160A@60%, 103A@100%.

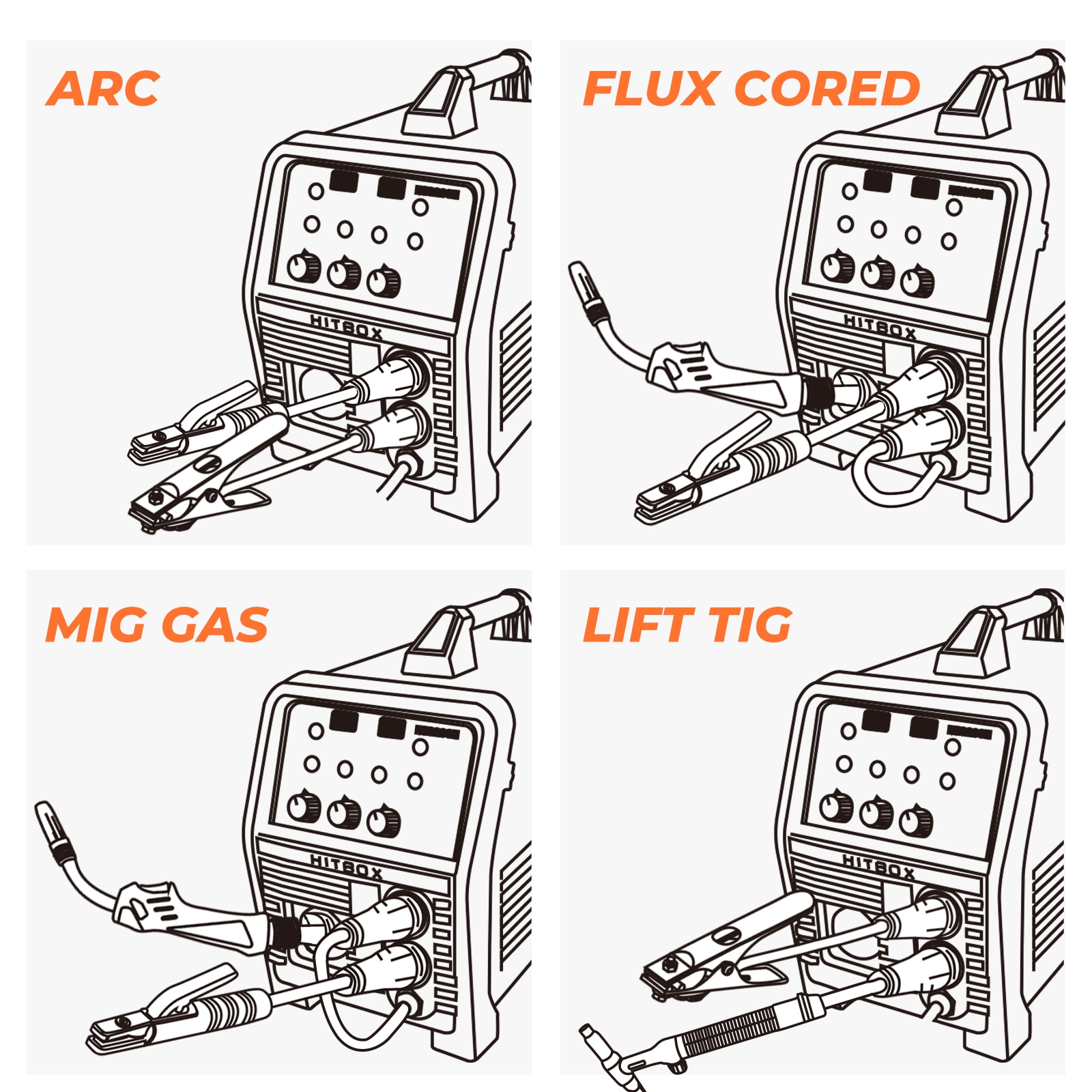

How To Connect
|
|
ARC welding mode u Connect the electrode holder to the positive terminal u Connect the ground clamp to the negative terminal u TIPS: Select ARC mode before use. Recommended electrode 2.5 / 3.2 mm | Continuous wire welding mode u Connect the mig torch to the negative terminal u Connect the earth clamp to the positive terminal u Note: gas inlet is not required, scraping the arc. |
|
|
Gas MIG welding mode u Connect the mig torch to the positive terminal u Connect the ground clamp to the negative terminal u You need to prepare the gas cylinders, and if you are using a gas mixture, you also need a gas meter to divide the flow. | Lift TIG welding mode u Connect the WP-26V to the negative terminal u Connect the earth clamp to the positive terminal u WP-26V tig torch, package does not include |
|
|
|

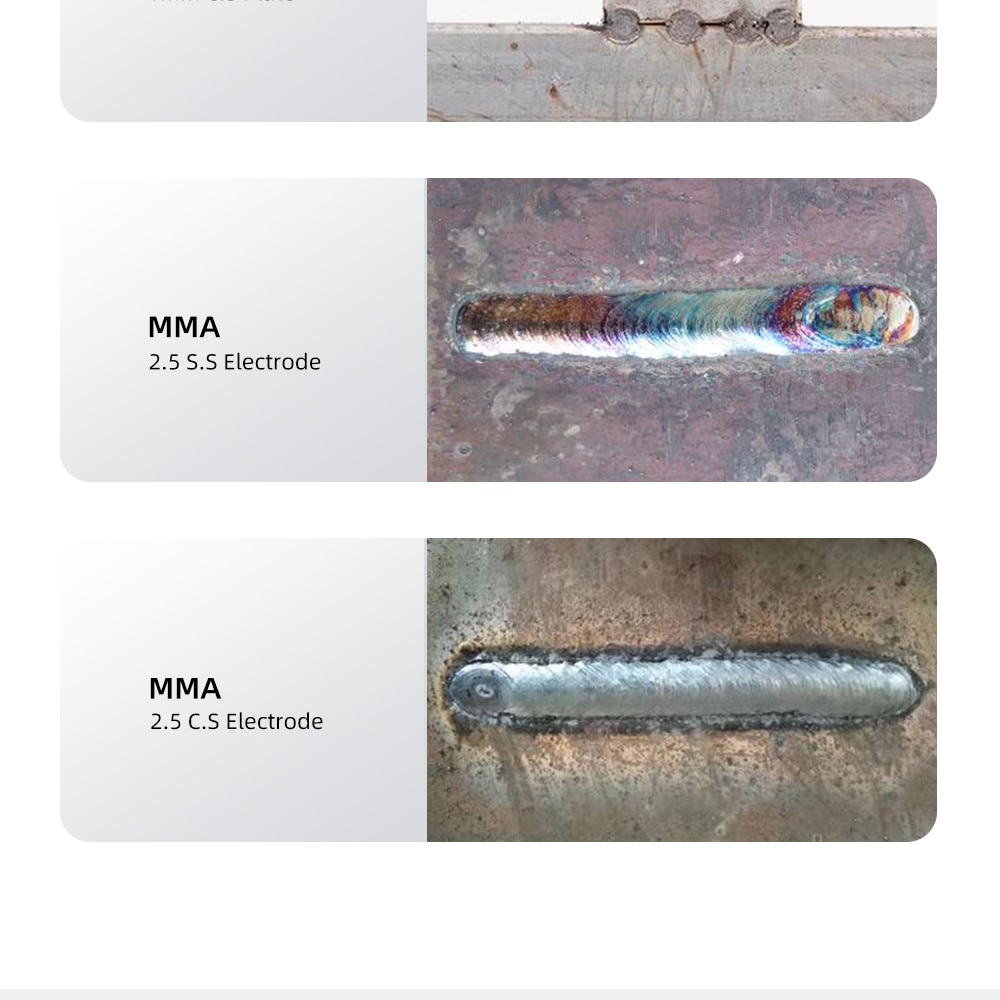

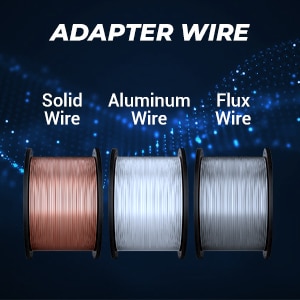

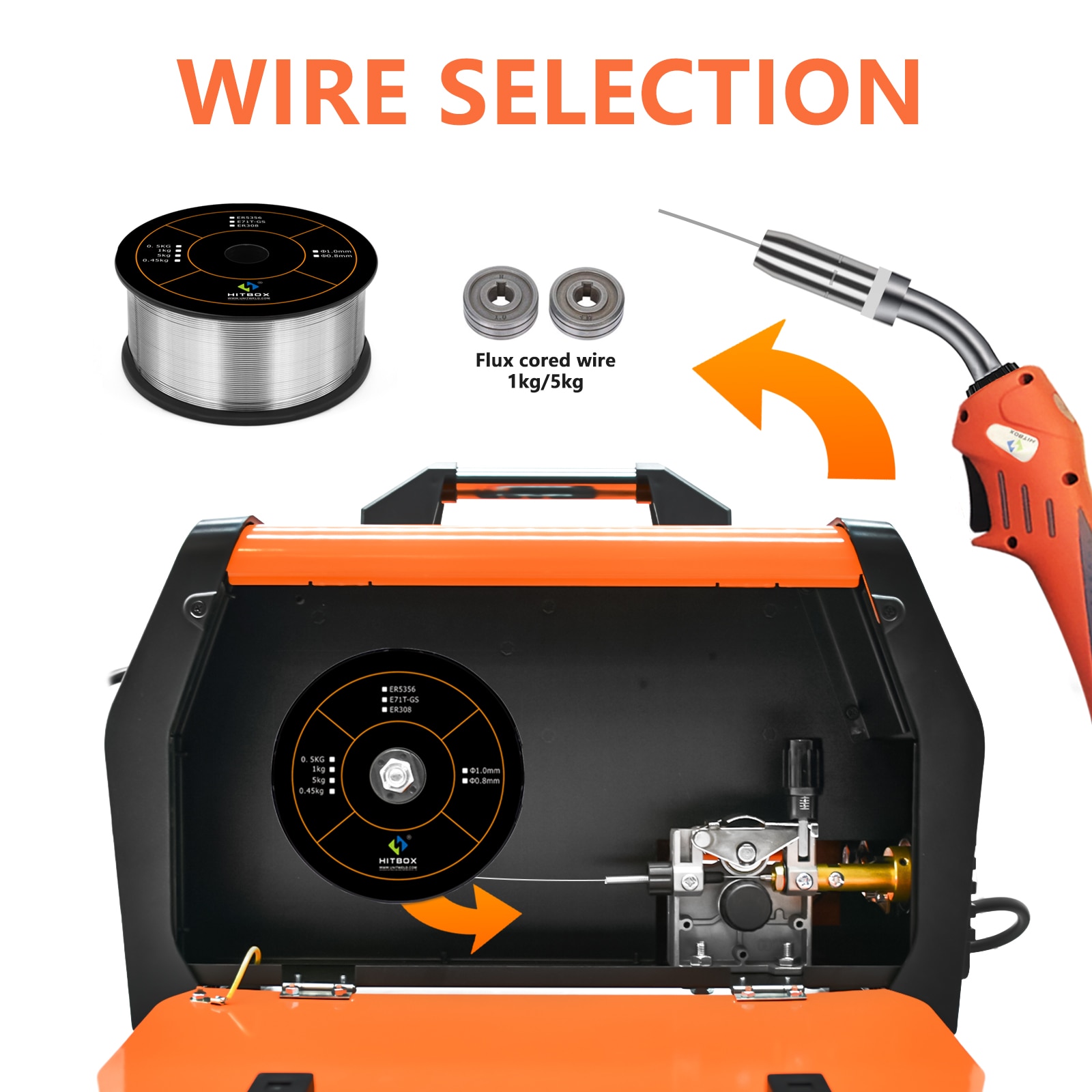

5 IN 1 MIG welder Supported welding mode · MIG gasless / flux cored · MIG CO2 / MIG MIX · ARC · LIFT TIG TIPS: · ARC welding current 20-180A · MIG welding current 17-200A · LIFT TIG welding current 10-180A | Easy to handle: · 1-5KG welding wires · Compatible wire diameter · 0.6 / 0.8 / 0.9 / 1.0 mm Type of welding wire · Full wire / flux cored / aluminum welding wire Note: requires the combination of nozzle and wire feed wheel of the same diameter. | Welding of all metals Type of welded metal · Iron, stainless steel, carbon steel, aluminum and copper Thickness of the welded metal · 0.8-12 mm Welding applications · Metalworking, Auto Vehicle Processing, Pipe Welding and Home Manufacturing |
Package Content:

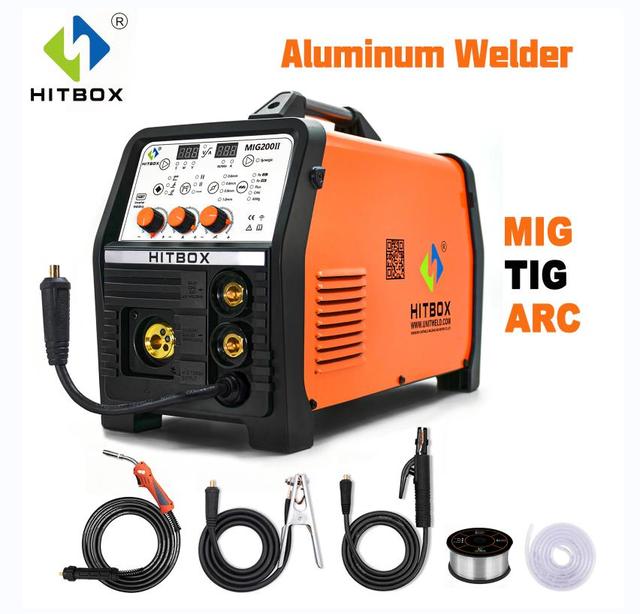

MIG200 II6:
1* Mig200 Welder
1* Mig gun
1* Electrode holder
1* Earth clamp
1* Gas tube
1* Flux cored wire 1kg
1* Graphite Tube
2*Rollers
1* User Manual

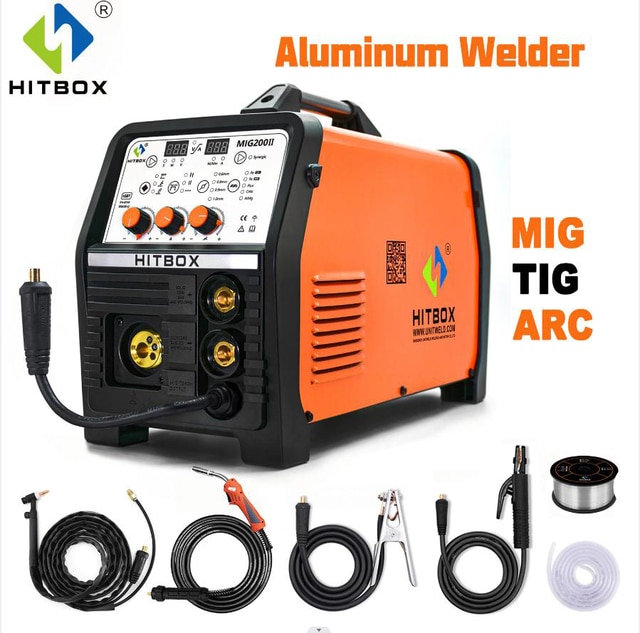

With Tig torch 2:
1* Mig200 Welder
1* Mig gun
1* Electrode holder
1* Earth clamp
1* Gas tube
1* Flux cored wire 1kg
1* Graphite Tube
2* Rollers
1* User Manual
1*17V Tig torch
To HITBOX Most Precious Customers:
*Tax charging is unavoidable for buyers and un-calculable for sellers,our price is not include any tax,please kindly notice,thank you very much for your understanding.
*Thank you so much for giving us this chance to offer you our welding machines as your welding partner,it is our greatest pleasure.
- Plug Type: EU plug
- Is Smart Device: No
- Usage: MIG ARC TIG welding
- Weight: 16.5kg
- Dimensions: 425*183*290mm
- Wire Feeding Speed: automatically
- Model Number: MIG200
- Brand Name: HITBOX
- Certification: CE
- Origin: Mainland China
- Mig Welding Function 1: Gas Mig,Stainless Steel Welding
- Mig Welding Function 2: Gas-Less Mig,Iron Welding
- Tig Welding Function: Lift Tig,Stainless Steel Welding
- Arc Welding Function: Iron Welding
- Welding Material 1: Stainless Steel Welding
- Welding Material 2: Iron Steel
