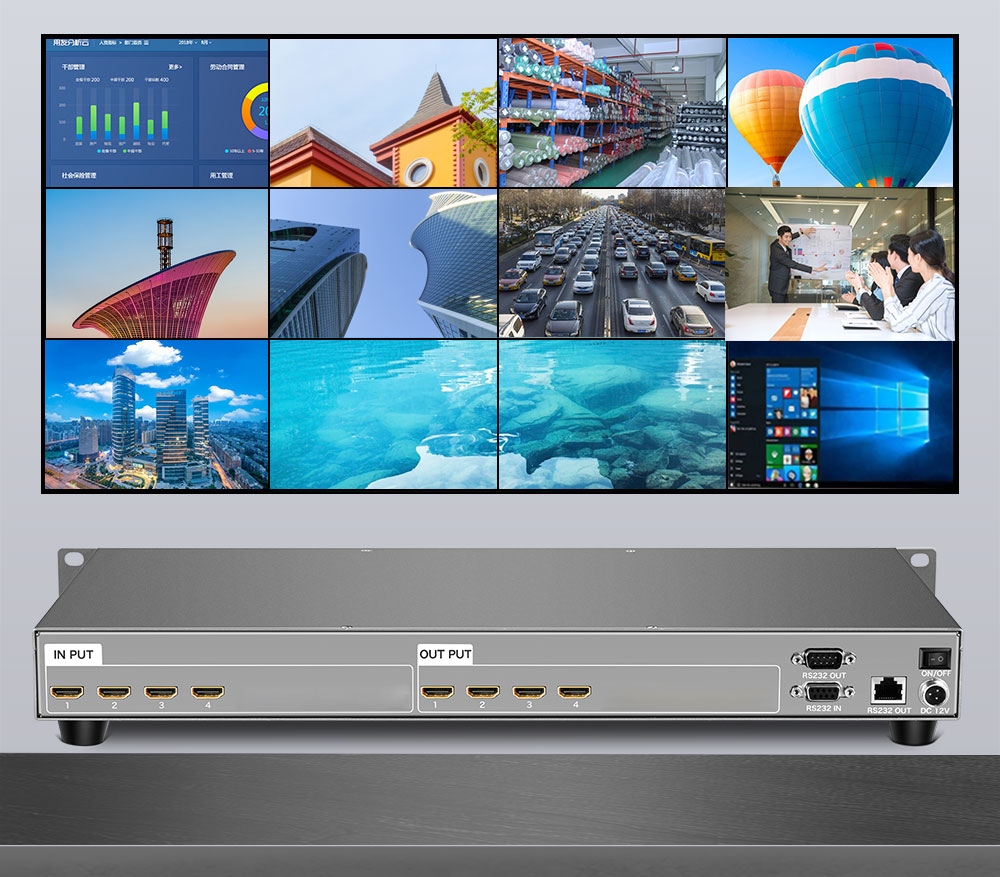

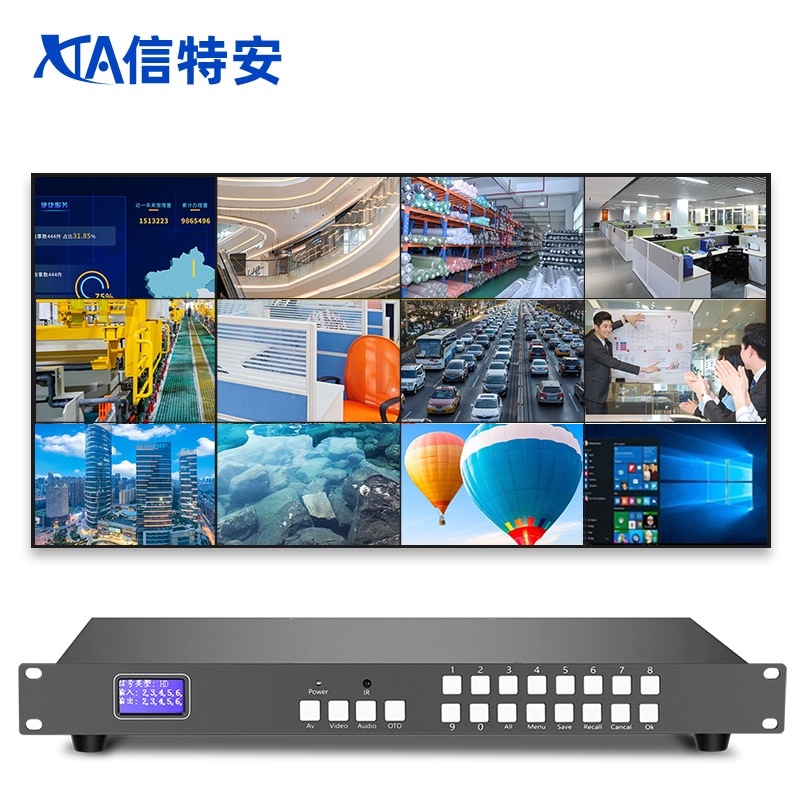

4x4/8x8/16x16/16x32 HDMI Matrix Switcher 2K Support 3D EDID& Blu-Ray DVD& Video Wall
3.0 (1 votes) | 3 orders
Price:
US $745.02 - 2485.02
/ piece
Discount Price:
US $
563.37 -
1621.82
/ piece
-24%
- Color
-
-

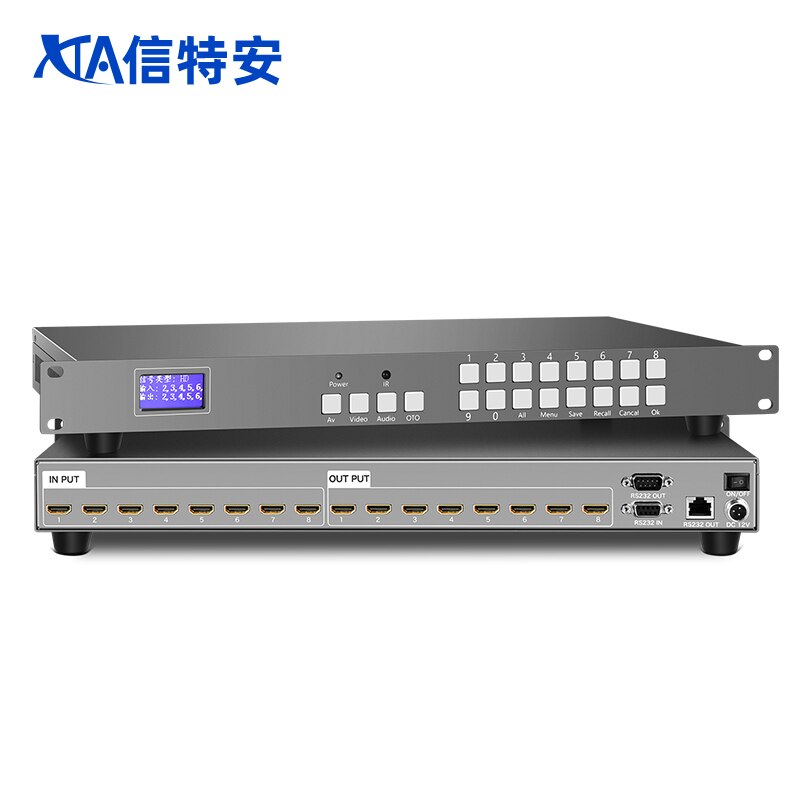

Professional 2K HDMI matrix switcher 4×4/8×8/8×16/16×16/16×32Support HDMI1.4a、3D EDID、Video wall and HDCP resolution
Product description

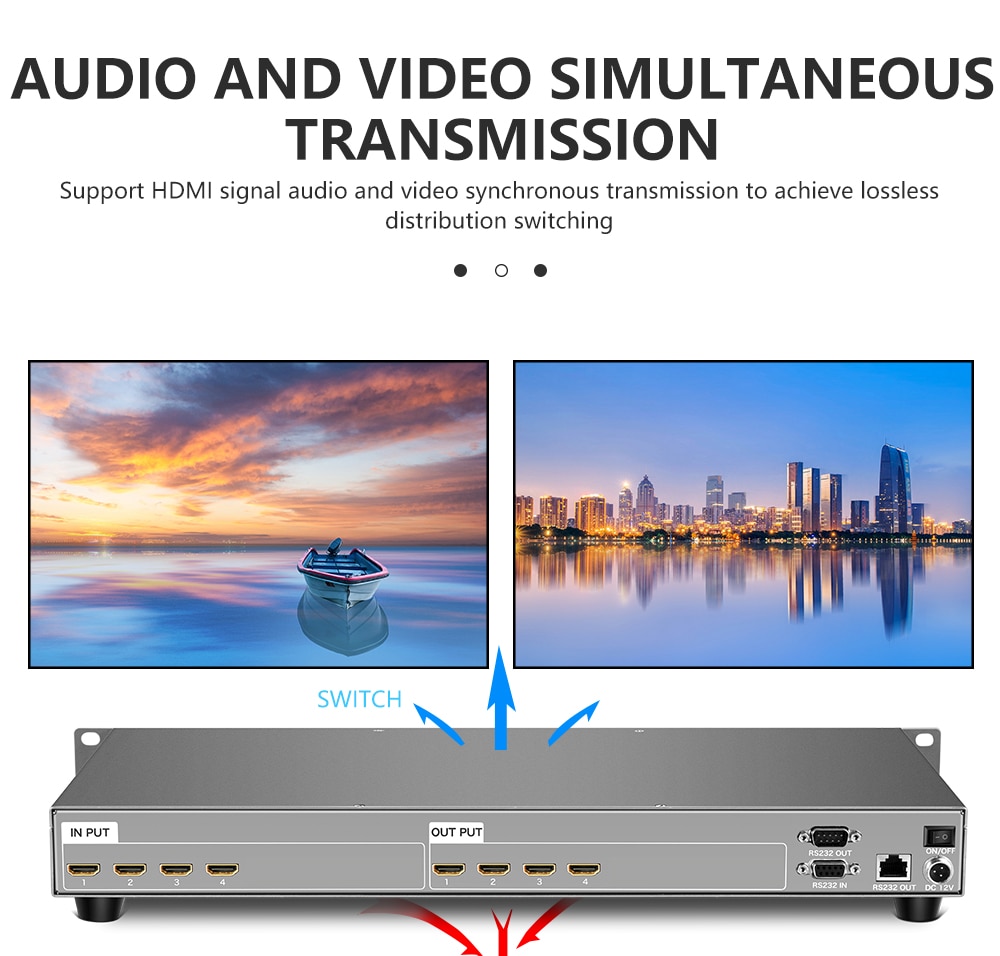

2K HDMI HD Matrix is a new generation HDMI matrix created by our company. It supports HDMI1.4a standard and HDM I matrix with resolution up to 1080@120HZ. Supports simultaneous audio and video switching, suitable for application scenarios such as conference rooms, command centers, and multimedia rooms.
Features
1. Full hardware architecture without CPU and operating system;
2. All boards are modular in design, support hot swap, the system is stable and reliable;
3. Adopt 6.5GHz high-bandwidth chip;
4. Support HDCP decryption, Blu-ray, 3D;
5. Support signal timing reorganization, CEC, 36-bit true color technology;

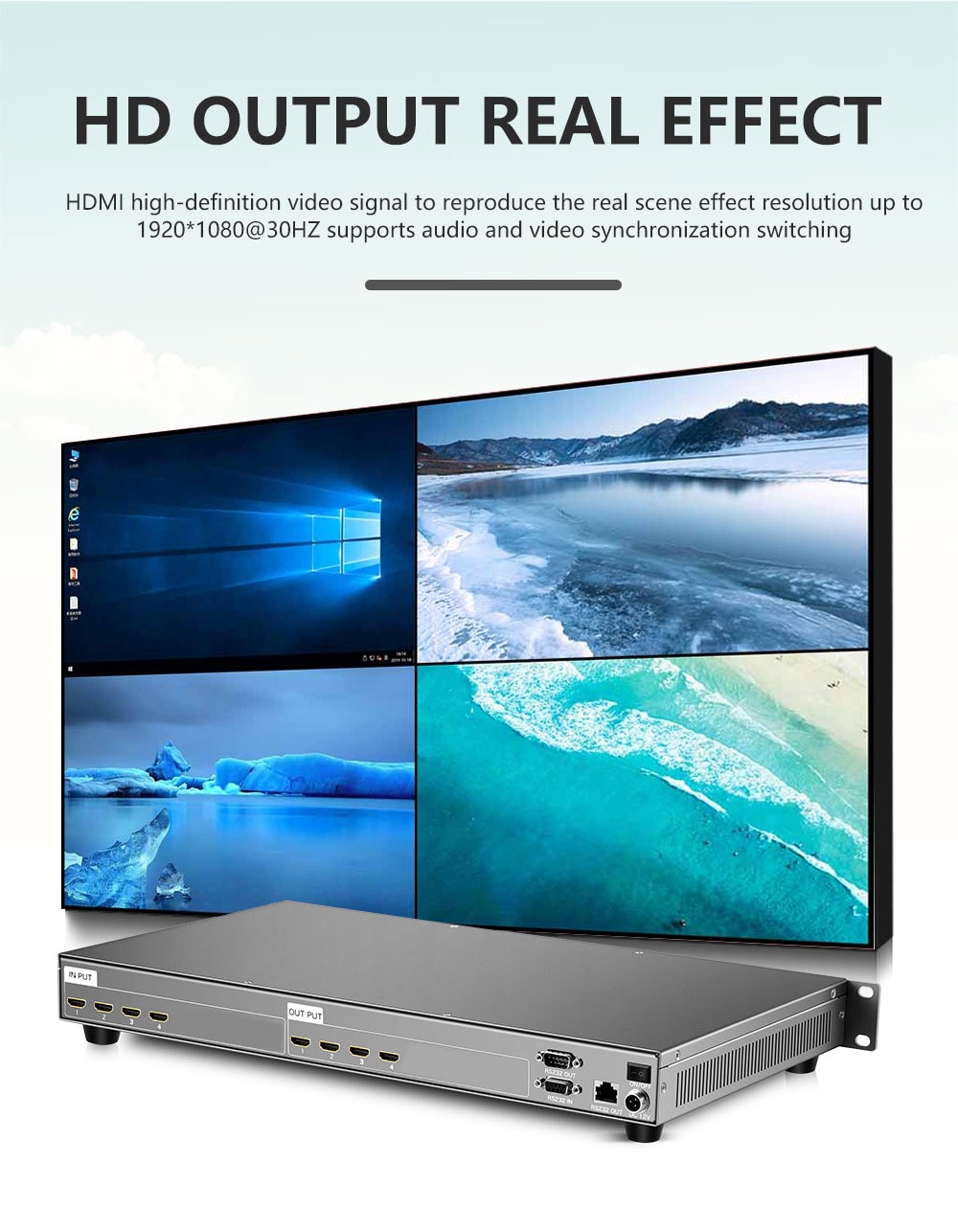

6. Support HDMI 1.4a protocol version support: 1080P@120Hz, 1080P 3D@60Hz, and the following resolution;
7. Support multiple control methods such as button, infrared remote control, RS232 serial port, TCP/IP, etc.;
8. Support EDID self-adaptation function, better adapt to the diversified display equipment on site, improve compatibility;
9. Long-term drive capability: The input is equipped with automatic equalization, which effectively reduces the deterministic jitter caused by line transmission;
10. The output has a pre-emphasis function so that the receiver can still receive signals after long-term transmission. The high-quality HDMI 2.0 cable is used, and the input and output distance can reach 25 meters;
11. The input supports receiving delay, effectively responding to time compensation when the differential pairs are not equal in length;
12. On-site protection function of power-down memory;
13. The HDMI video matrix adopts external power supply and aviation spiral power supply interface to protect the stability of the power supply.

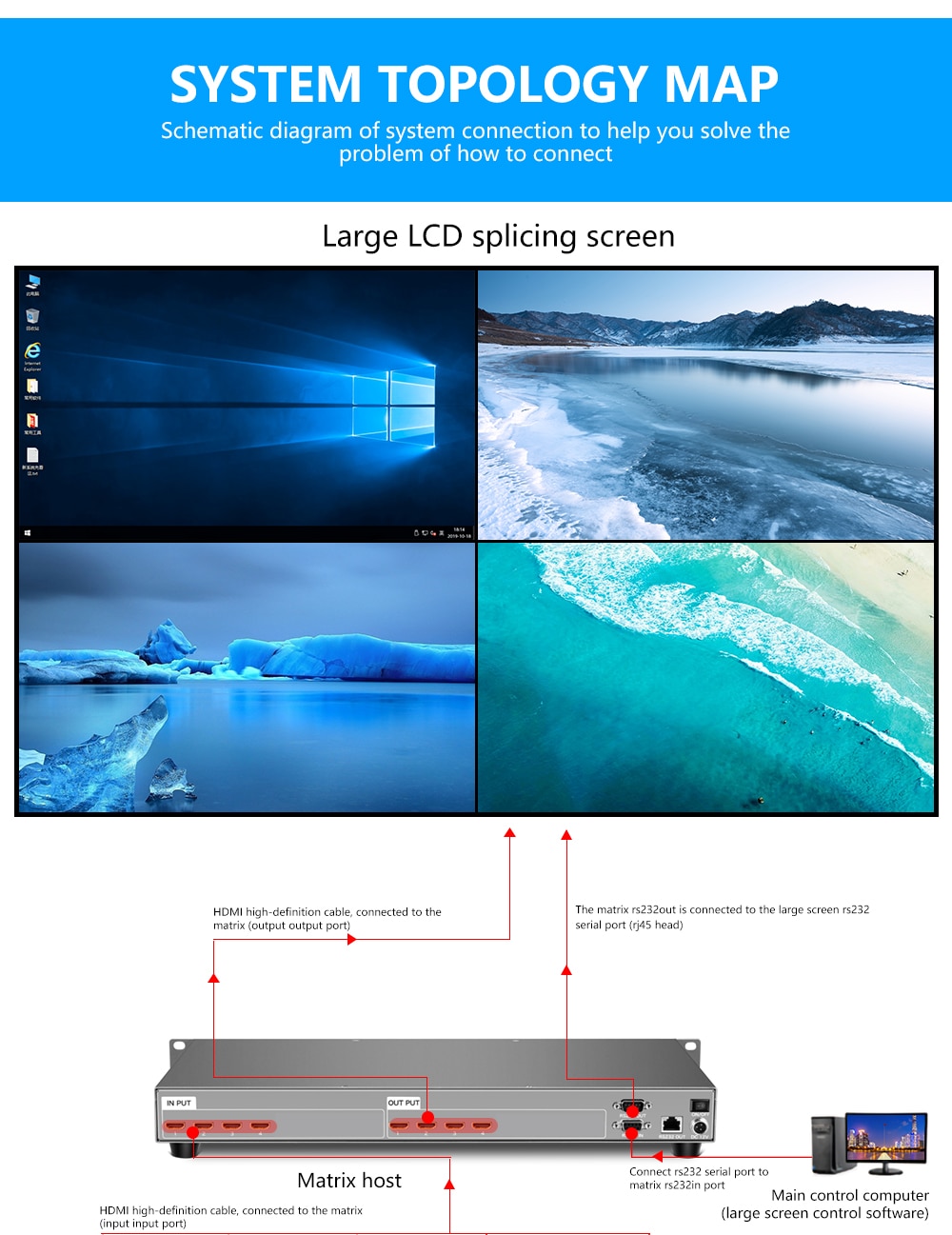

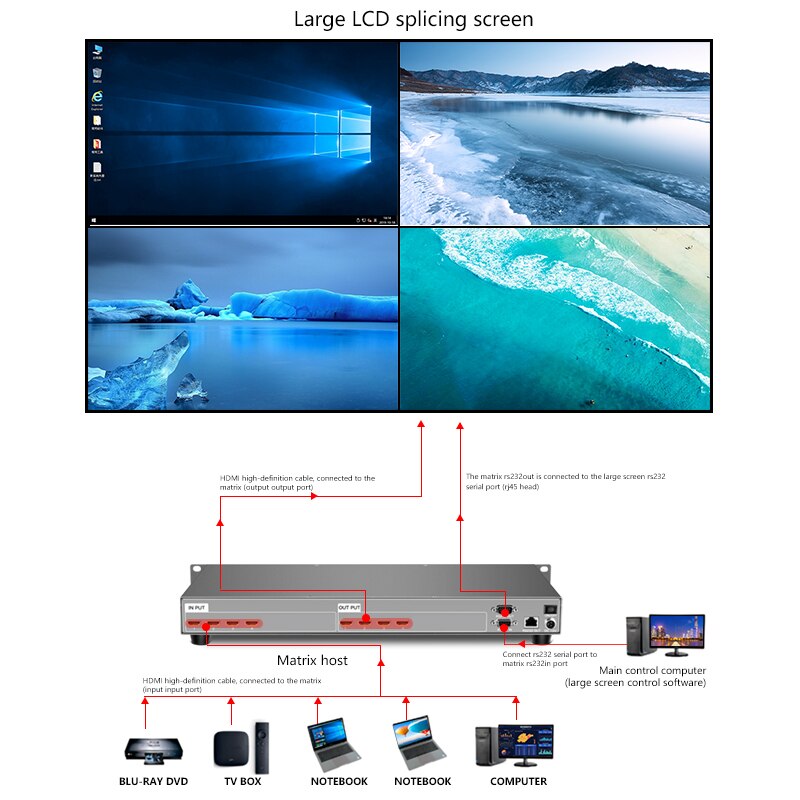

Operating and Connecting

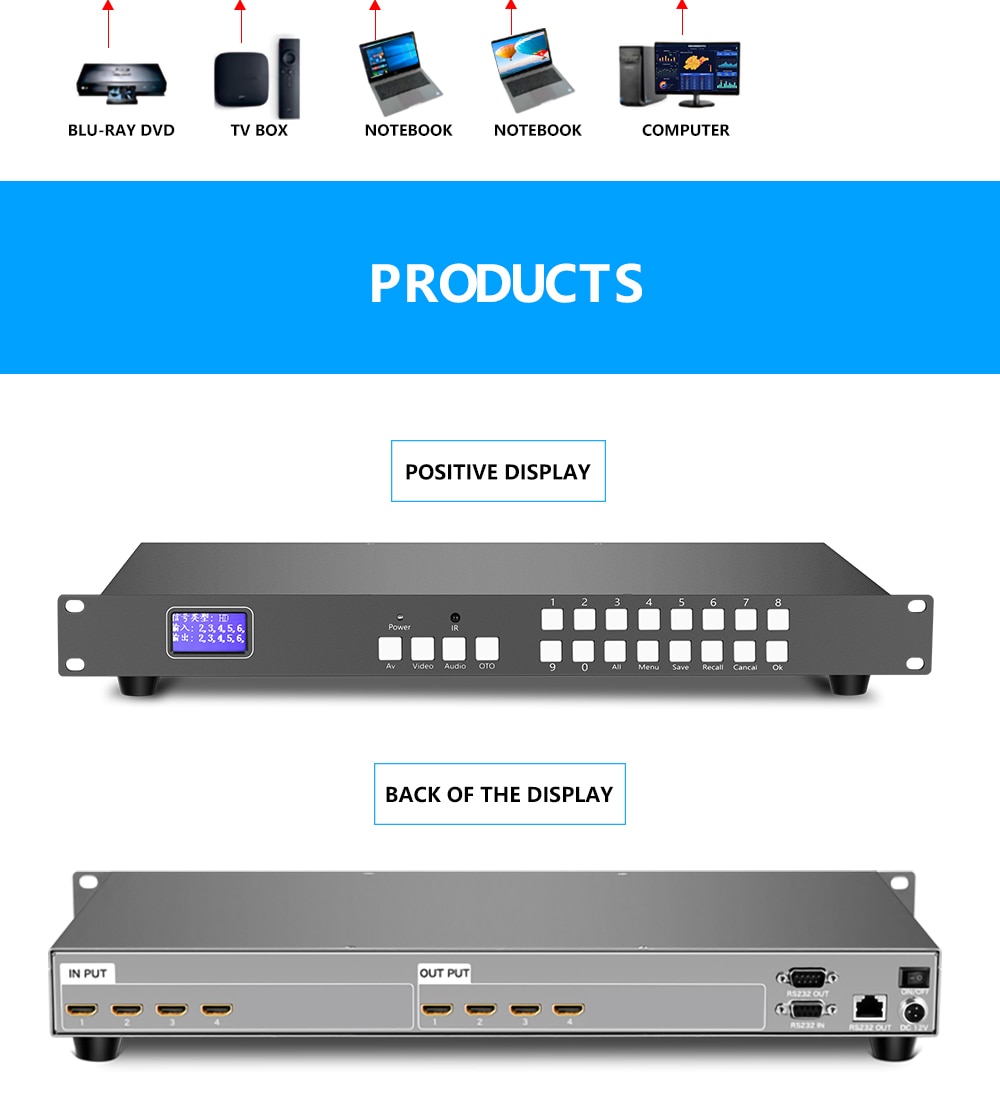

1).Connect HDMI signal sources to HDMI matrix input ports with HDMI cables.
2).Connect HDMI displayers to HDMI matrix output ports with HDMI cables
3).Connect external power supply cord with HDMI matrix
4).Choose DIP value, confirm EDID setting, then power on. Users can switch the input signal to corresponding output port via the button on front panel, remote control or RS232.
5).How to use RS232 port?
Through RS232 port you can monitor the state of the input and output signals and switch signals. When connect it with computer,users can easily switch the signals via computer.
Product parameters
| |||||||
|
| ||||||
|
|
|
|
|
| ||
|
|
|
|
|
| ||
|
|
|
|
|
| ||
|
|
| |||||
|
| ||||||
|
| ||||||
|
| ||||||
|
| ||||||
|
| ||||||
|
| ||||||
|
|
|
|
| |||
|
| ||||||
|
|
| |||||
|
|
|
|
|
| ||
|
| ||||||
|
| ||||||
MAIN FUNCTION | |
1 | All hardware architecture without CPU and operating system; |
2 | All boards are modular design, support hot plug, and the system is stable and reliable; |
3 | 6.5ghz high bandwidth chip is used; |
4 | Support HDCP decryption, Blu ray 3D; |
5 | Support signal timing reorganization CEC, 36 bit true color technology; |
6 | Support HDMI 1.4A protocol version support:1080P@120Hz,1080P3D@60Hz.And below resolution; |
7 | Support button, infrared remote control, RS232 serial port, TCP / IP and other control modes; |
8 | Support EDID adaptive function, better adapt to a variety of field display equipment, improve compatibility |
9 | Long line drive capability: input with automatic equalization, effectively reduce because of line transmission deterministic jitter caused by input; |
10 | The output has pre emphasis function, so that the receiver can still receive the signal after long-distance transmission,Using high quality HDMI 2.0 cable, the input and output distance can reach 25m; |
11 | Input support receiving delay "can effectively compensate the time when the differential pair length is not equal; |
12 | Power down memory field protection function. |
13 | HDMI video matrix adopts external power supply and aviation spiral power interface,Guarantee the stability of power supply; |

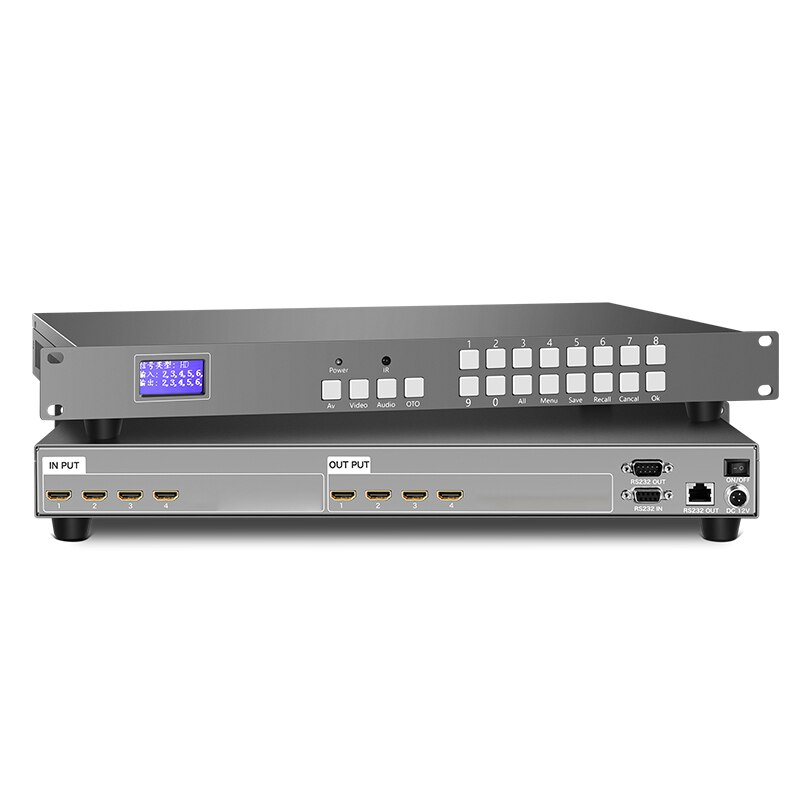

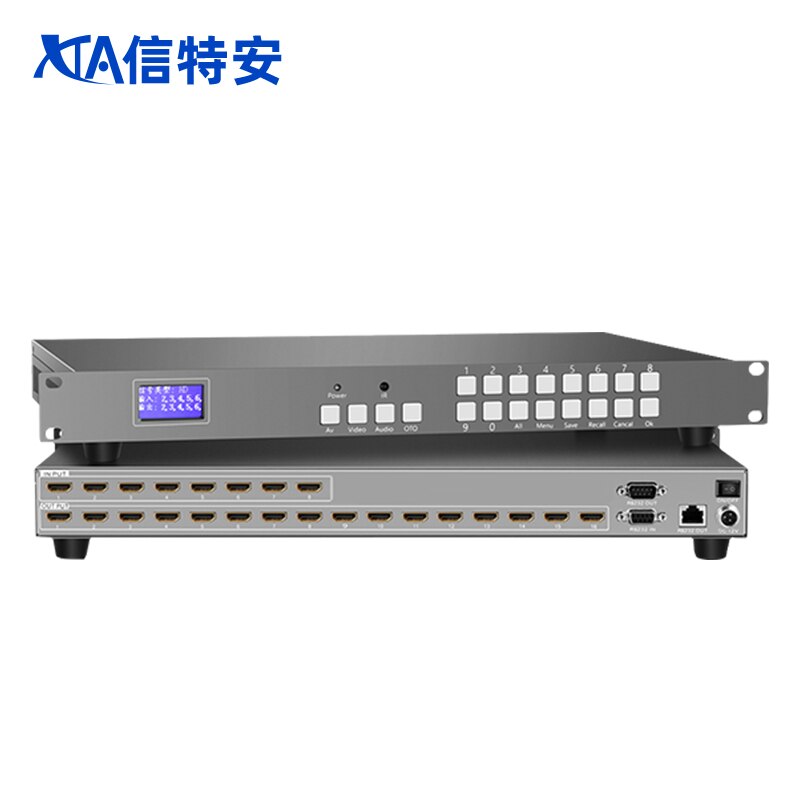

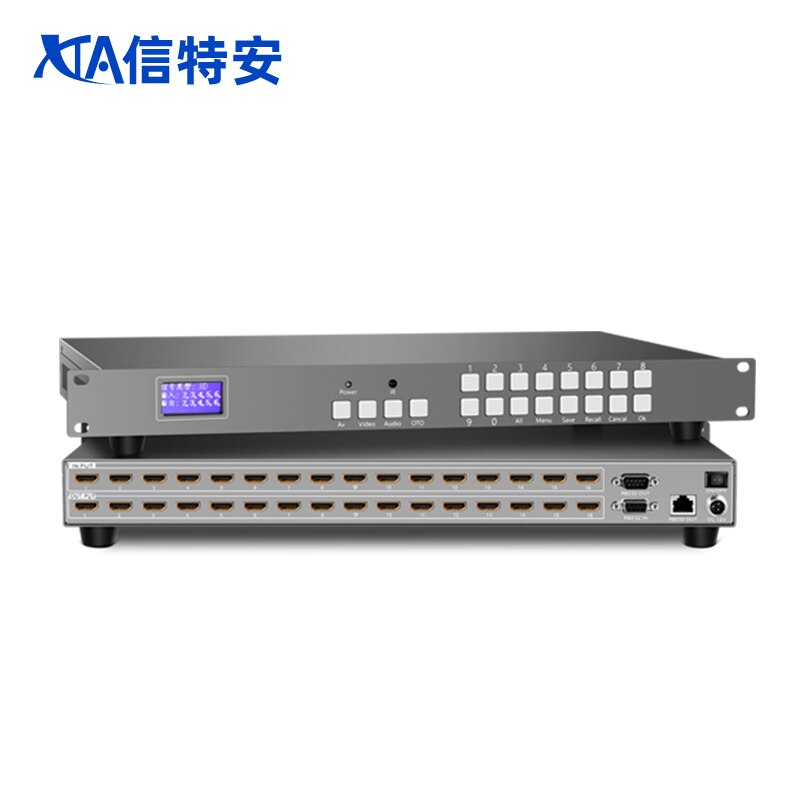

- Model Number: XTA0404HD
- Brand Name: NoEnName_Null
- Origin: Mainland China
- Certification: NONE

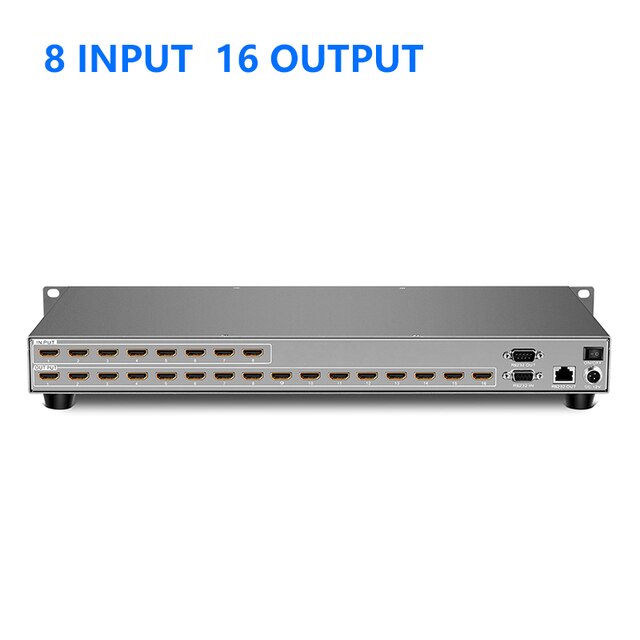

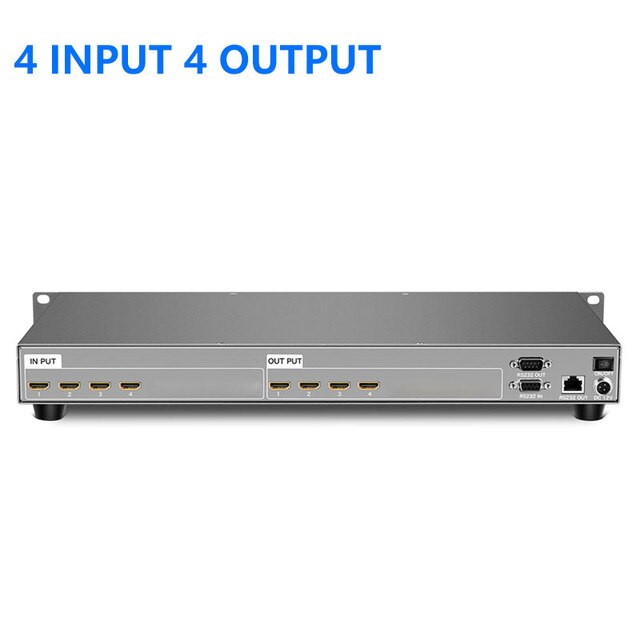

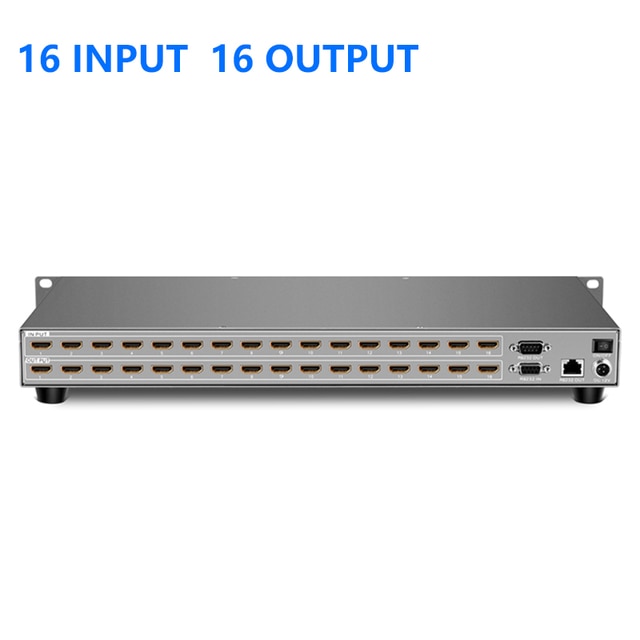

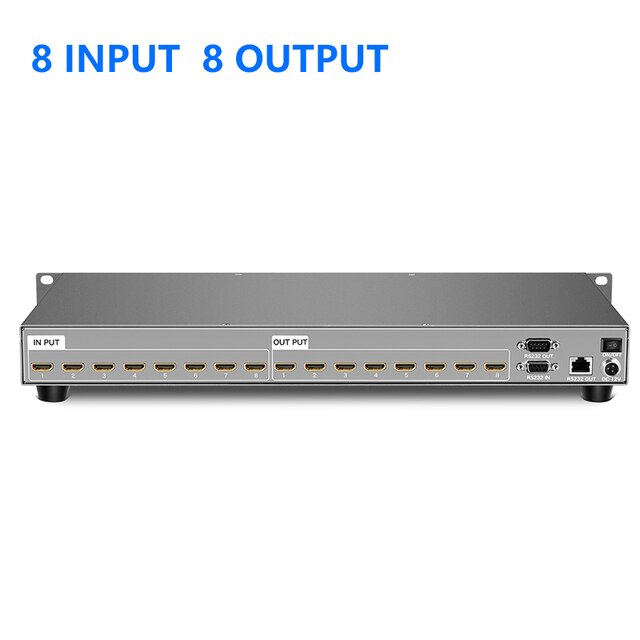

- Input: HDMI*4/8/16
- Output: HDMI*4/8/16/32
- Support video resolution: 1080P3D@60Hz
- Control interface: RS-232 IN*1,RS-232 OUT*1,RJ-45*1
- Executive standard: Support HDMI1.4a,EDID management,HDCP analysis
- Control mode: Button,RS232,WEB/APP Optional
