ID: 64109
4K 2X2 HDMI 2.0 Switch/Splitter Support 4K60Hz RGB/YUV 4:4:4 IR control Support for Downscaling ，3.5mm jack Audio Extractor
0.0 ( votes)
Price:
US $76.82
/ piece
Discount Price:
US $
56.77
/ piece
-26%
Sorry! This item is out of stock
product description:

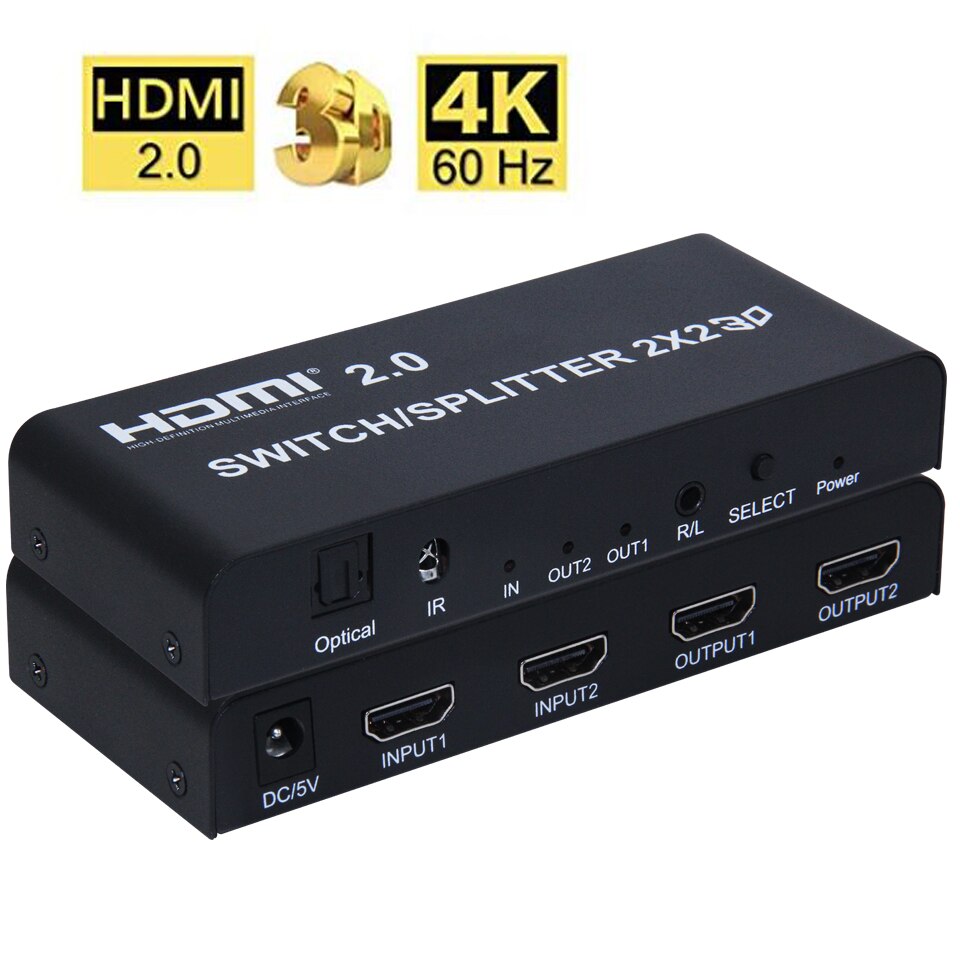

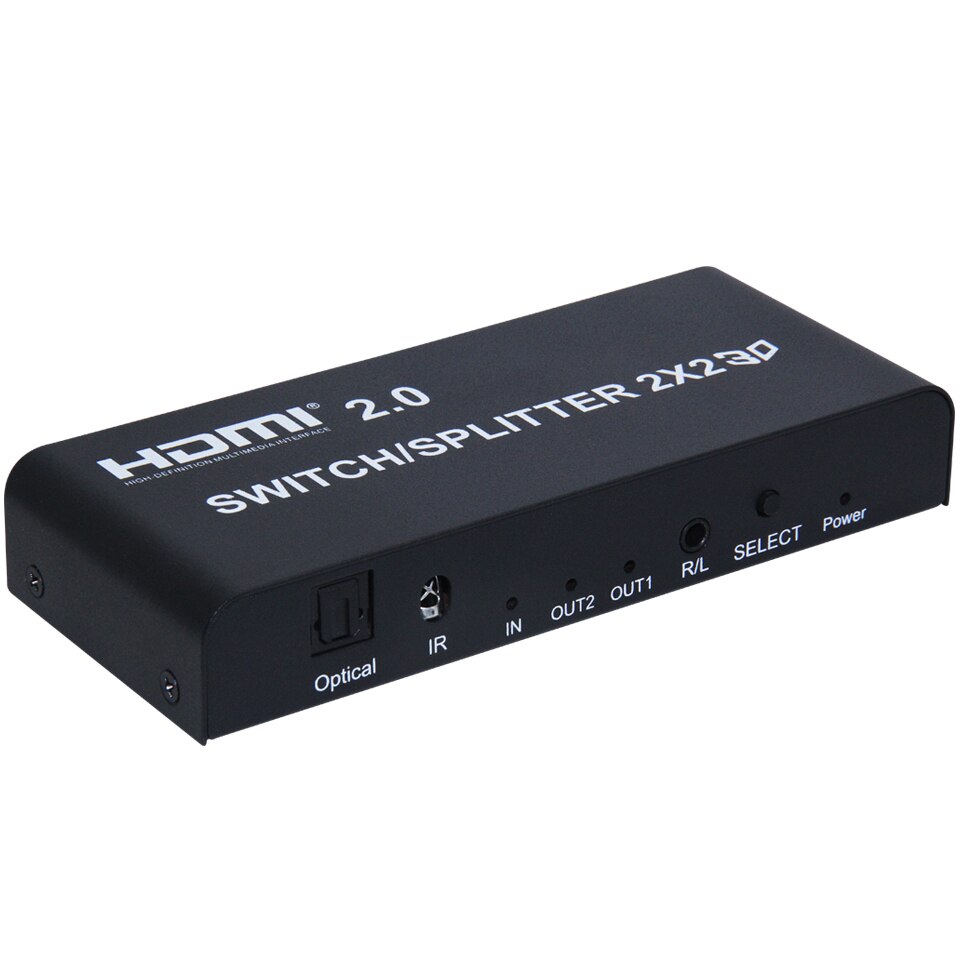

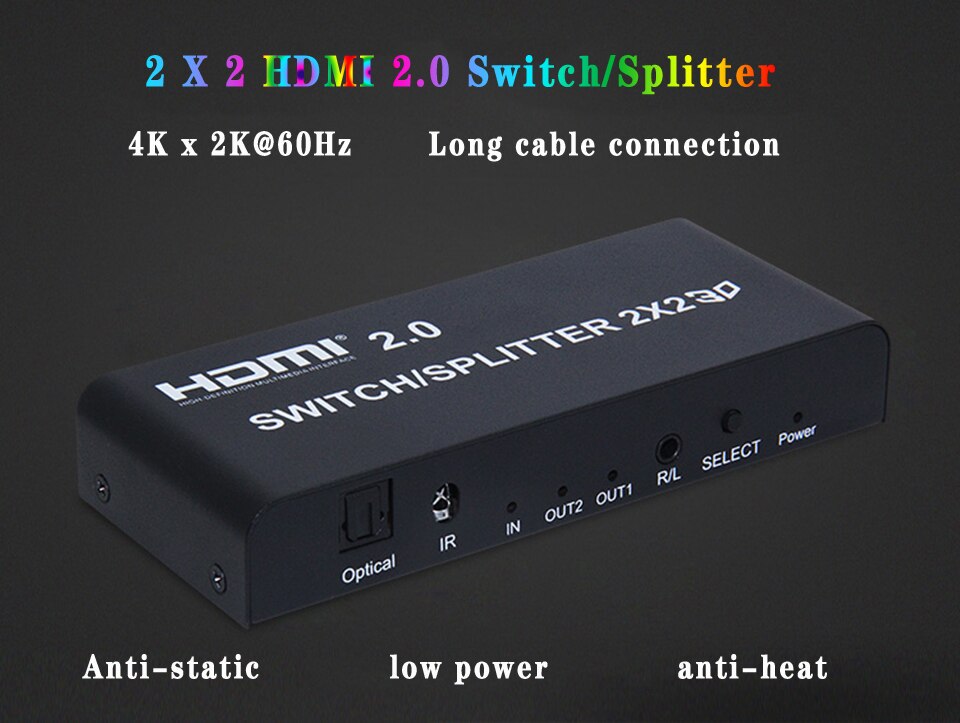

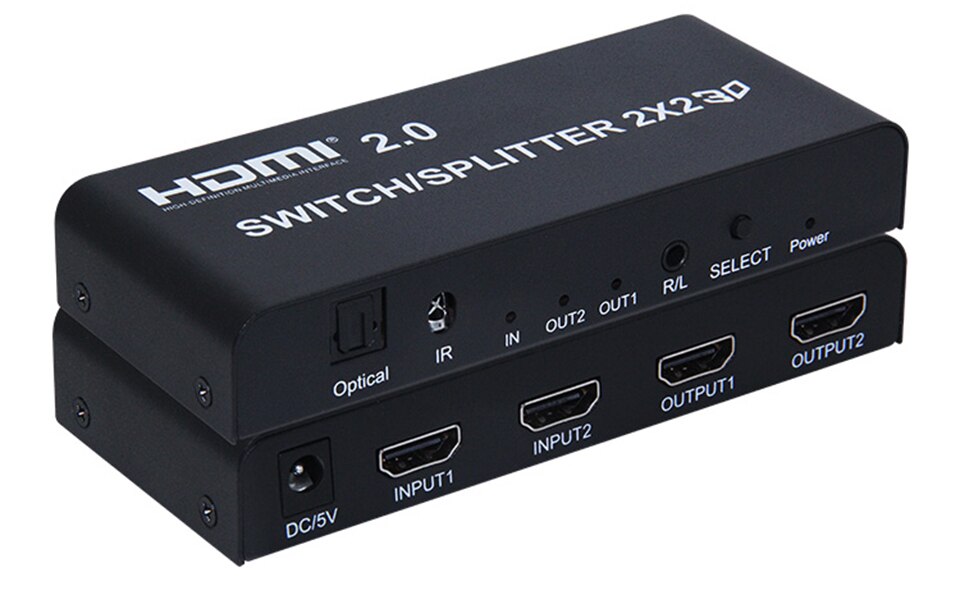

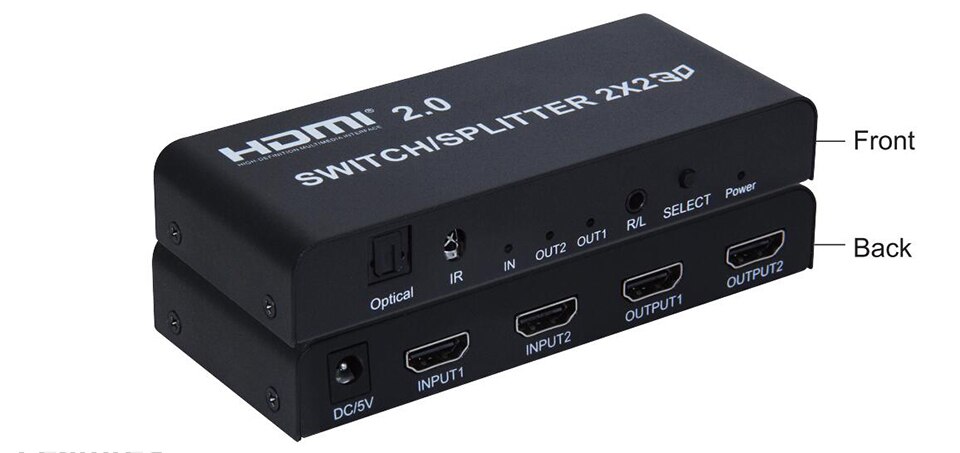

The 2X2 HDMI 2.0 Switch/Splitter connects two HD sources to two HD display terminals. It can easily distribute or switch HD signals from two HD sources to two HDTVs or projectors that support HD signal input. The product can increase the transmission distance of the output signal by amplifying the HDMI signal at the HDMI output. The two sources can be switched between the case or the remote control. The product supports HD video formats with resolutions up to 3840 x 2160/60Hz.
Features:
1. Downscaling (4k and 1080P can be output simultaneously). 2. High resolution, can support 4K60Hz RGB/YUV 4:4:4. 3. The transmission distance is far, 4K@60Hz can reach 10M, 1080p can reach 20M.

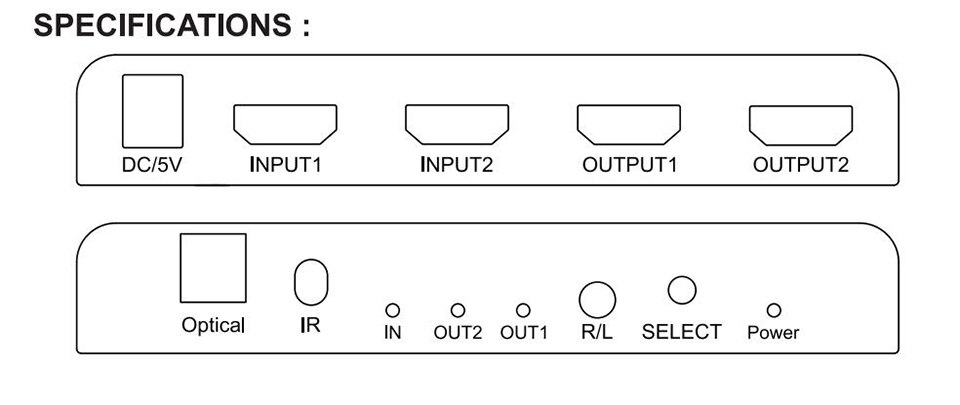

Product specifications:
●HDMI version: HDMI 2.0a ● HDMI resolution : Up to 3840 x 2160/60HZ ●Support video format: 8/10/12 bit color depth ●Support audio format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD ●Maximum transmission bandwidth: 600MHZ ● Maximum transmission rate: 6Gbps ● Input cable length: ≤ 20M (at 1080P resolution), ≤ 10M AWG26 HDMI standard cable (at 4K resolution). ● Output cable length: (1080P resolution) ≤ 20M, (4K resolution) ≤ 10M AWG26 HDMI standard cable. ● HDMI output port: 2 ● HDMI input port: 2 ●Maximum working current: 300mA ● Power adapter specifications: Input: AC (50HZ, 60HZ) 100-240V; Output: ● DC5V / 1A; ● Operating temperature range: -15°C---+55°C ● Operating humidity range: 5---90% RH (no condensation)

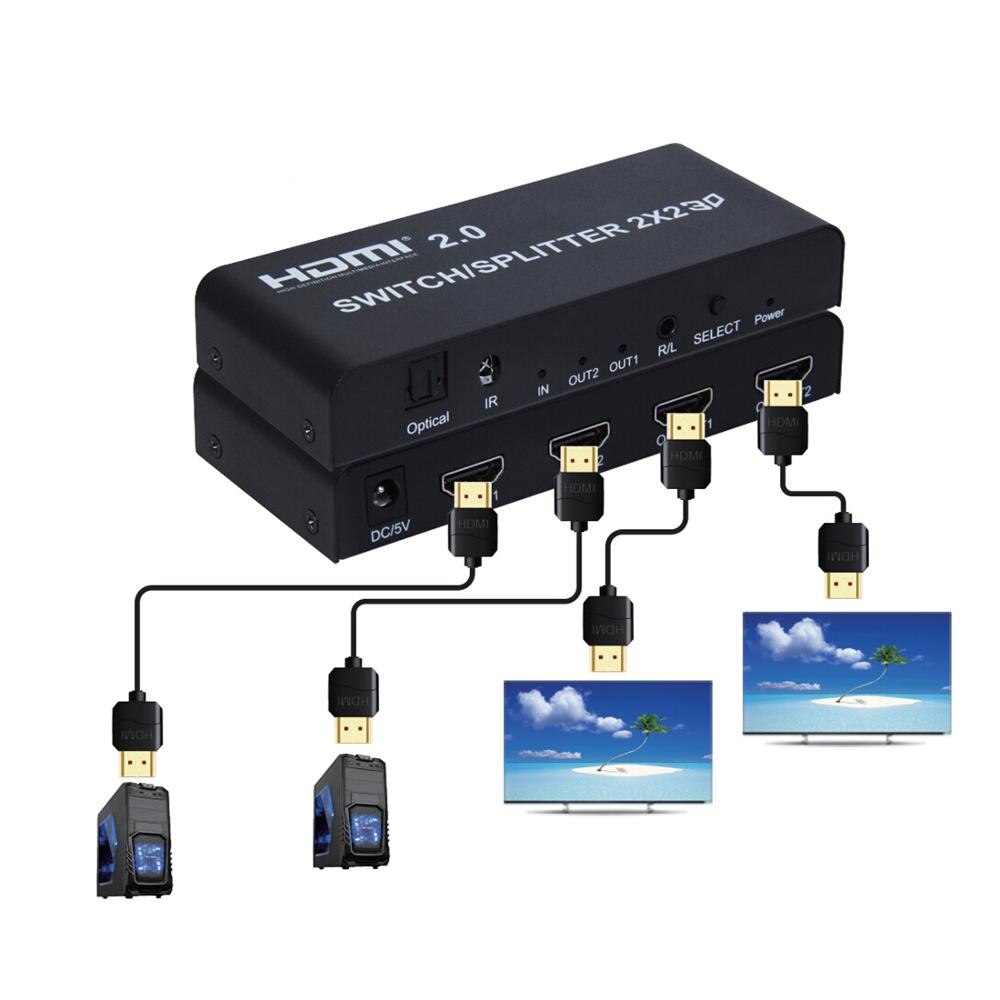

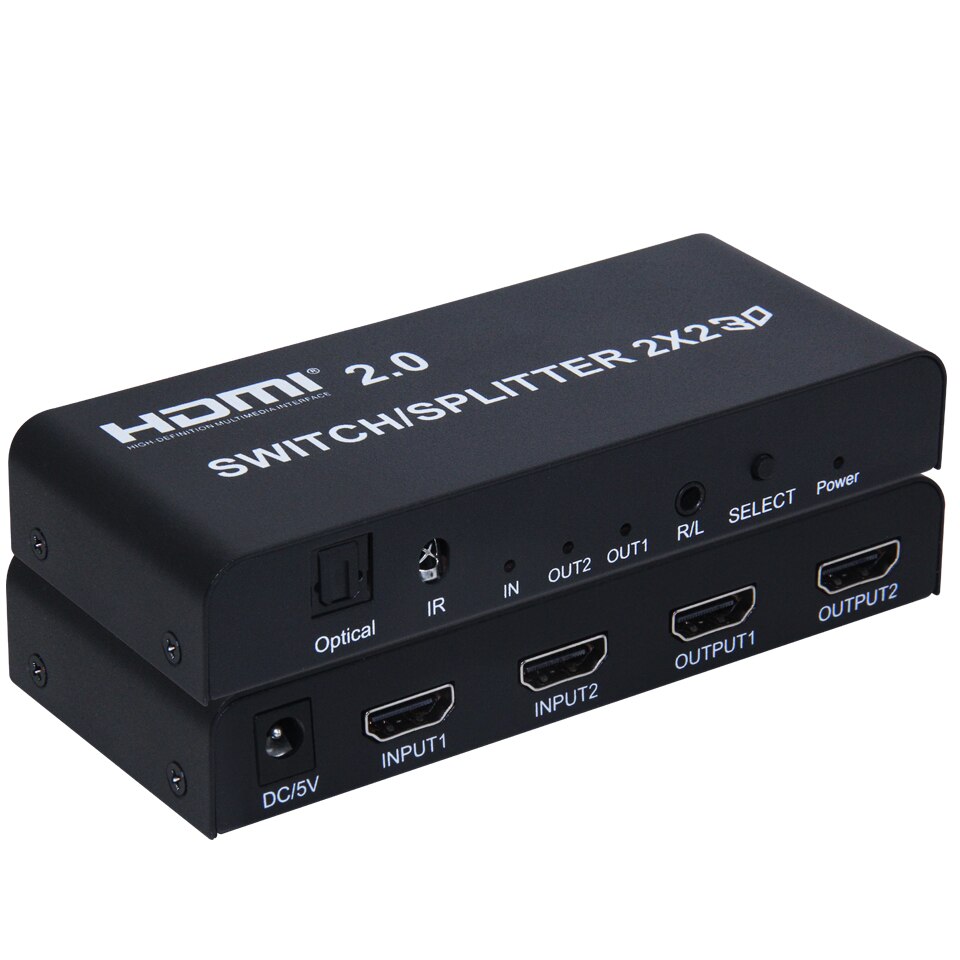

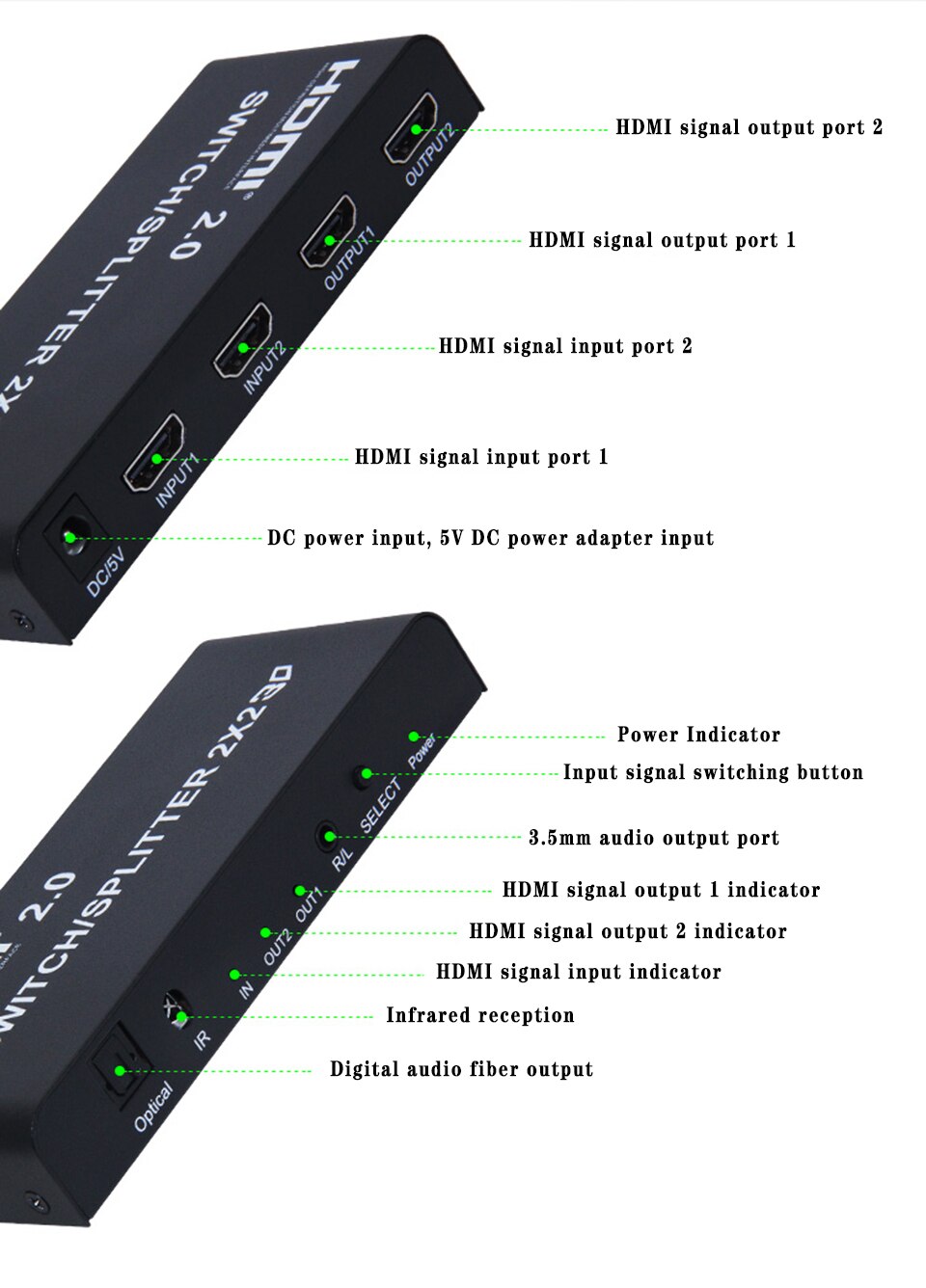

Connection and operation:
● Connect the HD signal source to the Switch/Splitter input port through two HDMI cables. ● Connect the display terminal to the Switch/Splitter output port through two HDMI cables. ● 5V / 1A power adapter connection switch / distributor.
Package attachment:
●HDMI Switch/Splitter *1 ●IR remote control (without battery) *1 ●5V /1A power adapter *1 (send according to the specifications of the buyer's region, please contact customer service if you have special requirements) ●User Manual *1
Anti-static technology
New anti-static technology to better protect products (test data reference: can prevent external 8KV voltage)
Isolation transformer
The signal is enhanced to make the transmission distance farther and more stable; the chip end is isolated from the outside, the anti-interference ability is greatly enhanced, and the chip is greatly protected (such as a surge);
Keep color; fearless conversion
Strong conversion ability, color fidelity; restore itself, colorful display

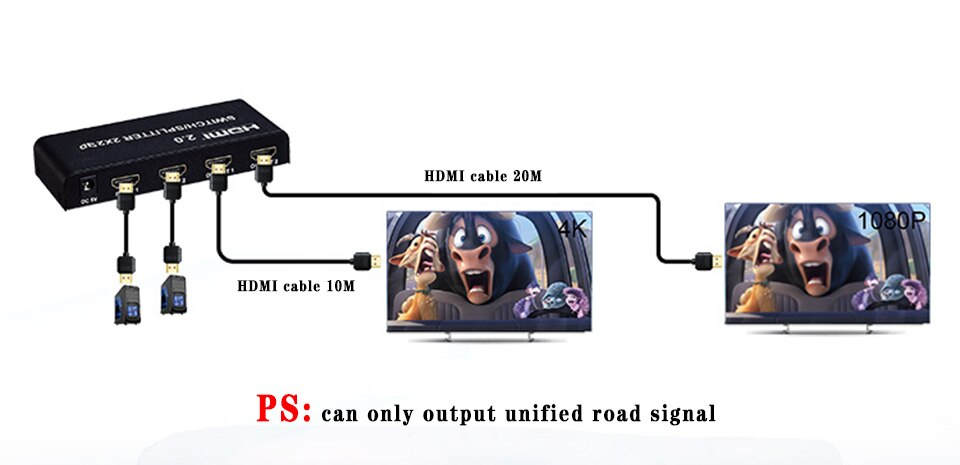

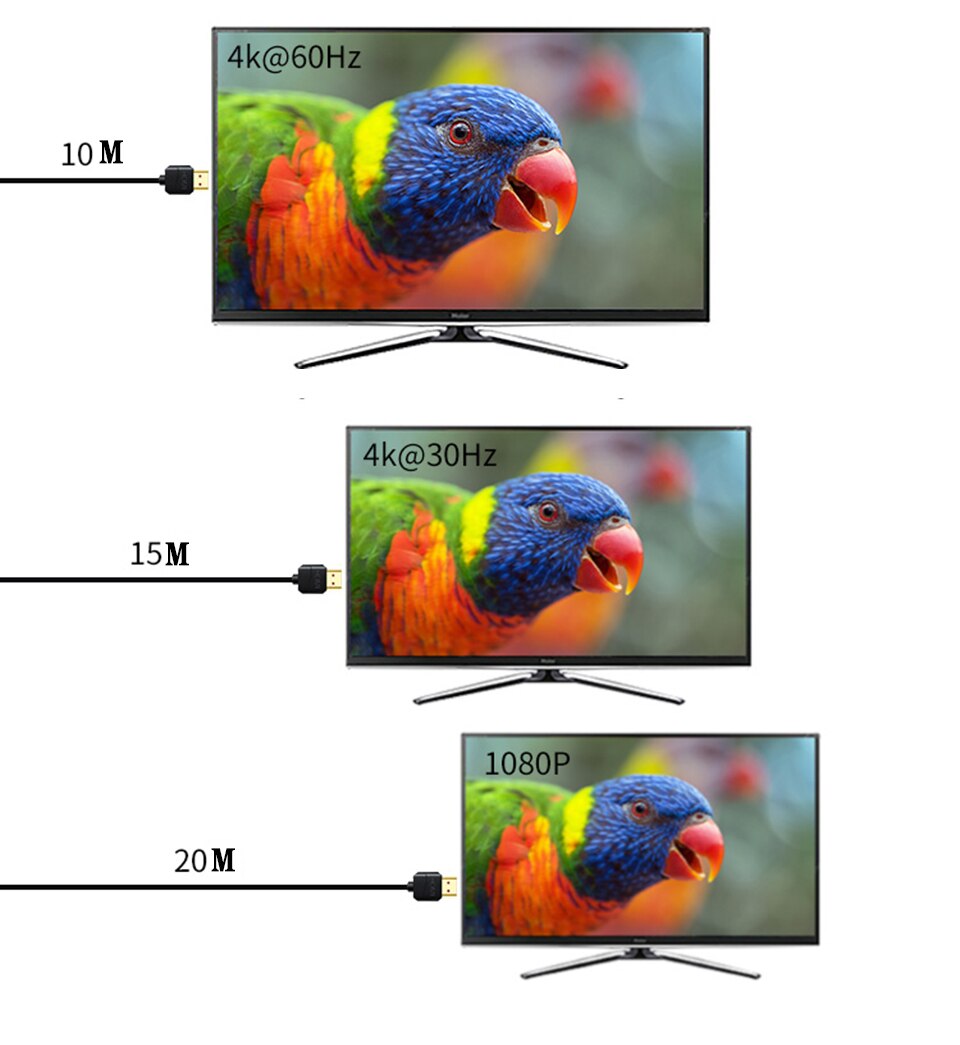

Breaking the limit; long distance transmission
Choose a different resolution and transmit a longer distance; 1080p transmission distance of up to 20 meters, transmission of 15 meters at 4K@30Hz, transmission of 10 meters at 4K@60Hz;
Low power consumption; low heat
Low power consumption and stable operation, refuse to burn/heat

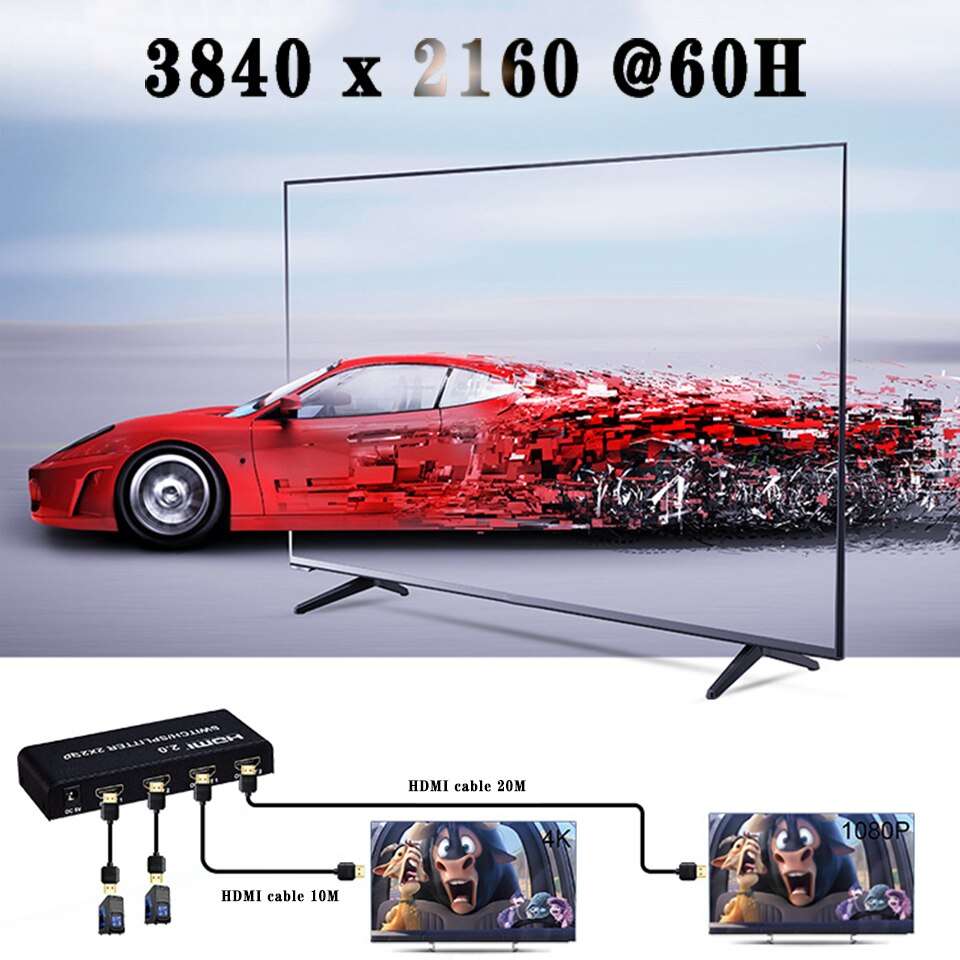

HD conversion; no dialing required
4K signal can be directly transferred to 1080P, automatic conversion, no need to dial the code; Simultaneously output one channel 4K and one channel 1080P (PS: 4K signal is connected to output port 1)
4K HD signal transmission
With high-definition transmission technology, it supports 3840 X 2160 resolution, and presents a higher color space, bringing more images to life.

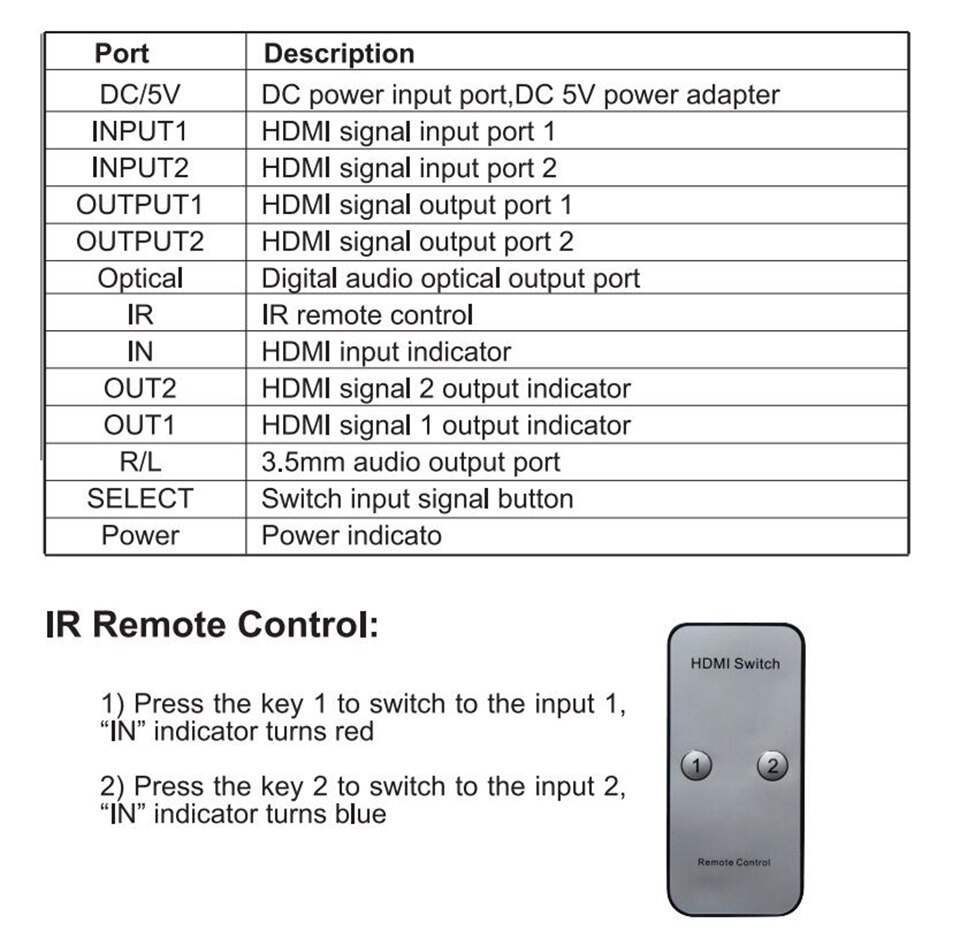

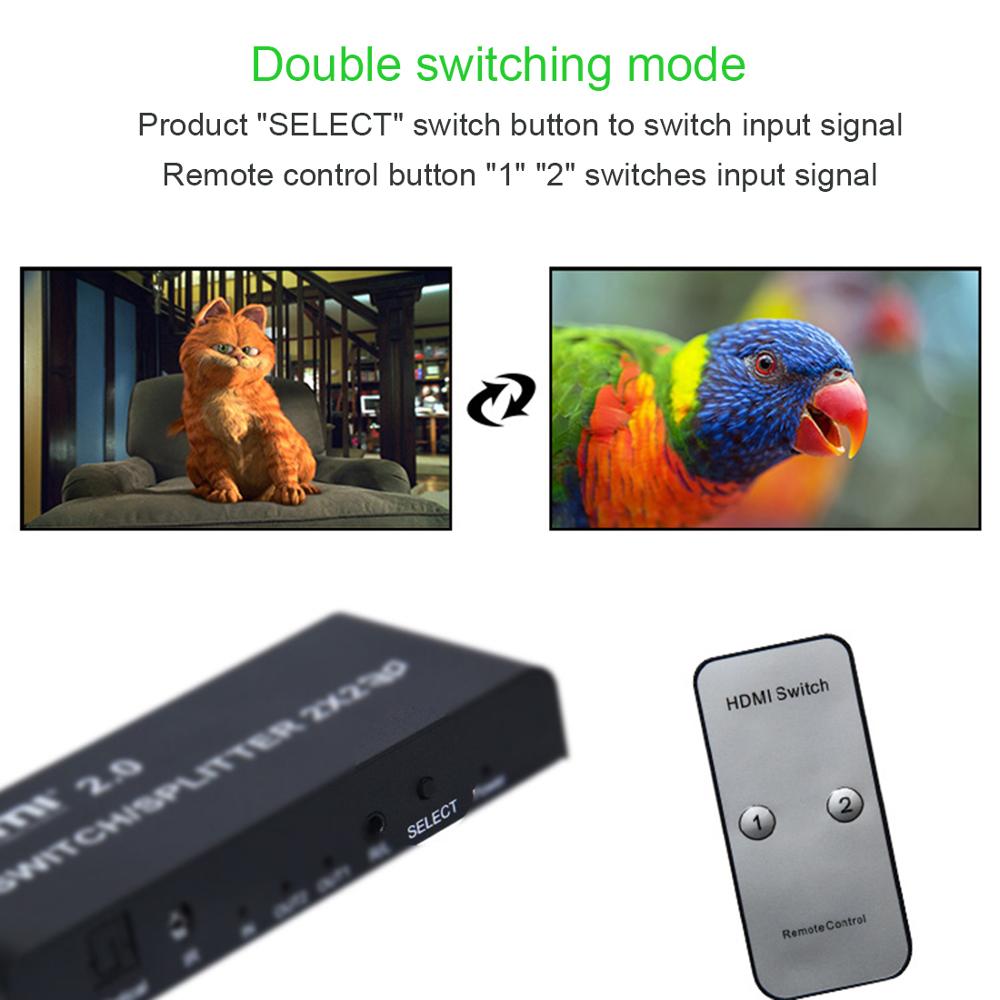

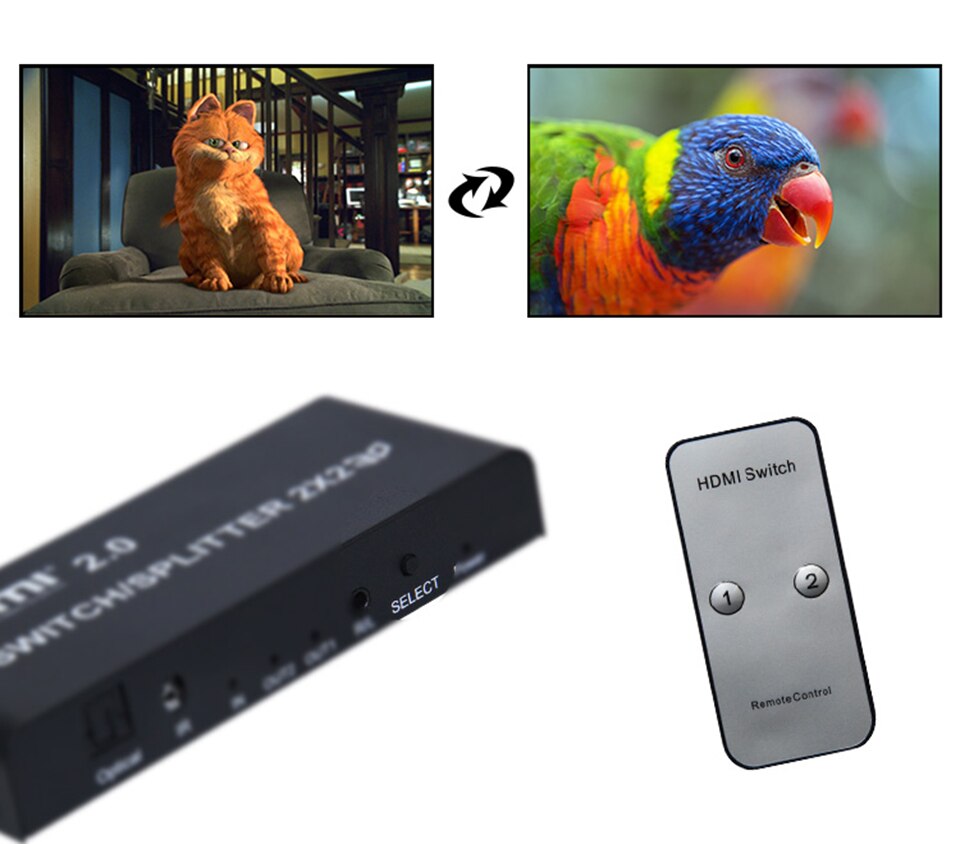

Two switching methods
The product "SELECT" switch button switches the input signal; The remote control buttons "1" and "2" switch the input signal;
To Dear Buyers: 1. We only sell quality products.Customer first is our aim. Please feel free to shop in our store. 2.All of our products will be checked one by one before being sent. 3. The buyer should check the package after receiving it. If it is damaged during the shipping process, please refuse to sign and contact us in time. 4. If you are satisfied with our products and services, please leave your positive feedback and 5 stars, as well as a 5-star order detailed rating. Once you show us a screenshot of the 5-stars feed back, we will give you a discount in your next order. 5. If you are not satisfied with our products, please contact us.
- Brand Name: YPAY
- Model Number: 2X2 HDMI 2.0 Switch/Splitter
