4G LTE RTU Modbus Gateway AC/DC Power Status Temperature Monitoring Alarm System Support Remote Reboot RTU5026

0.0 ( votes)
Price:
US $ 361.00 / piece
Plug Type
Quantity

Name: 4G LTE Temperature Monitoring Alarm
Inquiry Onsite Environment with a FREE Call from Your Mobile Phone!
Interval Report Onsite Environment to Your Mobile Phone by SMS!
Remote Reset, Remote Reboot, Automatic Reboot Periodicity!
High-Low Temperature Voltage with SMS Alert!
Support  Modbus RTU Over TCP for Cloud Monitoring!

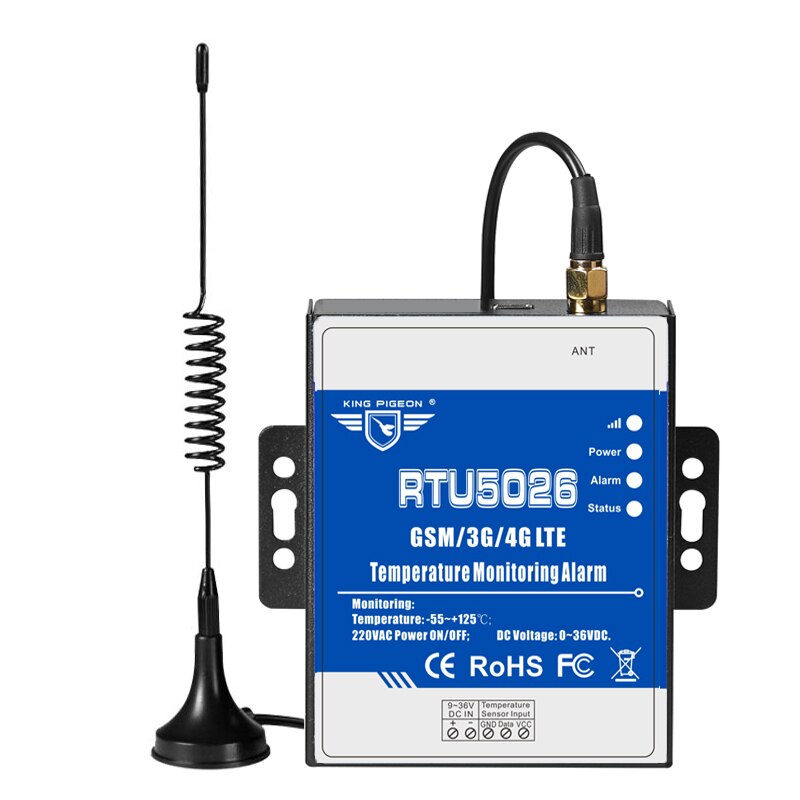

The 4G LTE Temperature Monitoring Alarm is special for remotely monitoring onsite temperature, power status through
wireless GSM/3G/4G Network. When the temperature, power voltage exceed high threshold or low threshold value,
will send SMSalert to upto 10 preset mobile phone immediately.
Just dial from Authorized User number,the 4G LTE Temperature Monitoring Alarm will reject at the first “Ring”,no
communication cost, and then return the current temperature,power status or voltage. Moreover,it can report onsite
environmentinterval or daily.
The 4G LTE Temperature Monitoring Alarm can be used for solar power monitoring, DC power voltage monitoring,
temperature monitoring, Class Room, Public Room, Waiting Room, Hospital, Stations, Fresh Food Warehouse, Office,
Meeting Room, Laboratory, Library and anywhere that need monitoring temperature or control temperature in expected range.
Mainly Features:
1. Can be operated from anywhere, no distance limitation;
2. No call charges for inquiry. the 4G LTE Temperature Monitoring Alarm rejects the call from authorized number then
return onsite temperature and power voltage on the first 'ring';
3. Multiple applications. (temperature, power status, solar panel, dc voltage);
4. Up to 10 authorized phone numbers,5 can be used to receive call or SMS,and 5 can be used to call and SMS while alarmoccurrence;
5. One DS18B20 temperature sensor input,measures temperatures from -55-+125°C,0.5°C accuracy from -10-+85°C;
6. External AC Power status monitoring, AC On/OFF will send SMS to authorized phone numbers;
7. Inbuilt MCU monitoring the DC input Voltage value,measure range is 0-36VDC, no need additional sensor to save cost;
8. Timer Report—Can setup every x hours automatically send its status/Value to the authorized numbers;
9.  Support remotely read historic data via SMS;
10. Support Modbus TCP and Modbus RTU Over TCP protocol for cloud monitoring;
11. Rechargeable Backup Battery inside can last 8hours;
12. Secure - Using caller ID and password for identification, unknown callers are ignored;

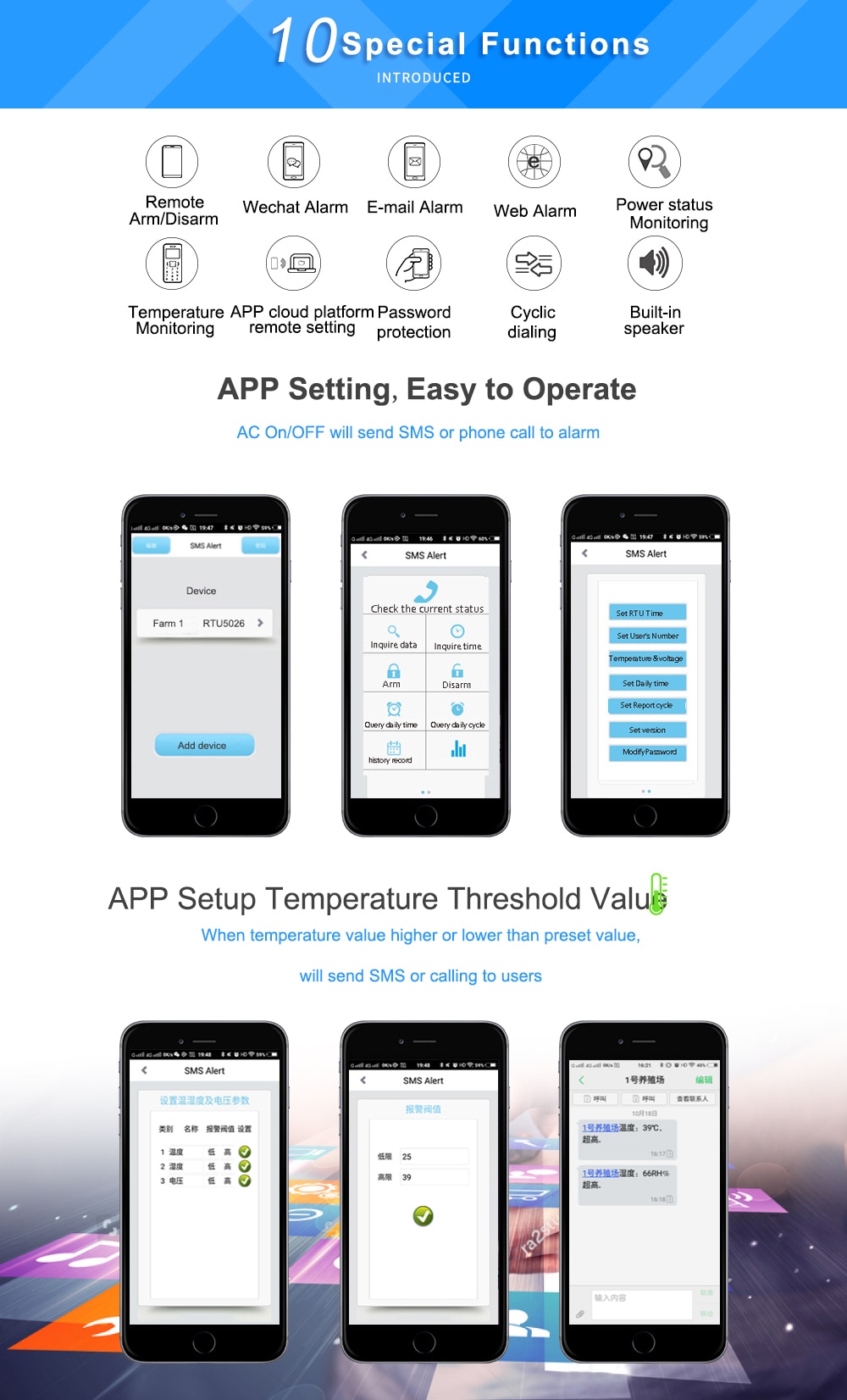

13. Programmable by SMS Commands or APPs with password protection;
14. Based on GSM/3G/4G Network, applied to many applications.
15. Remote Reset via SMS, Remote Reboot via SMS, Automatic Reboot Periodicity.

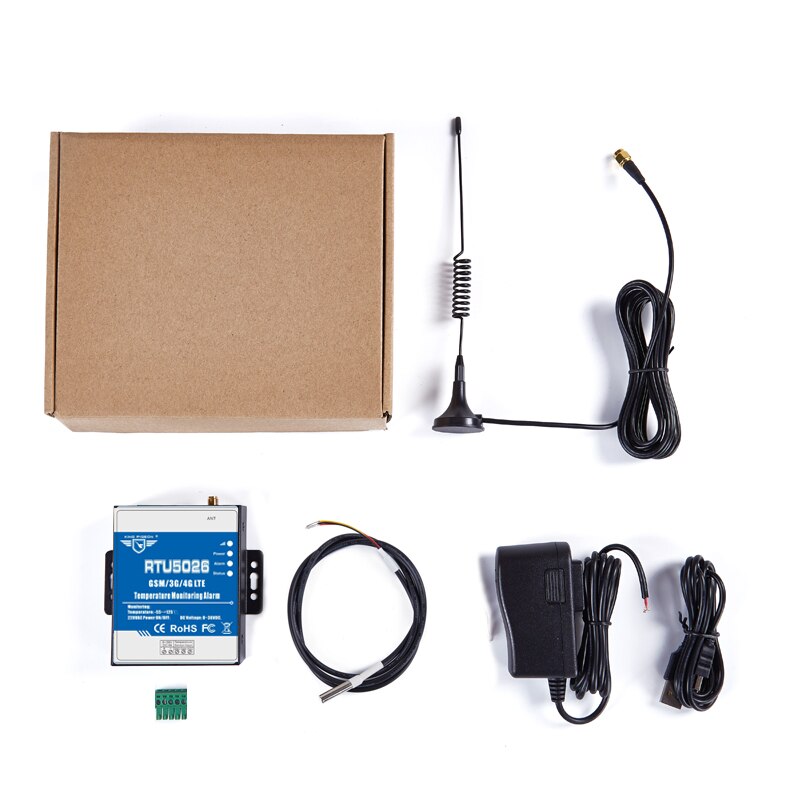

Packing list:
4G RTU5026*1
Power adaptor*1
DS18B20(1M)*1
Note:This is 4G version,if you want 2G or 3G version,please contact us or serch it in this store.
Please leave us a message which frequency module do you want from following table:


  • Model Number: RTU5026L
  • Brand Name: KING PIGEON
  • Certification: CE
  • Origin: Mainland China
  • Name: Power status Temperature Monitoring Alarm
  • Temperature measuring range: -55~125 Celsius degree
  • Working Temperature: -10-+85 Celsius degree
  • Frequency range: 4G FDD-LTE,TDD-LTE
  • Power supply: 9~36VDC, recommend 12VDC1A
  • DC Power Measuring range: 0-36V
  • Protocol: Support Modbus TCP and Modbus RTU Over TCP
