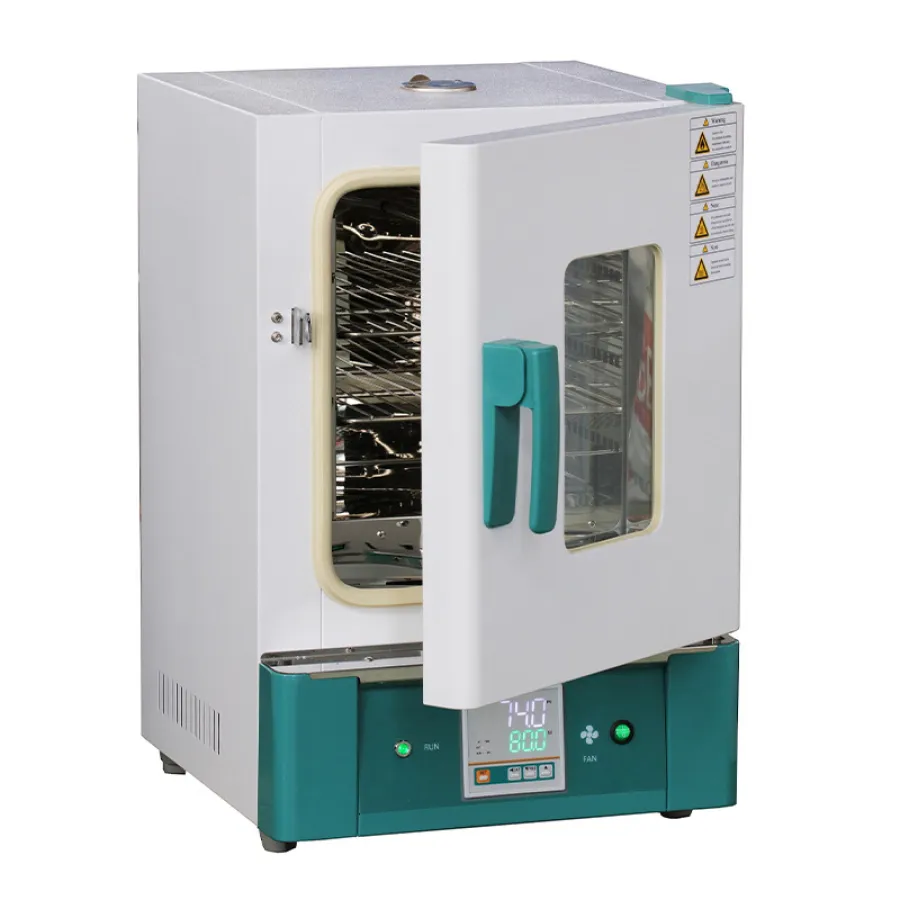

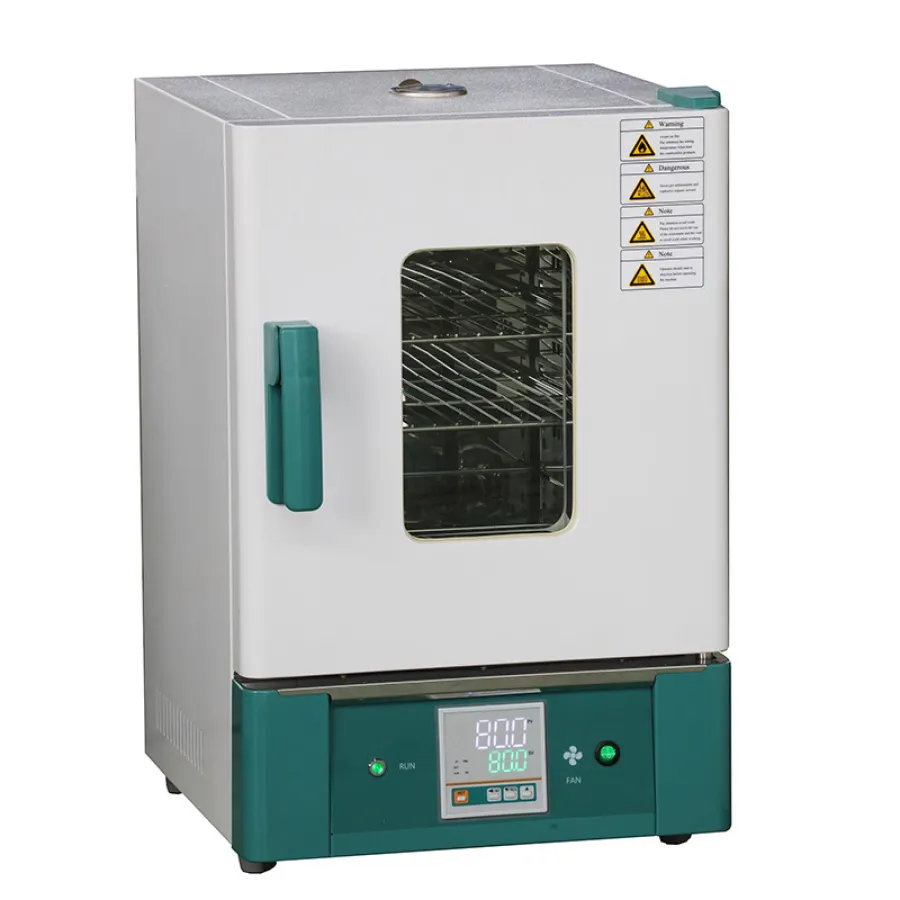

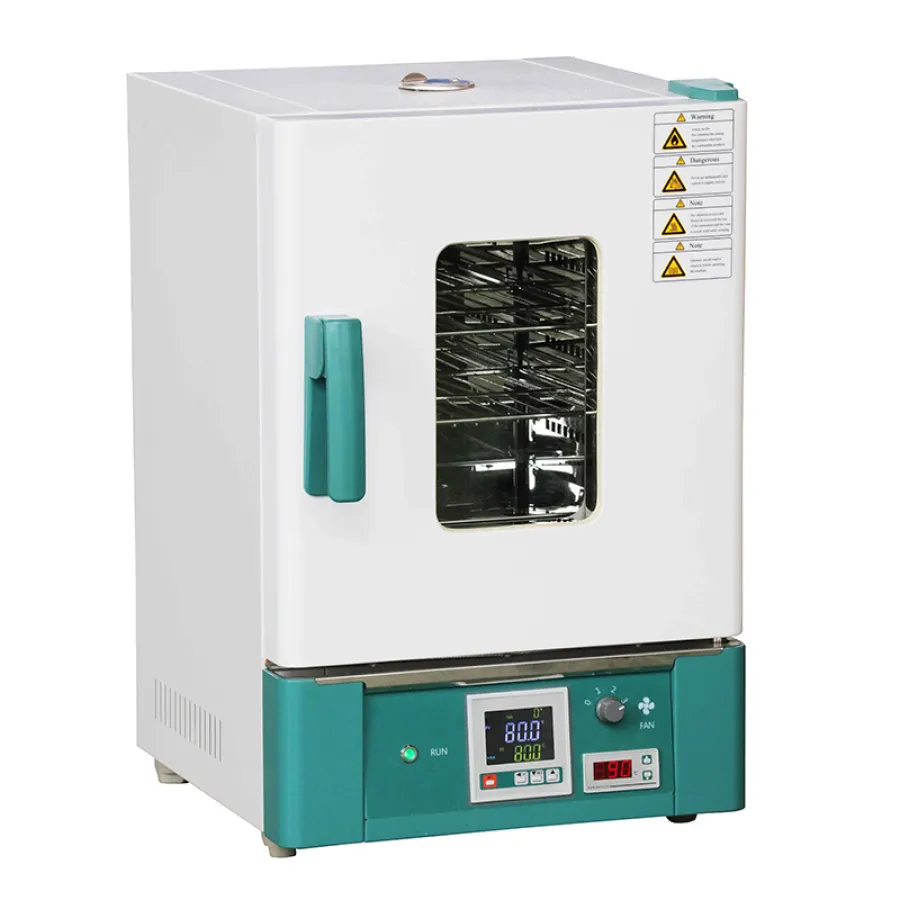

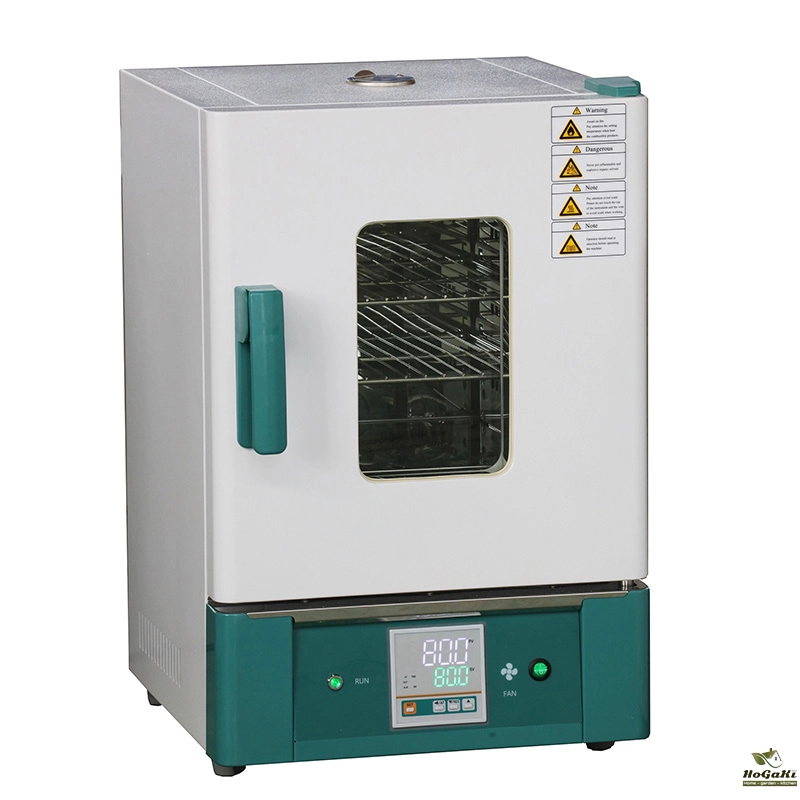

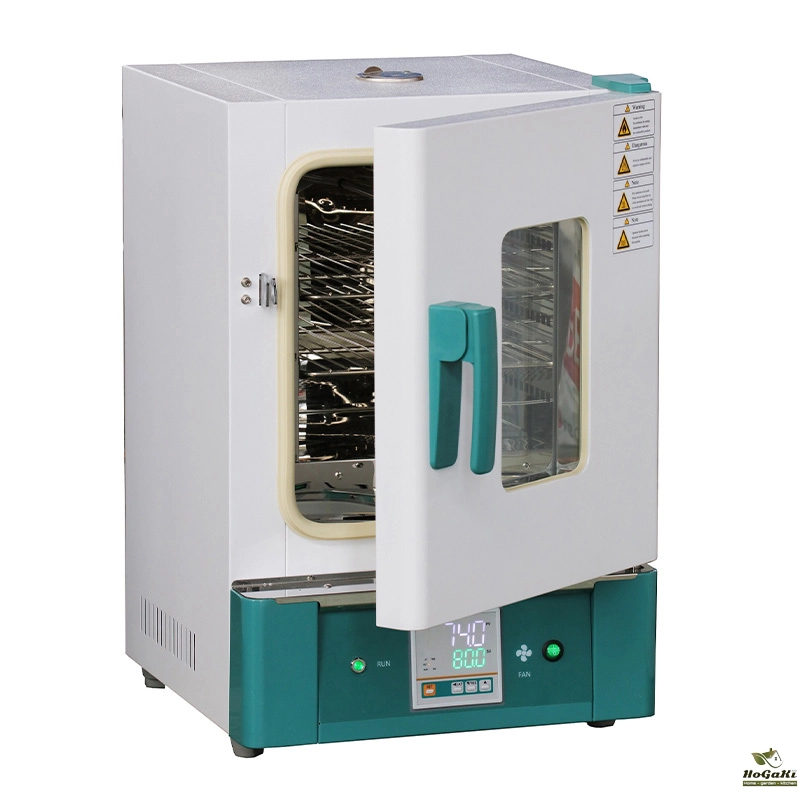

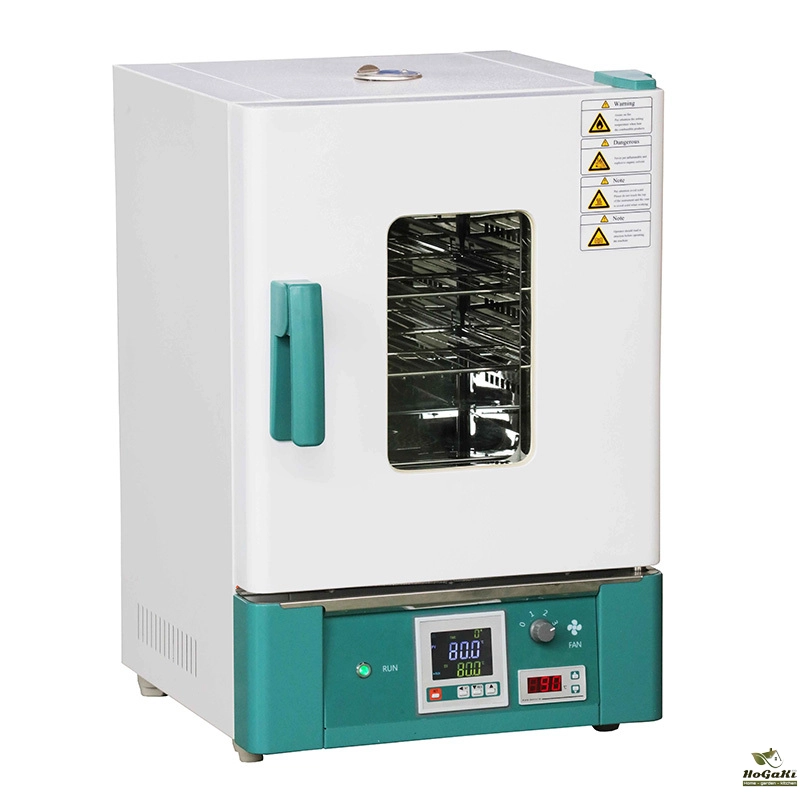

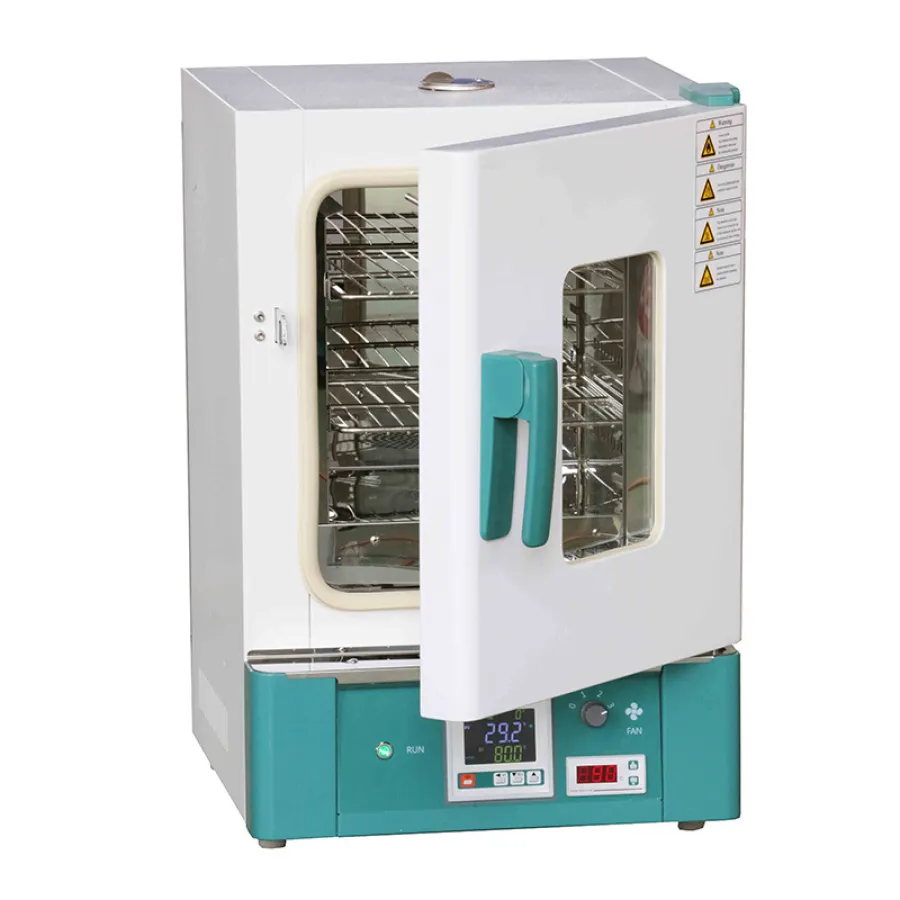

45L High Quality Hot Air Sterilizing Drying Oven (GX Series)
NEW
ID: 147634

45L High Quality Hot Air Sterilizing Drying Oven (GX Series)

0.0 ( votes)
Price:
US $ 9363.24
Color
Quantity

Buy Now
Add to Cart
Products Description

Characteristics:

Product characteristic:
1. Horizontal air circularly by double Air ducts, high efficiency and high Uniformity.
2. PID controller, with over-temperature protection function.
3. With fan switch,LED digital display,high temperature blast motor.
4.New anti-hot handle

GXBE series have the following characteristics other than the above functions.
1. LCD temperature controller.
2.4 grades speed fan, adjustable for different requirements.
3. Over-temperature protection system.
4. high precision digital independent temperature limiter.
5.304: SUS304 Stainless Steel Body.
Model
GX-30B
GX-45B
GX-65B
GX-85B
GX-125B
GX-230B
GX-30BE
GX-45BE
GX-65BE
GX-85BE
GX-125BE
GX-230BE
GX-30BE(304)
GX-45BE(304)
GX-65BE(304)
GX-85BE(304)
GX-125BE(304)
Cycle Mode
Forced convection
Function
Temp. range
RT+10-300ºC
Temp. Resolution Ratio
0.1ºC
Temp. Motion
±1ºC
Temp. Uniformity
±2.5%
Structure
Inner Chamber
Mirror Stainless Steel
Outer Shell
Cold rolling steel electrostatic spraying exterior
Insulation layer
High quaility rock wool board (with CE)
Heater
stainless steel heater
Power rating
0.8kW
1.2kW
1.6kW
2.0kW
2.3kW
3.0kW
Exhaust hole
φ35mm top(with function of test hole)
Controller
Temp. control mode
Two temperature section PID intelligent
Temp. setting mode
Touch button setting
Temp. display mode
B model:LED Digital Display
BE model: LCD Digital display
Timer
0-9999min(with timing wait function)
Operation function
Fixed temperature operation, fixed timing function, auto stop.
Additional Function
B model: Sensor deviation correction, temperature
overshoot self-tuning, internal parameter locking,
power-off parameter memory
BE model: High precision digital independent temperature limiter,
4 grades 3 speed adjustable-speed fan
(GX230BE without fan speed adjustor),
sensor deviation correction, temperature overshoot
self-tuning, internal parameter locking, power-off parameter memory
Sensor
Pt100
Safety Device
B type: Over temperature sound-light alarm;
BE type: Digital Independent Temp. limiter. over temperature sound-light alarm.
Specification
Inner Chamber
size(W*L*H)
(mm)
310*310
*310
350*350
*350
400*360
*450
450*420
*450
500*450
*550
600*500
*750
Exterior size
(W*L*H)(mm)
460*510
*695
500*550
*735
550*550
*840
590*610
*830
636*680
*915
735*835
*1115
Packing size
(W*L*H)(mm)
540*575
*855
580*615
*895
635*625
*995
680*685
*1000
710*730
*1100
857*885
*1287
Volume
30L
45L
65L
85L
125L
230L
Shelf number
5
6
8
8
11
17
Load per rack
15kg
Shelf space
40mm
Current rating
(50/60HZ)
AC220V/
3.6A
AC220V/
5.5A
AC220V/
7.2A
AC220V/
9.0A
AC220V/
10.5A
AC220V/
13.6A
NW/GW (kg)
33/37
37/43
44/49
50/56
60/66
94/120
Accessory
Shelf
2
Shelf frame
4
optional accessories
B model: Spare shelf; BE model: Spare shelf, RS485 interface,
printer, program controller, U-disk storage; 3.5-inch color touch screen temperature controller

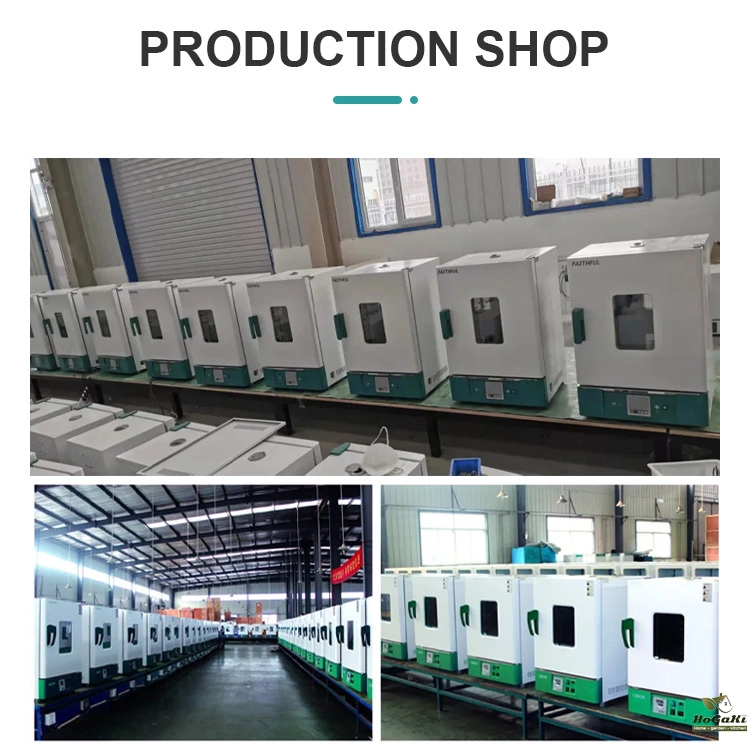

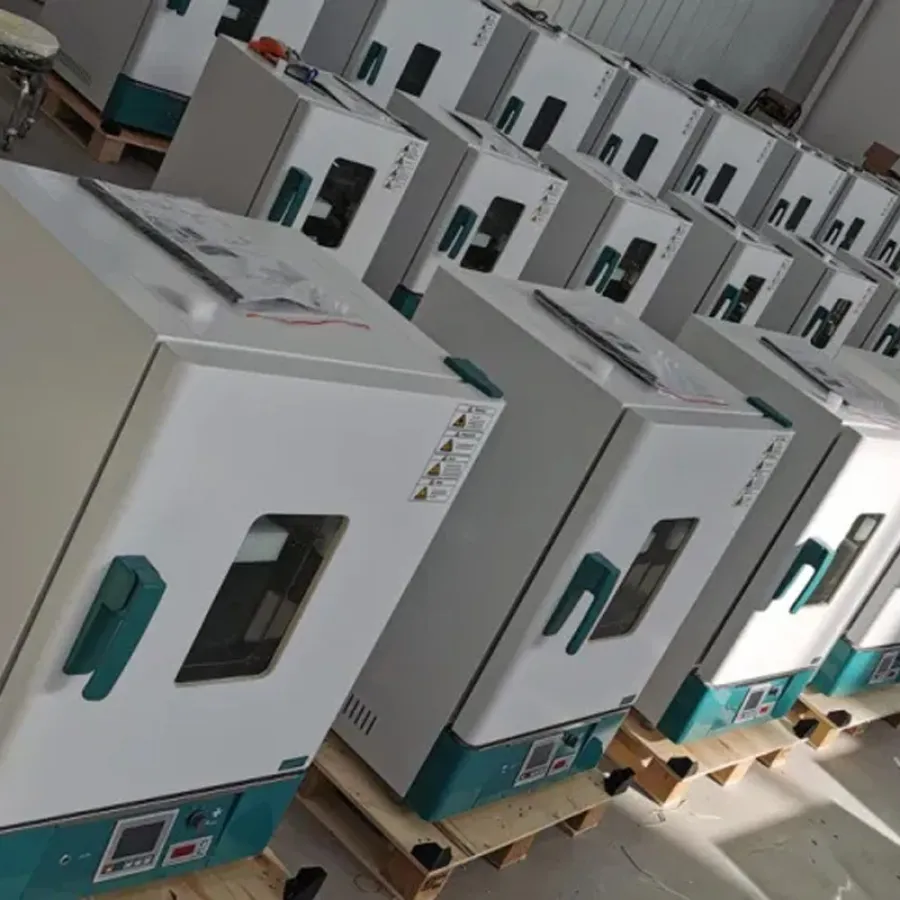

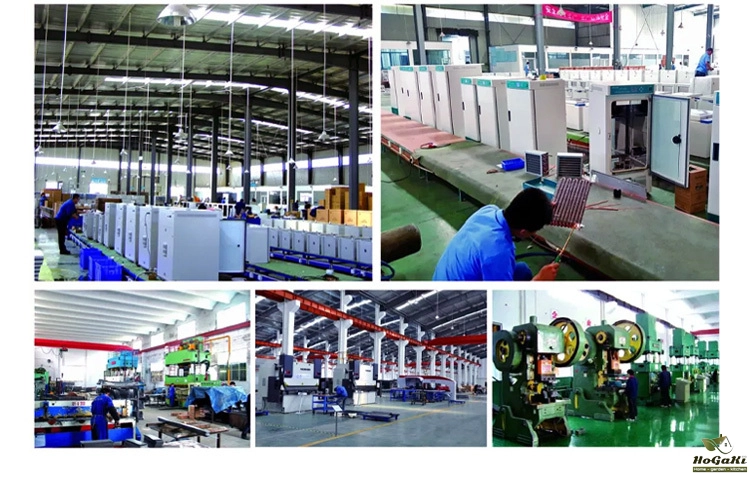

production shop
Product packaging
Company Profile
FAQ

Q1: Why Choose us?

The industry has been operating for over 20 years, with abundant upstream manufacturer resources, efficient supply chain management, zero complaint after-sales service, and efficient team collaboration to ensure a good cooperation experience for customers.

Q2: OEM,ODM acceptable or not?

Absolutely Yes

Q3:What's kind of Payment terms for customer choosing?

T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...

Q4:Can online video inspection before shipment?

Absolutely no problem

Q5: what's the MOQ ? Sample order is OK?

MOQ:1 set, sample order is no problem

Q6:What's kind of shipment for customer choosing?

Usually ship by sea, by air, by international express . We can also provide reasonable solutions according to your transportation requirements

Q7: What kind of guarantee do you offer?

We provide 1 year warranty for all our items.

Q8: How long is the quotation valid?

In general ,our prices are valid for one month from the date of quotation. Prices will be adjusted appropriately based on price fluctuations in raw materials and market changes.

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Packaging Details

  • Unit Type:
  • Package Weight: 100.000
  • Package Size: 81x81x108

  • Brand Name: XMSJ
  • Disinfecting Type: Far Infrared
  • Disinfecting Type: OZONE
  • Disinfecting Type: Ultrasonic
  • Disinfecting Type: Ultraviolet Light
  • Voltage: 220 V
  • Origin: Mainland China
  • Power (W): 120w
  • Hign-concerned Chemical: None
  • Capacity: 61-80L
  • warranty: 1years
  • customized support: OEM, ODM
  • model number: GX-45B
  • place of origin: Henan, China
  • Max Temperature: 300
  • Application: laboratory equipment
  • Display: LED/LCD Digital Display
  • Temp. Resolution Ratio: 0.1℃
  • Shelf Number: 6
  • Power supply: 200-240 V / 100-120 V 50-60Hz
  • Structure: Desktop
  • inner chamber: 350*350*350
  • Exterior Size: 500*550*750
  • Power: 1200w
  • N.W: 37kg
