433MHz AC 110V 220V Lamp Smart Home Wireless RF Remote Control Switch Receiver ON/OFF Transmitter For Led Light Bulb DIY Control
SALE
ID: 27193

433MHz AC 110V 220V Lamp Smart Home Wireless RF Remote Control Switch Receiver ON/OFF Transmitter For Led Light Bulb DIY Control

4.9 (57 votes) | 232 orders
Price: US $677.04 - 2241.40 / piece
Discount Price:
US $ 496.70 - 1682.70 / piece
-27%
Color
Quantity

Buy Now
Add to Cart

433MHz AC 110V 220V Lamp Smart Home Wireless RF Remote Control Switch Receiver ON/OFF Transmitter For Led Light Bulb DIY Control

Dear Friend:
On this product details page there is a video (demo to use),
You can also see the video at this URL:    https://www.youtube.com/watch?v=L09SP6zccMQ
Technical Data:

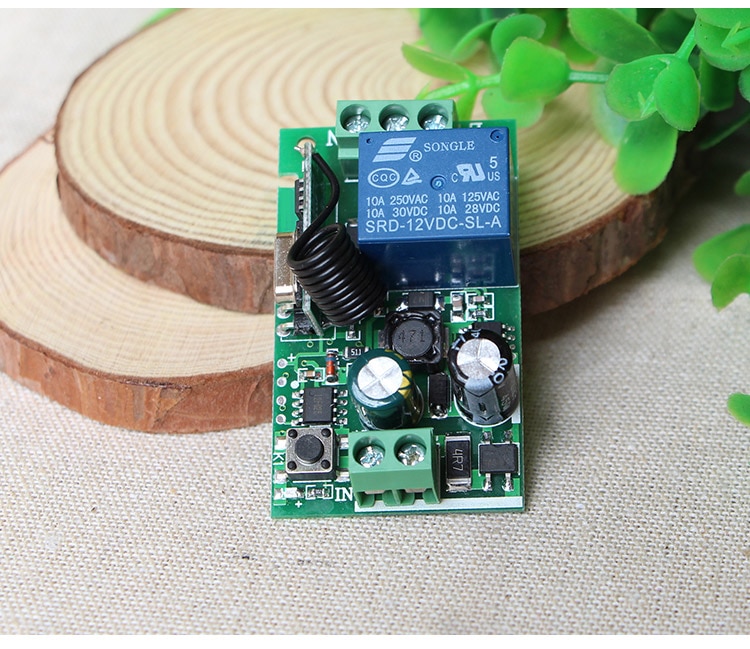

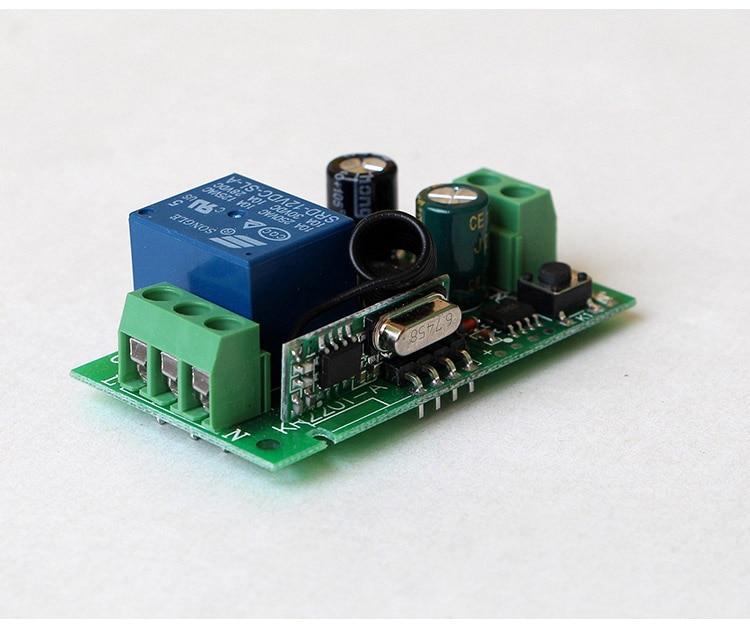

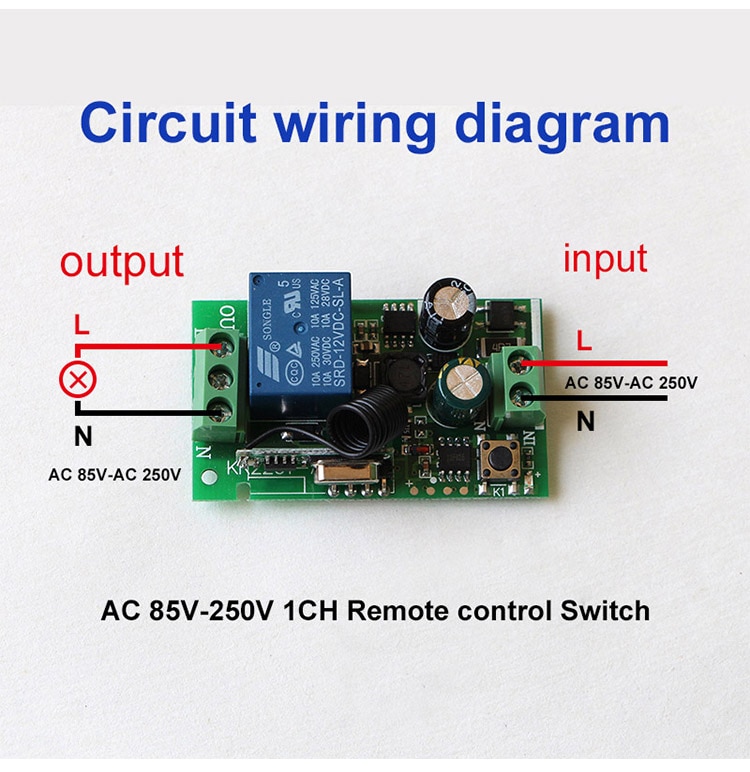

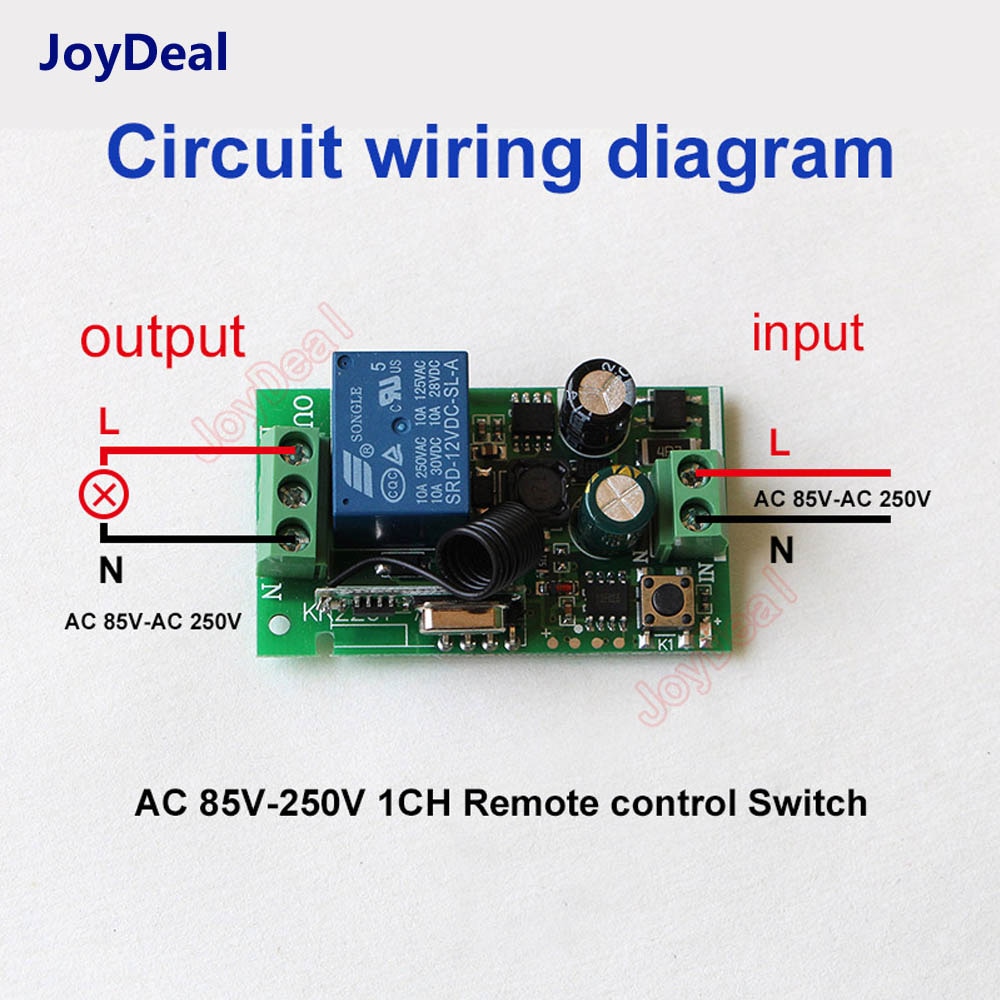

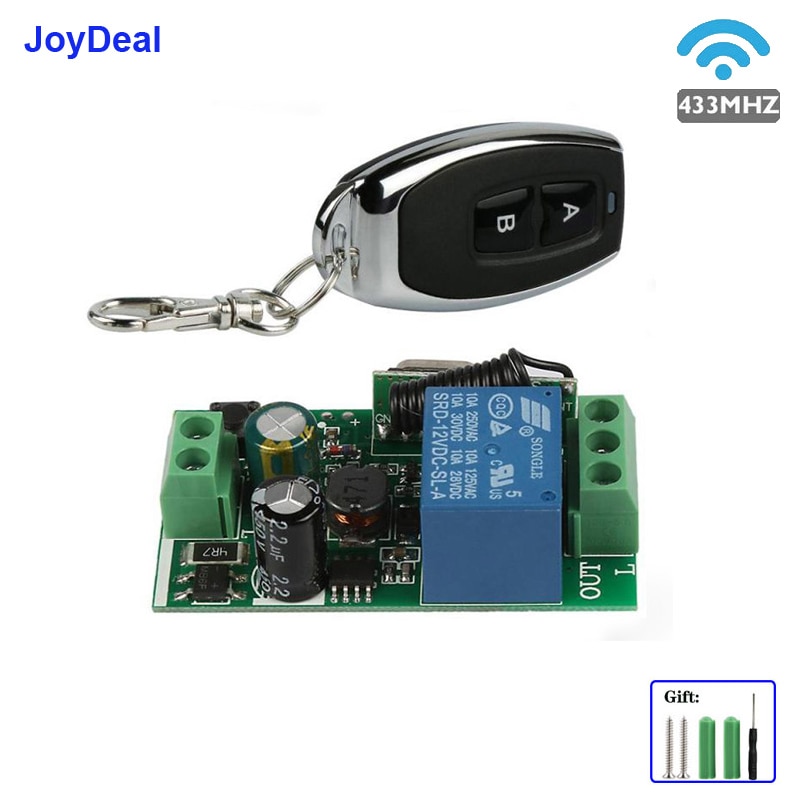

About the AC Receiver Switch:
Input Power:AC 85V-250V
Standby Current:<5MA
RF Frequency:315M or 433M
RF working mode:superheterodyne
Receive sensitivity: >97dbm
Transmitting distance: 20-50m ( open space)
Decoding mode: software decoding
Remote storage:25pcs
Support remote type: Learning code 1527code, Fixed code(Rolling code can be design)
Working mode:Momentary, Toggle, Latching
Wiring type:fixed termina

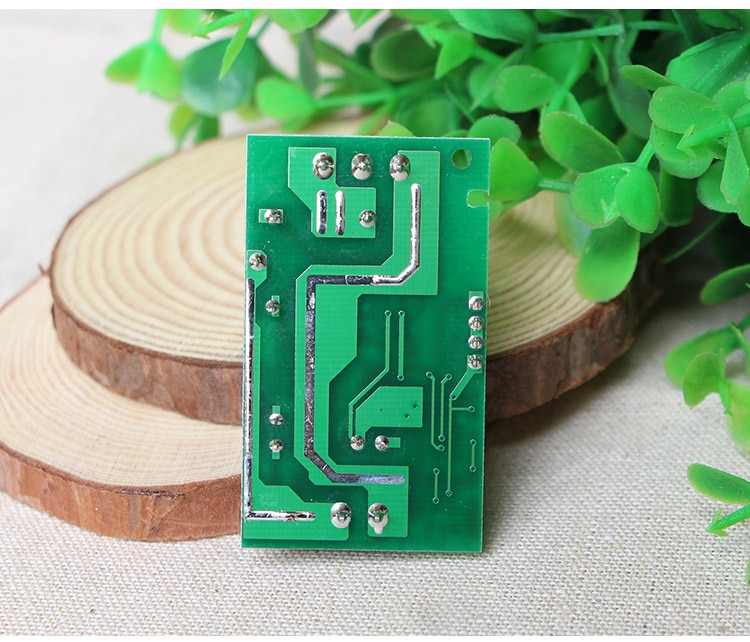

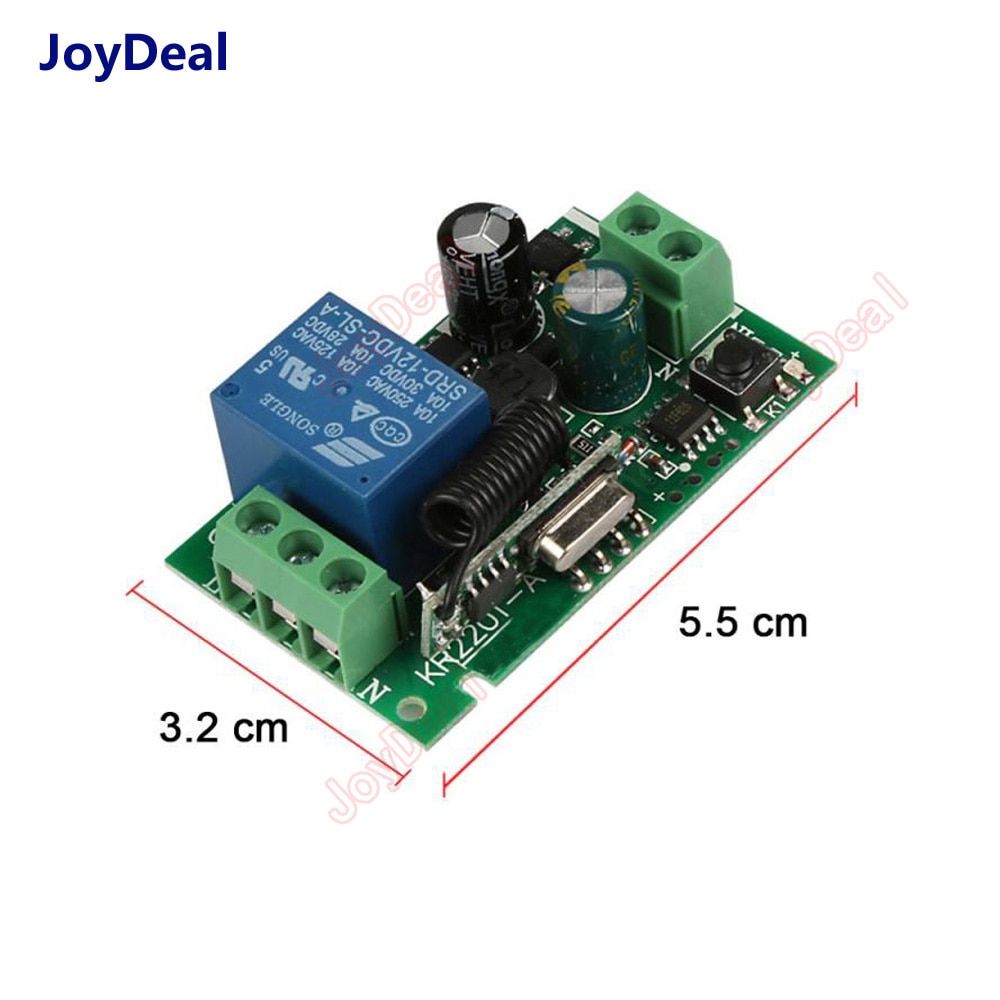

Dimension of PCB:53.8*31.2mm.

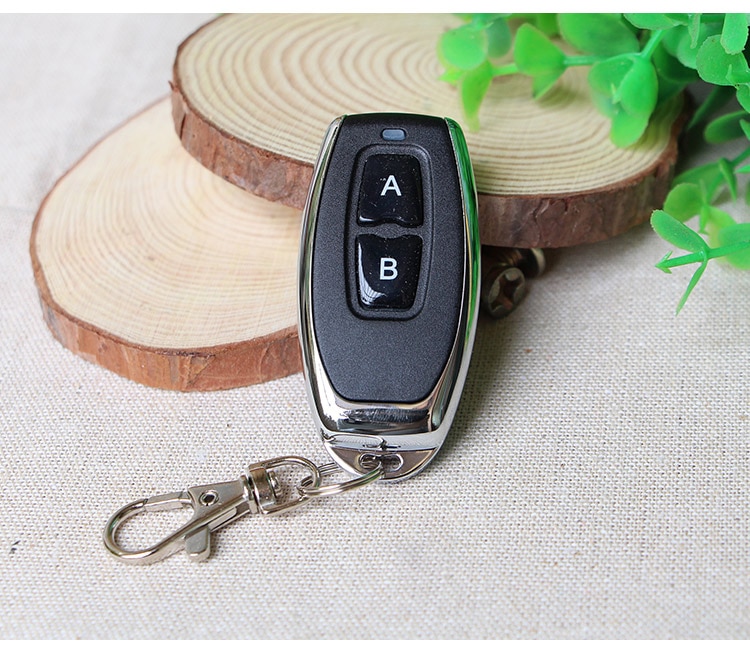

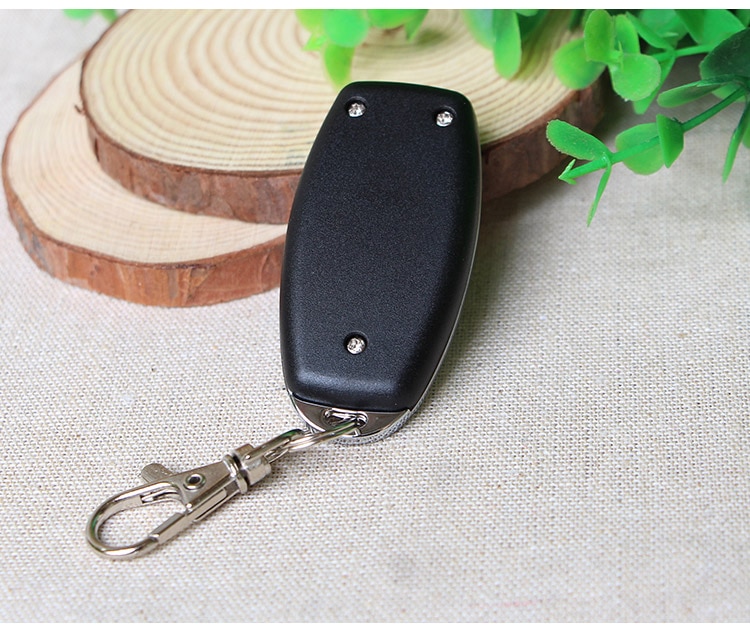

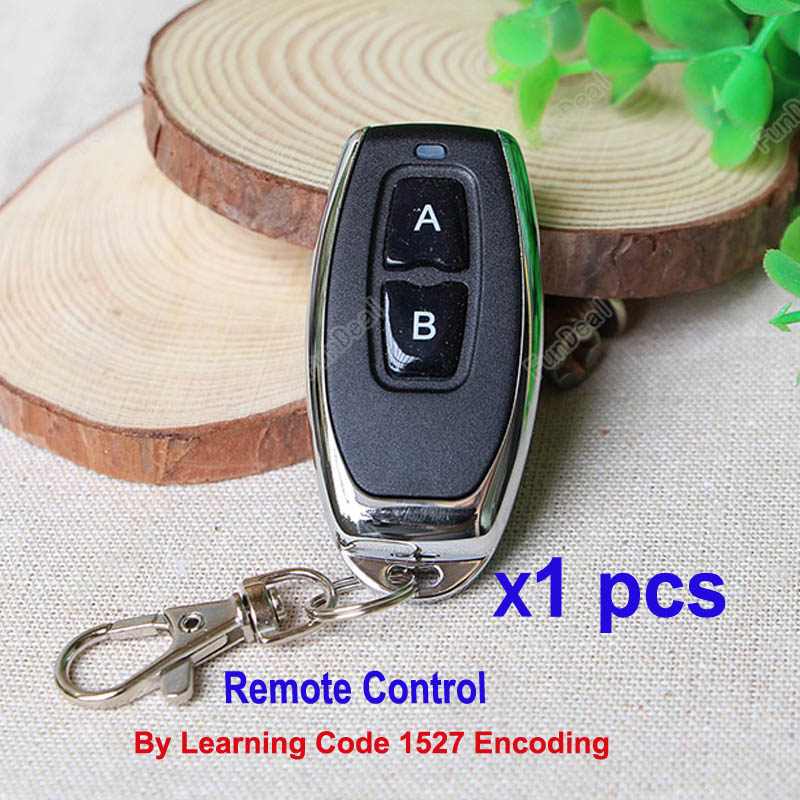

About the DC 12V 2CH Transmitter:
Operating frequency: 433.92MHz
Power by 3V Coin Cell Button Battery  (Battery  included ),
Material: PVC.
Button: 2 buttons

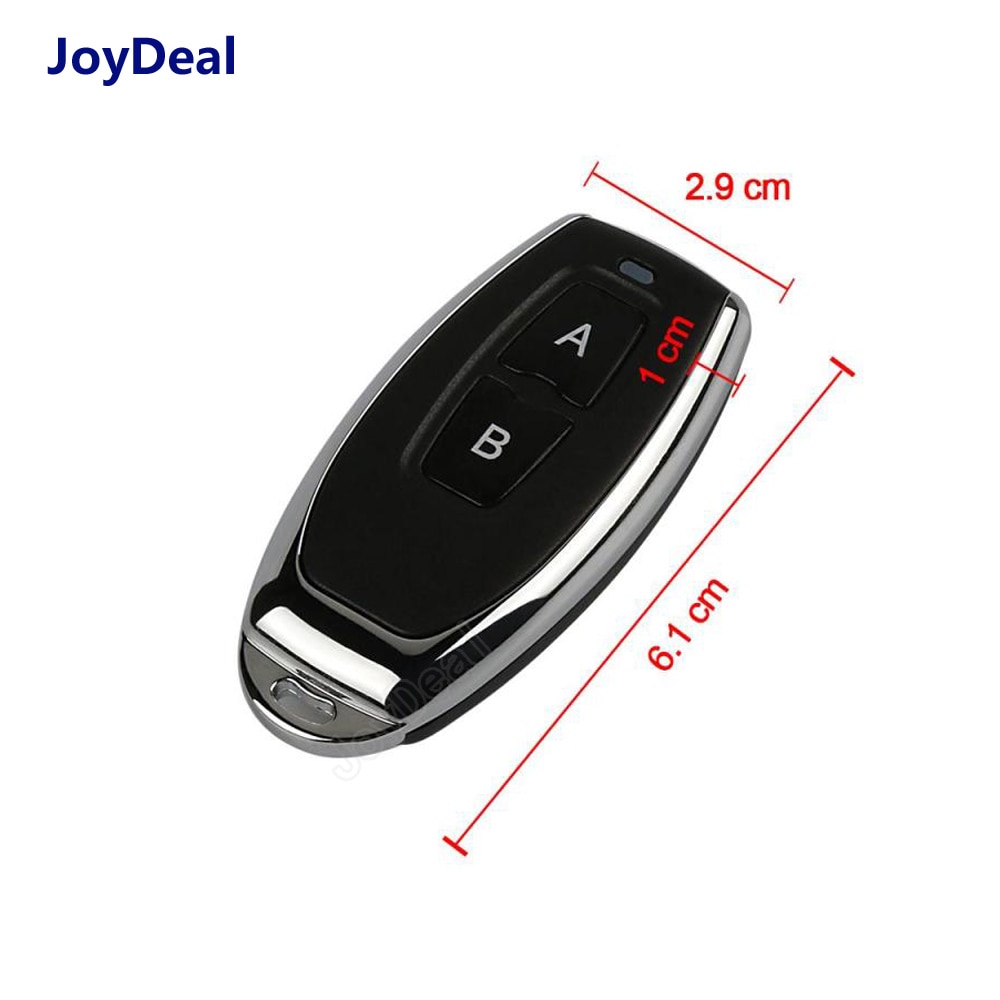

Size: 59mm x 28mm x 8mm;
Operating voltage: 3V ;
Operating Current: 12mA
Transmitting power: 10mw
Modulation mode: ASK (AM).
Encoding type: Learning.
Transfers distance: 80m
APPLICATION
Notice:
Different options include different packages:

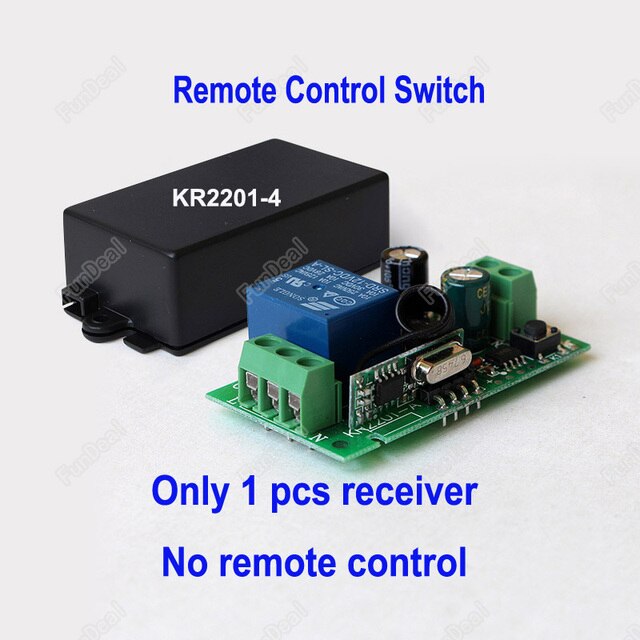

Package 1 Included: Only 1 Receiver module (KR2201A-4 ) * 1pcs ( include Shell );

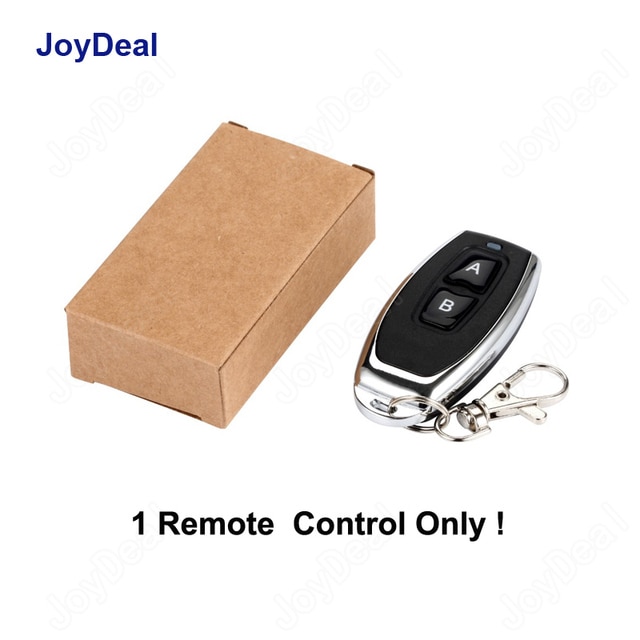

Package 2 Included:(Only 1 transmitter)RF 433Mhz Remote Control * 1 Pcs (Battery included);

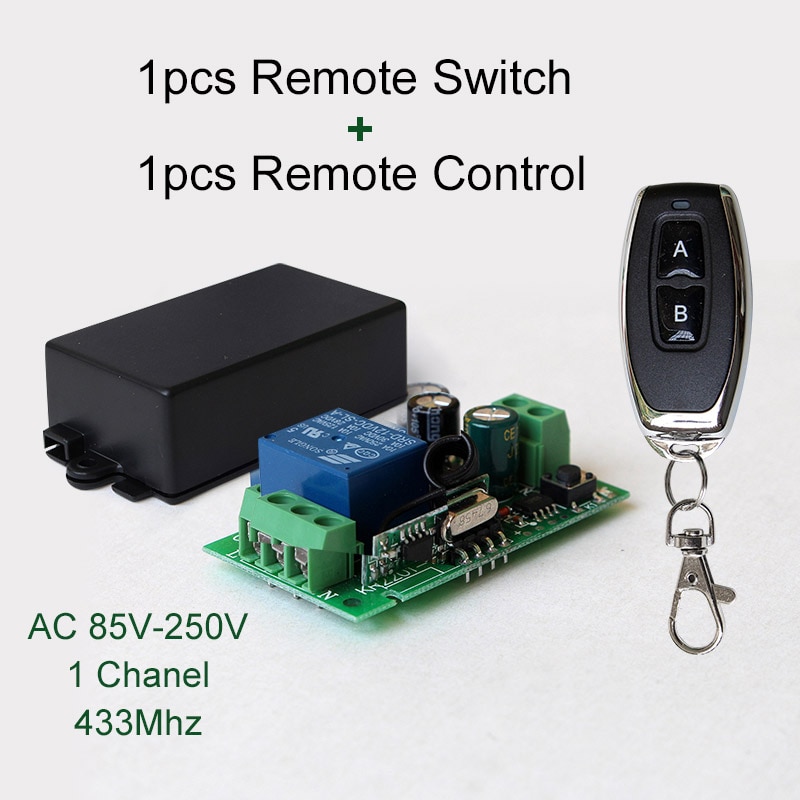

Package 3 Included:1 Pcs * Receiver module (KR2201-4 ) ( include Shell ),

1 Pcs * Remote Control      (include battery ).


If there are many person in your family, you maybe need the following packages:

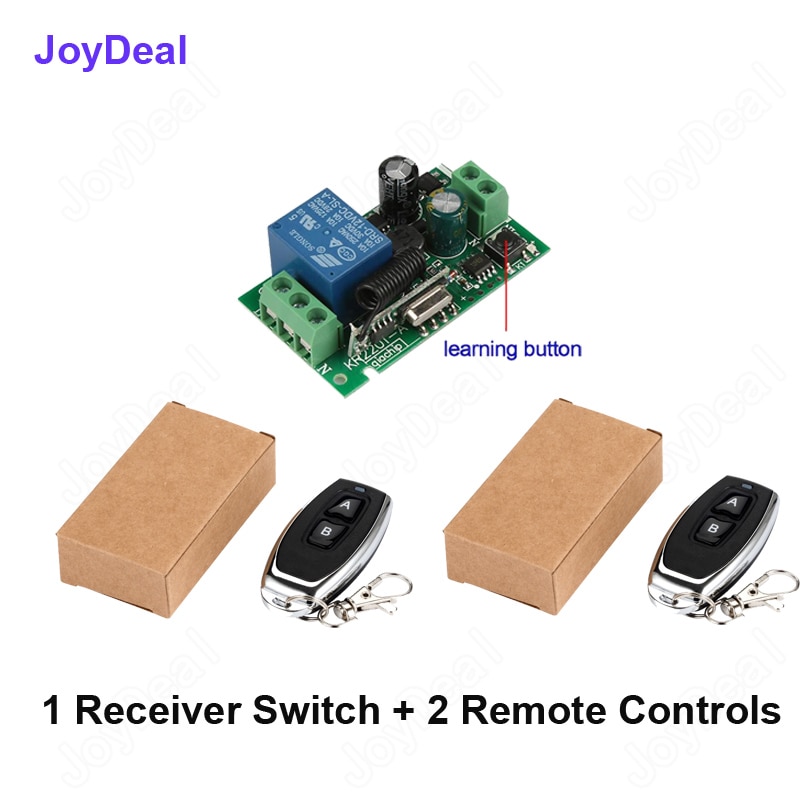

Package 4 Included:1 Pcs * Receiver module (KR2201-4 )  ( include Shell ),

2 Pcs * Remote Controls        (include battery ).

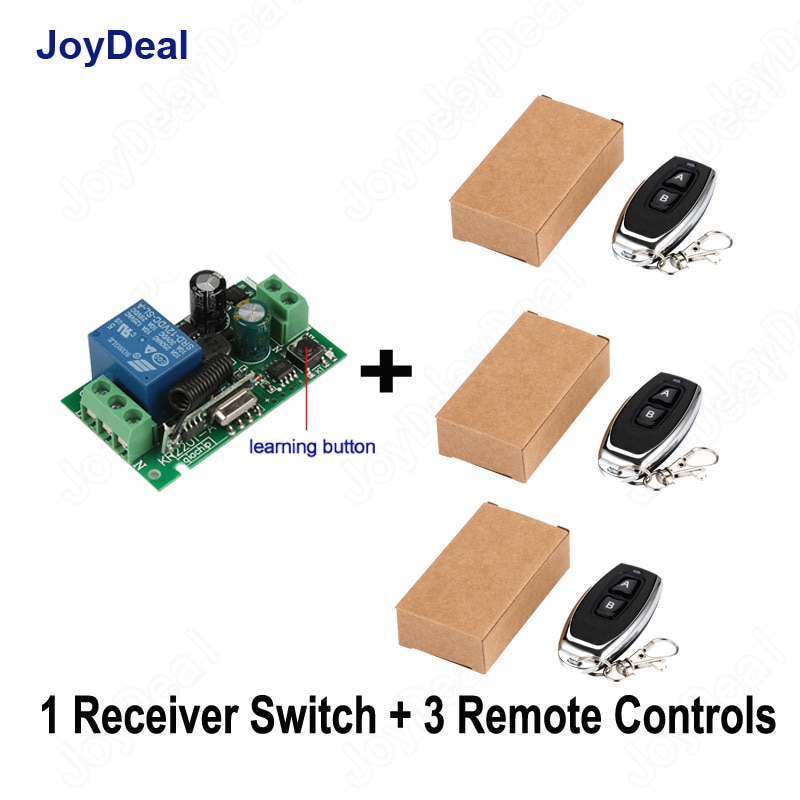

Package 5 Included: 1 Pcs * Receiver module (KR2201-4 )  ( include Shell ),
3 Pcs * Remote Controls        (include battery ).

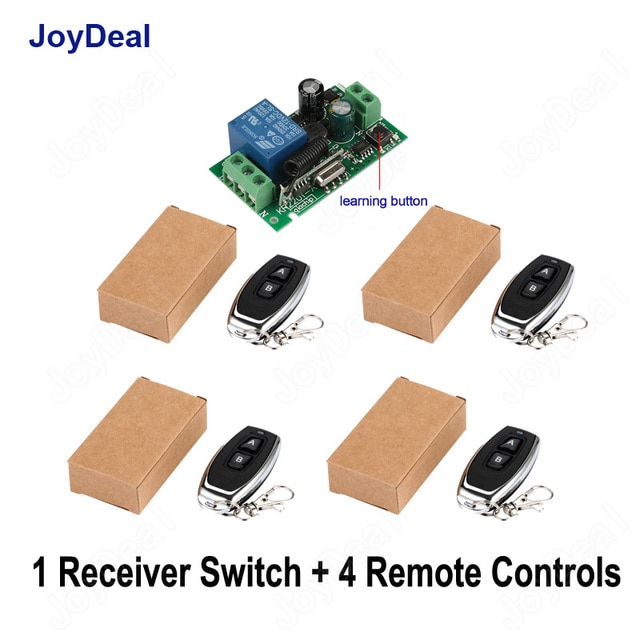

Package 6 Included: 1 Pcs * Receiver module (KR2201-4 )  ( include Shell ),
4 Pcs * Remote Controls        (include battery ).

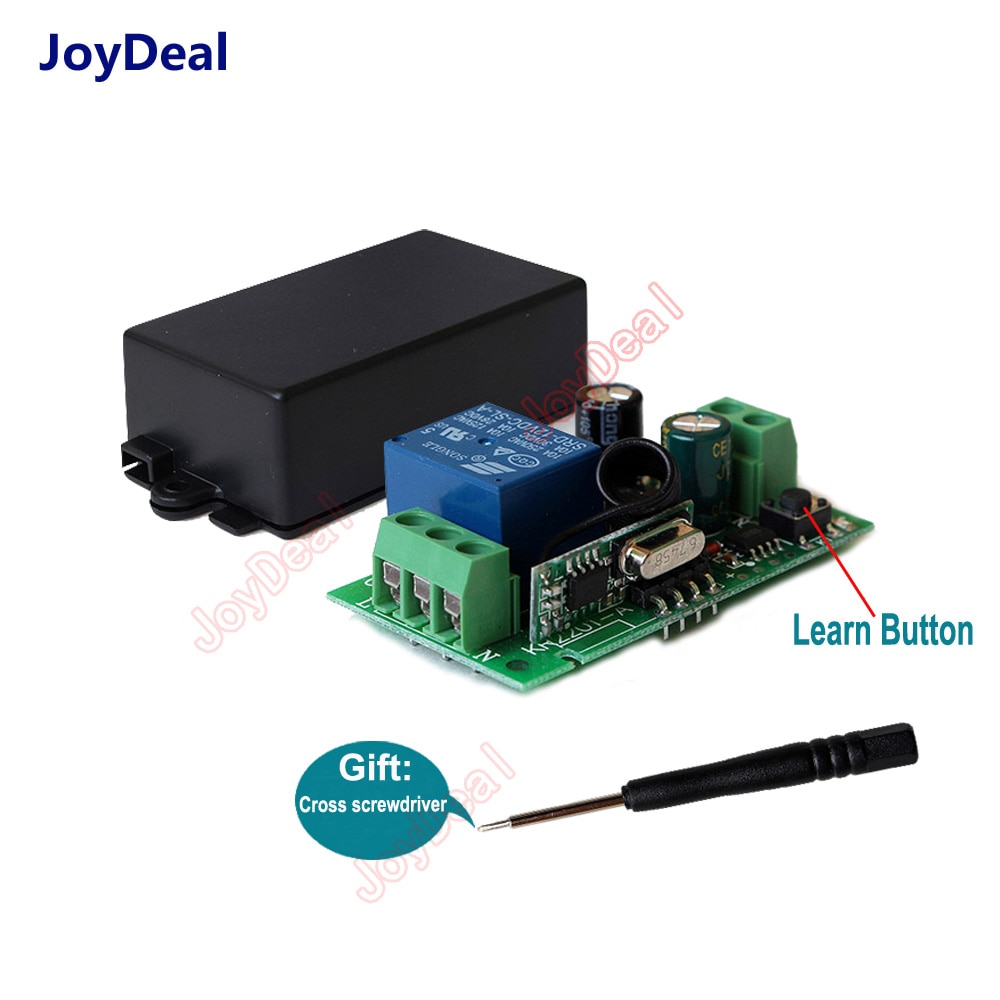

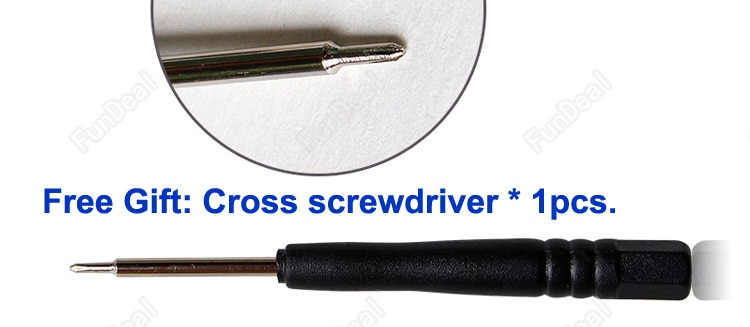

Free Gift: Cross screwdriver * 1pcs.

Attention Please:
Every parcel only get 1 pcs cross screwdriver as a free gift whatever how many you order.


 About Working mode:
Momentary:Push the remote button , the relay connects, release the remote button , the relay dis-connects.
Toggle:Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects .
Latching:Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.

Clearing the code :
Push the learning button on the receivers for 8 times , the codes will be cleaned;
After clearing the code, all the remote control cannot work any more.

Learning the code :(momentary)
Push the learning key on the receiver once time, the LED will be on , it comes into momentary setting learning state mode. Then push the button of remote control ,LED indicator on the receiver board will flash 3 times, and then come off. It means learning successfully .

Learning the code : ( Toggle )
Push the learning key on the receiver twice time , the LED will be on , it comes into toggle setting learning state mode. Then push the button of remote control ,LED indicator on the receiver board will flash 3 times, and then come off. It means learning successfully .

Learning the code :( Latching )
Note: When you choose for latching mode , in order to learn more remote control , you need to learn two different button , the first time learnt is for “ON”, the second time learnt for “OFF”.
For example : button A = ON , button B = OFF

Push the learning key on the receiver triple time ,   the LED (on the Receiver)will blink 3 times. When the LED is on, press the button of the remote control(You want to let it learn), Push the remote button A, LED flash for 3 times . Push the remote button B, Led flash for 3 times . After 3 seconds , the LED indicator will be off , Learning to succeed.
A = ON , B = OFF .

What's More: The system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the initial remote control will be lost .


  • Is Smart Device: No
  • Current: 10A
  • Material: Plastic
  • Remote Distance: Above 15 Meters for smart home interruptor touch switch diy RF control
  • Features: 433Mhz RF push button interruptor touch smart lamp light wall switch
  • Model Number: wireless RF interruptor de luz micro wall smart remote control switch
  • Switch Type: Remote Control
  • Warranty: 1 year warranty 1527 learning code smart home remote power switch diy
  • Certification: CCC,ROHS,ce
  • Brand Name: joydeal
  • Origin: Mainland China
  • Item Type: Switches
  • Certification: RoHS,FCC,CE
  • Input Power: AC 85V - 250V
  • Encoding type: Intelligent 1527 2262 Learning Code
  • Quiescent Current: <5mA
  • Receiving Sensitivity: >97dbm
  • Modulation Mode: ASK
  • Working temperature: -30~+80 degrees
  • PCB dimension: 55*32mm
  • RF working mode: superheterodyne
  • Shell: Yes
  • Maximum working current: <10A
  • Frequency: 433 MHz
