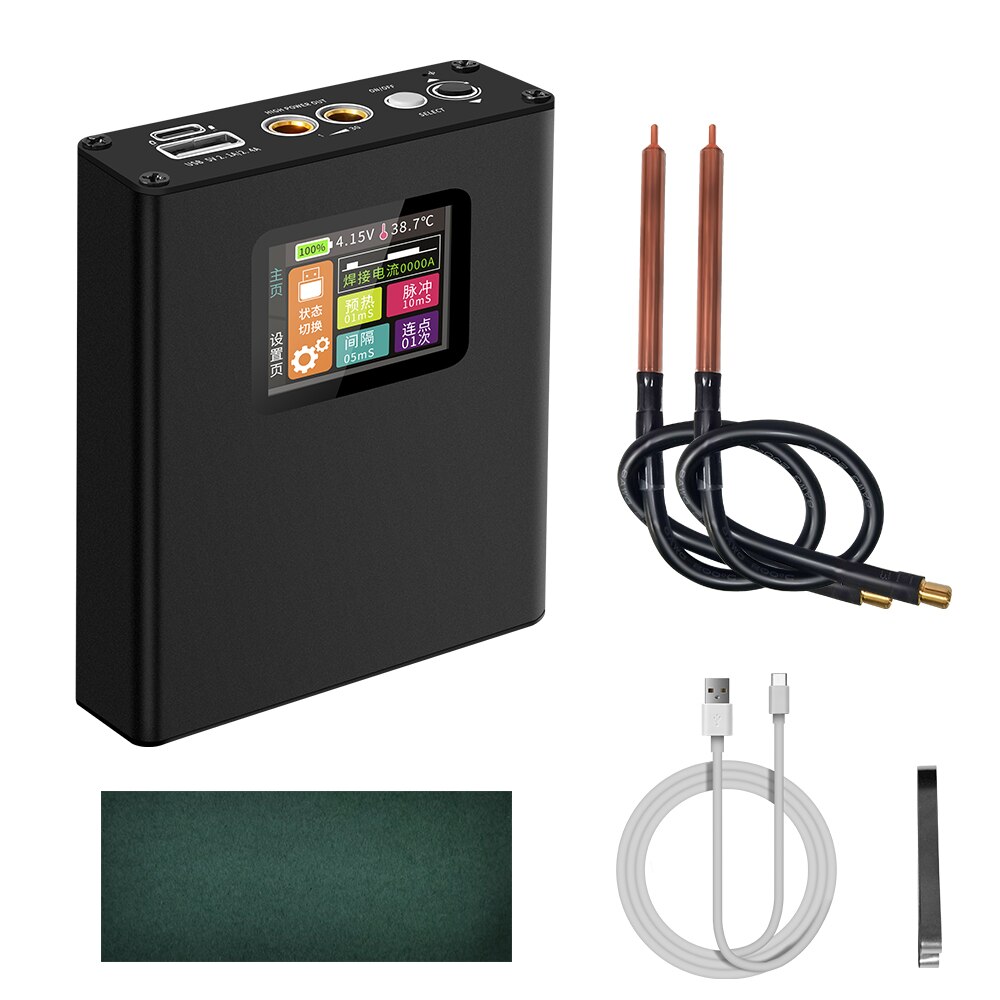

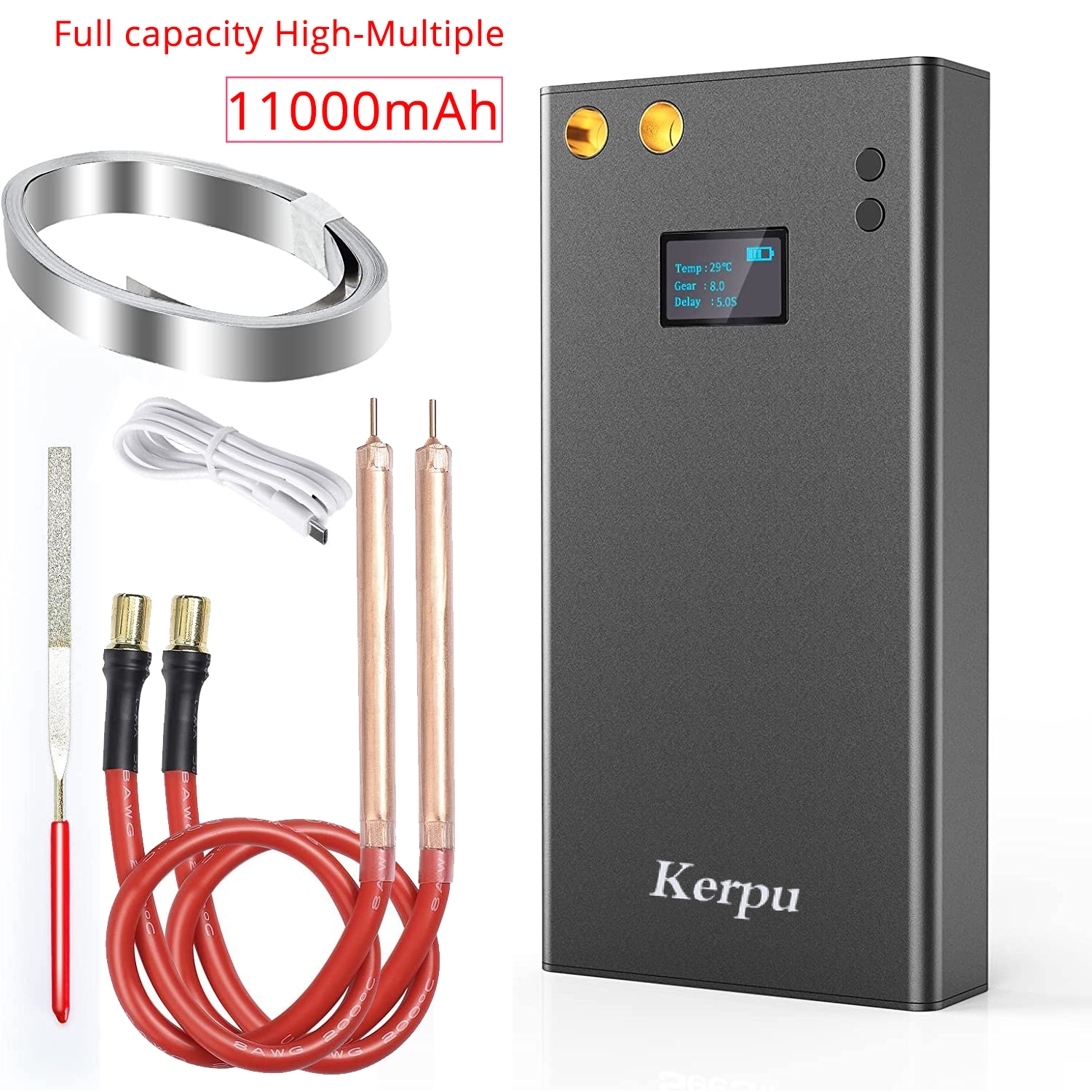

4000~10600mAh Mini Spot Welding Machine For 18650 Battery Spot Welder 70 Gear Spot Welding Machine with Charge-pal

Modle:    DHJ21

This spots-welding machine is a high-power output design with a more accurate welding process. Equipped with a digital display, the welding current, pulse time, pulse interval, number of continuous spots welding times and other parameters can be clearly displayed, you can read it at a glance. The three parameters of preheating time, pulse interval and pulse rate can be adjusted. You can adjust the screen brightness, automatic shutdown times and other options, including using the record to view the number of leave factory times.  It can firmly welds 0.25mm nickel-plated steel sheets and 0.15mm pure nickel sheets after fully charged. The battery can be kept at a standby voltage for a long time without being used.

Features:
Working Principle: It controls the two high-rate lithium batteries through a program in the built-in microcontroller, and precisely outputs the pulsed energy to generate the high temperatures in a very short time. After rapid cooling, the nickel-plated sheet and the battery are fused together to complete the welding process.

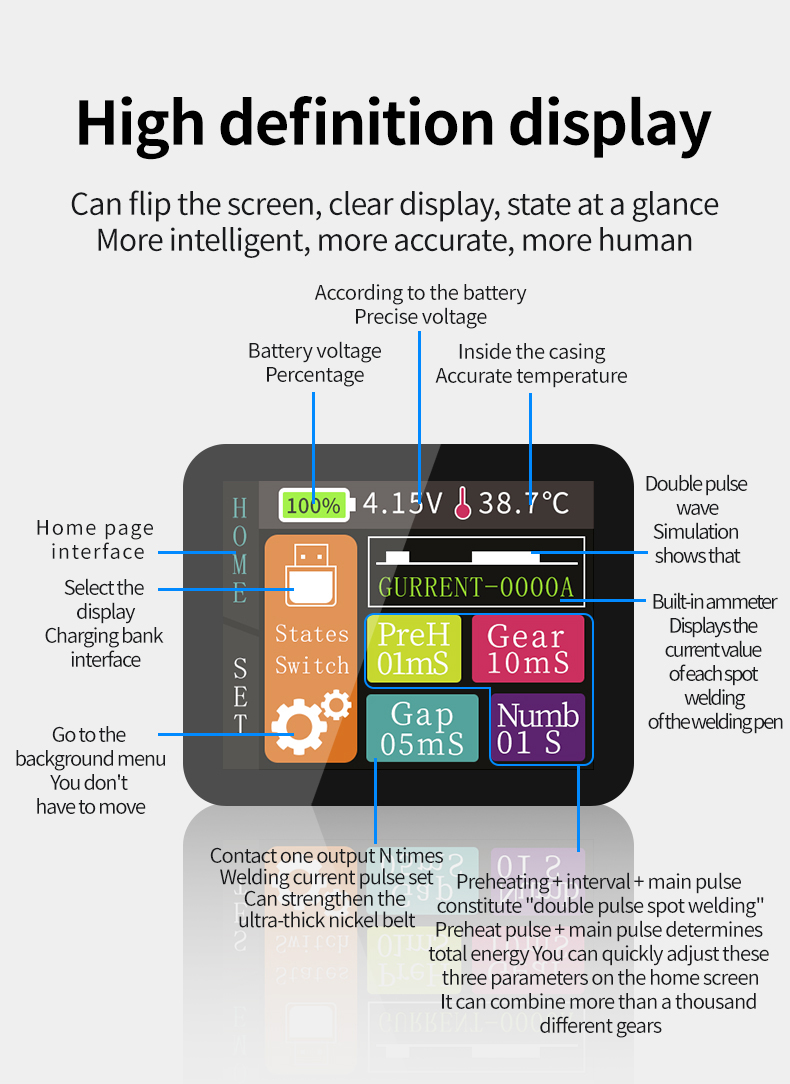

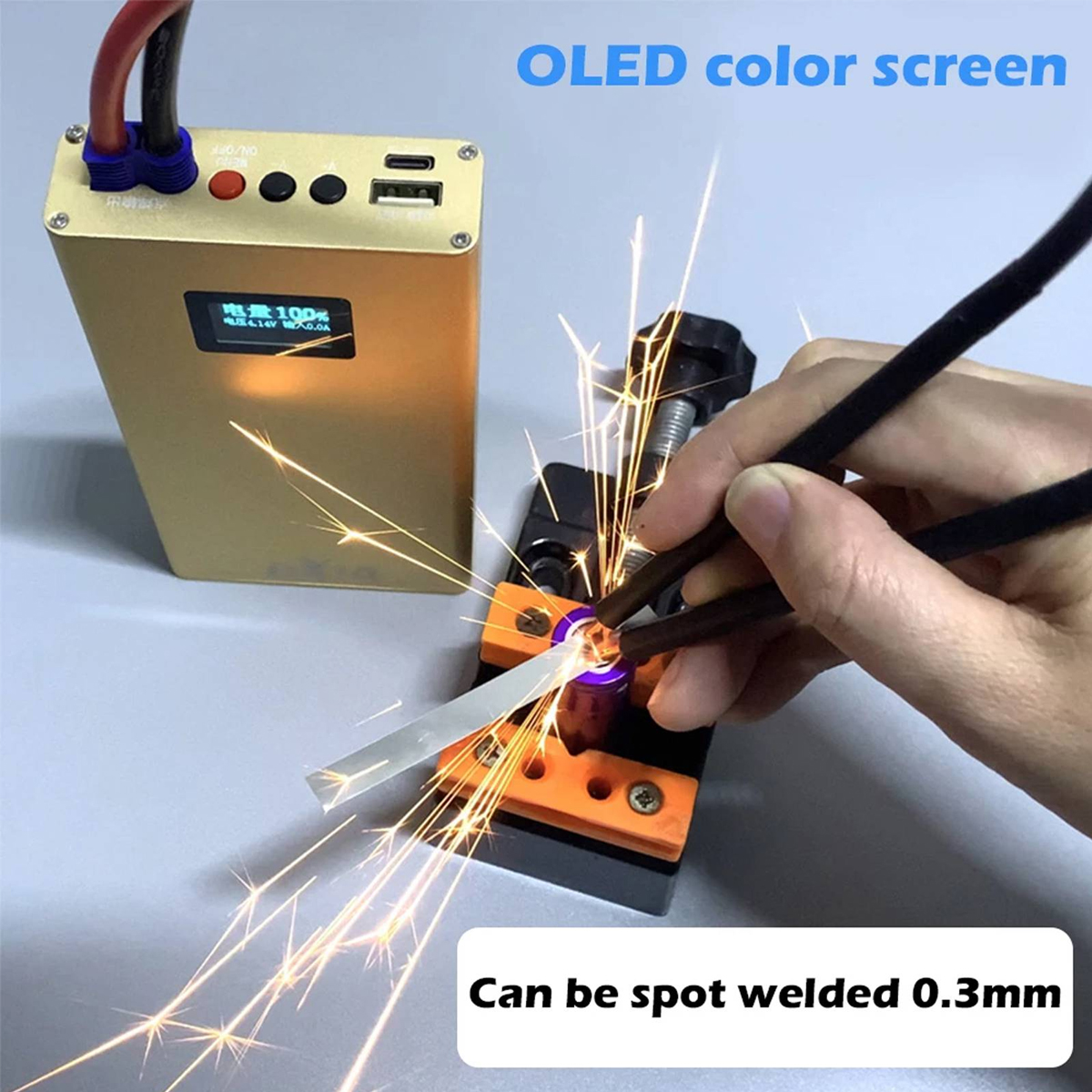

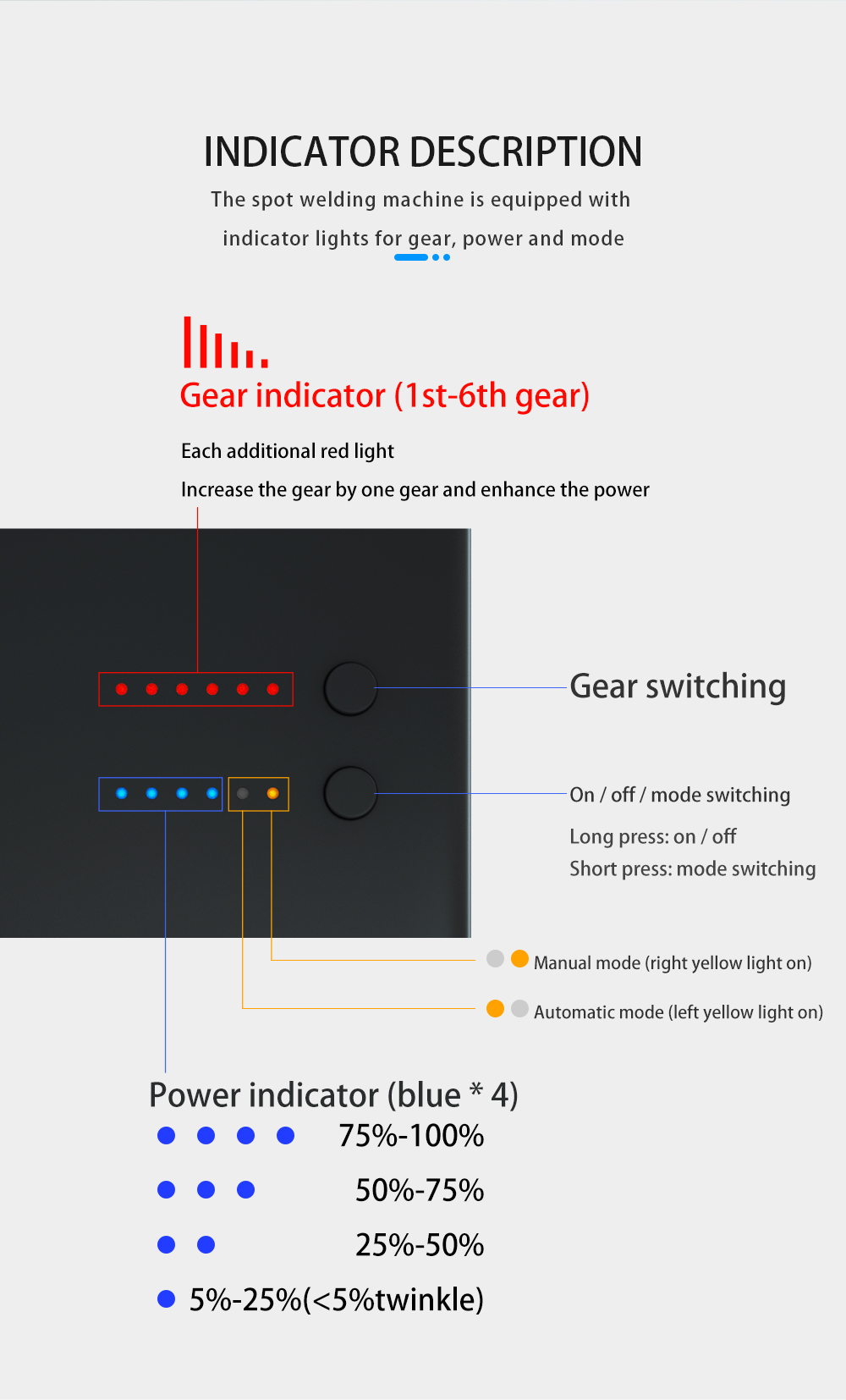

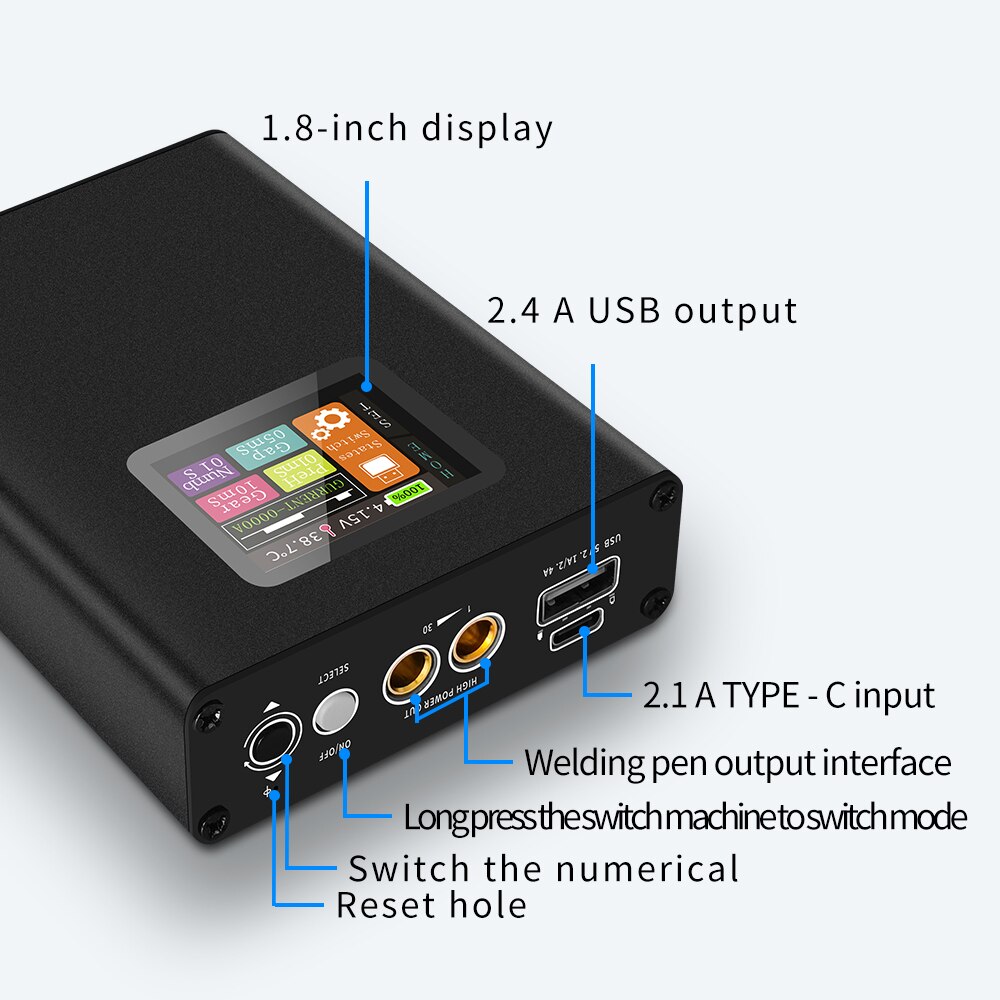

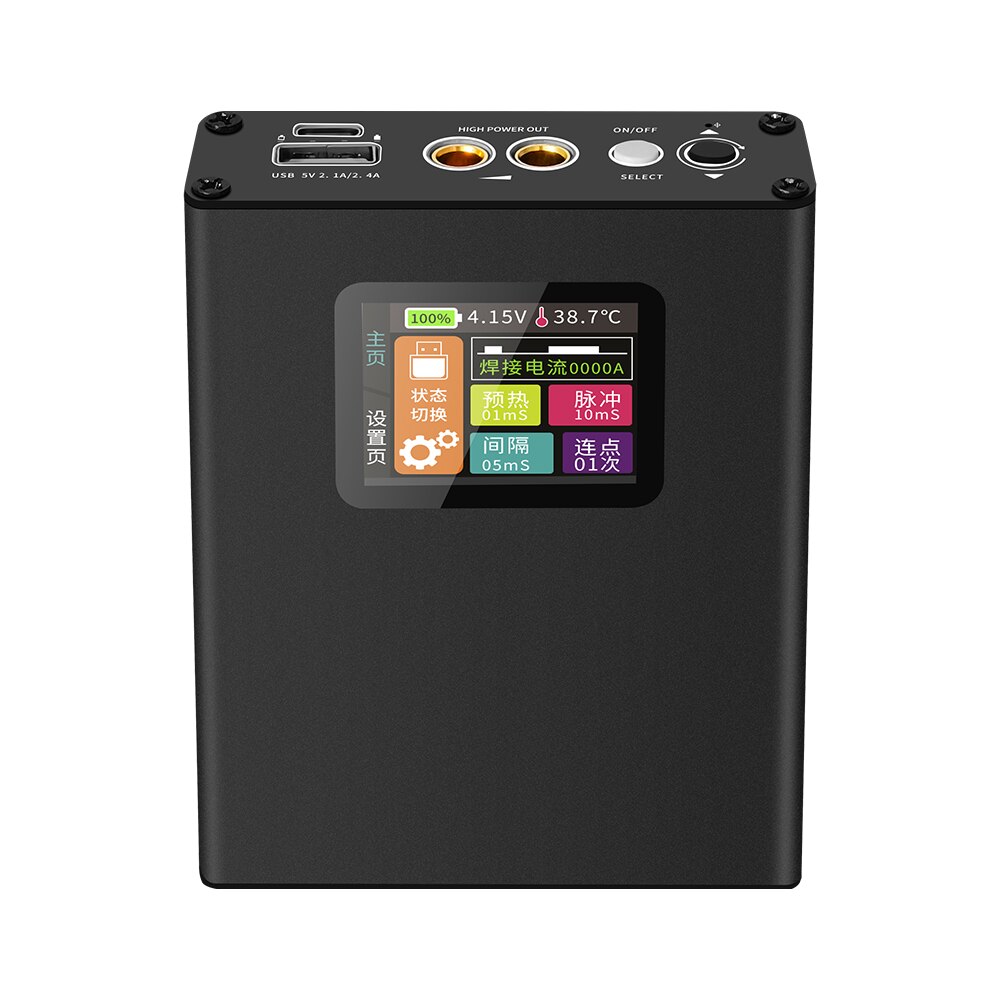

Digital Display: Equipped with a digital display, the welding current, pulse time, pulse interval, number of continuous spots welding times and other parameters can be clearly displayed, and you can read it at a glance. The backlight brightness of 5-100.0% can be adjusted depending on the environment.
Parameters adjustable: The three parameters of preheating time, pulse interval and pulse rate can be adjusted to cover a wide ranges of welding situations, from thin aluminum sheets of mobilephone battery lugs to 0.25mm thick sheets, and lots of users' functional requirements can be met at the main interface. You can adjust the screen brightness, automatic shutdown time and other options, including using the record to view the number of leave factory times. The battery can be kept at a standby voltage for a long time without being used.

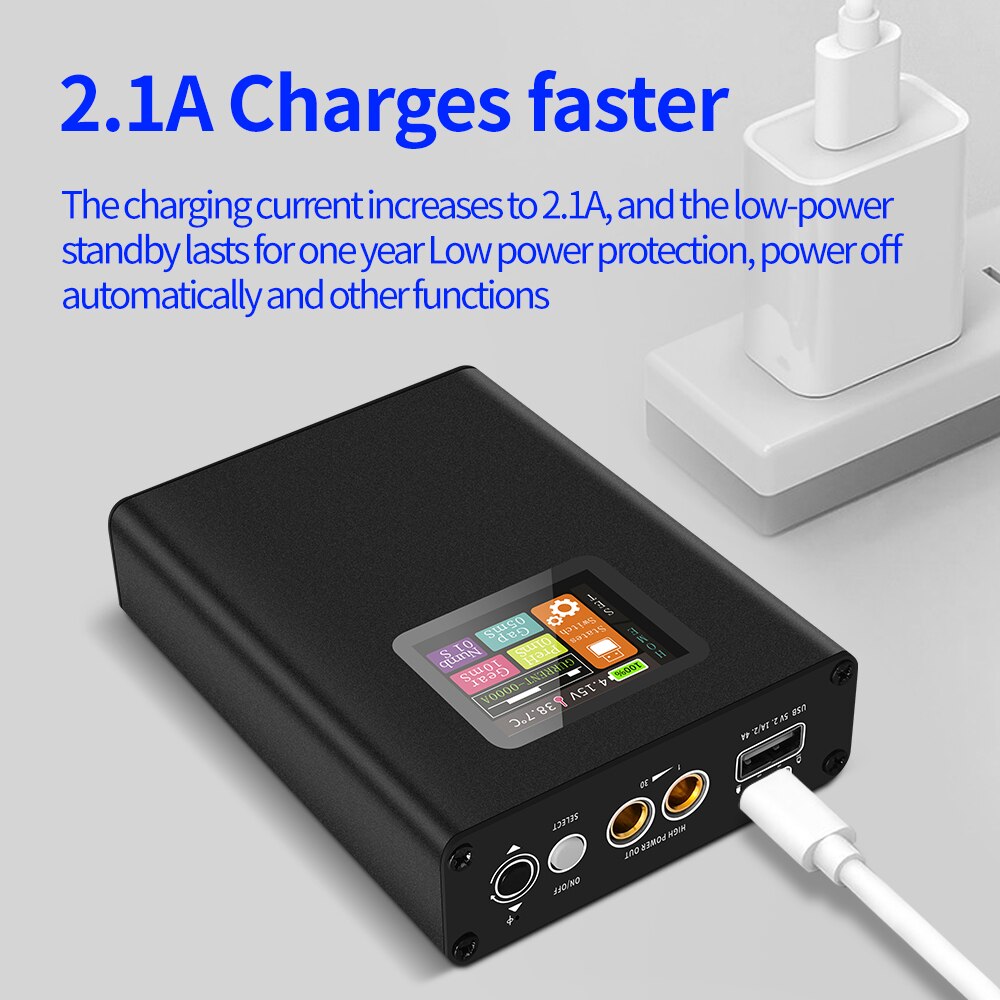

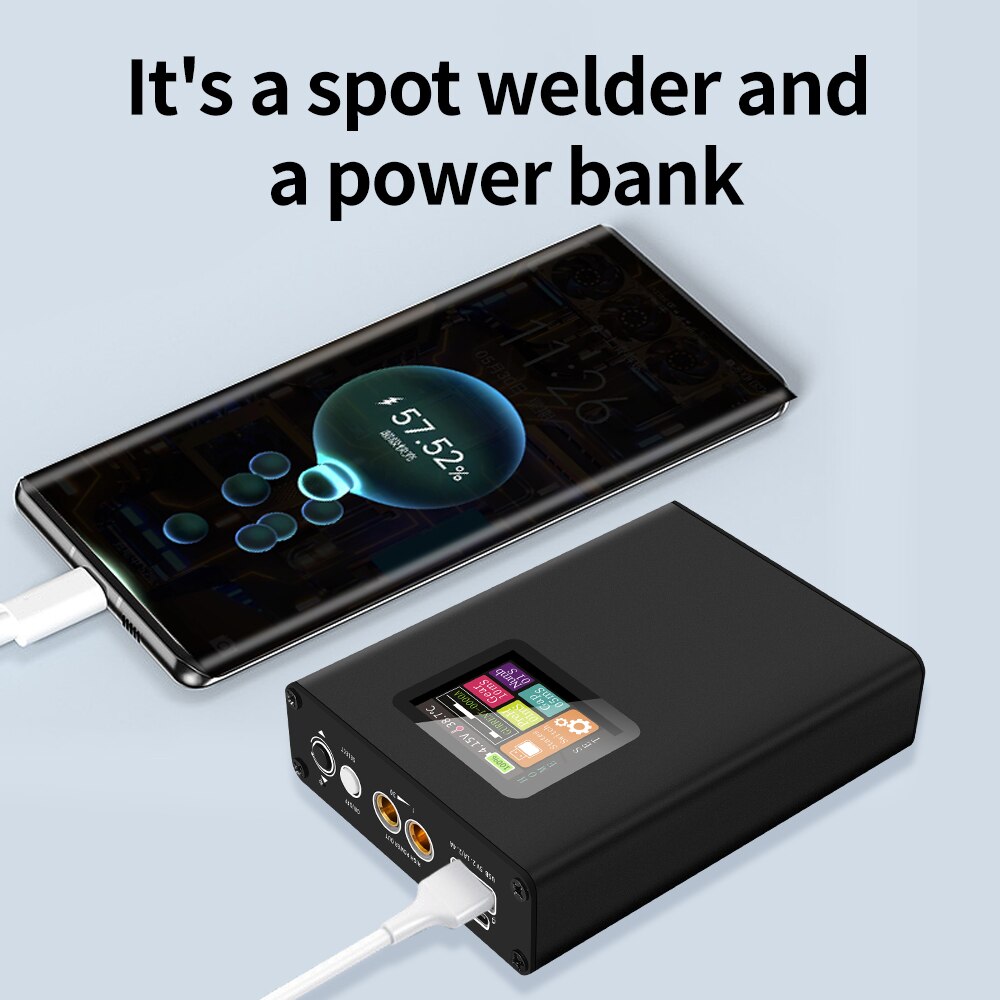

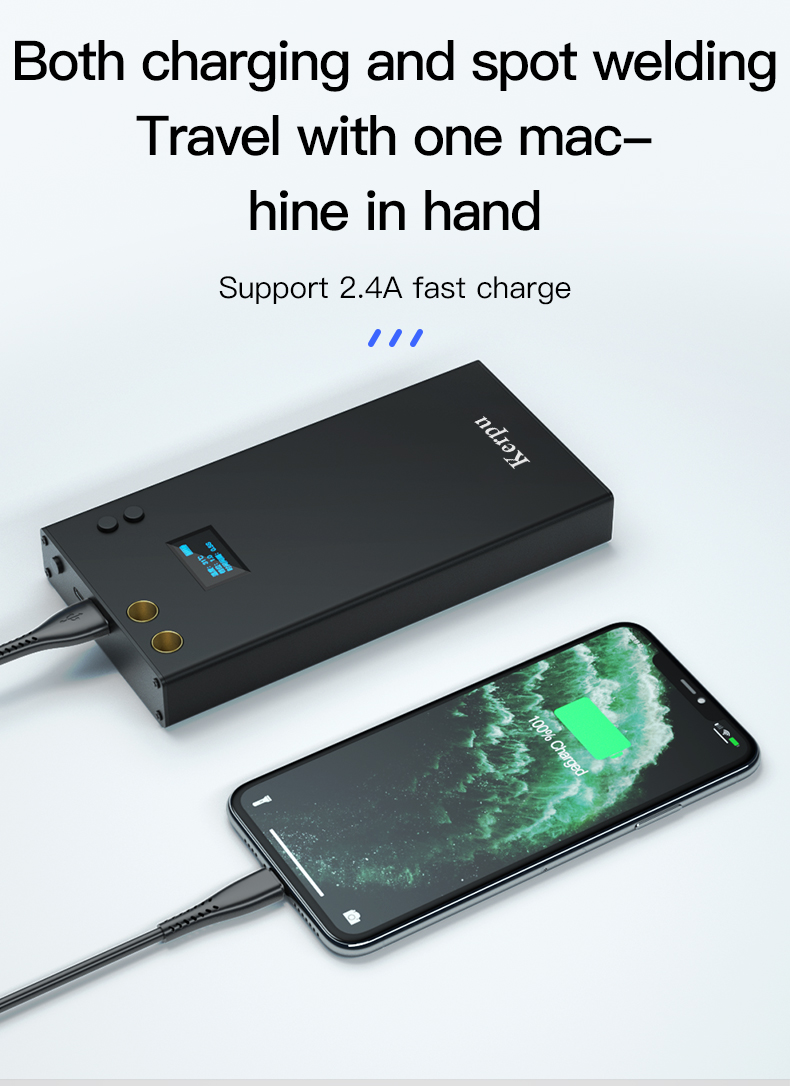

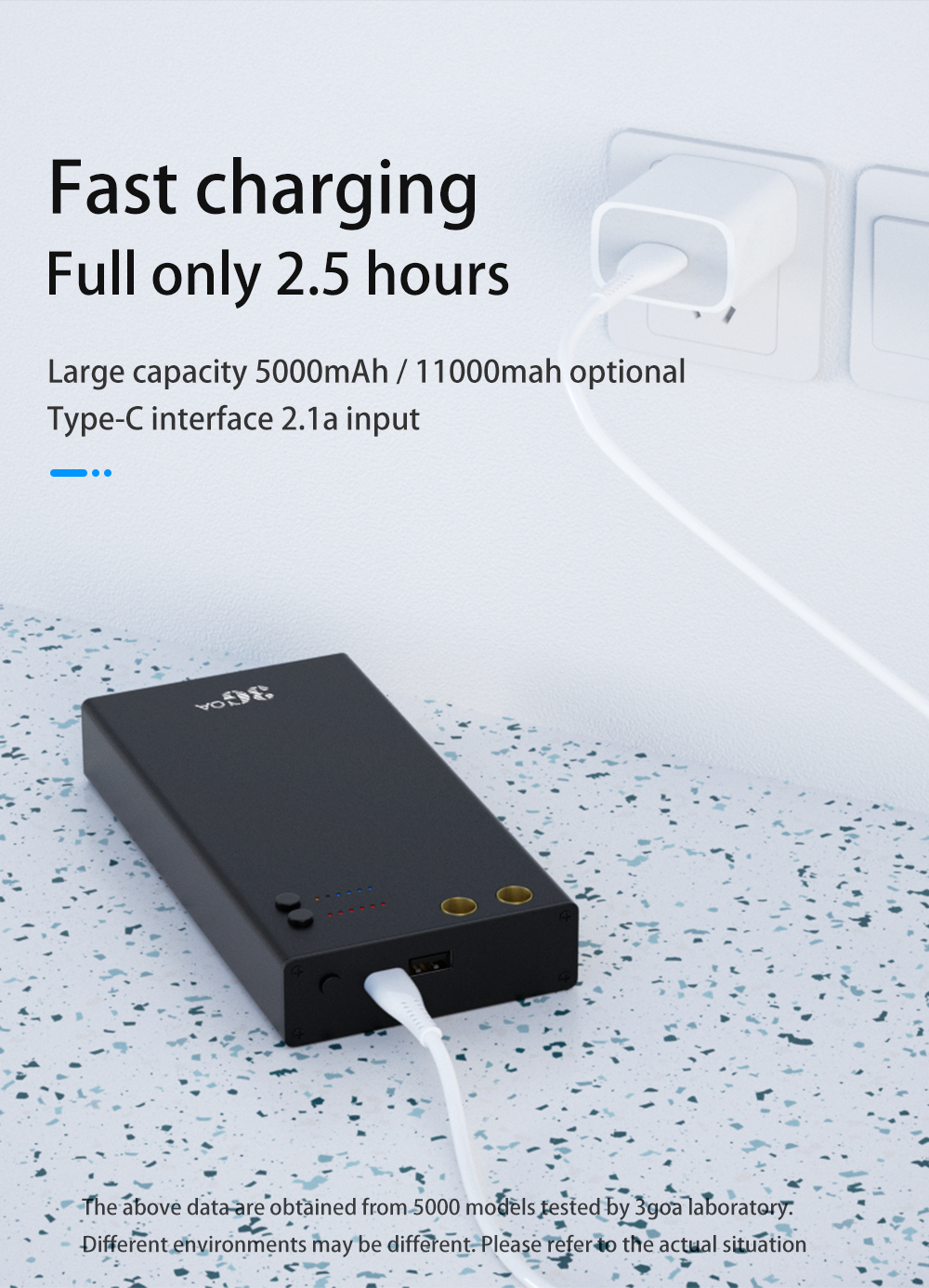

Multifunctional Design: With rechargeable capability, fast charging, built-in welding ammeter, low power consumption standby, with silent mode.

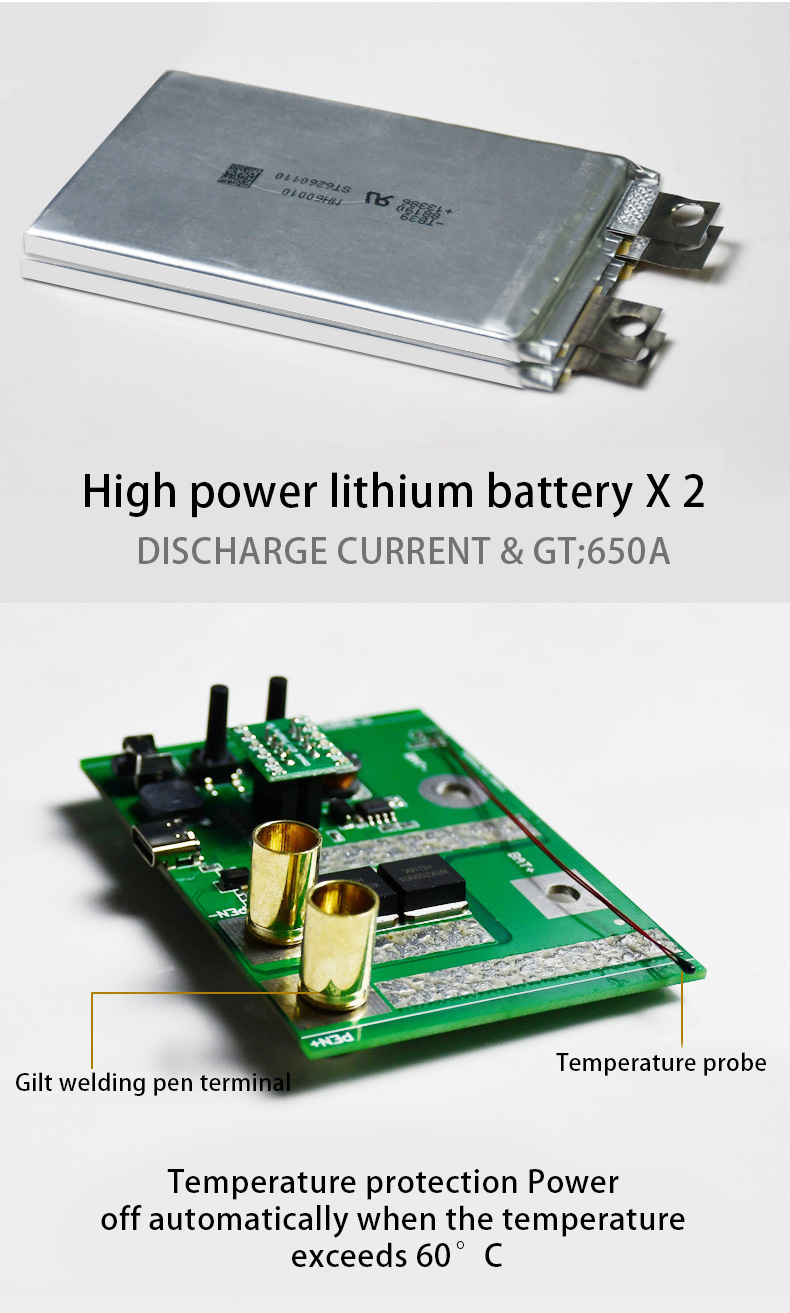

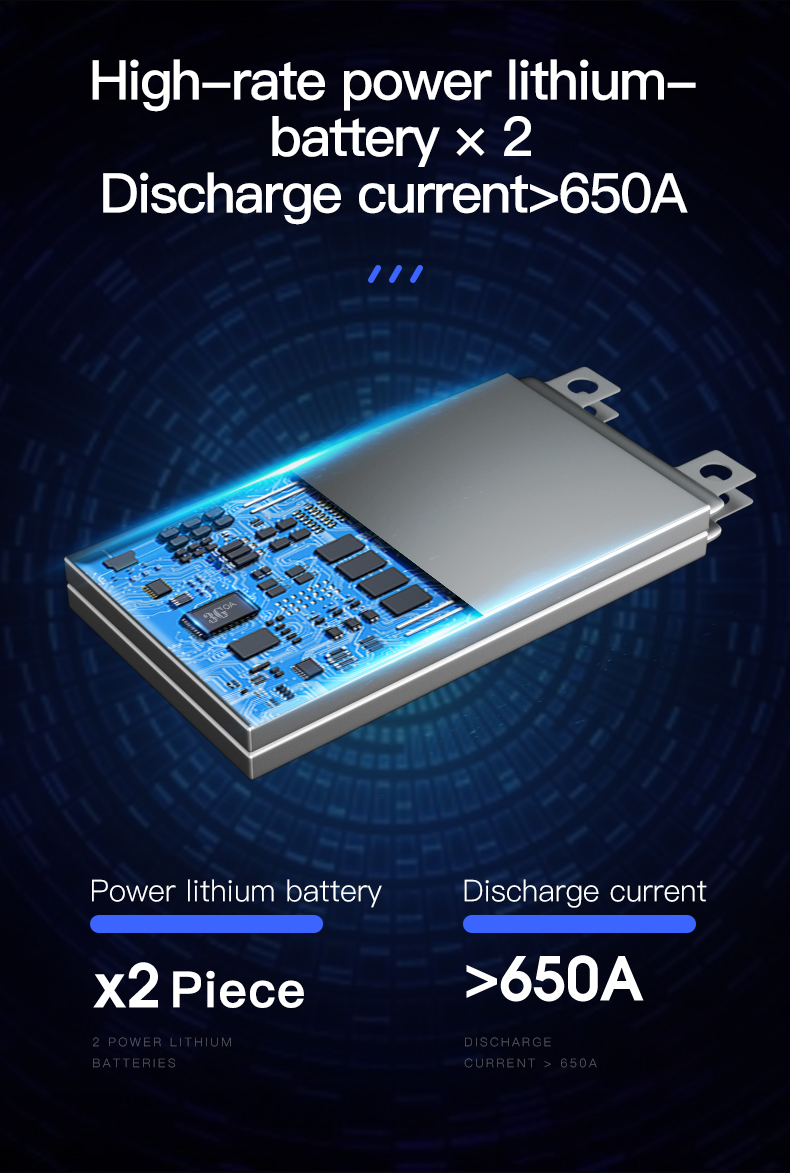

Strong Welding Capacity: The spots welding machine has two built-in high-rate power lithium batteries, and the single-chip CNC outputs a powerful pulse current for spots welding. It can firmly welds 0.25mm nickel-plated steel sheets and 0.15mm pure nickel sheets at full-charged. The welding process is more accurate and the welding spots are more solid and beautiful.

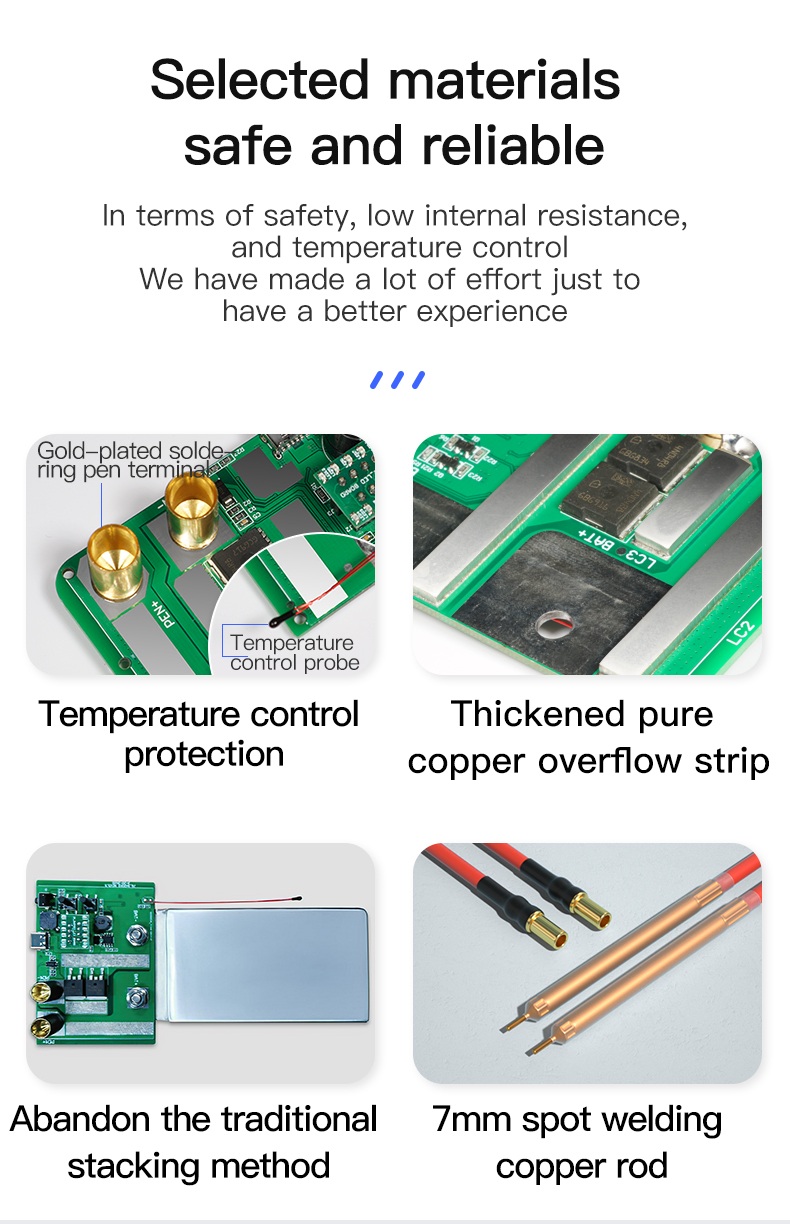

Multiple Protections: over-current protections, short-circuit protections, low battery protections, over-temperature protections, over-temperature alarms, and with automatic shutdown function.

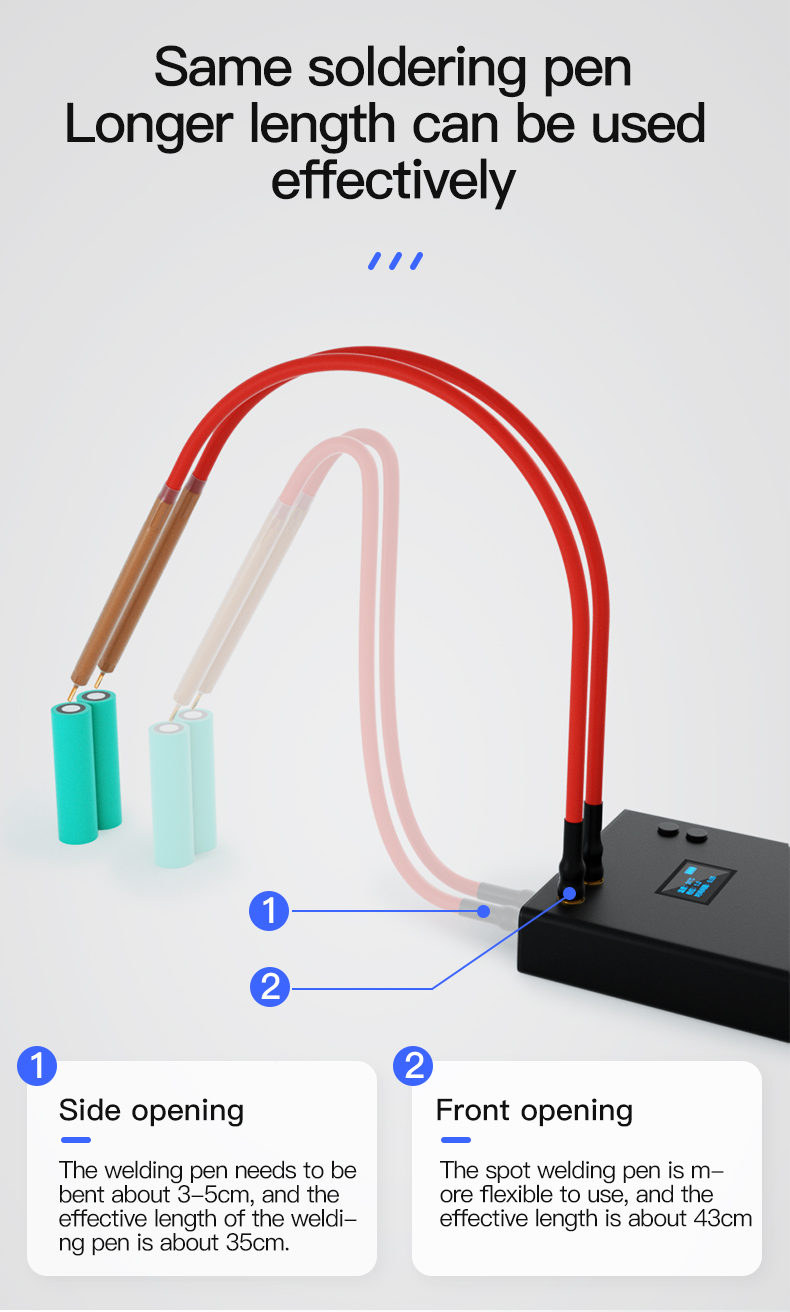

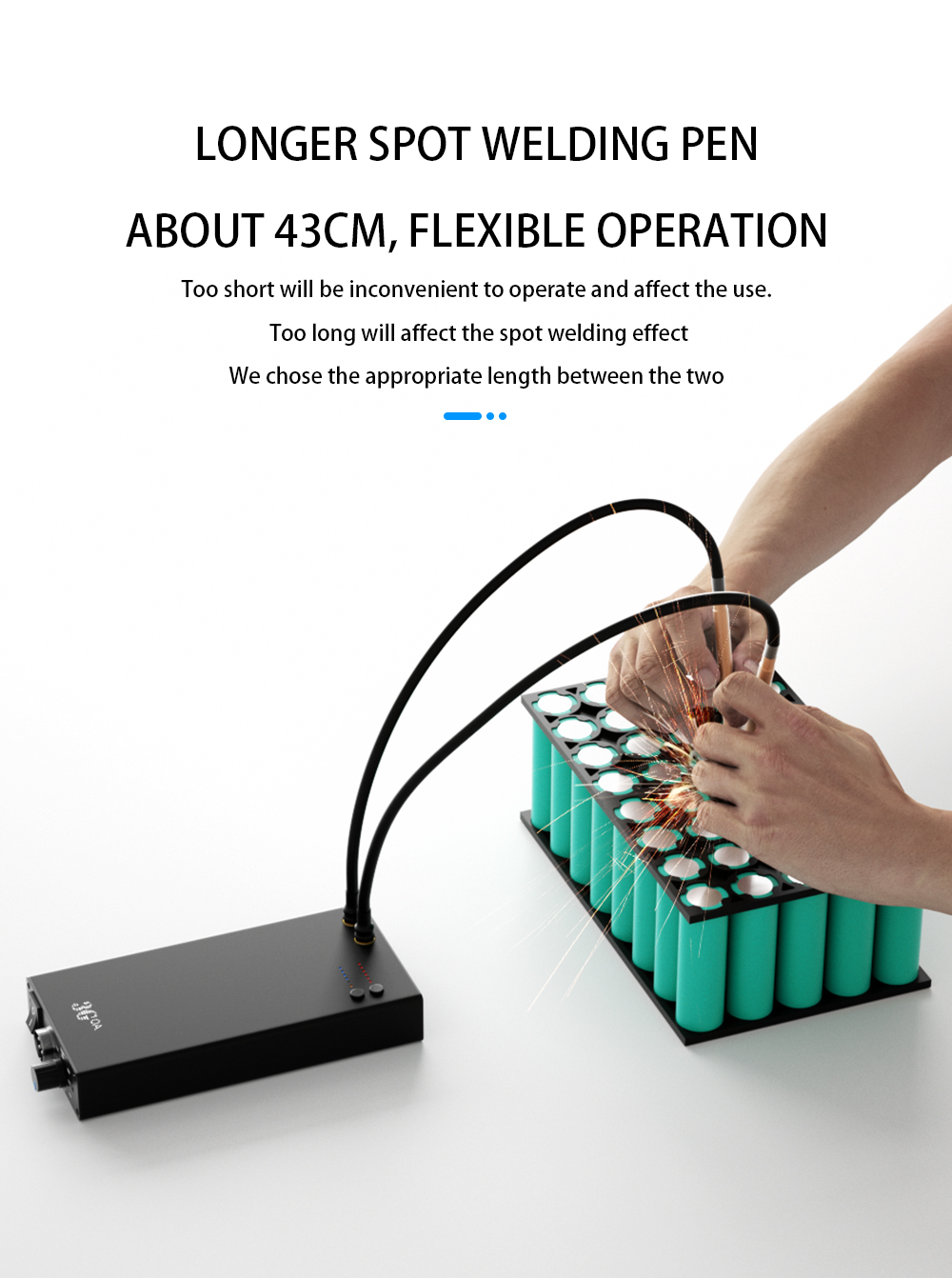

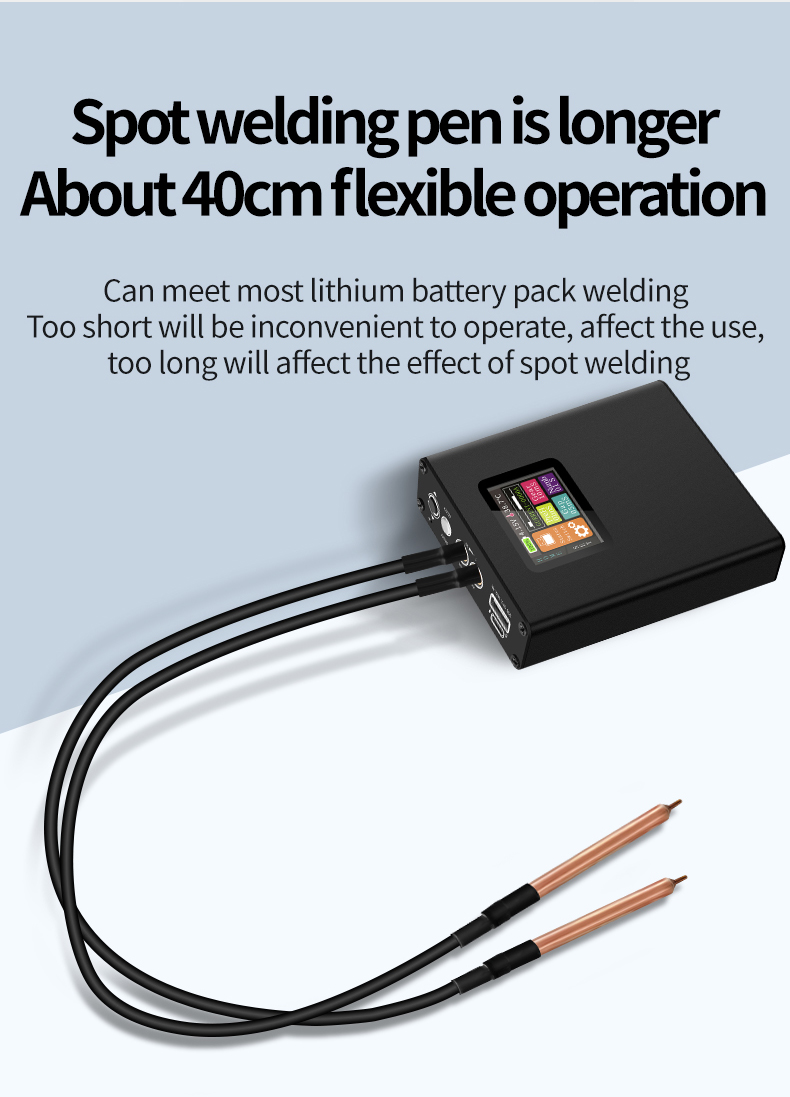

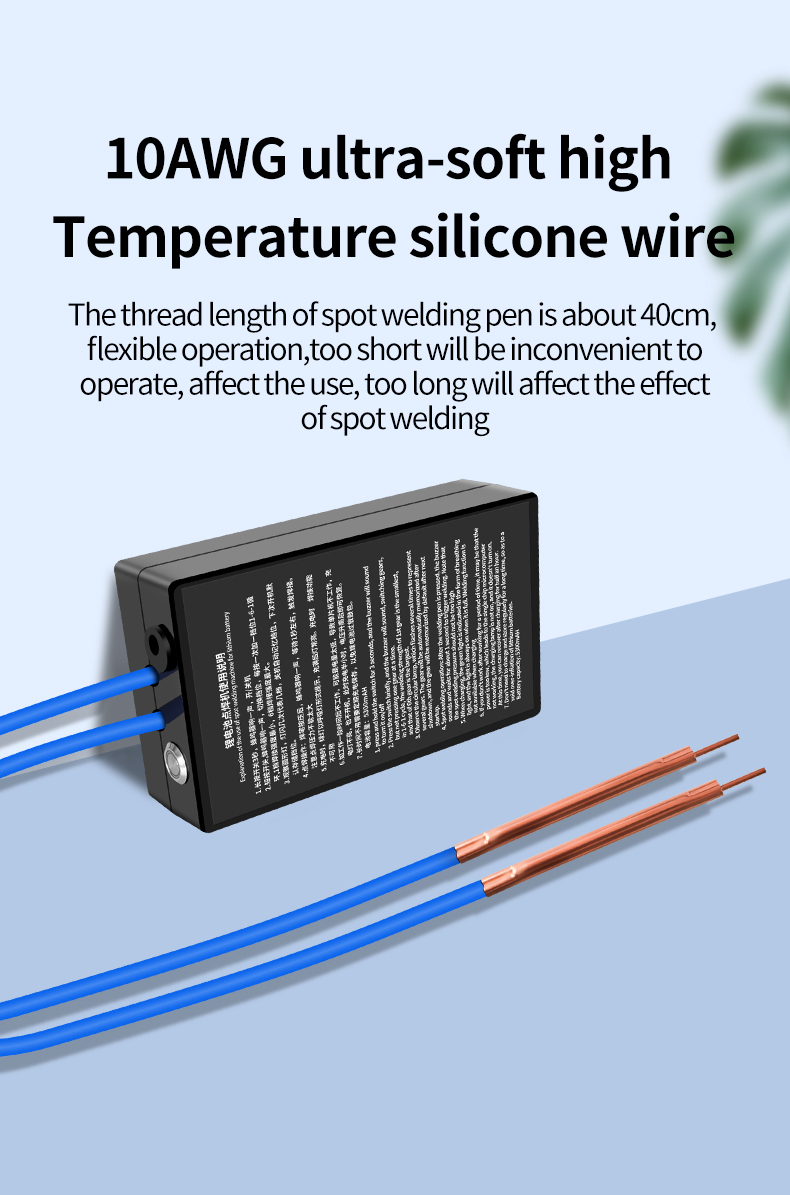

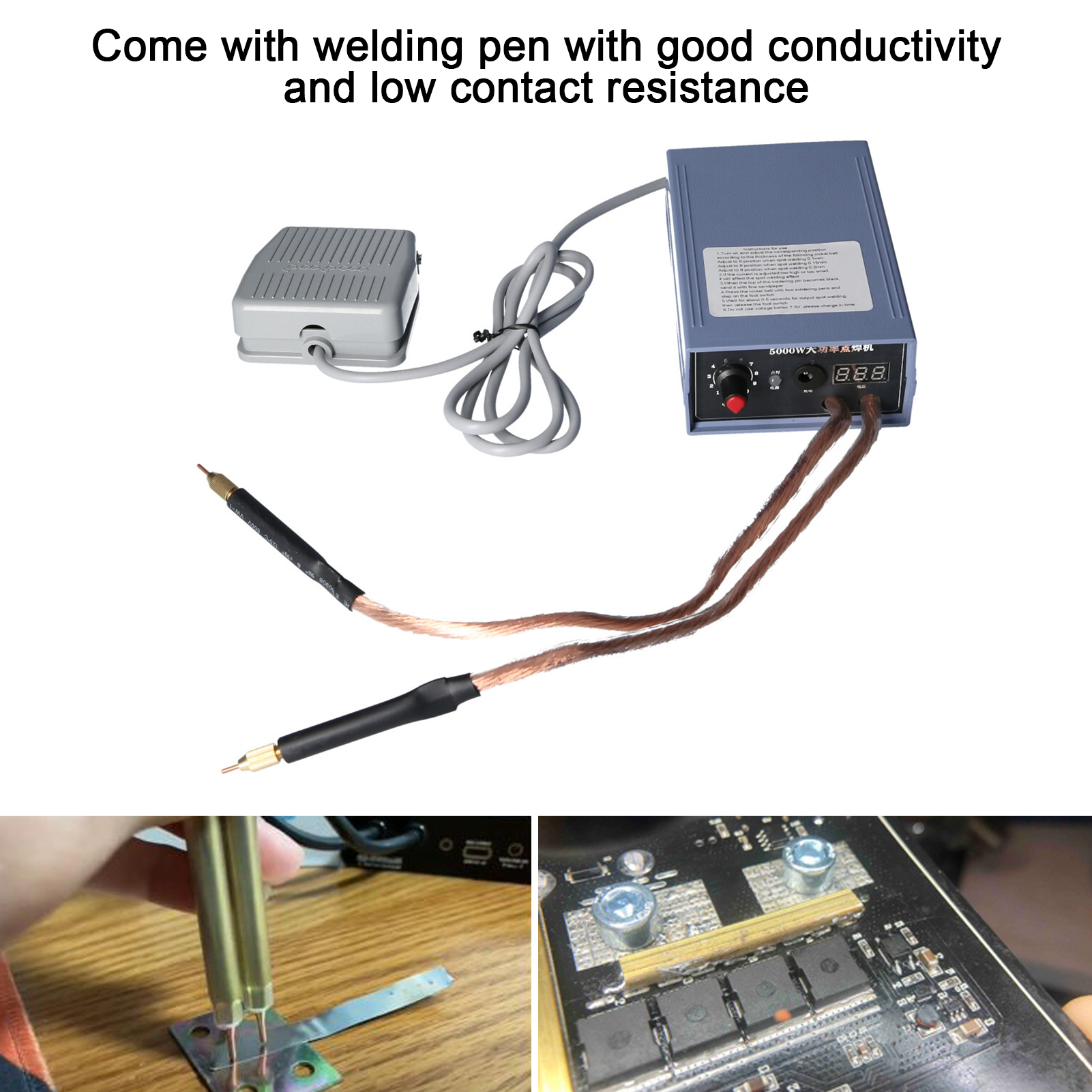

Premium Welding Pen: 8 mm diameter, 400 mm length, 8AWG wire consists of multiple strands of high-temperature wire with high torsional resistance and more sensitive operation. Thick gold-plated interfaces with alumina copper spots welding needles to ensure high current passing capacity and durability

Specifications:

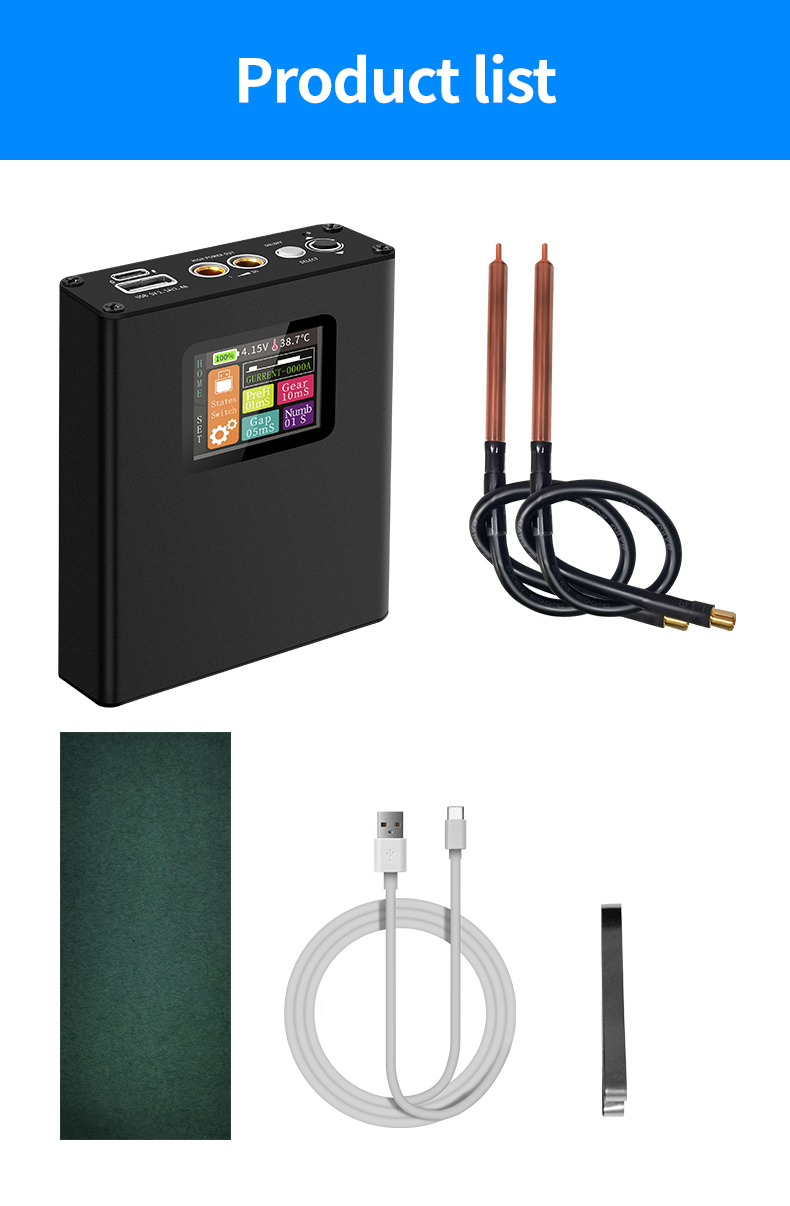

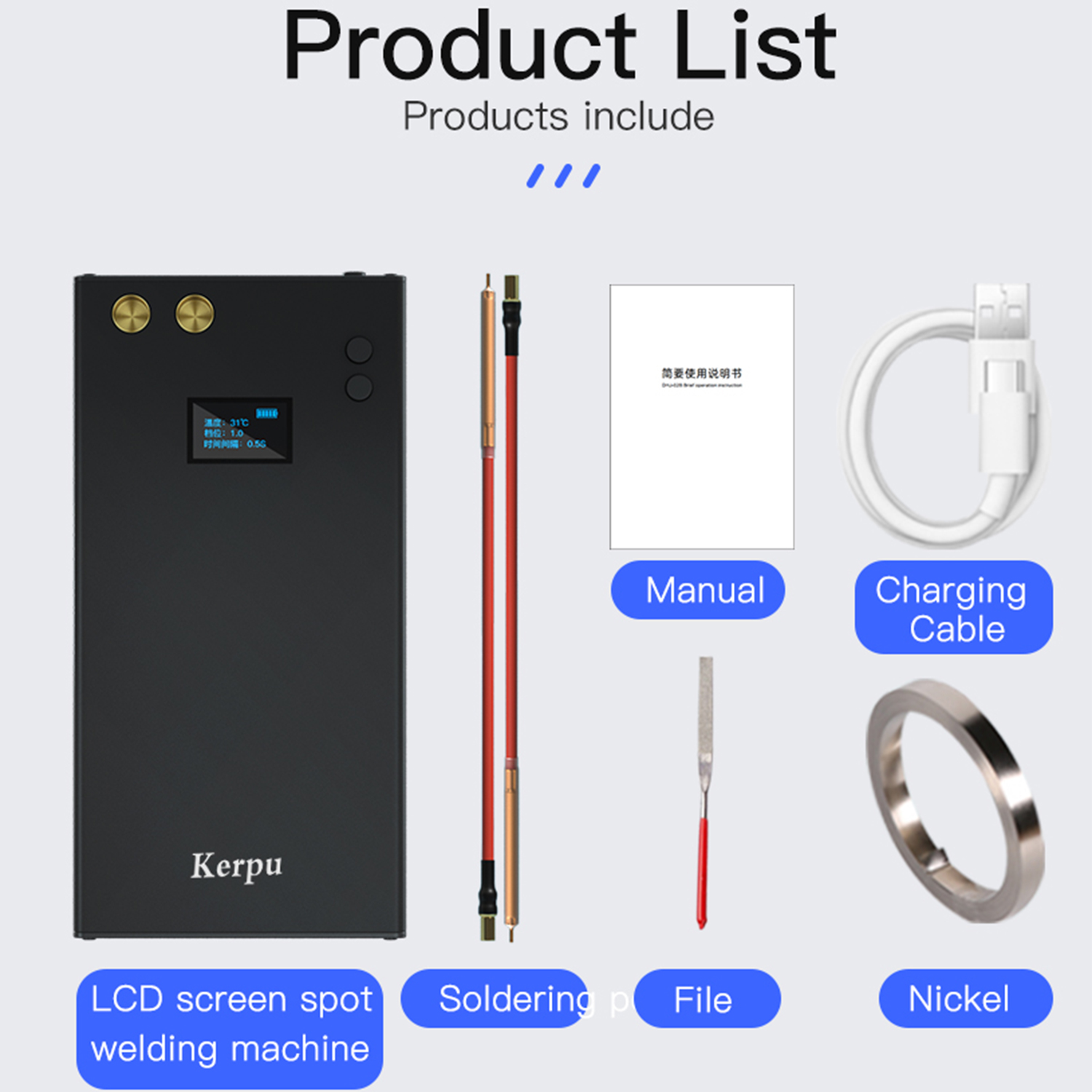

Name: Spots Welding Machine Set
Material: printed circuit board
Battery: 1 * 3.7V, 5000mAh battery (included)
Input: 4.2V±0.05V
Welding current: 6-800A
Over current protections: 1.12KA

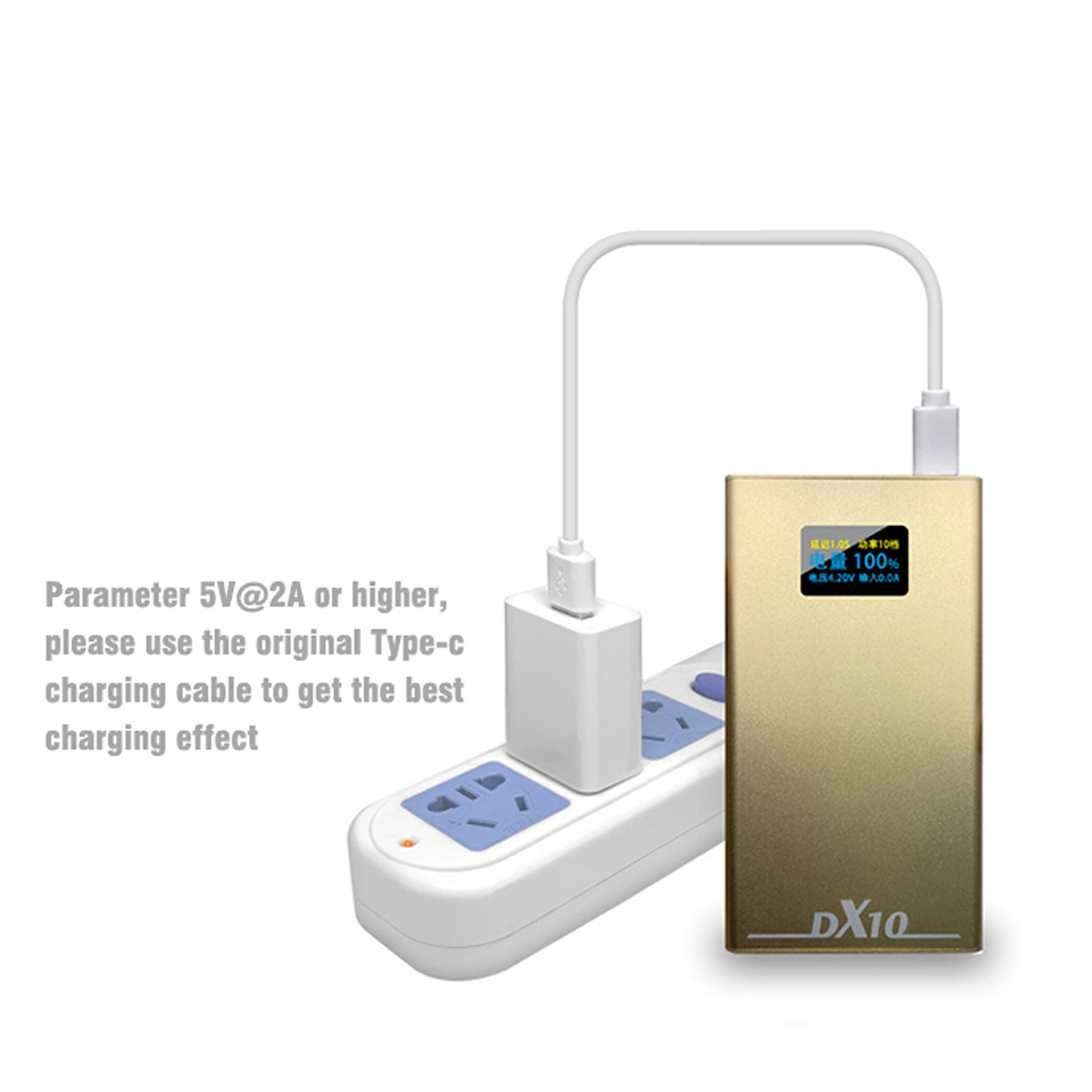

Input voltage: 5.2V, 2.1A

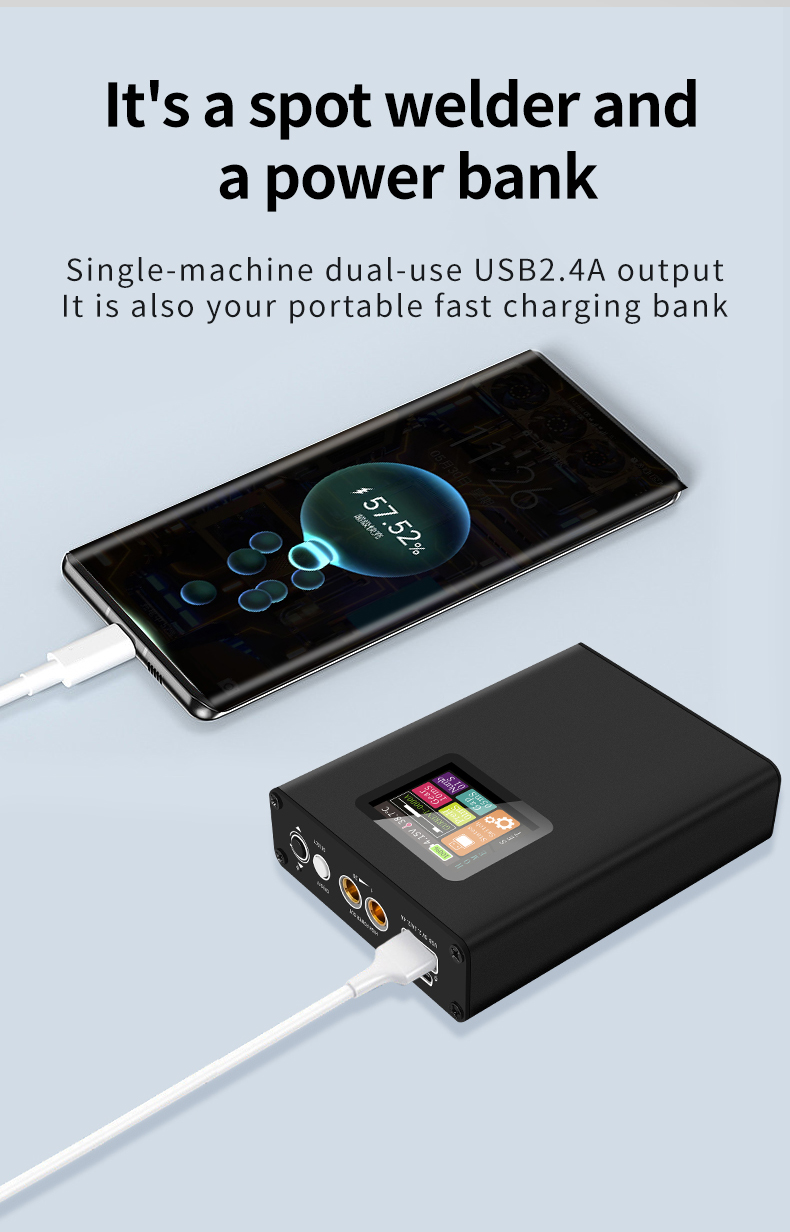

Output voltage: 5V, 2.4A
Welding delay: 0.5-2s
Continuous point interval: 0.8-1.2s
Save voltage: 4.0-4.15V
Shutdown voltage: 3.3-3.7V
Screen brightness: 5-100.0%
Active shutdown: 5-120min
Alarm temperature: 50-75℃
Language: Chinese and English switch
Storage temperature: 55℃
Storage humidity: 50%RH

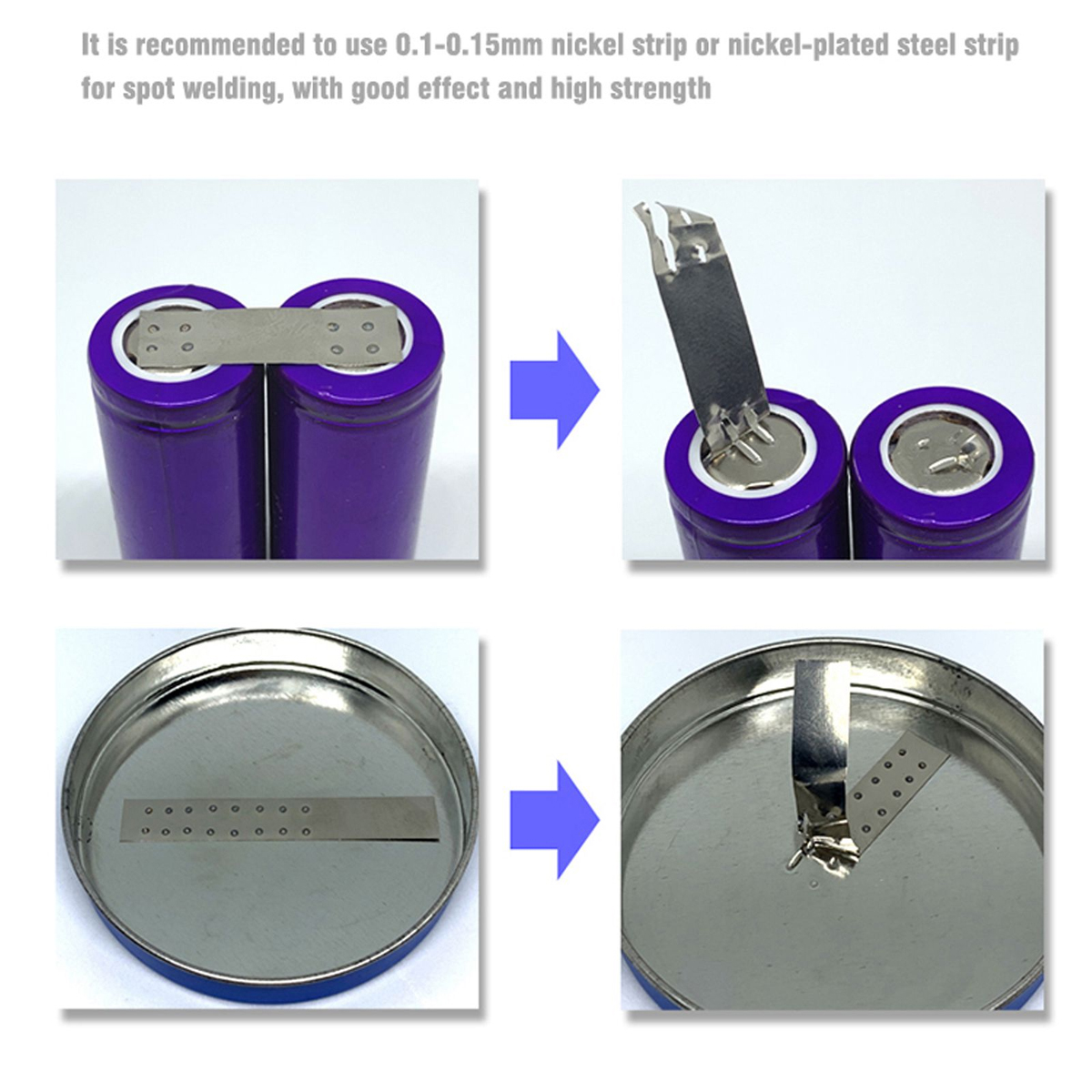

Welding thickness: 0.1-0.25mm
Item size: 112 * 80 * 30mm / 4.41 * 3.15 * 1.18in
Package size: 180 * 110 * 50mm / 7.09 * 4.33 * 1.97in
Package weight: 390g / 13.76ounce

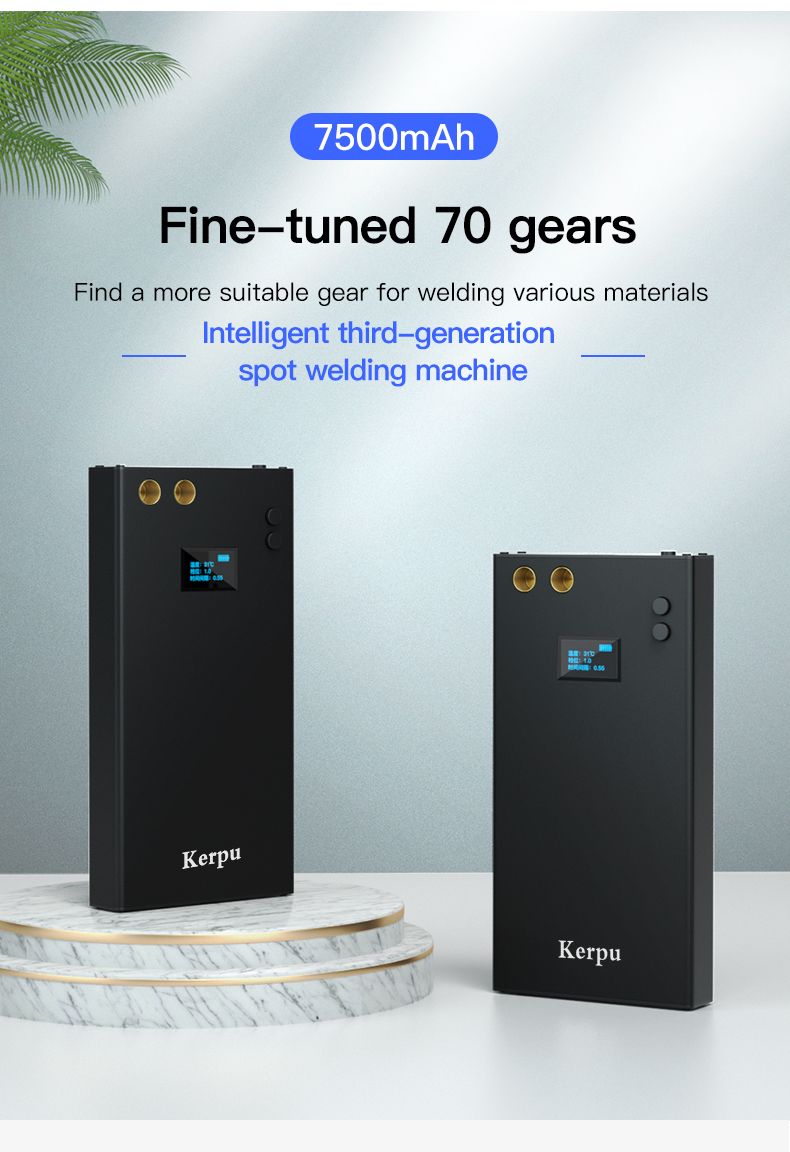

Modle:    DHJ4-1W



Modle:    DHJ22

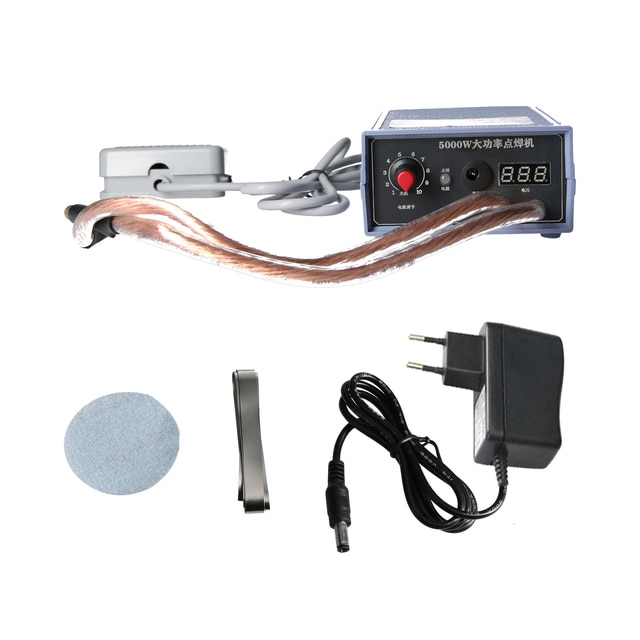

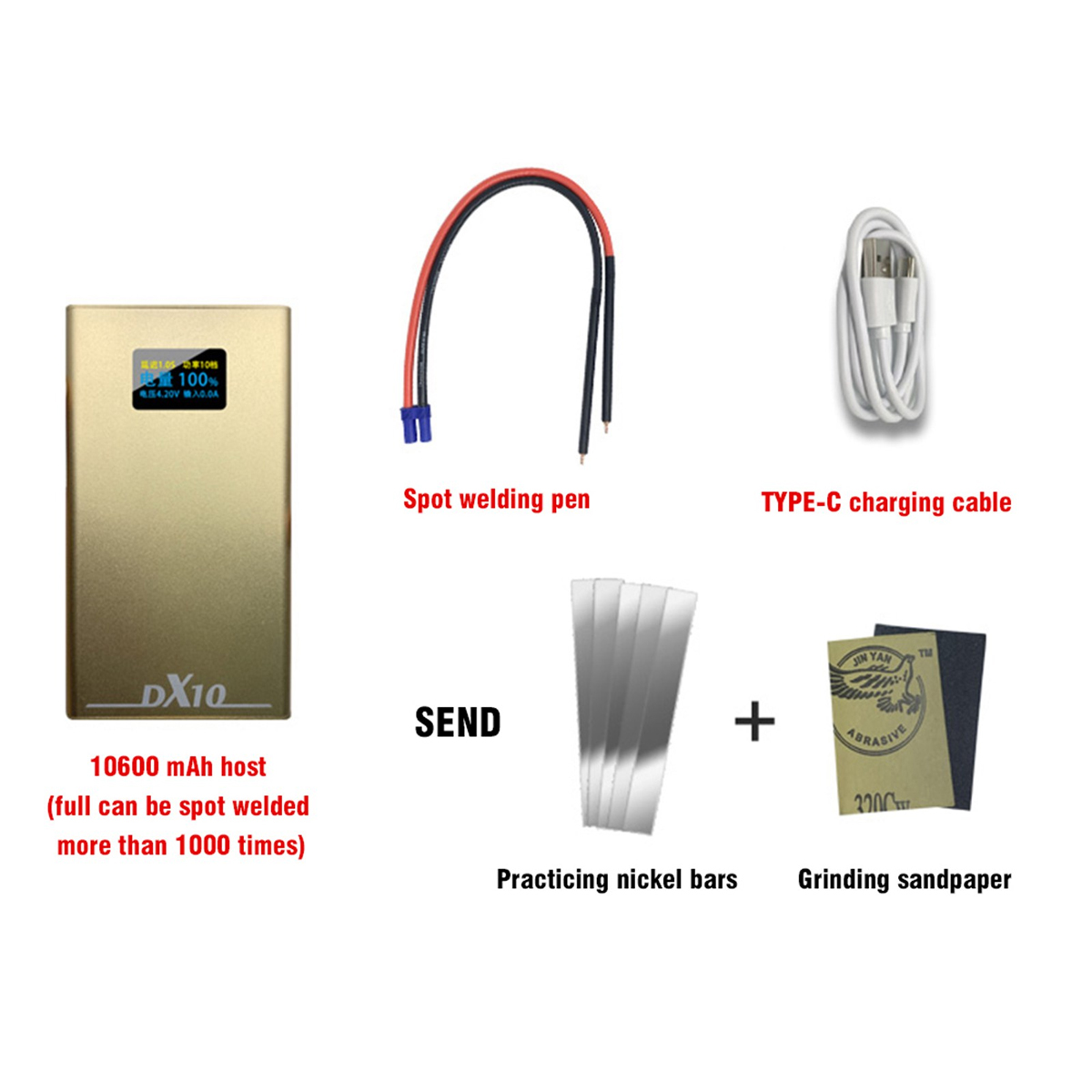

Modle:    DHJ10

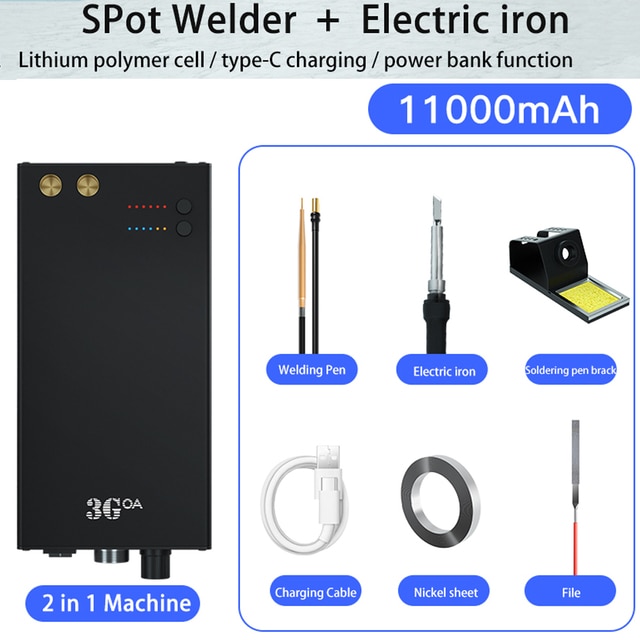

Modle:    DHJ2
