ID: 14822

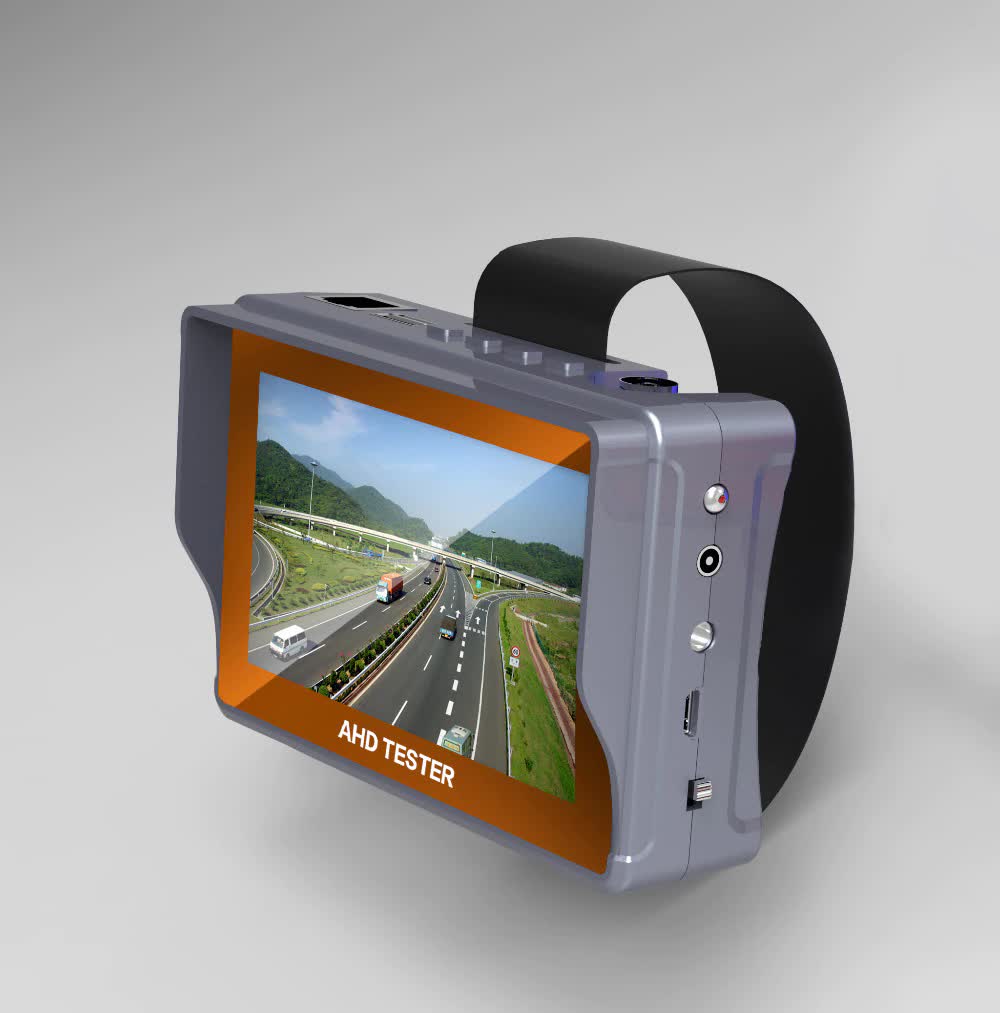

4.3 Inch HD CCTV Tester Monitor CVBS AHD 1080P Analog Camera Tester UTP Cable Tester 12V1A Output

0.0 ( votes)
Price:
US $ 121.99 / piece

Sorry! This item is out of stock

4.3" AHD2.0 camera tester CCTV tester monitor 12V1A output  Analog cameras and AHD2.0 cameras testing

It support AHD2.0 1080P camera testing, analog CVBS camera testing

This model was stopped and please buy newest and better model below:



AHD TESTER

AHD tester1AHD tester2AHD tester3





Model

IV7A

Video test

Video System

NTSC/PAL Automatically recognize

Video level

1VPP

Display screen

4.3-inch LCD 480 * RGB * 272 (QVGA) resolution, 64K color

Screen adjustment

Video display brightness, contrast, color saturation adjustable, LCD backlight brigh tness adjustable

Video input / output

1 channel BNC Video IN

HD AHD Test

SD signal Format

NTSC ,PAL

HD video signal

HD AHD

Resolution

D1,720P,960P 1080P

Signal Level

1Vpp


12V power output

Power output

Temporary power output 12V 1A DC



USBX1  5V1A output

Audio test

Audio test

Input audio signal, and played on the internal speaker

Power supply

External power supply

DC 5V(2A)

Battery-powered

Built-in 3.7V li-polymer battery, Capacity 2600mAh

Charge

Charge time 3-4 hours Battery power time 8 hours

Power saving features

Low power consumption, automatic power off, Real-time display of battery level

System settings

Language settings

Chinese, English user selectable

Auto power off

Disable / 5-60 minutes



Cable test

cable test

Test any two or more wire cable Display connect sequence and remote number

LED Light

1*35lm LED light

Working environment and Specifications

-20degree---+70degree

30%-90% Rh






  • Brand Name: Precamview
  • Maximum IR Distance(m): Other
  • Lens: Other
  • Sensor Size: Other
  • Sensor Type: full
  • Model Number: IV7A
  • Plug Type: EU plug
  • 4.3" LCD screen: 480RGBX272
  • AHD camera testing: video display
  • Analog camera testing: CVBS
  • 12V1A output: power supply for cameras
  • AHD cameras: D1,720P,960p 1080P
  • Audio testing: support
  • warranty: 1 year
  • UPT cable test: support
  • Power plug: US, AU, UK, EU
