3D Axis Joystick CCTV Keyboard Controller Keypad for Security PTZ Speed Dome Camera Decoder DVR NVR Pelco RS485 Pan Tilt Zoom

0.0 ( votes) | 4 orders
Price: US $148.89 / piece
Discount Price:
US $ 114.98 / piece
-23%
Color

Sorry! This item is out of stock

3 Axis CCTV Camera RS485 Controller For Analog AHD High Speed Dome PTZ Camera System Equipment Keyboard Controller Joystick 3KD LCD DISPLAY


The keyboard is a powerful multi-function operating keyboard the operational matrix switch / control various functions of the system, shell programming matrix system; variety of DVR functions with centralized control; high speed dome and decoder can directly control. Keyboard operation protective function.

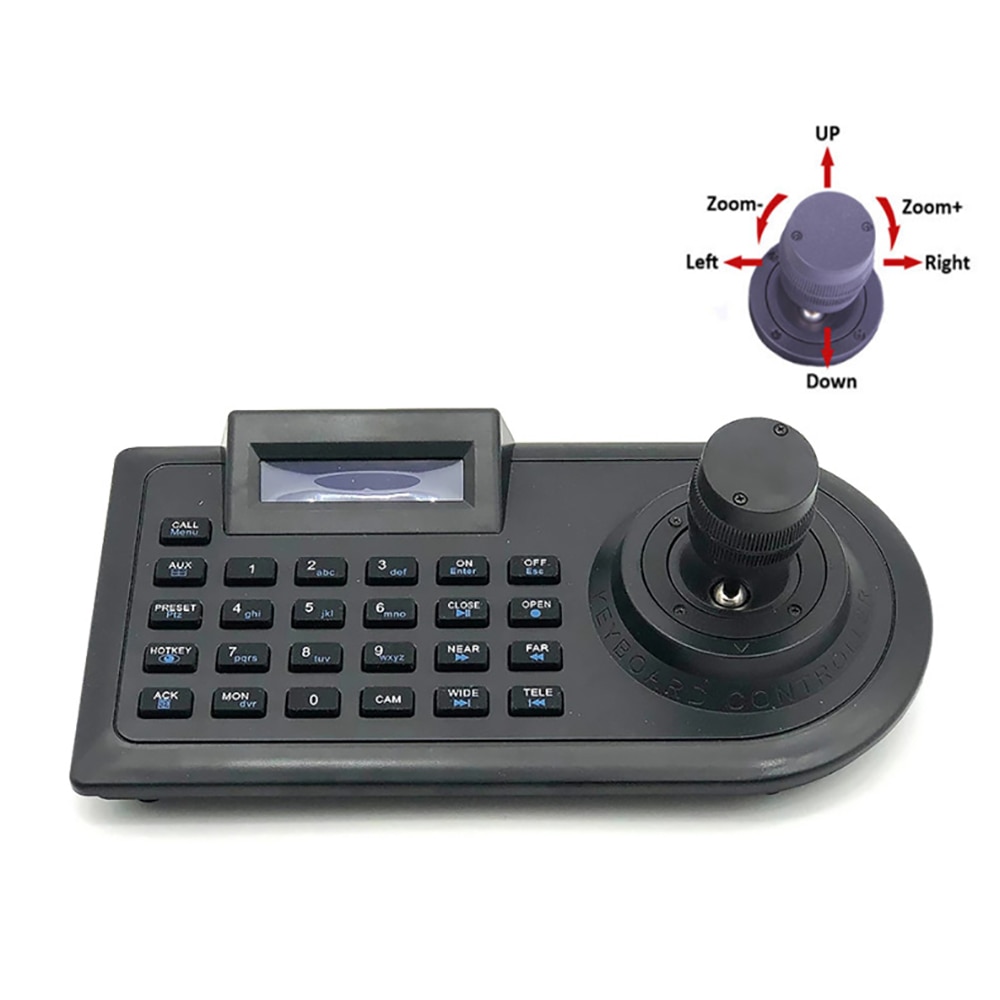

The digital intelligent control keyboard is a supporting product for terminal receivers such as digital hard disk video recorders, high-speed domes and decoders. The EIA/RS-485 communication interface is used between the control keyboard and the receiver. After the control keyboard is connected to the hard disk video recorder, the function control of the corresponding hard disk video recorder is realized, and up to 16 units of hard disk video recorders can be controlled at the same time. Without driving, a keyboard can control up to 64 pieces of dome cameras and decoders, and the maximum communication distance between the keyboard and the receiver can reach 1.2KM. The control keyboard can be used to conveniently control and set the hard disk video recorder and the variable speed smart dome camera. The control keyboard can also directly control the terminal decoder to realize the control of the front-end equipment such as the pan/tilt, lens, light, and wiper. And multiple keyboards can control a same terminal device.In addition to all the functions of a 2 axis keyboard, the 3 axis keyboard also has the function of rotating the joystick handle to reduce or enlarge the lens field of view.


Important: this keyboard controller is for controlling Analog or AHD PTZ cameras, it CAN NOT control network PTZ IP Cameras.



Technical Parameters:

1. Communication method: point-to-multipoint half-duplex communication

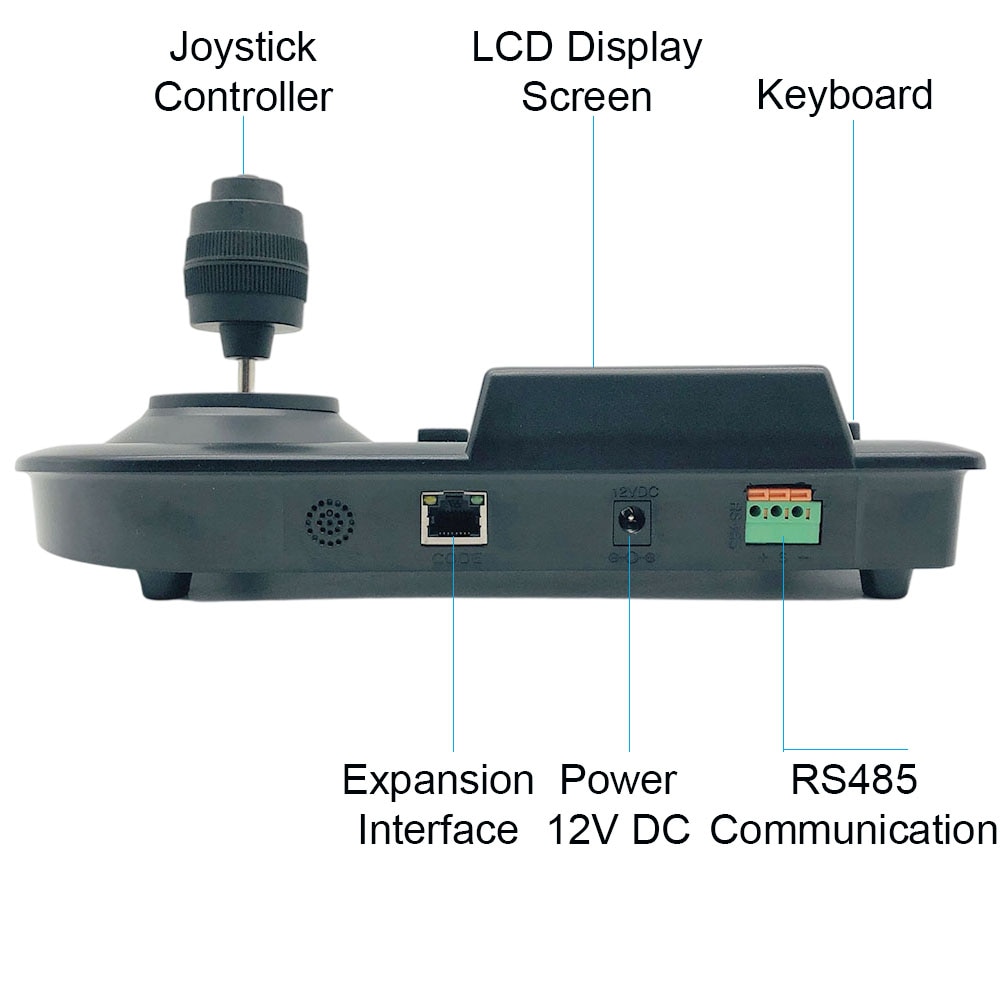

2. Interface standard: RS-485

3. Baud rate: 1200bps, 2400bps, 4800bps, 9600bps optional

4. Protocol: PELCO-D and PELCO-P two kinds

5. It can be connected to Haikang, Hanbang DVR and Dahua hard disk video recorder

6. Maximum communication distance: 1.2KM,

7. Power supply: DC9V-12V

8. Control the number of hard disk video recorders: up to 16

9. Control the number of dome cameras and decoders: up to 64

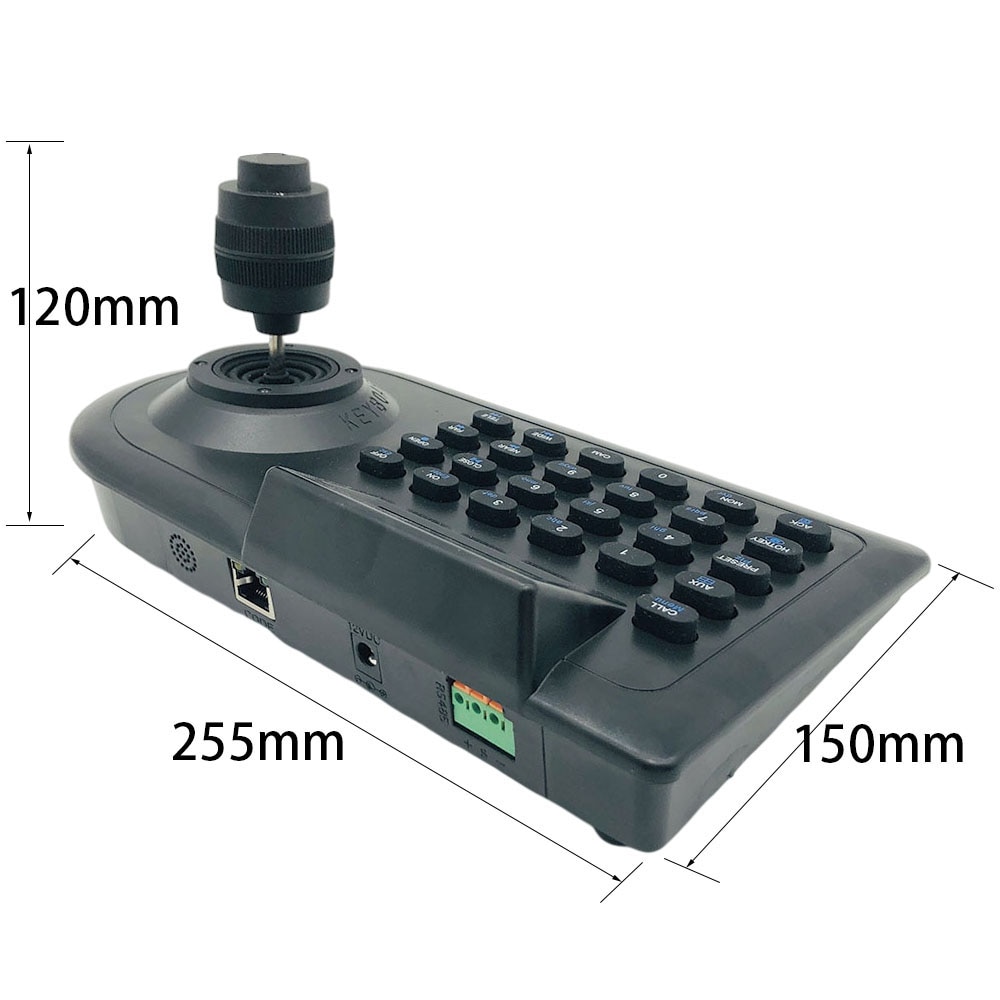

10. Dimensions: 255 x 150 x 120mm, net weight 0.6KG

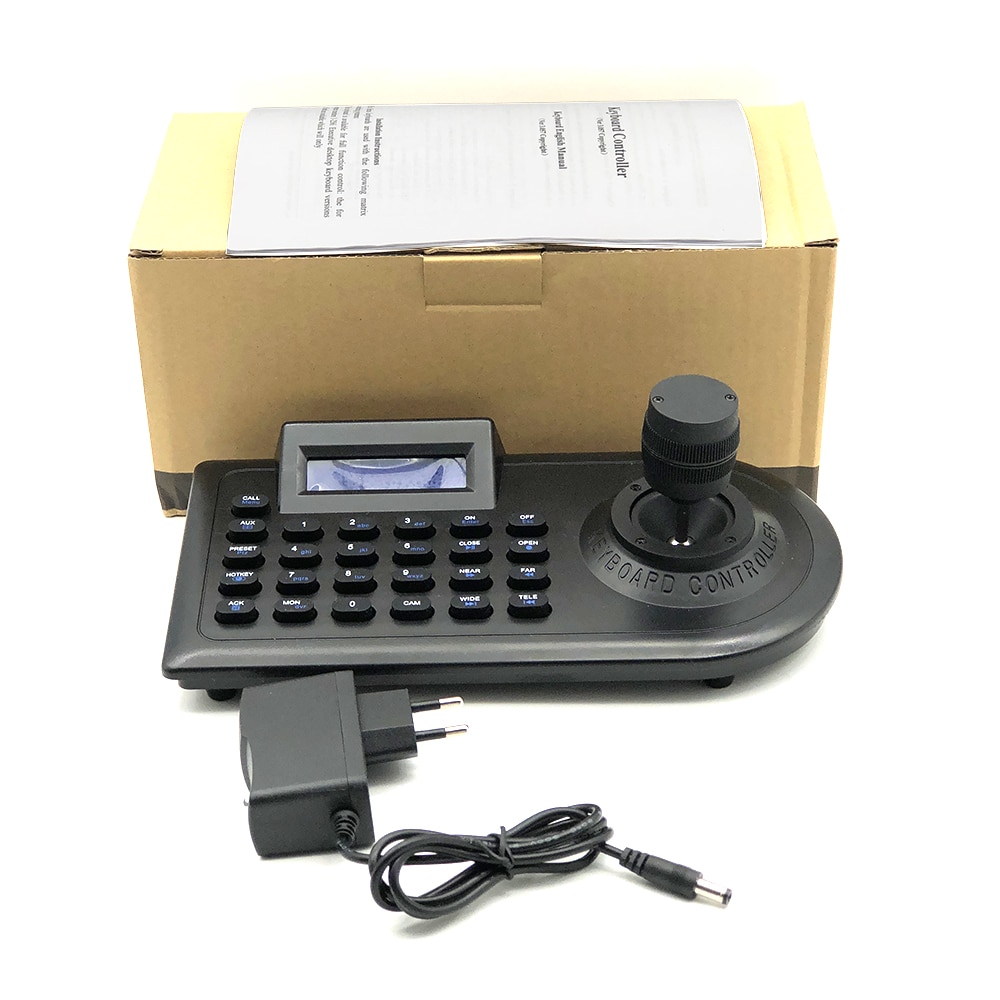

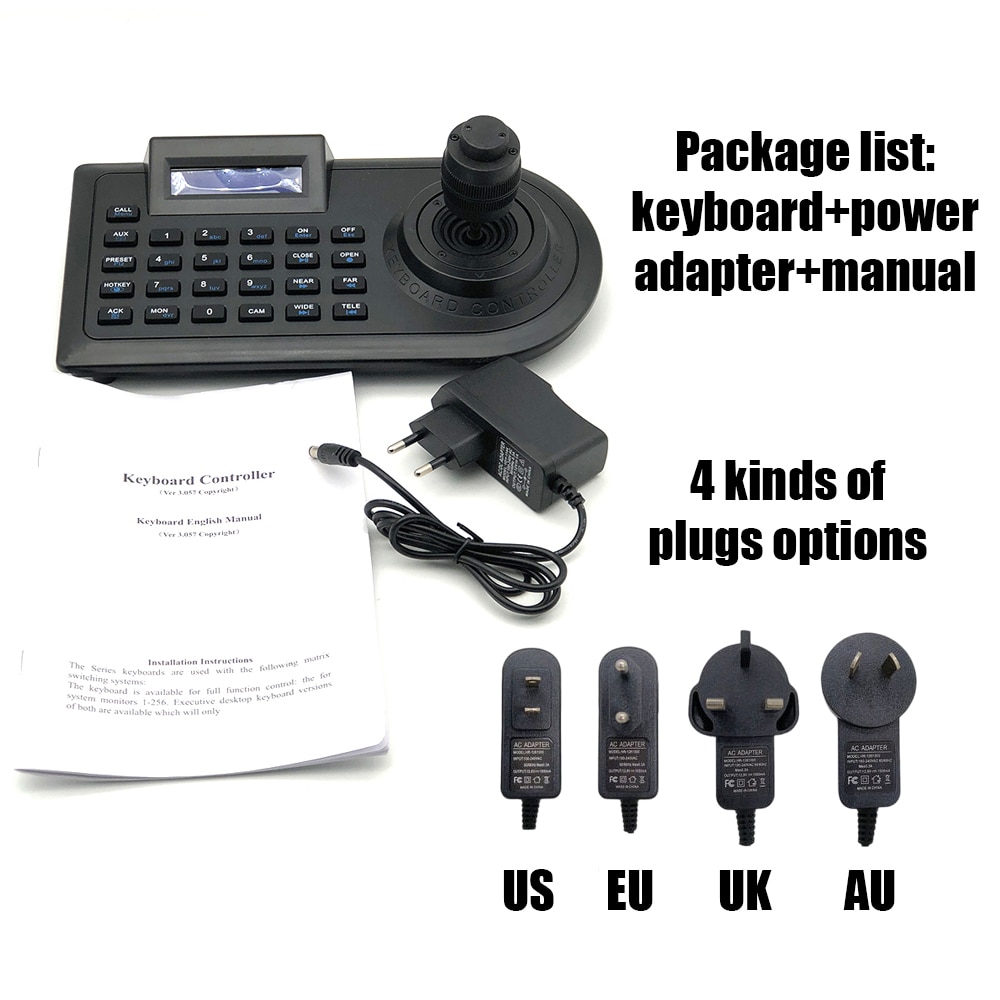

Item Package includes:

  • 1 x CCTV System Multi-function Controlling Keyboard

  • 1 x DC12V Power adapter (EU / UK / US / AU power plug available)

  • 1 x English Manual

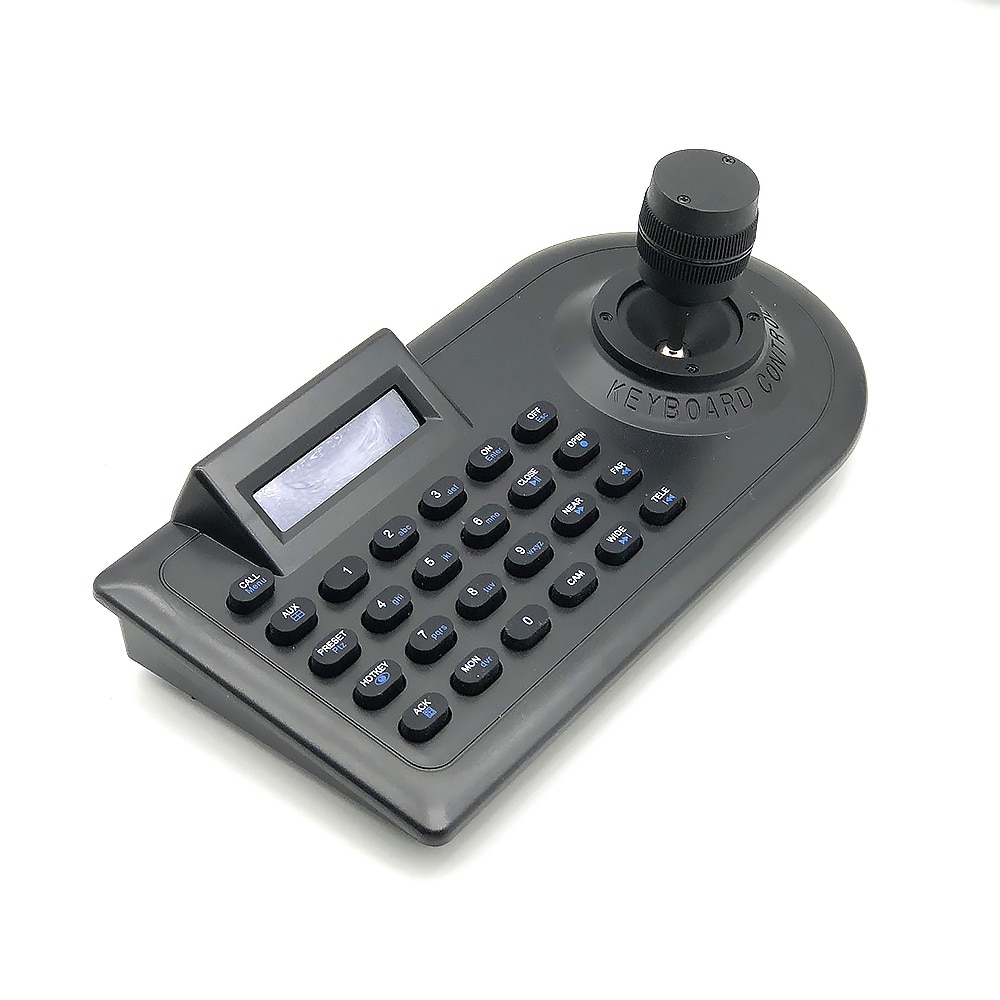

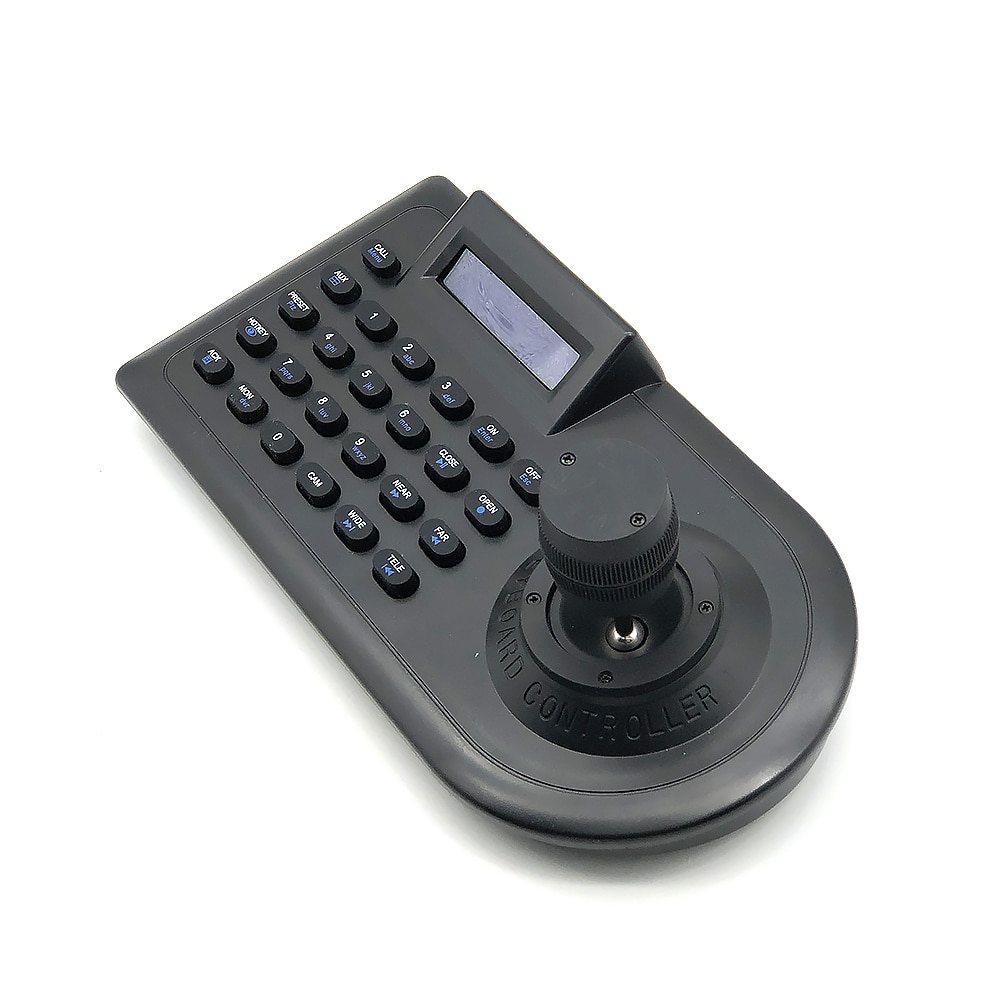

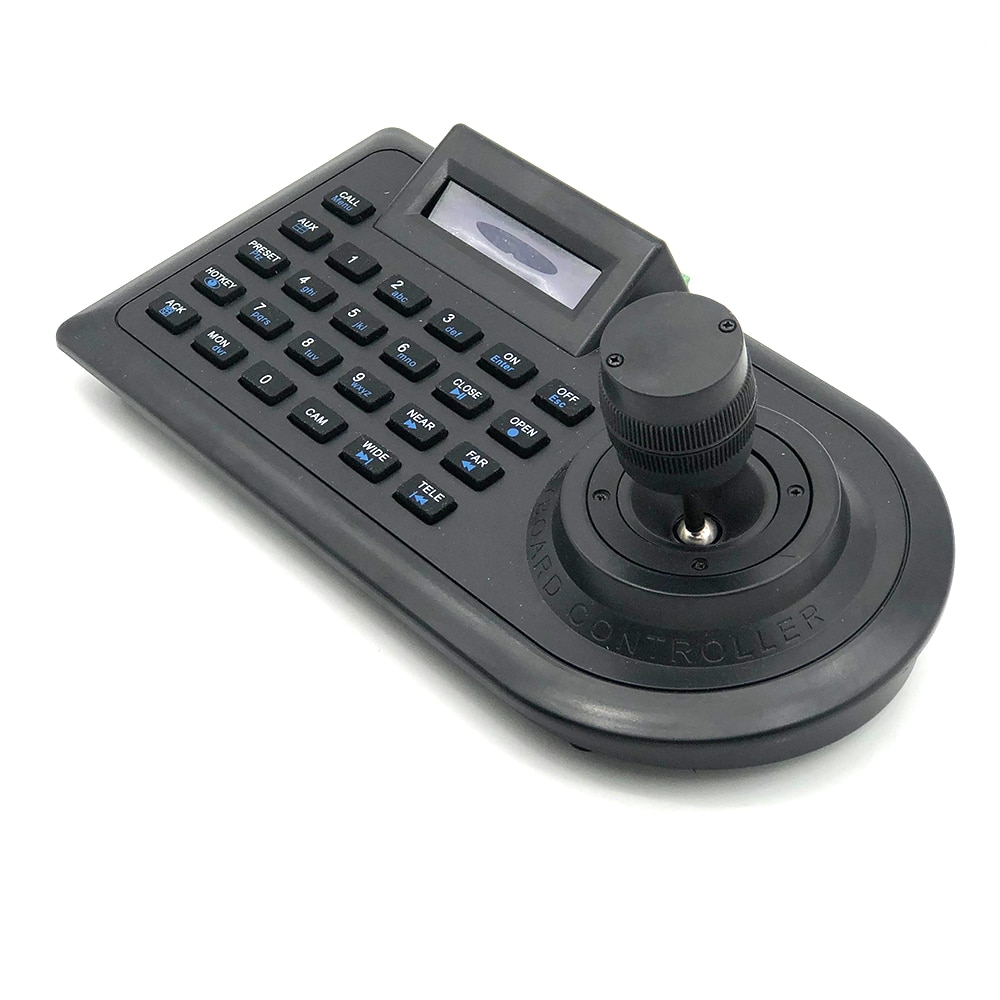

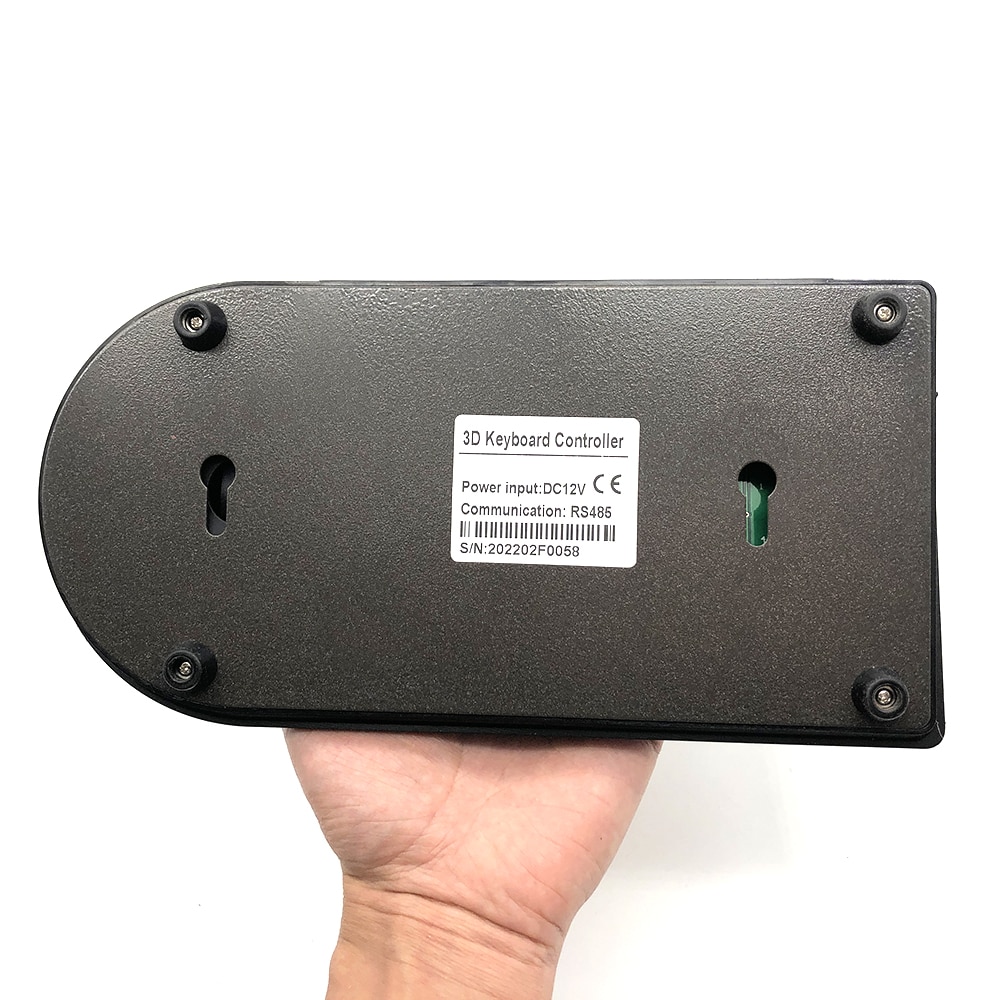

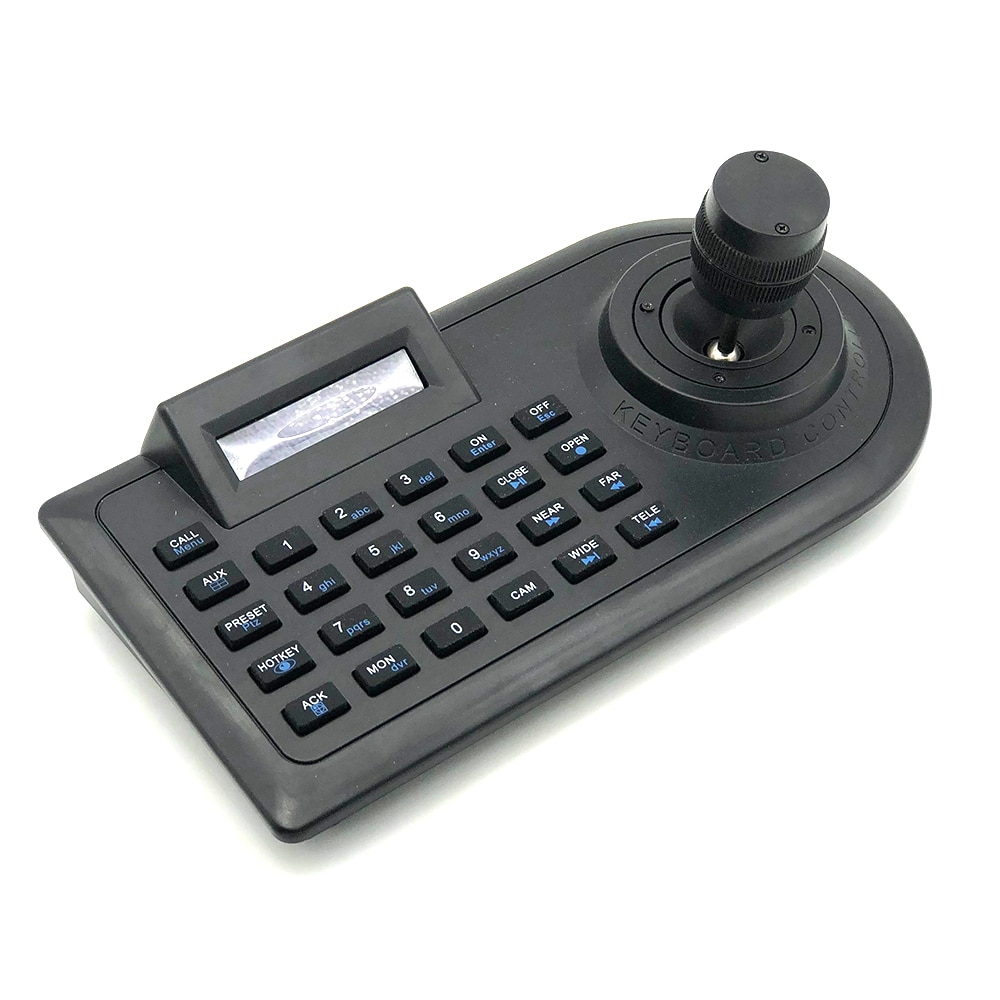

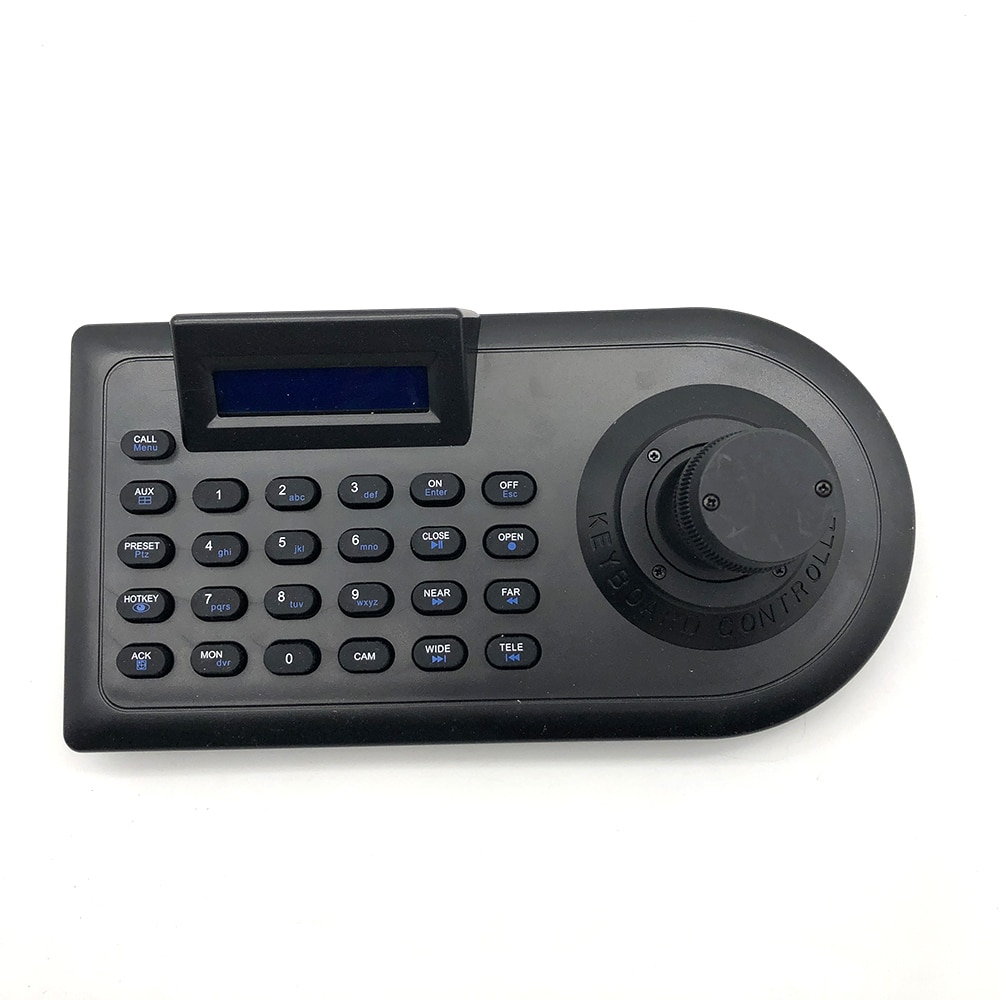

Product real shot pictures:



I have another 4 Axis joystick control keyboard, if you like you can click below link to buy:


About the Payment:

We accept payment from Hogaki accept Escrow/ Credit card/ / Money Booker ! such as Visa,WebMoney (referred to as WM), TT remittances, Paypal, Western Union, Qiwi wallet, Brazil Boleto and so on.

About the Shippment:

1 We ship to Alixpress's registered address ONLY.

2 We will arrange goods for you within 1 to 3 working days nomally. Please check the tracking information on the website: www.17track.net. Please note, it will take 2 to 5 days before the tracking information can be viewed online.

3 The shipping cost does not include any import taxes,and buyers are responsible for customs duties.

We will not responsible for your import tax/customs duties or any other customs charges.

4 We do not guarantee delivery time on all international shipments due to differences in customs clearing

5 For DHL fast delivery,if your postal code/city are REMOTE AREA out of DHL delivery range,we will contact you to pay extra REMOTE FEE(35USD), otherwise we have rights to choose another similar delivery way like EMS.

About Return/Refund:

1 Please feel free to contact us if your have any problem or need any help about your order,We will happy to service you in 7/24 time,thanks.

2 We offer 12 month manufacture's warranty for main product repair and tech supports except accessories.

All return-goods MUST BE in ORIGINAL package without any broken for resell, if it is broken due to your return, we will have to ask for compensation. Return cost will be paid by buyer.

For full refund, please send full package back(including all accessories);

For repairing or replacement, please send only product without accessories. At any case please make sure parcel well packing.

3 If the items are damaged lost when they are returned,the buyer will be responsible for such damage or loss.

4 We will not refund shipping charges for refused shipments

5 Please don't open dispute before any communication if you unsatisfied with our products or service,, that is no any help for you and us, we will solve your problem ASAP after get your require, please kindly understand, thank you very much!

About the Feedback:

1 Your satisfaction is our greatest comfort, we are always expecting serving for you!

2 Your comment and suggestion is quite important for our shop. Please take a minute to leave a 5 stars positive feedback with detailed Selling Rating of 5.

All 5 stars positive feedback/reviews buyers can enjoy additional 1 month warranty and priority service.

Please do not throw 1-3 stars bad feedback/reviews simplely. That is USELESS to solve your problem.

If you are not happy with our products, Please giving us a chance, we'll try our best for you. Thanks for your kindly understand in advance.



  • Brand Name: OwlCat
  • Smart home platform: NONE
  • Origin: Mainland China
  • Certification: CE
  • Model Number: 8003C
  • Technology: ANALOG/AHD
  • Warning !!!: It doesn't work with network IP PTZ cameras
