Electronic Ballast for Fluorescent Lamps Bulb 18-22W AC220V for Headlight of T4
11.44 9.95 $
ID: 10032
Quantity

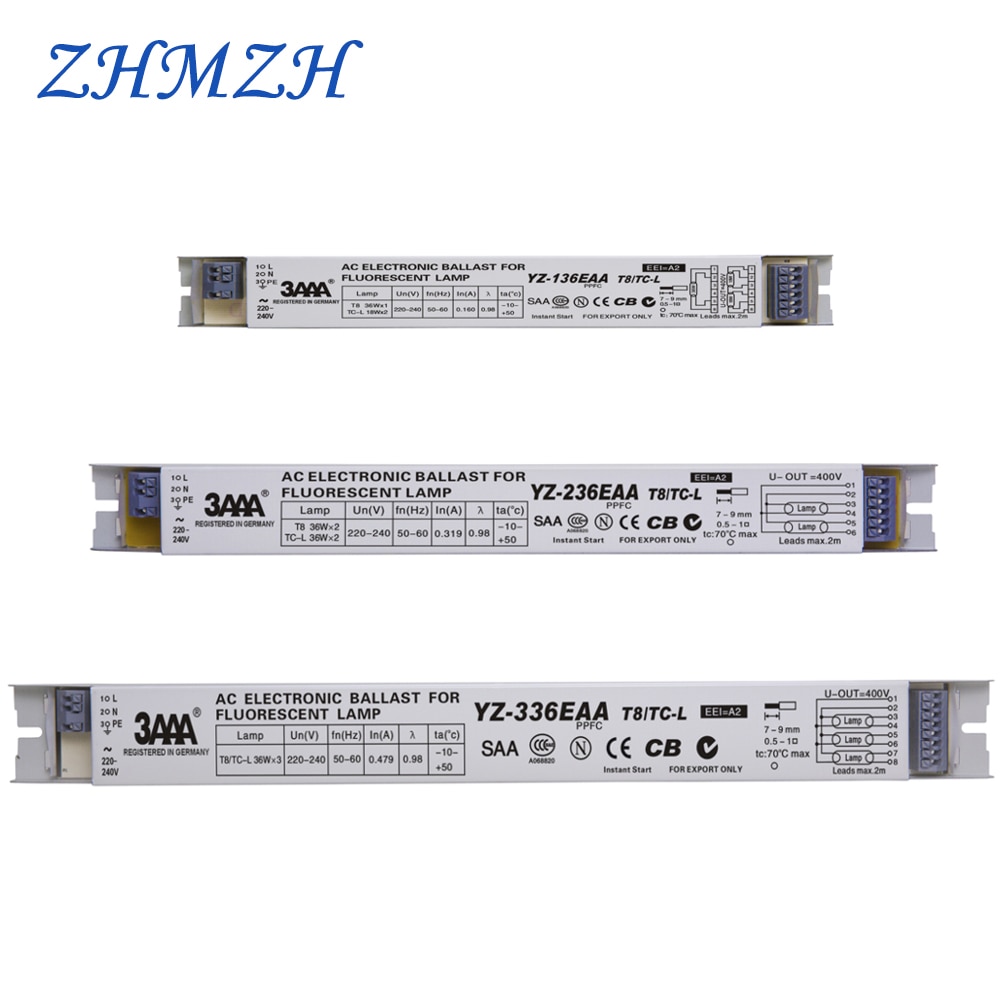

3AAA YZ-136EAA YZ-236EAA YZ-336EAA T8/TC-L 220V 1*36W 3*36W T8 Electronic Ballast For T8 Fluorescent Lamp Advertising Light Box
0.0 (3 votes) | 13 orders
Price:
US $
29.06 -
54.91
/ piece

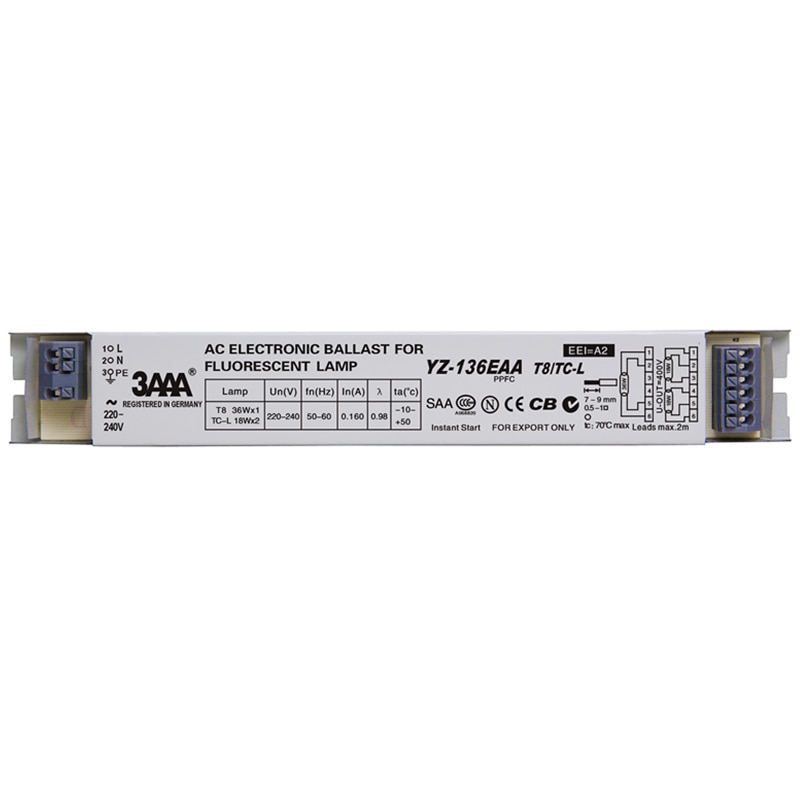

Electronic Ballast: YZ-136EAA T8/TC-L
Applicable lamp: T8 36W*1
Startup mode: Non-warm-start
Shelf life: 30,000 hours
Certified: CE, CB, CCC, Australia, Nemko, RoHS
Safety sta nda rds:IEC61347-1,IEC61347-2-3,EN61347-1,EN61347-2-3,GB19510.4
Electromagnetic compatibility standards: EN61000-3-2,EN61000-3-3,EN61547,EN55015,GB17743,GB17625.1
Energy Label: EEI = A2
Power factor: 0.98
Power supply voltage: AC220-240V
Operating voltage range: 198-254V
Operating frequency:> 2kHz
Input frequency (Hz): 50/60
Total harmonic distortion (%): <17
Lamp current crest factor: <1.7

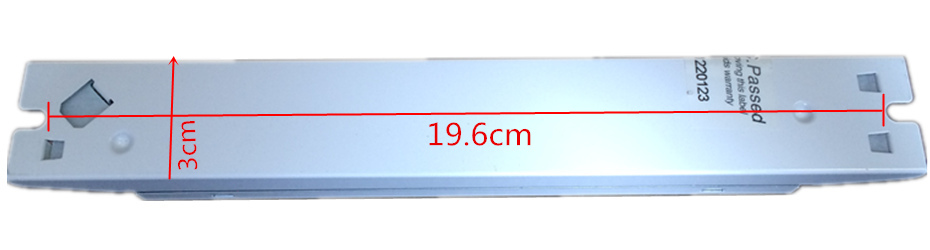

Mounting hole distance: 200mm
Width: 30 mm
Height: 32mm
Length: 210mm
Abnormal maximum shell temperature: 70 ℃
Ambient temperature: -15 ℃ ~ 50 ℃

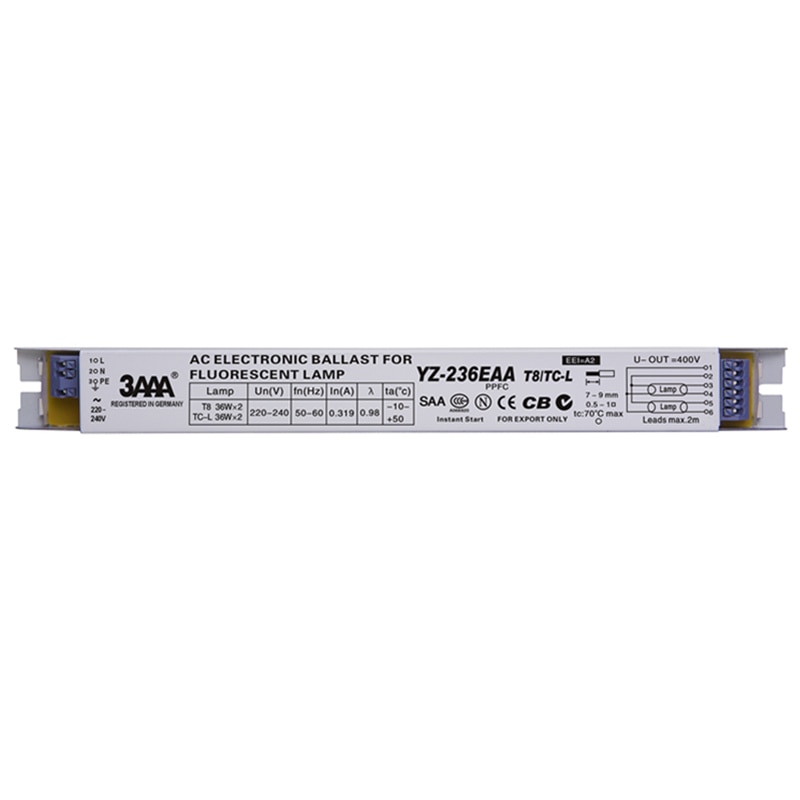

Electronic Ballast: YZ-236EAA T8/TC-L
Applicable lamp: T8 36W*2
Startup mode: Non-warm-start
Shelf life: 30,000 hours
Certified: CE, CB, CCC, Australia, Nemko, RoHS
Safety sta nda rds:IEC61347-1,IEC61347-2-3,EN61347-1,EN61347-2-3,GB19510.4
Energy Label: EEI = A2Power factor: 0.98
Power supply voltage: AC220-240V
Operating voltage range: 198-254V
Operating frequency:> 2kHz
Input frequency (Hz): 50/60
Total harmonic distortion (%): <17
Lamp current crest factor: <1.7
Mounting hole distance: 280mm
Width: 30 mm
Height: 30mm
Length: 290mm
Abnormal maximum shell temperature: 70 ℃
Ambient temperature: -15 ℃ ~ 50 ℃
Main Features
-
The independent property rights of patent technology of electronic ballasts, busbar dc down, when the main power supply fluctuation device safety coefficient well meet the requirements, greatly improve the product reliability.
-
Conform to the IEC, EN, GB latest 09 version of the standard lamp electronic ballasts outlast protection function.
-
Energy efficiency indicators EEI = A2, EEI = A3.
-
Conform to the requirements of the EMC standard radiation latest 30-300 MHZ, and there are more than 5 db margin; The other product is not subject to interference, strong immunity, greatly improving the quality of the product.
-
More reliable, SMT, AI technology, welding is used to greatly improve the reliability of products.
-
The CEM - 1 use the cardboard material PCB circuit boards than traditional ballast, on the temperature rise greatly, after wave soldering PCB is not easy to deformation, welding quality is more stable, greatly improve the reliability of products.
-
Plastic shell adopts disposable material PC material, iron shell in home appliance of color plate, improve the product safety and appearance.
-
15 celcius degree low temperature start.
-
Parallel output, with two tubes and the above product does not apply to emergency device.
-
Non preheating is not suitable for frequent switch places, preheating model can be applied to the frequent switch places.
-
Lead type using special black potting glue, can pass IP44 level, and have special advertising lamp holder configuration, can satisfy the damp environment use.
-
Under the rated voltage products within normal use tc Max = 70 Celcius Degree, the product life expectancy of up to 30000 hours.
Up to standard
IEC/EN61347-1:2008,GB19510.1:2009
IEC/EN61347-2-3:2009,GB19510.4:2009
IEC/EN61000-3-2:2009,GB17625.1:2003
IEC/EN61000-3-3:2008,GB/T18595:2001
IEC/EN61547:2009,GB/T18595:2001
IEC/EN55015:2009,GB17743:2007

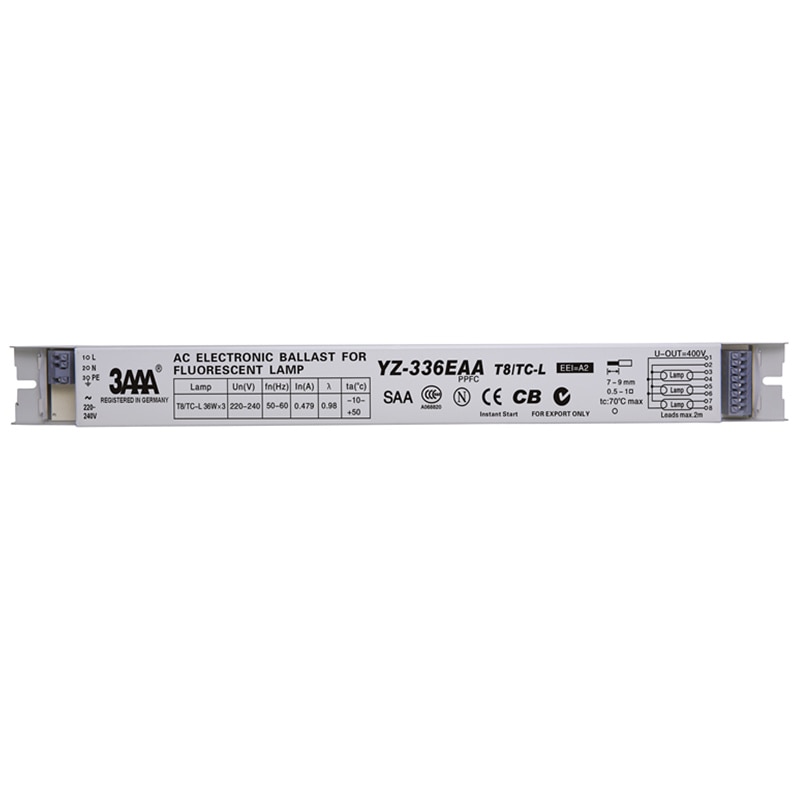

Electronic Ballast: YZ-336EAA T8/TC-L
Applicable lamp: T8 36W*3
Startup mode: Non-warm-start
Shelf life: 30,000 hours
Certified: CE, CB, CCC, Australia, Nemko, RoHS
Safety sta nda rds:IEC61347-1,IEC61347-2-3,EN61347-1,EN61347-2-3,GB19510.4
Electromagnetic compatibility standards: EN61000-3-2,EN61000-3-3,EN61547,EN55015,GB17743,GB17625.1
Energy Label: EEI = A2
Power factor: 0.98
Power supply voltage: AC220-240V
Operating voltage range: 198-254V
Operating frequency:> 2kHz
Input frequency (Hz): 50/60
Total harmonic distortion (%): <17
Lamp current crest factor: <1.7
Mounting hole distance: 350mm
Width: 37 mm
Height: 30mm
Length: 360mm
Abnormal maximum shell temperature: 70 ℃
Ambient temperature: -15 ℃ ~ 50 ℃
- Model Number: YZ-136EAA
- Features: Original
- Power Factor Compensation: Active
- Warranty: 1 Year
- Ballast: electronic
- Matched Tube: T8
- Brand Name: Flying Elephant
- Item Type: Ballasts
- Item: 3AAA T8 Electronic Ballast
- Compatible with: Fluorescent Lamp
- Nominal Voltage: 220-240V
- Power Factor: 0.98
- Working Voltage: 198V - 254V
