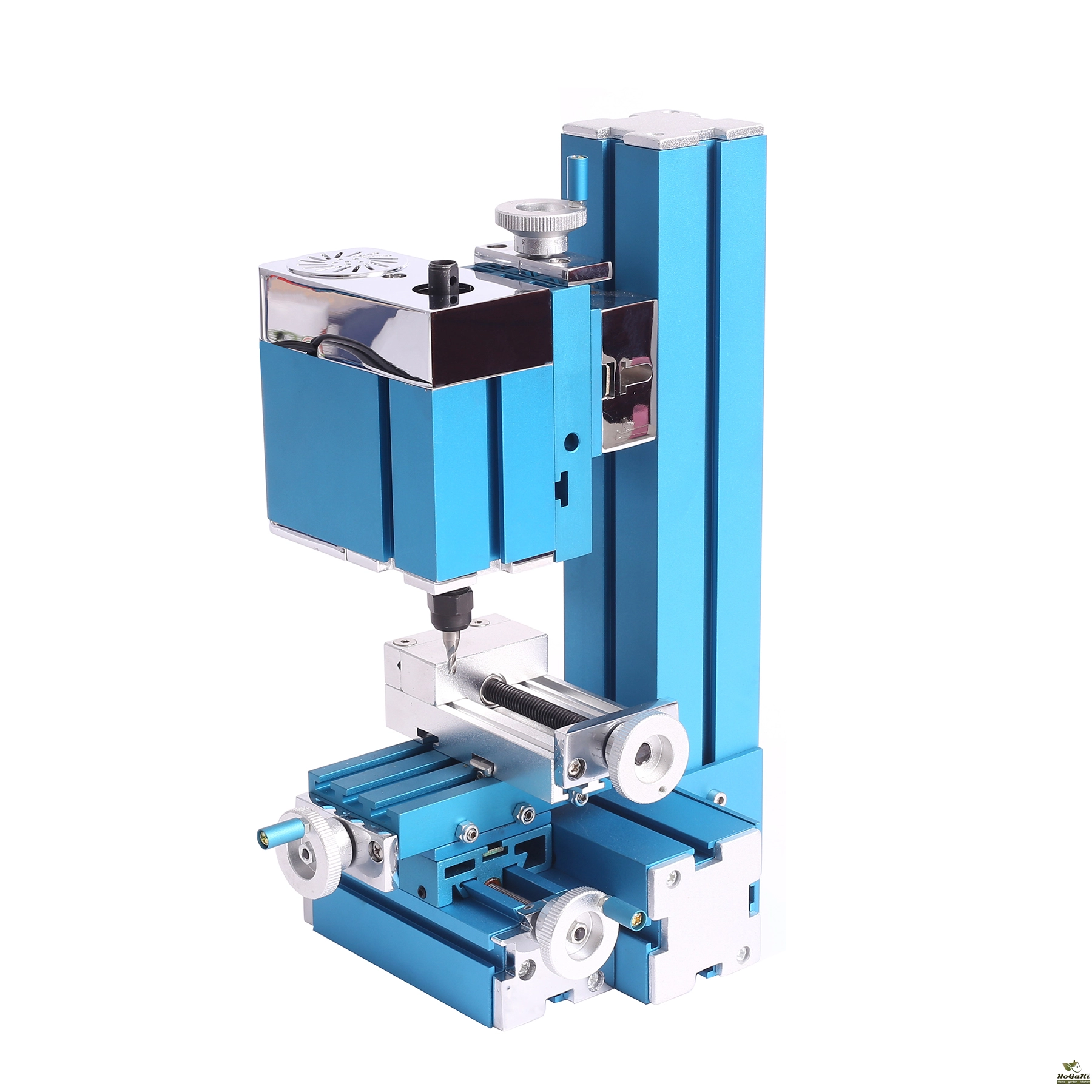

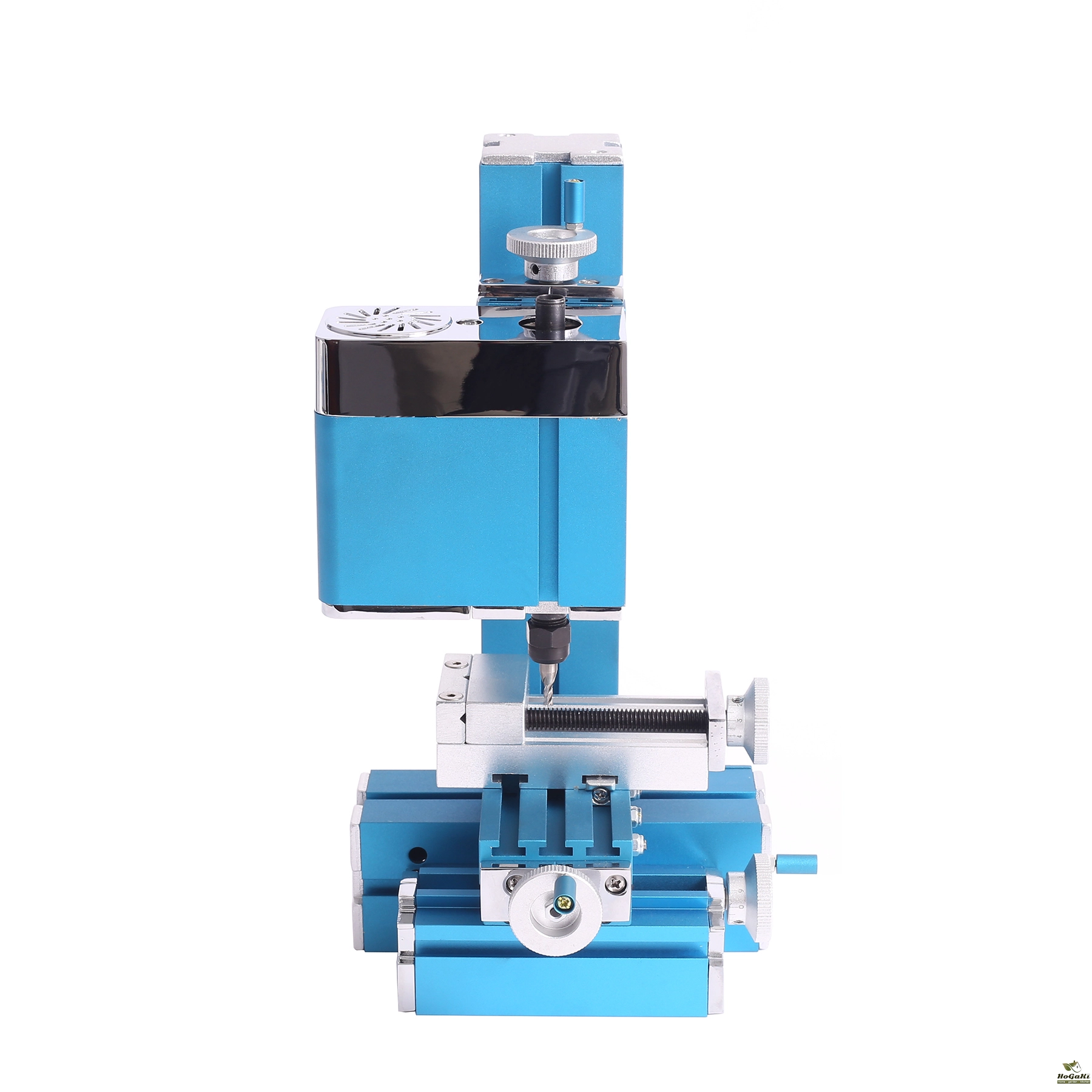

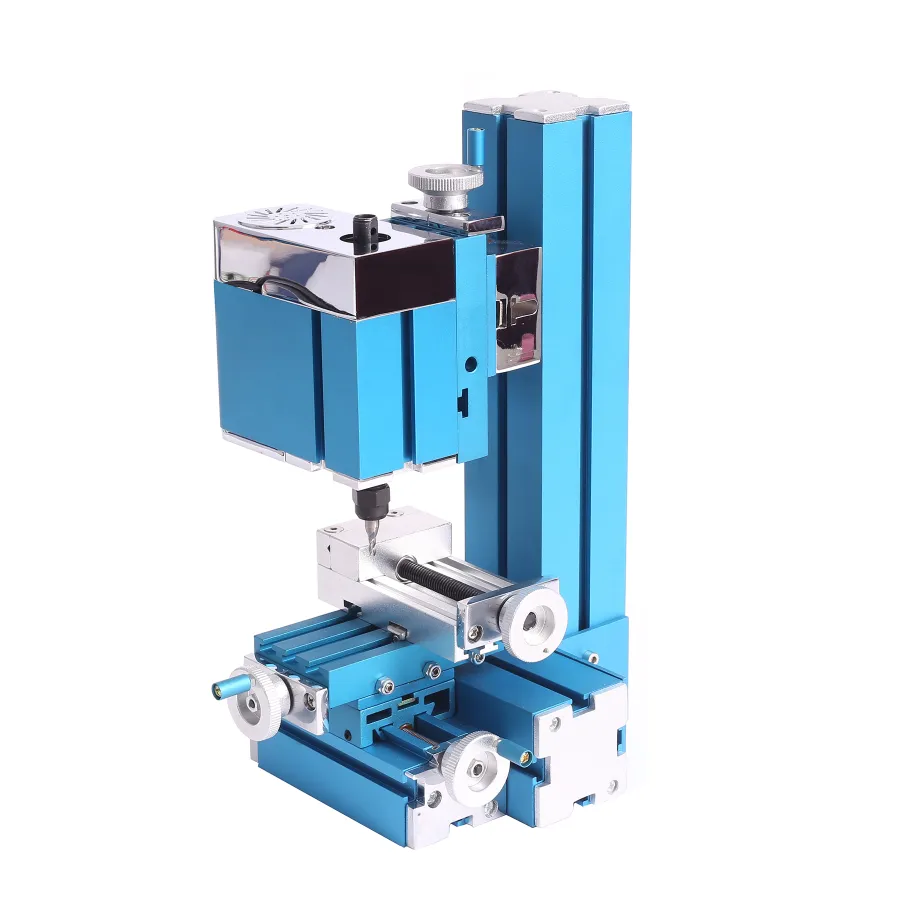

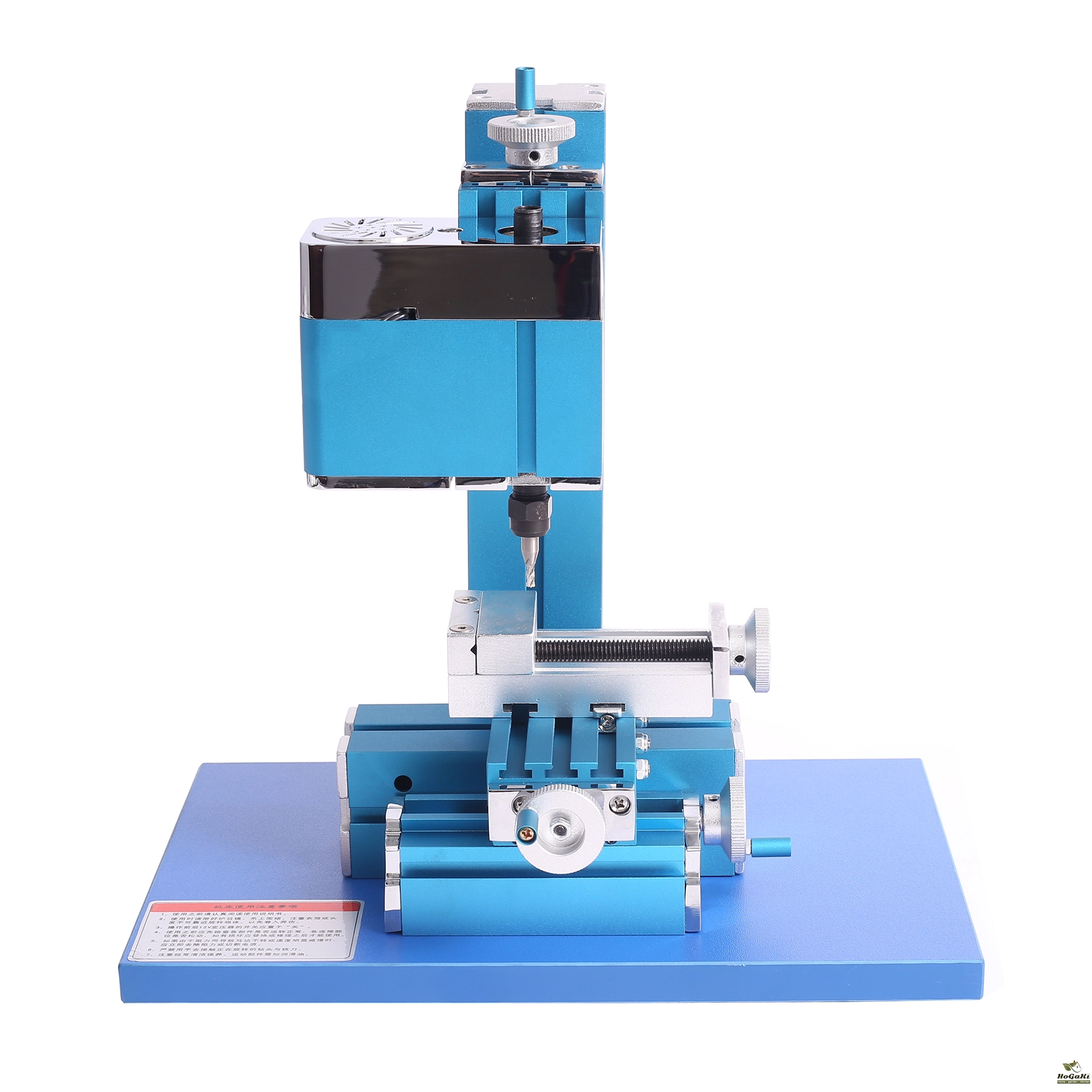

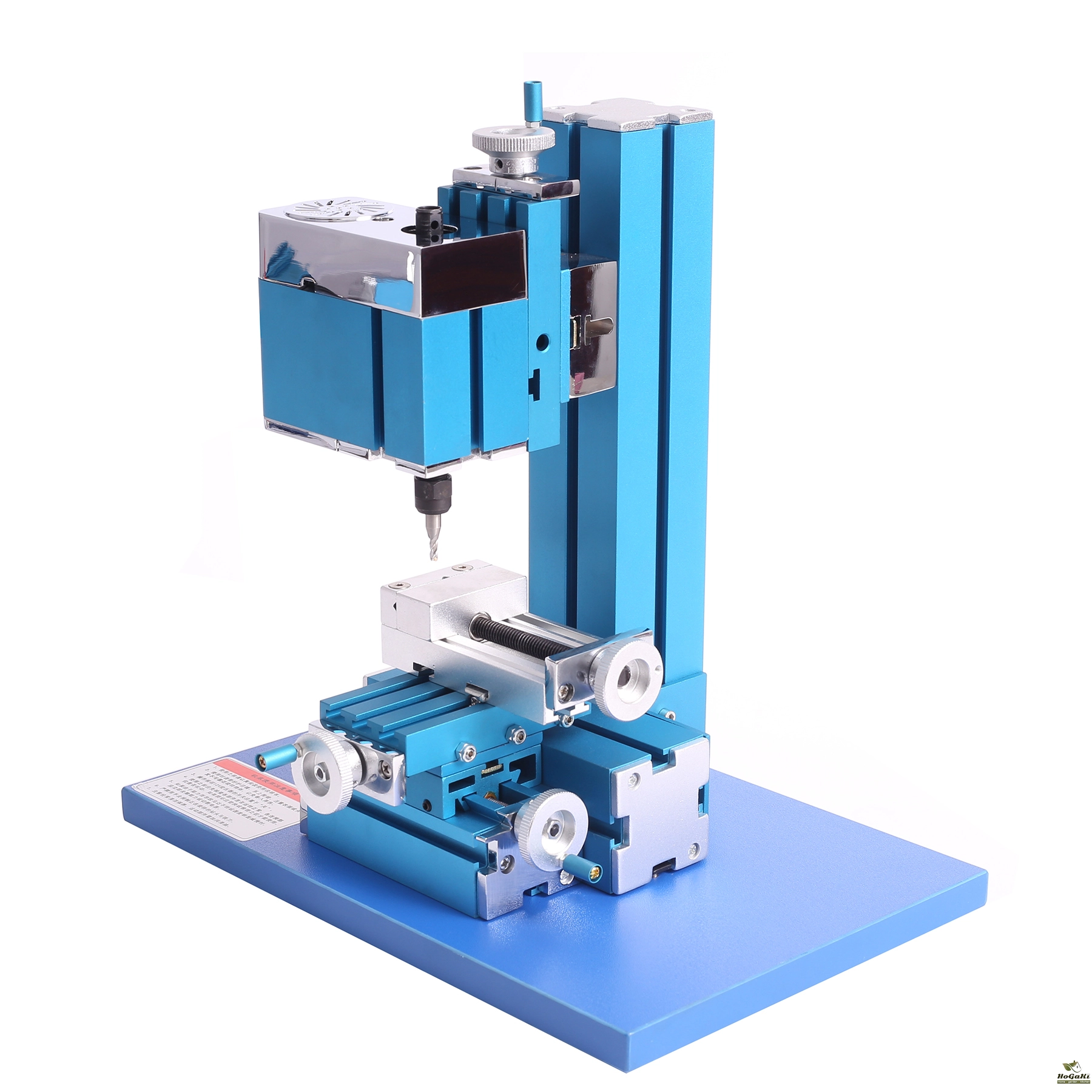

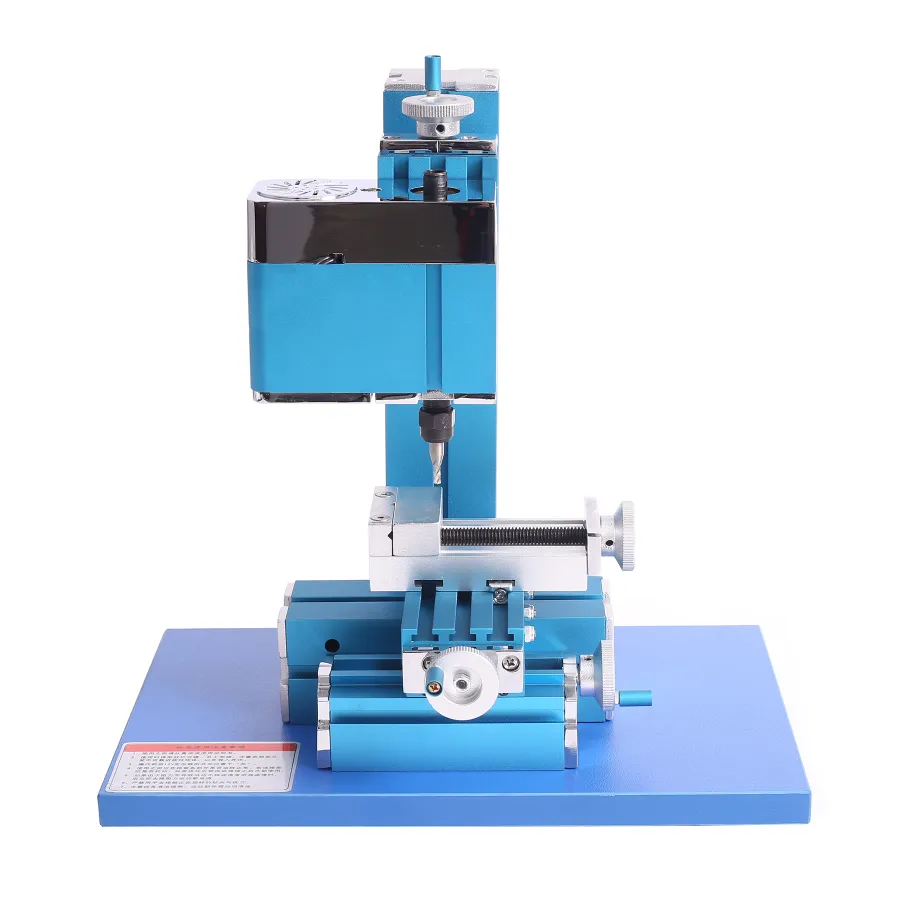

36W Mini Metal Milling Machine Motorized Metalworking DIY Tool Benchtop Woodworking for Hobby Science Education Modelmaking
4.4 (16 votes) | 86 orders
Price:
US $498.07 - 546.57
Discount Price:
US $
256.48 -
281.47
-49%
Application:
Juvenile Activity Center, School General Technical Room, Science and Technology Activity Room Equipment, Science and Technology Museum Student Science and Technology Creation, DIY hobbyist.
Main parts of the machine:
The main components of the headstock, intermediate block, connecting block, vice, large slider, small slider, hand wheel, base and so on are made of metal. The quality of the product is improved, more durable and more precise.
Parameter:
Input voltage: AC100V~240V / 50/60HZ
Output voltage: DC12V 2A
Motor rated power: 36W
Motor speed: 20000r/min±15%
Spindle speed: 3000r/min±15%
Spindle jump: <0.1mm
Large slider stroke（X axis）: 45mm
Small slider stroke（Y, Z axis）: 35mm

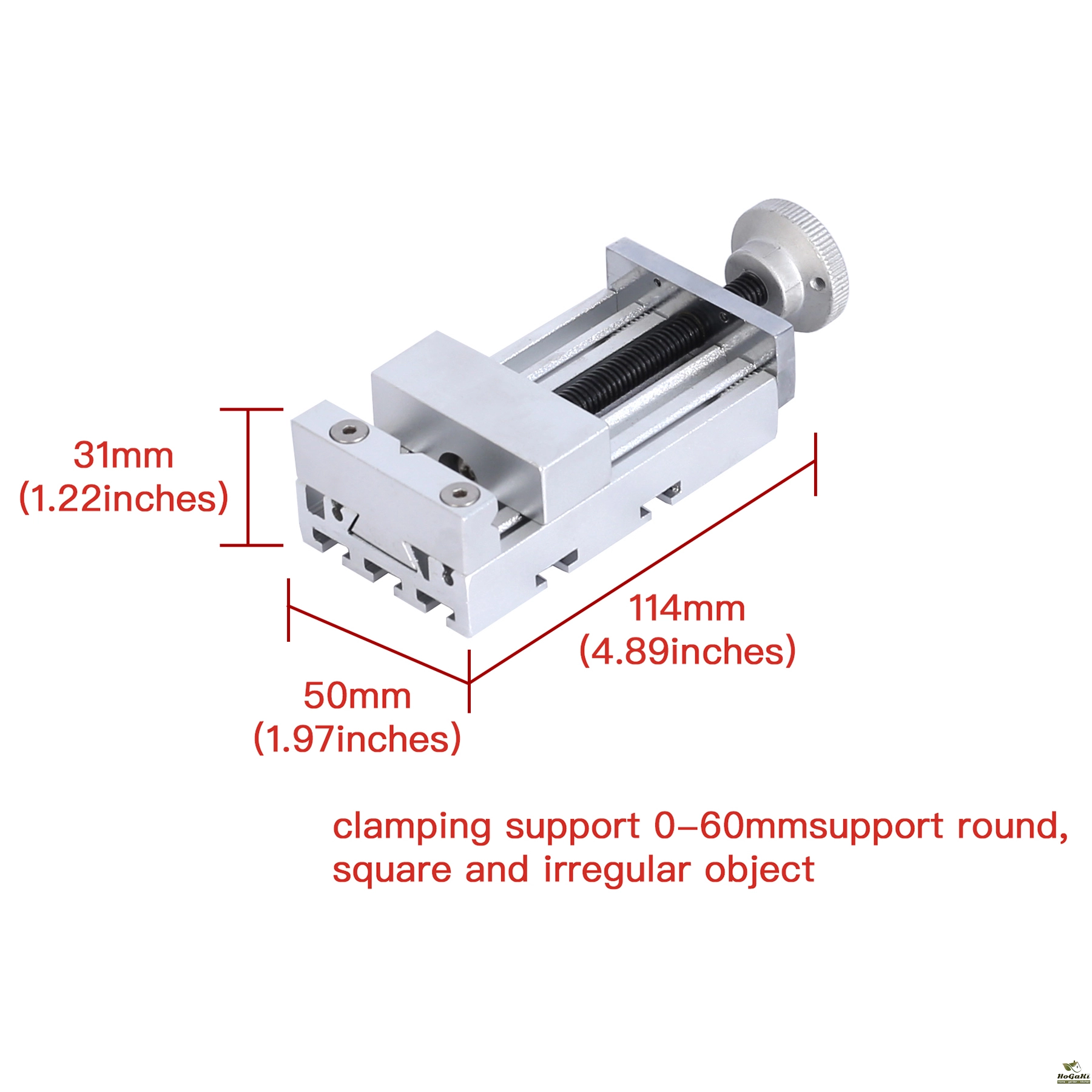

Visesize: 114*50*31mm
Vise clamp size: 0-60mm support round, square and irregular object
Chuck specifications: ф1, ф2, ф2.5, ф3, ф3.5, ф4, ф5, ф6
Milling cutter size: φ3, φ4, φ5, φ6
Handle scale: 0.1mm/division

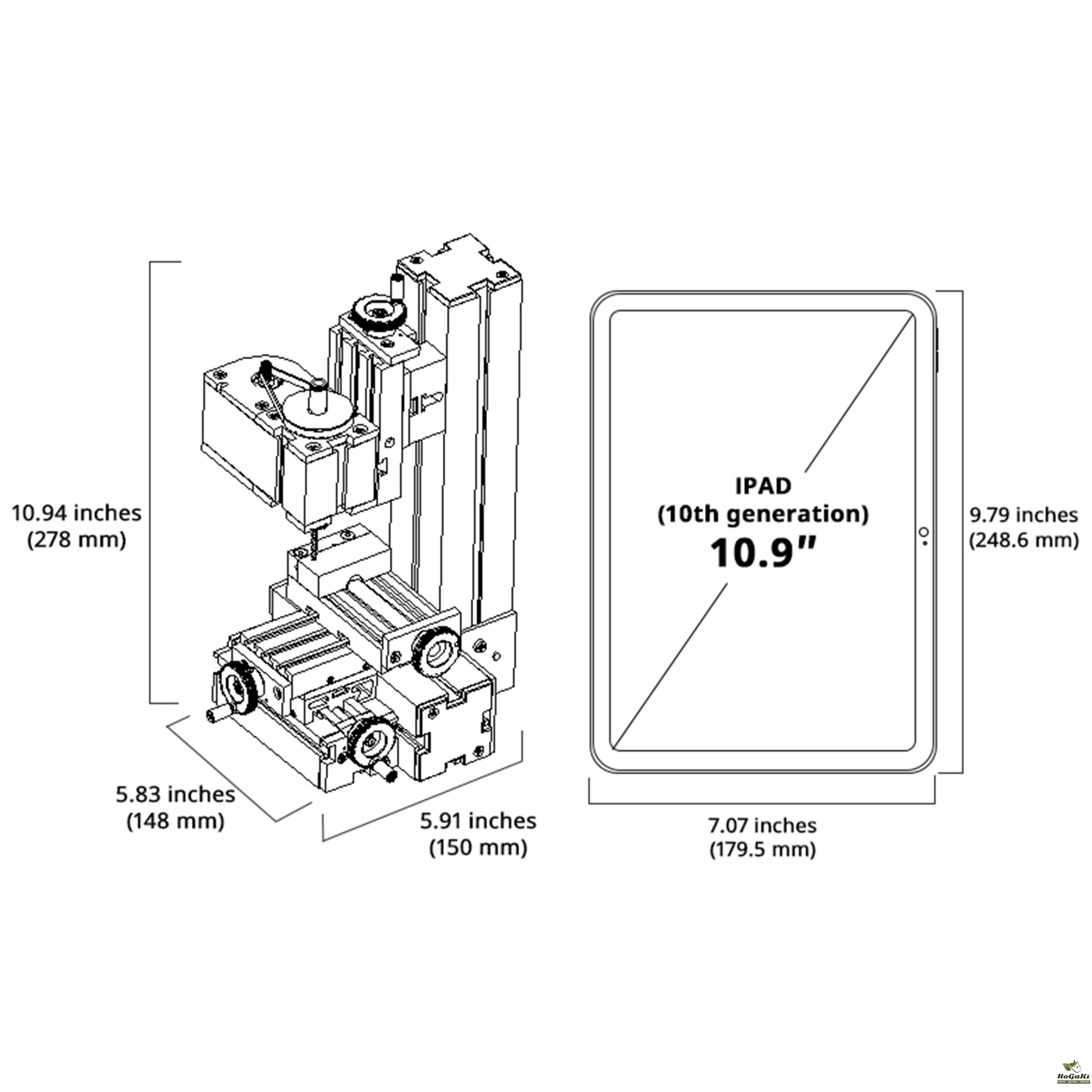

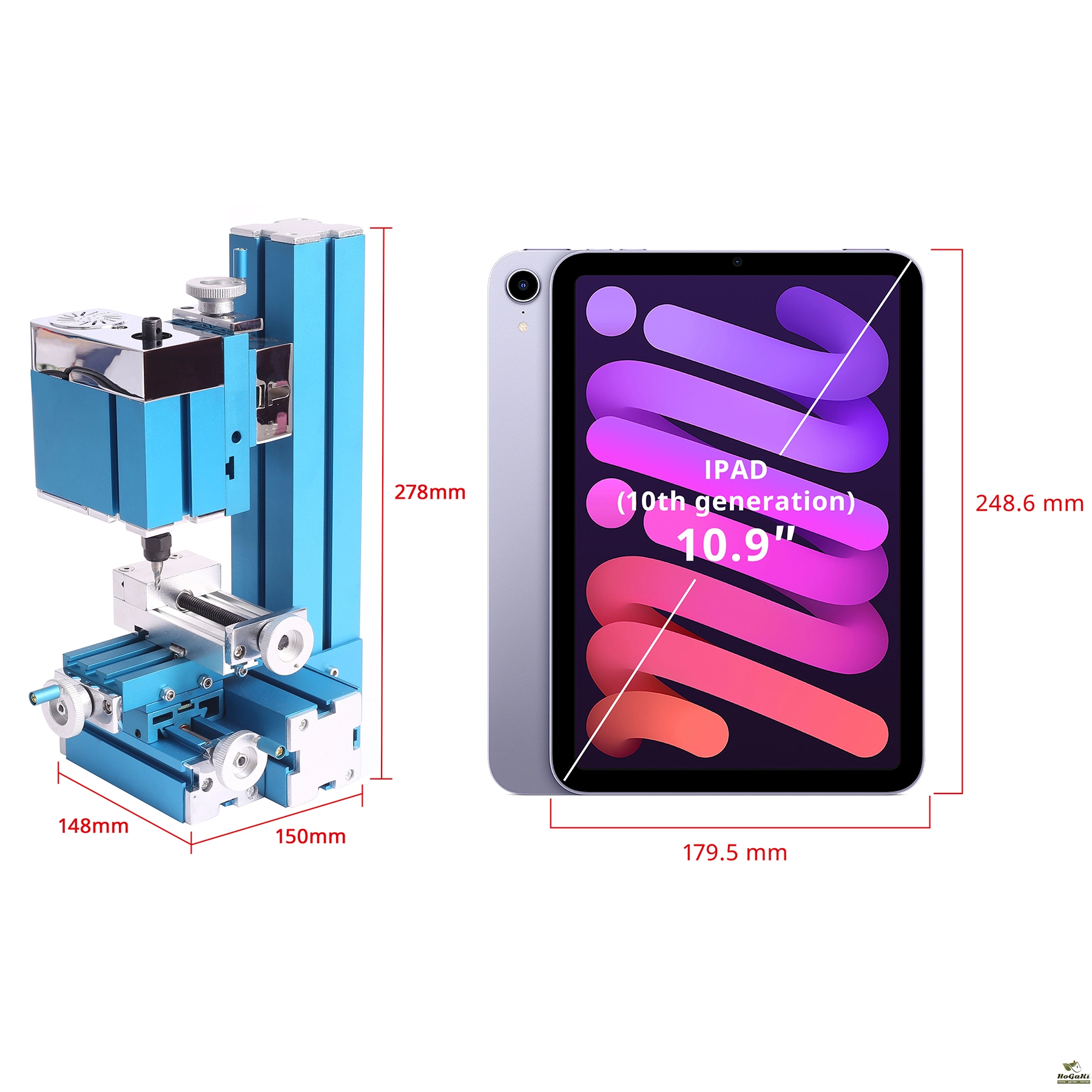

Product size: 148*150*278mm
Packing size: 325mm*200mm*240mm
Weight: 3KG
Processing ability: It can process wood, plastic and soft metals (pure copper and pure aluminum).

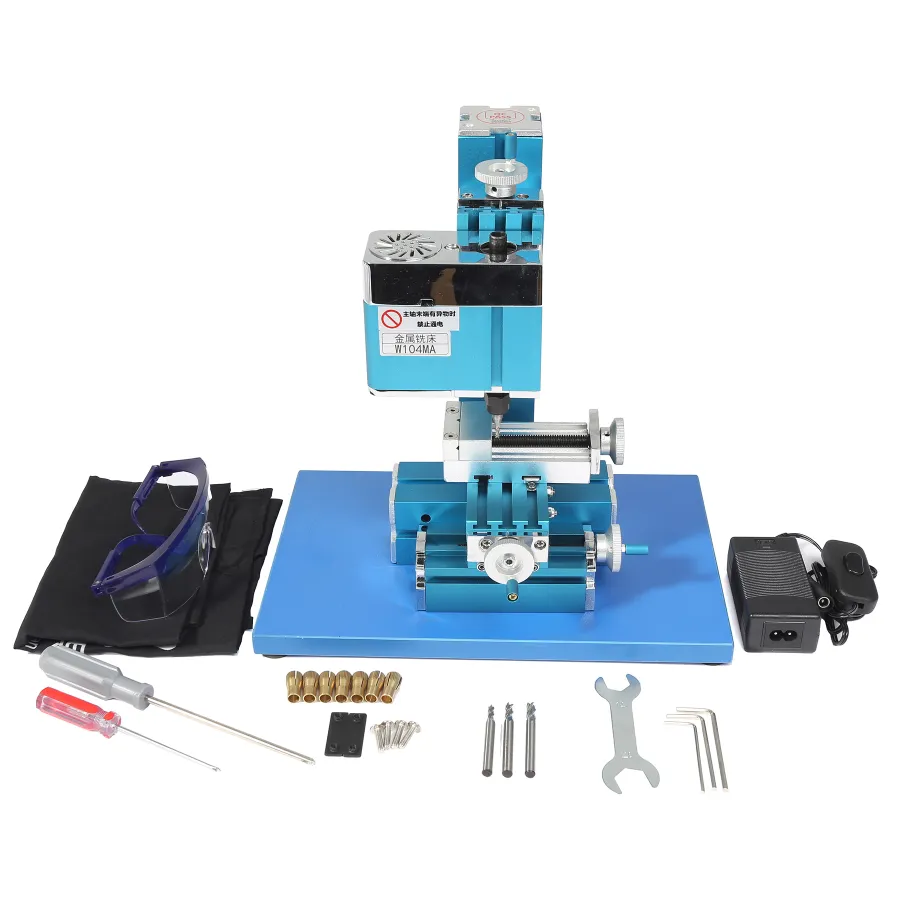

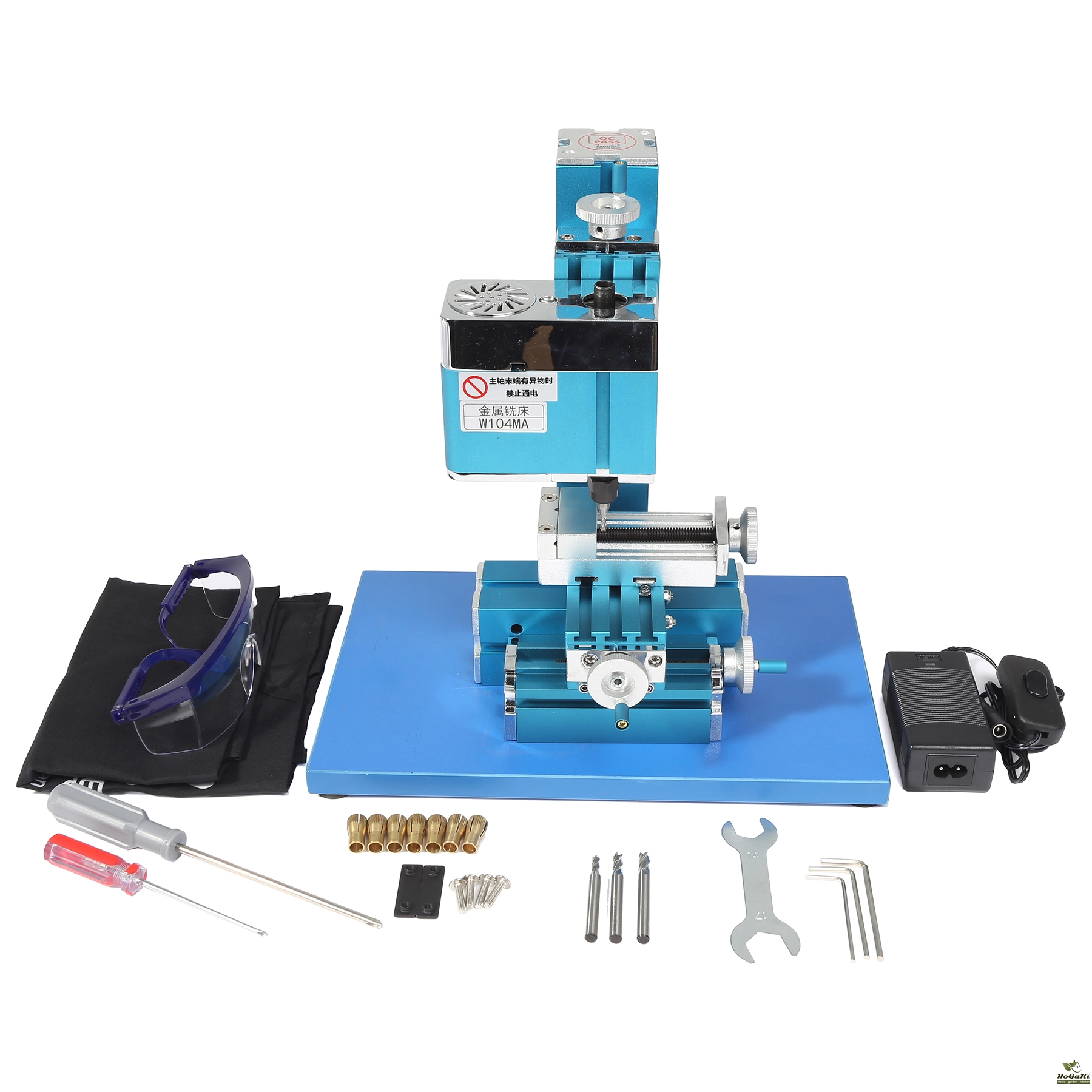

Package include：
1 set of Milling Machine
1 set of Accessories:
inner hexagon spanner 3pcs(S=2\2.5\3)
double-headed wrench 1pcs(S=14\17)
cross screwdriver 1pcs
milling cutter 4pcs(φ3, φ4, φ5, φ6),
the φ3 one is on machine
chuck 8pcs(ф1, ф2, ф2.5, ф3, ф3.5, ф4, ф5, ф6)
the ф6one is on machine
two hole clamping plate 2pcs
screw 2pcs(M4*16)
1 set of apron
1 set of goggles
