3000W 50A Tapless 6-tube ZVS High Frequency Induction Heating Machine Quenching Module DIY Kit
5.0 (3 votes) | 25 orders
Price:
US $
65.79 -
287.85
- Color
-
-

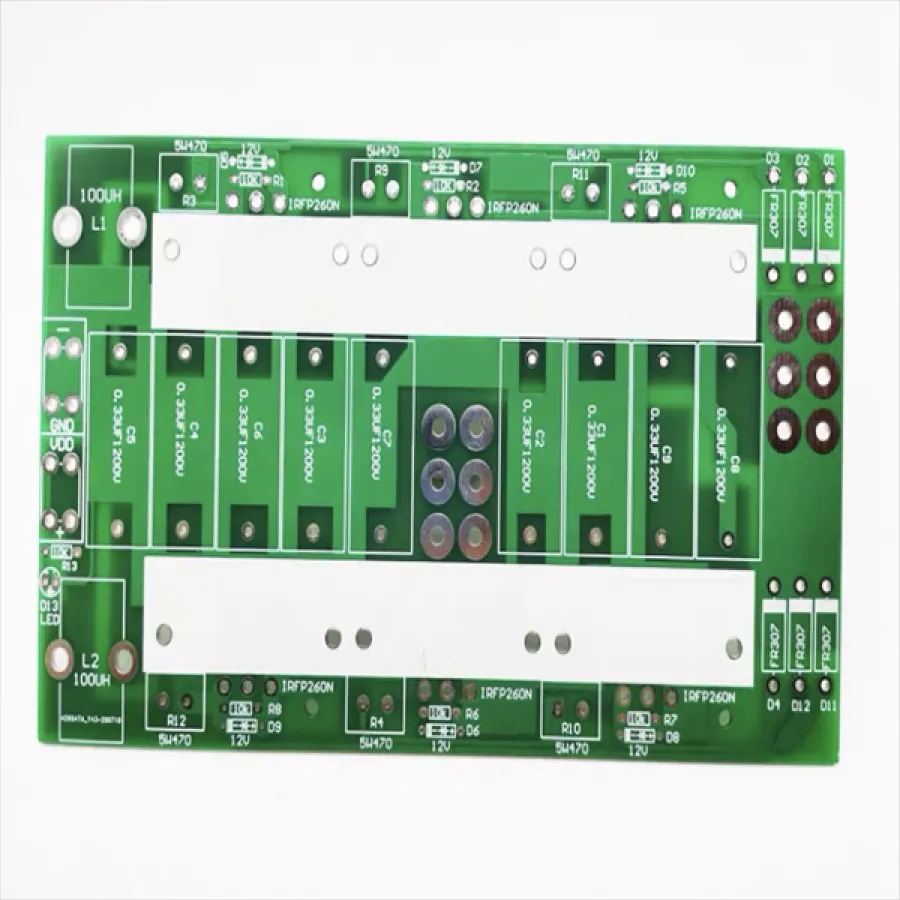

Option 1:Bare board

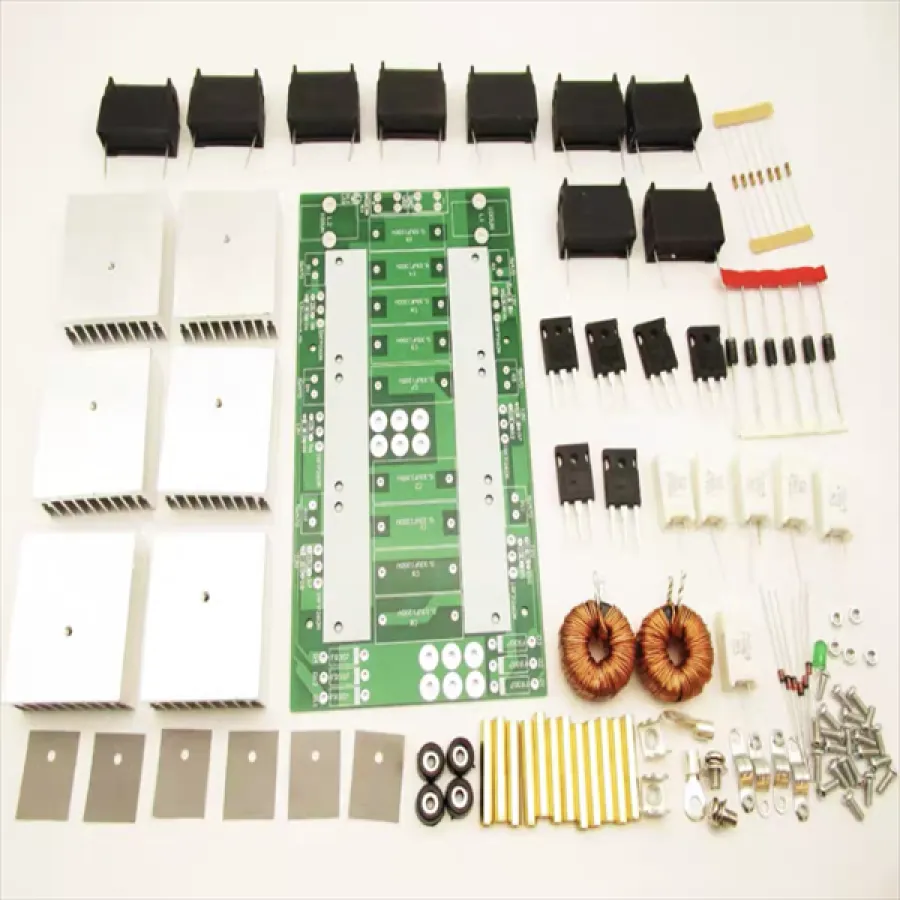

Option 2:circuit board parts (without copper pipes, fans, etc.)
Option 2:circuit board parts (without copper pipes, fans, etc.)

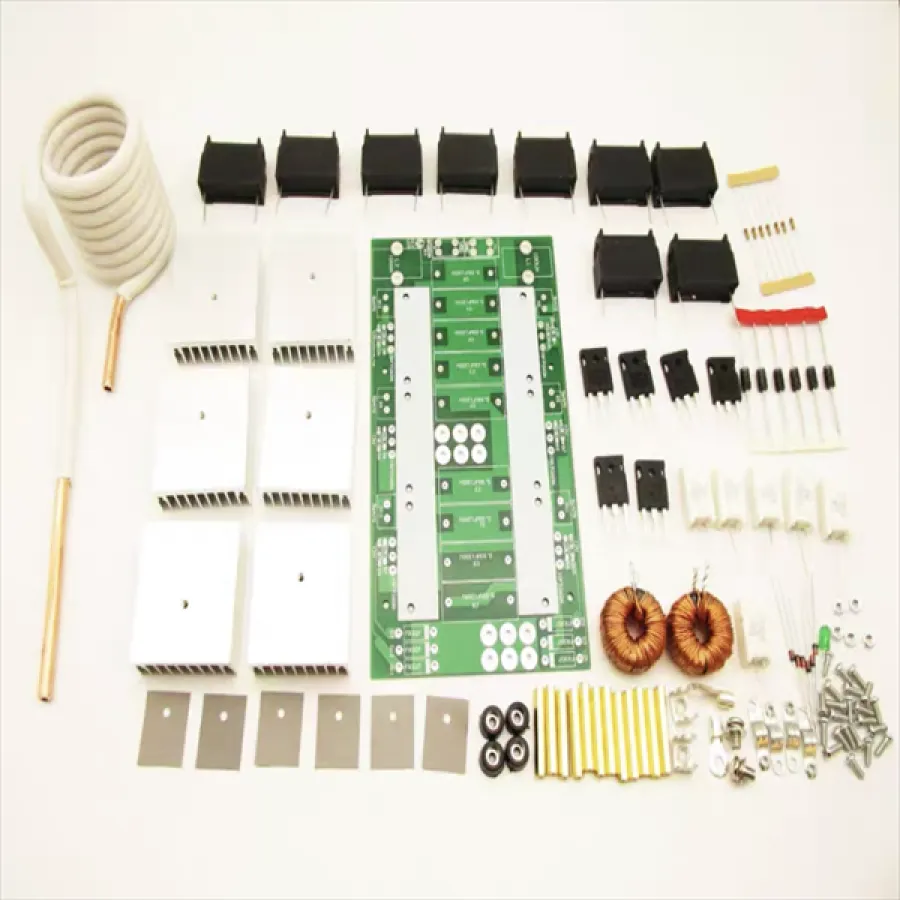

Option 3: circuit board parts + copper tube

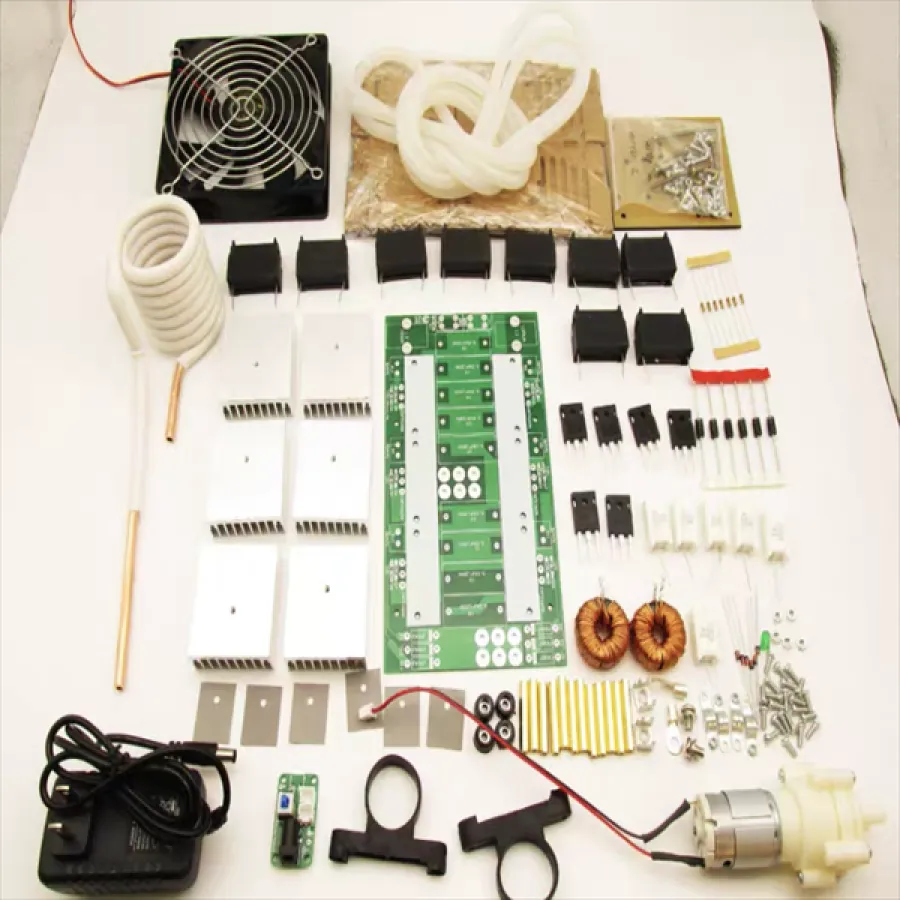

Option 4: circuit board parts + copper tube shell fan full set

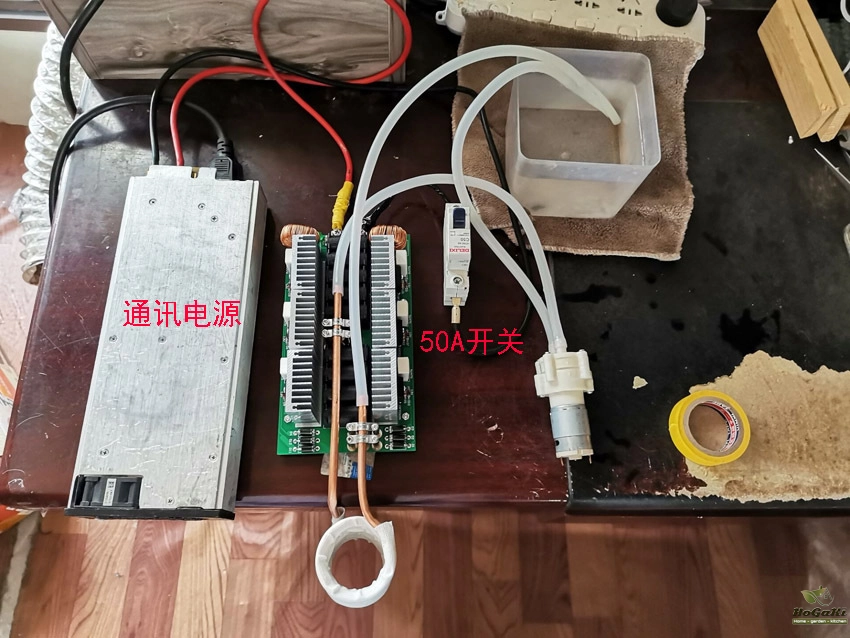

This induction heating circuit uses a 12-55V low-voltage DC power supply, with a maximum input current of 50A and a maximum power of 3000W.It can be used for DIY players to do quenching, annealing and other heat treatments for small parts, andit can also be used with graphite crucibles to smelt gold, silver, copper, aluminum, lead, tin and other metals.This circuit can directly heat iron, carbon steel, graphite and other materials containing magnetic materials, but the spiral spring cannot heat it.This product does not include a power supply and needs to be purchased separately. It is recommended to buy a communication power supply. The recommended model is Emerson R48-2900U or ZTE ZXD2400 https://www.Hogaki.com/item/4000411504911.html?spm=5261.ProductManageOnline.0.0.276f4edffbtEx4x4. The test result uses Huawei R4850S1 communication power supply.
circuit board size:length 18.8 cm * width 10.7 cm * height 5.6 cmfinished circuit board weight (without heating copper Tube): about 720 grams.
Shell size: 19.7*12.6*6.4CMCopper tube weight:Copper tube inner diameter: 40 mm.Copper tube turns:Voltage12Vheating effect isnot recommended, 24V or above is recommended, otherwise the heating speed is slow24V. Use crucible to melt lead and36V to use crucible to melt aluminum.48V use crucible to melt gold, silver, copper

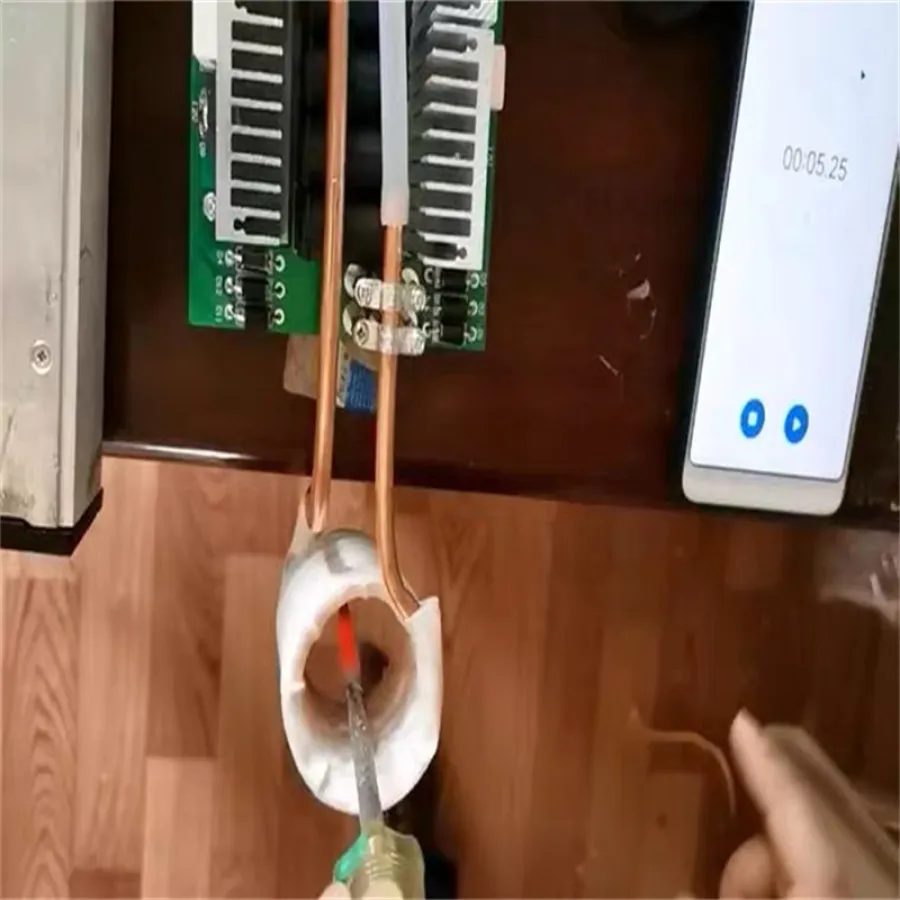

Use a 48V 50A power supply to heat a screwdriver with a diameter of 6 mm to burn red in about 5 seconds.

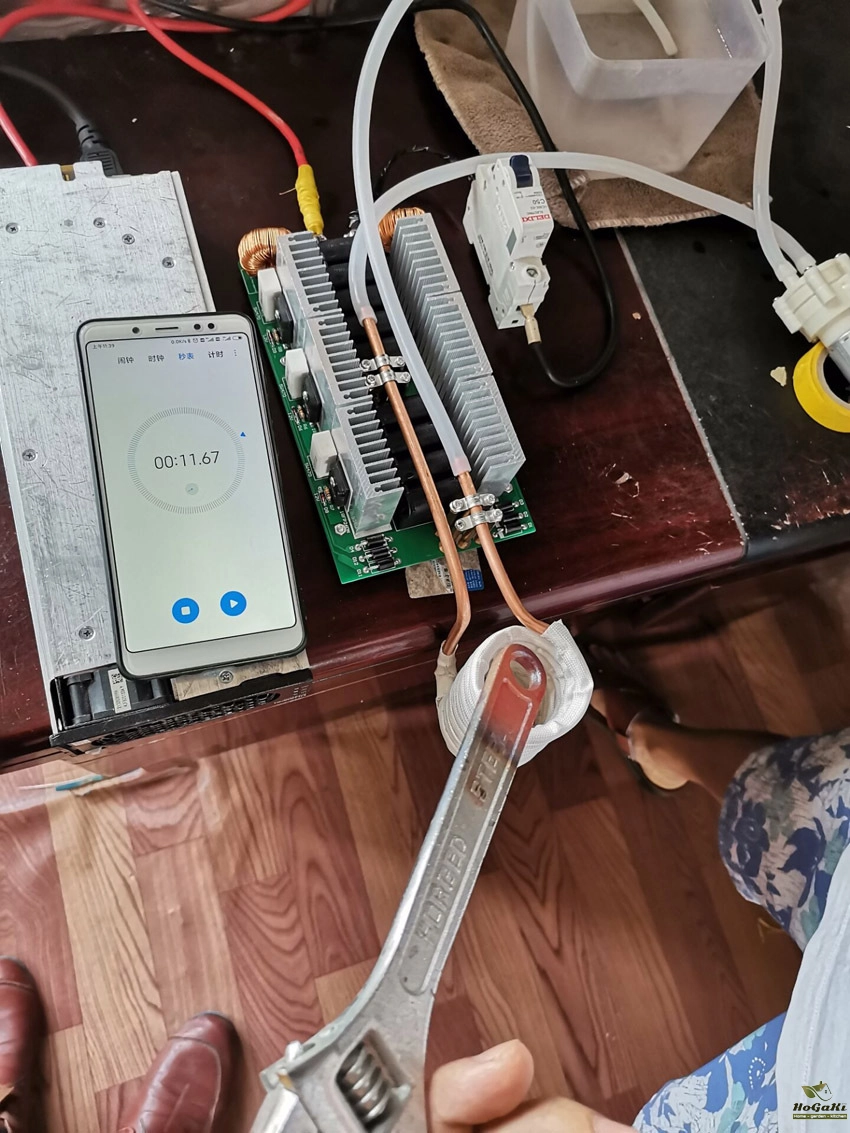

Heat a wrench handle with a width of 2.3cm and a thickness of 0.7cm, and it will burn red in about 11 seconds.

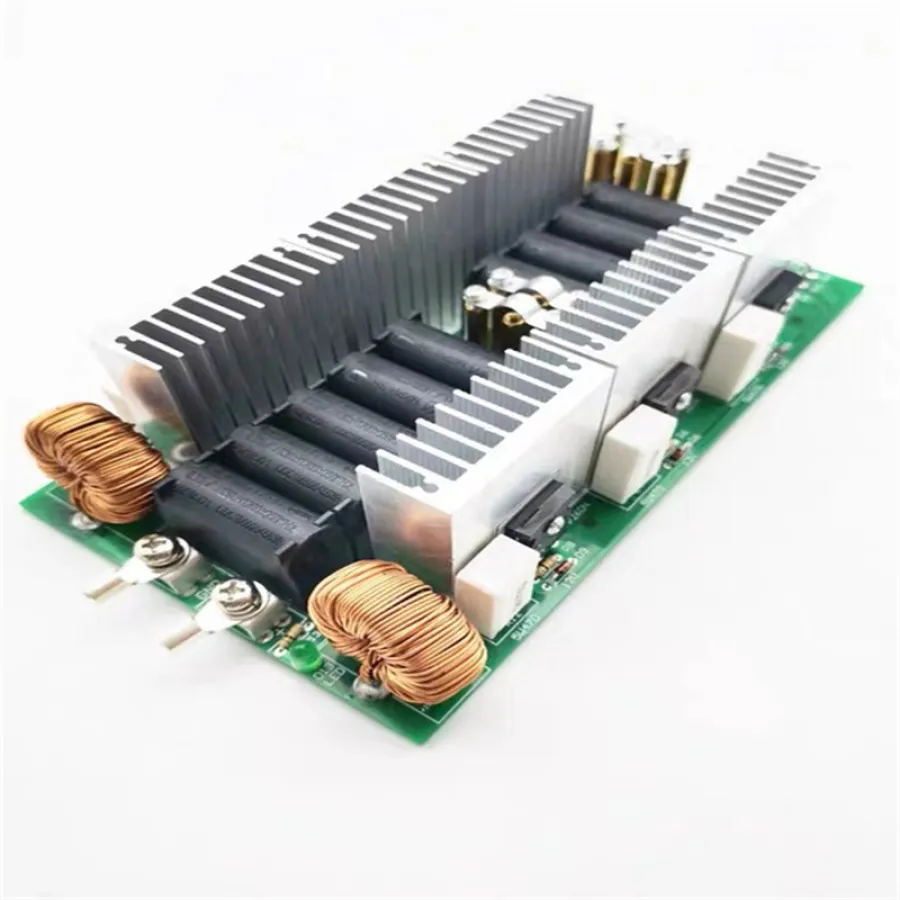

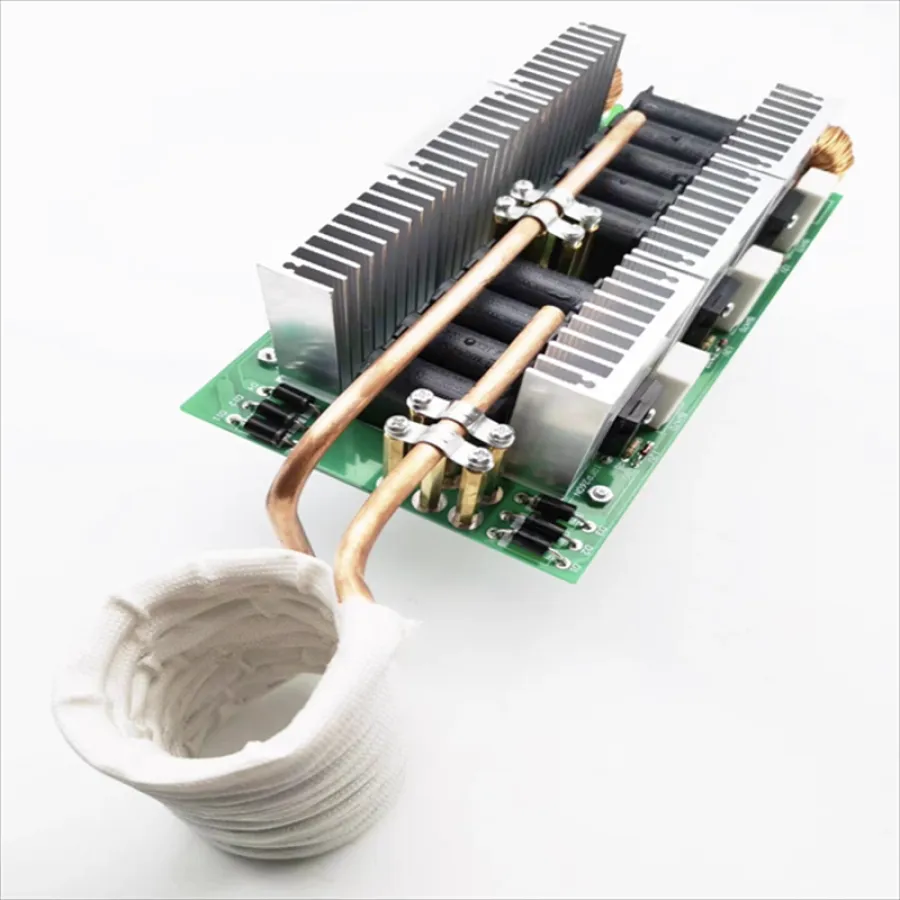

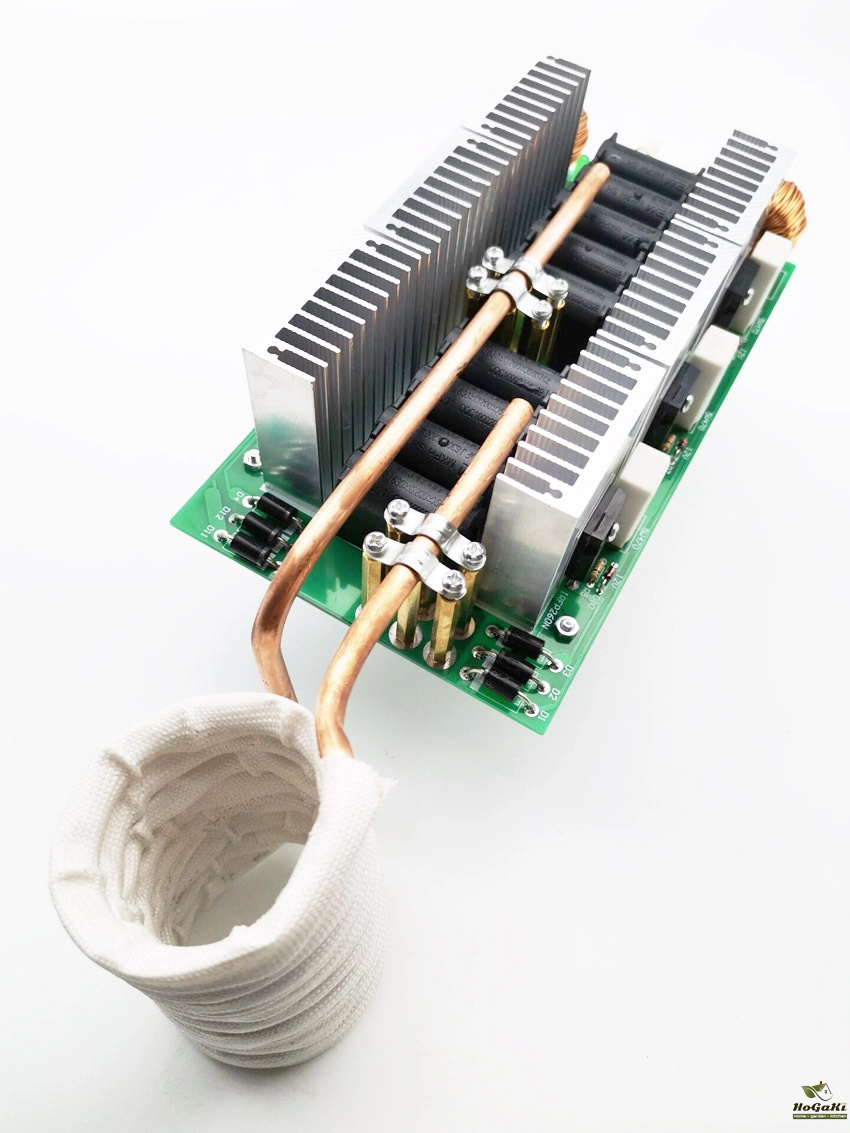

Finished circuit board + copper tube:

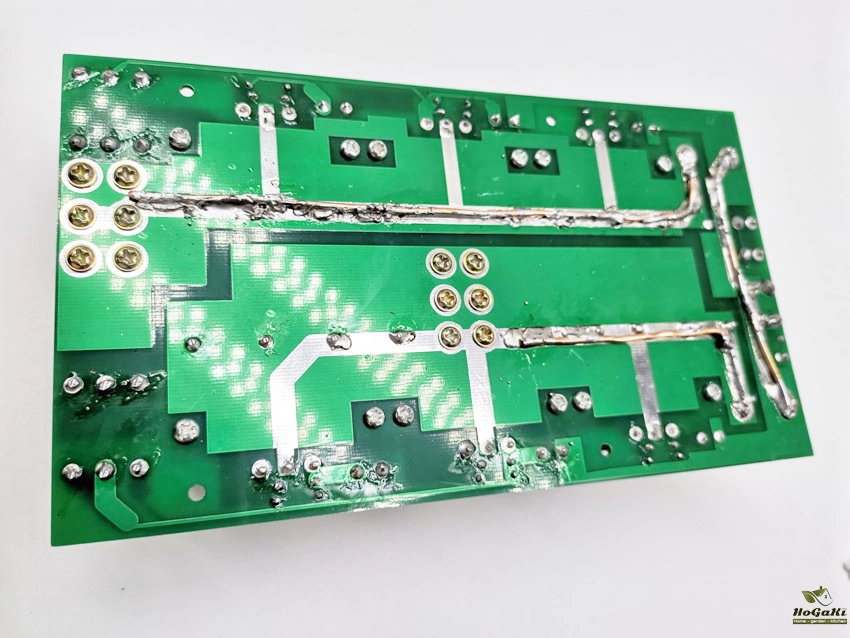

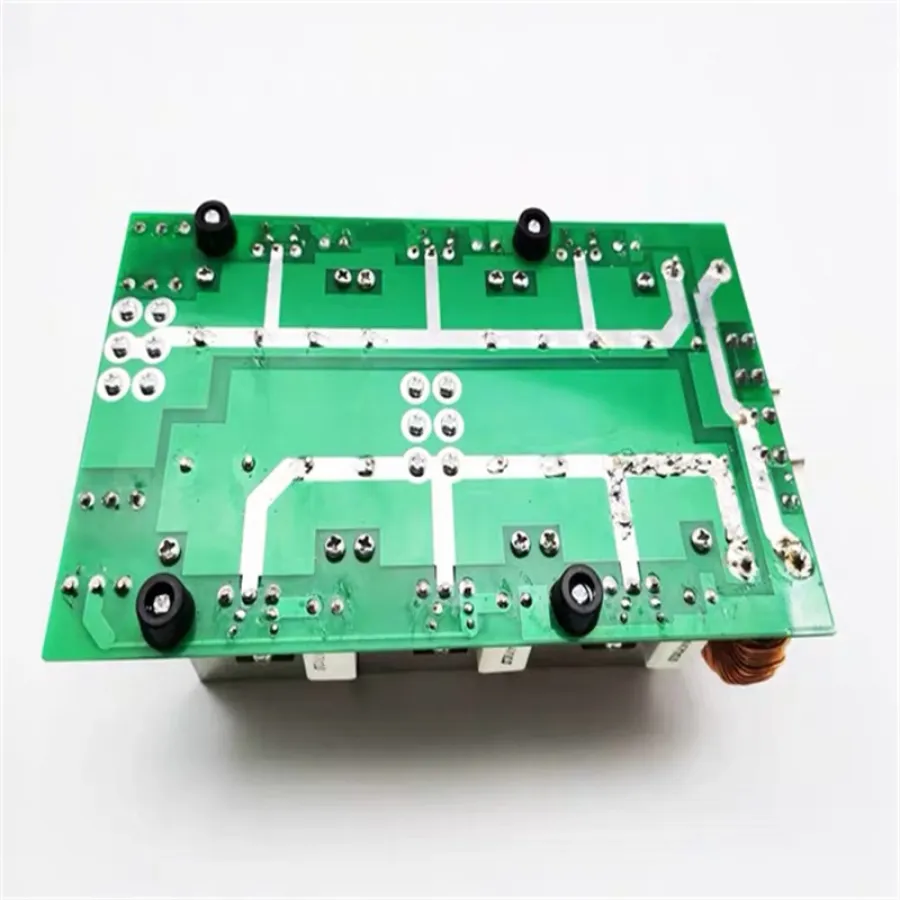

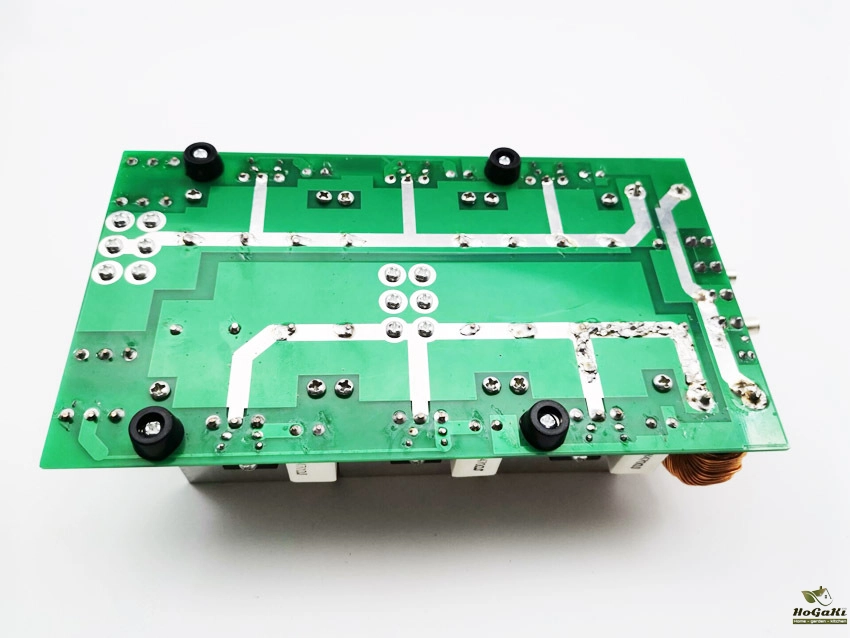

In places with high current, the wiring is very thick, and the window is opened and tinned. After soldering, you need to spread tin or solder the thick copper wire:
Packaging Details
- Unit Type:
- Package Weight: 1.200
- Package Size: 10x10x10
- Brand Name: XMSJ
- Hign-concerned Chemical: None
- Origin: Mainland China
- Certification: None
