3.5A DC-DC Converter Module Buck Step-Down Voltage Regulator Board 4.5V-27V to 3V 3.3V 3.7V 5V 6V 7.5 9V 12V

5.0 (56 votes) | 111 orders
Price: US $14.63 - 15.02 / piece
Discount Price:
US $ 12.40 - 12.68 / piece
-15%
Color
Quantity

Product Name:  3.5A DC-DC Converter Module Buck Step-Down Voltage Regulator Board 4.5V-27V to 3V 3.3V 3.7V 5V 6V 7.5 9V 12V

We are a professional manufacturer, if you don't find the product you need, please contact us directly.

Click the LINK or search SKU to find the product.Highly recommend blue font products

click

SKU

Input Voltage

Output Voltage

Pout

IOUT

IQ

Eff.

Accu.

Size

enter

(V)

(V)

(MAX)

(MAX)


(%)

(%)

(MM)(LWH)


LDO Module

DD0403MA

3.2-6V

3V 3.3V

1W

300MA

8uA


2%

11.6 x 7.8 x 2.5

LO7805MA

7-30V

5V 6V 9V 12V

2W

250MA

6mA


2%

18 x 10.5 x 5

TB361

4.5V-7V

3.3V

3W

400MA

5MA


2%

25 x 15 x 5

CE009

4.5-7V(USB)

3.3V

3W

400MA

5MA



25 x 15 x 5


Low Noise Regulated Charge Pump








CE021

1.8~5V(BOOST-BUCK)

3.3V

0.33W

100MA

0.65MA

88

2%

11 x 7.6 x 4.5

DD0505MD

2.7~5V(BOOST)

5V

1W

200MA

1.8MA

89

2%

11 x 7.6 x 4.5

DC-DC Buck Converter








DD0503MA

3.3-6V

3.3V

1.65W

500mA

10UA

90

2%

10.8 x 7.7 x 5.6

DD4012SA

4.75-40V

3V 3.3V 3.7V 5V 6V 7.5V 9V 12V

5W

1000MA

1.5MA

90

3%

18.3 x 10.2 x 6.7

DD40AJSA

4.75-40V

0.9-30V ADJ

5W

1000MA

1.5MA

90


15 x 10.3 x 6.8

DD38LOSA

6-40V

3.3V 5V (2 IN 1 DC-DC&LDO)

3.5W

700MA

2MA

75

2%

25 x 16 x 5.8

ND0533MA

3.3-5.5V

3.3V

6.6W

2000MA

20UA

97

2%

15 x 11 x 5.7

DD2712SA

4.5V-27V

3V 3.3V 3.7V 5V 6V 7.5V 9V 12V

12.5W

2500MA

0.25MA

90

3%

25 x 15 x 6.3

DD3630TA

8~32V

2~30V ADJ CC/CV

15W

0.2-2.5A

2.1MA

88


33 x 33 x 20

DD31AJQA

4.5-30V

3.3V 5V 12V 2-28V (4 channels)

50W

3000MA




88 x 55 x 15

DD2805UA

DC 7- 28V

5V(USB)

15W

3000MA

0.23MA

92

3%

45 x 22 x 6.5

ND1805TA

4.5-18

3V 3.3V 3.7V 4.2V 5V 6V

20W

4000MA

18MA

93

3%

27 x 18 x 5

DD8024TA

10-80V(High-Voltage)

3.3V 5V 6V 9V 12V 15V

5W

1000MA

2.5MA

85

3%

59 x 30 x 16

DD7818TA

8-80V(High-Voltage)

3.3V 5V 6V 9V 12V 15V

10W

2000MA

2.5MA

91

2%

60 x 30 x 16

DC-DC Boost Converter

DD0405MA

0.7-5V

3V 3.3V 5V

3W

600MA

13uA

93

2%

10.7x10.6x5.6

DD06AJSA

2.7~6V

3~15V ADJ

6W

500MA

0.20MA

90


20 x 10.2 x 5.6

DD0512MA

2.6-6V

3.7V 5V 12V

6W

500MA

0.19MA

90

2%

 13 x 11 x 5.2

DDEN12MA

2.6-6V ( Turn ON/OFF)

5V 6V 9V 12V

6W

500MA

0.21MA

90

2%

 20 x 15 x 6

ND0412SA

2.6-5.5V

5V 6V 9V 12V

7W

600MA

0.19MA

93

2%

21 x 11 x 4

DDTC12UA

4.5-5.5V(TYPE-C USB)

 6V 9V 12V 15V 24V

9W

750MA

1.6MA

90

3%


TB293

 3~6V(USB)

6-15.5V(ADJ)

6W

500MA

0.20MA

90


47.5 x 16 x 5.6

TB398

 3~6V(USB)

6-15.5V(USB)(ADJ)

6W

500MA

0.20MA

90


56 x 16 x 5.6

CE016

 3~6V(USB)

12V(Terminal)

6W

450MA

0.20MA

90

2%

42 x 15 x 5.6

CE017

 3~6V(USB)

12V(XH2.54)

6W

450MA

0.20MA

90

2%

42 x 15 x 5.6

CE036

 3~6V(USB)

12V(shell/DC5.5MM)

6W

450MA

0.20MA

90

2%


DD2424SA

 2-18V

 5V 6V 9V 12V 15V 24V

10W

800MA

1MA

88

4%

 22 x 15.2 x 6.2

DD03AJTA

2.7-5.5V

3.5-24V ADJ

30W

2000MA

1MA

90


45 x 20 x 15

DD0424TA

3.7V-18V

5V 6V 9V 12V 15V 19.5V

60W

4000MA

1MA

89

3%

45 x 21 x 15

Positive and negative voltage

DC-DC Buck-Boost module


Charger Module

Packing list:

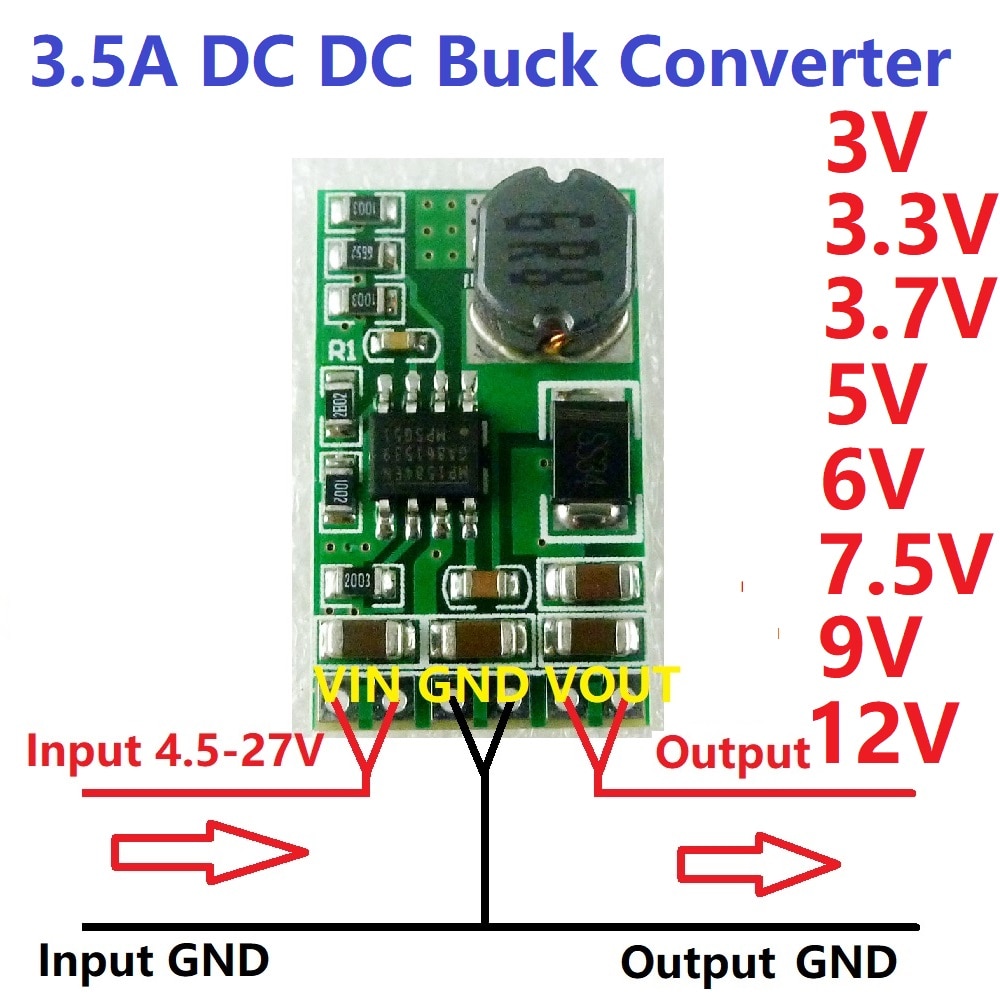

1 PCS DD2712SA 3.5A DC DC Step Down Converter Module 4.5V-27V to 3V/3.3V/3.7V/5V/6V/7.5V/9V/12V

Description:

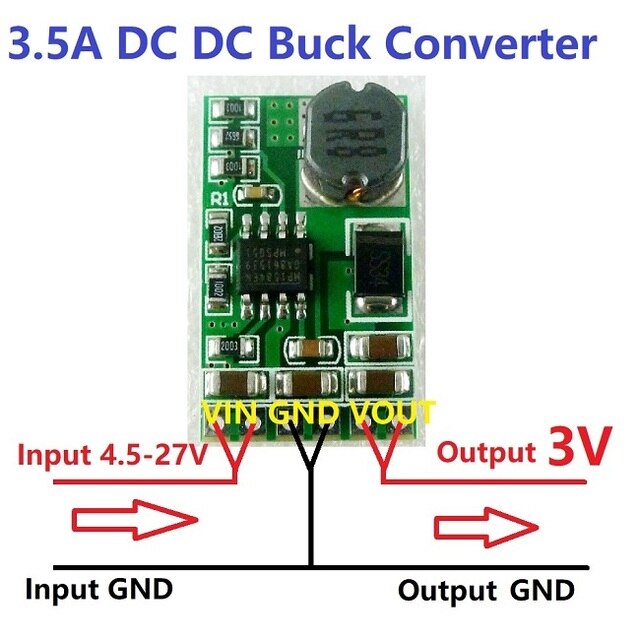

3V :
Input voltage 4.5~27V,output 3V
Maximum output current 2.5A,Short time maximum output current 3.5A
DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% .
Quiescent current: about 250uA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C

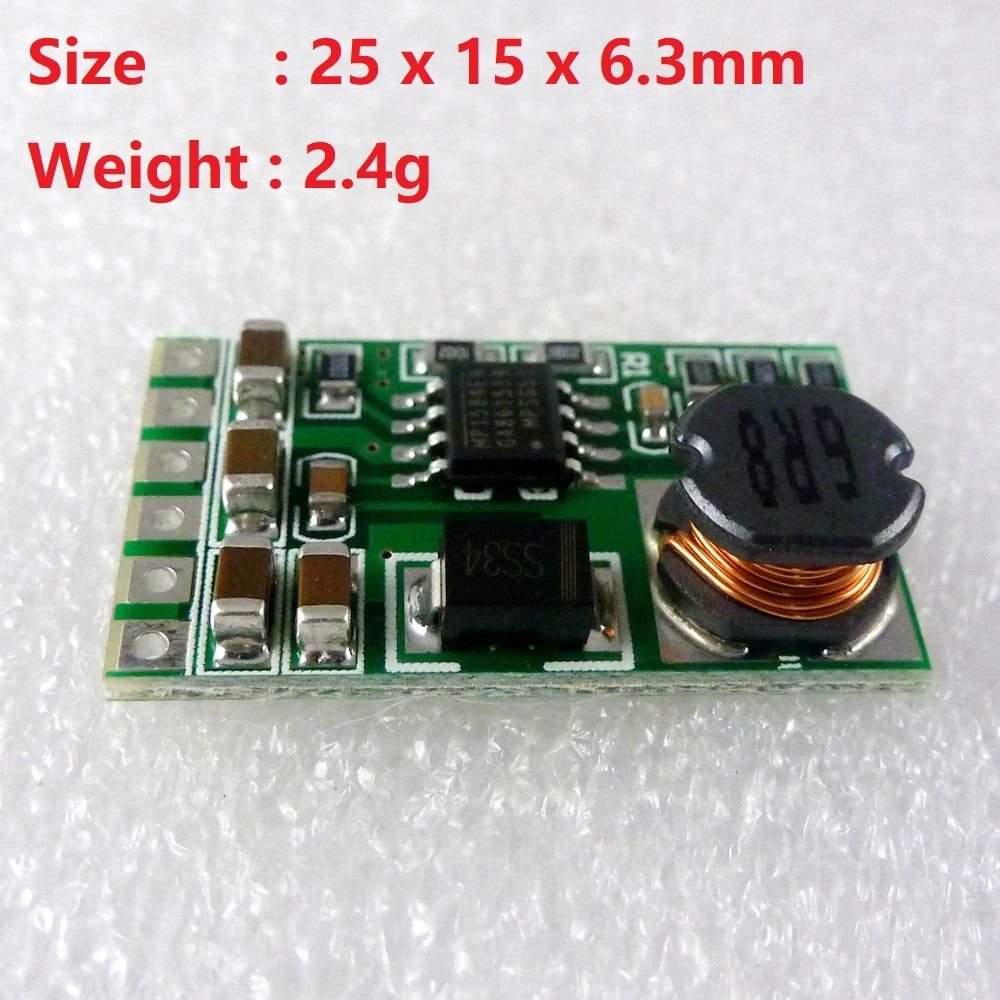

Size : 25 x 15 x 6.3mm
Weight : 2.4g

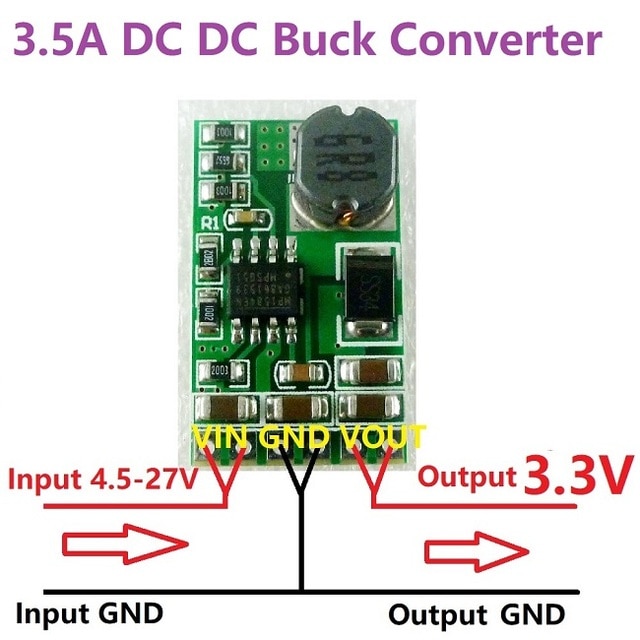

3.3V :
Input voltage 4.5~27V,output 3.3V
Maximum output current 2.5A,Short time maximum output current 3.5A
DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% .
Quiescent current: about 250uA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C
Size : 25 x 15 x 6.3mm
Weight : 2.4g

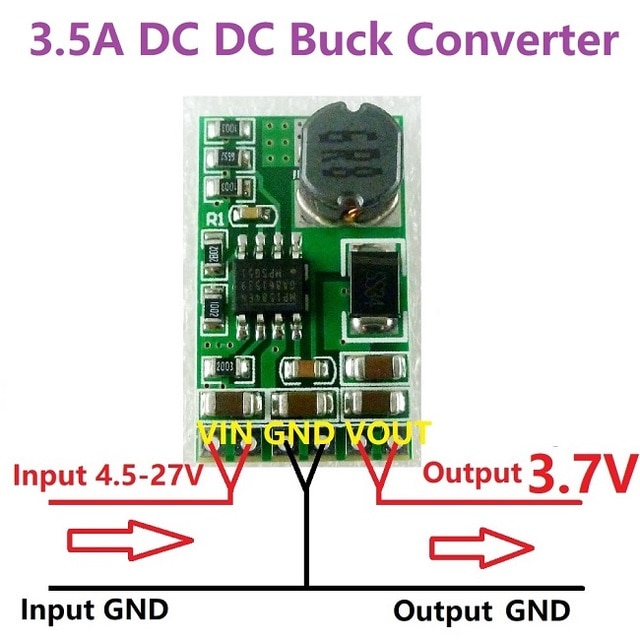

3.7V :
Input voltage 4.5~27V,output 3.7V
Maximum output current 2.5A,Short time maximum output current 3.5A
DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% .
Quiescent current: about 250uA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C
Size : 25 x 15 x 6.3mm
Weight : 2.4g

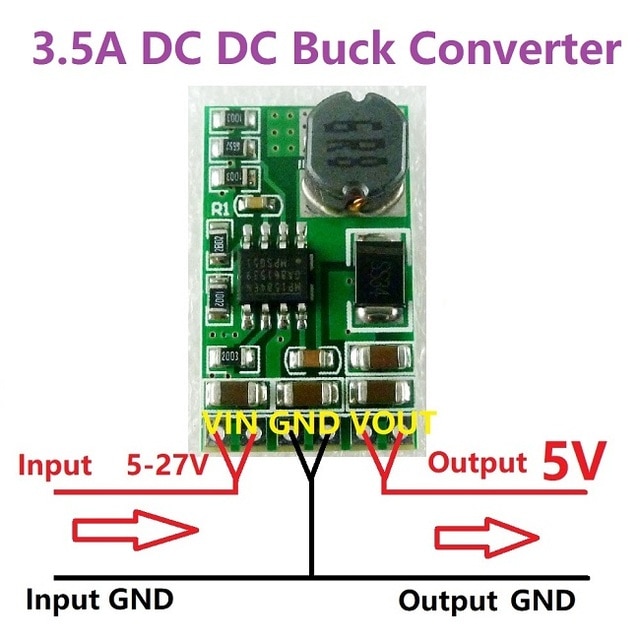

5V :
Input voltage 6.5~27V,output 5V
Maximum output current 2.5A,Short time maximum output current 3.5A
DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% .
Quiescent current: about 250uA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C
Size : 25 x 15 x 6.3mm
Weight : 2.4g

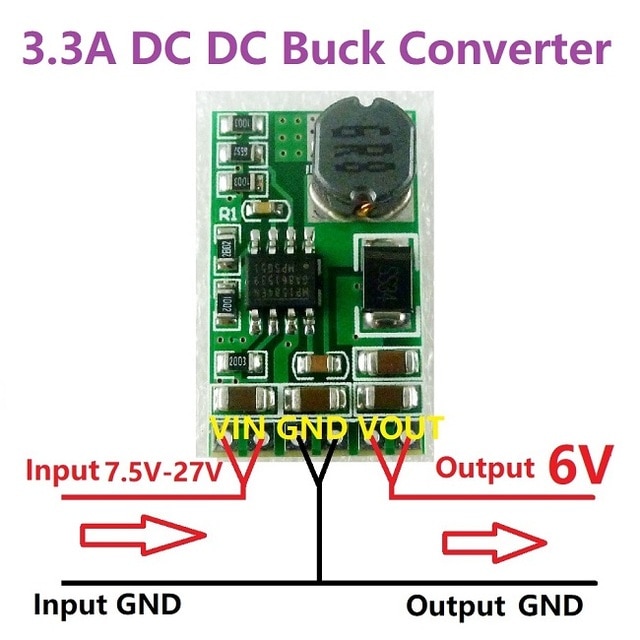

6V :
Input voltage 7.5~27V,output 6V
Maximum output current 2.5A,Short time maximum output current 3.3A
DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% .
Quiescent current: about 250uA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C
Size : 25 x 15 x 6.3mm
Weight : 2.4g

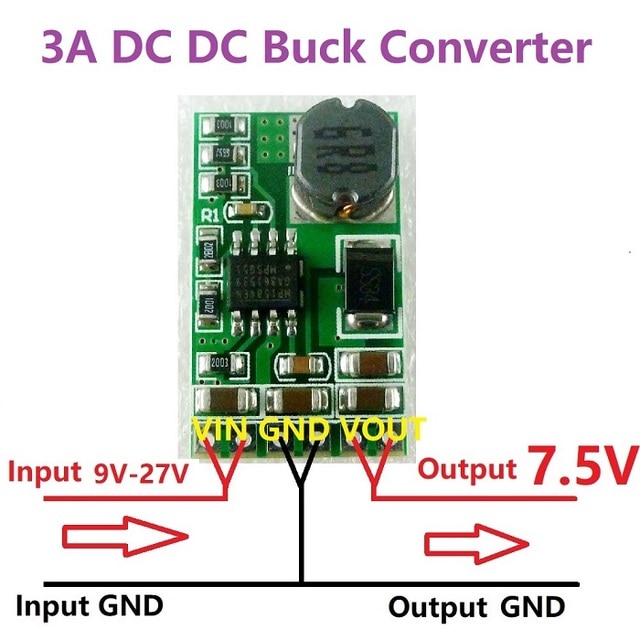

7.5V :
Input voltage 9~27V,output 7.5V

Maximum output current 2.5A,Short time maximum output current 3A

DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% .

Quiescent current: about 250uA

Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.

Operating Temperature :–20°C to +85°C

Size : 25 x 15 x 6.3mm

Weight : 2.4g

9V :
Input voltage 11~27V,output 9V

Maximum output current 2.3A,Short time maximum output current 3A

DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% .

Quiescent current: about 250uA

Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.

Operating Temperature :–20°C to +85°C

Size : 25 x 15 x 6.3mm

Weight : 2.4g

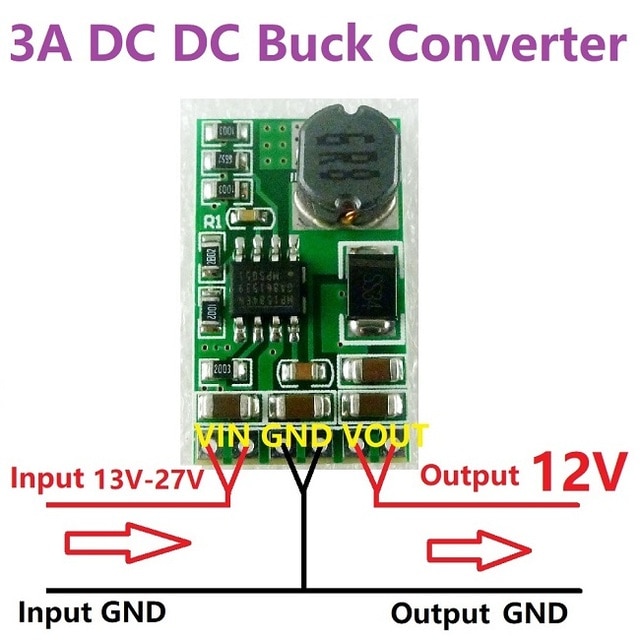

12V :
Input voltage 13~27V,output 12V

Maximum output current 2A,Short time maximum output current 3A

DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% .

Quiescent current: about 250uA

Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.

Operating Temperature :–20°C to +85°C

Size : 25 x 15 x 6.3mm

Weight : 2.4g



Attention :

This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself



Applications:

Motor Toy
WIFI Router Switch
Network equipment
Multimeter instrumentation
CCTV camera
Electric toys
Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee
Smart home / home automation
Distributed Power Systems
Battery Charger
Pre-Regulator for Linear Regulators
FM radio
Battery powered equipment
Audio amplifier











  • is_customized: Yes
  • Output Current: <=3.5A
  • Output Frequency: DC-DC
  • Weight: 2.4g
  • Size: 25 x 15 x 6.3mm
  • Output Type: single
  • Output Power: 1 - 50W
  • Model Number: DD2712SA
  • Type: DC/DC Converters
  • Brand Name: eletechsup
  • Origin: Mainland China
  • Certification: NONE
