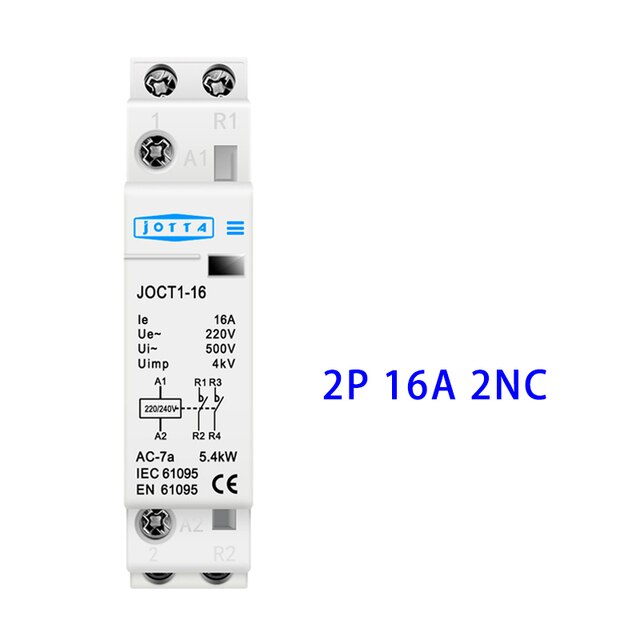

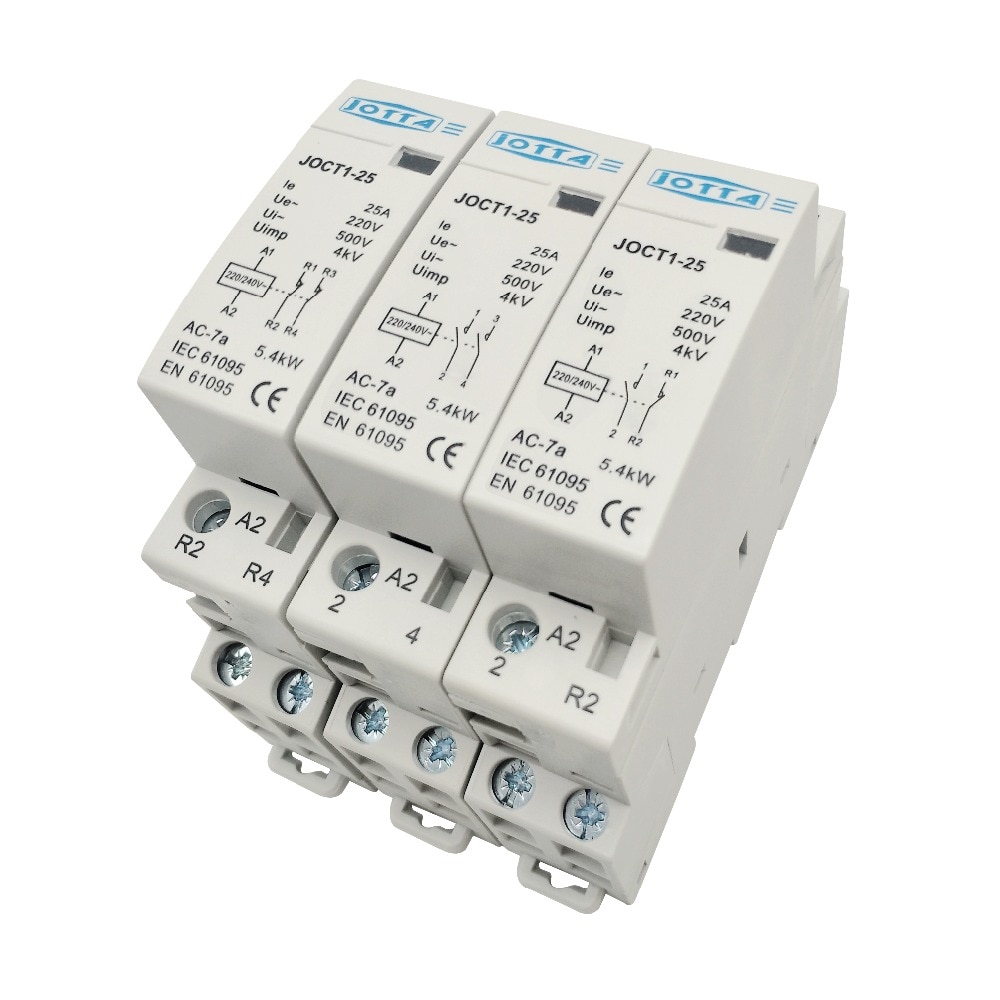

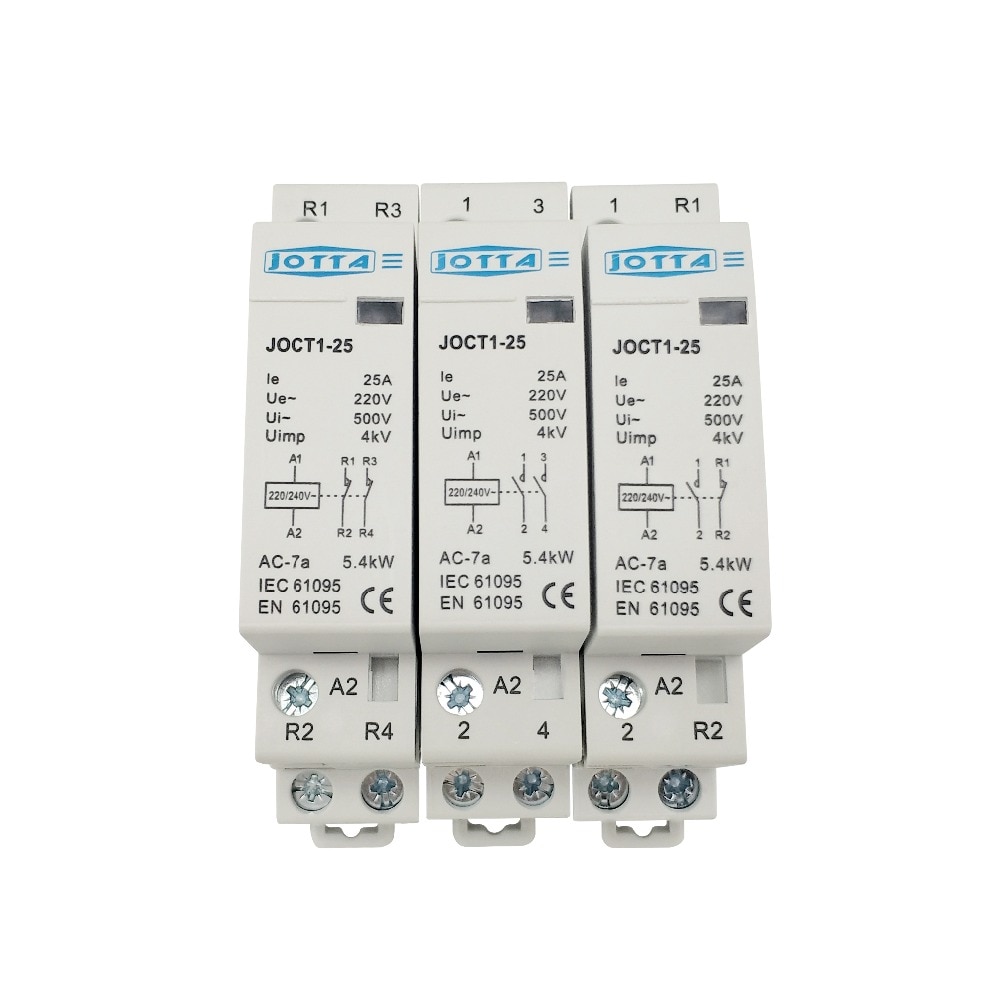

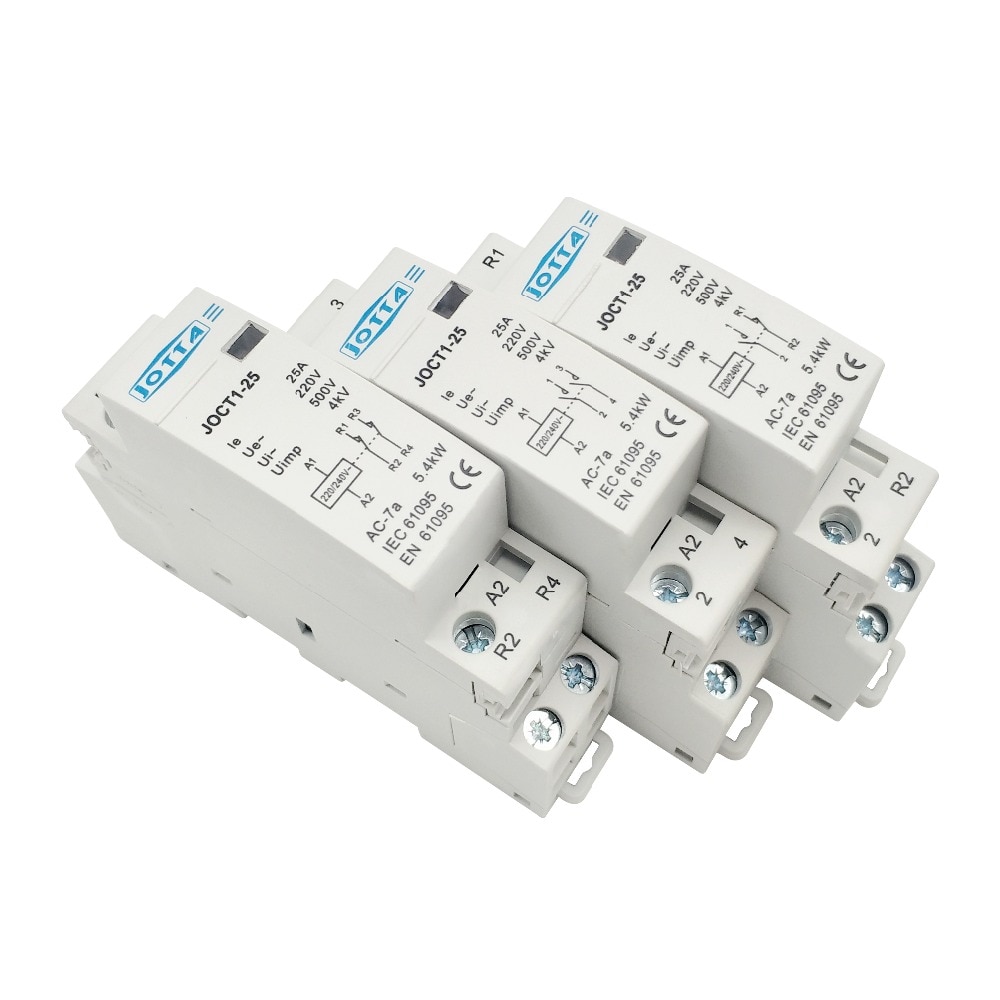

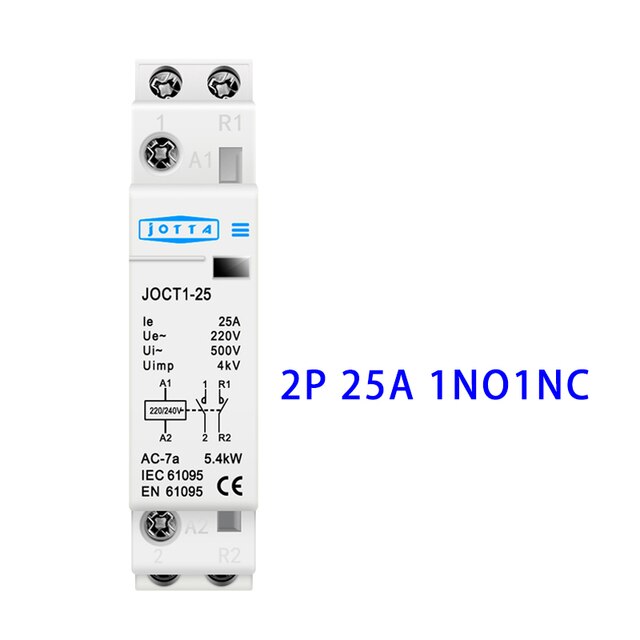

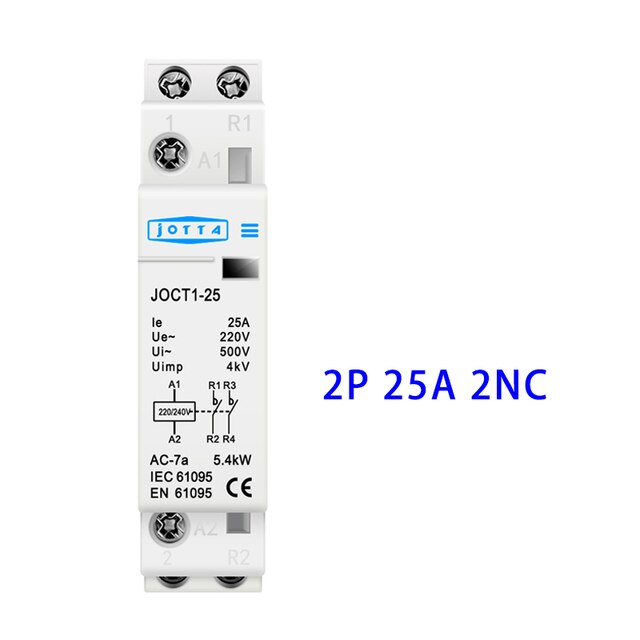

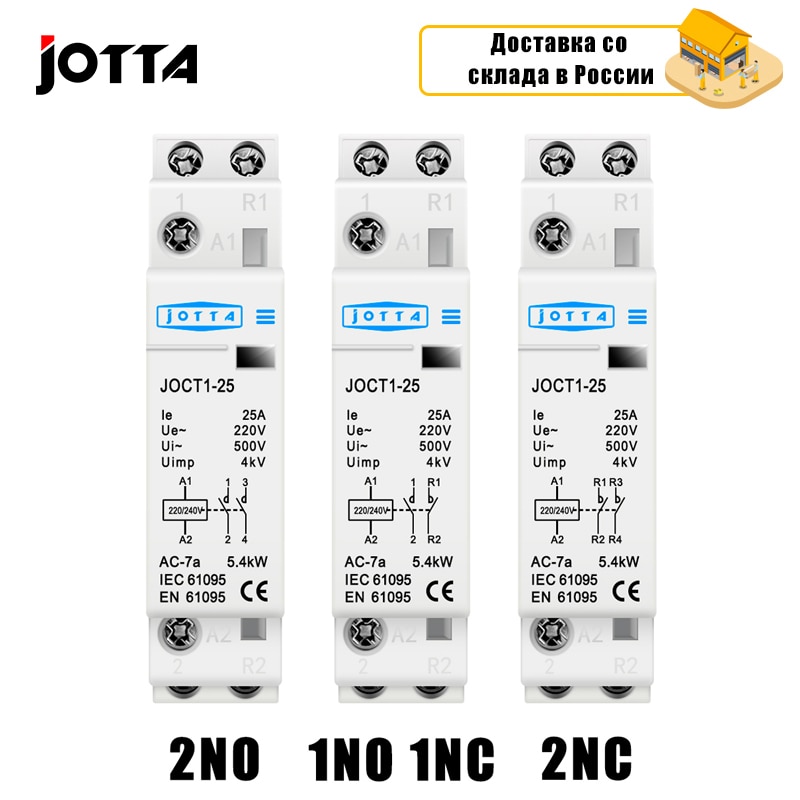

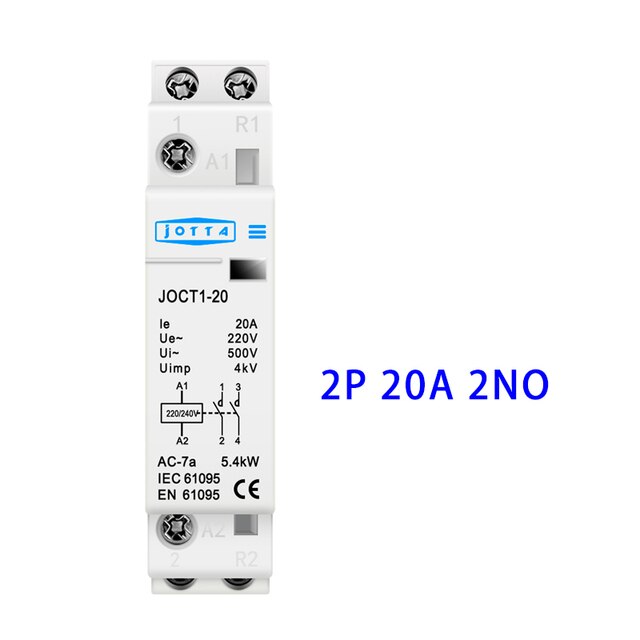

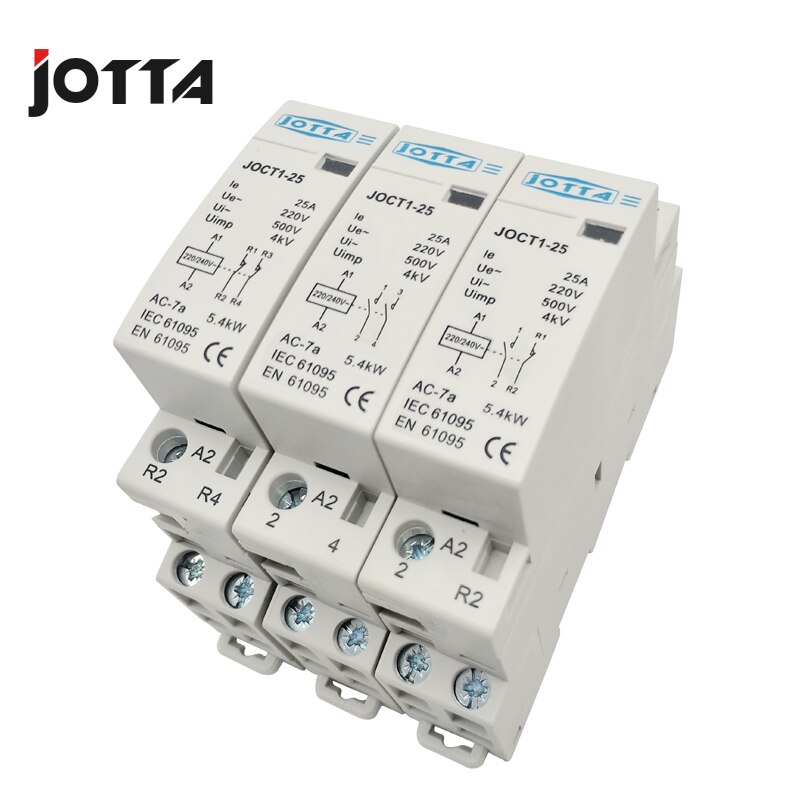

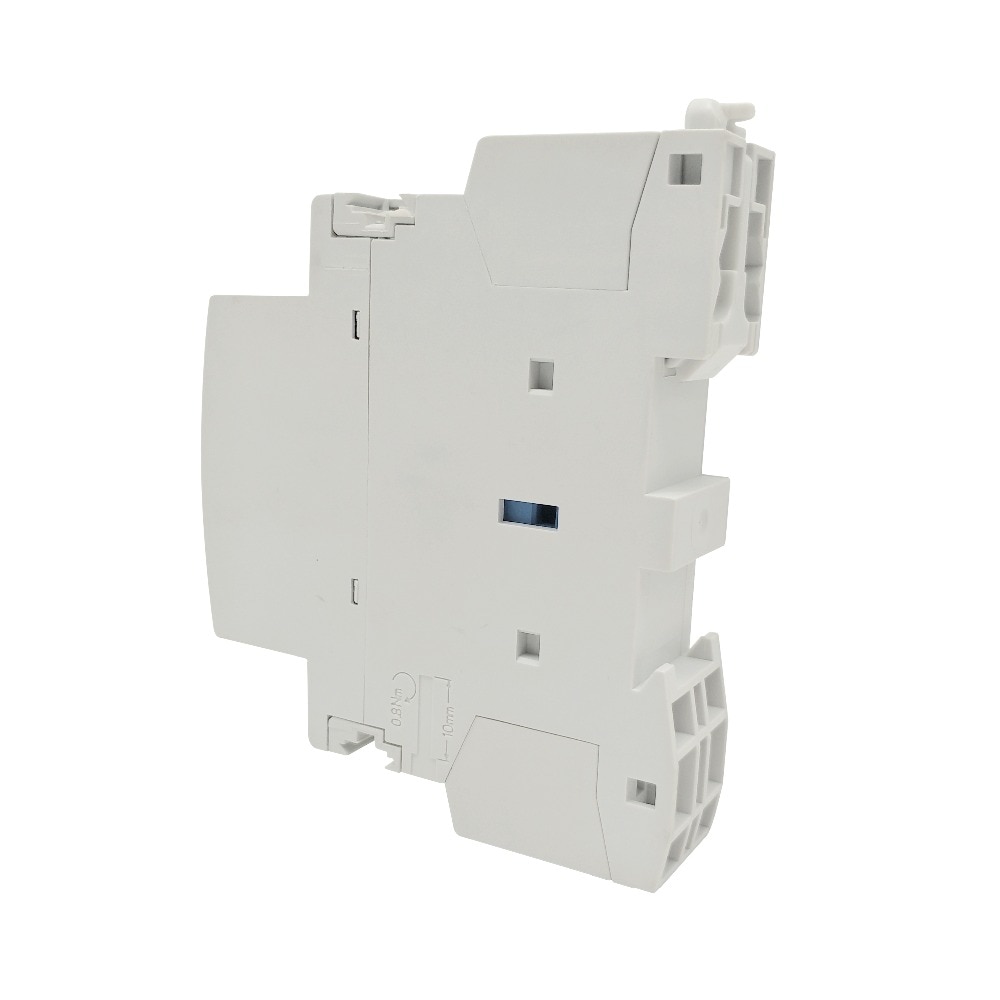

2P 16A/20A/25A 220V/230V 50/60HZ Din Rail Household AC Contactor 1NO 1NC / 2NO / 2NC

4.7 (46 votes) | 228 orders
Price: US $23.40 - 27.22 / piece
Discount Price:
US $ 11.70 - 13.61 / piece
-50%
Ships From
Color
Quantity


Super quality excellent 2P 16A/20A/25A  220V/230V 50/60HZ din rail household ac contactor


Household AC contactor is mainly designed for AC 50Hz or 60Hz circuits with 230V . Rated operating voltage in AC-7a usage ,rated operating voltage up to 230V, rated operating current up to 25A, Rated operating voltage in AC-7b usage , rated current to 10A.  Using in breaking capacity below 6kA circuit. For distance connect or break the circuit.

Application: for home, apartment, hotel, automatic cut off or connect the power.

Normal working and installation conditions:

1. Ambient temperature:-5°C to +40°C,the average temperature no more than +35°C in 24 hours.

2. Altitude:no more than 2000m.

3. Atmospheric conditions: the relative humidity of the installation place should be no more than 50% when the maximum temperature is +40°C:if under a lower temperature,a higher relative humidity is allowed. The monthly average minimum temperature in the wettest month should not exceed +25°C and the monthly average maximum relative humidity of this month no more than 90%.Besides,the dew on the surface of products caused by temperature change should be taken into consideration.

4. Class of pollution: class 2.

5. Installation condition: class II.

Application instruction

1. Check whether the contactor agrees with the scope of application and the working condition before installation

2. During the process of installing pull down the motion stopping component and put the contactor on the safe orbit then push up the motion-stopping component to fix the contactor on the safe orbit avoid loosening and dropping pull down the motion-stopping component if you want to remove the contactor.

Caution

a).Make sure the correct mode of connection

b).Screw down the binding screw during the connection



Every item will be packed well,we use carton box or Bubble film to pack it.

You can choose the delivery method you want,and we will send the order according to your choice if there are no other special circumstances.

Delivery time is accoring to the shipping method you choose,if there is any problem when you track the order,please feel free to contact us,we will contact the shipping company for you.

Please Note:You'd better know the protection time,if it only left a few days but you still do not receive the order,

please contact us for extending the protection,because if the protection is over,you can not open a dispute,and we can not give you the refund.

If the product is sent wrong one or it can not work at all,please contact  us at first time,

we will always be happy to serve you for any problem.

And we will send you a new one or give you a full refund according to the situation.

Thank you for your purchasing in our store,if you are satisfied with our products please give us a 5 statrs good feedback.

We will give you a 5% discount of product at your next purchase.

If your order is big,please contact us and we will give you a whosesale price according to the quantity.

If you are not satisfied with our product,please contact us at first time,we will give you a solution for the problems.

Hope all of you have a nice shopping experience in our store and wish all of you a good day!!!





  • is_customized: Yes
  • Main Circuit Rating Voltage: 220V
  • Phase: 2
  • Number of Pole: 2
  • Electricity Type: AC
  • Brand Name: JOTTA
  • Origin: Mainland China
  • Certification: NONE
