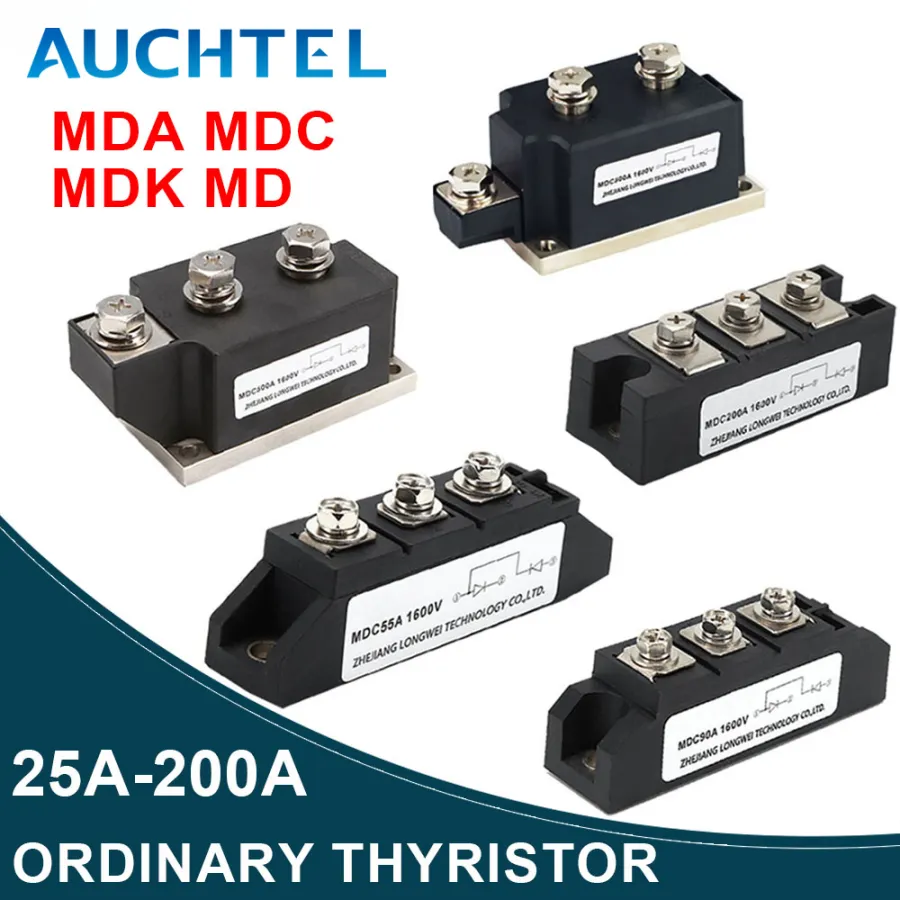

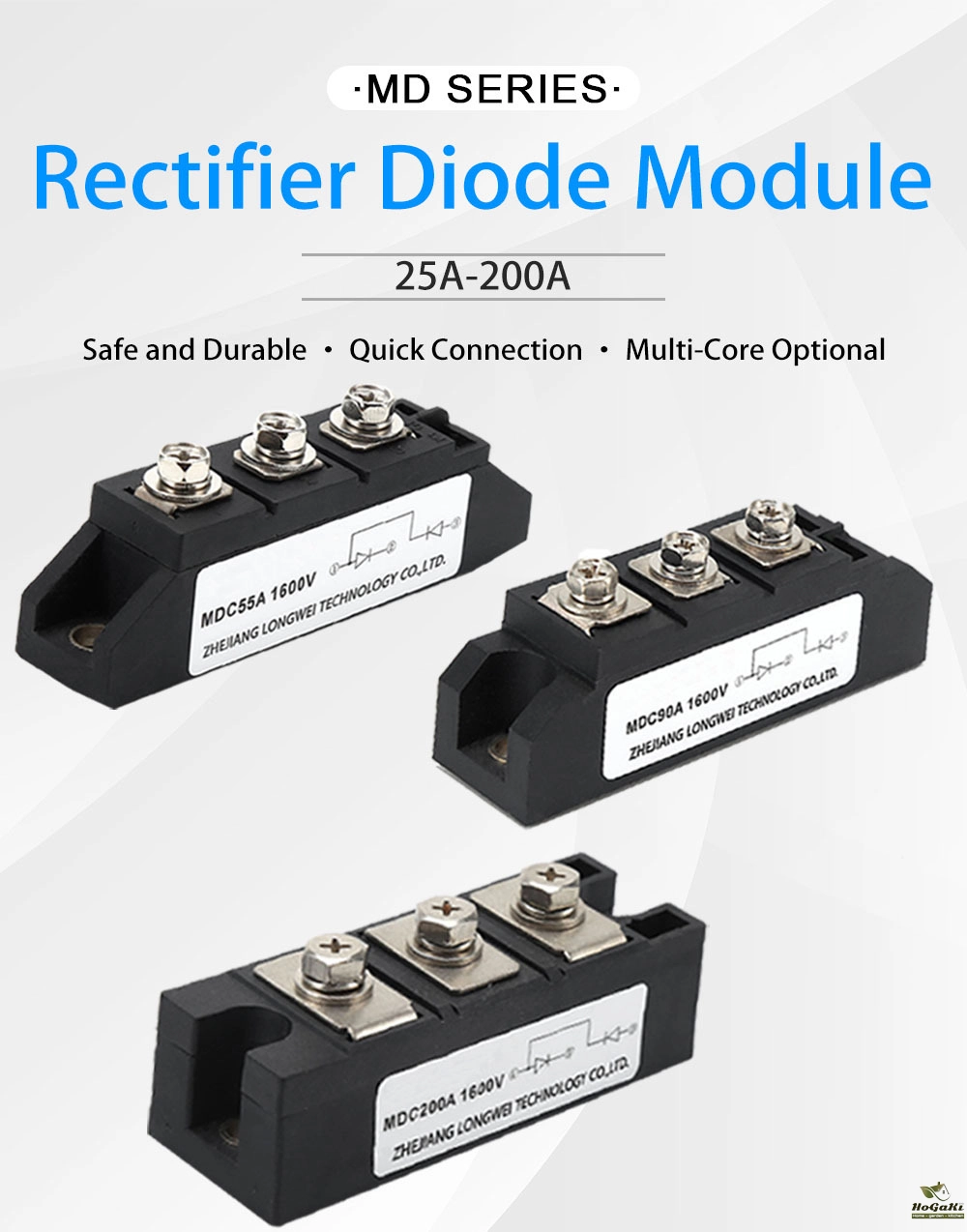

25A 70A 130A 200A Rectifier Photovoltaic DC Solar Anti-backflow Mutual Charging MD MDK MDC MDA Freewheeling Anti-reverse Diode
ID: 151817

25A 70A 130A 200A Rectifier Photovoltaic DC Solar Anti-backflow Mutual Charging MD MDK MDC MDA Freewheeling Anti-reverse Diode

0.0 ( votes) | 9 orders
Price: US $44.94 - 167.06
Discount Price:
US $ 36.71 - 110.96
-18%
Color
Wattage
Quantity

Buy Now
Add to Cart




Symbol

Parameter

Test Conditions

Junction
Temperature Tj (℃)

Parameter Value

Unit

Maximum

Typical

Maximum

IF(AV)

Average on-state current

180 ° sine half wave, 50HZ single sided heat dissipation, Tc=100 ℃

150



160

A

IF(RMS)

Root mean square current


150



251

A

VRRM

Repetitive Peak Reverse Voltage

VDRM&VRRMtp=10ms
VDSM&VRSM=VDRN&VRRM+200V

150

500


4000

V

IRRM

Repetitive Peak Reverse Current

VRM=VRRM

150



12

mA

IFSM

Forward non repetitive surge current

10ms base width, sine half wave VR=0.6VRRM

150



6.00

KA

I²t

Square time product of surge current

150



184

A²³10³

VFO

Threshold voltage


150



0.8

V

RF

Slope Resistance




1.35

mΩ

VFM

Peak Forward Voltage

IFM=480A

25



1.2

V

Rth(j-c)

Thermal impedance (junction to shell)

180 ° sine half wave,
single sided heat dissipation




0.230

℃/W

Rth(j-c)

Thermal impedance (shell to bulk)

180 ° sine half wave,
single sided heat dissipation




0.08

℃/W

Viso

insulation current

50HZ,R.M.S,t=1min
Iisc:1mA(max)





V

FM

Installation torque (M5)



2500

6


N·m

Installation torque (M6)




6


N·m

Type

IT(AV)

IDRM IRRM

IDRM IRRM

VTM

ITM

IF(RMS)

Tjm

Viso

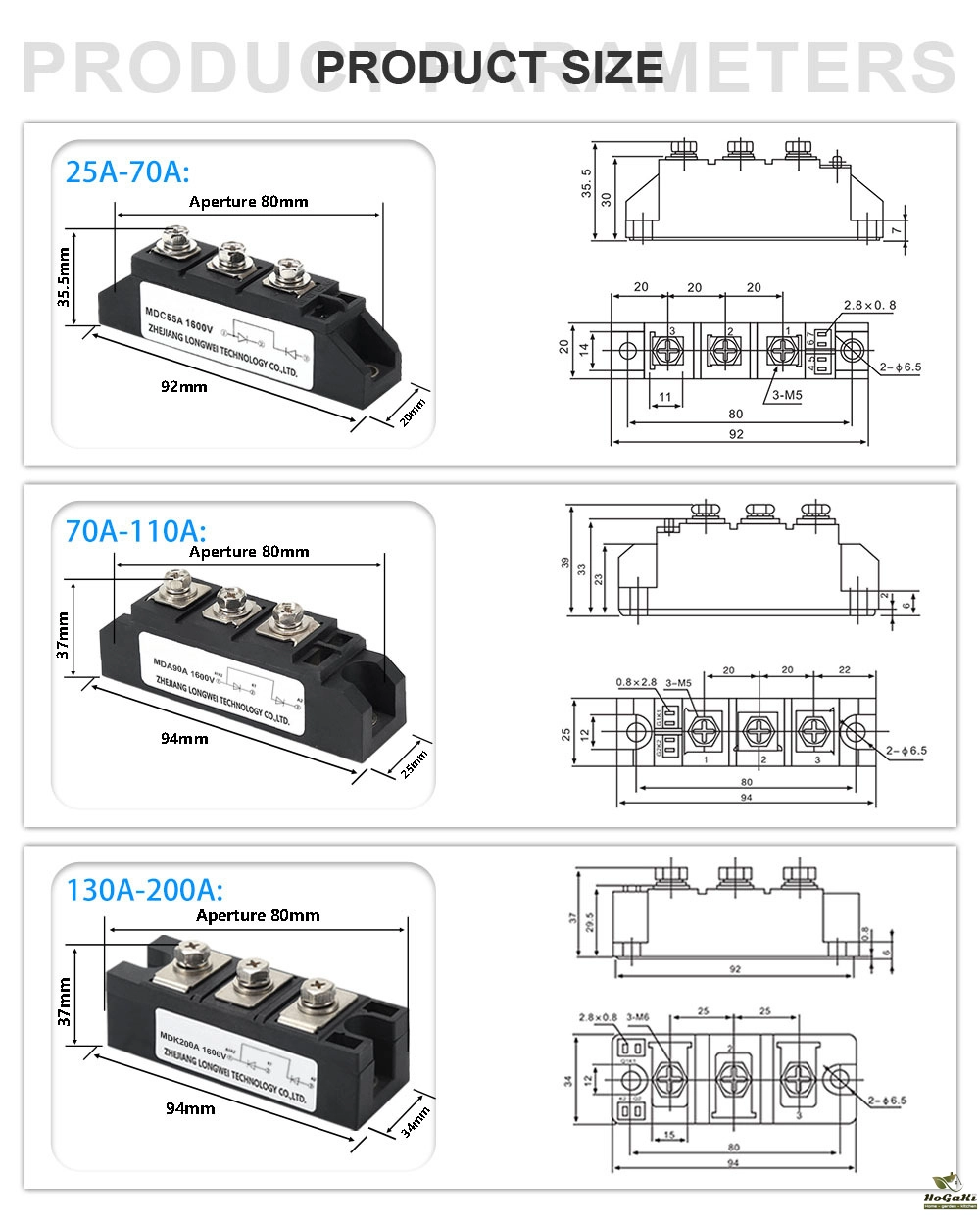

Housing

A

V

mA

V

A


V(AC)

MD x 25A

25

400-2600

8

1.5

80

41

150

2500

101F

MD x 55A

55

400-2600

8

1.5

170

86

150

2500

101F

MD x 70A

70

400-2600

8

1.5

270

110

150

2500

201F

MD x 90A

90

400-2600

8

1.5

270

141

150

2500

201F

MD x 110A

110

400-2600

8

1.5

330

173

150

2500

201F

MD x 130A

130

400-2600

12

1.5

410

212

150

2500

301F

MD x 160A

160

400-2600

12

1.5

480

251

150

2500

301F

MD x 200A

200

400-2600

12

1.5

600

314

150

2500

301F

MD x 250A

250

400-2600

20

1.5

750

393

150

2500

401F

MD x 300A

300

400-2600

20

1.5

900

471

150

2500

401F

MD x 400A

400

400-2600

40

1.65

1000

640

150

2500

401F

MD x 500A

500

400-2600

40

1.65

1500

785

150

2500

501F

MD x 800A

800

400-2600

40

1.65

2400

785

150

2500

701F

MD x 1000A

1000

400-2600

40

1.65

3000

785

150

2500

701F

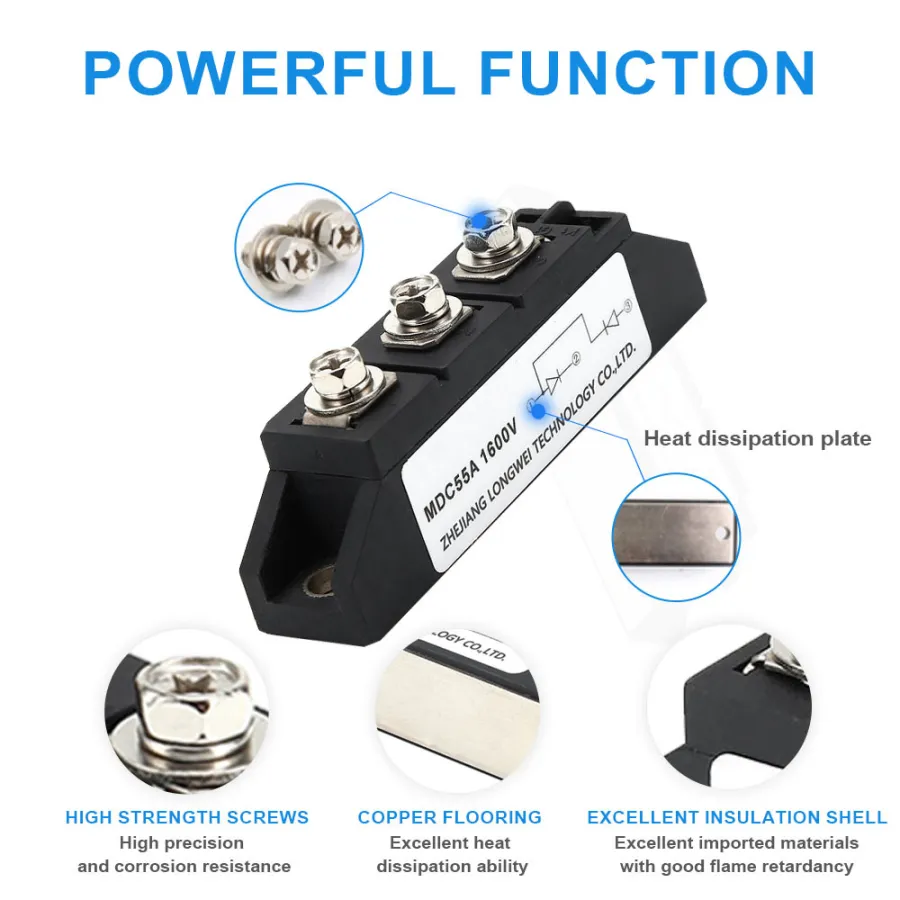

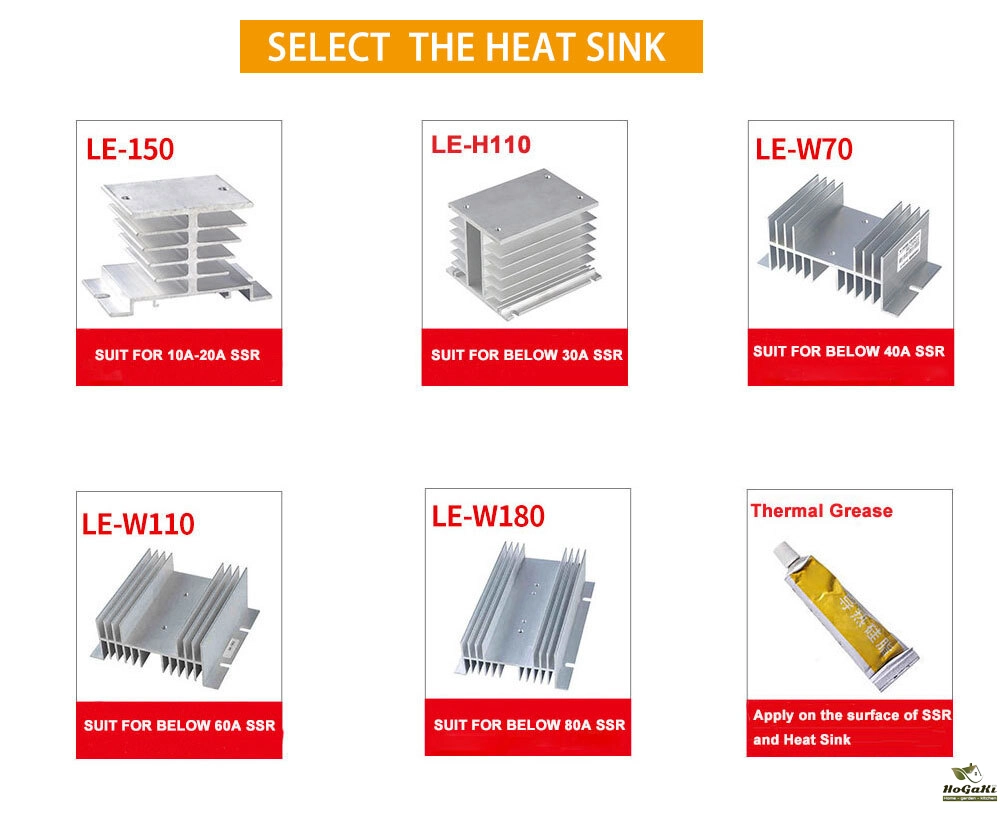

During the useage of diod rectifier module, it will give out a lot of heat, so in order to extend it's life, please install a heat sink, and a cooling fan if necessary. The temperature of baseboard should not exceed
80.
Heat release rate=actual load current (A) x 3.0W/A

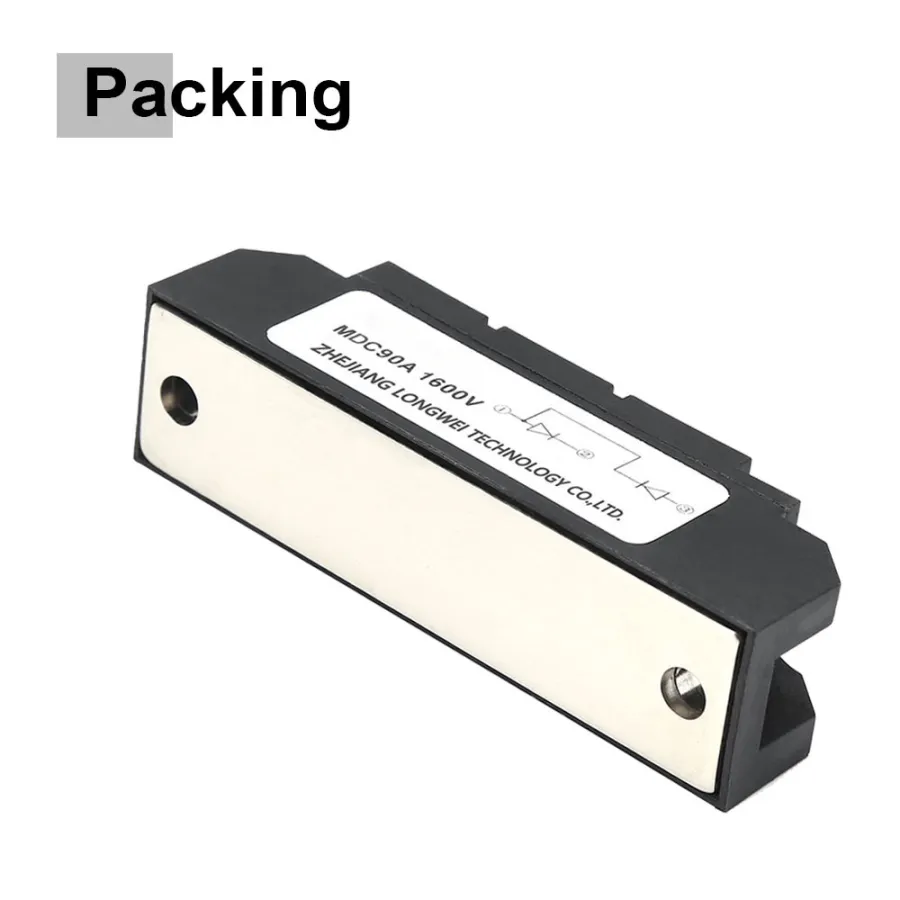

Packaging Details

  • Unit Type:
  • Package Weight: 0.240
  • Package Size: 3x4x10

  • Brand Name: NoEnName_Null
  • Origin: Mainland China
  • Ballast: electronic

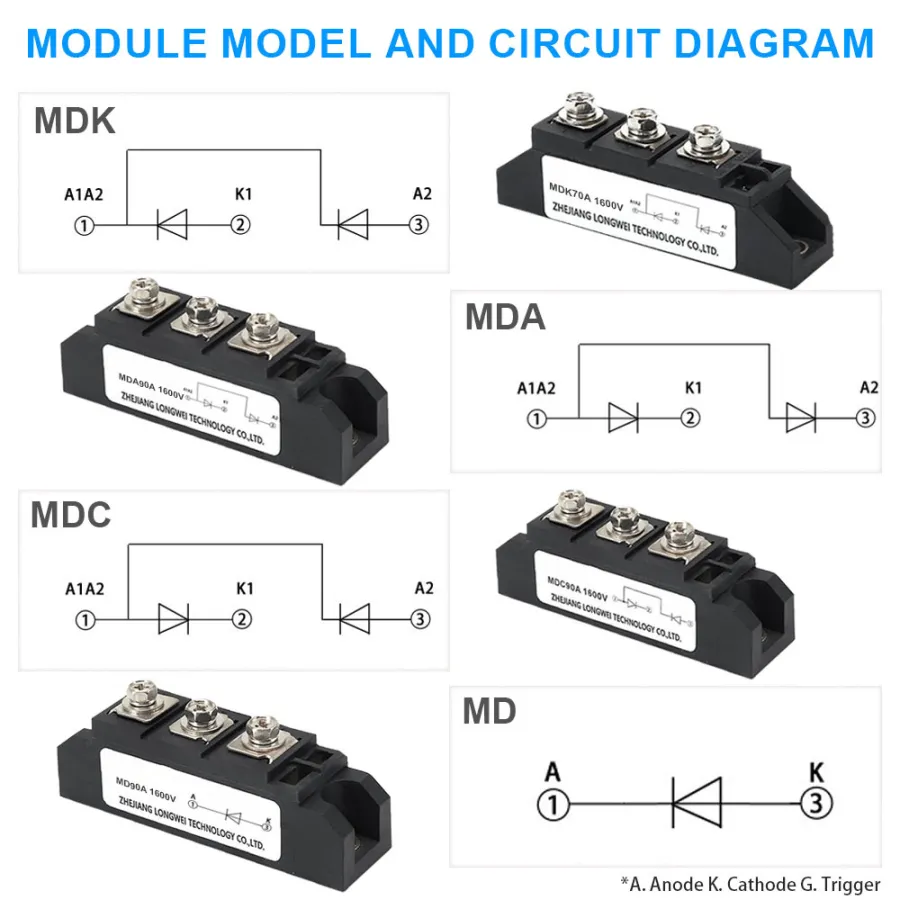

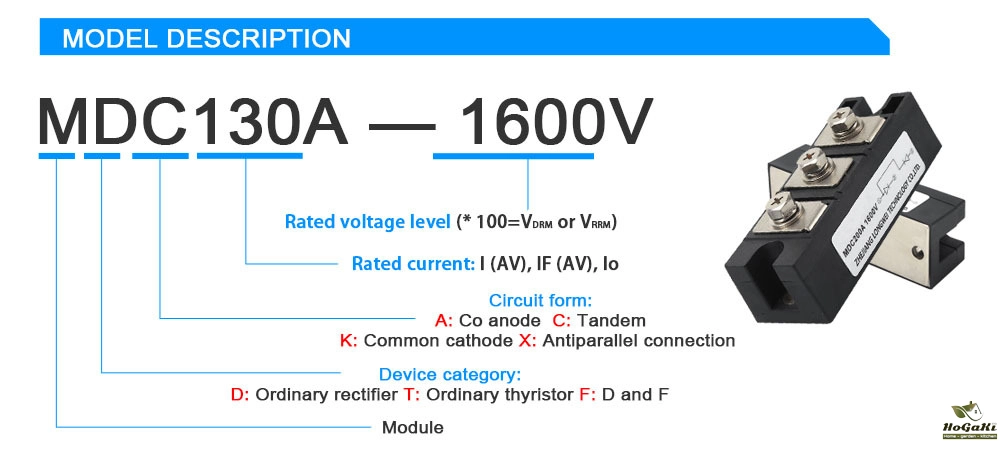

  • Model Number: MDC, MDA, MDK,MD
  • Power Factor Compensation: WithOut
  • Features: Diode rectifier module
  • Item Type: BALLASTS
  • Warranty: 1 year
  • Certification: None
  • Housing: 201F
  • Rated current: 25A,55A,70A,90A,110A,130A,160A,200A
  • model: MDC, MDA, MDK,MD
