2500W Induction Heater High Frequency Induction Heating Machine Metal Smelting Furnace + Crucible+power supply

0.0 ( votes)
Price: US $835.22 / piece
Discount Price:
US $ 669.88 / piece
-20%
Color
Quantity

2500W Induction Heater High Frequency Induction Heating Machine Metal Smelting Furnace Welding Metal Quenching Equipment


Parameter:

the maximum working voltage:   48V

the maximum working current:  50A

the maximum working power:  2500W

the size: 44mm*170mm*95mm

matching copper tube size:  60mm*10circle


Feature:

1. It adopts integrated assembly design, integrated heat dissipation, water cooling, overcurrent

protection and power detection. It is easy to use and requires no extra wiring. It only needs to be

connected to the power supply.

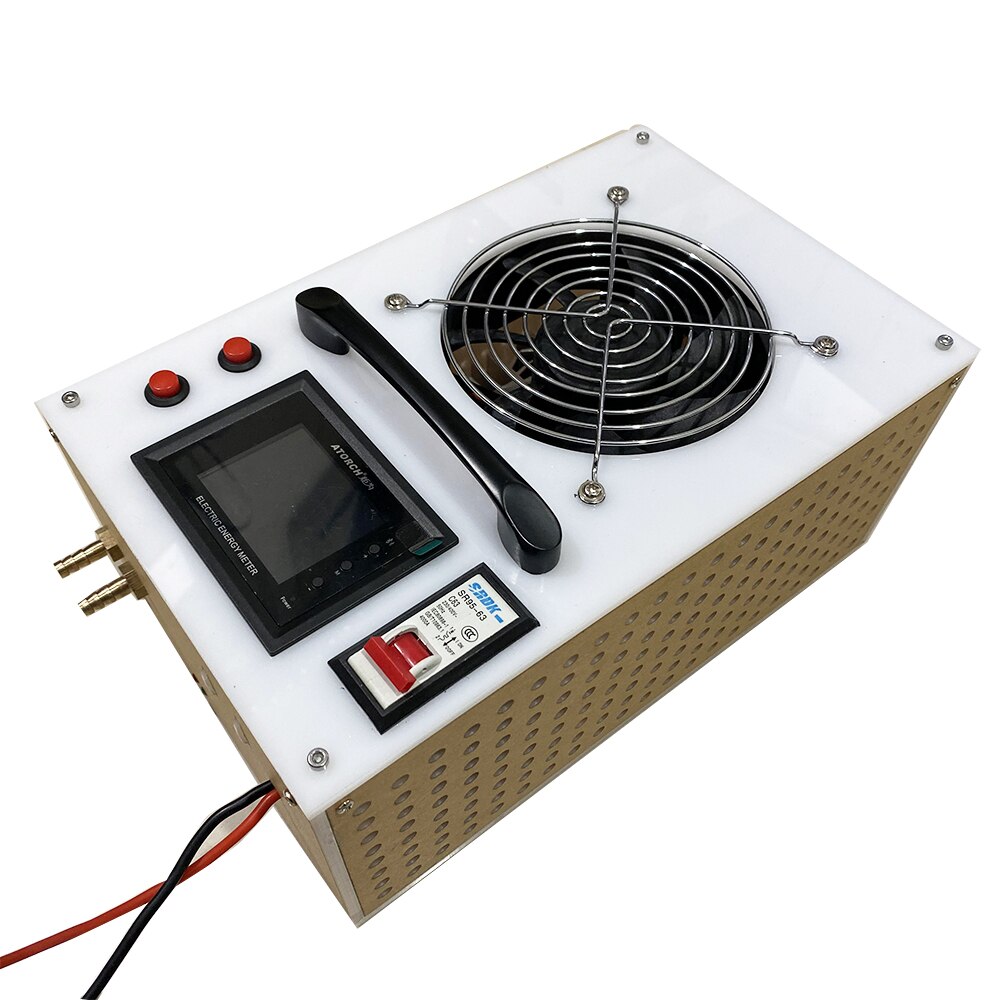

2. Real-time digital power meter displays parameters such as voltage, current and power to

prevent overload

3, 1.8KW (2   90*90 cooling fans at the bottom, ),2.5kw(   2  120*1200 cooling fans at the bottom,)

excellent heat dissipation effect

4, the top design has a handle, easy to carry and move

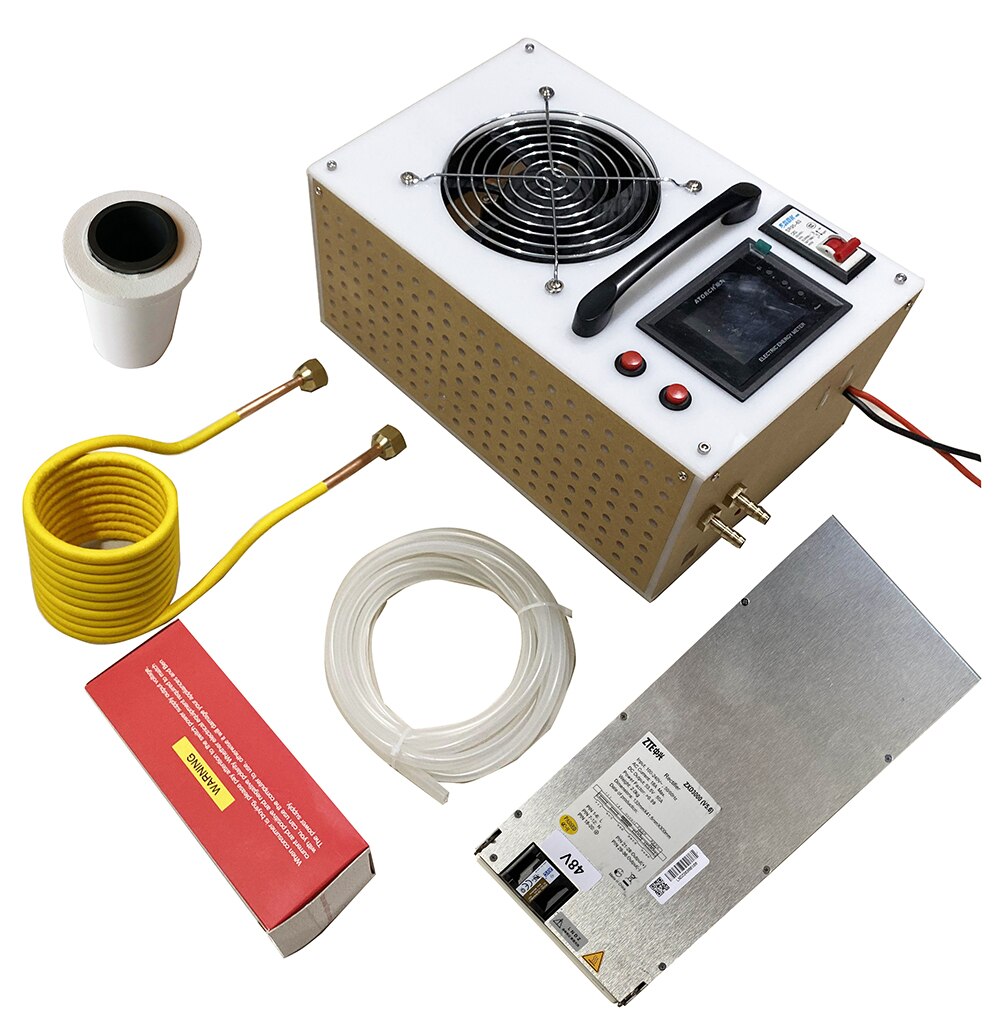

Package:

Integrated induction heating machine*1

Copper tube*1

Crucible*1

power supply*1

(This power supply is disassembled second-hand communication power supply)



the use of precautions:


1. No matter in any case, no-load is allowed (no-load refers to the output port without


any load).Once the power is turned on, the board will emit high-frequency noise, which


will cause the MOS tube to be completely damaged and cannot be repaired.


2. It must be noted when using a switching power supply, because a high-power


switching power supply generally has a slow-start function, that is, it slowly rises at the

beginning of the output voltage, and if the voltage is turned up to 11V, the induction

heating circuit is turned on because the voltage is insufficient. The circuit does not

vibrate, so that the two MOS tubes are turned on at the same time to burn the

components, so be sure to energize the external power supply before pushing the air

switch on the right side of the power meter on the main unit.

3. This circuit has strict requirements on power supply. The 12V power supply must use


more than 500W power supply, 24V is greater than 1200W, 36V is greater than 2000W,


and 48V is greater than 2600W (recommended working voltage is 48V);


4. No matter the voltage is used, as long as the operating current is lower than 50A, the


circuit will not be burned out. Therefore, a 50A fuse can be added to protect the circuit


during high-power operation.


5. The working voltage must not be lower than 12V.


6. The input power supply is recommended to be DC48V50A. Do not use AC power!!!


7. Since the machine uses the bottom air intake for air cooling, the machine uses the


object to pad the machine at least 30mm or more to avoid damage to the machine.



use the steps:


1. Make sure the air switch is off!

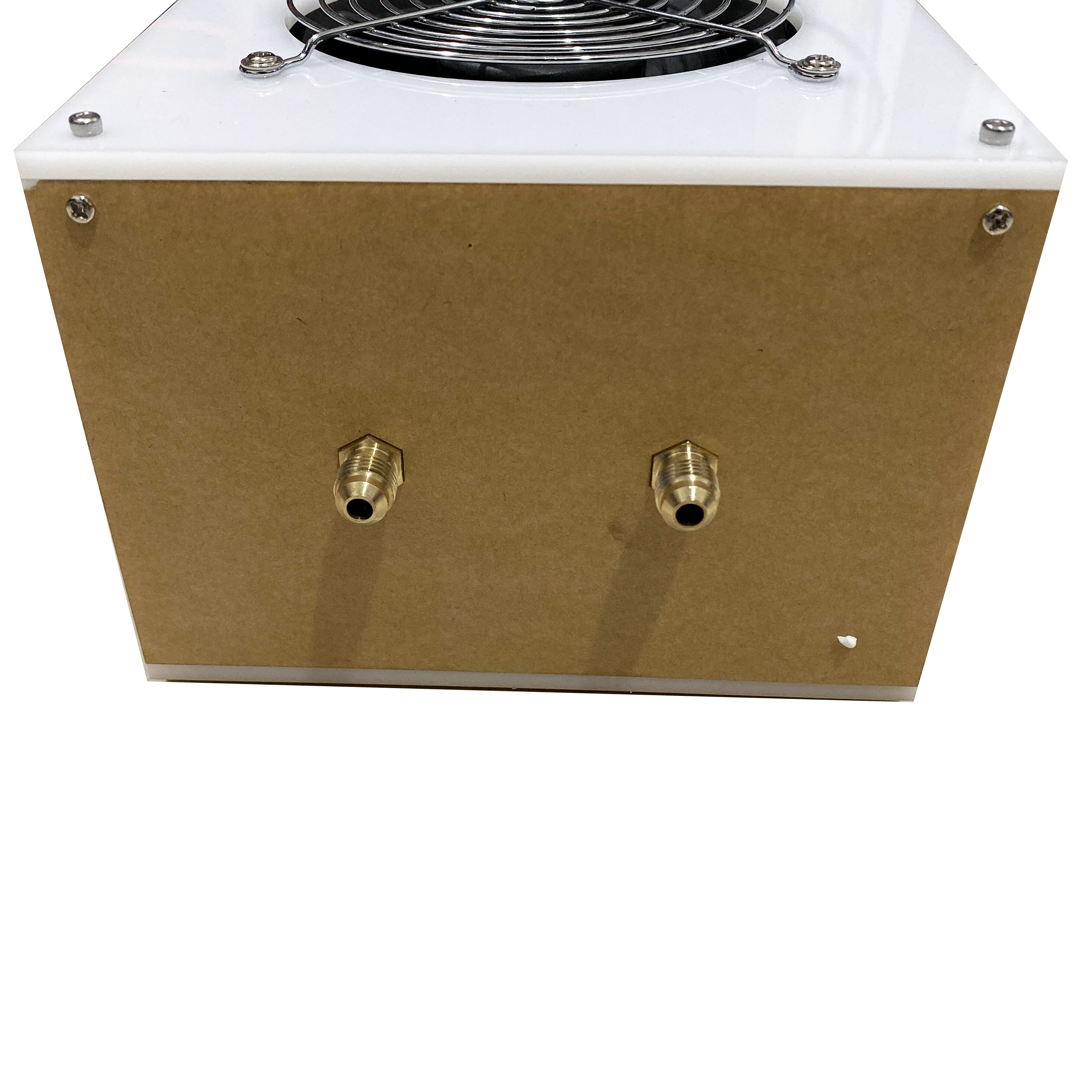

2. Connect the external water pipe to the cold water prepared in advance, and fasten the


heating ring to the heating ring connector with a wrench.


3. Turn on the external power supply (not push the air switch), the water pump fan and


the power meter are running. If any one of the cooling fan and the water pump does not


work, stop using the contact manufacturer. If the voltage on the power meter is lower


than 12V, check the external DC power supply. Whether it is fault


4. Push the air switch, the heating machine works, pay attention to observe the


indication of the power meter and the temperature of the main board during work.


When the working current is greater than 50A, do not continuously exceed 30 seconds.


The long-term use guarantees that the current is lower than 50A, when the motherboard


temperature is greater than 85 degrees Celsius.Please turn off the machine


5. When shutting down, follow the air switch first, and then disconnect the external DC


power supply after one minute.


one year warranty
We are not responsible for any custom duty or import tax, it is buyer’s responsibility.



  • Power: 2.5KW
  • Voltage: 220V
  • Model Number: ZVS
  • Certification: NONE
  • Origin: Mainland China
