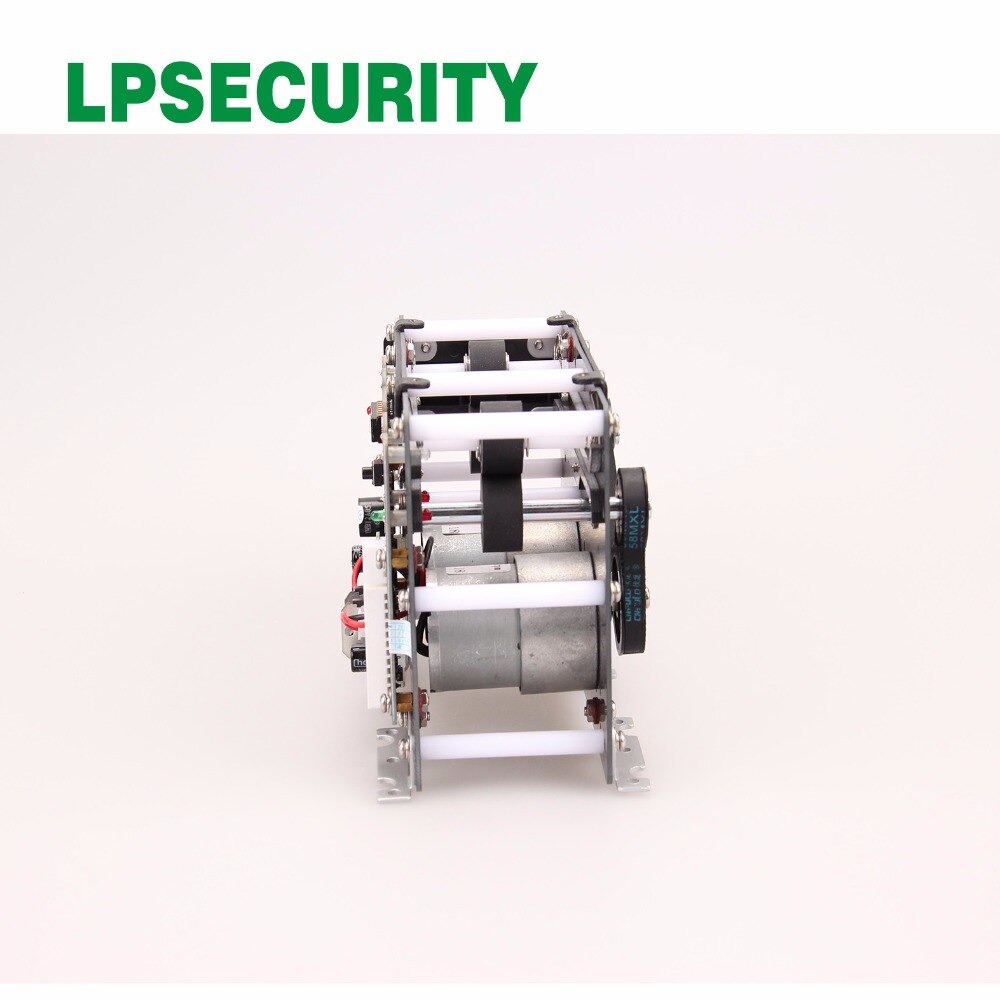

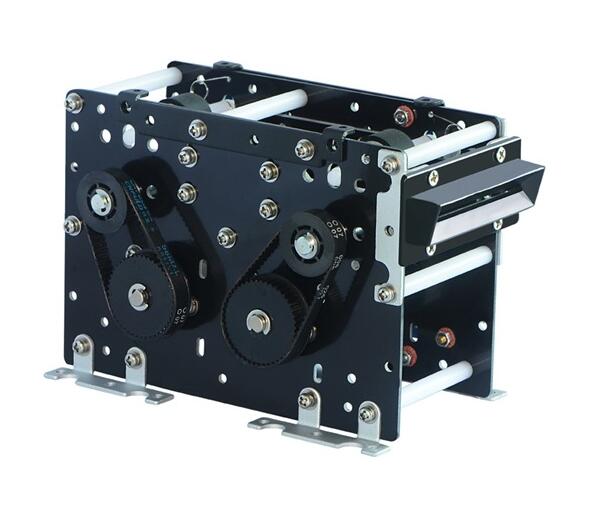

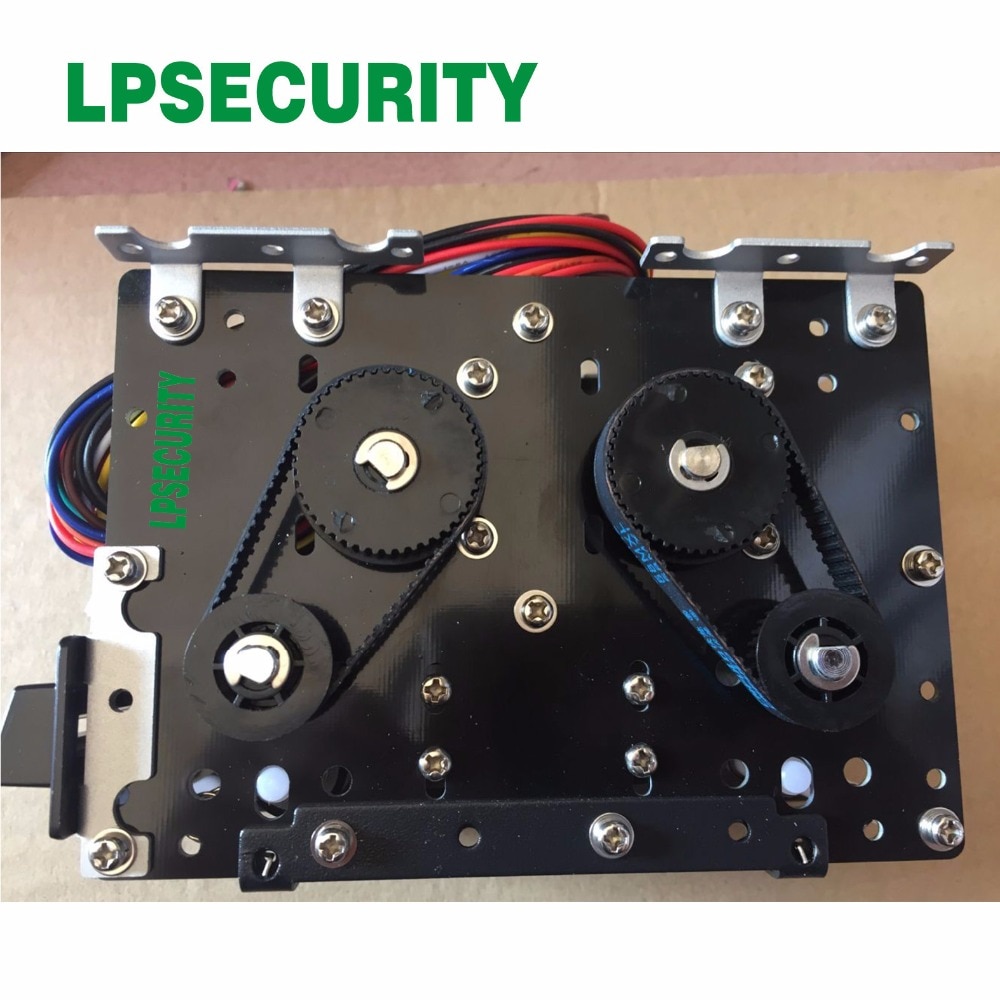

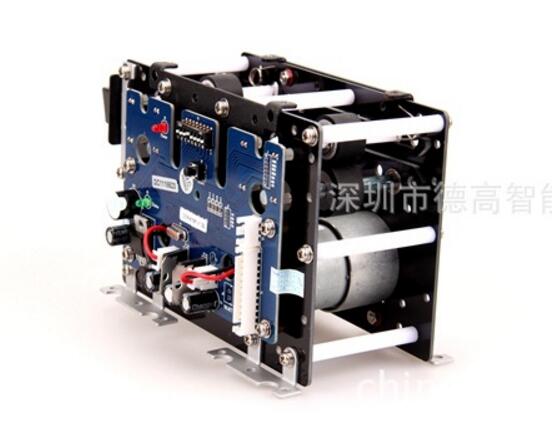

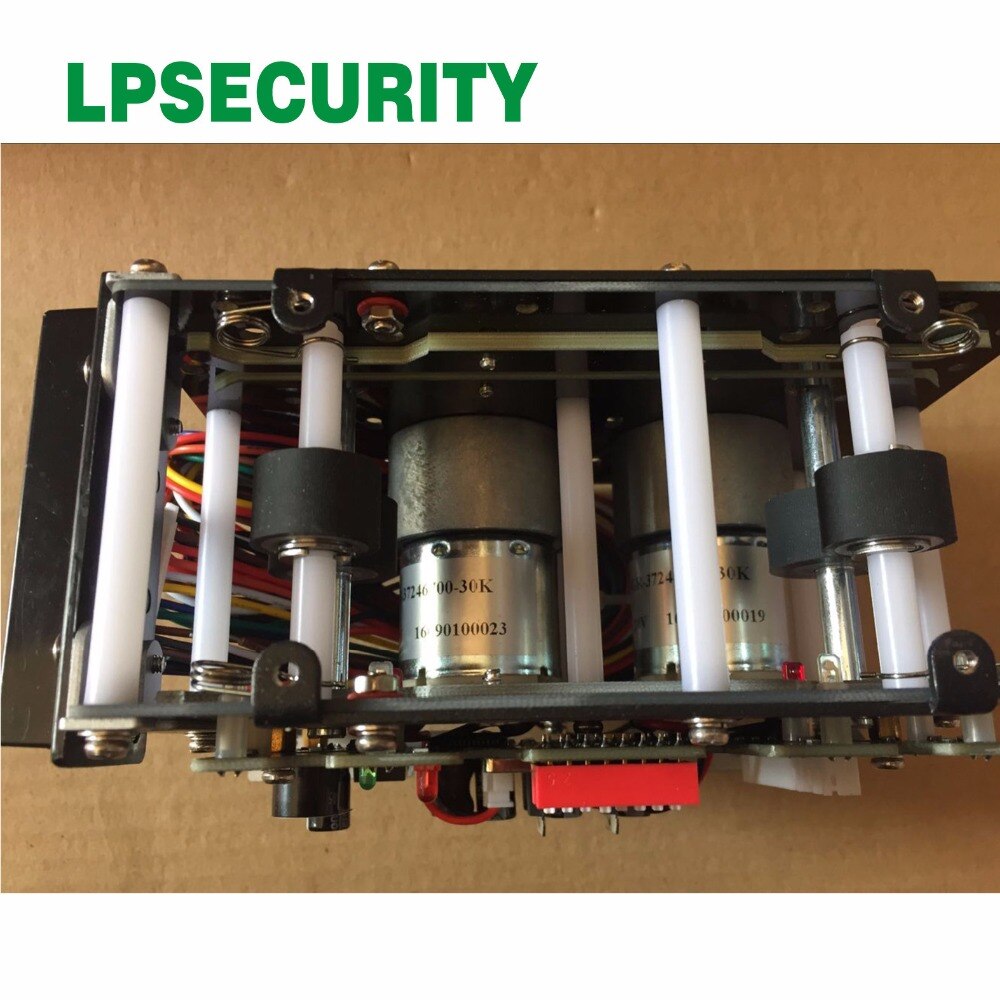

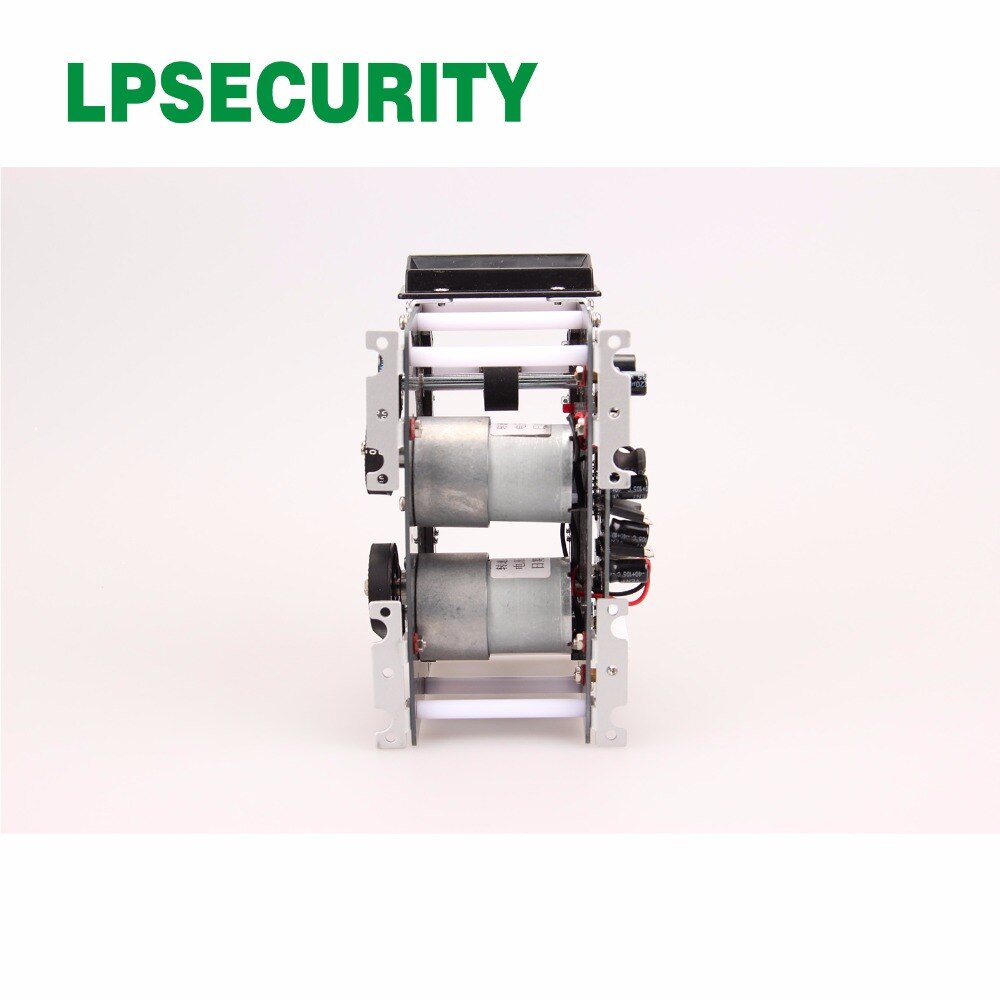

24VDC Dual motors Automati card recviving device /TTL electrical Card Collector for Automatic ticket management system
0.0 ( votes) | 1 orders
Price:
US $207.10
/ piece
Discount Price:
US $
190.53
/ piece
-8%
Packing:
1* 615P card collector
1* Cable (12 line)
1* Cable 2 (3PIN)
1* Card mouth K2
Main characteristics
With options to quit cards and callback cards if overtime under jamming
With options to quit cards or callback cards in force under jamming
With options to quit cards or not quit cards if overtime
With options for the time of quitting cards if overtime
With the function of avoiding wrong collection and card following. If the movements of the first card is not be finished, the second cards will not be collected
The signal of enabling of monitor computer and open can be offered
The validation or invalidation of cards can be received
Sound and light alarm in error condition

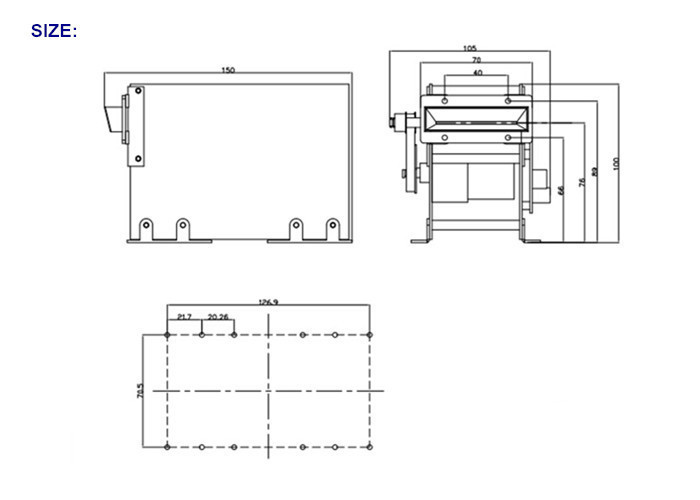

Technical parameters
Rating Voltage: 24VDC+-10%
Current Consumption: Peak-2.2Amp
Static Consumption: 0.1Amp
Temperature: -40 to 85degree(industrial)
Relative humidity: 30%-90%
Location: Within a suitable cabinet
Applicable card size: width:54+- 0.5 mm,length:85 +- 0.5 mm card, card thickness: 0.3 – 2.5 mm (adjustable) (Note: the factory is set to 0.8mm)
Collect card time: >0.5s
Control interface:TTL level(active low),RS232(SDPP protocol
Control interface

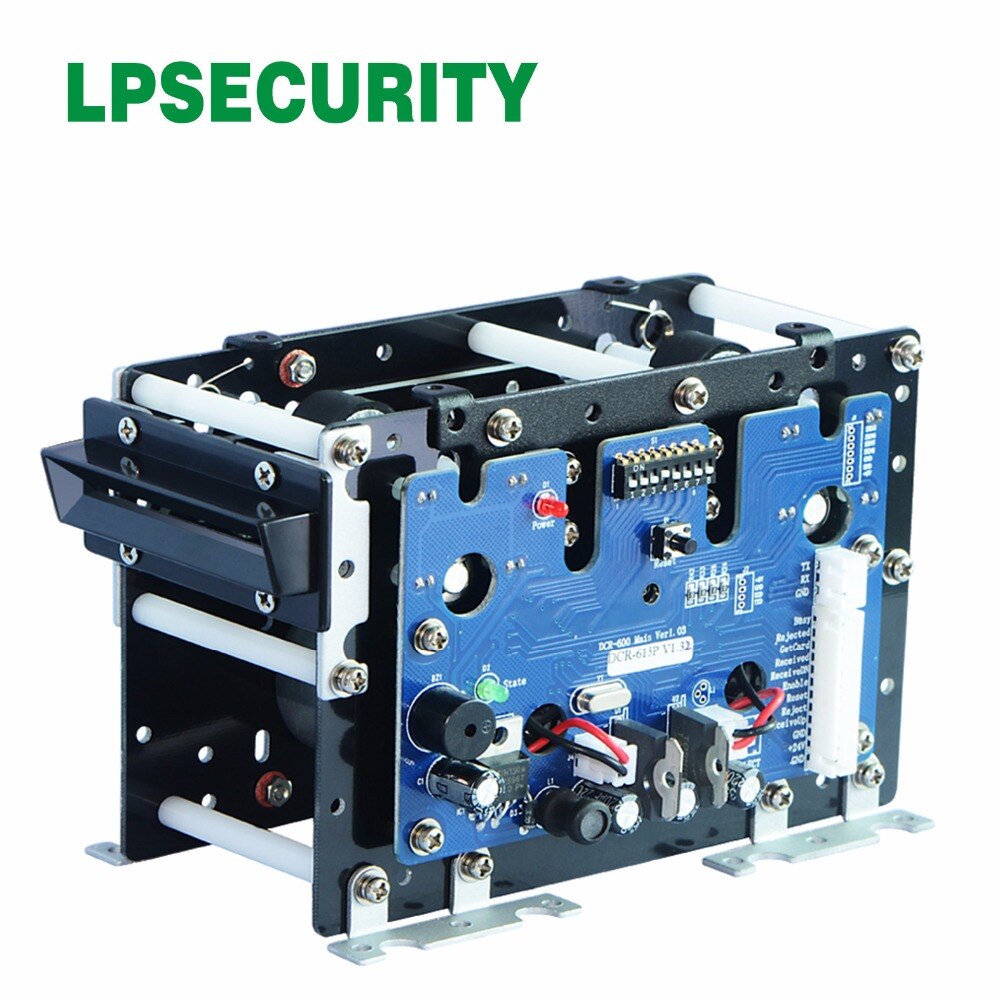

TTL electrical level control interface is offered by the DCR-615 card collector which is educed by the CN1 of electrical outlet in the control broad. The socket connectors with 2.54 mm space between is used as electrical outlet.
Interface description
Description of pin of CN1
Code of pin | Signal name | Signal description |
1 | GND (0 V) | power |
2 | +24V (DC) | |
3 | GND | 0V |
4 | Receive | Low voltage is effective (the last time exceed 200ms) |
5 | Reject | Low voltage is effective (the last time exceed200ms) |
6 | NC | non use |
7 | Enable | 10K upward pull input,Low voltage is effective |
8 | NC | Non use |
9 | Received | Output open collector,Low voltage is effective (about500ms) |
10 | GetCard | Output open collector, Low voltage is effective |
11 | Rejected | Output open collector Low voltage is effective |
12 | jammed | Output open collector Low voltage is effective |
Control signal description
Receive: the signal of receive is input when Getcard output is effective signal (low voltage). The card is collected into the warehouse (with high voltage in the collecting procession).The signal can be trade as the input signal of card collecting in force under jamming;
Reject: When GetCard output is effective (low voltage) the reject signal is input, card is quitted (GetCard is high voltage within the quitting procession ).The signal can be trade as the input signal of card quitting in force under jamming;
Enable: The card collector is permitted to work under low voltage. The card collector is prohibited under high voltage. The signal of enable can be used as the input of vehicles detector;
Received: The low voltages signal will be input with the width of 200ms .It can spring the opening of the road barrier after the card being received to the box;
GetCard: The pin will input the low voltage when card entry from the entrance of the card collector.The low voltage will last until the monitor computer sends the receiving/quitting signal or card quitted as to overtime.

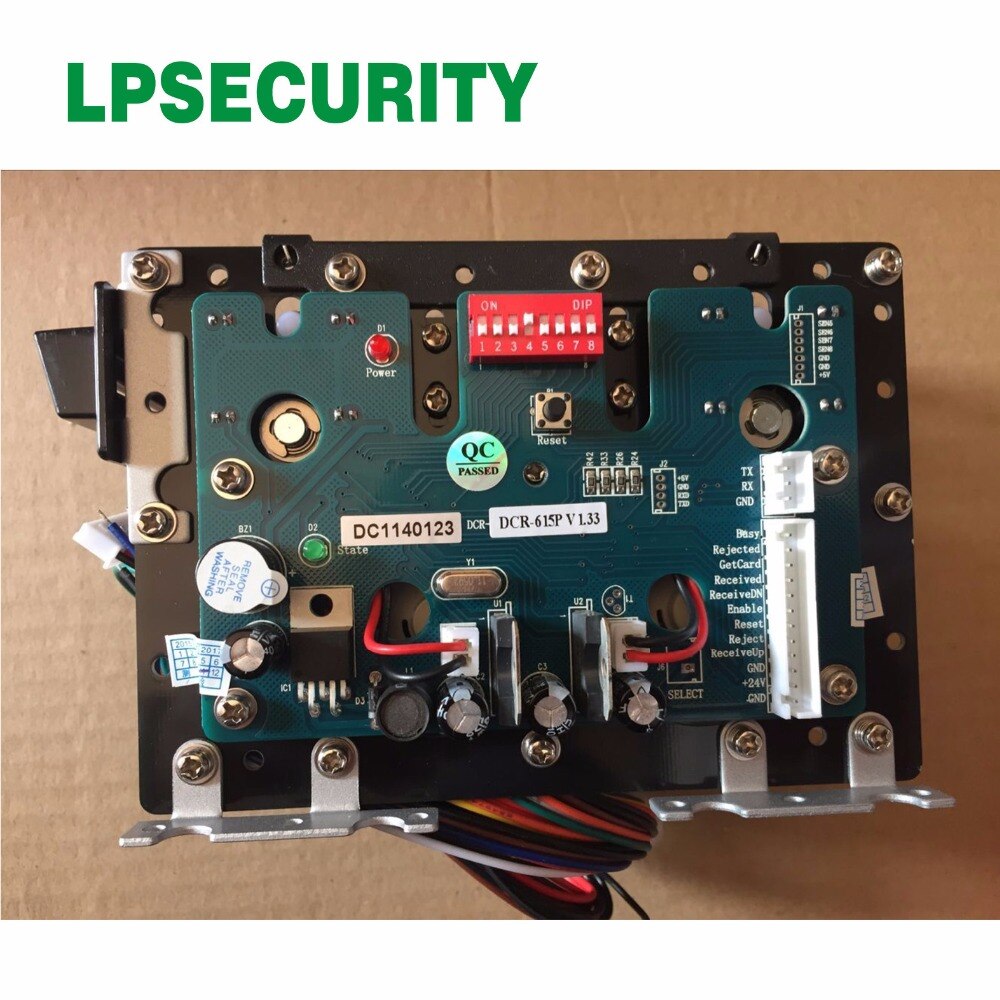

Quitting card if overtime: the card will be quitted automatically and the "rejected" signal will be input after the waiting time exceed T1.The range of T1 is determined by the DIP1 and DIP2 of the switch S1:
DIP1 OFF OFF ON ON
DIP2 OFF ON OFF ON
Time rejection 3S 10S 30S
Rejected: The pin will input the low voltage signal (lasting about 200ms at least) until the cad is took away or took back after the card quitted to the entrance;
Jammed: Card-jammed or the card is in the reading place waiting for the signal of receiving/quitting;
Card-quitting automatically
DIP4 of S1 = ON: start-up card-quitting automatically if card jammed
DIP4 of S1 = OFF: card will not be quitted automatically if card jammed
Time of card quitting automatically
DIP3 of S1 = ON: The overtime of card quitting is 10S
DIP3 of S1 = OFF: The overtime of card quitting is 5S
Indication of the work condition
There is a buzzer with a LED on the control broad indicate the work condition
After the self-inspection finished and the buzzer will input"toot" "toot" and LED will flick along with the buzzer
When the card collector is prohibited to work,LED will flick with 5Hz frequency,the buzzer will not alarm
When the card collector is permitted to work and in free condition,LED will flick at 1Hz frequency,the buzzer will not alarm
When the card collector is permitted and is in working condition, LED is bright and the buzzer will not alarm
"RECEIVED" signal is output,the buzzer alarm"toot" after the RECEIVED signal
When the signal of "REJECTED" is output and the time of which exceed 200ms,the buzzer input "toot-toot" "toot-toot" continuously. LED is bright along with the sound until card is took away or took back
When the JAM signal is output,no matter the card collector is prohibited or permitted ,the alarm will input "toot, toot, toot" "toot, toot, toot" continuously,LED is flick along with the sound.
- Model Number: DCD-615P
- Brand Name: LPSECURITY
- Origin: Mainland China
- Name: Auto Card Collector
