230V Duct 4" 100MM 100mm Timer Humidistat Smart Shower Toilet Bathroom Extractor Exhaust Fan Ventilator with Humidity Sensor

4.8 (232 votes)
Price:
US $ 65.38 - 79.15 / piece
Ships From
Color
Voltage
Quantity

Sales of 150mm Standard Fan from Moscow Warehouse in April



New Arrivals of 120mm Bathroom Fan !!!






Purchase Guides (Date: 15/05/2023):

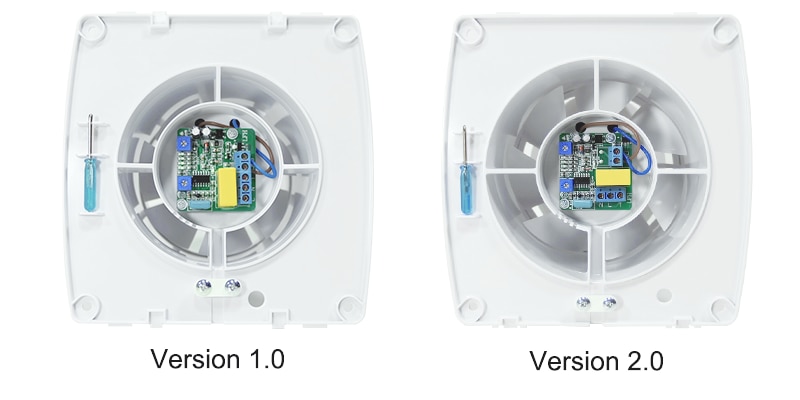

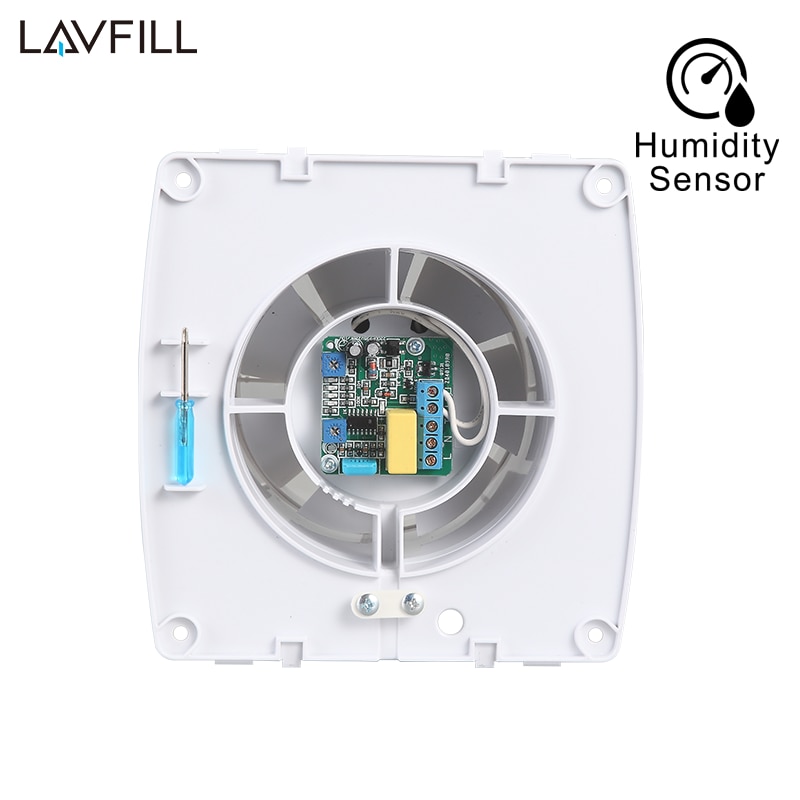

We update circuit board terminals position as below pic, we will gradually replace old verion in different warehouses, so in this period you may receive old or new in random.



To all honored buyers from Belarus, please choose to buy from Russia directly, the freight is much more reduced than buy from China.


Please check voltages (110V or 220V), dimensions, and if this model is standard one, timer one or humidity sensor one carefully before payment if it is suitable for your own specific application, if any doubt or uncertainty please check with our sales personnel in Hogaki Chat first before purchase!


For Hogaki Official Warehouse overseas and Hogaki Selection Warehouse in China packets will leave warehouse automatically during working hours when receiving order instruction after payment. If packet leaves warehouse seller can’t stop it even if order by mistake, please help to recheck order details before payment.



Unit prices in Hogaki we set are in CNY, so all unit prices shown in local currency in your pages are exchanged according to real-time exchange rate. Due to real-time exchange rate varies every day, especially CNY to RUB fluctuates widely in this special period, please buy in reasonable unit price acceptable for you, we don’t accept any refund due to price difference, thanks for your attention and understanding!


To all dear buyers, if any product damage or you find fan doesn't work as expected, please try to leave massages to contact us in Hogaki Chat first, our aftersales team will follow and reply within 12h, thanks for your time!


About Freight


To all honored buyers please recheck the freight you have to pay in the process of final payment, because as informed by some buyers the freight they paid is different from the mount shown in the listing. And if buy from different warehouses for different models, the freight will be calculated on the basis of each packet weight from different warehouses, any questions about freight please contact us first before payment to avoid any arising disputes and also save your money.


If buy three or more than three pcs sent from China please check with us if there is another shipping method to lower the freight, thanks for your attention!

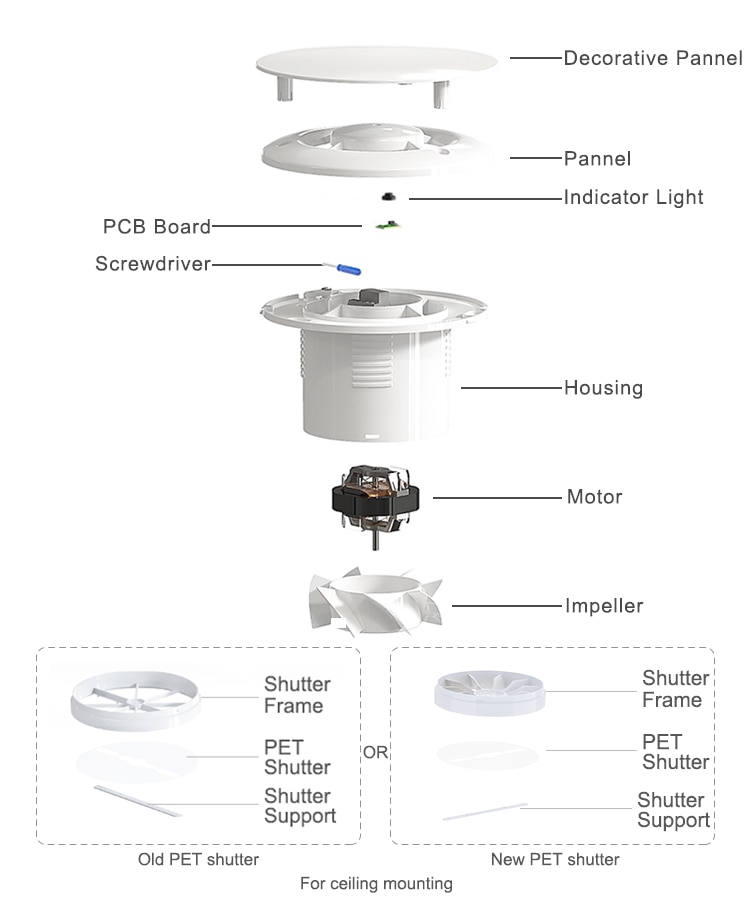

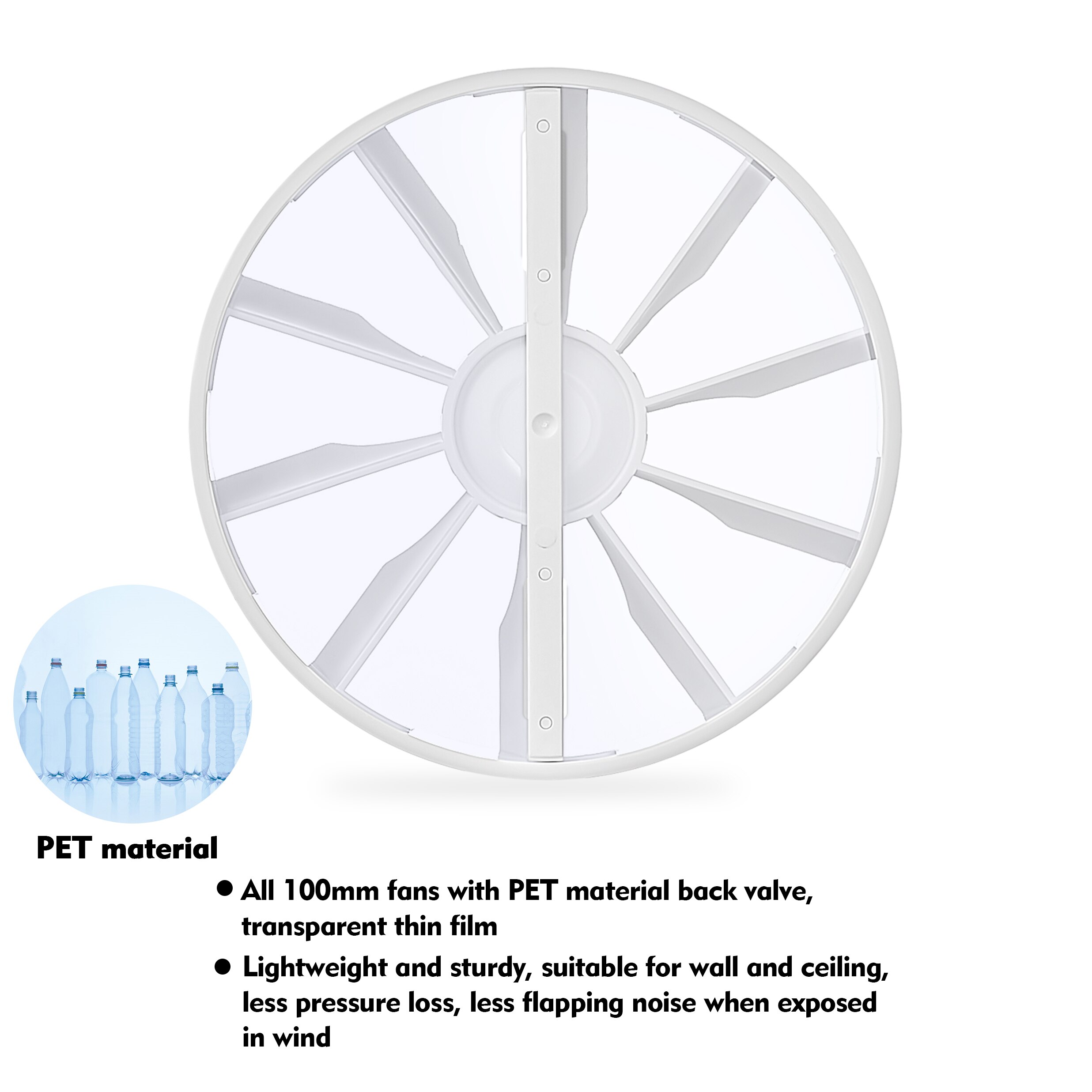

PET Back Valve:

1.All fans with PET material back valve (same as water bottle), transparent thin film

2.Light weight and sturdy, suitable for wall and ceiling mount, less pressure loss, less flapping noise when exposed in wind


!!!All Fans with Ball Bearing Motor with Thermal Protection.

Ball Bearing Motor Lifespan: 10000H

Slide Bearing Motor Lifespan: 5000H

Notes: All motor data and motor lifespan are tested and offered by one of the biggest shaded pole motor suppliers in China.


Now LAVFILL fans only offered by LAVFILL Official Store and SCHEEAIR Store distributed by SCHEEAIR team are with Ball Bearing Motor and PET back valve, it is our SCHEEAIR team own selection, please don’t mixed up with LAVFILL fans from other stores in Hogaki etc.


All our domestic fans are WITHOUT RING which is only used for window mount, if for window mount we suggest window glue. Our listings show clearly there is no ring. If you need ring please leave message to contact if possible to add it (there would be extra charge). We don't accept any dispute or claim for refund because of "missing part of ring".


If you have any specific demands, please make sure to contact us first in Hogaki Chat before purchase, for any questions about product, delivery or wiring please leave messages in Hogaki Chat we can reply within 24h.



Product Details

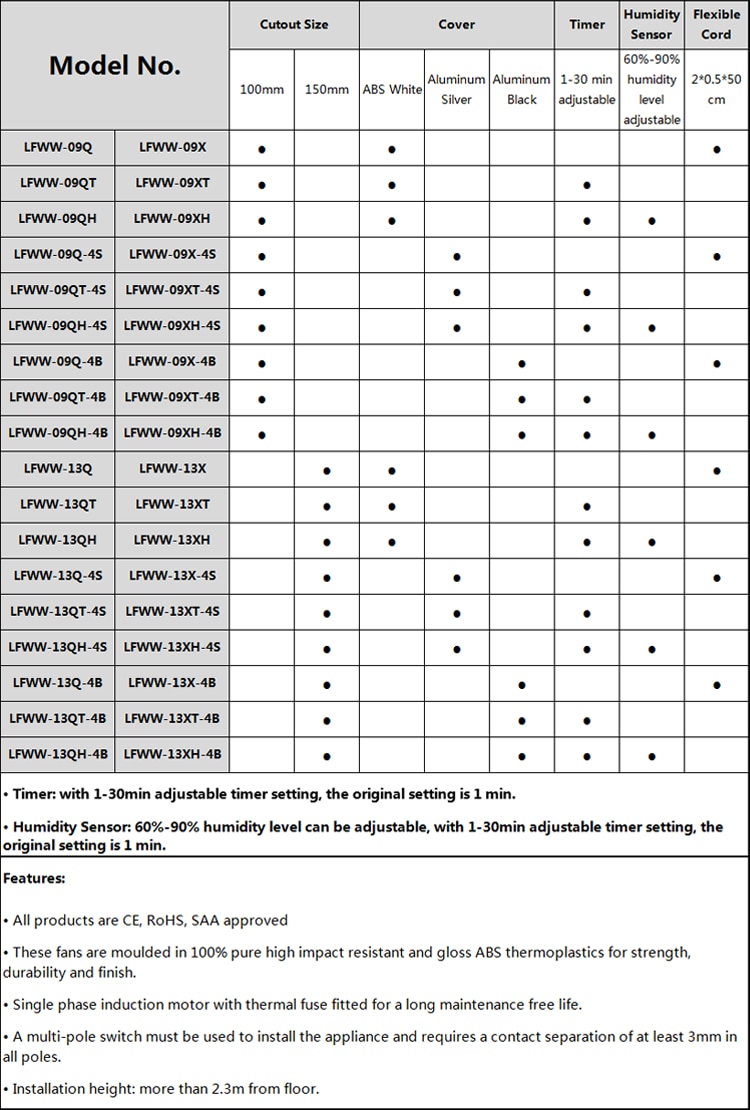

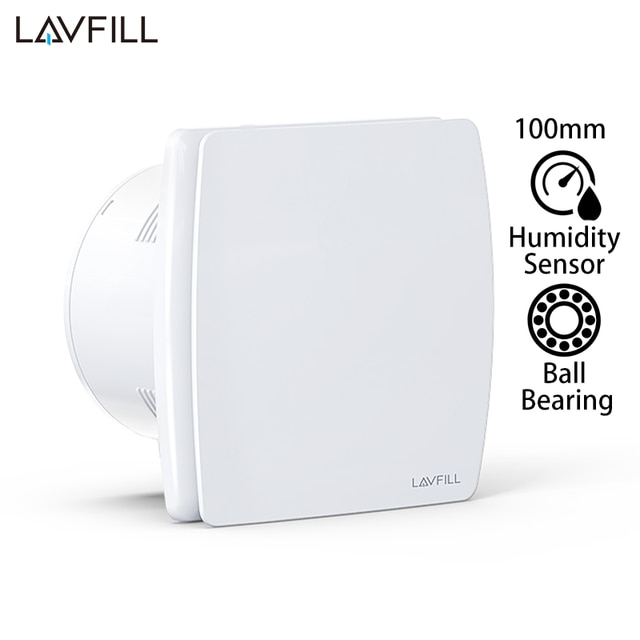

Model No. : LFWW-09QH    (PET Shutter)

  • Cover: ABS White

  • 220-240V~, 50Hz OR 220V~ 60Hz

  • Power : 12W

  • Cutout Size: 100mm

  • Max Air Volume : 95m3/h

  • Noise Level at 3m : 34dB

  • Timer: Yes, 1-30 min timer delay adjustable

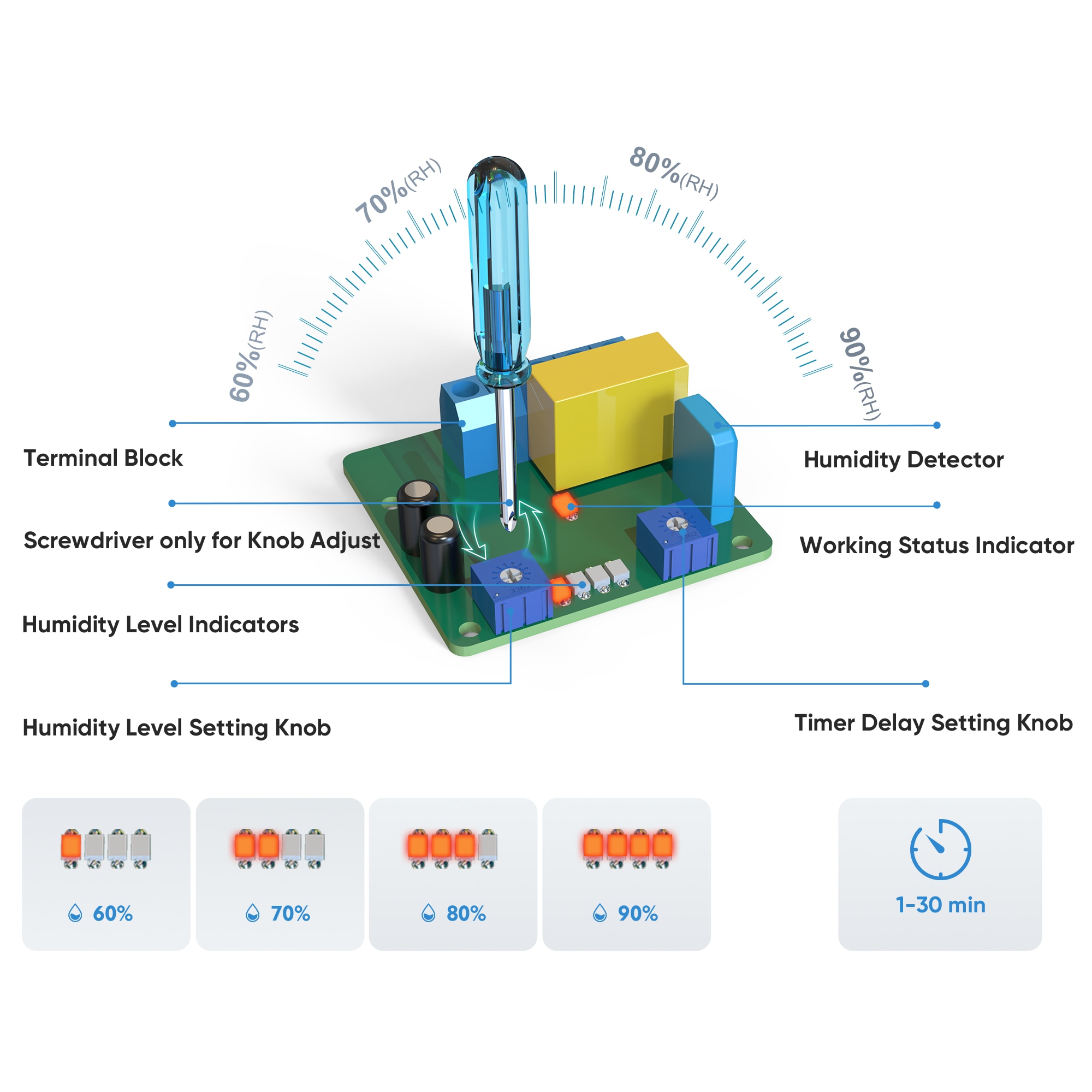

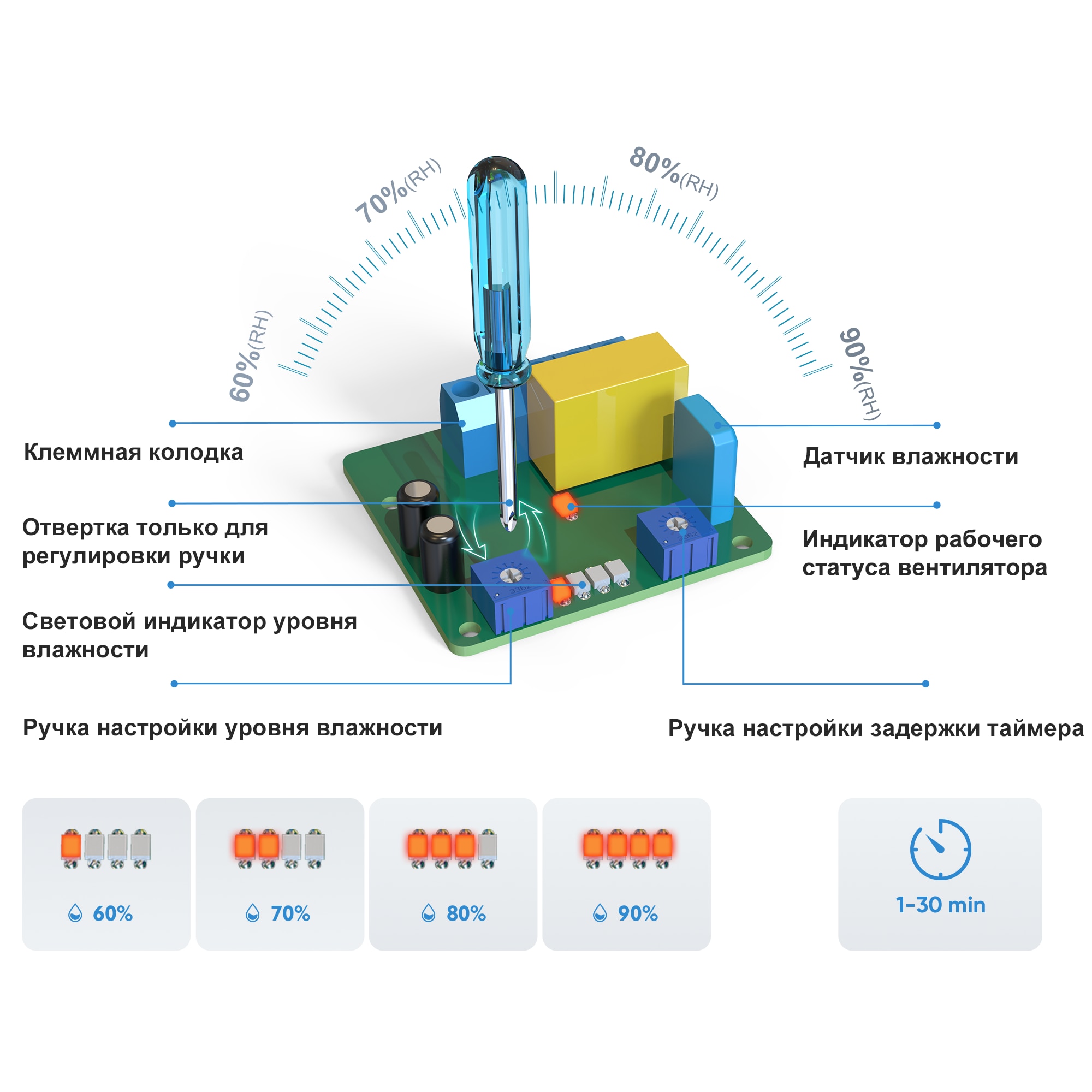

  • Humidity Sensor : Yes, 60% to 90% adjustable humidity level

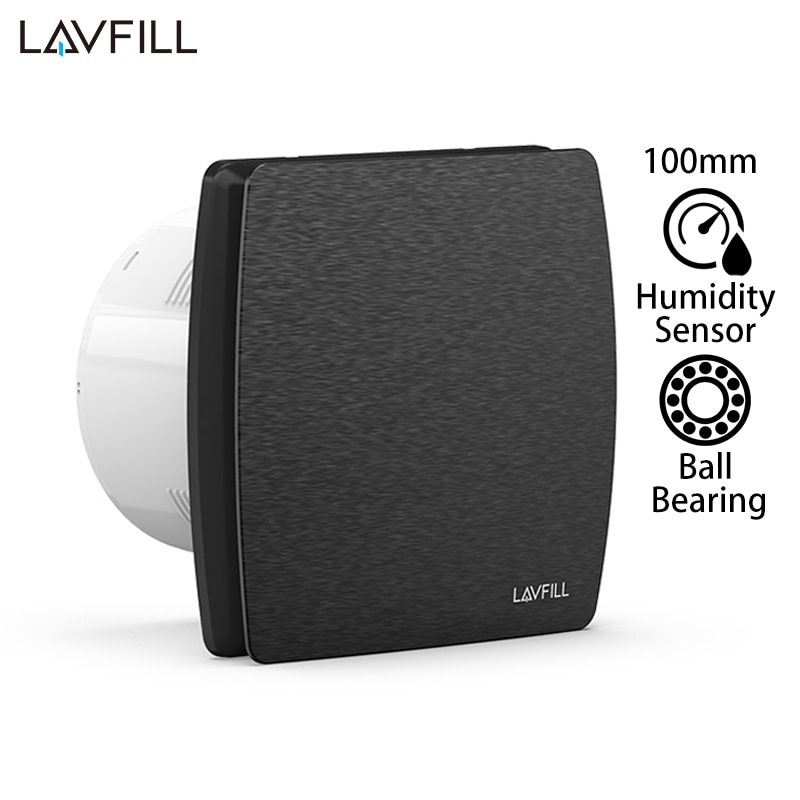

Model No. : LFWW-09QH-4B     (PET Shutter)

  • Cover: Matte Aluminum Black

  • 220-240V~, 50Hz

  • Power : 12W

  • Cutout Size: 100mm

  • Max Air Volume : 95m3/h

  • Noise Level at 3m: 34dB

  • Timer: Yes, 1-30 min timer delay adjustable

  • Humidity Sensor : Yes, 60% to 90% adjustable humidity level

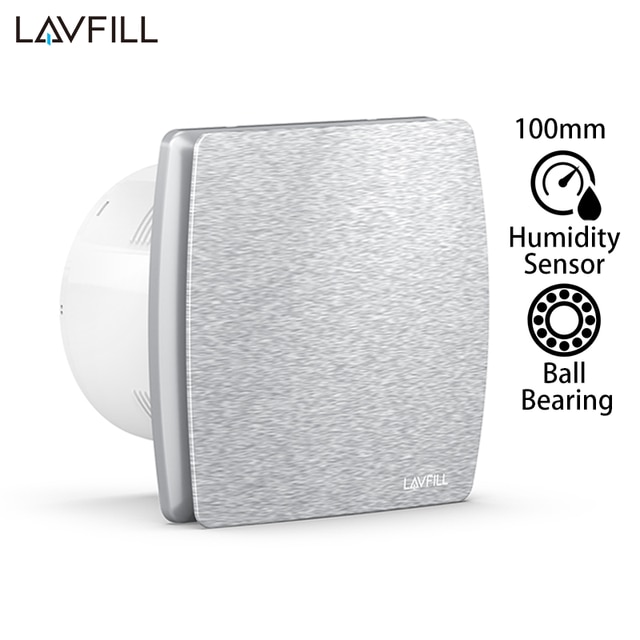

Model No. : LFWW-09QH-4S     (PET Shutter)

  • Cover: Matte Aluminum Silver

  • 220-240V~, 50Hz

  • Power : 12W

  • Cutout Size: 100mm

  • Max Air Volume : 95m3/h

  • Noise Level at 3m: 34dB

  • Timer: Yes, 1-30 min timer delay adjustable

  • Humidity Sensor : Yes, 60% to 90% adjustable humidity level

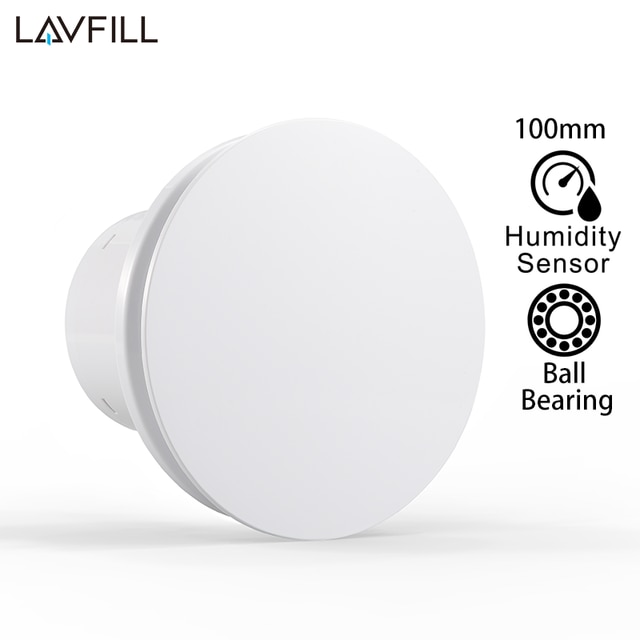

Model No. : LFWW-09XH     (PET Shutter)

  • Cover: ABS White

  • 220-240V~, 50Hz

  • Power : 12W

  • Cutout Size: 100mm

  • Max Air Volume : 95m3/h

  • Noise Level at 3m : 34dB

  • Timer: Yes, 1-30 min timer delay adjustable

  • Humidity Sensor : Yes, 60% to 90% adjustable humidity level

Warning

  • It must be fitted by a qualified electrician!

  • Please use supplied screwdriver for knob adjustment!

  • Do not use a knife or other tools for adjustment operations not to damage the circuit board!

Dimensions

  • Outlet 99mm showed in dimensions include screw thread designed in housing,

  • Please check carefully if it is suitable for your specific installation application before purchase!

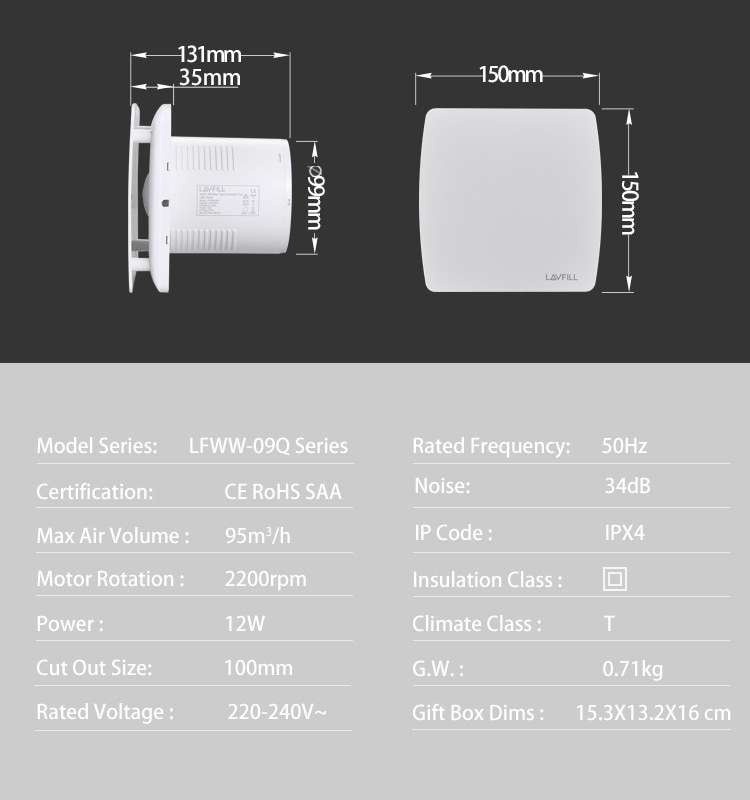

QH Series

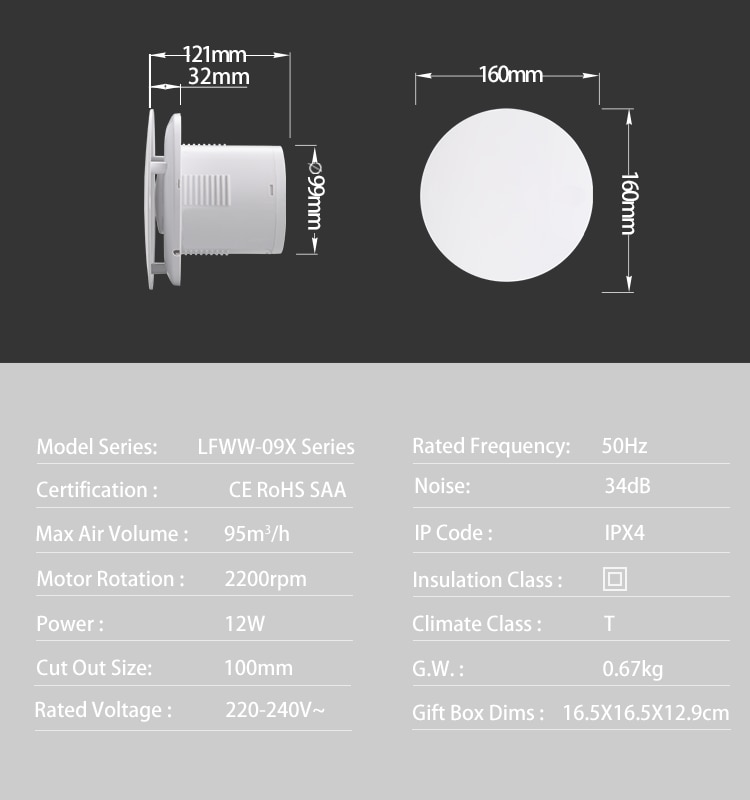

XH Series






  • Wattage: 12W
  • Brand Name: LAVFILL
  • Origin: Mainland China
  • Certification: CE,RoHS
  • Rated Voltage: 220~240VAC
  • Rated Frequency: 50Hz
  • Cutout Size: 100 mm
  • IP Code: IPX4
  • Max Air Flow: 95 m3/h
  • Noise Level at 3M: 34 dB
  • Insulation Class: Class II
  • Climate Class: T
  • Slide Bearing Motor: Yes
  • Copper Coil for Motor: Yes
  • Thermal Protection: Yes
  • Backdraft Shutter: Yes
  • Plug: NO
  • Flexible Cord: NO
  • Timer: Yes 1 to 30 min adjustable timer delay
  • Humidity Sensor: Yes 60% to 90% adjustable humidity level
  • Wall Mount: Yes
  • Ceiling Mount: Yes Please Remove ABS Shutter
  • Appliaction: Bathroom Toilet Exhaust Ventilation Fan
