220V BY-10 10KG Welding Turntable Rotator For Pipe Or Circle Workpiece Welding Positioner With K01-65 Mini Chuck Cartridge M14
0.0 (1 votes) | 5 orders
Price:
US $858.16
/ piece
Discount Price:
US $
736.28
/ piece
-14%
- Ships From

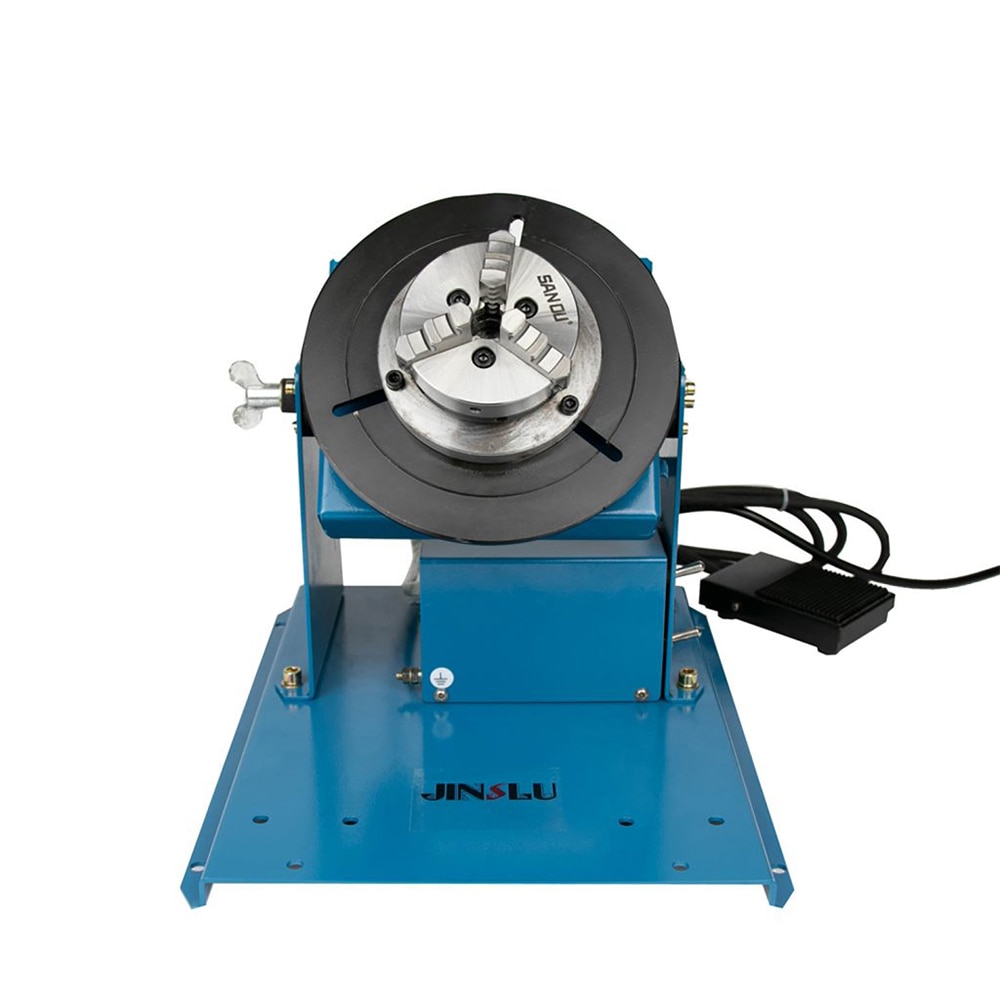

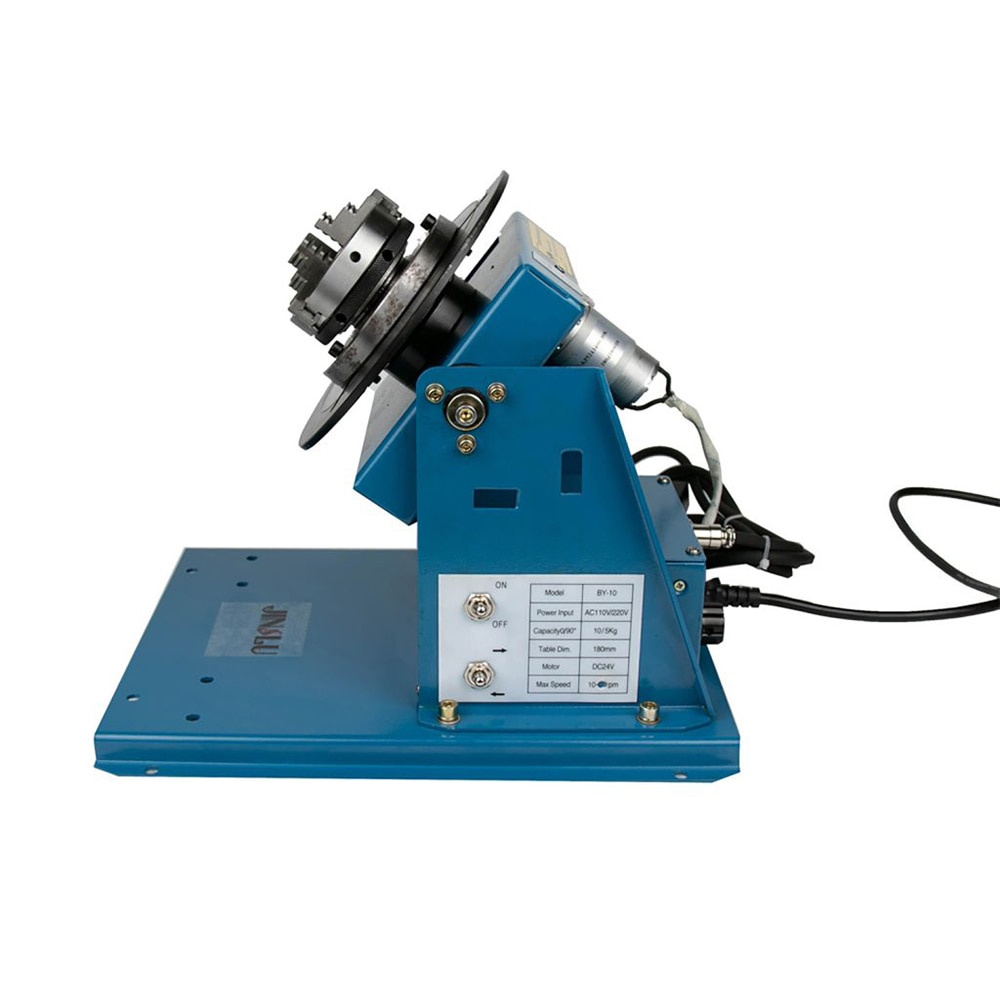

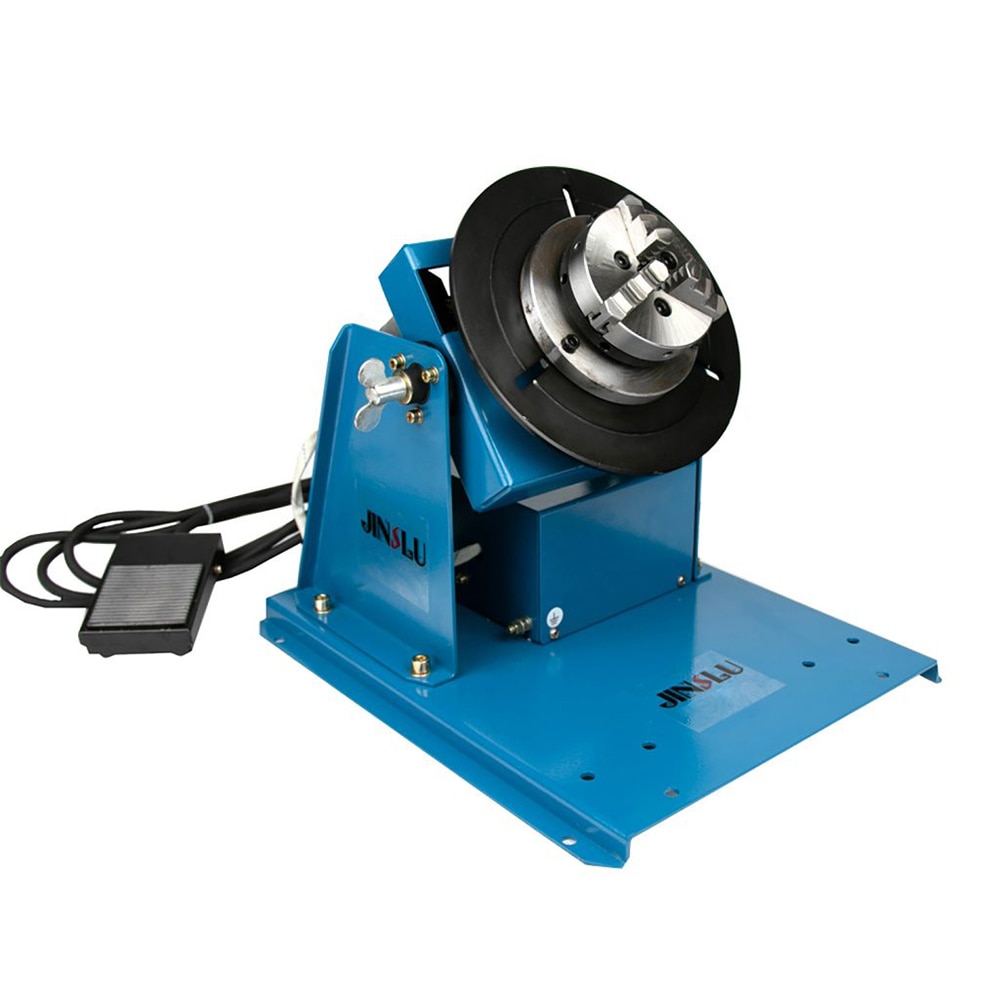

220V BY-10 10KG welding turntable rotator for pipe or circle workpiece welding positioner with K01-65 mini chuck
Packing list:
BY-10 welding positioner 1set(220V)
K01-65 chuck 1set

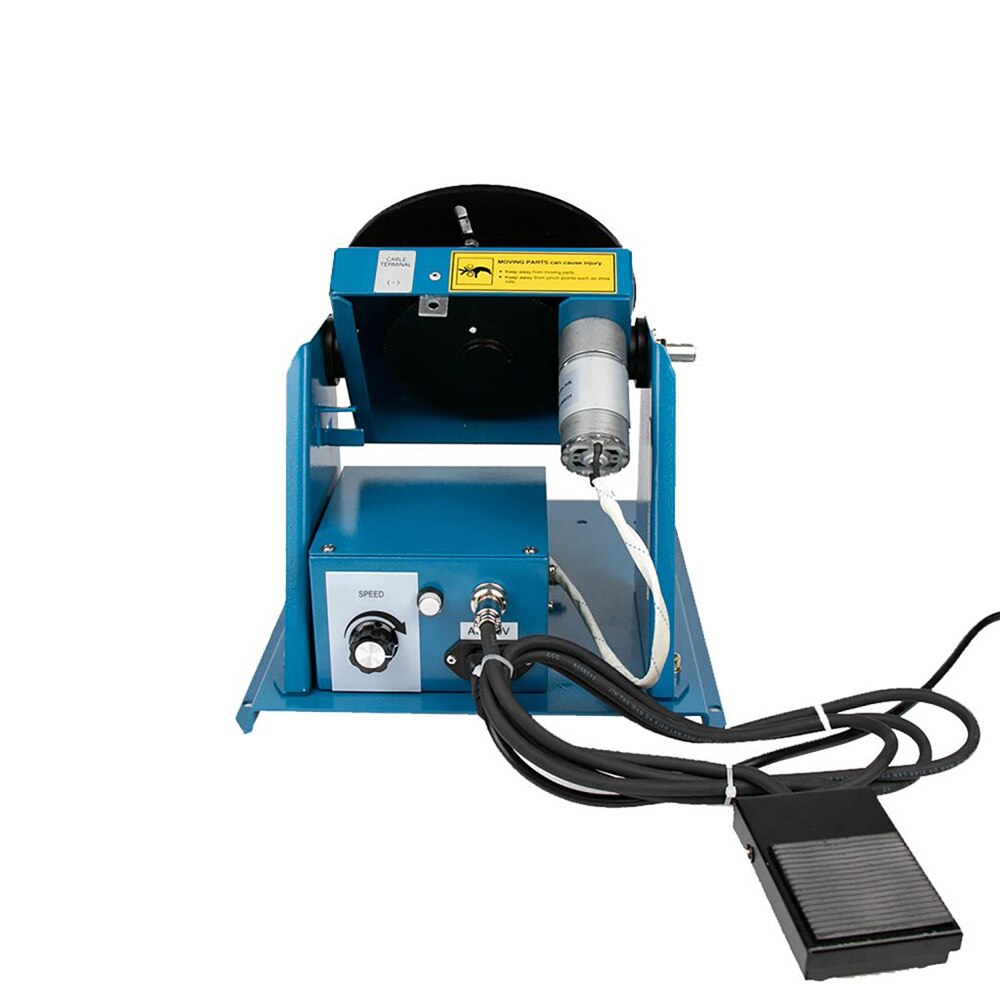

Foot pedal 1pcs

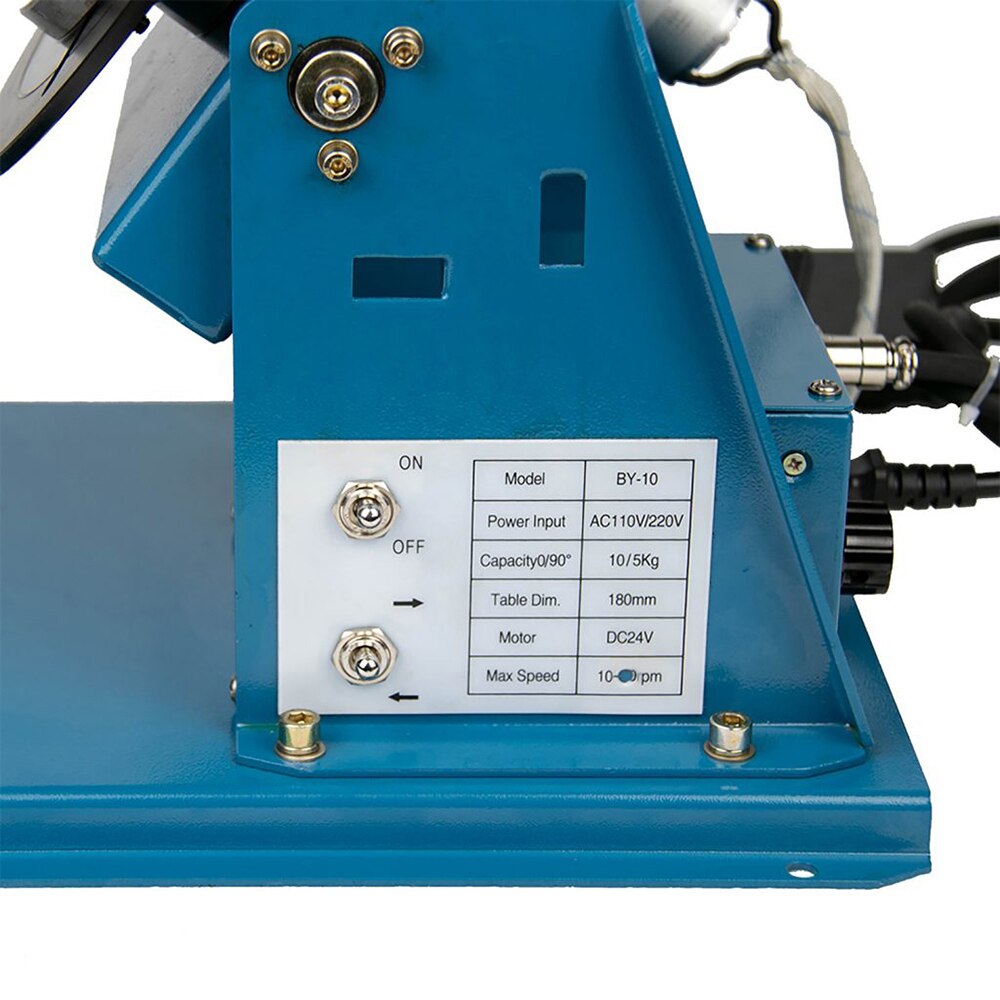

BY-10 Parameter:
1、Power input : AC 220V 50/60Hz

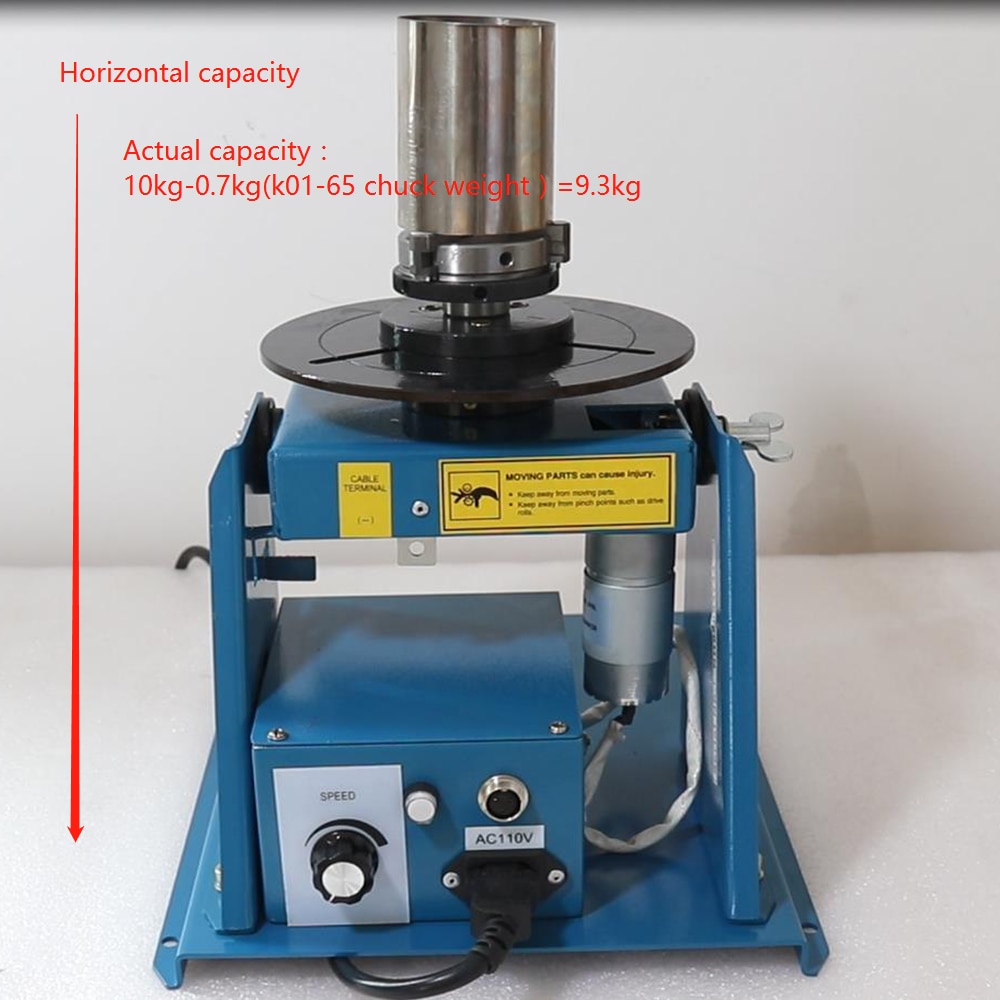

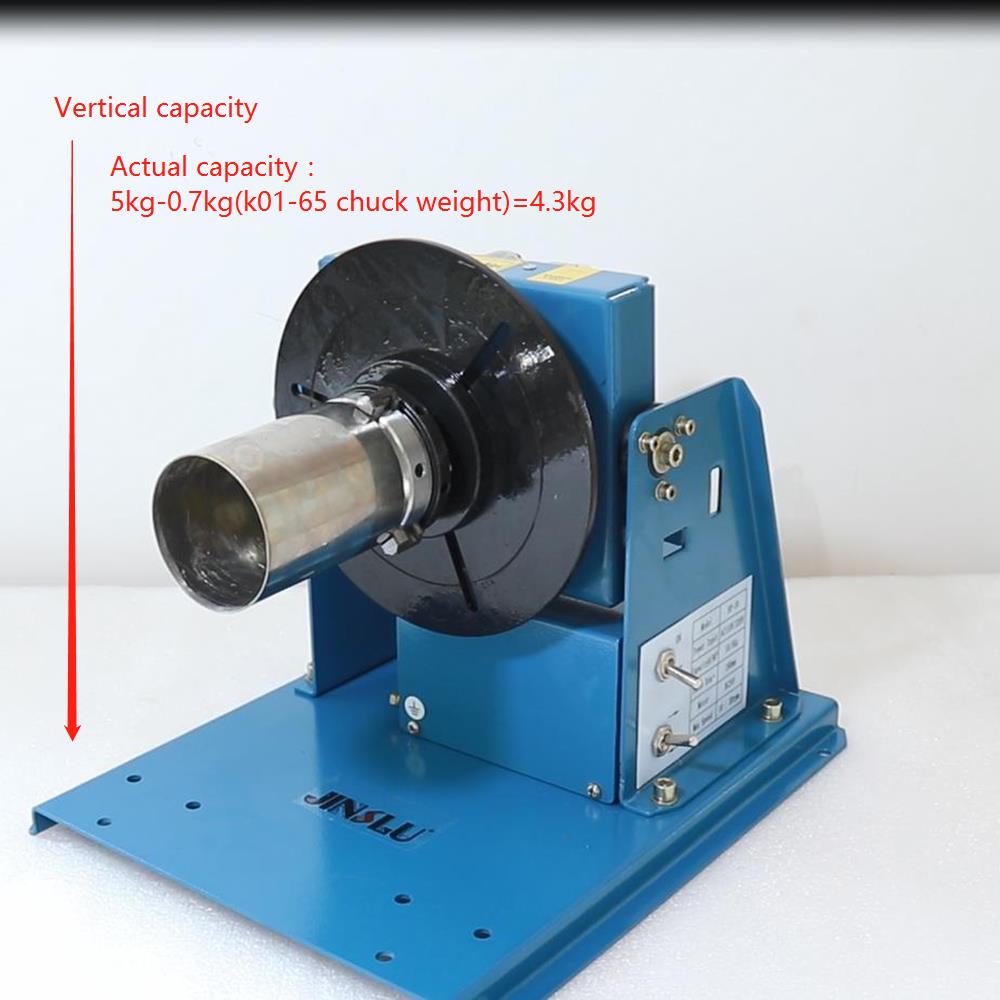

2、Capacity(horizontal/vertical):10kg/5kg
3、Table dimension: 180mm
4、Table height:215mm
5、Rotation speed :2-10rpm
6、Tilt range :0-90°
7、Tilt mode :manual
8、Drive motor :20W
9、Over dimension :370*270*215mm
Instruction:
The rotation structure is driven by name-brand DC motor, while stepless speed regulation can be achieved
The tile range of rotary table is 0~90, worker can set the shaft, so the welding at arbitrary angle can be achieved.
Special design of anti-electromagnetic, which reduce the high frequency interference of TIG’S welding, at the same time can improve the welding quality effectively.
A time- controller can be furnished to control the working condition and working time, which can achieve the linkage of the positioner and welder.
The adjustable-welding gun support can be furnished to fix the position of the welding torch.
The welding chuck and air-powered tailstack can be furnished to achieve the function of self holding to the workpiece.

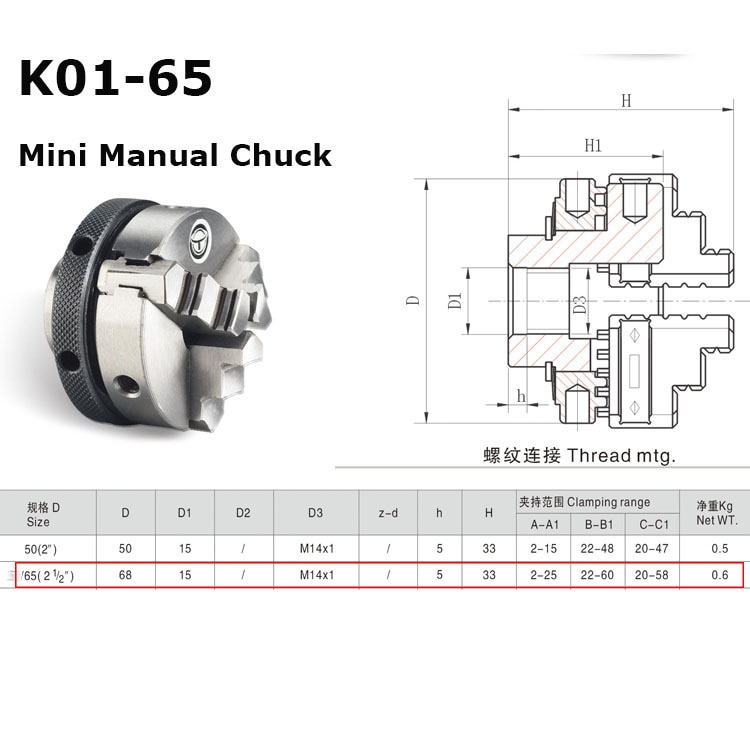

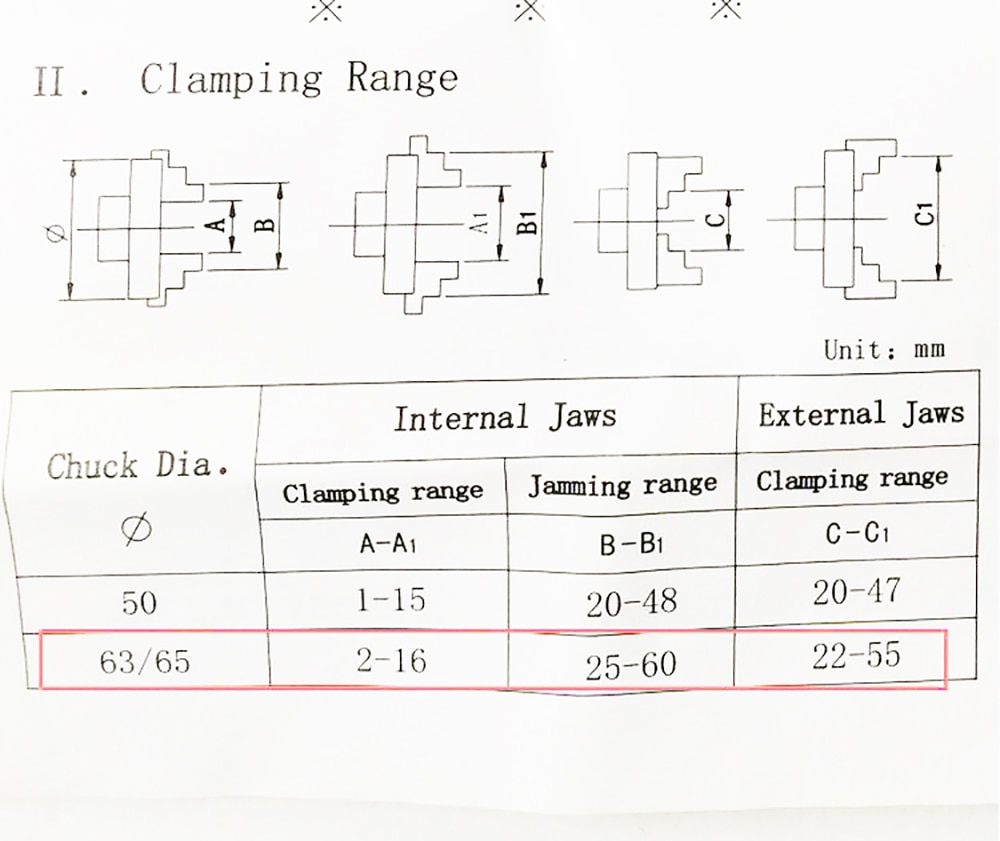

The chuck clamp range:
Summary Of Our Selling Policies | |
Payment | Please note we also accept the wire transfer, western union, Paypal and others. |
Shipping | USA, 7 to 13 business days |
Canada, 15 to 20 business days | |
Austrralia, West Europe 20 to 45 business days | |
Other Country: 30-60 business days --------------------------------------------------------------------------------------------------------------------------- | |
The item will be dispatched in 3-5days after received payment in usual, if any | |
For the cost of combined shipping, please contact us for further negotiation. | |
If you don't have tracking number in 5 days after your payment, please contact us. | |
Please contact us if you have any difficulty in getting your items after promised working days. --------------------------------------------------------------------------------------------------------------------------- | |
Import duty | Import duties, taxes and other charges are not included in the item price or shipping charges. |
Please check with your country's customs office to determine what these additional costs will | |
Return Policy | Return is available only within 7 days after received item. |
In the unlikely event that a return is requested, please contact us -------------------------------------------------------------------------------------------------------------------------- | |
All returns must include all original items undamaged, in re-saleable condition, all original | |
Shipping and handling fees are not refundable. | |
Buyer is responsible for safety and shipping costs of returned product. --------------------------------------------------------------------------------------------------------------------------- | |
Contact us | We maintain high standards of excellence and strive for 100% customer satisfaction! |
--------------------------------------------------------------------------------------------------------------------------------------------------------
- Usage: welding pipe
- Weight: 10.5KG
- Dimensions: 37*27*22cm
- Tube Diameter: -
- Model Number: BY-10
- Brand Name: JINSLU
- Origin: Mainland China
- Certification: NONE
- is_customized: Yes
