220V AC EU Digital LCD Power Meter Wattmeter Socket Wattage Kwh Energy Meter FR US UK AU BR Measuring Outlet Power Analyzer
4.9 (1069 votes) | 2963 orders
Price:
US $28.54 - 29.49
/ piece
Discount Price:
US $
24.90 -
25.72
/ piece
-13%
- Ships From
- Color
-
-
220V AC EU Digital LCD Power Meter Wattmeter Socket Wattage Kwh Energy Meter FR US UK AU BR Measuring Outlet Power Analyzer
EU: European specifications,most European and international can be used, some cannot beused, such as France
US: American specifications
AU: Australian specifications
FR: French specification
UK: British specifications
BR: Brazilian specification
Specifications:
The dial display is all in English

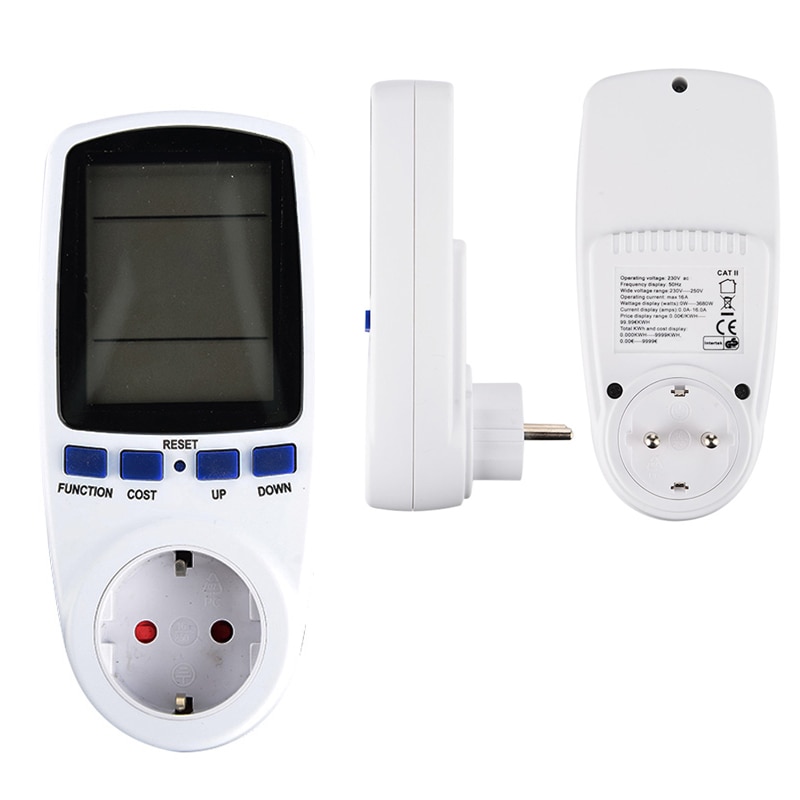

EU
Voltage: 230V ~ 250V
Current: MAX13A
Power: 0.0W ~ 3680W
Frequency: 50HZ
Electricity: 0.000KWH ~ 9999KWH
Unit price: 0.00 ~ 99.99
Amount of electricity fee: 0.00 ~ 99.99
Overload alarm: When the current exceeds 16A or the power exceeds 3680W, the "overload alarm" icon flashes.
When the detected power value is less than 1.0W, it is regarded as local power consumption, and the time is not accumulated.
Working current: ≤16A
Measurement accuracy: ± 2%
US
Voltage: 120V
Current: MAX15A
Power: 0.0W ~ 1800W
Frequency: 60HZ
Electricity: 0.000KWH ~ 9999KWH
Unit price: 0.00 ~ 99.99
Amount of electricity fee: 0.00 ~ 99.99
Overload alarm: When the current exceeds 15A or the power exceeds 1800W, the "overload alarm" icon flashes.
When the detected power value is less than 1.0W, it is regarded as local power consumption, and the time is not accumulated.
Working current: ≤15A
Measurement accuracy: ± 2%

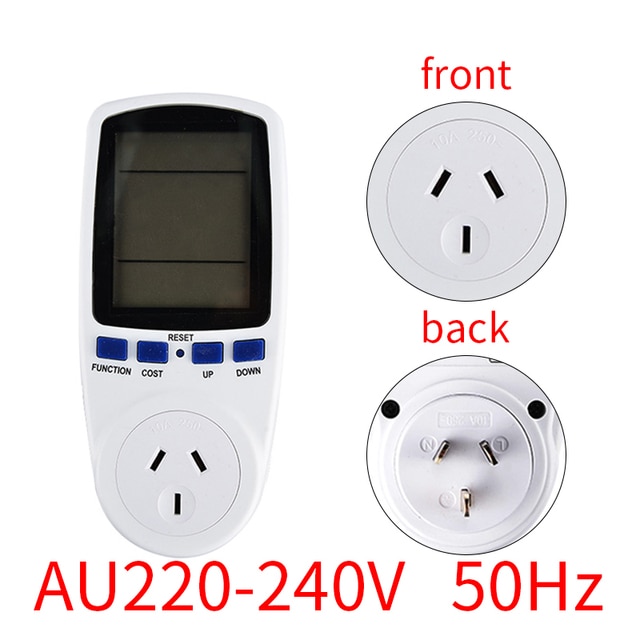

AU
Voltage: 240V
Current: MAX10A
Power: 0.0W ~ 2400W
Frequency: 50HZ
Electricity: 0.000KWH ~ 9999KWH
Unit price: 0.00 ~ 99.99
Amount of electricity fee: 0.00 ~ 99.99
Overload alarm: When the current exceeds 10A or the power exceeds 2400W, the "overload alarm" icon flashes.
When the detected power value is less than 1.0W, it is regarded as local power consumption, and the time is not accumulated.
Working current: ≤10A
Measurement accuracy: ± 2%

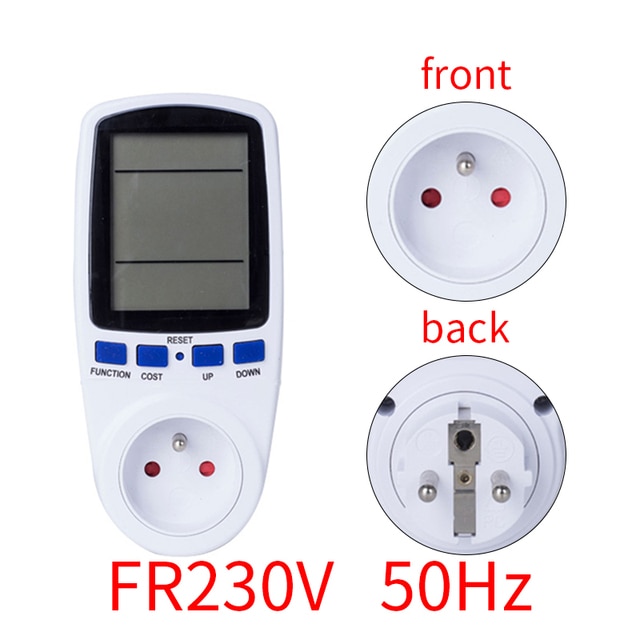

FR
Voltage: 230V
Current: MAX16A
Power: 0.0W ~ 3680W
Frequency: 50HZ
Electricity: 0.000KWH ~ 9999KWH
Unit price: 0.00 ~ 99.99
Amount of electricity fee: 0.00 ~ 99.99
Overload alarm: When the current exceeds 16A or the power exceeds 3680W, the "overload alarm" icon flashes.
When the detected power value is less than 1.0W, it is regarded as local power consumption, and the time is not accumulated.
Working current: ≤16A
Measurement accuracy: ± 2%

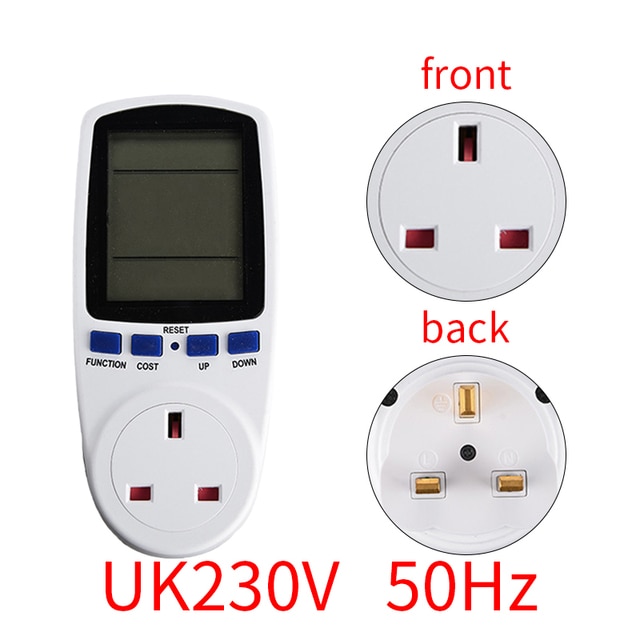

UK
Voltage: 230V
Current: MAX13A
Power: 0.0W ~ 2900W
Frequency: 50HZ
Electricity: 0.000KWH ~ 9999KWH
Unit price: 0.00 ~ 99.99
Amount of electricity fee: 0.00 ~ 99.99
Overload alarm: When the current exceeds 13A or the power exceeds 2900W, the "overload alarm" icon flashes.
When the detected power value is less than 1.0W, it is regarded as local power consumption, and the time is not accumulated.
Working current: ≤13A
Measurement accuracy: ± 2%
Instructions

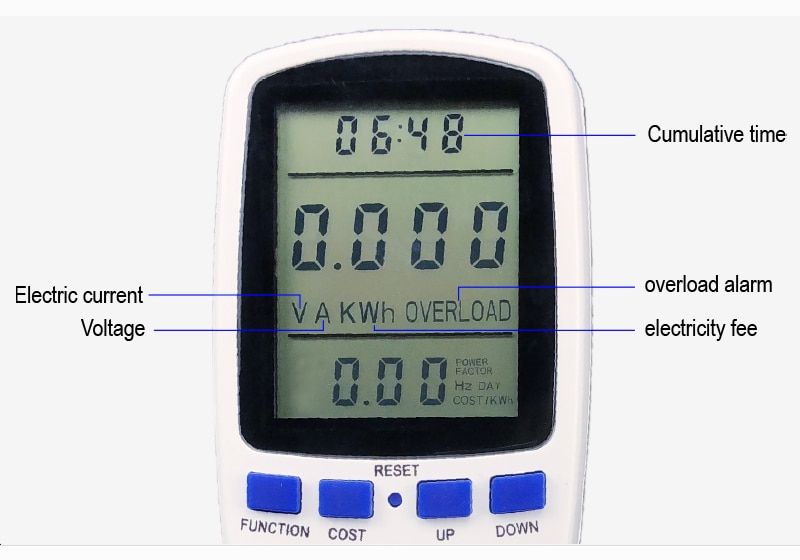

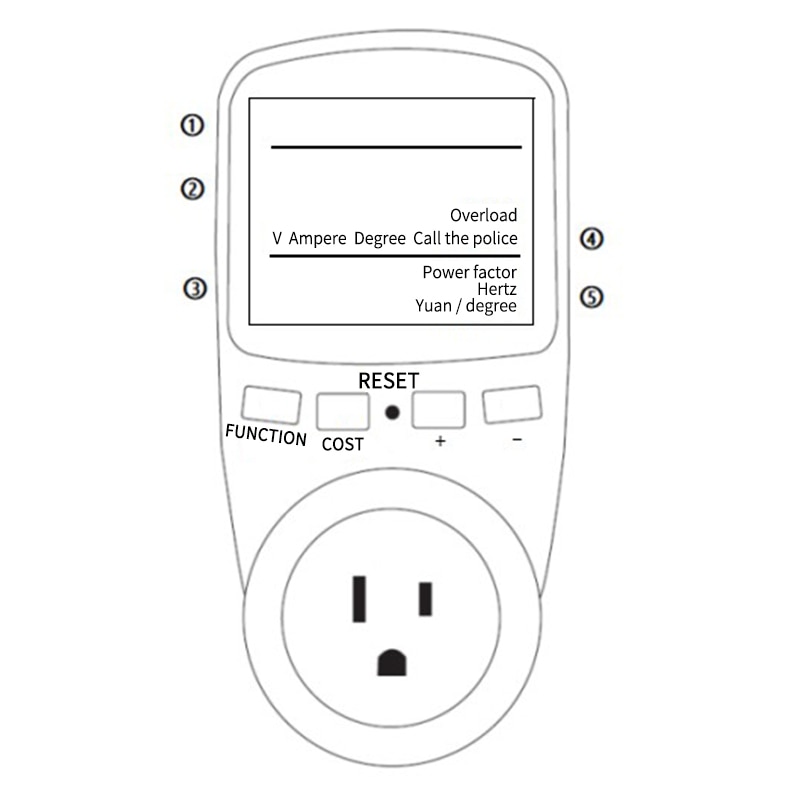

① Time display bar; ② Voltage / current / power / power consumption value; ③ Power factor / frequency / electricity value; ④ Volt: voltage; Ampere: current; (Kwh) degrees: electricity consumption; Watts: power; Overload alarm: Power overload reminder. ⑤ Power factor: the ratio of active power to apparent power; Hertz: AC frequency; Days: cumulative days of electricity consumption; Yuan: the total amount of power consumption; Degree: Cumulative electricity consumption; Yuan / degree: unit price of electricity.

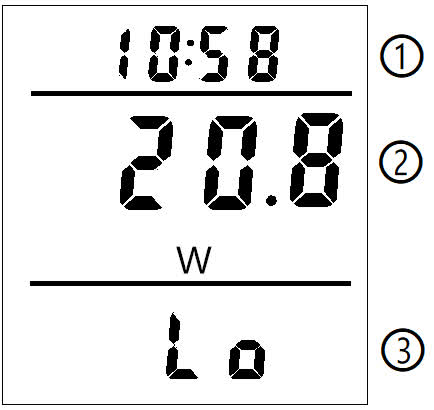

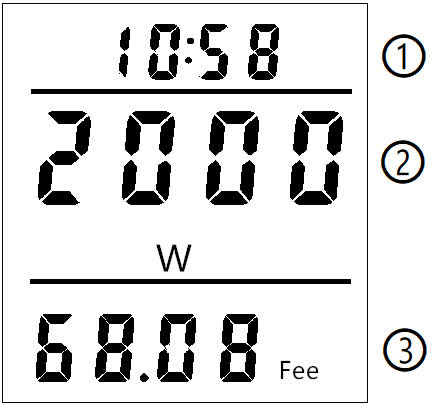

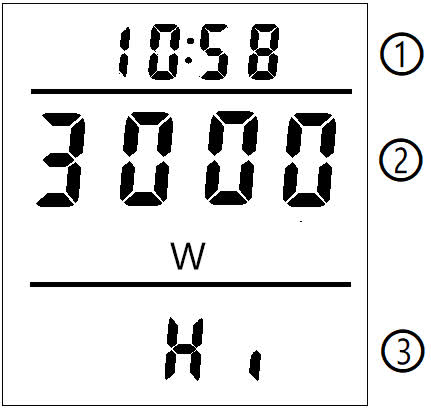

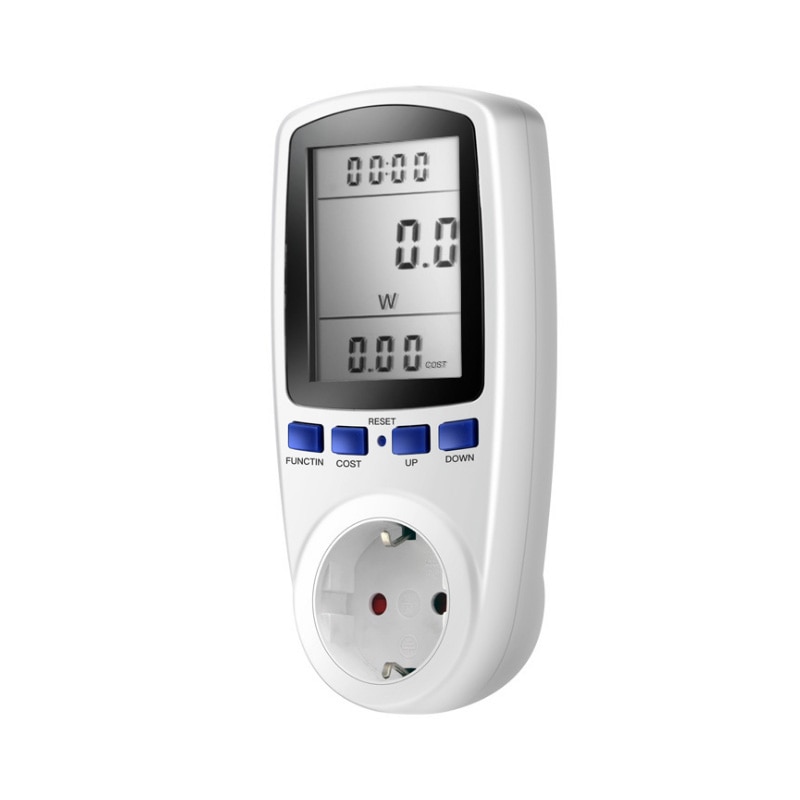

Page one: ① Running time: cumulative running time of electrical appliances, after 24 hours, days + 1; ② Current power: the actual power of the electrical appliance connected to it, in watts; ③ Cumulative electricity cost: as of now, the cost has been consumed, unit yuan.

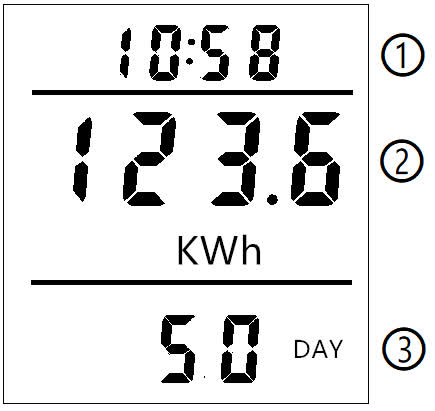

Page two: ① Running time ② Cumulative power consumption: as of now, the cumulative power consumption, in units of degrees; ③ Cumulative time: the cumulative number of days of operation with electrical appliances, in units of days.

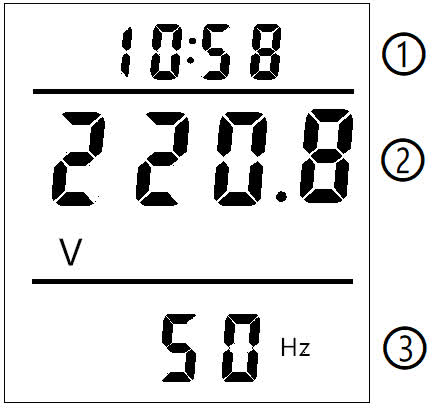

Page three: ① Running time ② Grid voltage: the current real-time voltage of the grid, in volts; ③ Grid frequency: Grid AC frequency, in hertz.
Page four: ① Running time ② Real-time current: the real-time current of the electrical appliance connected to it, in amperes ③ Power factor: the power factor of the electrical appliance connected to it
Page five: ① Running time ② Minimum power: the minimum power recorded during operation, in watts.
Page 6: ① Running time ② Maximum power: the maximum power recorded during operation, in watts

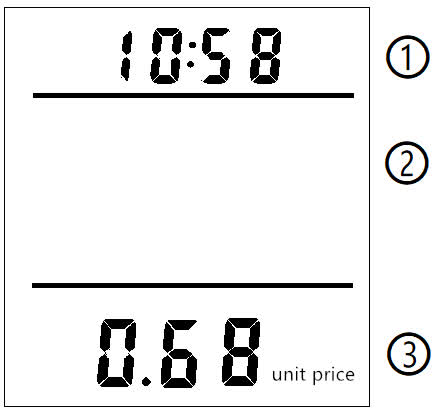

Page 7: ① Running time ③ Unit price of electricity: set unit price, unit yuan / degree

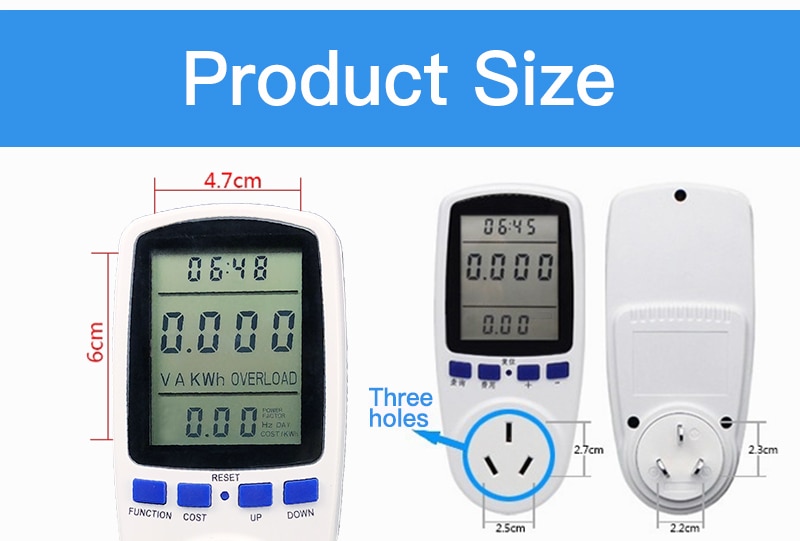

- Dimensions: 160*41*72mm
- Operating Temperature: 0~40℃
- Output Voltage: 250V
- Accuracy Class: ±2%
- Measuring Energy Range: 0-9999V
- Phase: single phase
- Model Number: Energy meter
- Max Operating Current: 19A & Under
- Rated Voltage: 230V
- Power Supply: AC
- Display Type: LCD
- DIY Supplies: ELECTRICAL
- Brand Name: CNKUBU
- Origin: Mainland China
- Certification: CE
- Function 1: Wattmeter
- Function 2: Power Meter
- Accuracy Class: High quality

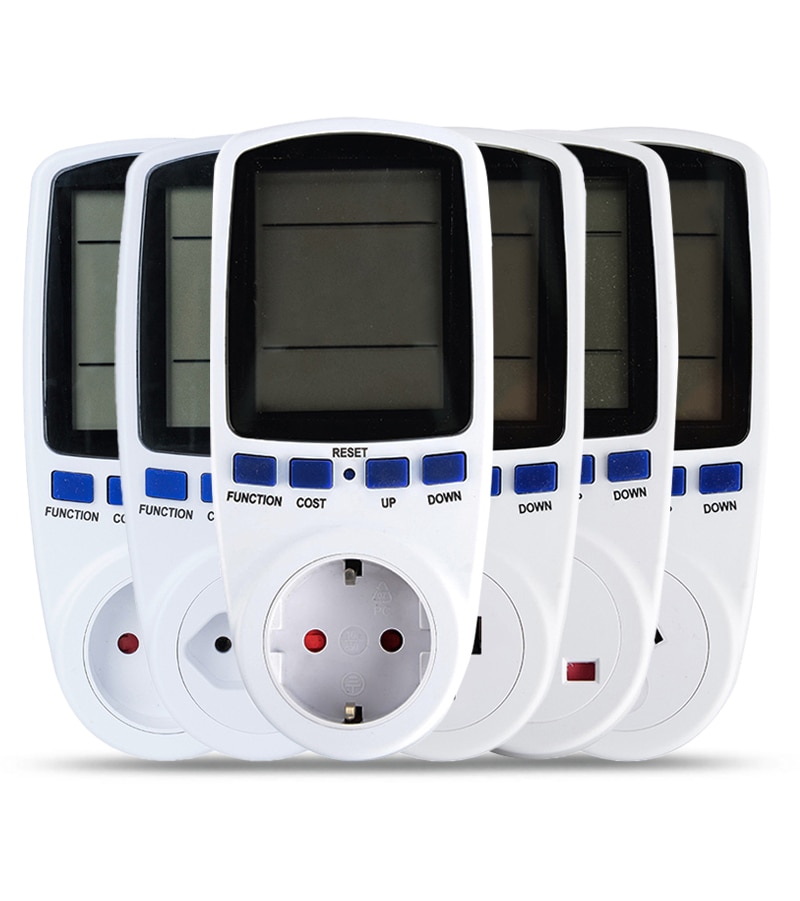

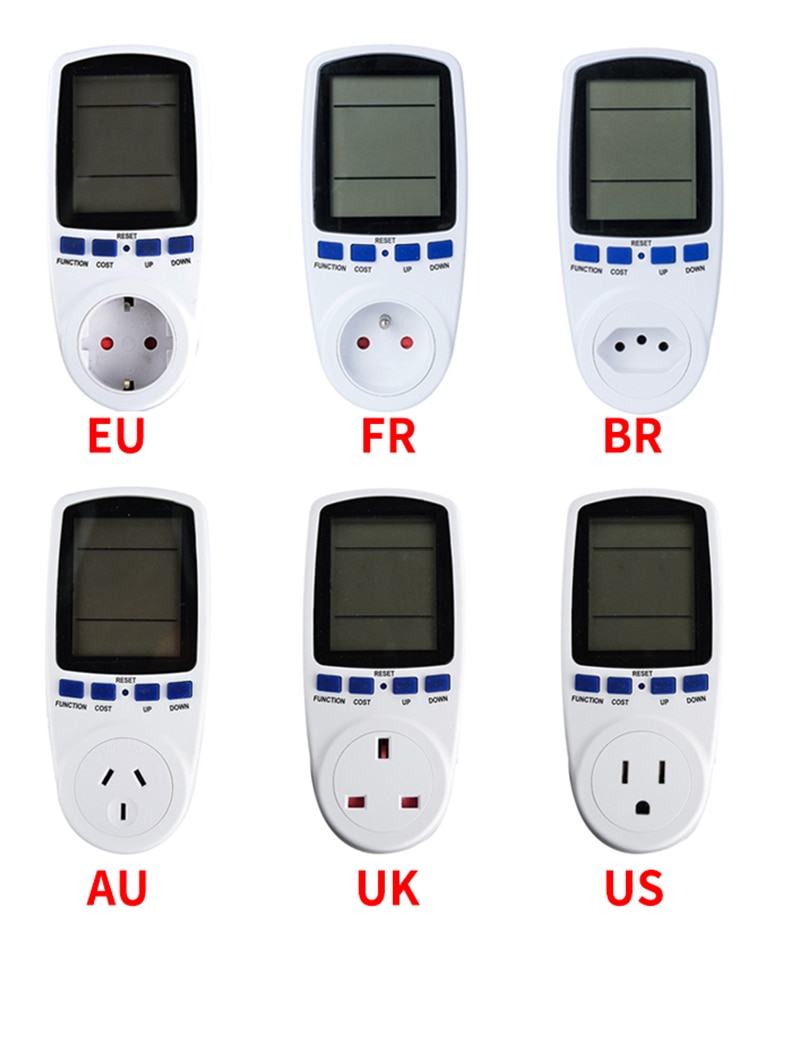

- Plug Type: EU UK US AU BR FR
- Color: White

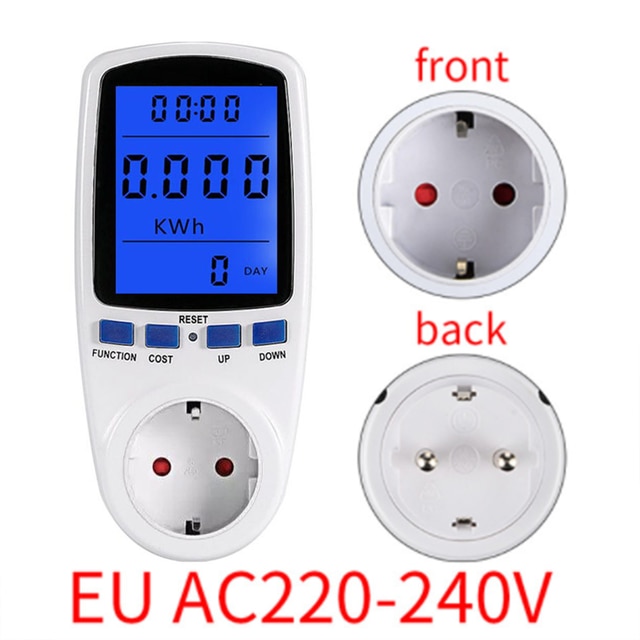

- EU: 230V 3680W 16A 50HZ

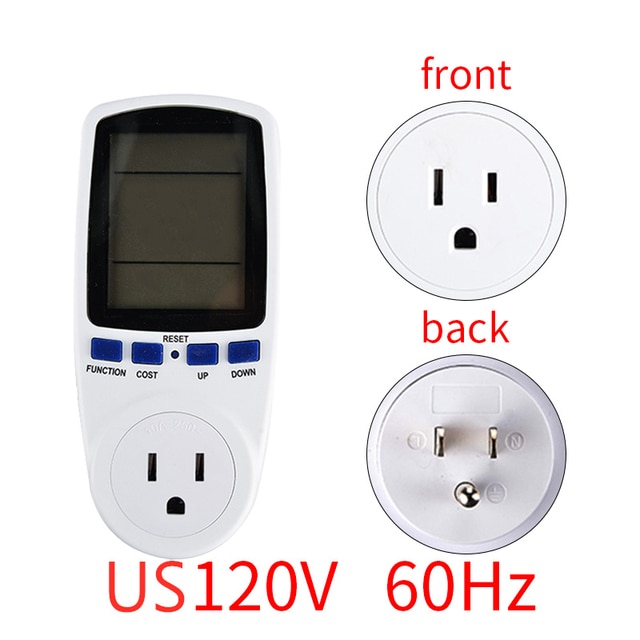

- US: 120V 1800W 15A 60HZ
- AU: 220V-240V 2400W 10A 50HZ
- FR: 230V 3680W 16A 50HZ
- UK: 230V 3680W 16A 50HZ

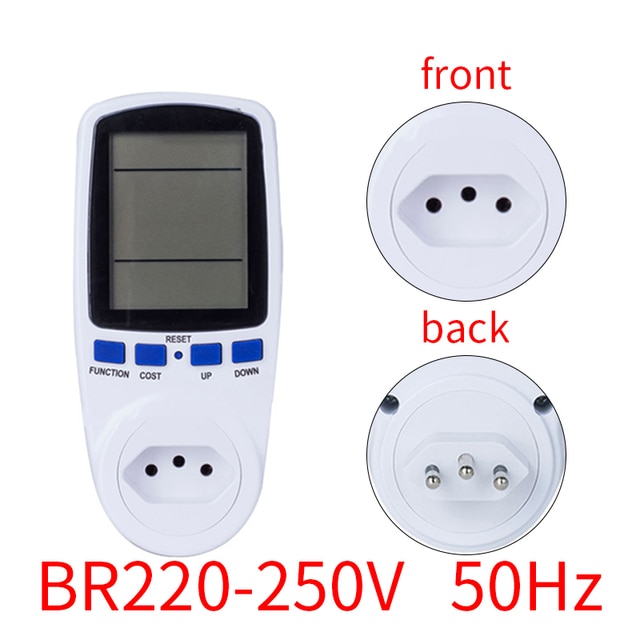

- BR: 220V-250V 50HZ
